zalati Lithium Battery Charging Module 10pcs 1A Power Input Modules Charging Board with Protection - Micro USB
zalati Lithium Battery Charging Module 10pcs 1A Power Input Modules Charging Board with Protection - Micro USB
zalati Lithium Battery Charging Module 10pcs 1A Power Input Modules Charging Board with Protection - Micro USB
Description: Specifications: Input voltage: 5 V. Charging limit voltage: 4.2 V ± 1%. Battery overcharge protection voltage: 2.5V Battery overcurrent protection current: 3A. Max output current: 1a. Precision charging: 1.5%. Power indicator: red for charging, green for fully charged. Maximum charge current: 1000 mA. High voltage protection: when the voltage is higher than 5V, the current is below 1000mAh. It automatically subtracts the charging current to avoid burn damage to the chip. Application: The module with USB port can be used directly as protection of the phone charger and still retains voltage input wiring cushions, which is convenient for DIY. It can be charged for single cell lithium batteries or parallel lithium batteries with multiple sections, can be powered by USB ports. It can be used for voltage 3.6, 3.7 V, etc. Polymer and other lithium battery charging and drain protection. Note: No installation instructions are included. If you are the first time for this job, we recommend that you can watch previously related videos on YouTube Installation.Tutorial Video: Please check all connections before charging. It will be directly damaged if the load port with wrong polarity is on positive and negative. The charging current is better 37% of the battery capacity. If you want to charge a battery of 1000 mAh, 400 mAh current is sufficient. If you use a phone charger to charge, the current input should be up to 1A or more than 1a, otherwise it cannot be in normal charging. Package: 10 x zalati lithium battery charging modules.
Product Features
- Input voltage: 5V; MAX output current: 1a; charging voltage: 4.2V 1%;

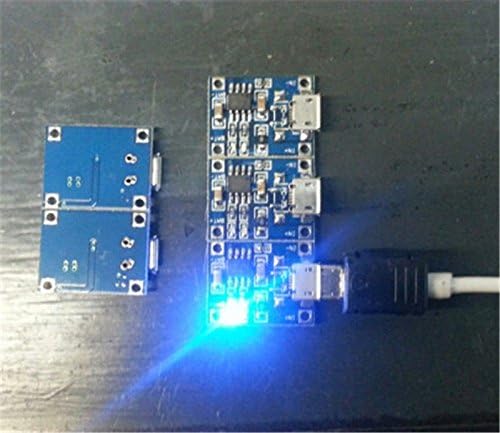

- Power indicator: red charging, green fully charged. If the discharge rate exceeds 3a or if there is a short circuit state, the module lowers the output from the battery.

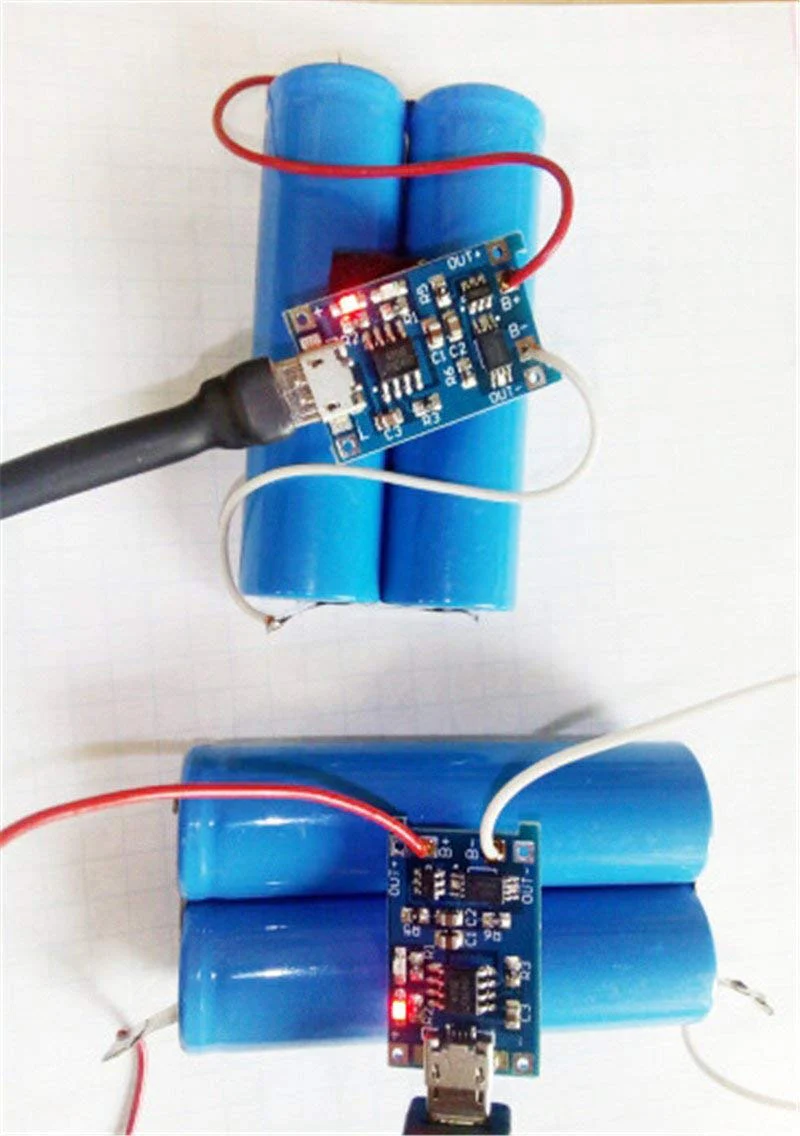

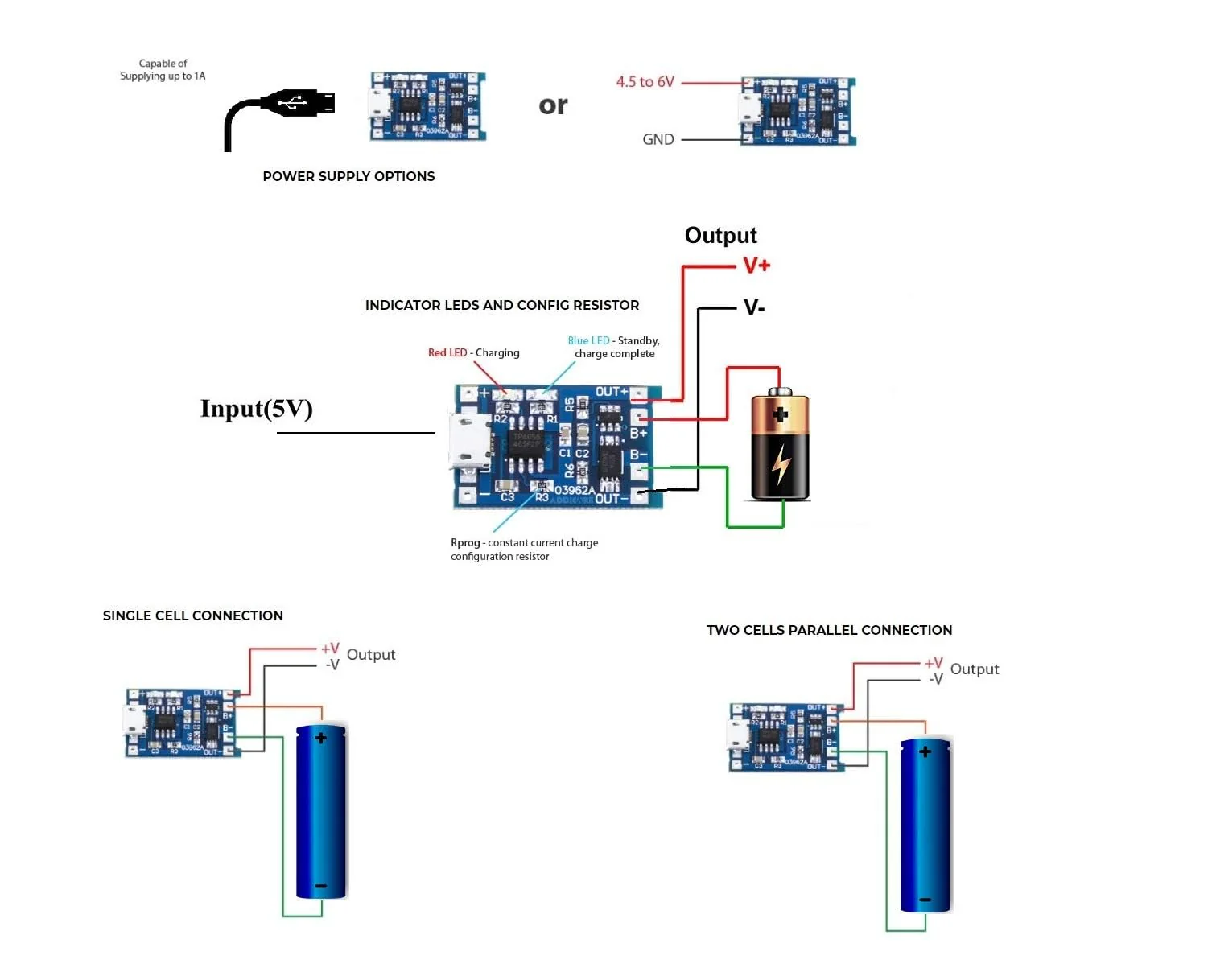

- Application It can charge single cell lithium batteries or parallel lithium batteries with multiple sections and be powered by USB ports. The module with a USB port can be entered directly with a rechargeable lithium battery as a phone charger and still retains voltage input wiring cushions suitable for DIY.
- Please check all connections before charging. It will be damaged if the load port with the wrong polarity is positive and negative. There is no included installation instructions. If you are doing this job for the first time, we recommend you watch a related video on YouTube before installation.
- Note: When the battery is connected for the first time, the protection circuit can be activated by charging it with a 5V voltage.
More Images
zalati Lithium Battery Charging Module 10pcs 1A Power Input Modules Charging Board with Protection - Micro USB
zalati Lithium Battery Charging Module 10pcs 1A Power Input Modules Charging Board with Protection - Micro USB
Description: Specifications: Input voltage: 5 V. Charging limit voltage: 4.2 V ± 1%. Battery overcharge protection voltage: 2.5V Battery overcurrent protection current: 3A. Max output current: 1a. Precision charging: 1.5%. Power indicator: red for charging, green for fully charged. Maximum charge current: 1000 mA. High voltage protection: when the voltage is higher than 5V, the current is below 1000mAh. It automatically subtracts the charging current to avoid burn damage to the chip. Application: The module with USB port can be used directly as protection of the phone charger and still retains voltage input wiring cushions, which is convenient for DIY. It can be charged for single cell lithium batteries or parallel lithium batteries with multiple sections, can be powered by USB ports. It can be used for voltage 3.6, 3.7 V, etc. Polymer and other lithium battery charging and drain protection. Note: No installation instructions are included. If you are the first time for this job, we recommend that you can watch previously related videos on YouTube Installation.Tutorial Video: Please check all connections before charging. It will be directly damaged if the load port with wrong polarity is on positive and negative. The charging current is better 37% of the battery capacity. If you want to charge a battery of 1000 mAh, 400 mAh current is sufficient. If you use a phone charger to charge, the current input should be up to 1A or more than 1a, otherwise it cannot be in normal charging. Package: 10 x zalati lithium battery charging modules.
Product Features
- Input voltage: 5V; MAX output current: 1a; charging voltage: 4.2V 1%;
- Power indicator: red charging, green fully charged. If the discharge rate exceeds 3a or if there is a short circuit state, the module lowers the output from the battery.
- Application It can charge single cell lithium batteries or parallel lithium batteries with multiple sections and be powered by USB ports. The module with a USB port can be entered directly with a rechargeable lithium battery as a phone charger and still retains voltage input wiring cushions suitable for DIY.
- Please check all connections before charging. It will be damaged if the load port with the wrong polarity is positive and negative. There is no included installation instructions. If you are doing this job for the first time, we recommend you watch a related video on YouTube before installation.
- Note: When the battery is connected for the first time, the protection circuit can be activated by charging it with a 5V voltage.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
zalati Lithium Battery Charging Module 10pcs 1A Power Input Modules Charging Board with Protection - Micro USB
Description: Specifications: Input voltage: 5 V. Charging limit voltage: 4.2 V ± 1%. Battery overcharge protection voltage: 2.5V Battery overcurrent protection current: 3A. Max output current: 1a. Precision charging: 1.5%. Power indicator: red for charging, green for fully charged. Maximum charge current: 1000 mA. High voltage protection: when the voltage is higher than 5V, the current is below 1000mAh. It automatically subtracts the charging current to avoid burn damage to the chip. Application: The module with USB port can be used directly as protection of the phone charger and still retains voltage input wiring cushions, which is convenient for DIY. It can be charged for single cell lithium batteries or parallel lithium batteries with multiple sections, can be powered by USB ports. It can be used for voltage 3.6, 3.7 V, etc. Polymer and other lithium battery charging and drain protection. Note: No installation instructions are included. If you are the first time for this job, we recommend that you can watch previously related videos on YouTube Installation.Tutorial Video: Please check all connections before charging. It will be directly damaged if the load port with wrong polarity is on positive and negative. The charging current is better 37% of the battery capacity. If you want to charge a battery of 1000 mAh, 400 mAh current is sufficient. If you use a phone charger to charge, the current input should be up to 1A or more than 1a, otherwise it cannot be in normal charging. Package: 10 x zalati lithium battery charging modules.
Product Features
- Input voltage: 5V; MAX output current: 1a; charging voltage: 4.2V 1%;
- Power indicator: red charging, green fully charged. If the discharge rate exceeds 3a or if there is a short circuit state, the module lowers the output from the battery.
- Application It can charge single cell lithium batteries or parallel lithium batteries with multiple sections and be powered by USB ports. The module with a USB port can be entered directly with a rechargeable lithium battery as a phone charger and still retains voltage input wiring cushions suitable for DIY.
- Please check all connections before charging. It will be damaged if the load port with the wrong polarity is positive and negative. There is no included installation instructions. If you are doing this job for the first time, we recommend you watch a related video on YouTube before installation.
- Note: When the battery is connected for the first time, the protection circuit can be activated by charging it with a 5V voltage.
