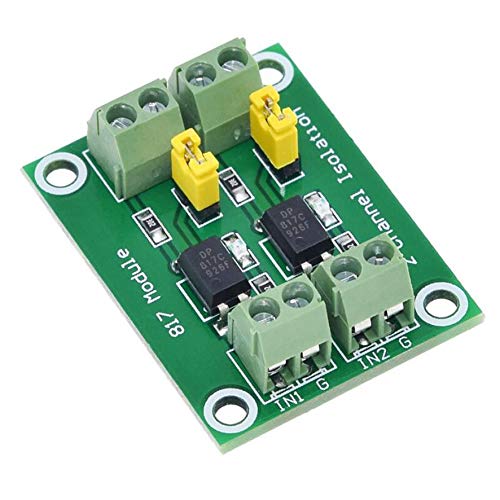

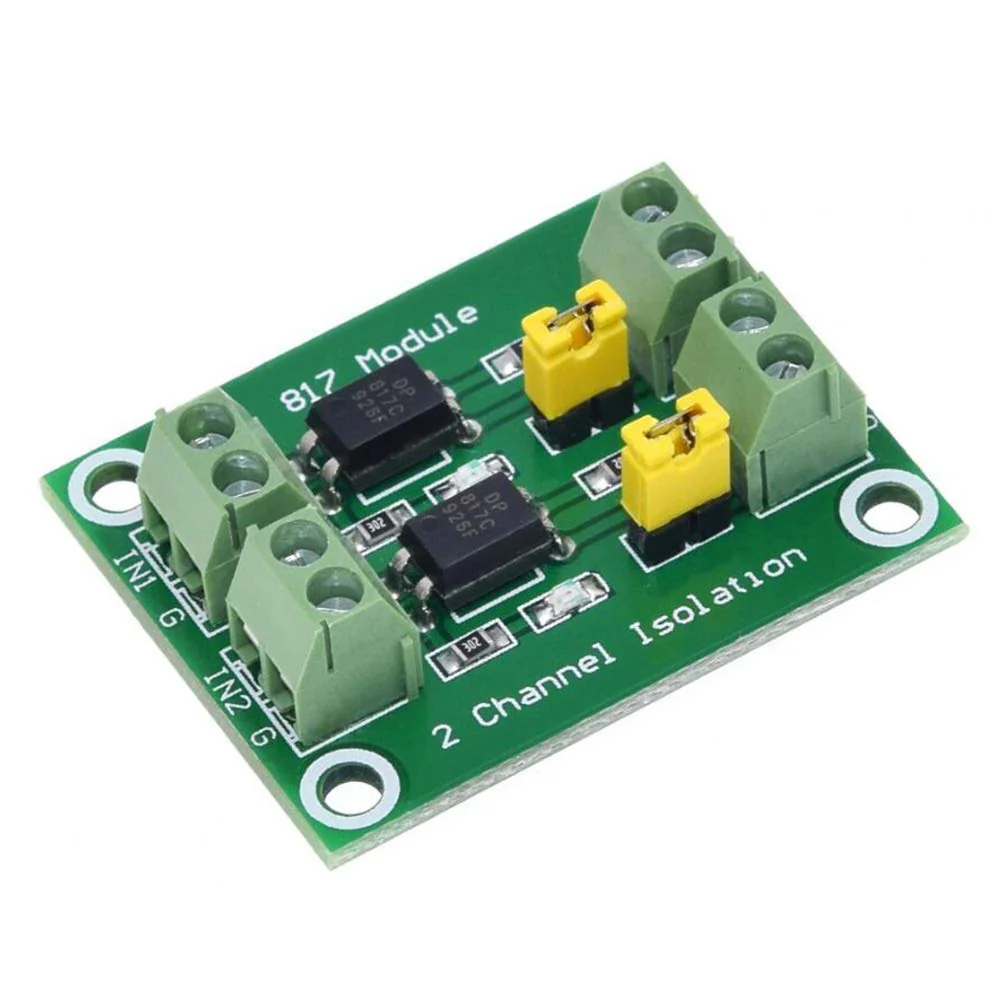

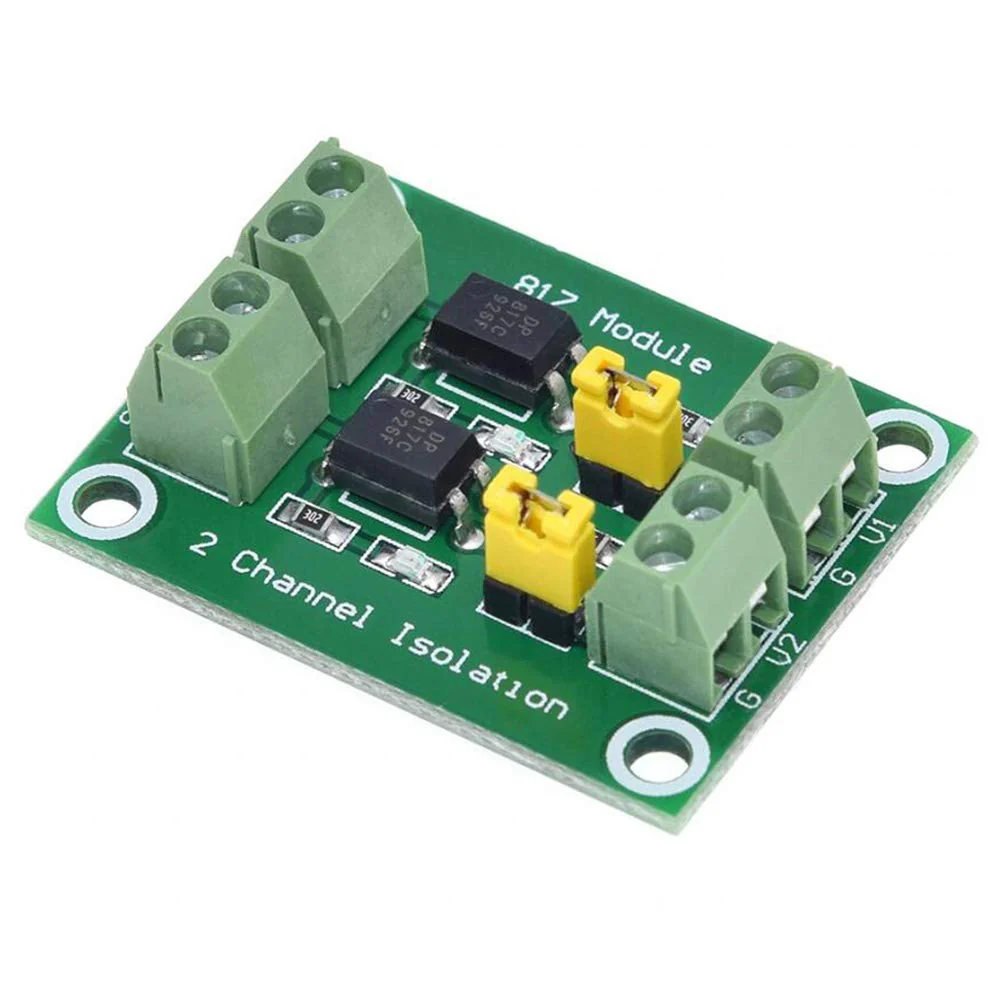

Youmile Pack of 5 PC817 2 Channel Optocoupler Insulation Board Voltage Converter 3.6-30V Driver Photoelectric Insulated Module with 24AWG Cable 2 channels

Youmile Pack of 5 PC817 2 Channel Optocoupler Insulation Board Voltage Converter 3.6-30V Driver Photoelectric Insulated Module with 24AWG Cable

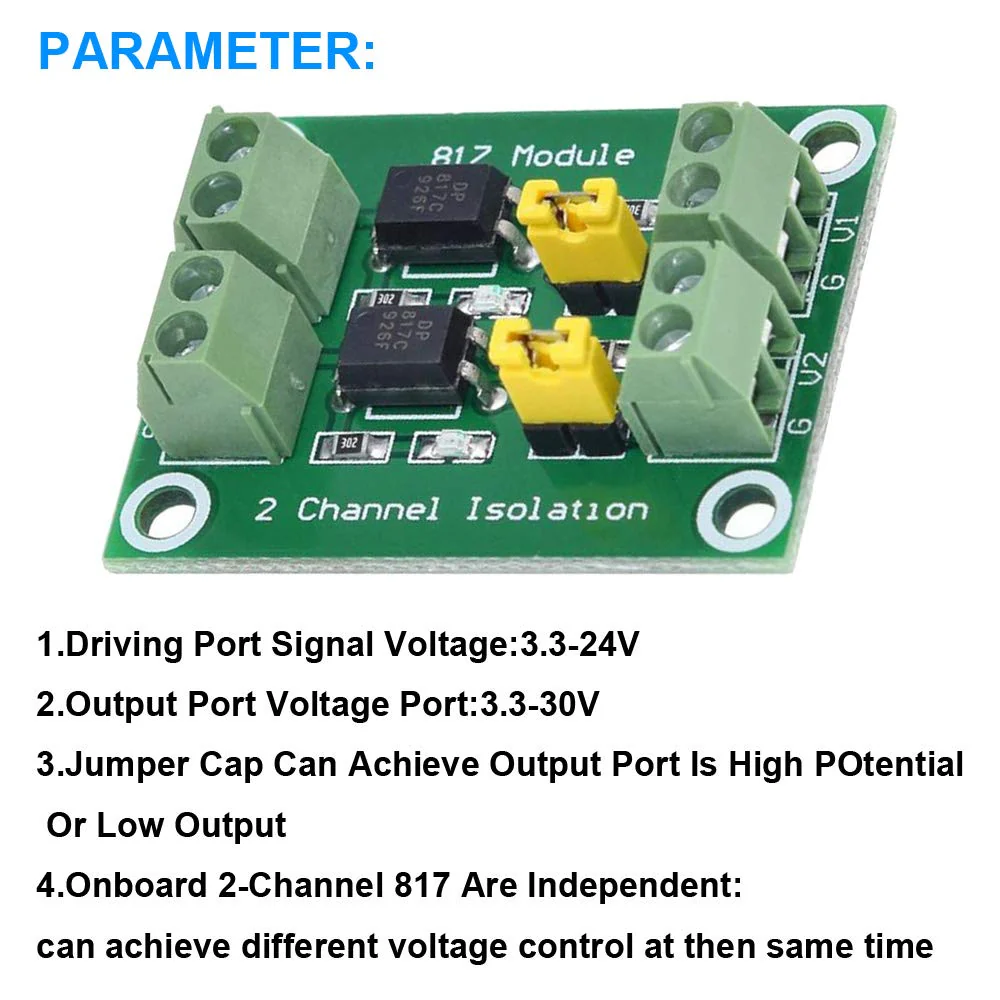

Description: 1. Driving port signal voltage: 3.3-24 V. Output voltage range: 3.6-30V (the output current depends on the specific situation but not over 10MA. When the total power is fixed, the voltage and current are inversely proportional) 3. Jumper cap can achieve output port is high potential or low output. 4.Onboard 2-Channel 817 Are Independent:can achieve different voltage control at then same time. Note: The input port is shared with GND; The output ports are independent of each other; It is optocoupler output.V and G will be connected after input valid signa in input port Package includes: 5 x PC817 2 channel optocoupler insulation board. 1 x 19.6inch/50cm 24AWG Wire

Product Features

• Voltage of the drive connection: 3.3-24V; Output voltage range: 3.6-30V (The output current depends on the situation, but not above 10mA. When the total power is fixed, voltage and current are inversely proportional)

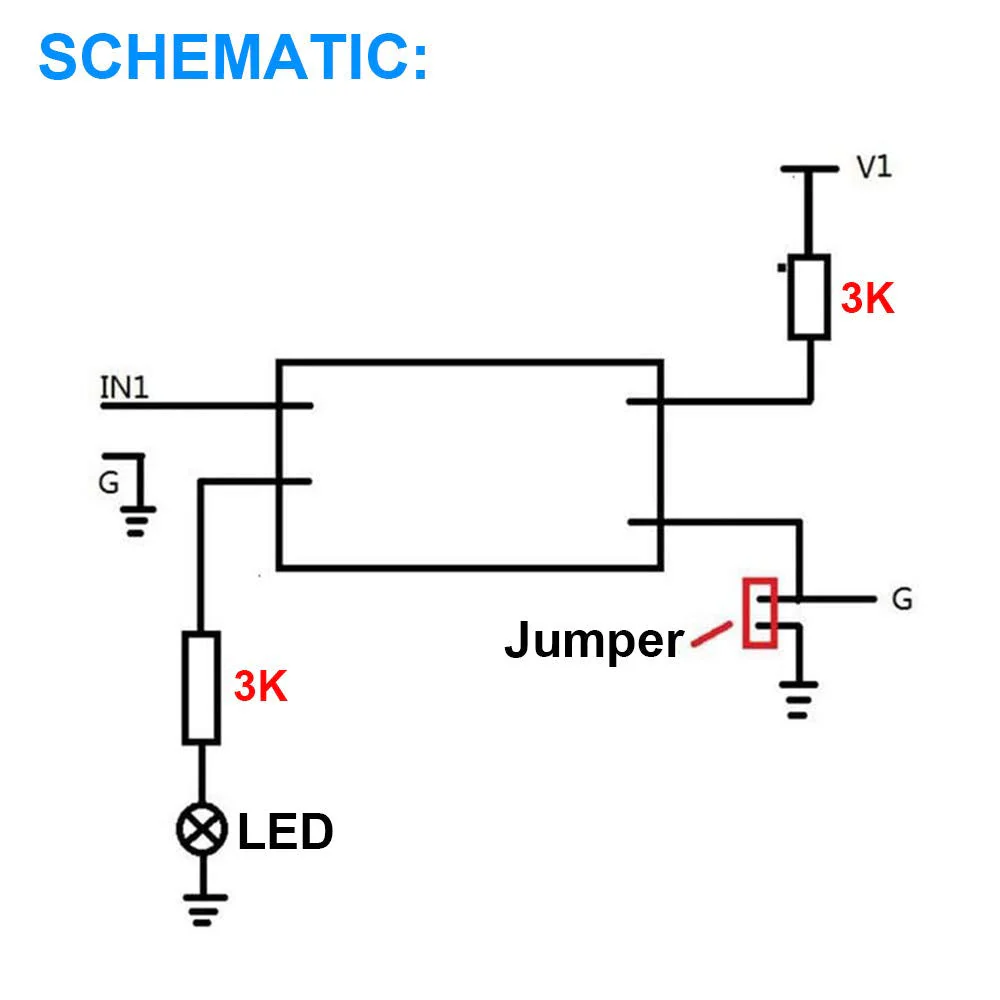

• Jumper cap can achieve that the output connection is high potential or low
• Onboard 2-channel 817 are independent: can achieve a different voltage control at the same time
• If this is a pulse signal, please note that the limit value of 817 is below 3 kHz. If the control signal is greater than 3KHz, please do not use this module, it does not work properly.

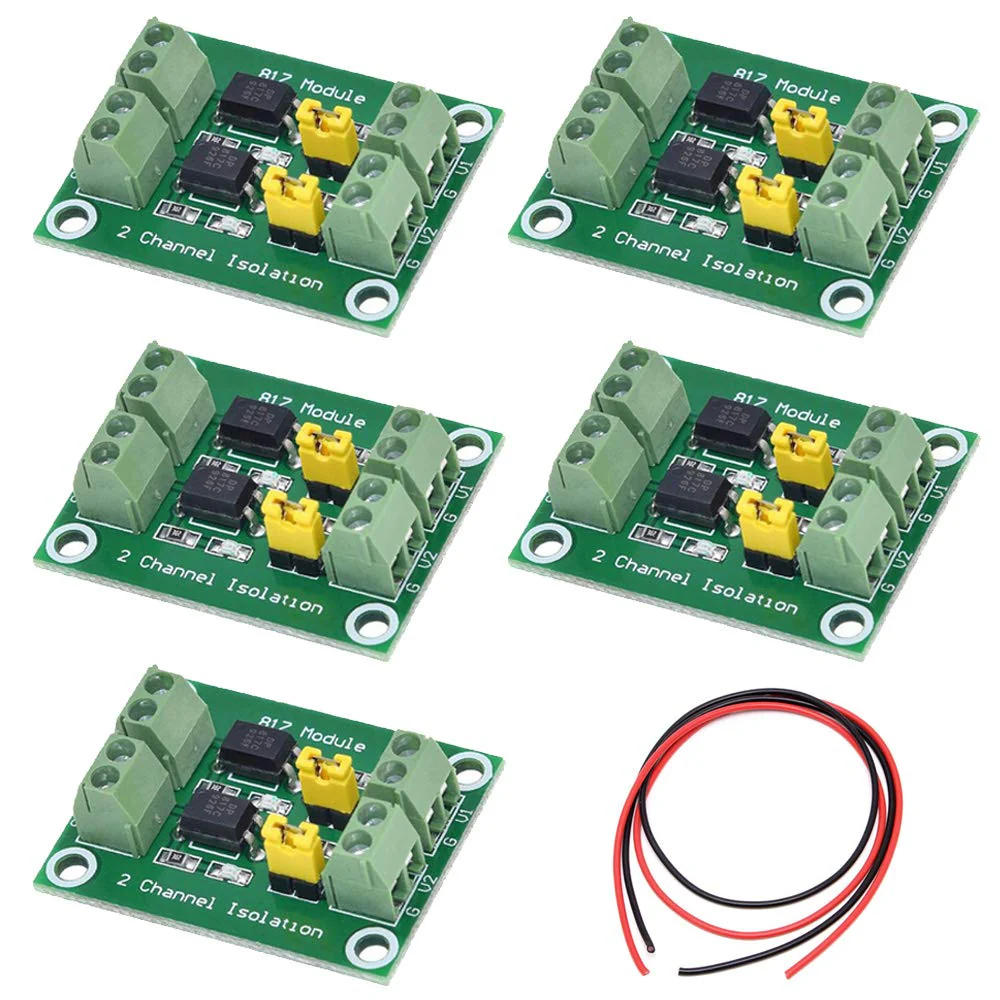

• Package Content:5 x PC817 2 Channel Optocoupler Insulation Board,1 x 19.6" 24AWG Cable
