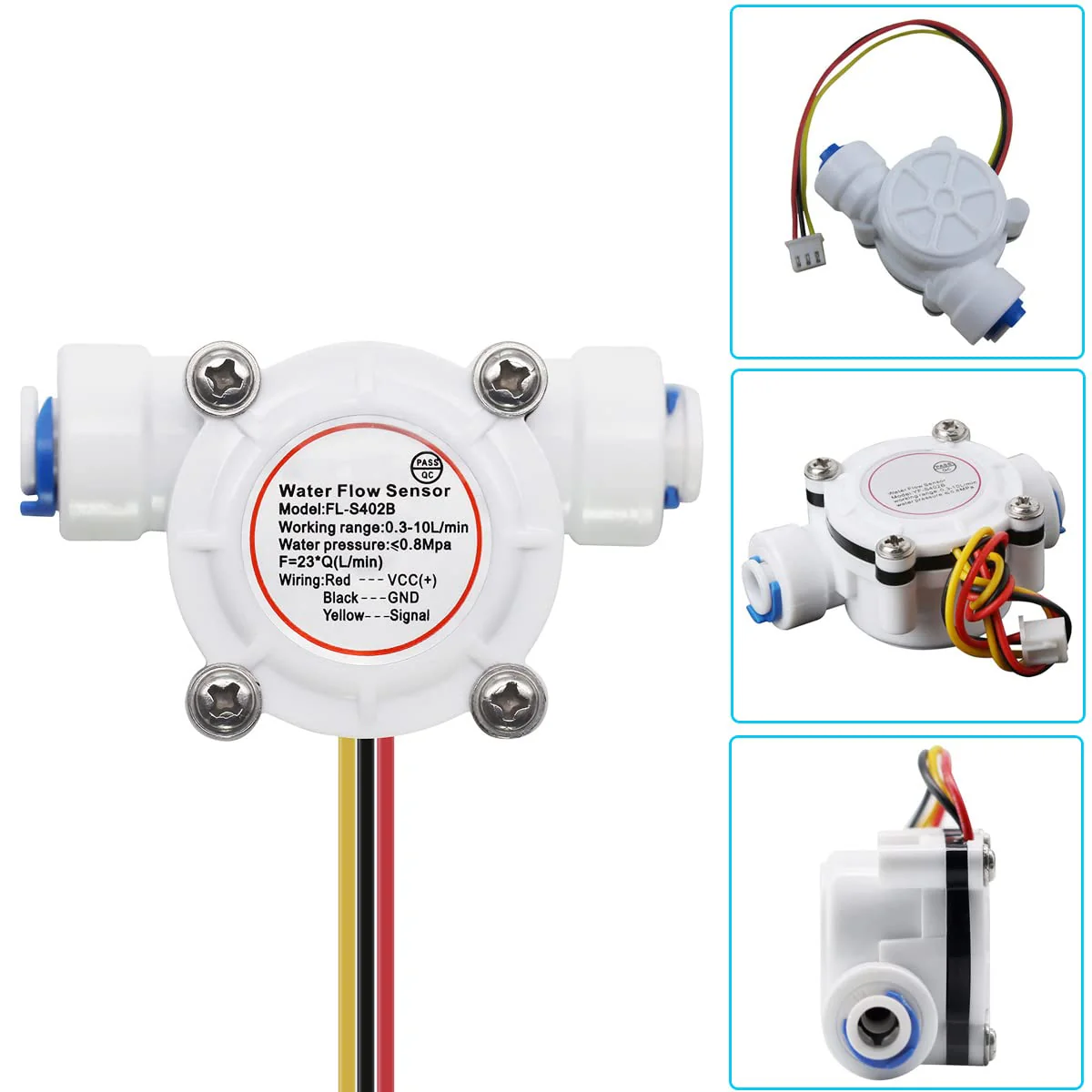

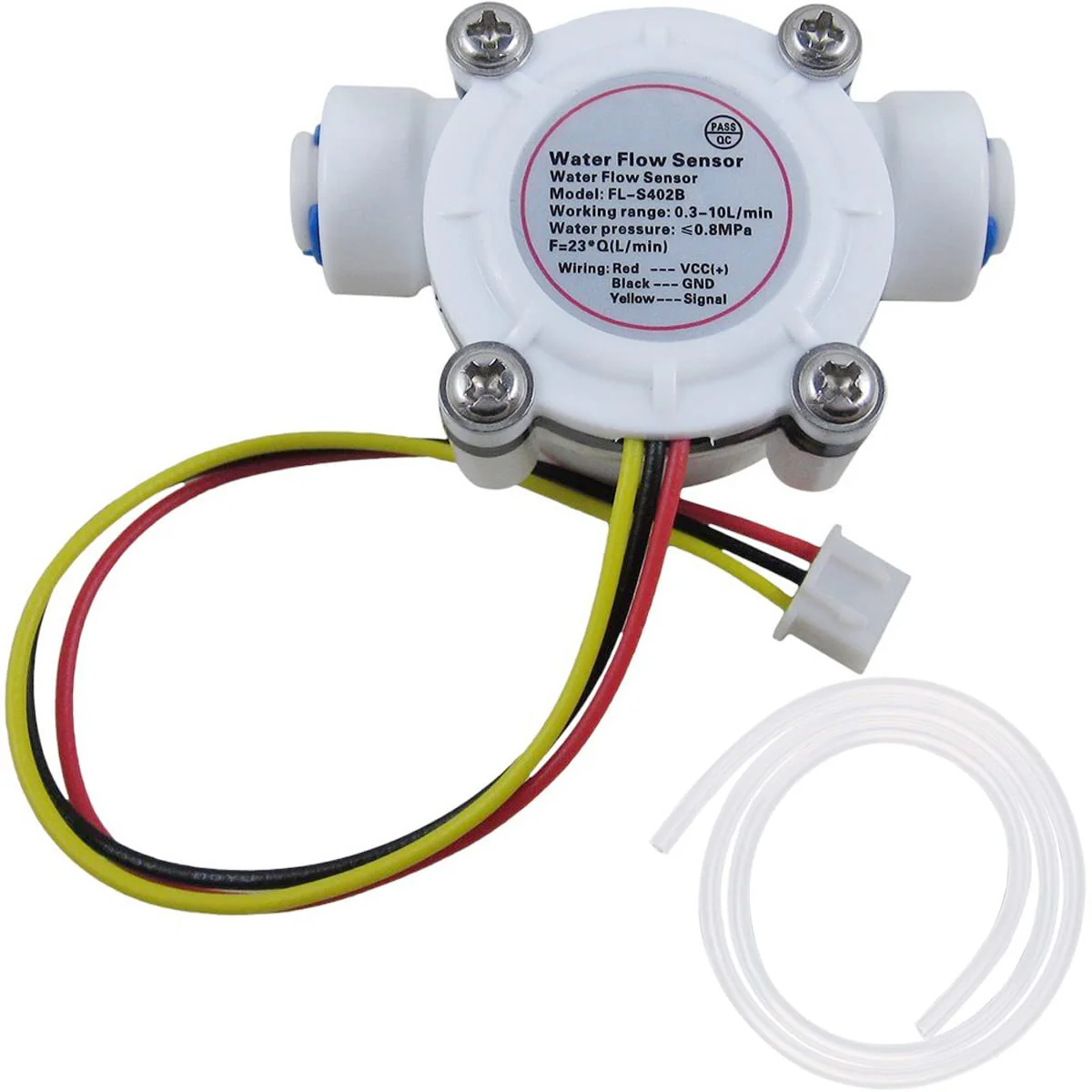

Youmile G1/4" Quick Connect Hall Effect Sensor Water Flow Sensor YF-S402B 0.3-10L/min Water Hall Effect Flow Sensor with Silicone Hose 6mm ID
Youmile G1/4" Quick Connect Hall Effect Sensor Water Flow Sensor YF-S402B 0.3-10L/min Water Hall Effect Flow Sensor with Silicone Hose 6mm ID
Youmile G1/4" Quick Connect Hall Effect Sensor Water Flow Sensor YF-S402B 0.3-10L/min Water Hall Effect Flow Sensor with Silicone Hose 6mm ID

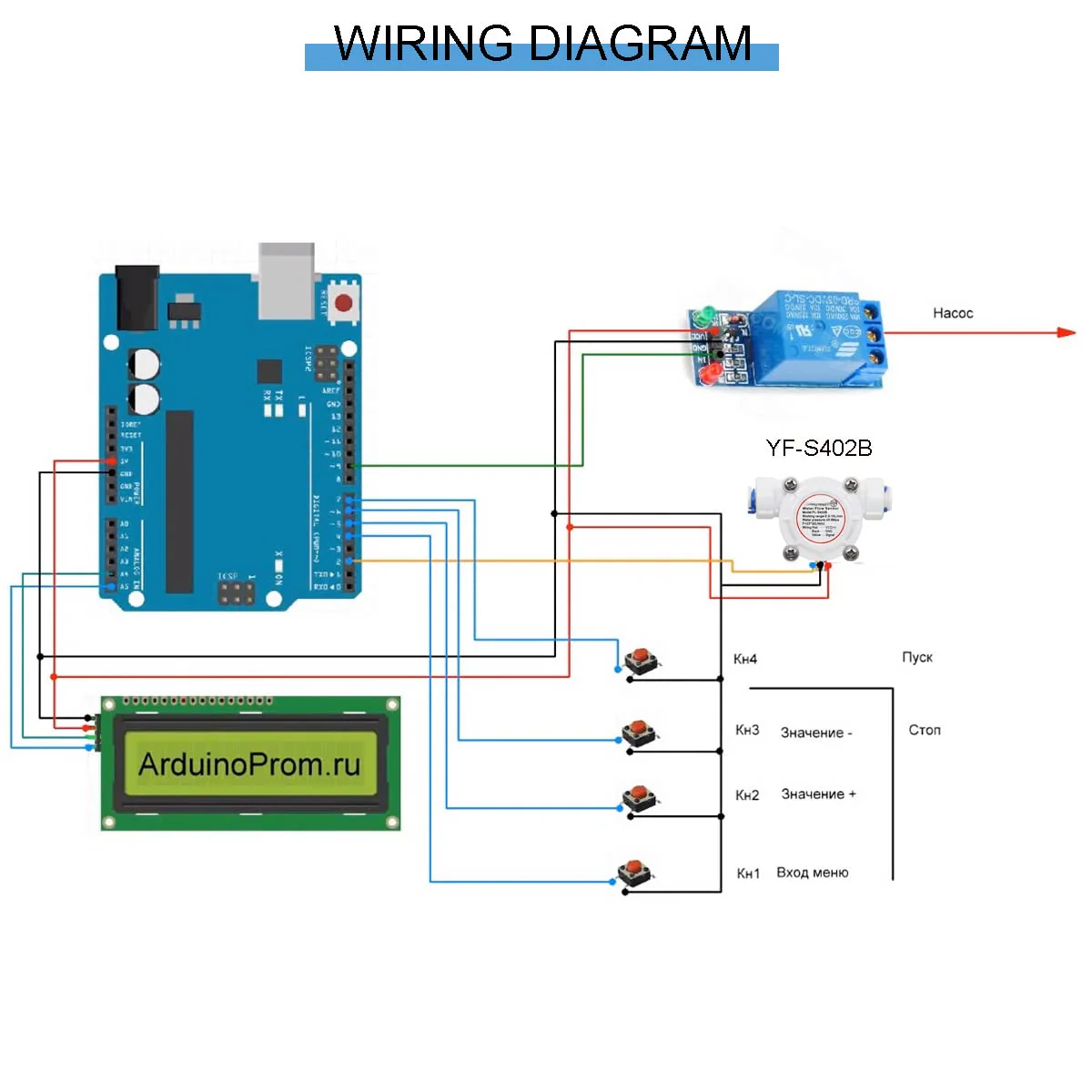

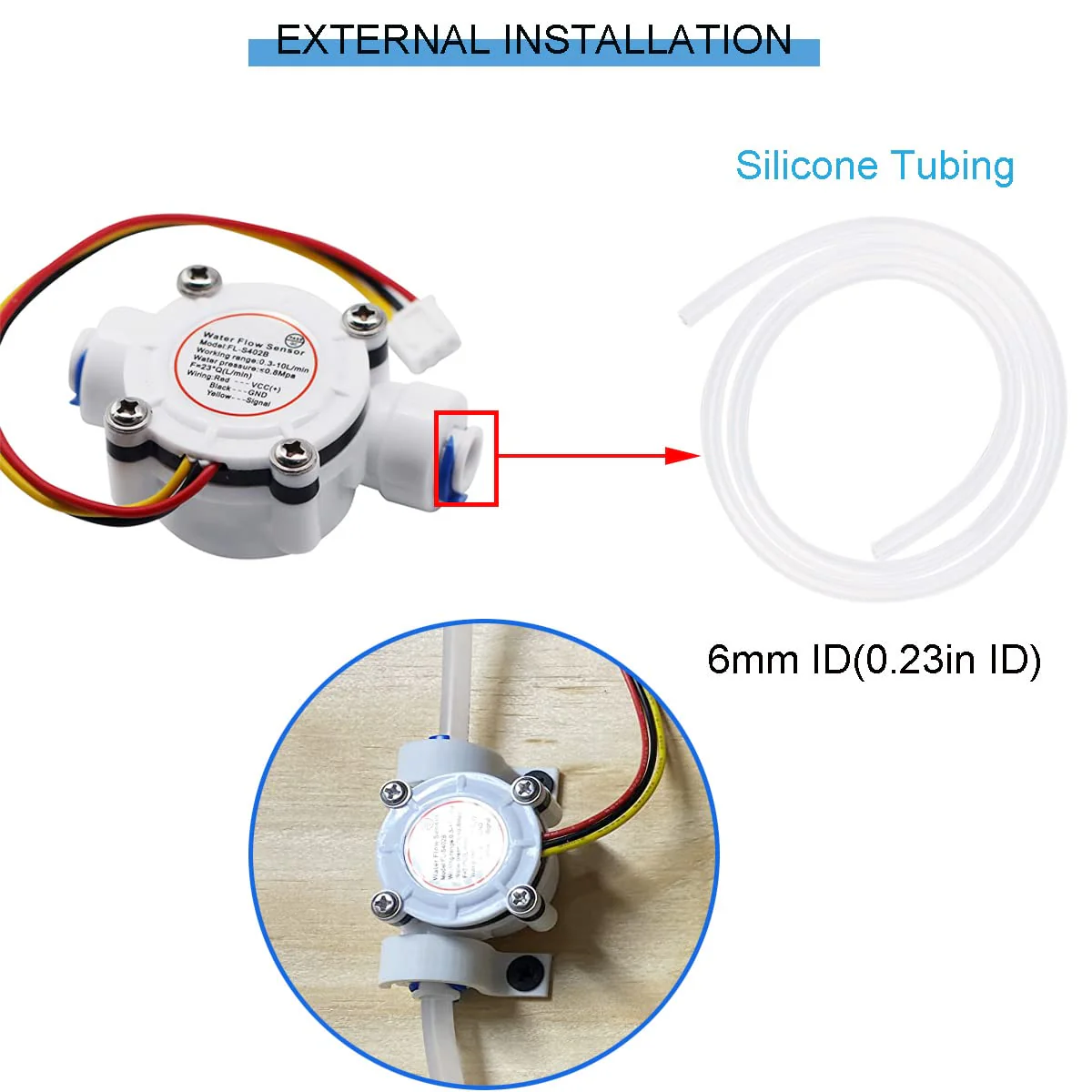

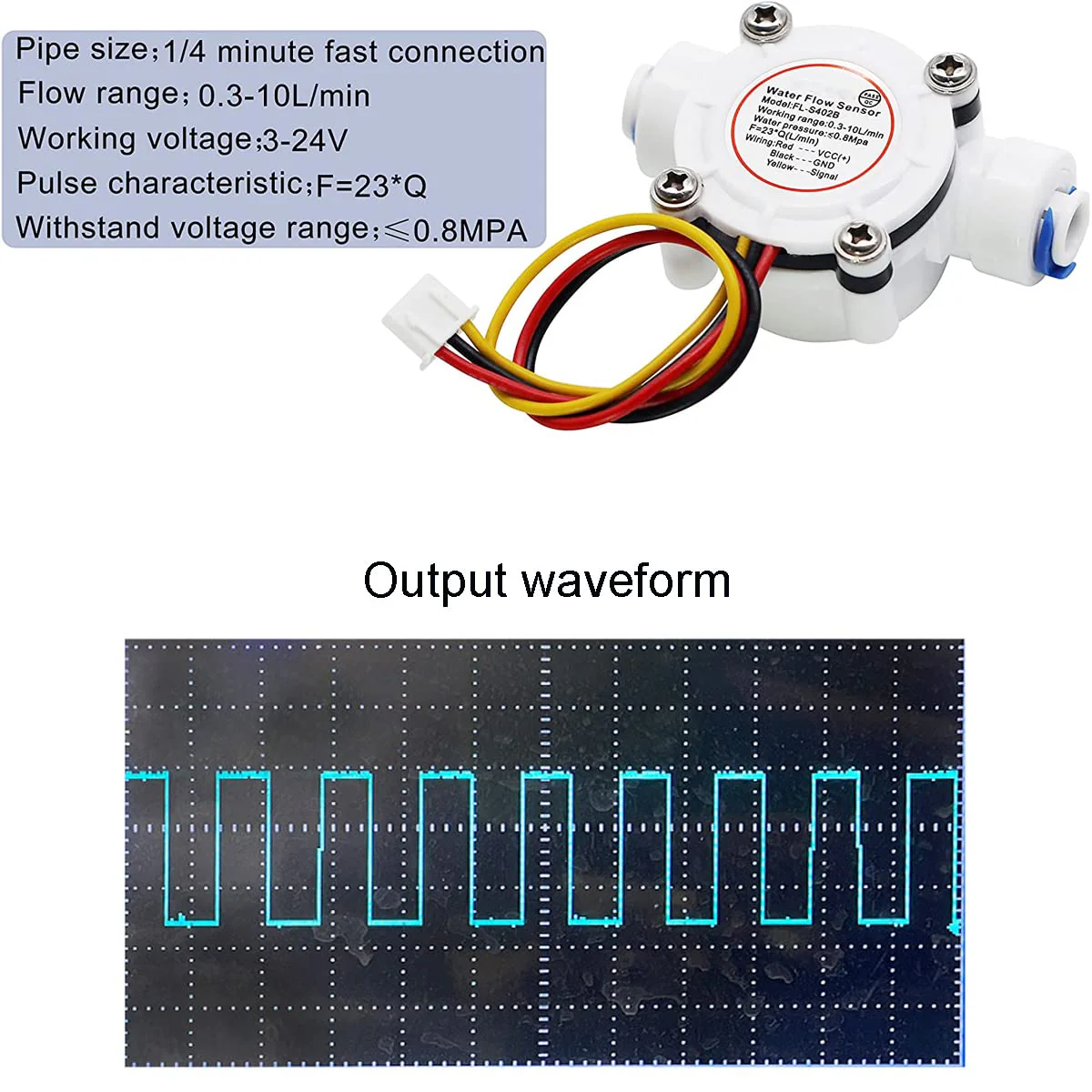

Product description: Features:Waterproof,Heat resistance,pressure resistance,cold resistance,easy to install Frequency: F = 38 Q (L / min) error: ±2%. Flow range: 0.3-10 L/min. Suitable for 1/4" tube Maximum consumption current: 1.5 mA (DC 5 V). Working voltage range: DC3.5-12V. Operating temperature: 0-80°C, operating humidity: 35%-90%RH. Pressure range: 0-0.8MPa Storage Temperature:-25-80¡ãC Storage humidity: 25%-95%RH. Output Waveform:Square Wave,output pulse singal. ROHS Compliant. Cable length: 15 cm. Application:water heater thermostat, water purifier, boiler, water dispensers, coffee machines, smart card equipment, the boiler and so on. Wiring: Red--- VCC(+); Black---GND; Yellow---Signal; Note:The thread is BSP, if used for NPT, need thread seal tape. Package includes: 1 x YF-S402B water flow sensor. 1 x 30 cm/11.81 in silicone tubing (6 mm ID)
Product Features
- Advantages: waterproof, heat resistance, pressure resistance, cold resistance.
- Food Grade: Spilled liquid can be drunk without hesitation.
- Quick Connect: Easy installation and removal, suitable for 1/4 inch pipes and works with most reverse osmosis filter systems.
- Range: Flow Range: 0.3-10L/min, Working Voltage Range: DC 5-18V, Pressure Range: 0-0.8MPa
- Application: thermostat for water heaters, water purifiers, boilers, water dispensers, coffee machines, smart card devices, boilers and so on.
More Images
Youmile G1/4" Quick Connect Hall Effect Sensor Water Flow Sensor YF-S402B 0.3-10L/min Water Hall Effect Flow Sensor with Silicone Hose 6mm ID
Youmile G1/4" Quick Connect Hall Effect Sensor Water Flow Sensor YF-S402B 0.3-10L/min Water Hall Effect Flow Sensor with Silicone Hose 6mm ID
Product description: Features:Waterproof,Heat resistance,pressure resistance,cold resistance,easy to install Frequency: F = 38 Q (L / min) error: ±2%. Flow range: 0.3-10 L/min. Suitable for 1/4" tube Maximum consumption current: 1.5 mA (DC 5 V). Working voltage range: DC3.5-12V. Operating temperature: 0-80°C, operating humidity: 35%-90%RH. Pressure range: 0-0.8MPa Storage Temperature:-25-80¡ãC Storage humidity: 25%-95%RH. Output Waveform:Square Wave,output pulse singal. ROHS Compliant. Cable length: 15 cm. Application:water heater thermostat, water purifier, boiler, water dispensers, coffee machines, smart card equipment, the boiler and so on. Wiring: Red--- VCC(+); Black---GND; Yellow---Signal; Note:The thread is BSP, if used for NPT, need thread seal tape. Package includes: 1 x YF-S402B water flow sensor. 1 x 30 cm/11.81 in silicone tubing (6 mm ID)
Product Features
- Advantages: waterproof, heat resistance, pressure resistance, cold resistance.
- Food Grade: Spilled liquid can be drunk without hesitation.
- Quick Connect: Easy installation and removal, suitable for 1/4 inch pipes and works with most reverse osmosis filter systems.
- Range: Flow Range: 0.3-10L/min, Working Voltage Range: DC 5-18V, Pressure Range: 0-0.8MPa
- Application: thermostat for water heaters, water purifiers, boilers, water dispensers, coffee machines, smart card devices, boilers and so on.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Youmile G1/4" Quick Connect Hall Effect Sensor Water Flow Sensor YF-S402B 0.3-10L/min Water Hall Effect Flow Sensor with Silicone Hose 6mm ID
Product description: Features:Waterproof,Heat resistance,pressure resistance,cold resistance,easy to install Frequency: F = 38 Q (L / min) error: ±2%. Flow range: 0.3-10 L/min. Suitable for 1/4" tube Maximum consumption current: 1.5 mA (DC 5 V). Working voltage range: DC3.5-12V. Operating temperature: 0-80°C, operating humidity: 35%-90%RH. Pressure range: 0-0.8MPa Storage Temperature:-25-80¡ãC Storage humidity: 25%-95%RH. Output Waveform:Square Wave,output pulse singal. ROHS Compliant. Cable length: 15 cm. Application:water heater thermostat, water purifier, boiler, water dispensers, coffee machines, smart card equipment, the boiler and so on. Wiring: Red--- VCC(+); Black---GND; Yellow---Signal; Note:The thread is BSP, if used for NPT, need thread seal tape. Package includes: 1 x YF-S402B water flow sensor. 1 x 30 cm/11.81 in silicone tubing (6 mm ID)
Product Features
- Advantages: waterproof, heat resistance, pressure resistance, cold resistance.
- Food Grade: Spilled liquid can be drunk without hesitation.
- Quick Connect: Easy installation and removal, suitable for 1/4 inch pipes and works with most reverse osmosis filter systems.
- Range: Flow Range: 0.3-10L/min, Working Voltage Range: DC 5-18V, Pressure Range: 0-0.8MPa
- Application: thermostat for water heaters, water purifiers, boilers, water dispensers, coffee machines, smart card devices, boilers and so on.
