Youmile Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Overcurrent Protection Switching Output with Screwdriver (12V) Pack of 2
Youmile Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Overcurrent Protection Switching Output with Screwdriver (12V) Pack of 2
Youmile Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Overcurrent Protection Switching Output with Screwdriver (12V) Pack of 2

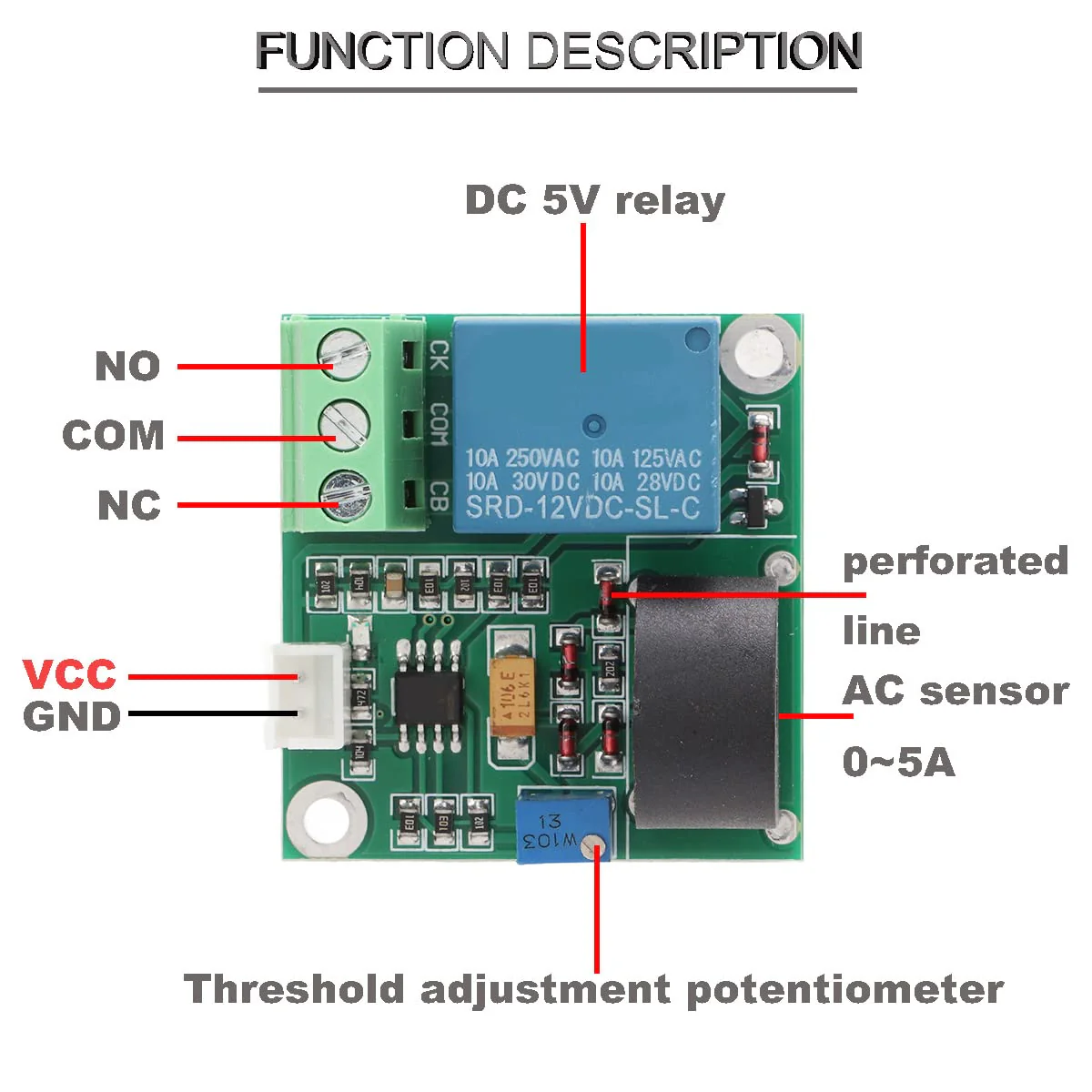

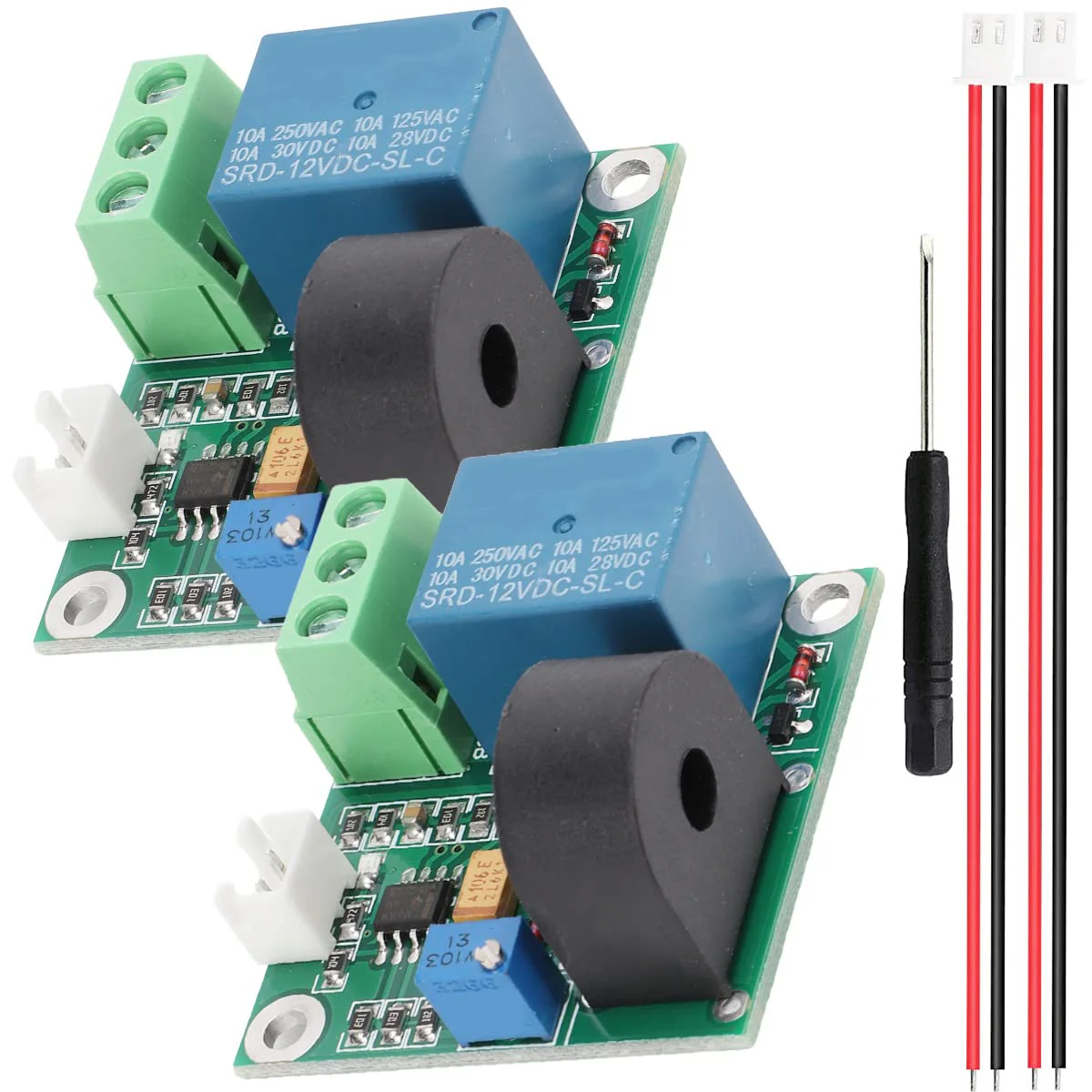

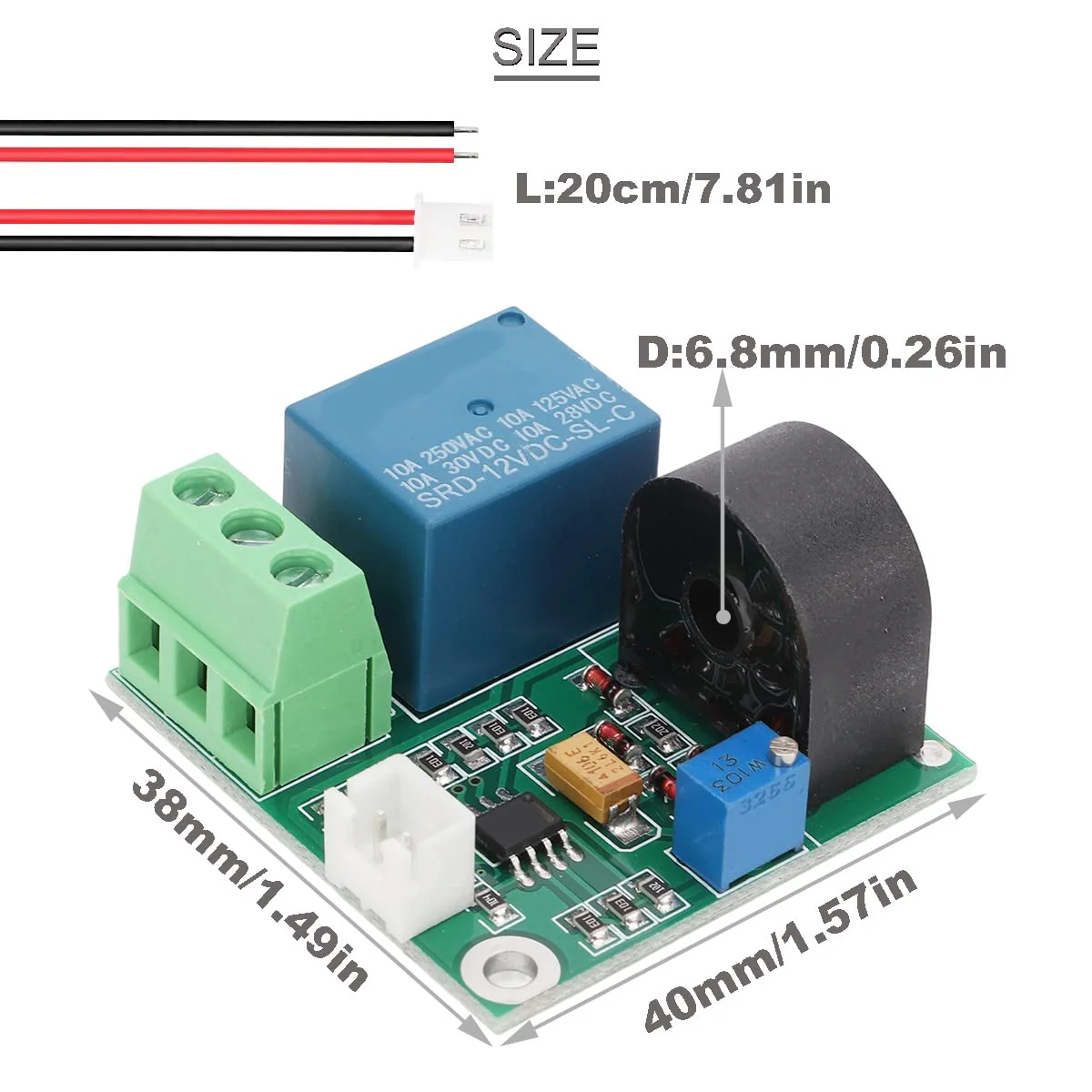

Product description: This current detection sensor mainly detects and prevents equipment from overcurrent by setting the overcurrent point, so as not to cause equipment damage. Specification: Type: Current detection sensor. Current detection range: AC 0.3A-5A. Operating voltage: DC 5 V / 12 V / 24 V (optional). Working current: less than 10mA. Relay load: AC 250V 10A Max, DC 30V 10A Max. The overcurrent signal setting is adjustable and the resolution is set to 0.3A. Induction sensitivity: Potentiometer is adjustable. Operating frequency range: 20Hz-400Hz Output mode: switch signal output Maximum detection wire diameter: 5.2 mm. Mounting hole: hole diameter is 3mm, hole pitch is 52.5mm Operating environment: -40°C - 85°C. Board size: approx. 38 x 44 mm / 1.5 x 1.7 inches. Board description: VCC: Operating voltage positive; GND :Operating voltage negative; NO: Normally open, the relay pulls before the NO and COM disconnect, short-circuit after the suction; COM: common, relay common interface; NC: Normally closed, the relay before the NC and COM short- circuit, after pull off. Package includes: 2 x current detection sensor (12). 1 x screwdriver
Product Features
- What it does The current detection sensor mainly detects and prevents overcurrents of the device by setting the over-current point to protect your device and avoid device damage.
- Features: The resolution of current detection can change the parameter of the resistance; output over current switching signal output; the critical point of over-current signal setting is adjustable.
- Parameters: Working voltage: DC 12V; Working current: less than 10mA; Current detection range: AC 0.3A-5A (potentiometer is adjustable); Maximum detection wire diameter: 5.2mm.
- Board Description: VCC: operating voltage positive; GND: operating voltage negative; NO: normally closed, the relay pulls before the NO and COM disconnection, short circuit after suction; COM: common, common relay interface; NC: normally closed, the relay before the NC and COM short circuit, after unplugging.
- Application: intelligent trolley motor overcurrent detection, motor blocking protection current detection, short circuit protection detection, etc.
More Images
Youmile Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Overcurrent Protection Switching Output with Screwdriver (12V) Pack of 2
Youmile Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Overcurrent Protection Switching Output with Screwdriver (12V) Pack of 2
Product description: This current detection sensor mainly detects and prevents equipment from overcurrent by setting the overcurrent point, so as not to cause equipment damage. Specification: Type: Current detection sensor. Current detection range: AC 0.3A-5A. Operating voltage: DC 5 V / 12 V / 24 V (optional). Working current: less than 10mA. Relay load: AC 250V 10A Max, DC 30V 10A Max. The overcurrent signal setting is adjustable and the resolution is set to 0.3A. Induction sensitivity: Potentiometer is adjustable. Operating frequency range: 20Hz-400Hz Output mode: switch signal output Maximum detection wire diameter: 5.2 mm. Mounting hole: hole diameter is 3mm, hole pitch is 52.5mm Operating environment: -40°C - 85°C. Board size: approx. 38 x 44 mm / 1.5 x 1.7 inches. Board description: VCC: Operating voltage positive; GND :Operating voltage negative; NO: Normally open, the relay pulls before the NO and COM disconnect, short-circuit after the suction; COM: common, relay common interface; NC: Normally closed, the relay before the NC and COM short- circuit, after pull off. Package includes: 2 x current detection sensor (12). 1 x screwdriver
Product Features
- What it does The current detection sensor mainly detects and prevents overcurrents of the device by setting the over-current point to protect your device and avoid device damage.
- Features: The resolution of current detection can change the parameter of the resistance; output over current switching signal output; the critical point of over-current signal setting is adjustable.
- Parameters: Working voltage: DC 12V; Working current: less than 10mA; Current detection range: AC 0.3A-5A (potentiometer is adjustable); Maximum detection wire diameter: 5.2mm.
- Board Description: VCC: operating voltage positive; GND: operating voltage negative; NO: normally closed, the relay pulls before the NO and COM disconnection, short circuit after suction; COM: common, common relay interface; NC: normally closed, the relay before the NC and COM short circuit, after unplugging.
- Application: intelligent trolley motor overcurrent detection, motor blocking protection current detection, short circuit protection detection, etc.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Youmile Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Overcurrent Protection Switching Output with Screwdriver (12V) Pack of 2
Product description: This current detection sensor mainly detects and prevents equipment from overcurrent by setting the overcurrent point, so as not to cause equipment damage. Specification: Type: Current detection sensor. Current detection range: AC 0.3A-5A. Operating voltage: DC 5 V / 12 V / 24 V (optional). Working current: less than 10mA. Relay load: AC 250V 10A Max, DC 30V 10A Max. The overcurrent signal setting is adjustable and the resolution is set to 0.3A. Induction sensitivity: Potentiometer is adjustable. Operating frequency range: 20Hz-400Hz Output mode: switch signal output Maximum detection wire diameter: 5.2 mm. Mounting hole: hole diameter is 3mm, hole pitch is 52.5mm Operating environment: -40°C - 85°C. Board size: approx. 38 x 44 mm / 1.5 x 1.7 inches. Board description: VCC: Operating voltage positive; GND :Operating voltage negative; NO: Normally open, the relay pulls before the NO and COM disconnect, short-circuit after the suction; COM: common, relay common interface; NC: Normally closed, the relay before the NC and COM short- circuit, after pull off. Package includes: 2 x current detection sensor (12). 1 x screwdriver
Product Features
- What it does The current detection sensor mainly detects and prevents overcurrents of the device by setting the over-current point to protect your device and avoid device damage.
- Features: The resolution of current detection can change the parameter of the resistance; output over current switching signal output; the critical point of over-current signal setting is adjustable.
- Parameters: Working voltage: DC 12V; Working current: less than 10mA; Current detection range: AC 0.3A-5A (potentiometer is adjustable); Maximum detection wire diameter: 5.2mm.
- Board Description: VCC: operating voltage positive; GND: operating voltage negative; NO: normally closed, the relay pulls before the NO and COM disconnection, short circuit after suction; COM: common, common relay interface; NC: normally closed, the relay before the NC and COM short circuit, after unplugging.
- Application: intelligent trolley motor overcurrent detection, motor blocking protection current detection, short circuit protection detection, etc.
