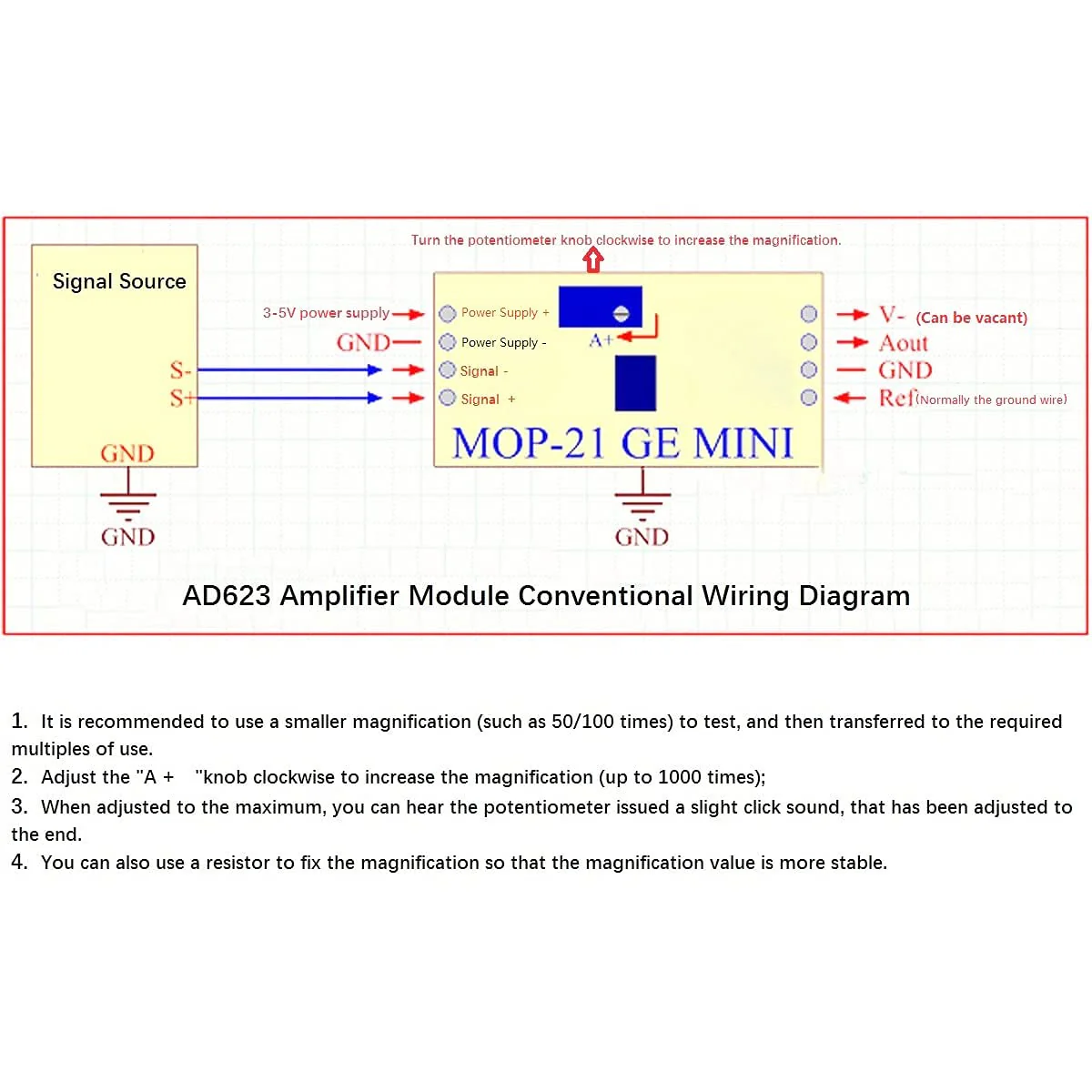

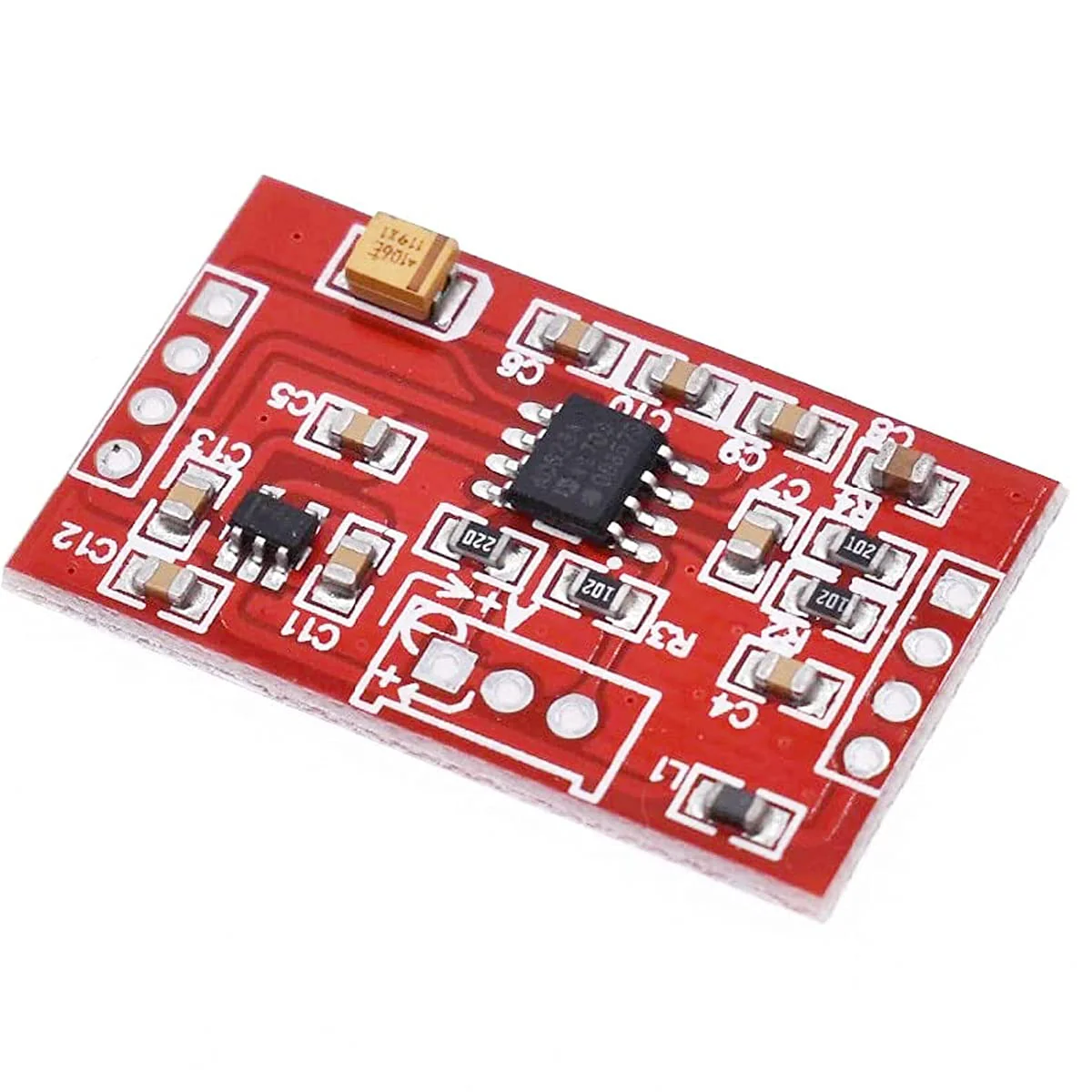

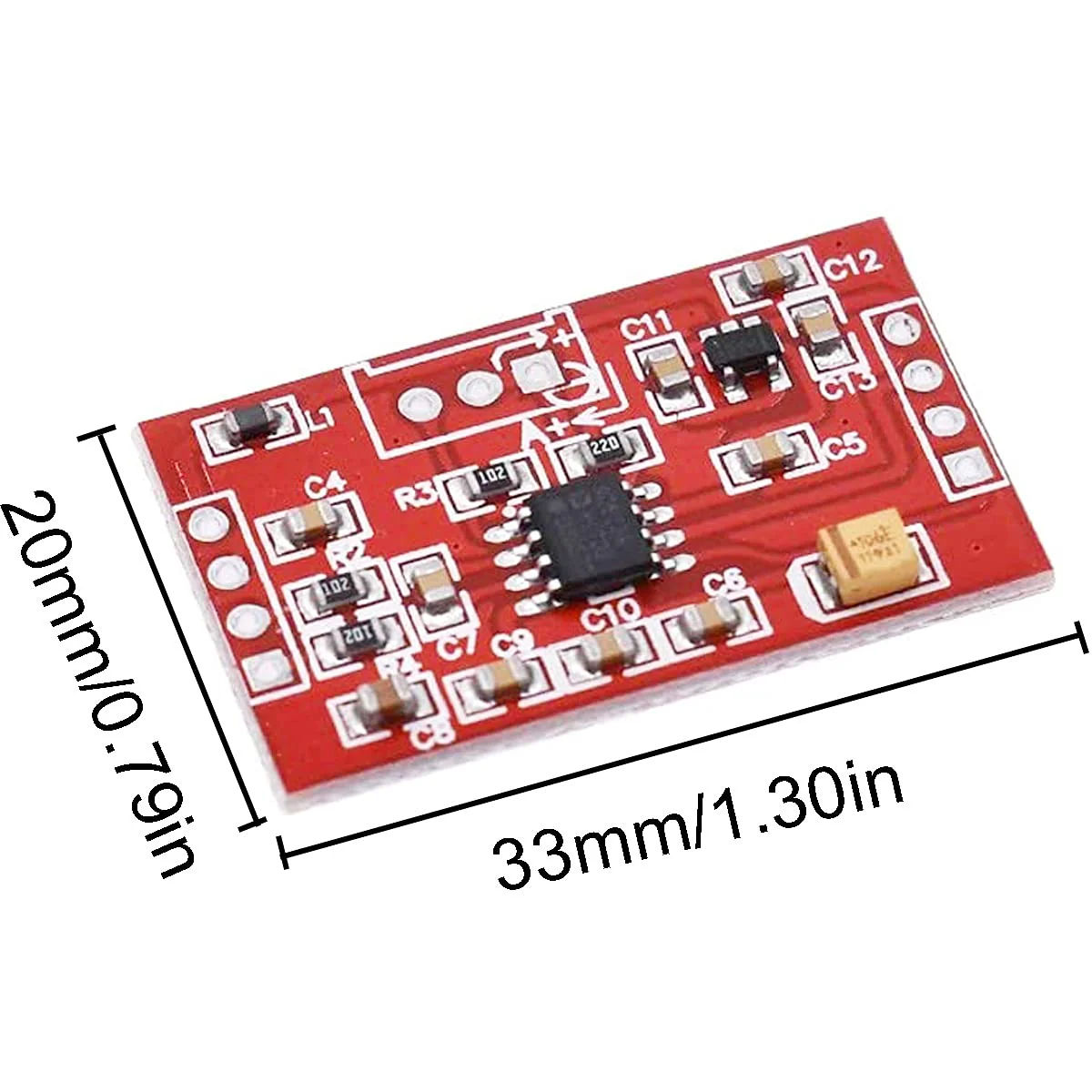

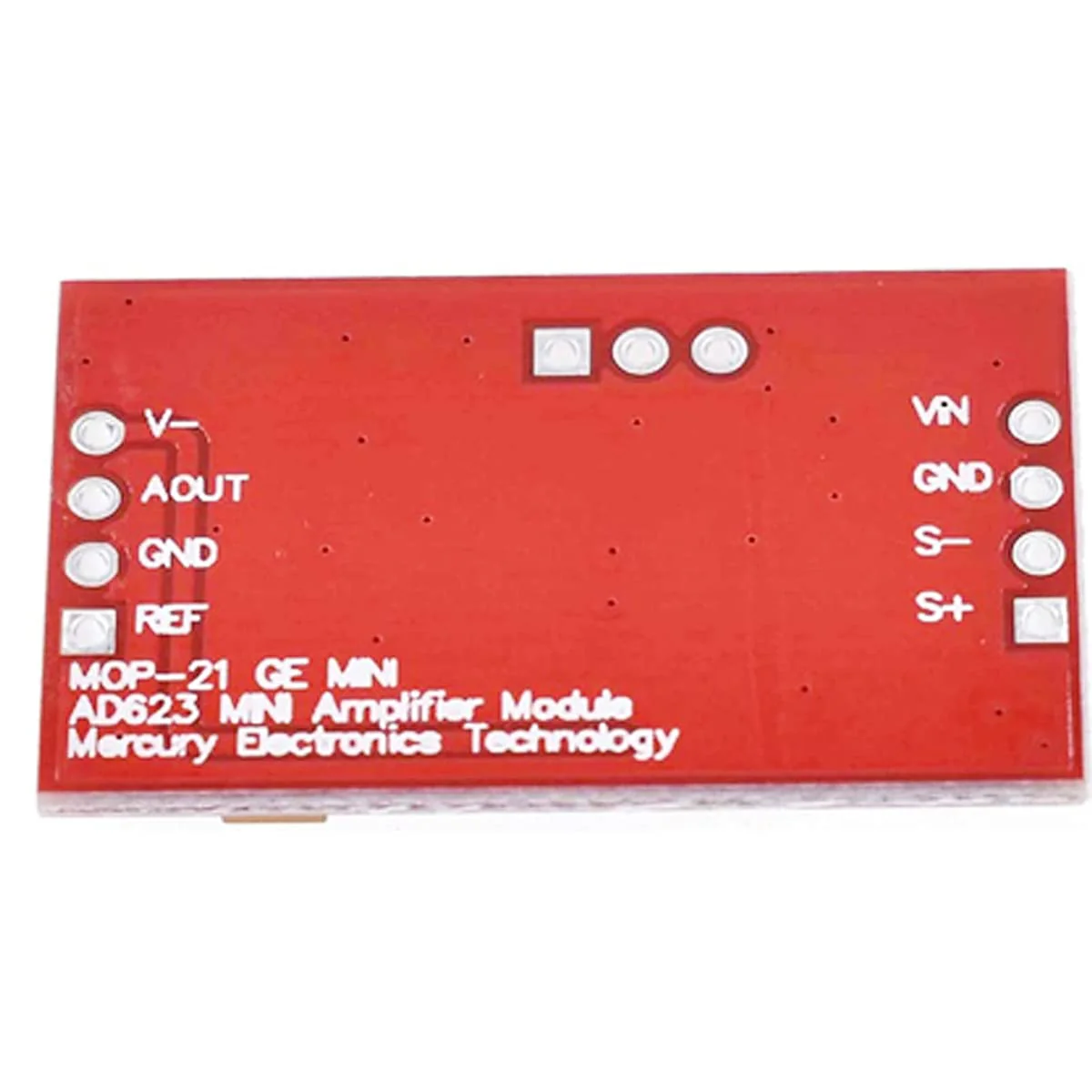

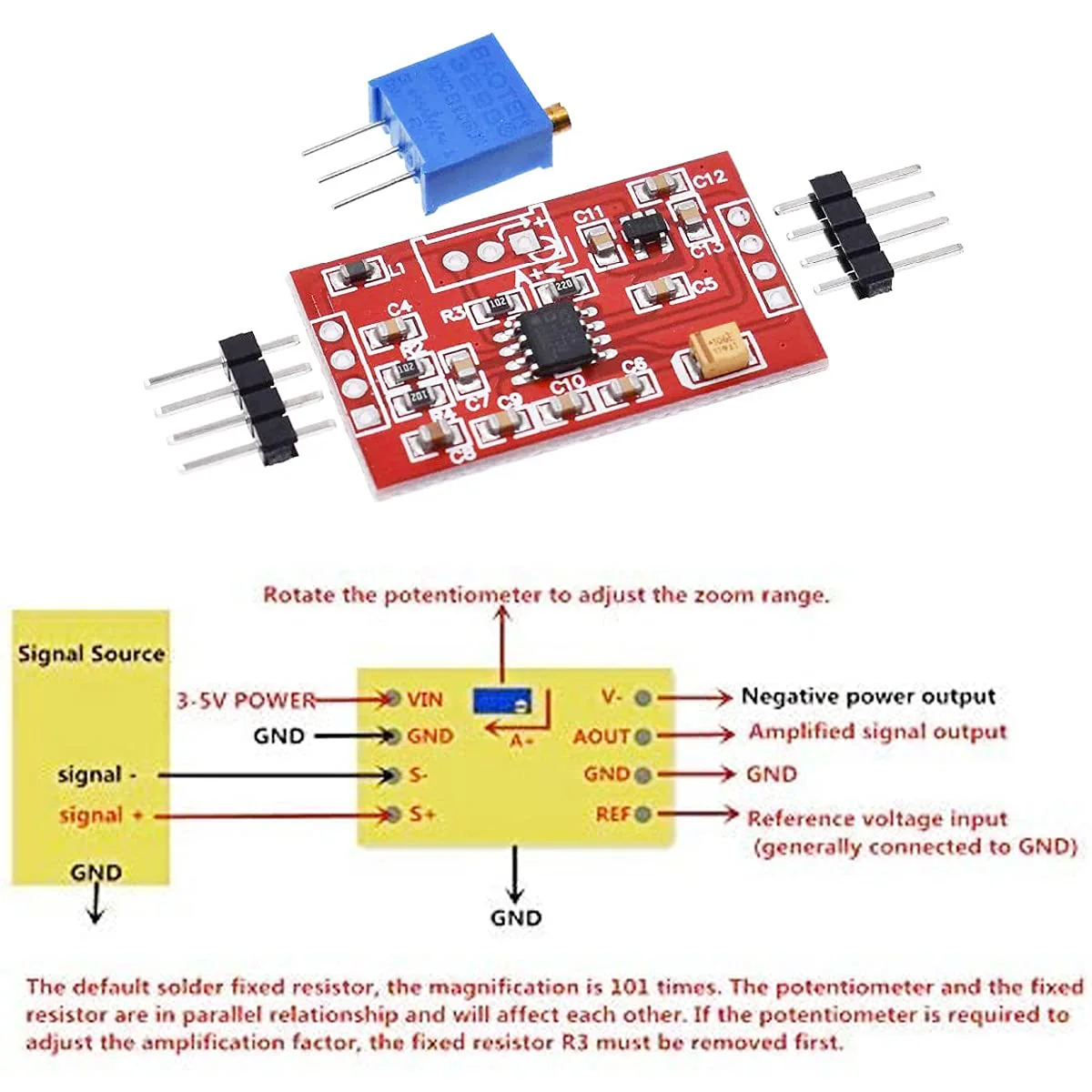

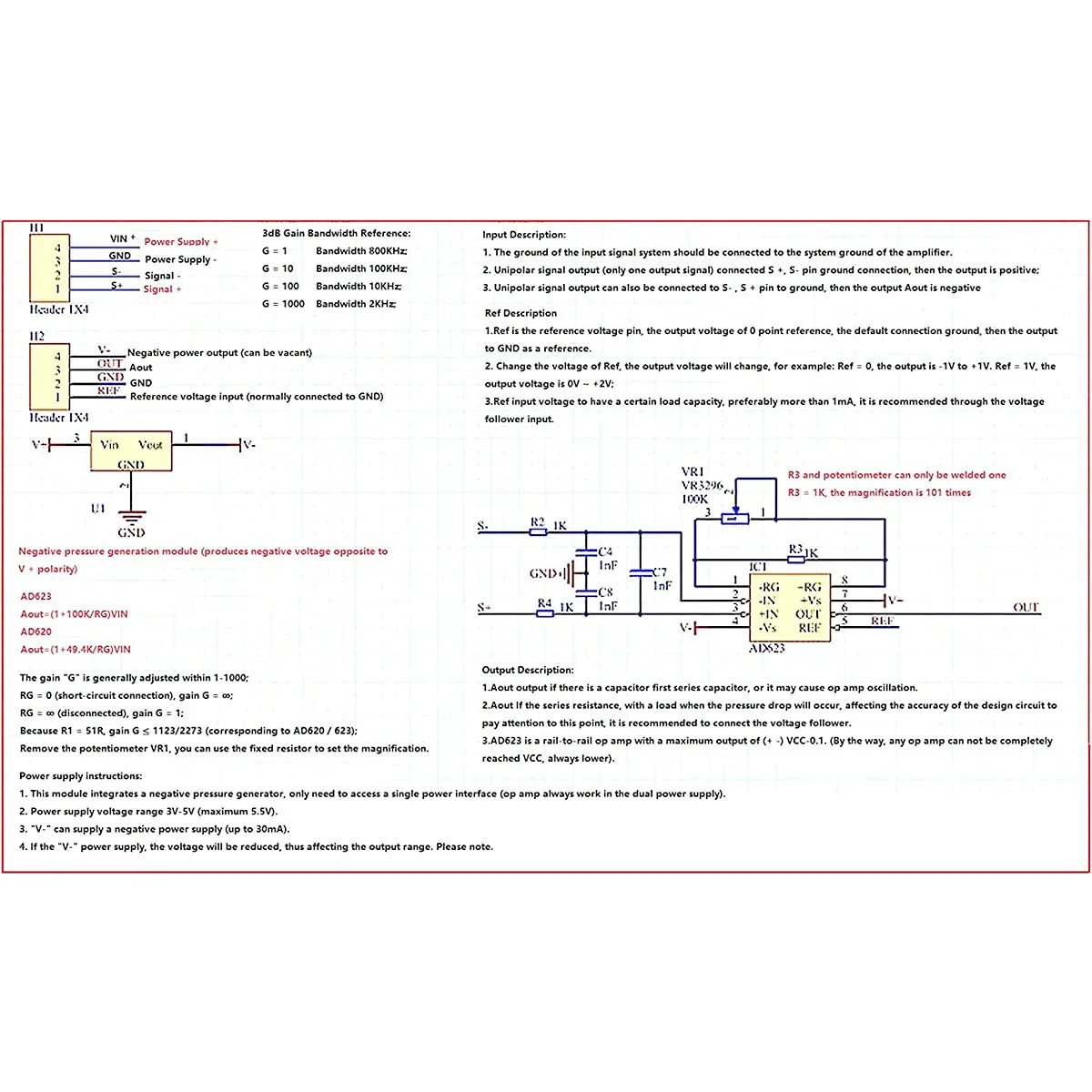

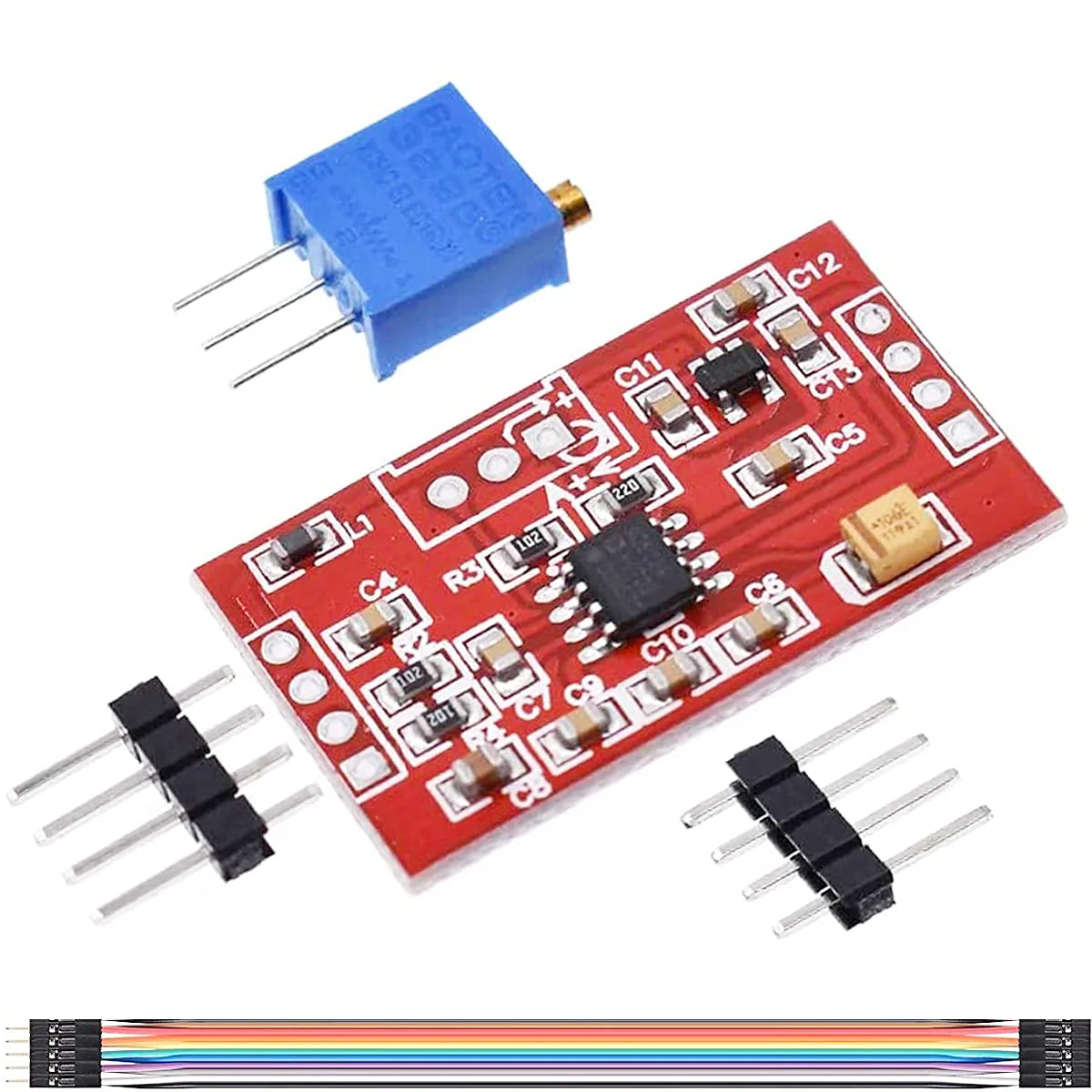

Product description: Specifications: Input range: 0.5VCC(i.e.the voltage between S+/S- is less than half of the power supply voltage). Output range: + - VCC (rail to rail). Magnification: 2-1000 times (adjustable with potentiometer). Power consumption: 150uA (typical)/650uA (maximum). Power supply: 3-5.5 V. Gain accuracy: 0.35% (G>2) 0.10% (G=2). Input offset voltage: 100-200uV. Input offset drift: 1UV/℃. Common mode rejection ratio: 90 dB. Gain bandwidth: 800 kHz. PCB size: 4023mm/1.570.9in Note: The default magnification is 101 times with R3 resistor. If welding potentiometer, it will be adjustable, Aout=(1+100K/RG)VIN. Please remove R3 resistor when welding potentiometer. Package includes: 1 x AD623 millivolt voltage amplifier module. 2 x 4-pin headers. 1 x 8PIN male and female DuPont cable
Product Features
- Application: Low power medical equipment, converter interface, thermocouple amplifier, industrial process control, differential amplifier, low power data acquisition.
- Advantages: Dedicated high-end instrument amplifier AD623 core, high precision, good linearity
- Easy to handle: Built-in negative voltage generation module, dual power supply, easy to handle with negative signal/AC signal
- Signal stability: power input LC filter, pure and stable to ensure stable signal amplification
- Simplified design: built-in module to generate negative voltage, only a single power supply can achieve double power operation, simplified system design
