Youmile 5pcs AC-DC 5V 700mA 3.5W Buck Module Power Supply Buck Converter Step Down Module with Red and Black Cable 5V700mA (3.5W) old

Youmile 5pcs AC-DC 5V 700mA 3.5W Buck Module Power Supply Buck Converter Step Down Module with Red and Black Cable

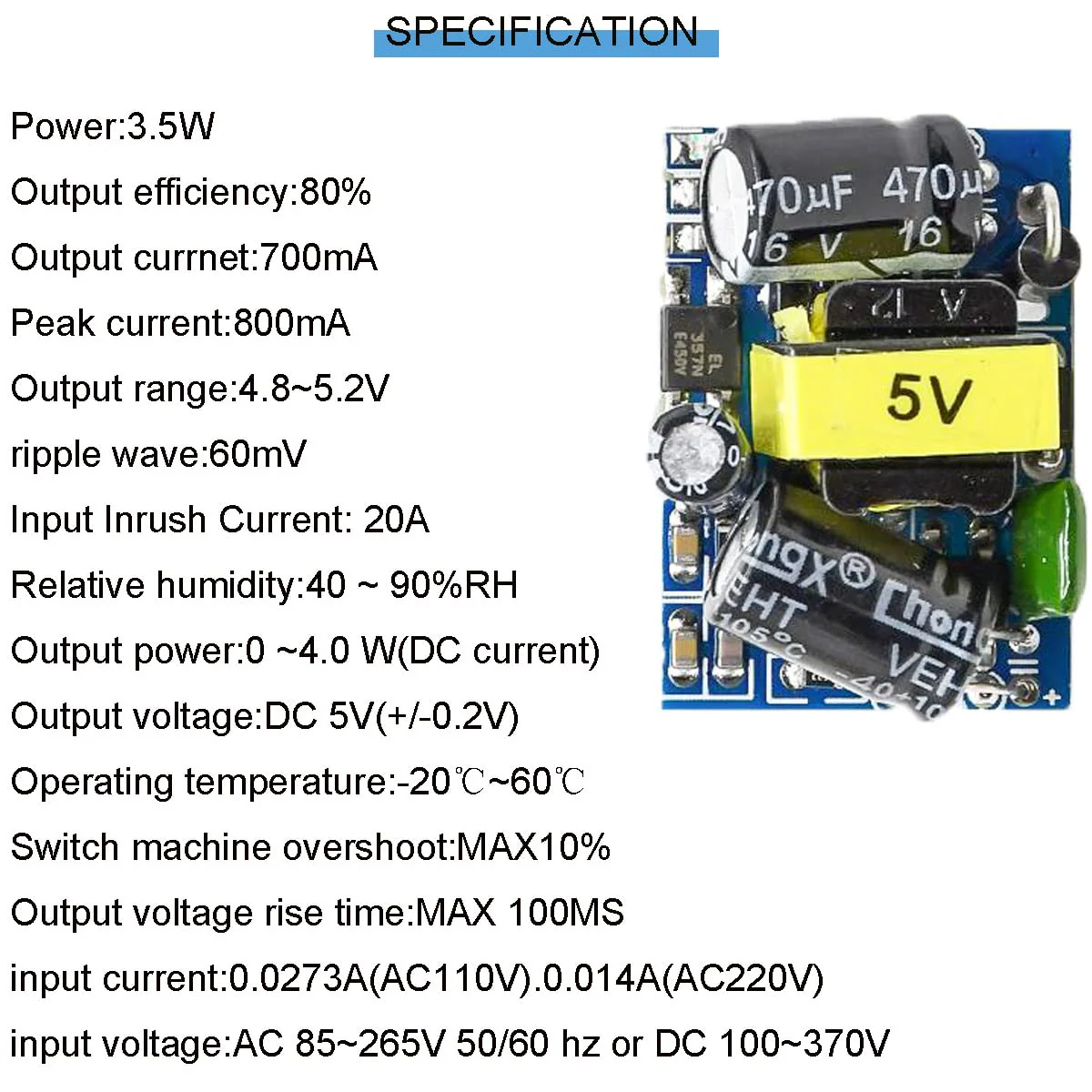

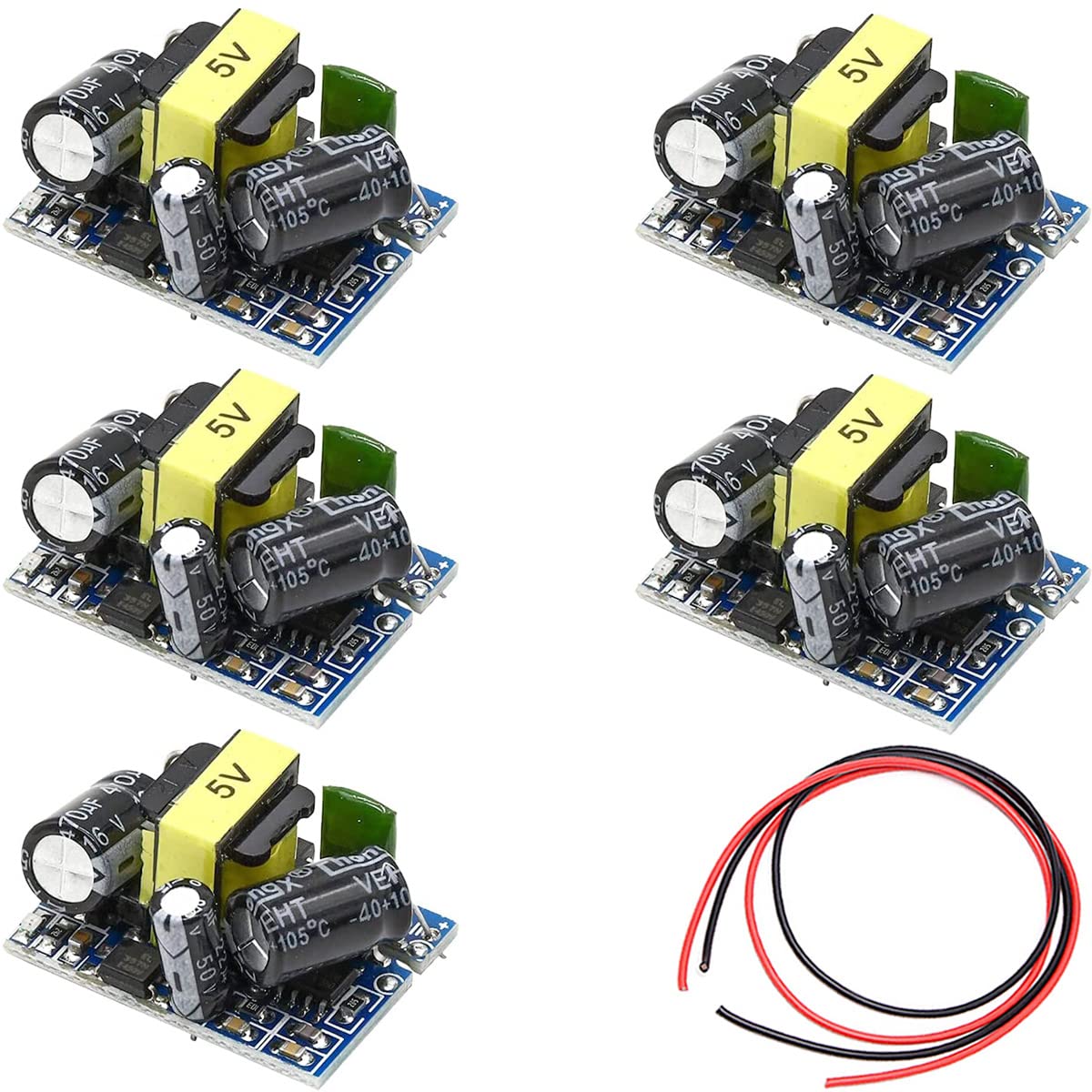

Product description: The power supply for whole isolation type industrial- grade built-in power supply module, temperature protection, over current protection and short circuit protection,AC 85 ~ 265v wide voltage input, 431 precision voltage, DC5V output, small size, stable performance Use Environment: Power: 3.5 W. Output efficiency: 80%. Output currnet: 700 mA. Peak current: 800 mA. Output range: 4.8 ~ 5.2 V. Ribbed wave: 60 mV. Input inrush current: 20 A. Relative humidity: 40 ~ 90% RH. Output power: 0 ~ 4.0 W (DC current). Output voltage: DC 5 V (+/-0.2 V). Operating temperature: -20°C ~ 60°C. Switch machine overshoot: MAX10%. Output voltage rise time: MAX 100 MS. Input current: 0.0273A (AC110V).0.014A (AC220V) Input voltage: AC 85 ~ 265 V 50/60 Hz or DC 100 ~ 370 V. Notes: The End of the Step Down Module Can Be Conductive. Do Not Touch The Bottom of Template when you Test or to Use. Need Mattress Insulator Pad, Clean Cardboard Conductive things. Power Board contact to conductive objects such as Wire,so as to Electric Shock And Burn Out The Power Supply Board. Installation: In the Input And Output Pins Soldering On The PCB Directly. Fixed installation hole. Package includes: 5 x buck modules. 1 x red and black cable

Product Features

• HIGH INSULATION VOLTAGE The input voltage of the buck converter is 85V to 265V AC, providing wide precise voltage stability of DC 5V. Input and output are highly insulated. The operating temperature is between -20C and 60C and the relative humidity is between 40% and 90% RH.

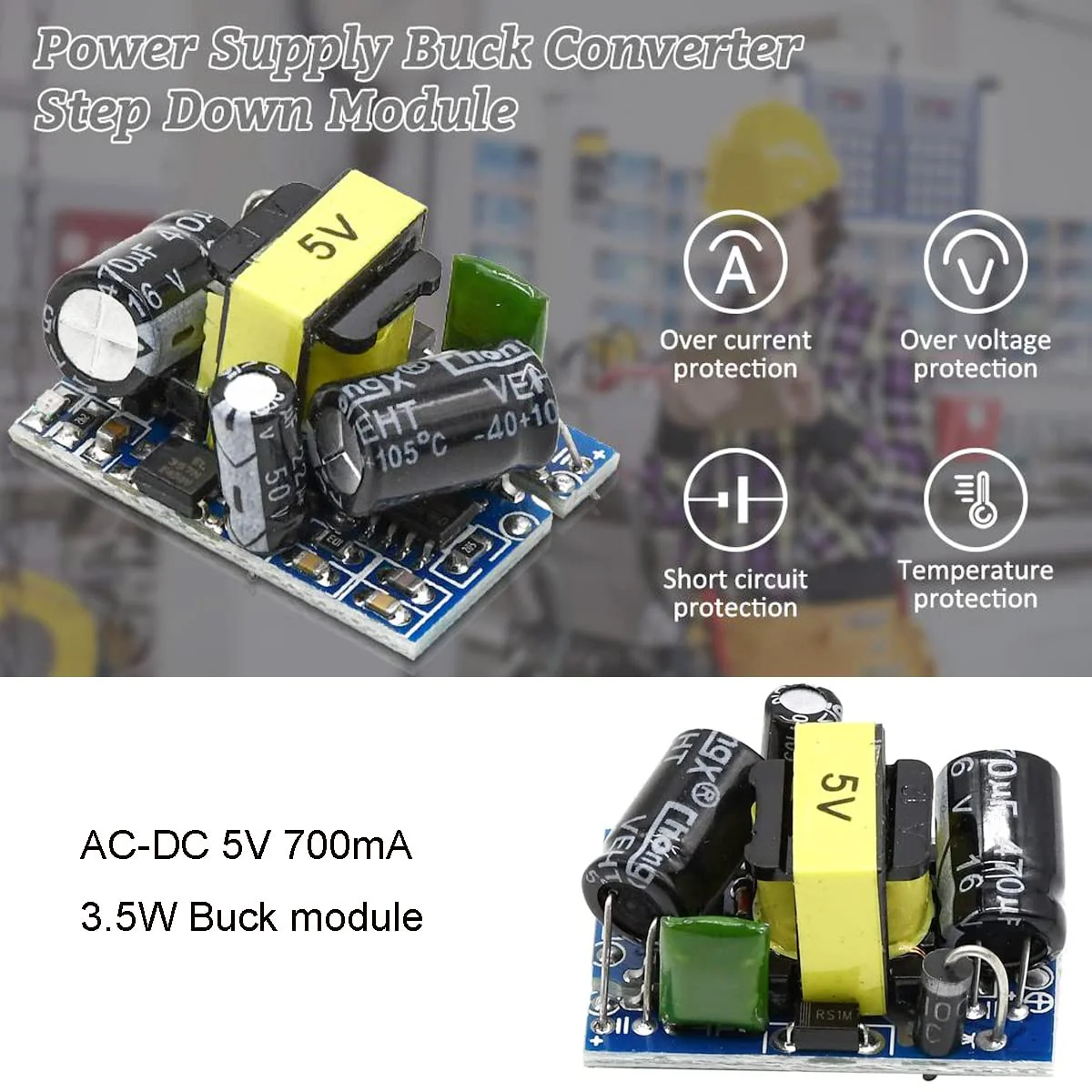

• Intelligent Protection The power source of this buck converter for the isolated, industrial-grade, integrated power supply module supports temperature, over current, over-voltage, and short circuit protection.
• Stable performance: with mounting holes on all four corners to prevent movement and vibration that can lead to product interference, low volume, stable performance, high cost efficiency, with EMI filter circuit at the input and output. Good electrical filtering and almost perfect voltage conversion without noise.
• Easy to Use The downward module is easy to install and can be used directly on the motherboard. Widely used for powering motherboards, instruments and meters, small household appliances, etc.
• Note: Do not touch the bottom of the stencil during testing or use, use an insulating pad and remove conductive objects from the desk to avoid burning the power board.
