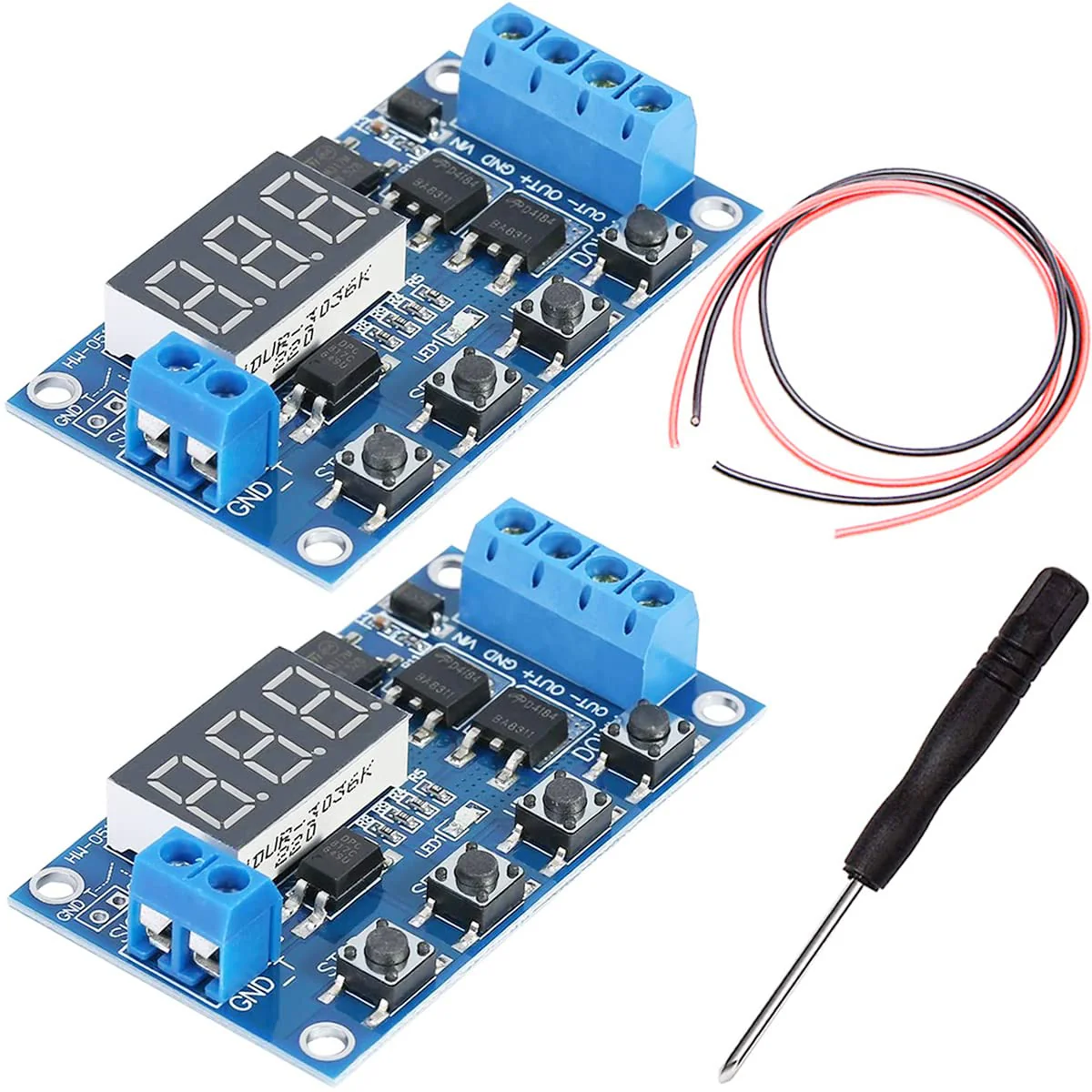

Youmile 2pcs Time Relay 230V - Interval 12V Control Switch 5V - 36V Digital LED Relay Board Timer Delay Module with Screwdriver Red and Black Cable
Youmile 2pcs Time Relay 230V - Interval 12V Control Switch 5V - 36V Digital LED Relay Board Timer Delay Module with Screwdriver Red and Black Cable
Youmile 2pcs Time Relay 230V - Interval 12V Control Switch 5V - 36V Digital LED Relay Board Timer Delay Module with Screwdriver Red and Black Cable

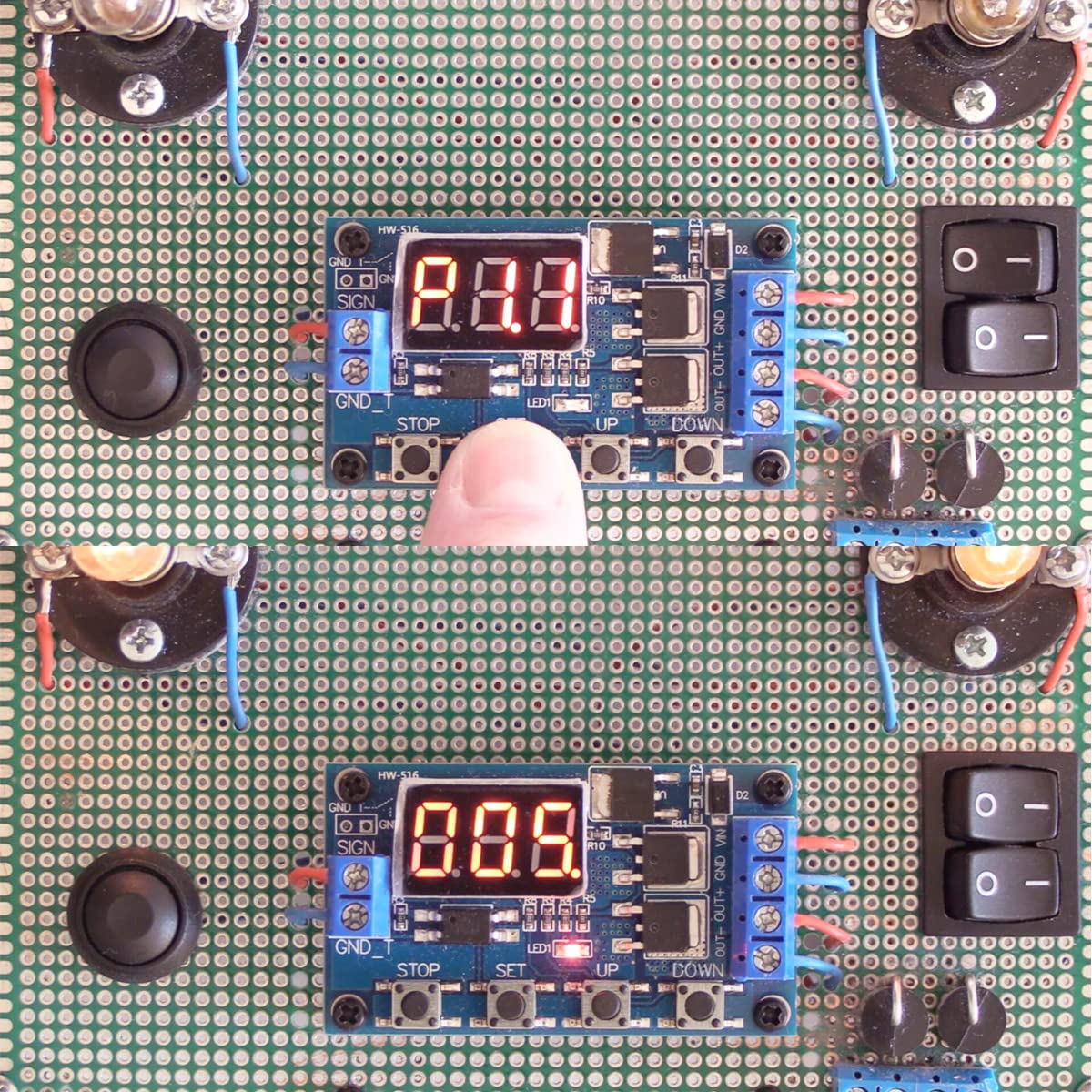

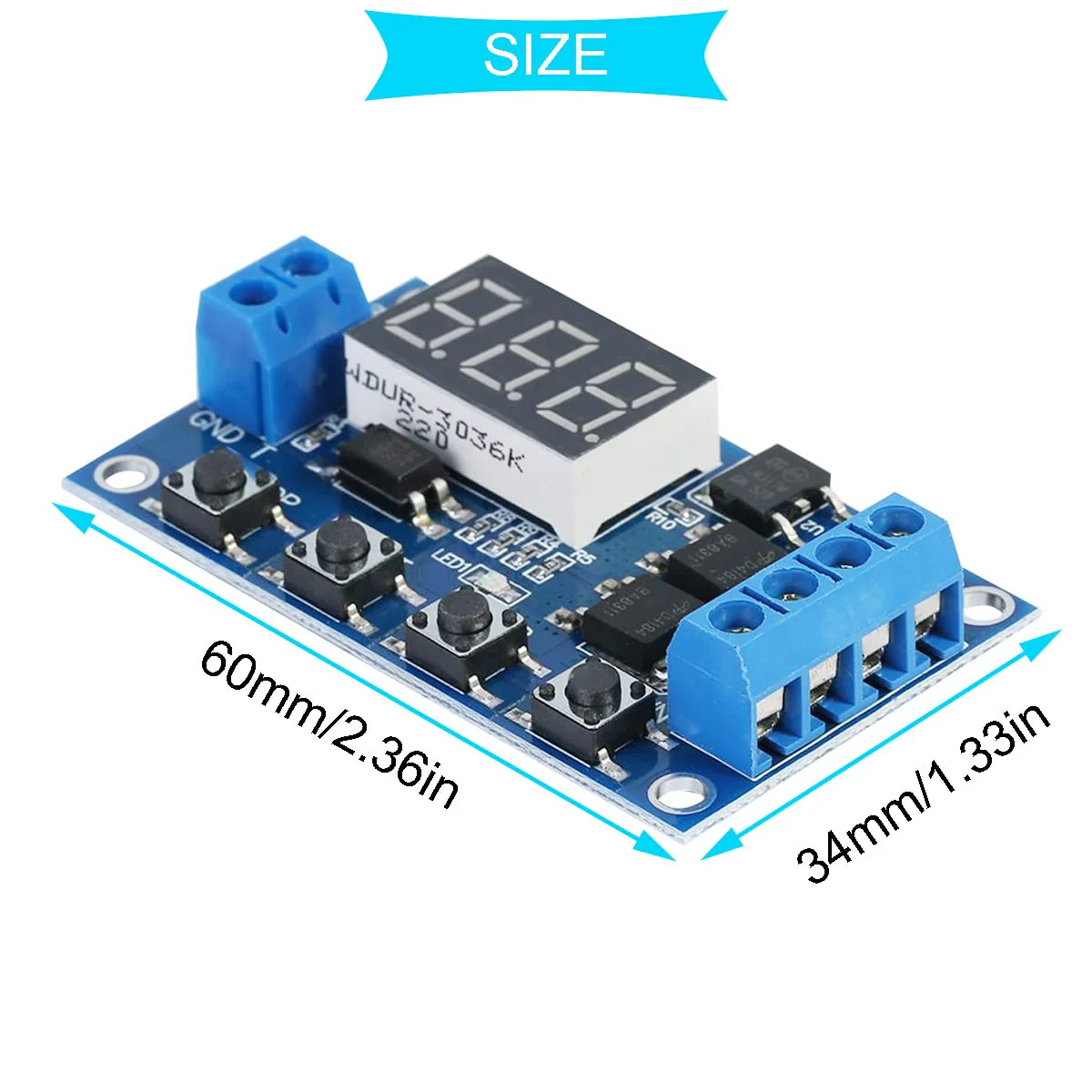

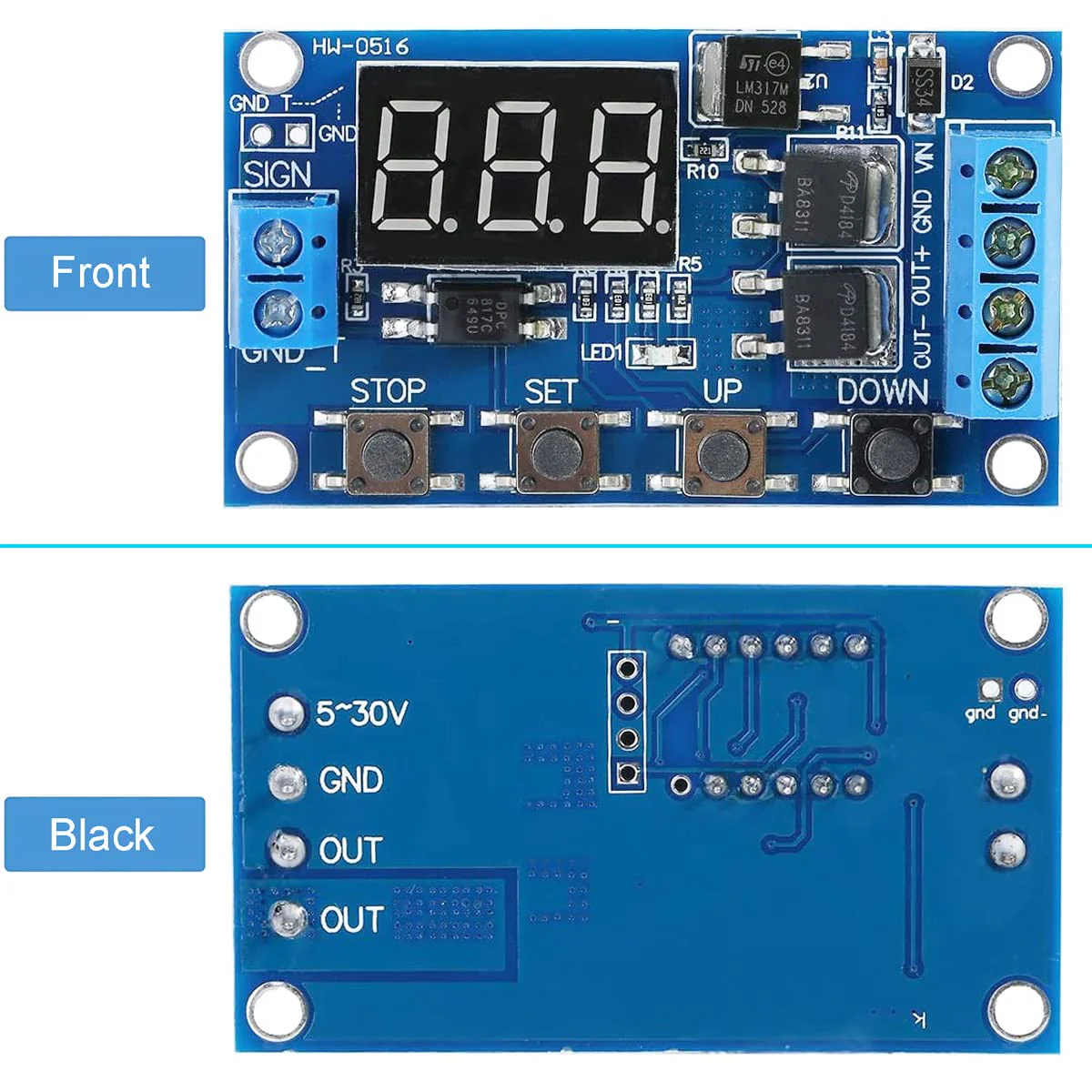

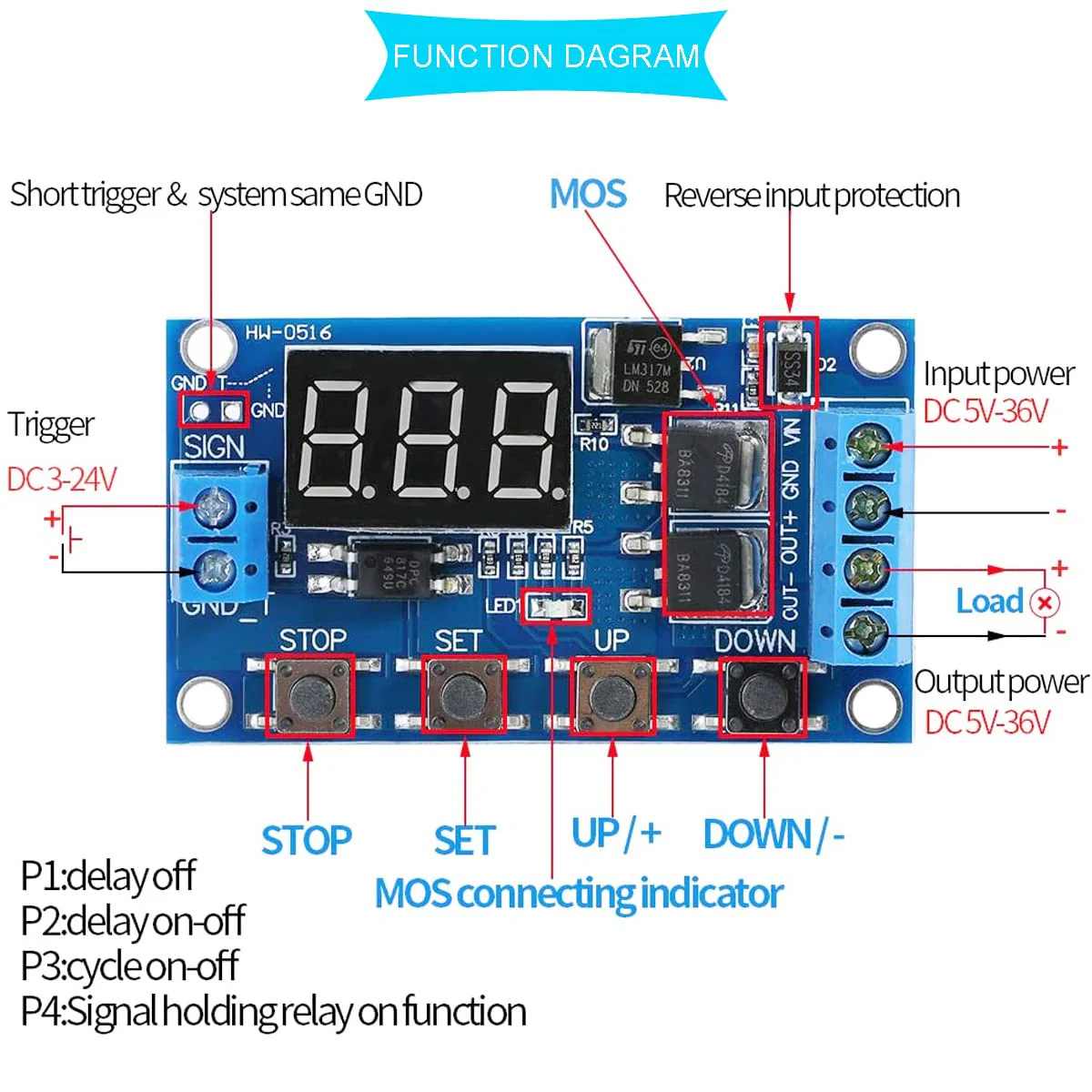

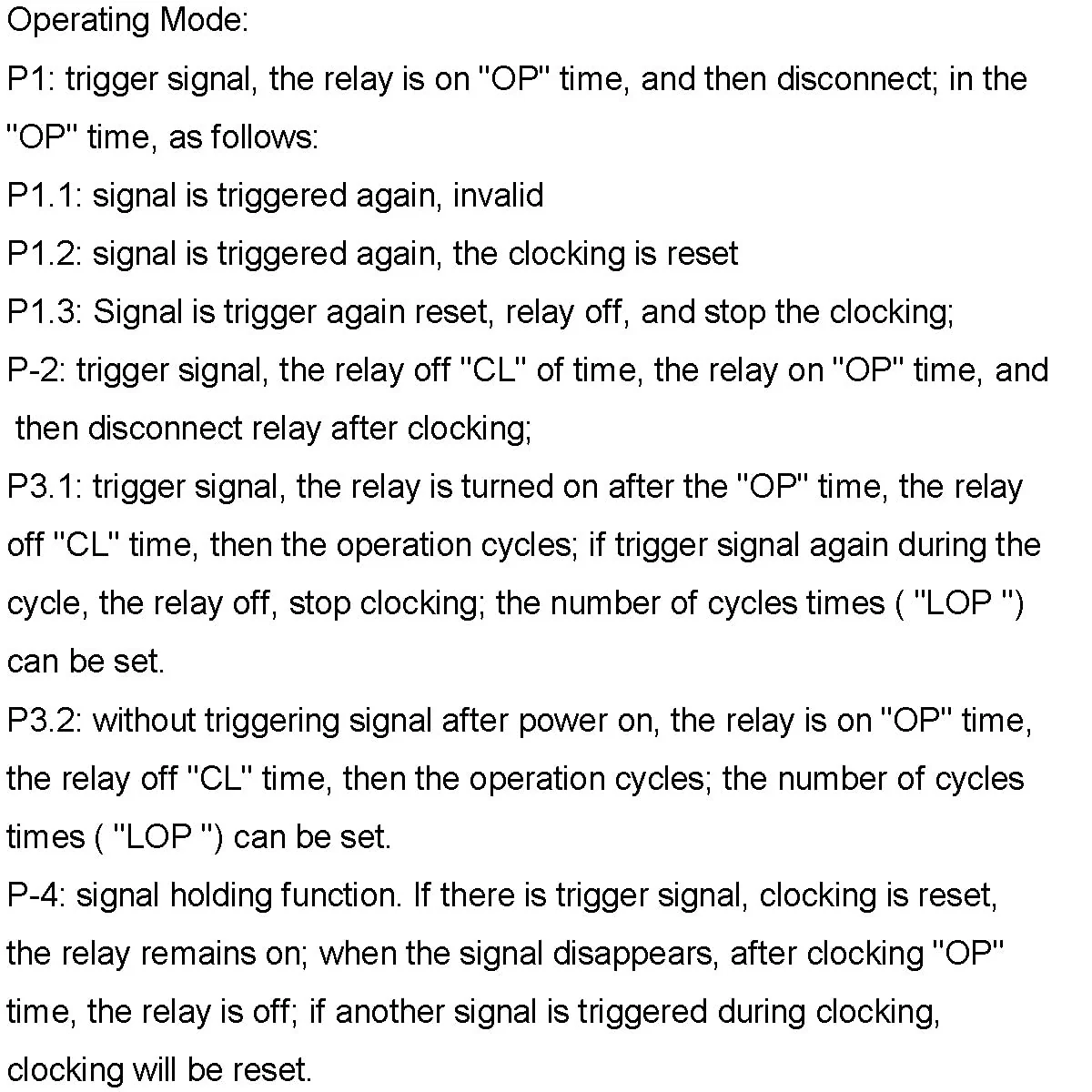

Product description: This is a timer delay trigger module with LED display. The module has 5-36V wide voltage. At room temperature, its operating current is up to 15A, power up to 400W, so it can be used for most equipment. Besides, you can set different OP, CL, LOP parameters, and these parameters were independent of each other and saved respectively. Even when there is a power failure, all set parameters can be automatically saved. Specifications: Voltage: DC 5V~36V. Trigger signal source: high voltage level trigger (3.0V~24V), signal ground and system ground are not on common ground to improve the system's anti-jamming capability (you can also connect them on common ground). Output Capacity: DC 5V~36V, at room temperature, continuous current is 15A, power 400W. With enhanced heat dissipation, the current can be up to 30A. Quiescent current: 20 mA. Operating current: 50 mA. Working temperature: -40℃~85℃. Timing range: 0.1 seconds (min) to 999 minutes (max) continuously adjustable. Size: 60 x 34 x 12 mm / 2.36 x 1.33 x 0.47 inches. Note: 1. The module is an active output, the output voltage equal to the input voltage. 2. 'DC + 'and' load + ' are internally shorted(connected), but' DC- 'and' load - ' cannot be shorted, otherwise the load cannot be controlled on and off, which is equivalent to load being powered on always. Package includes: 2 x timer switch modules. 1 x screwdriver. 1 x Red and black cable
Product Features
- High performance: compared to normal electromagnetic relay modules, it has a longer service life. High-performance control chip for high stability and low power consumption.

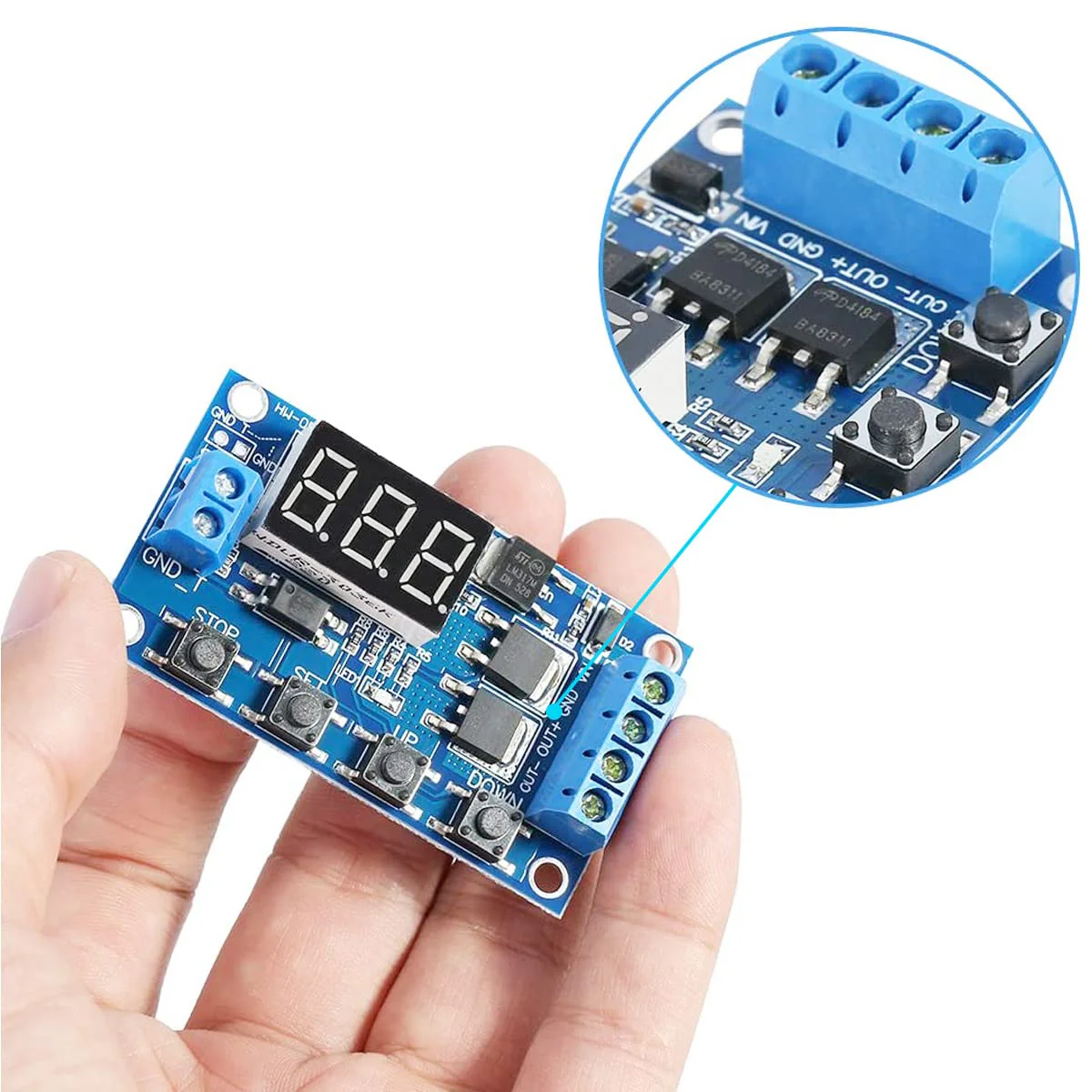

- High performance: dual MOS parallel active output, lower internal resistance, larger current, strong power; at room temperature, the operating current is up to 15A, the power up to 400W, which can be used for most devices
- No noise: no noise was made when switched on and off, no spark and no electromagnetic interference
- Switch multiple times: To achieve a fast high-frequency on/off circuit, an unlimited number of switching times
- Applications: Wide voltage input from 5V to 36V, usually used to control DC motors, lights, LED strips, micro pumps, solenoid valves, etc.
- Tutorial: To view the tutorial, please follow the link
More Images
Youmile 2pcs Time Relay 230V - Interval 12V Control Switch 5V - 36V Digital LED Relay Board Timer Delay Module with Screwdriver Red and Black Cable
Youmile 2pcs Time Relay 230V - Interval 12V Control Switch 5V - 36V Digital LED Relay Board Timer Delay Module with Screwdriver Red and Black Cable
Product description: This is a timer delay trigger module with LED display. The module has 5-36V wide voltage. At room temperature, its operating current is up to 15A, power up to 400W, so it can be used for most equipment. Besides, you can set different OP, CL, LOP parameters, and these parameters were independent of each other and saved respectively. Even when there is a power failure, all set parameters can be automatically saved. Specifications: Voltage: DC 5V~36V. Trigger signal source: high voltage level trigger (3.0V~24V), signal ground and system ground are not on common ground to improve the system's anti-jamming capability (you can also connect them on common ground). Output Capacity: DC 5V~36V, at room temperature, continuous current is 15A, power 400W. With enhanced heat dissipation, the current can be up to 30A. Quiescent current: 20 mA. Operating current: 50 mA. Working temperature: -40℃~85℃. Timing range: 0.1 seconds (min) to 999 minutes (max) continuously adjustable. Size: 60 x 34 x 12 mm / 2.36 x 1.33 x 0.47 inches. Note: 1. The module is an active output, the output voltage equal to the input voltage. 2. 'DC + 'and' load + ' are internally shorted(connected), but' DC- 'and' load - ' cannot be shorted, otherwise the load cannot be controlled on and off, which is equivalent to load being powered on always. Package includes: 2 x timer switch modules. 1 x screwdriver. 1 x Red and black cable
Product Features
- High performance: compared to normal electromagnetic relay modules, it has a longer service life. High-performance control chip for high stability and low power consumption.
- High performance: dual MOS parallel active output, lower internal resistance, larger current, strong power; at room temperature, the operating current is up to 15A, the power up to 400W, which can be used for most devices
- No noise: no noise was made when switched on and off, no spark and no electromagnetic interference
- Switch multiple times: To achieve a fast high-frequency on/off circuit, an unlimited number of switching times
- Applications: Wide voltage input from 5V to 36V, usually used to control DC motors, lights, LED strips, micro pumps, solenoid valves, etc.
- Tutorial: To view the tutorial, please follow the link
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Youmile 2pcs Time Relay 230V - Interval 12V Control Switch 5V - 36V Digital LED Relay Board Timer Delay Module with Screwdriver Red and Black Cable
Product description: This is a timer delay trigger module with LED display. The module has 5-36V wide voltage. At room temperature, its operating current is up to 15A, power up to 400W, so it can be used for most equipment. Besides, you can set different OP, CL, LOP parameters, and these parameters were independent of each other and saved respectively. Even when there is a power failure, all set parameters can be automatically saved. Specifications: Voltage: DC 5V~36V. Trigger signal source: high voltage level trigger (3.0V~24V), signal ground and system ground are not on common ground to improve the system's anti-jamming capability (you can also connect them on common ground). Output Capacity: DC 5V~36V, at room temperature, continuous current is 15A, power 400W. With enhanced heat dissipation, the current can be up to 30A. Quiescent current: 20 mA. Operating current: 50 mA. Working temperature: -40℃~85℃. Timing range: 0.1 seconds (min) to 999 minutes (max) continuously adjustable. Size: 60 x 34 x 12 mm / 2.36 x 1.33 x 0.47 inches. Note: 1. The module is an active output, the output voltage equal to the input voltage. 2. 'DC + 'and' load + ' are internally shorted(connected), but' DC- 'and' load - ' cannot be shorted, otherwise the load cannot be controlled on and off, which is equivalent to load being powered on always. Package includes: 2 x timer switch modules. 1 x screwdriver. 1 x Red and black cable
Product Features
- High performance: compared to normal electromagnetic relay modules, it has a longer service life. High-performance control chip for high stability and low power consumption.
- High performance: dual MOS parallel active output, lower internal resistance, larger current, strong power; at room temperature, the operating current is up to 15A, the power up to 400W, which can be used for most devices
- No noise: no noise was made when switched on and off, no spark and no electromagnetic interference
- Switch multiple times: To achieve a fast high-frequency on/off circuit, an unlimited number of switching times
- Applications: Wide voltage input from 5V to 36V, usually used to control DC motors, lights, LED strips, micro pumps, solenoid valves, etc.
- Tutorial: To view the tutorial, please follow the link
