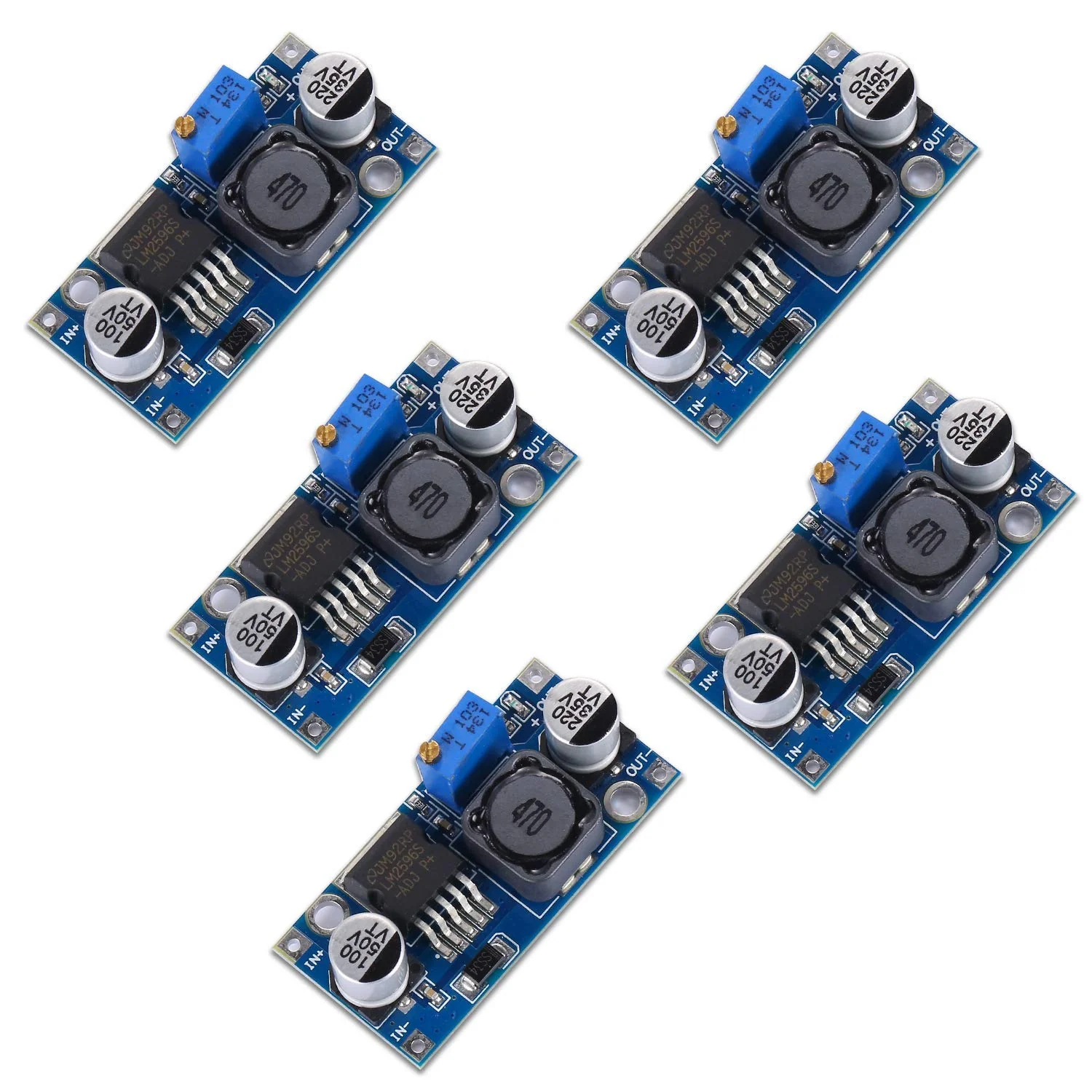

Yizhet LM2596 DC to DC Buck Converter, 3.0 - 40 V to 1.5 - 35 V Power Supply Step Down Module, Buck Converter Module, Down Converter, Adjustable Power Supply Buck Converter, Pack of 5
Yizhet LM2596 DC to DC Buck Converter, 3.0 - 40 V to 1.5 - 35 V Power Supply Step Down Module, Buck Converter Module, Down Converter, Adjustable Power Supply Buck Converter, Pack of 5
Yizhet LM2596 DC to DC Buck Converter, 3.0 - 40 V to 1.5 - 35 V Power Supply Step Down Module, Buck Converter Module, Down Converter, Adjustable Power Supply Buck Converter, Pack of 5
Product Features
- Input voltage: DC 3.2 V to 40 V, input voltage must be higher (1.5 V) than the output voltage.
- Output voltage: DC 1.25 V to 35 V, voltage is freely adjustable, with high efficiency (max. 92%) and max. output current is 3 A.

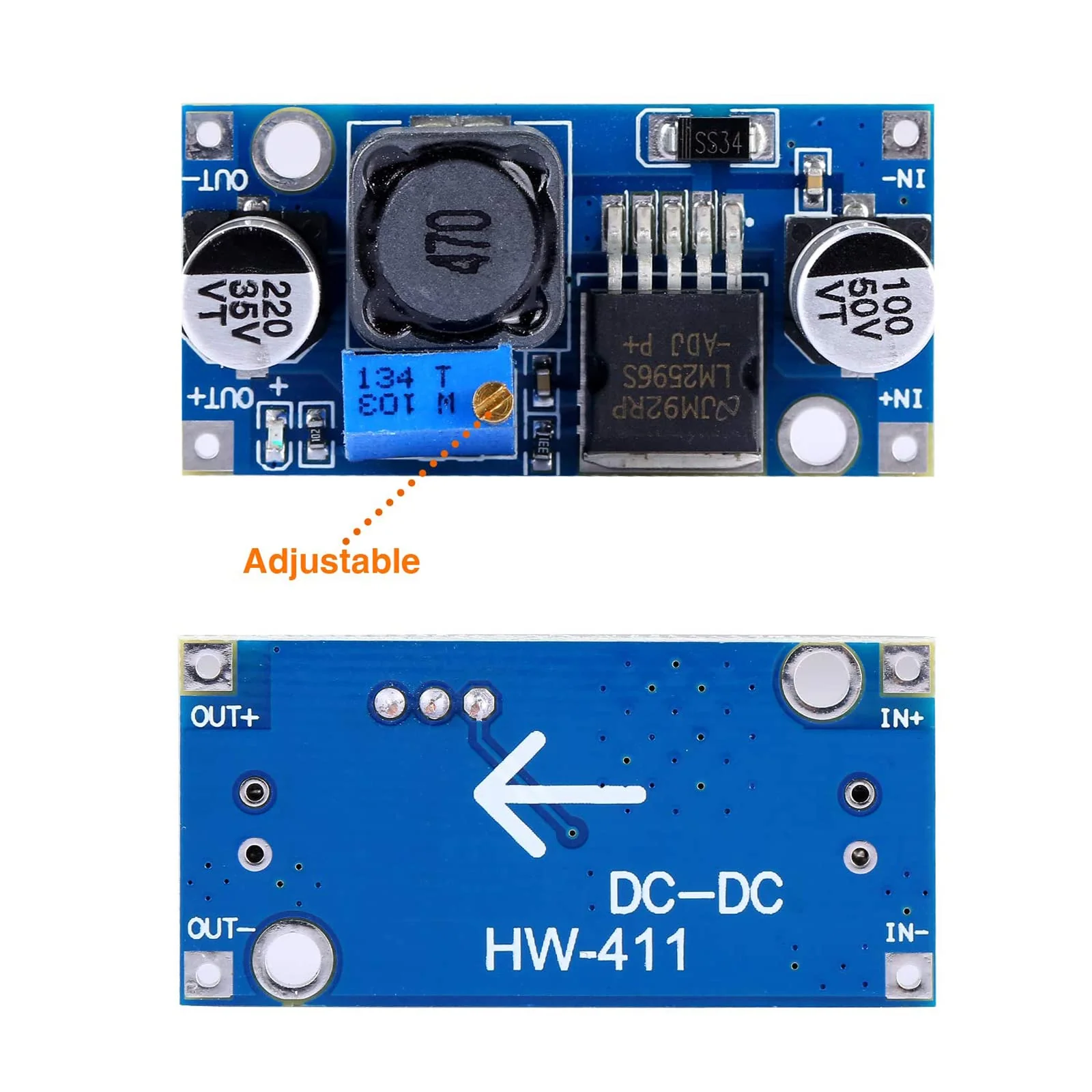

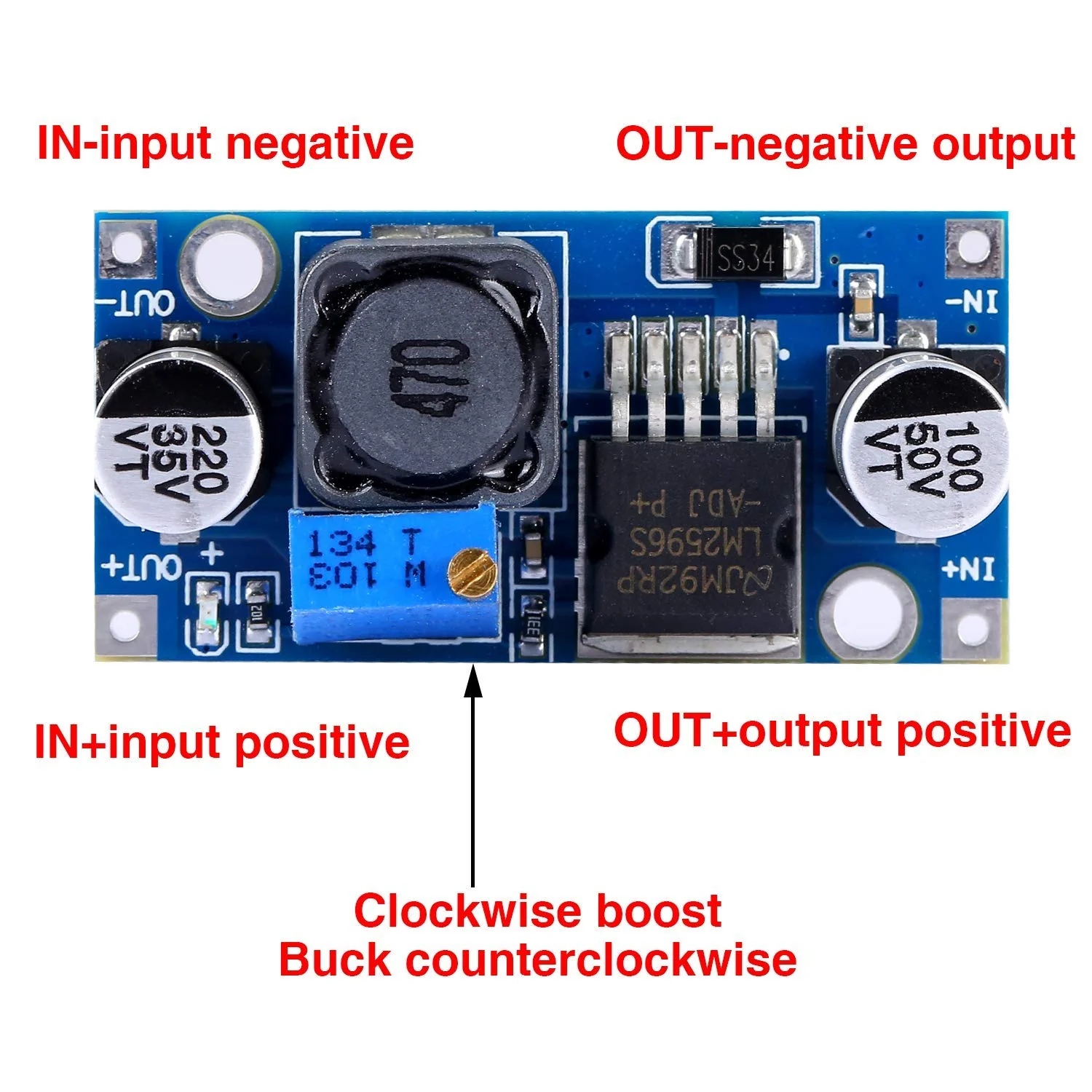

- Steps: Connect to the power source, adjust the rotator button on the blue potentiometer and monitor voltage with multimeter to get the necessary voltage, turn clockwise to step up voltage and counterclockwise to step down voltage (default voltage setting remains high; you need to contra-rotate about 7-8 circles before the voltage starts to fall, 1 circle means +/- 1 V).
- High precision: Consists of 36u thickened circuit boards, high-Q inductance with lamp indicator and superior solid-state capacitors that can effectively filter out high-frequency noise.

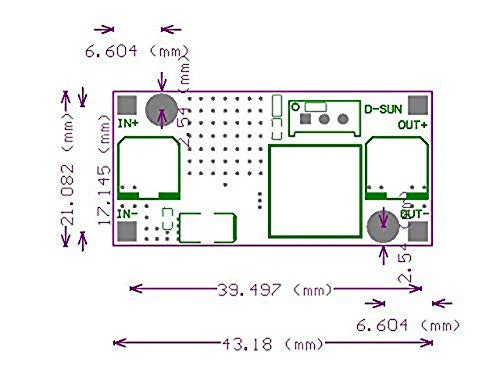

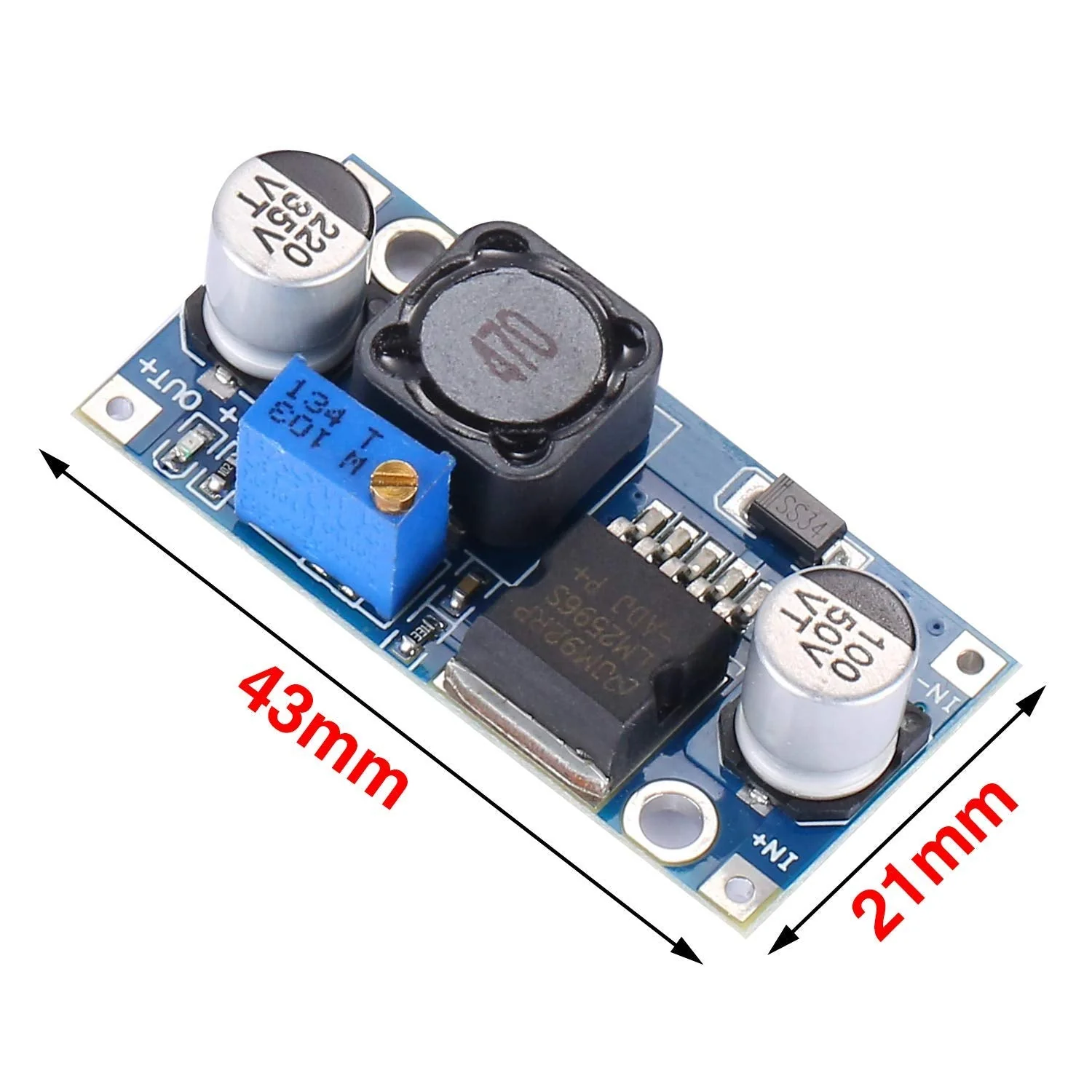

- Exterior dimensions (L x W x H): 5 pieces, 45 x 20 x 14 mm.
$30.17
Original: $86.20
-65%Yizhet LM2596 DC to DC Buck Converter, 3.0 - 40 V to 1.5 - 35 V Power Supply Step Down Module, Buck Converter Module, Down Converter, Adjustable Power Supply Buck Converter, Pack of 5—
$86.20
$30.17More Images
Yizhet LM2596 DC to DC Buck Converter, 3.0 - 40 V to 1.5 - 35 V Power Supply Step Down Module, Buck Converter Module, Down Converter, Adjustable Power Supply Buck Converter, Pack of 5
Yizhet LM2596 DC to DC Buck Converter, 3.0 - 40 V to 1.5 - 35 V Power Supply Step Down Module, Buck Converter Module, Down Converter, Adjustable Power Supply Buck Converter, Pack of 5
Product Features
- Input voltage: DC 3.2 V to 40 V, input voltage must be higher (1.5 V) than the output voltage.
- Output voltage: DC 1.25 V to 35 V, voltage is freely adjustable, with high efficiency (max. 92%) and max. output current is 3 A.
- Steps: Connect to the power source, adjust the rotator button on the blue potentiometer and monitor voltage with multimeter to get the necessary voltage, turn clockwise to step up voltage and counterclockwise to step down voltage (default voltage setting remains high; you need to contra-rotate about 7-8 circles before the voltage starts to fall, 1 circle means +/- 1 V).
- High precision: Consists of 36u thickened circuit boards, high-Q inductance with lamp indicator and superior solid-state capacitors that can effectively filter out high-frequency noise.
- Exterior dimensions (L x W x H): 5 pieces, 45 x 20 x 14 mm.
