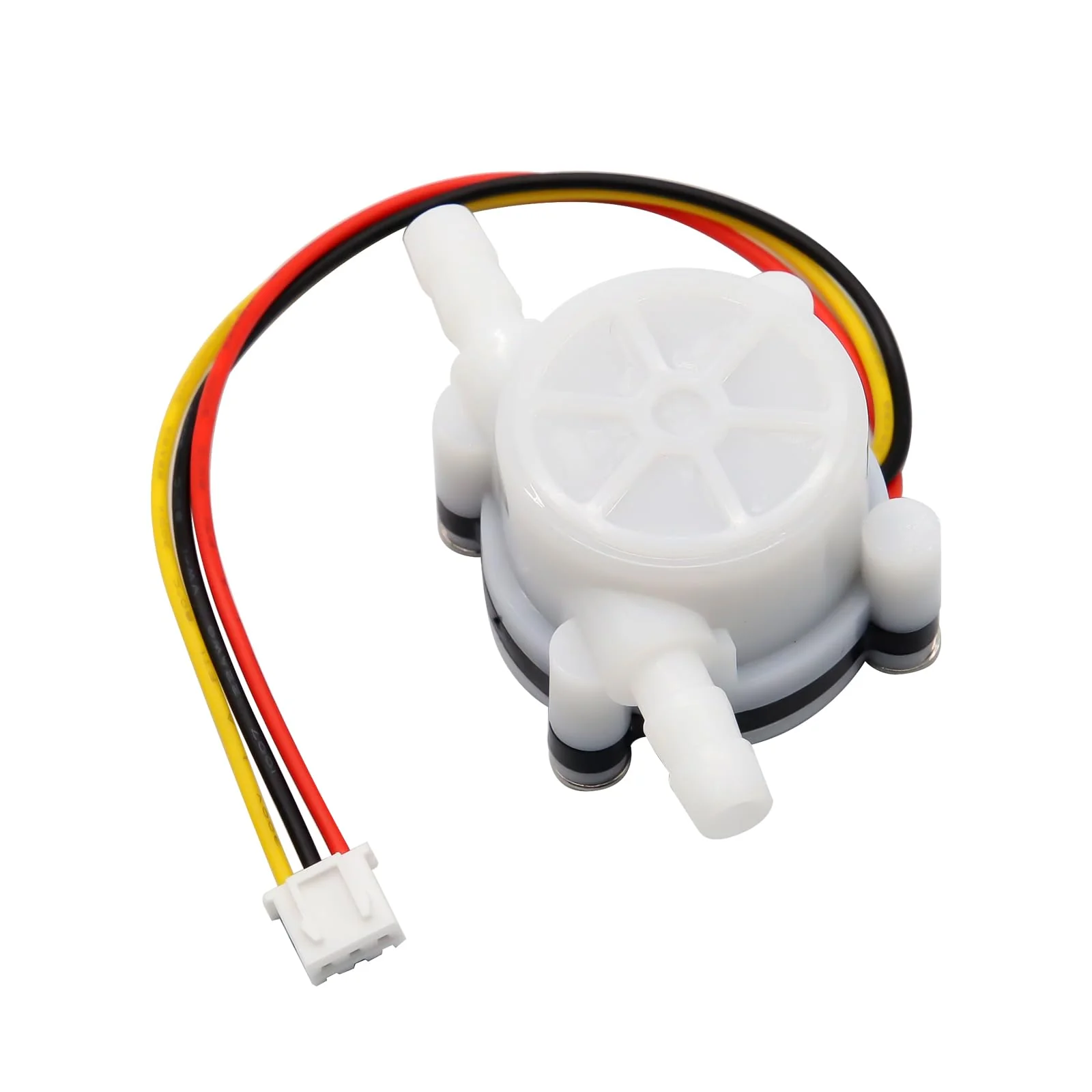

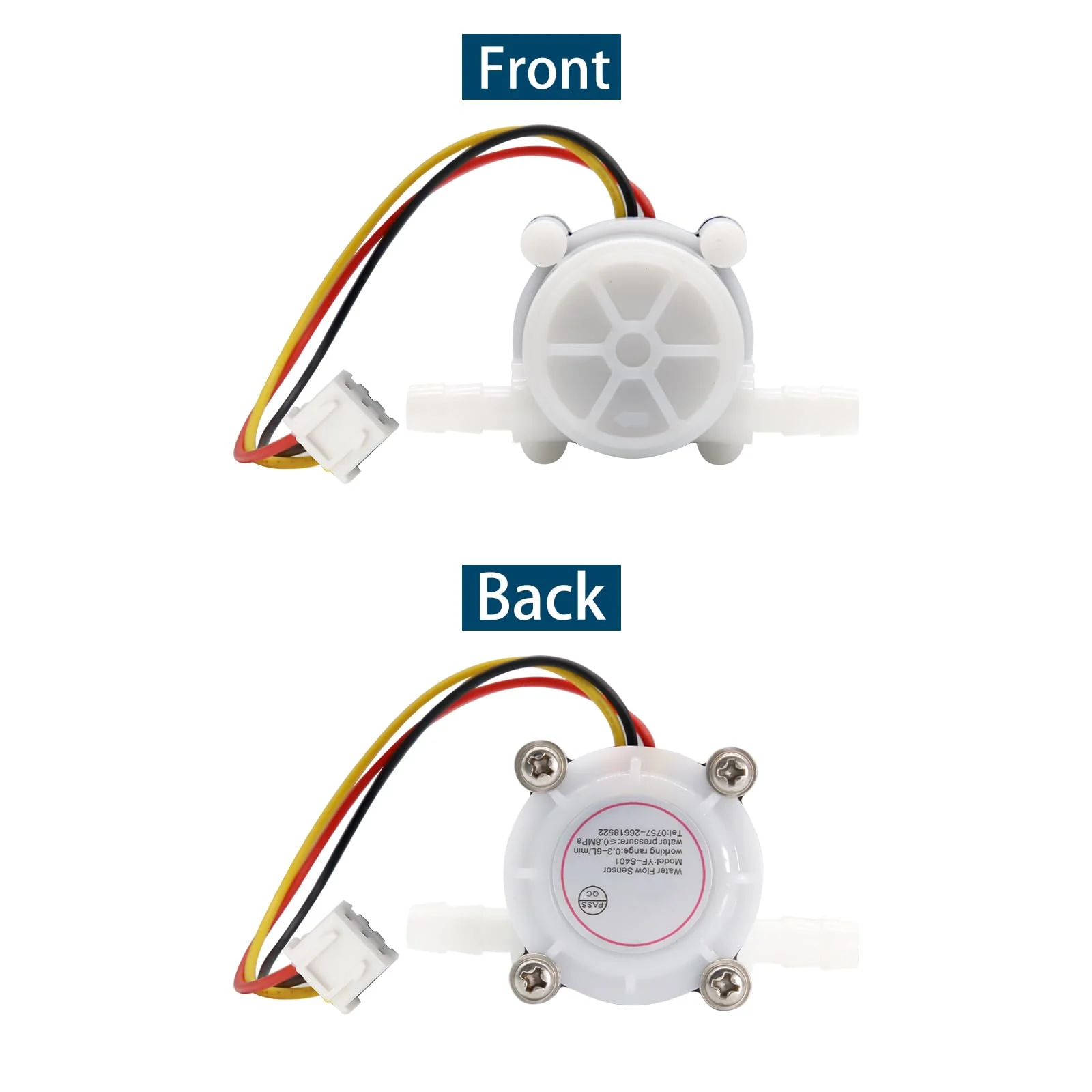

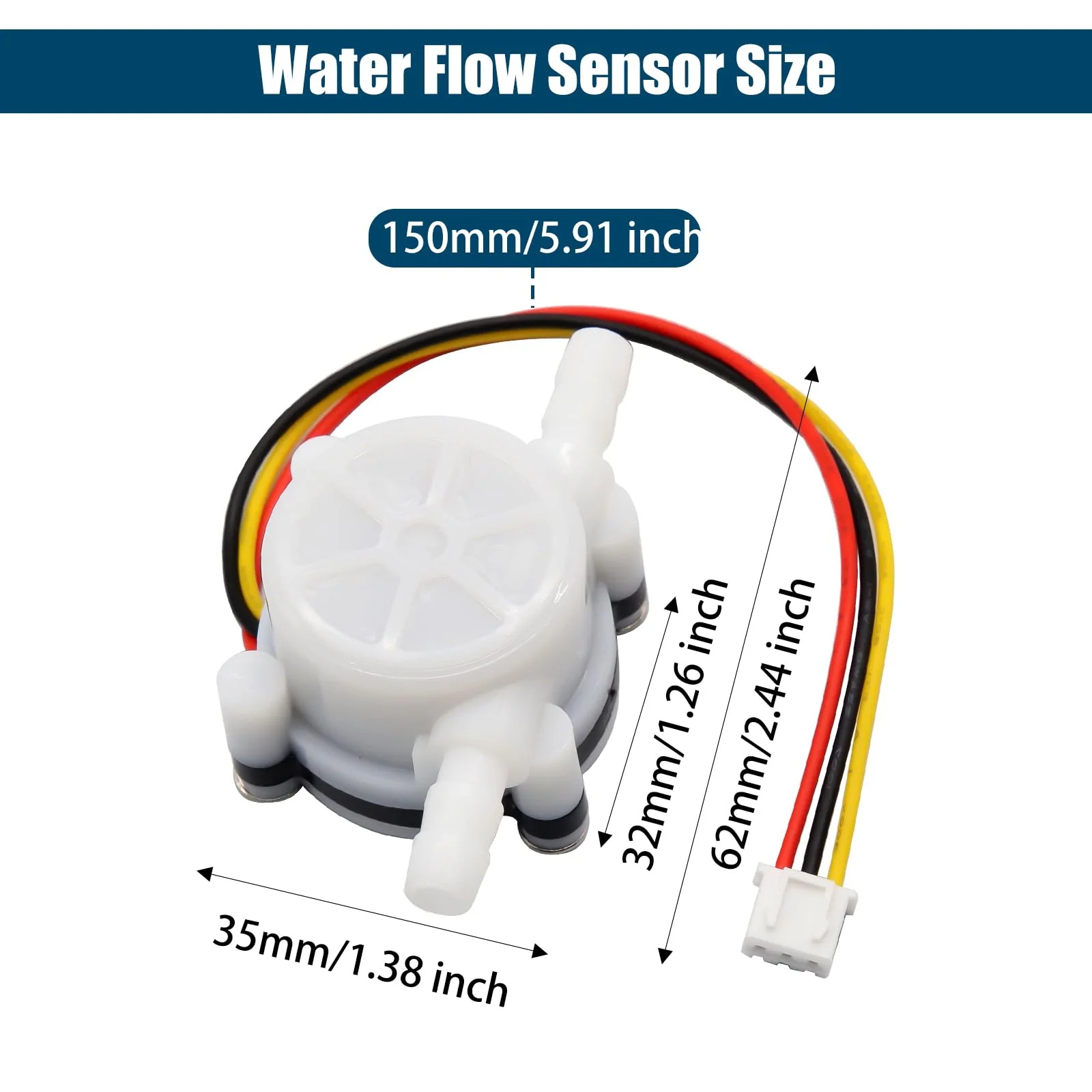

YF-S401 Water Flow Sensor Binghe YF-S401 DC 3.5-24V Hall Sensors 0.5-5L/min Flow Meter YF-S401 Flow Meter for Coffee Machines Suitable for Water Heaters, Card Machines
YF-S401 Water Flow Sensor Binghe YF-S401 DC 3.5-24V Hall Sensors 0.5-5L/min Flow Meter YF-S401 Flow Meter for Coffee Machines Suitable for Water Heaters, Card Machines
YF-S401 Water Flow Sensor Binghe YF-S401 DC 3.5-24V Hall Sensors 0.5-5L/min Flow Meter YF-S401 Flow Meter for Coffee Machines Suitable for Water Heaters, Card Machines

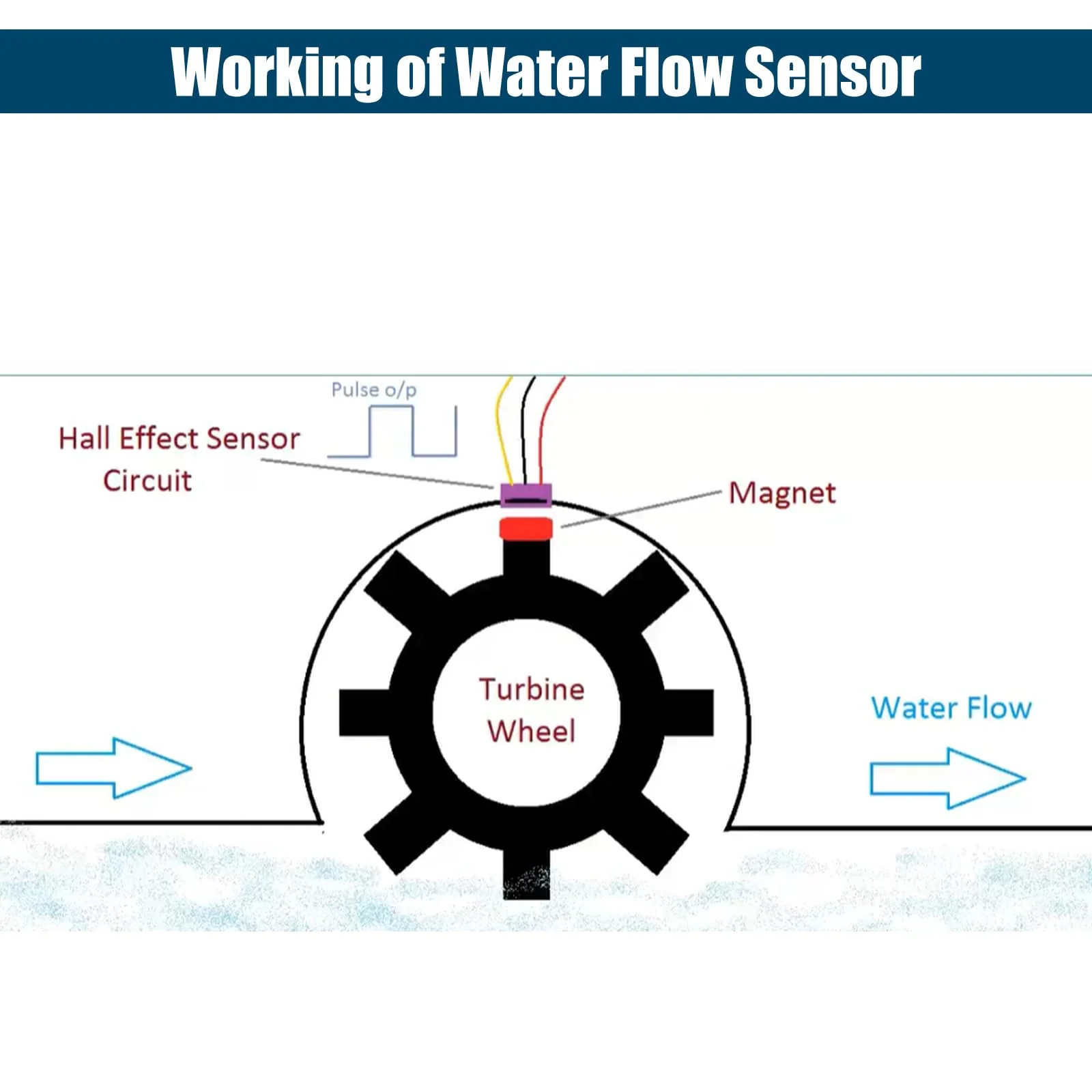

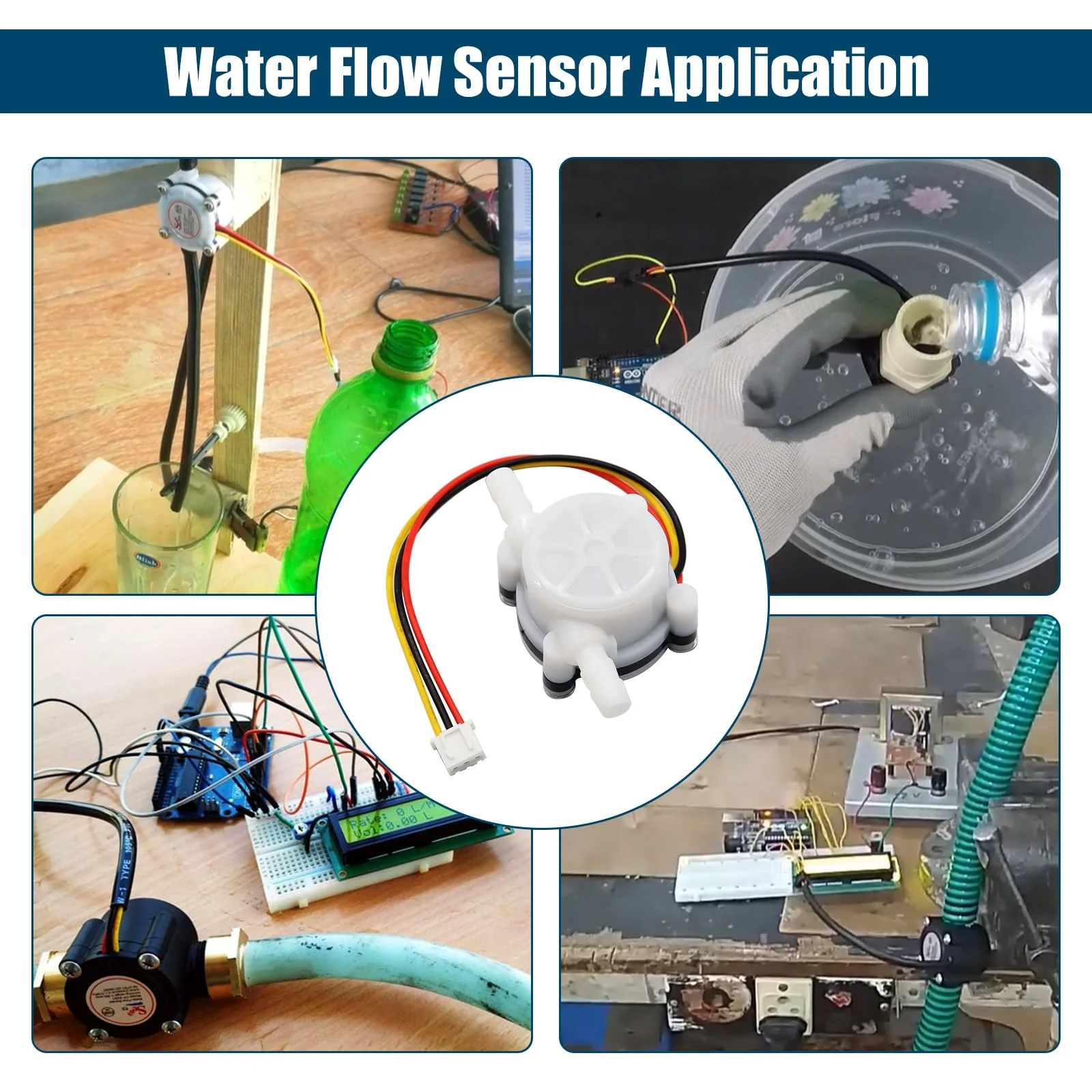

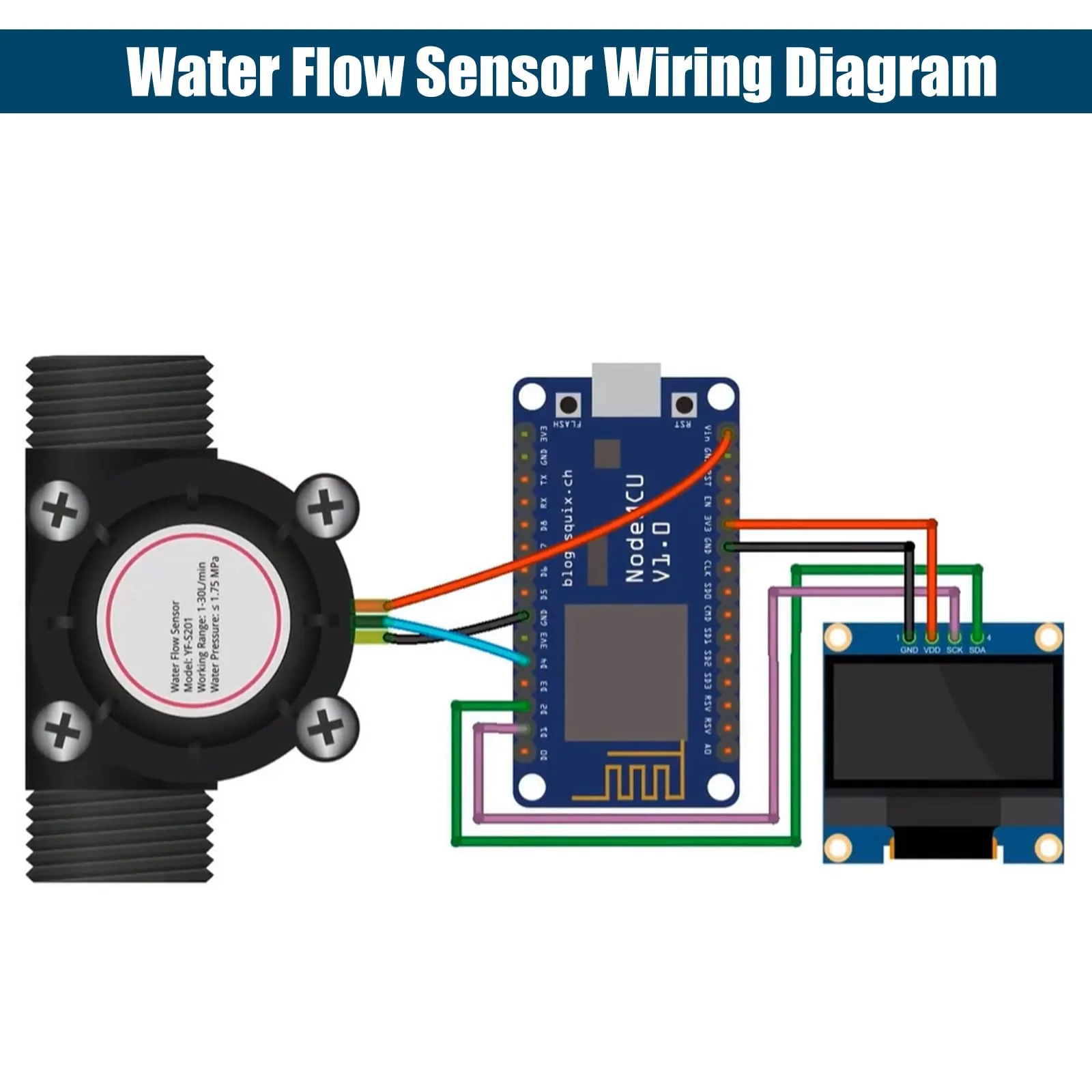

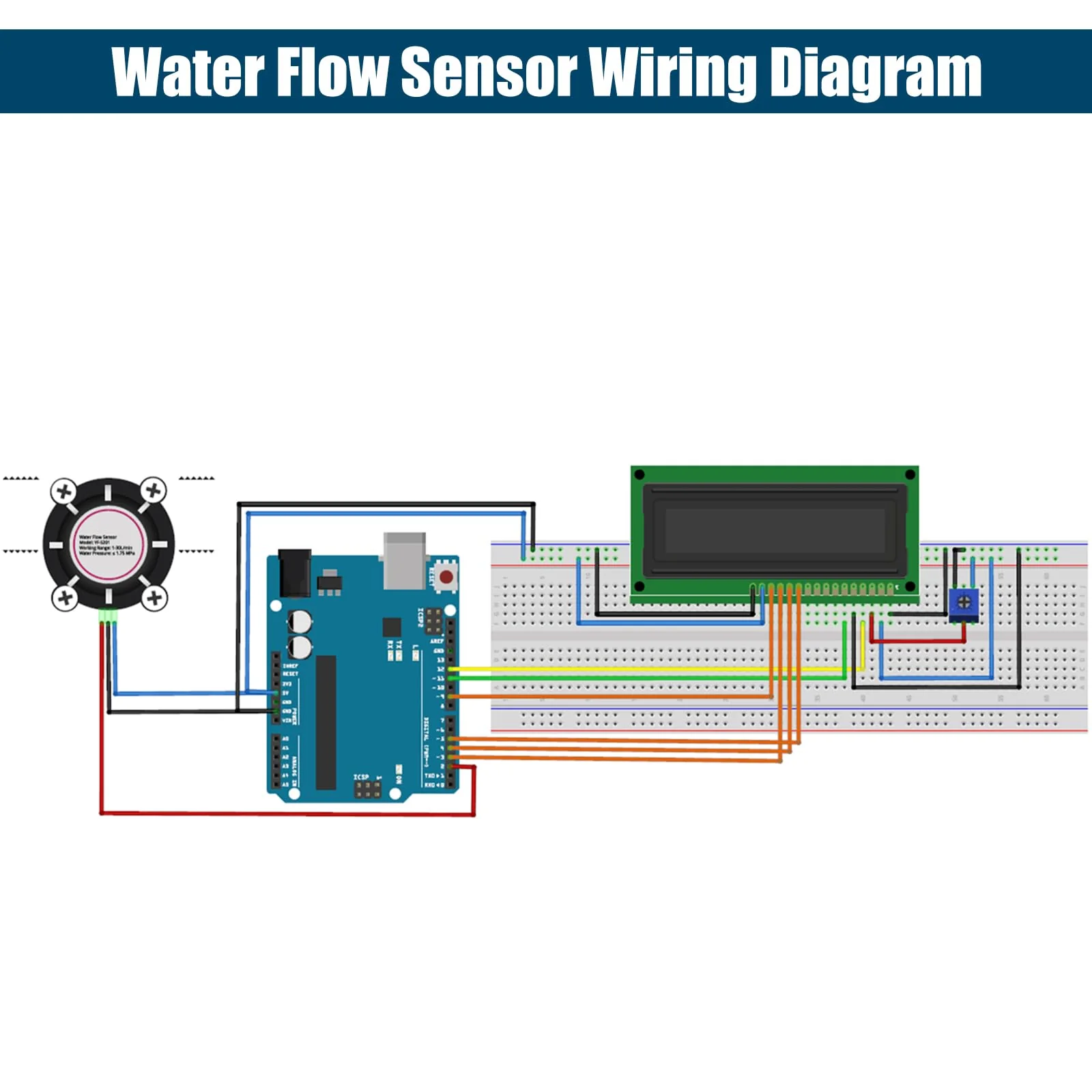

Description: The Binghe YF-S401 water flow sensor is a high precision and lightweight flow detection device for water heaters, water purifiers, vending machines and other flow meters. This YF-S401 sensor emits pulse signals via Hall sensors, which are fed back to the controller for flow control. Parameters: Minimum rated operating voltage: DC3.5 5V-12V. Maximum working current: 15mA (DC 5V) Operating voltage range: DC 5 ~ 18 V. Load capacity: ≤ 10 mA (DC 5 V). Operating temperature range: ≤ 80 °C. Operating humidity range: 35%~90%RH (no frost condition). Permissible pressure: water pressure below 1.75 Mpa. Storage temperature: -25 ~ + 80 °C. Storage humidity: 25%~95%RH Type of supply cable: 1 red - IN - connect to the positive pole. 2 yellow - OUT - signal output cable. 3 black - GND - negative pole. 4 Green - R - Temperature Sensors Suitable for: Water heaters, card machines, vending machines and other flow meters Product includes: 1 x DC 3.5-24 V YF-S401 water flow sensor.
Product Features
- Precise Flow Detection The YF-S401 water flow sensor emits precise pulse signals through the Hall sensor, which is ideal for water heaters, cleaning equipment and other meters.
- Wide Compatibility: The YF-S401 coffee machine flow meter is suitable for various applications such as vending machines and card readers with an operating voltage range of 3.5-24V.
- Durable Design The impeller features a stainless steel shaft for increased wear resistance, and a tightly sealed structure prevents any leakage.
- Hall element: Equipped with Hall components and sealed with resin sealed YF-S401 sensor is protected from water ingress and ensures a long service life.
- Waterproof Design The Hall elements are encapsulated with a sealing adhesive to prevent water ingress and thus extend the life of the sensor.
More Images
YF-S401 Water Flow Sensor Binghe YF-S401 DC 3.5-24V Hall Sensors 0.5-5L/min Flow Meter YF-S401 Flow Meter for Coffee Machines Suitable for Water Heaters, Card Machines
YF-S401 Water Flow Sensor Binghe YF-S401 DC 3.5-24V Hall Sensors 0.5-5L/min Flow Meter YF-S401 Flow Meter for Coffee Machines Suitable for Water Heaters, Card Machines
Description: The Binghe YF-S401 water flow sensor is a high precision and lightweight flow detection device for water heaters, water purifiers, vending machines and other flow meters. This YF-S401 sensor emits pulse signals via Hall sensors, which are fed back to the controller for flow control. Parameters: Minimum rated operating voltage: DC3.5 5V-12V. Maximum working current: 15mA (DC 5V) Operating voltage range: DC 5 ~ 18 V. Load capacity: ≤ 10 mA (DC 5 V). Operating temperature range: ≤ 80 °C. Operating humidity range: 35%~90%RH (no frost condition). Permissible pressure: water pressure below 1.75 Mpa. Storage temperature: -25 ~ + 80 °C. Storage humidity: 25%~95%RH Type of supply cable: 1 red - IN - connect to the positive pole. 2 yellow - OUT - signal output cable. 3 black - GND - negative pole. 4 Green - R - Temperature Sensors Suitable for: Water heaters, card machines, vending machines and other flow meters Product includes: 1 x DC 3.5-24 V YF-S401 water flow sensor.
Product Features
- Precise Flow Detection The YF-S401 water flow sensor emits precise pulse signals through the Hall sensor, which is ideal for water heaters, cleaning equipment and other meters.
- Wide Compatibility: The YF-S401 coffee machine flow meter is suitable for various applications such as vending machines and card readers with an operating voltage range of 3.5-24V.
- Durable Design The impeller features a stainless steel shaft for increased wear resistance, and a tightly sealed structure prevents any leakage.
- Hall element: Equipped with Hall components and sealed with resin sealed YF-S401 sensor is protected from water ingress and ensures a long service life.
- Waterproof Design The Hall elements are encapsulated with a sealing adhesive to prevent water ingress and thus extend the life of the sensor.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
YF-S401 Water Flow Sensor Binghe YF-S401 DC 3.5-24V Hall Sensors 0.5-5L/min Flow Meter YF-S401 Flow Meter for Coffee Machines Suitable for Water Heaters, Card Machines
Description: The Binghe YF-S401 water flow sensor is a high precision and lightweight flow detection device for water heaters, water purifiers, vending machines and other flow meters. This YF-S401 sensor emits pulse signals via Hall sensors, which are fed back to the controller for flow control. Parameters: Minimum rated operating voltage: DC3.5 5V-12V. Maximum working current: 15mA (DC 5V) Operating voltage range: DC 5 ~ 18 V. Load capacity: ≤ 10 mA (DC 5 V). Operating temperature range: ≤ 80 °C. Operating humidity range: 35%~90%RH (no frost condition). Permissible pressure: water pressure below 1.75 Mpa. Storage temperature: -25 ~ + 80 °C. Storage humidity: 25%~95%RH Type of supply cable: 1 red - IN - connect to the positive pole. 2 yellow - OUT - signal output cable. 3 black - GND - negative pole. 4 Green - R - Temperature Sensors Suitable for: Water heaters, card machines, vending machines and other flow meters Product includes: 1 x DC 3.5-24 V YF-S401 water flow sensor.
Product Features
- Precise Flow Detection The YF-S401 water flow sensor emits precise pulse signals through the Hall sensor, which is ideal for water heaters, cleaning equipment and other meters.
- Wide Compatibility: The YF-S401 coffee machine flow meter is suitable for various applications such as vending machines and card readers with an operating voltage range of 3.5-24V.
- Durable Design The impeller features a stainless steel shaft for increased wear resistance, and a tightly sealed structure prevents any leakage.
- Hall element: Equipped with Hall components and sealed with resin sealed YF-S401 sensor is protected from water ingress and ensures a long service life.
- Waterproof Design The Hall elements are encapsulated with a sealing adhesive to prevent water ingress and thus extend the life of the sensor.
