YAVIS Power Supply Door Access Control System Power Switch 3A 110-240V AC to 12V DC for Access Control System Door Lock with Time Delay K80 Power Supply-1

YAVIS Power Supply Door Access Control System Power Switch 3A 110-240V AC to 12V DC for Access Control System Door Lock with Time Delay K80

Protecting your security starts with choosing a stable, powerful access control system power supply control. Description: Power supply is standard 12 VDC, 3 A electric locks or bolts directly control, reduce the load on the access controller, save project cables, very stable and reliable output for various applications such as locking control / controller control / termination or RFID ID reader Application: These products are widely used in access control systems and related applications such as electromagnetic lock, lock controller, RFID IC card reader, password keyboard, etc. Technical data: 1. Small and exquisite, easy installation. 2. Advantages: voltage range input regularly from 100V-240V, compatible with world voltage, light weight, convenient transport, small interference, the output voltage fluctuation is only ¡À1% from idle to full load, the increase in lock temperature decreases greatly (compared with the mains frequency) power supply). 3. AC input: standard AC100V-240V 50-60Hz 36W. 4.DC Output: Stabilizer DC12V/3A 5. It directly controls the electric lock. A timing control circuit can be set, and the release time can be in 0-15 seconds (it is arbitrarily adjustable). 6. Automatic protection function: it automatically protects and no voltage output when a short circuit occurs in the circumferential circuit. Outer iron shell dimensions: 120 mm x 95 mm x 38 mm. 8. Set NC/NO outputs, can control different types of electric locks. 9.Note: The opening time must be set to 0 seconds when connecting to electrically controlled lock. Otherwise, the electric bolt lock would be burned. Package included: 1 x Access Control Power Controller

Product Features

• If you are looking for power supply door access control system, please do not miss it.
• AC Input: Standard AC100V-240V 50-60Hz 36W, DC Output: Stabilizer DC12V/3A

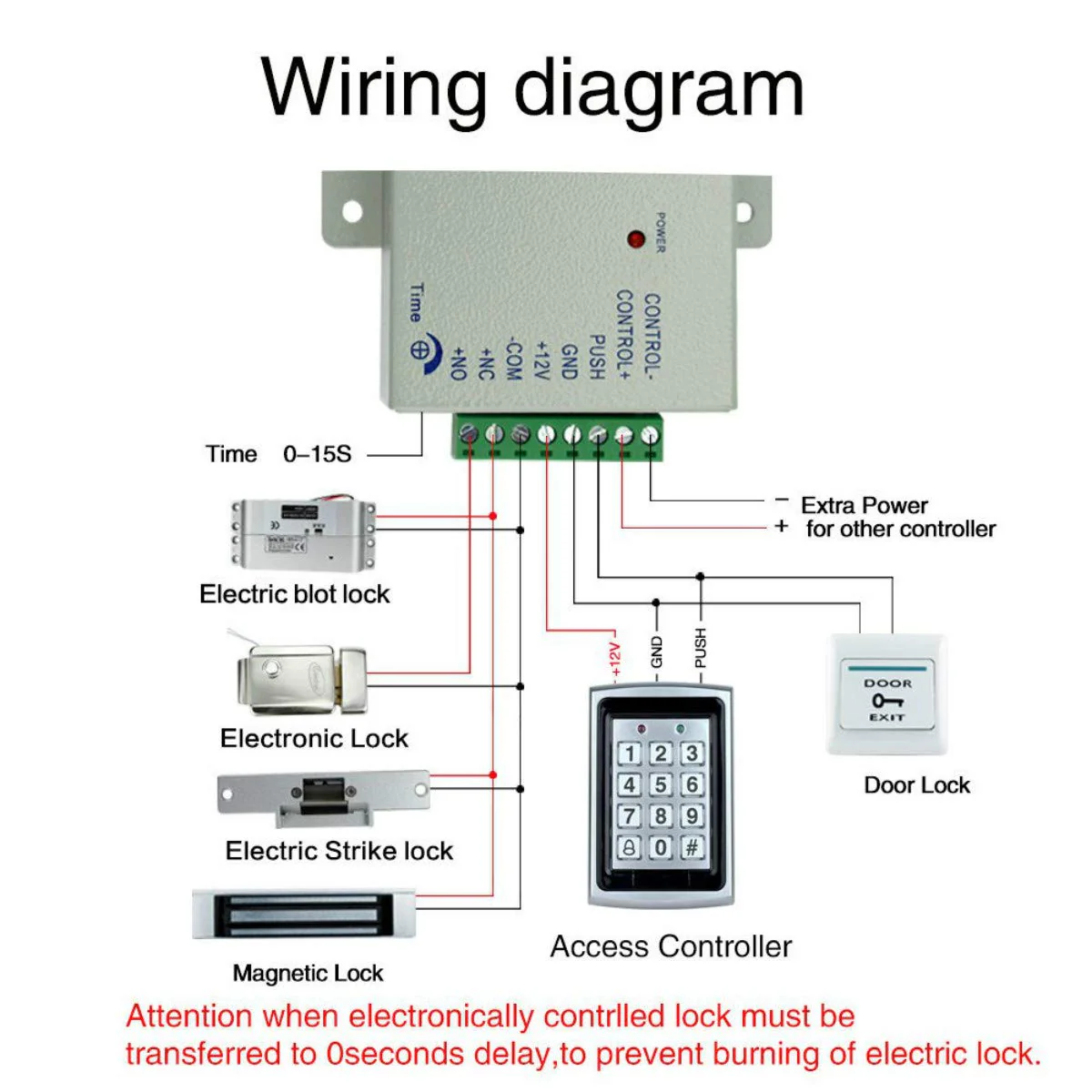

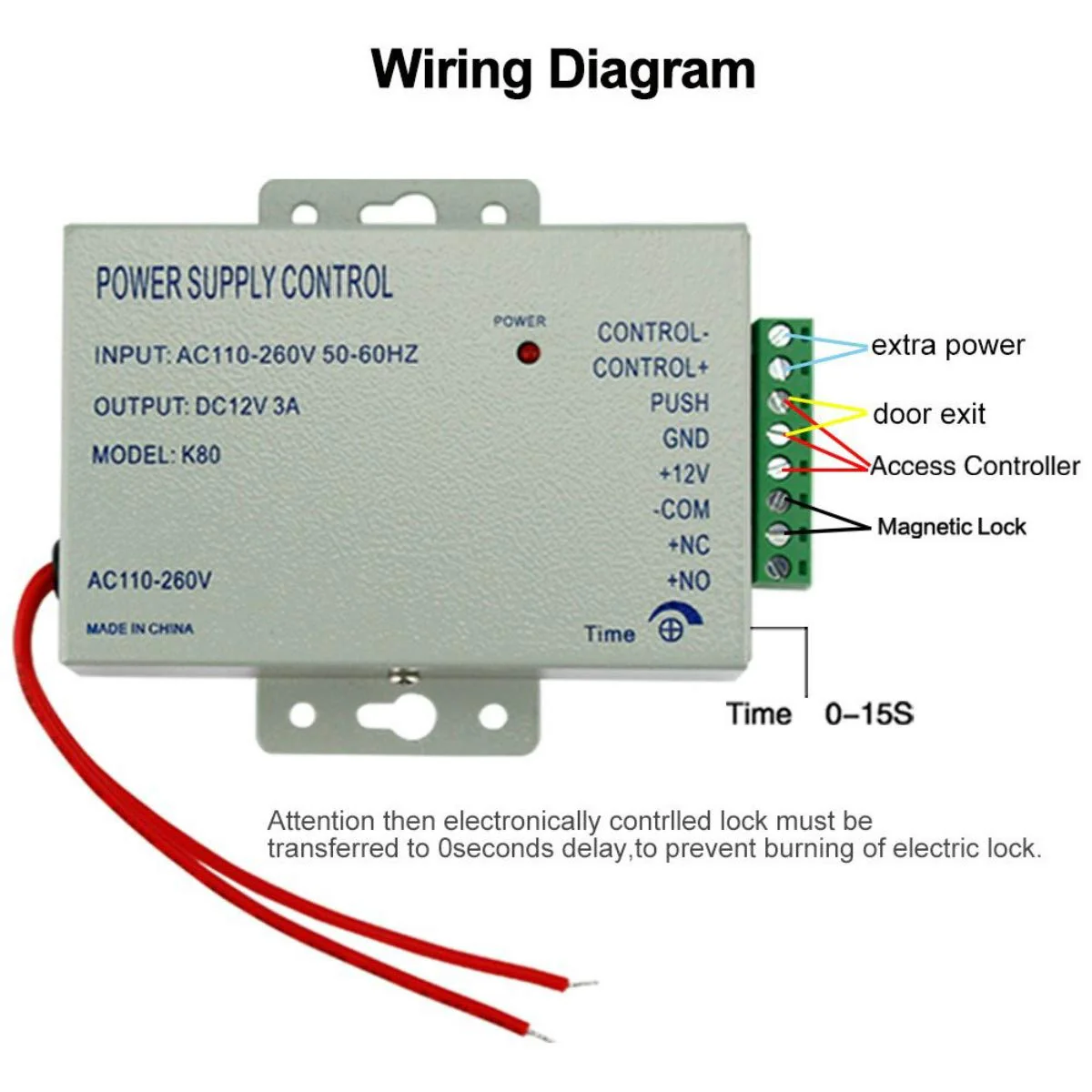

• NC/NO outputs, can control different types of electric locks, reduce the load of the access controller, save project wires.
• .Note: Power supply control, opening time must be set to 0 seconds when connecting with electrically controlled lock. Otherwise, the electric bolt lock would be burned.
• Based on delay control, lock time can be in 0-15 seconds.
