The WEIPU WS20 series is part of the broader WS series of unsealed threaded connectors. These connectors are designed for in line cable to cable connections or cable to panel mount connections, with both male and female ends available. The series features a panel cut out size of 20.5mm, which is suitable for a wide range of installation scenarios. It includes various styles such as round or square flange style panel connectors and straight or angled cable connectors, providing flexibility to adapt to different installation requirements. The WS20 series is specifically engineered to meet the demands of indoor power and data applications, such as in office automation systems, data centers, and small scale industrial control setups, offering reliable connectivity solutions for these environments.Electrical Specifications Rated Current:2 pin，3 pin，4 pin versions: 25A 5 pin, 6 pin（5A/25A), 7 pin versions: 10A 9 pin, 12 pin versions: 5ARated Voltage: 500V (AC) for all pin configurationsWithstanding Voltage: 1500V (AC) for 1 minute across all pin configurationsContact Resistance:2 pin，3 pin，4 pin versions: 1mΩ5 pin, 6 pin（5mΩ/1mΩ), 7 pin versions: 2.5mΩ9 pin, 12 pin versions: 5mΩMechanical SpecificationsCoupling: Threaded coupling for a secure connectionShell Material: Zinc alloy, providing high strength and corrosion resistanceInsert Material: PPS, with a maximum temperature resistance of 260°CContact Material: Brass (gold plated) for enhanced conductivityTermination: Solder, screw, or crimp termination availableCable Outer Diameter Range: Generally suitable for cables with an outer diameter of 6-10mmDurability: Can withstand ≥500 times of connection and disconnectionEnvironmental SpecificationsWorking Temperature: Operates within a temperature range of - 40°C to + 85°CProtection Level: Not suitable for outdoor use due to lack of waterproof and dust - proof features; designed primarily for indoor applications
Product Features

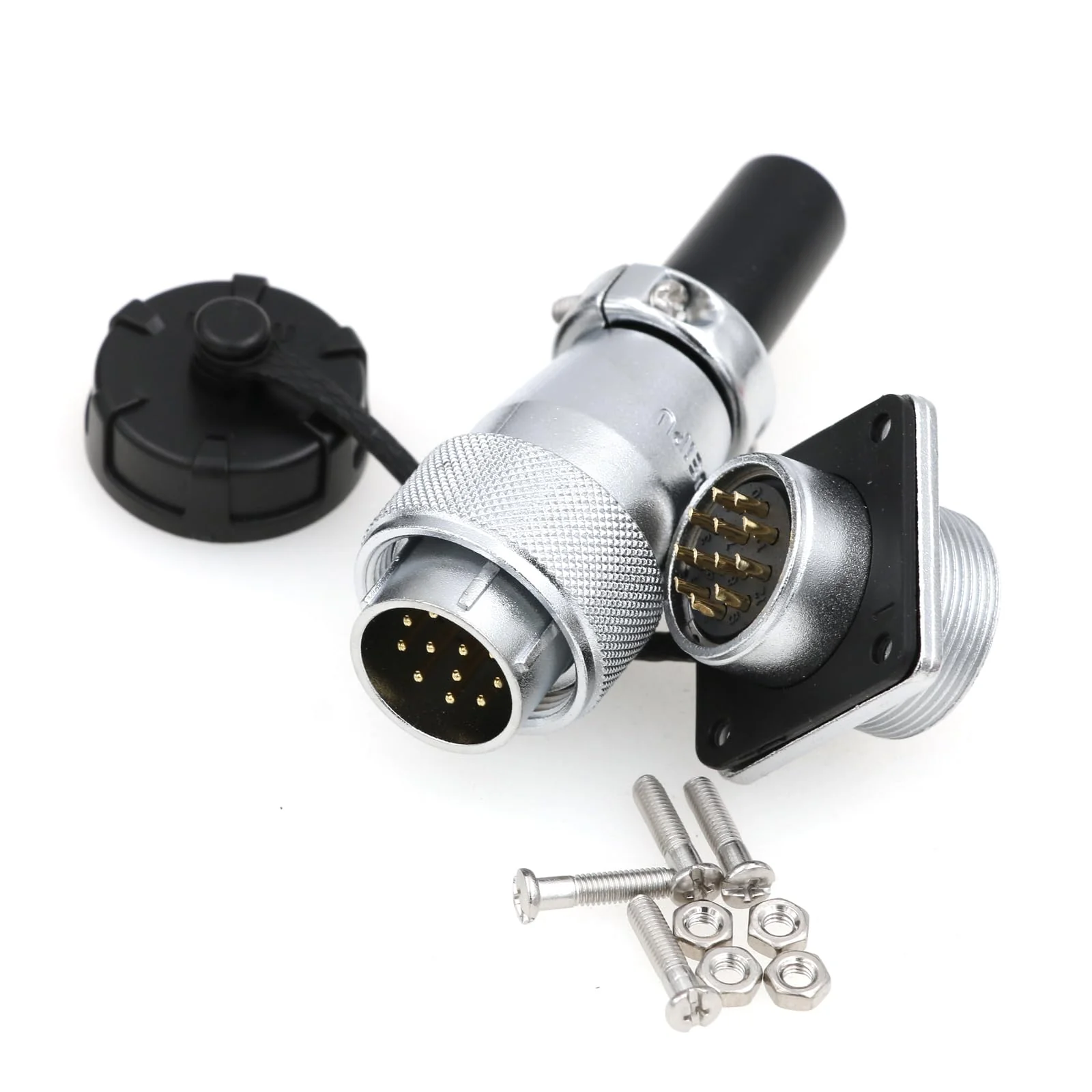

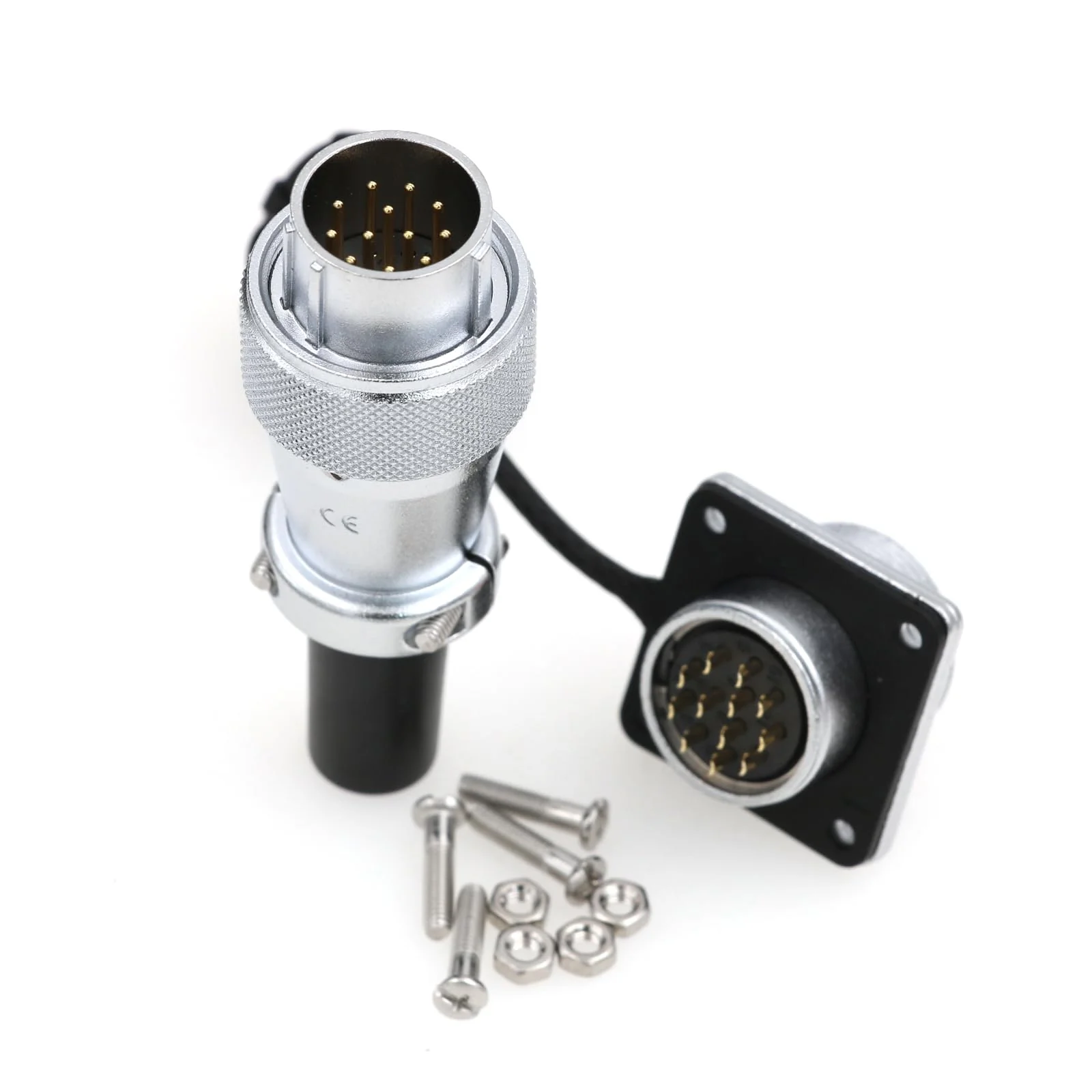

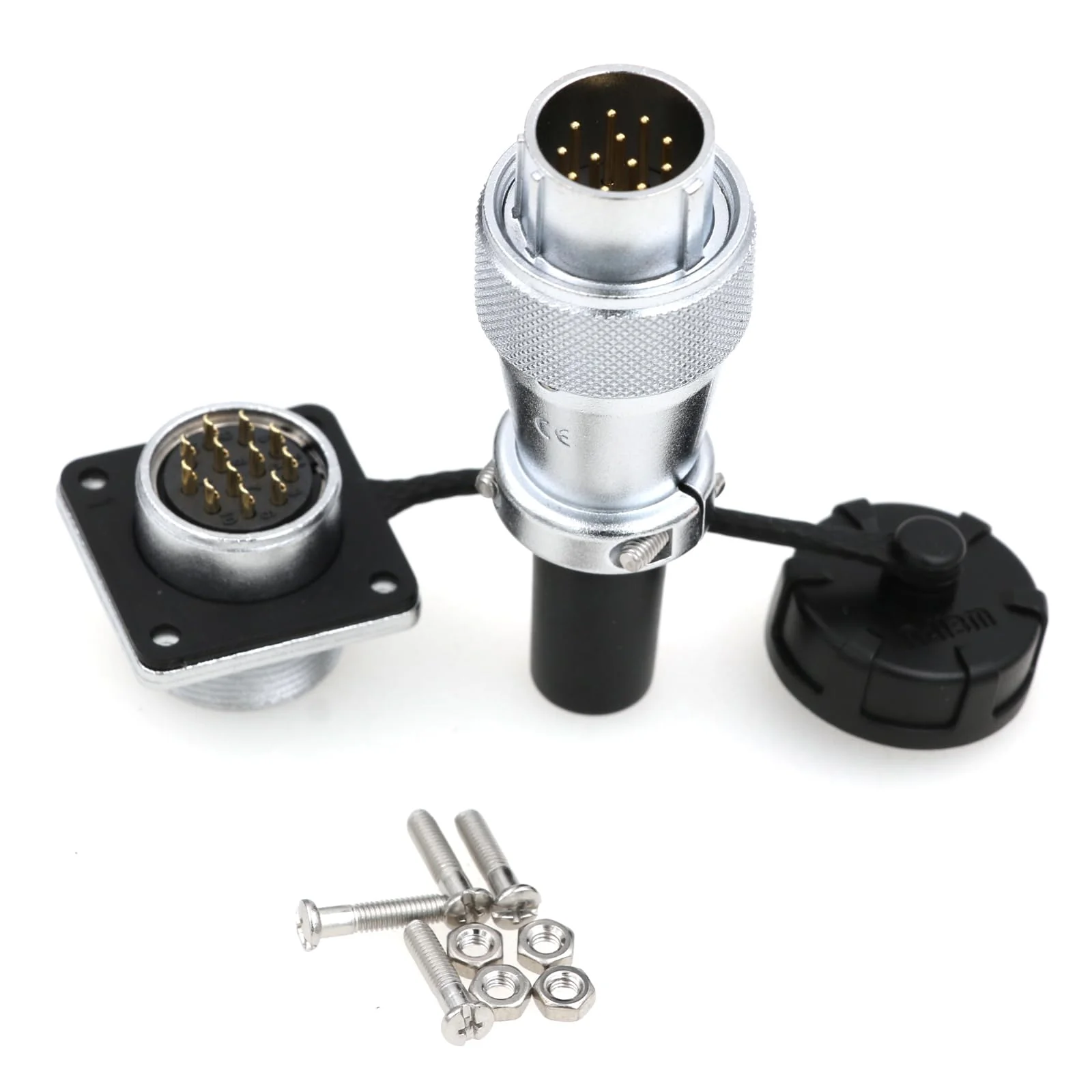

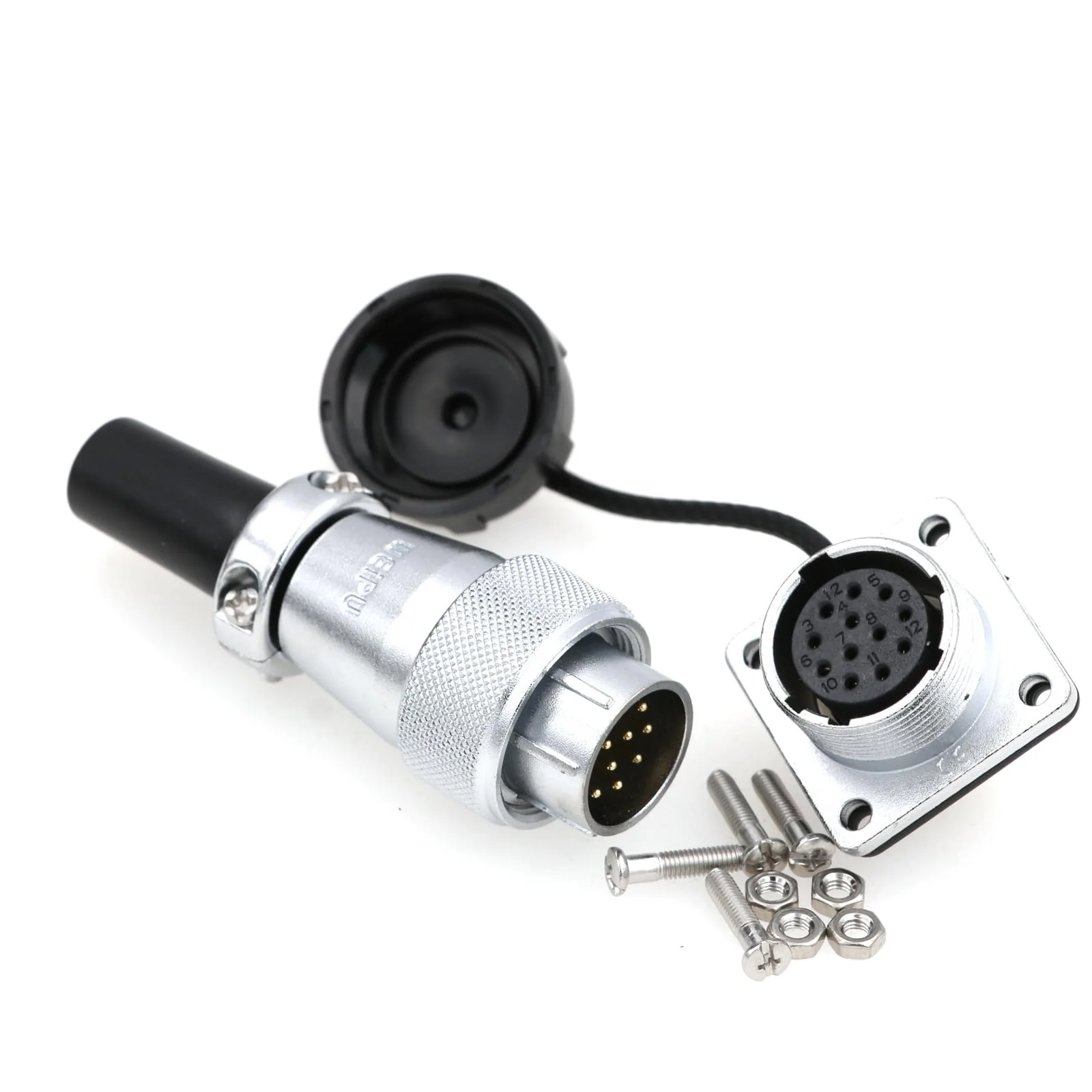

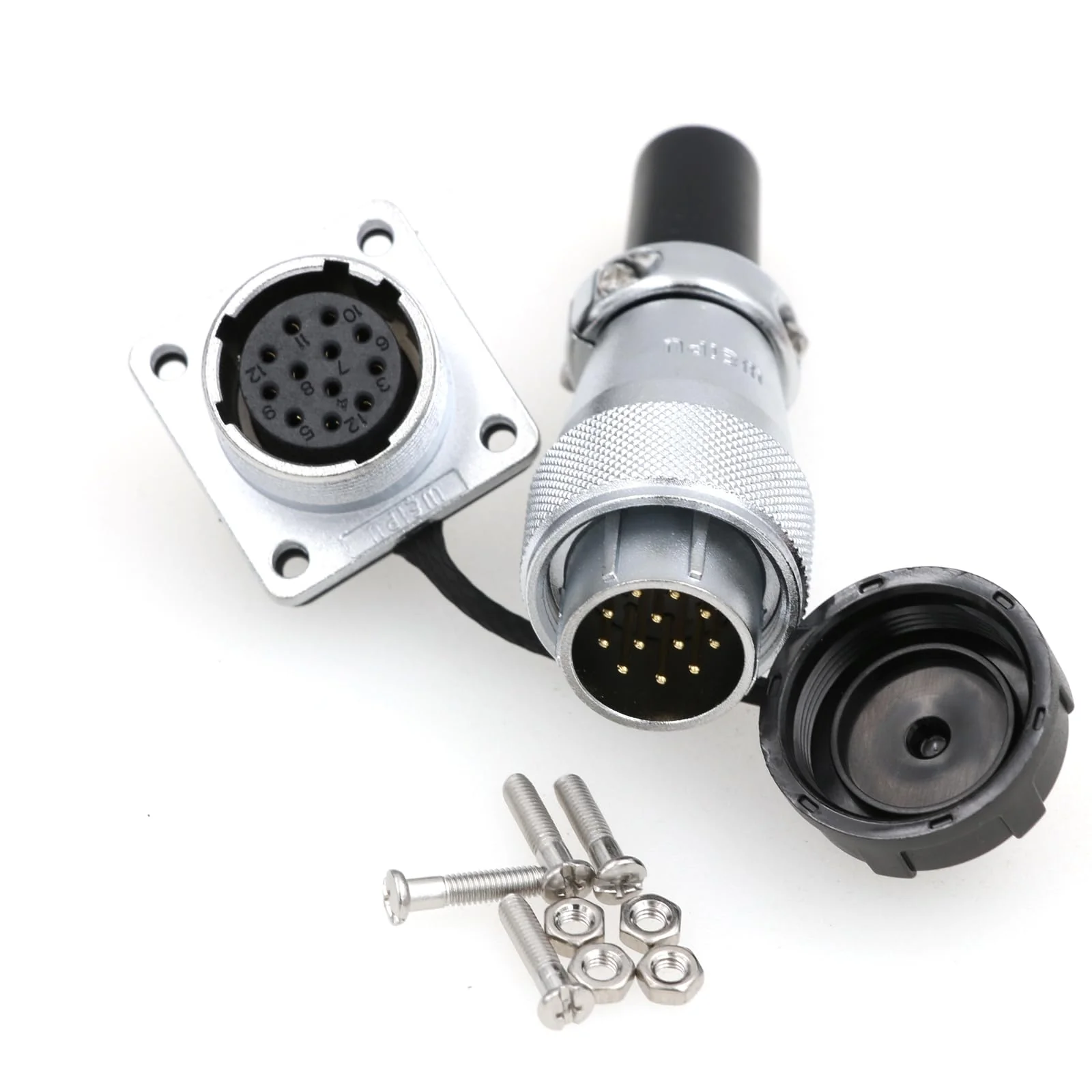

- WEIPU WS20 Male Plug Female Square Socket Waterproof IP67 Aviation Power Electrical Wire Connector.

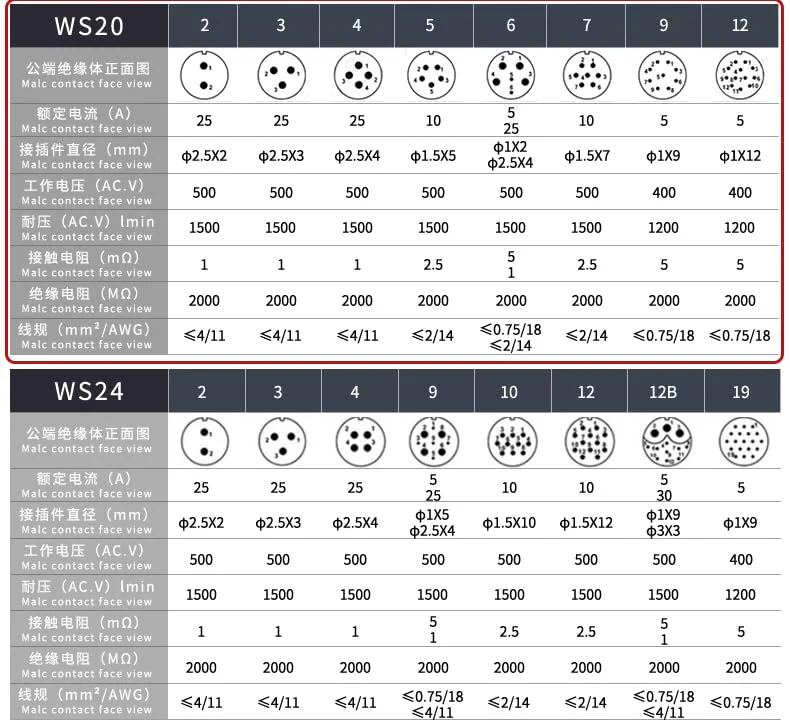

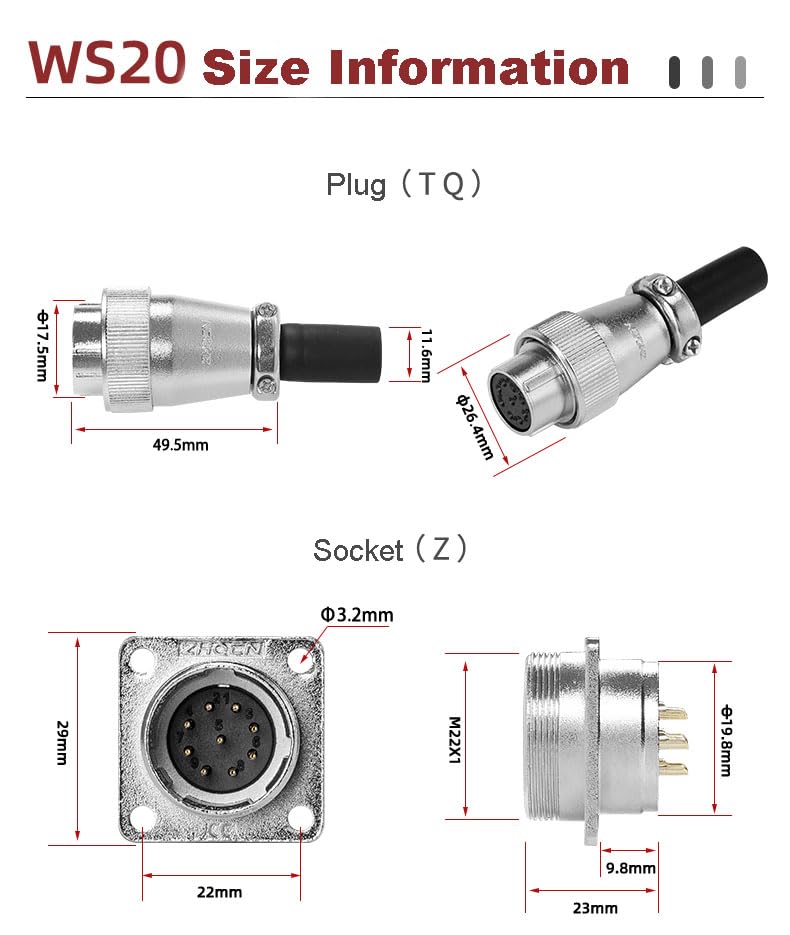

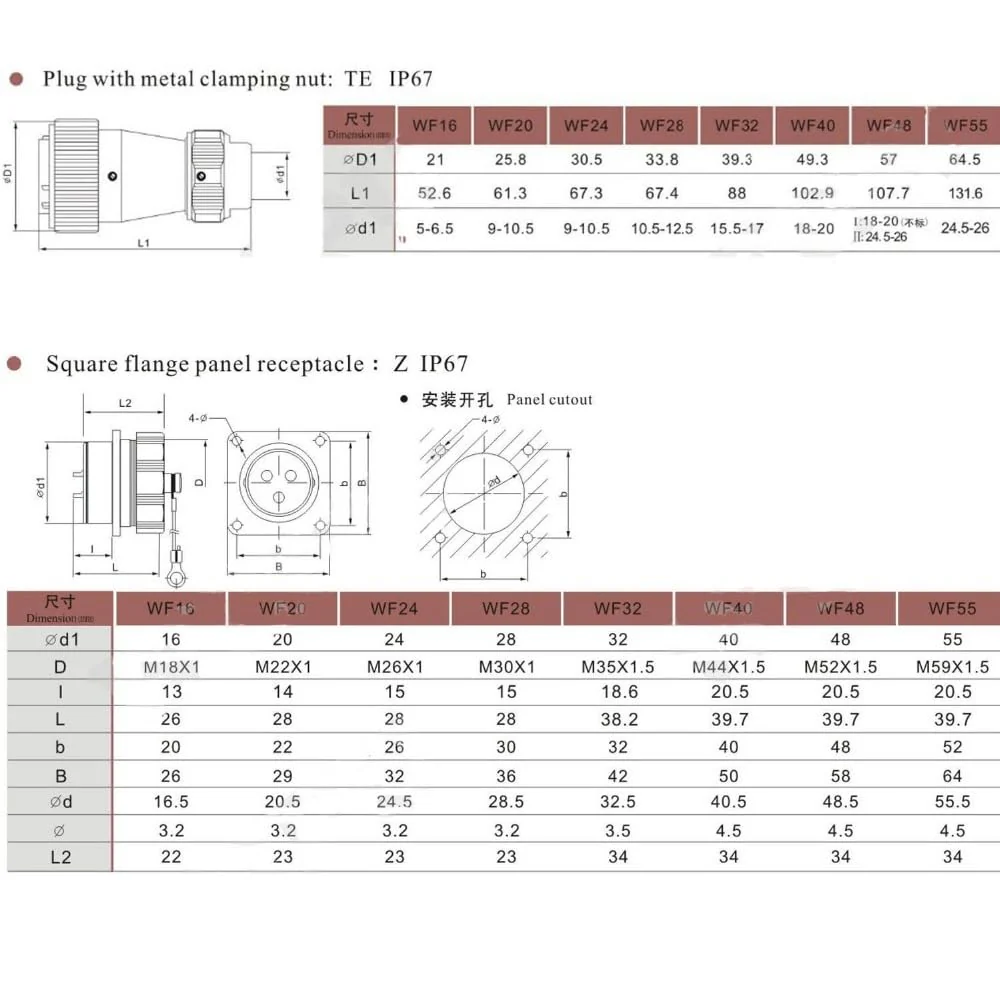

- WS20 Pins:2Pin;Contact Diameter: 2.5X2,Contact resistance: 1m ;Wire Size: 4mm2 /11 AWG;Rated Current / Voltage : 25A / AC 500V;Withstand Voltage : AC 1500V.
- Connection method :threaded connection.Shell material :zinc alloy (chrome-plated).Contact parts material:copper (gold-plated).
- WS20 series metal panel mount connector, mainly used in industrial automation power connectors, automotive, marine, high voltage, waterproof, anti-vibration.
- Electrical Power Connector Plug + Socket, Outdoor Waterproof IP67.Widely used in various machine tools, locomotives, electricity, post and telecommunications, communications, navigation, instrumentation, lighting systems, medical and oil exploration and other fields.
