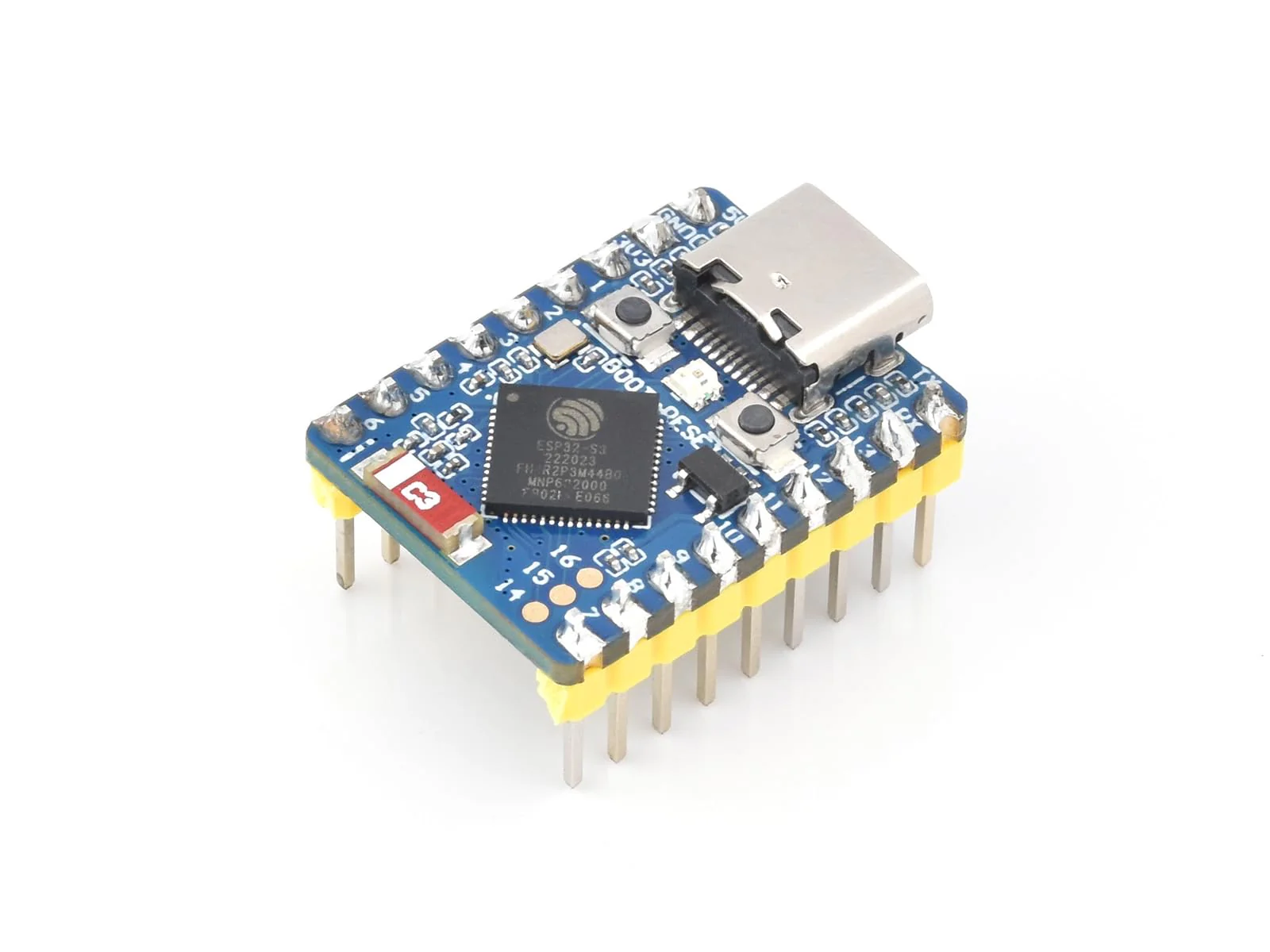

Waveshare ESP32-C3 Mini Development Board, Based On ESP32-C3FN4 Single-Core Processor, 160MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5 with Pre-soldered Header
Waveshare ESP32-C3 Mini Development Board, Based On ESP32-C3FN4 Single-Core Processor, 160MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5 with Pre-soldered Header
Waveshare ESP32-C3 Mini Development Board, Based On ESP32-C3FN4 Single-Core Processor, 160MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5 with Pre-soldered Header
Product Features

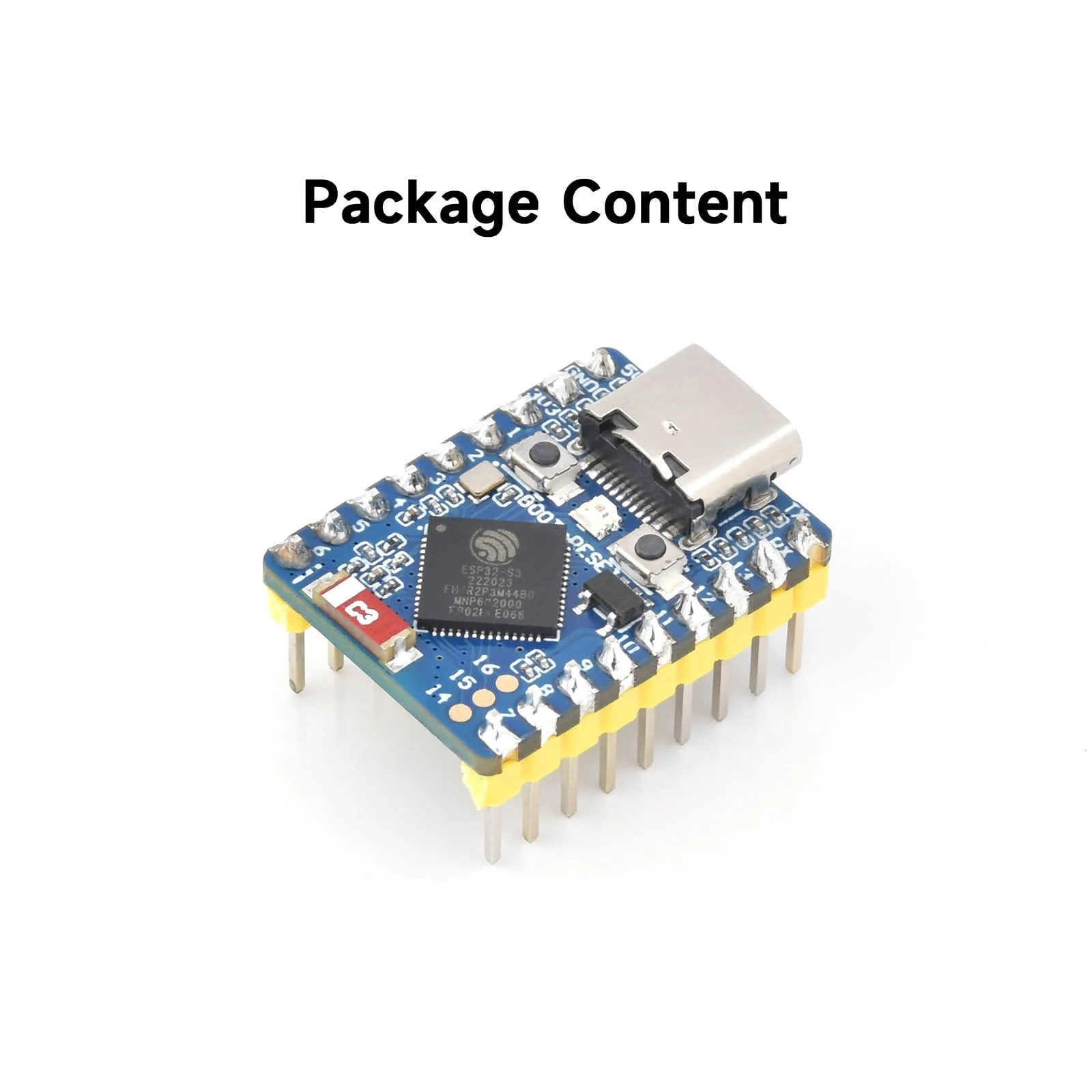

- This version is with pre-soldered header

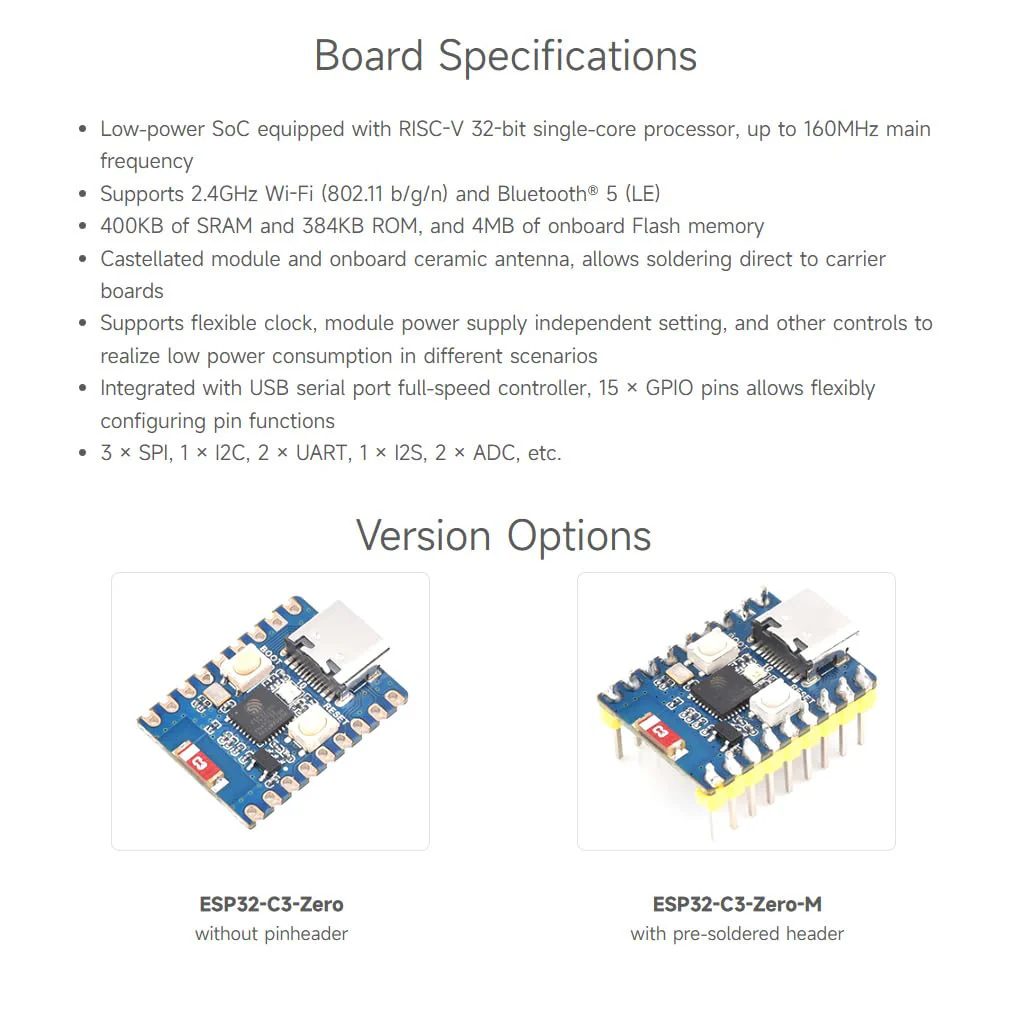

- Low-power SoC equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE). 400KB of SRAM and 384KB ROM, and 4MB of onboard Flash memory

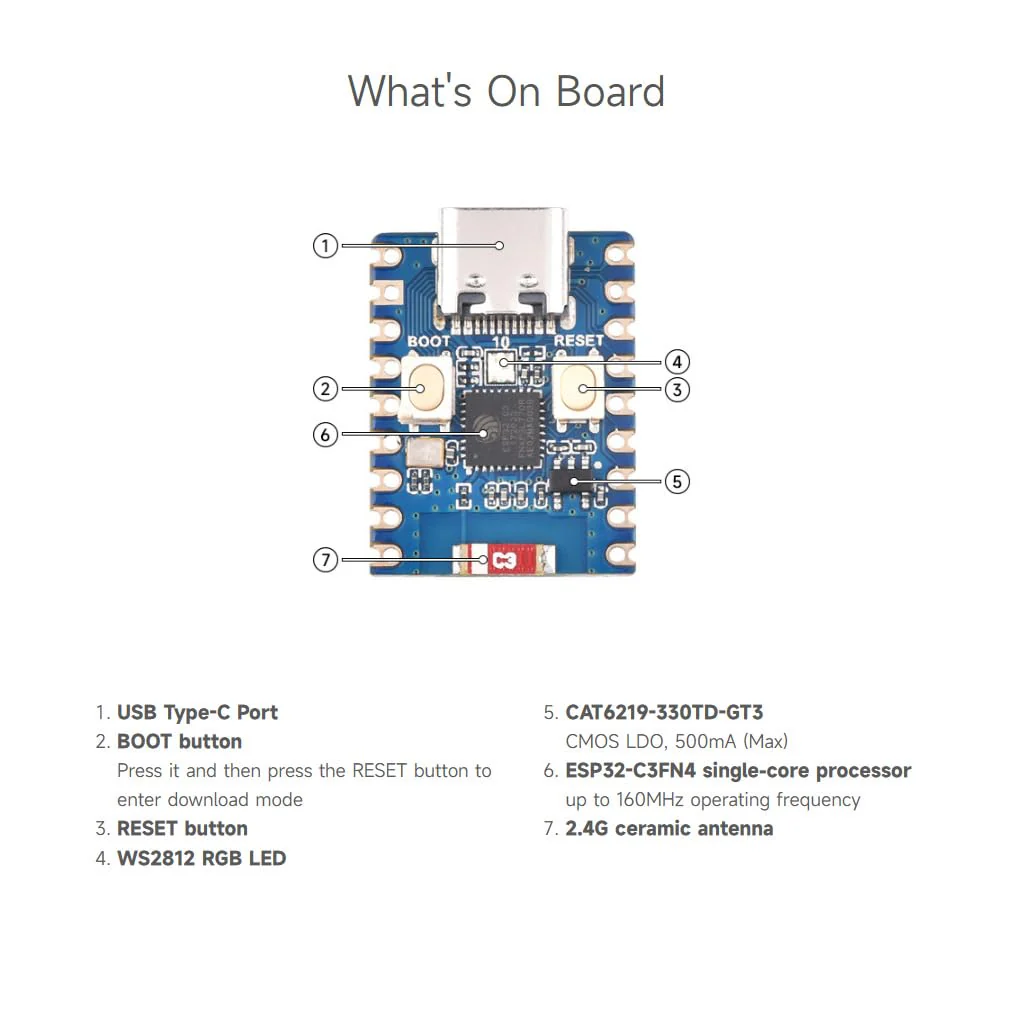

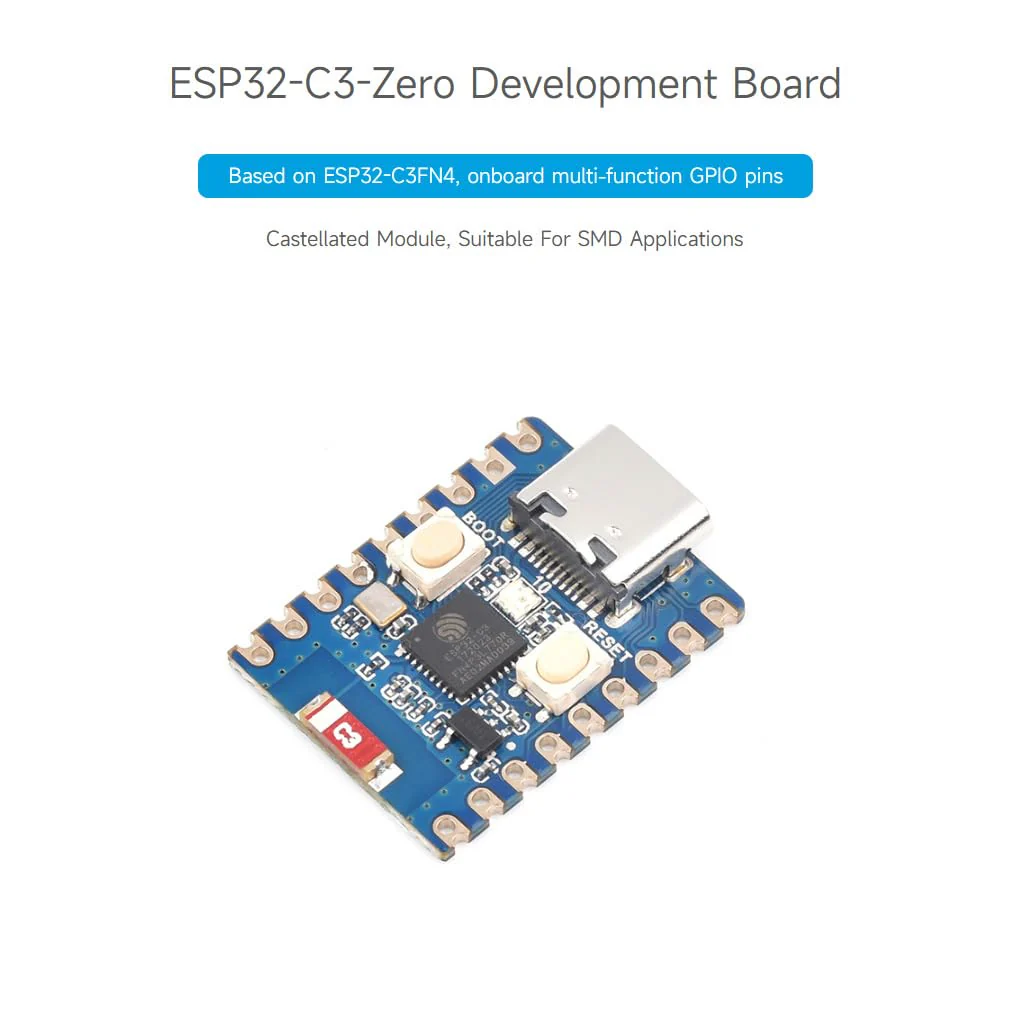

- Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

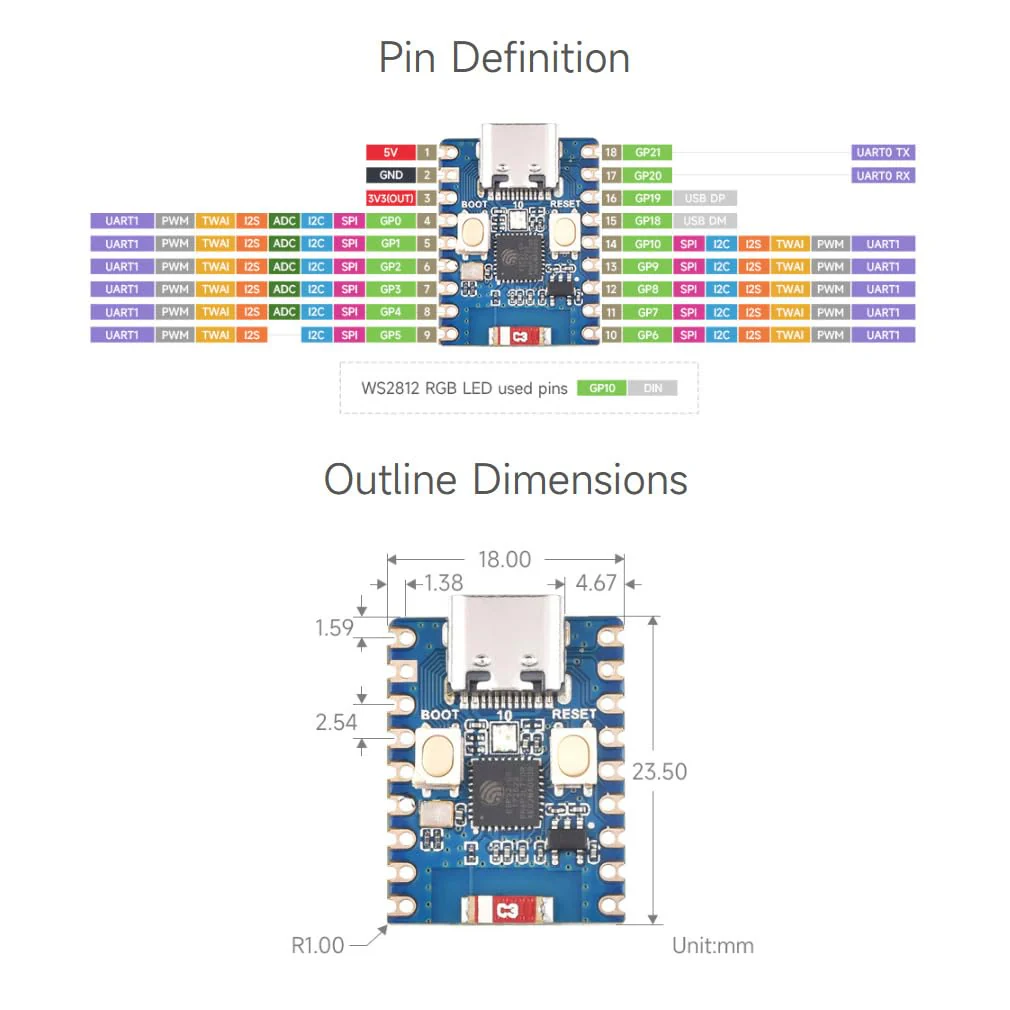

- Integrated with USB serial port full-speed controller, 15 GPIO pins allows flexibly configuring pin functions. 3 SPI, 1 I2C, 2 UART, 1 I2S, 2 ADC, etc.
$23.58
Original: $67.37
-65%Waveshare ESP32-C3 Mini Development Board, Based On ESP32-C3FN4 Single-Core Processor, 160MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5 with Pre-soldered Header—
$67.37
$23.58More Images
Waveshare ESP32-C3 Mini Development Board, Based On ESP32-C3FN4 Single-Core Processor, 160MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5 with Pre-soldered Header
Waveshare ESP32-C3 Mini Development Board, Based On ESP32-C3FN4 Single-Core Processor, 160MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5 with Pre-soldered Header
Product Features
- This version is with pre-soldered header
- Low-power SoC equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE). 400KB of SRAM and 384KB ROM, and 4MB of onboard Flash memory
- Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- Integrated with USB serial port full-speed controller, 15 GPIO pins allows flexibly configuring pin functions. 3 SPI, 1 I2C, 2 UART, 1 I2S, 2 ADC, etc.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Waveshare ESP32-C3 Mini Development Board, Based On ESP32-C3FN4 Single-Core Processor, 160MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5 with Pre-soldered Header
Product Features
- This version is with pre-soldered header
- Low-power SoC equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE). 400KB of SRAM and 384KB ROM, and 4MB of onboard Flash memory
- Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- Integrated with USB serial port full-speed controller, 15 GPIO pins allows flexibly configuring pin functions. 3 SPI, 1 I2C, 2 UART, 1 I2S, 2 ADC, etc.
