Waterproof IP65 Mini Toggle Switch, Device Switch 250V 6A, 125V 10A AC, KCD1 (6V 9V 12V 24V 125V AC/DC), Black Rectangular 19 x 13 mm, 2 Pole ON/OFF
Waterproof IP65 Mini Toggle Switch, Device Switch 250V 6A, 125V 10A AC, KCD1 (6V 9V 12V 24V 125V AC/DC), Black Rectangular 19 x 13 mm, 2 Pole ON/OFF
Waterproof IP65 Mini Toggle Switch, Device Switch 250V 6A, 125V 10A AC, KCD1 (6V 9V 12V 24V 125V AC/DC), Black Rectangular 19 x 13 mm, 2 Pole ON/OFF

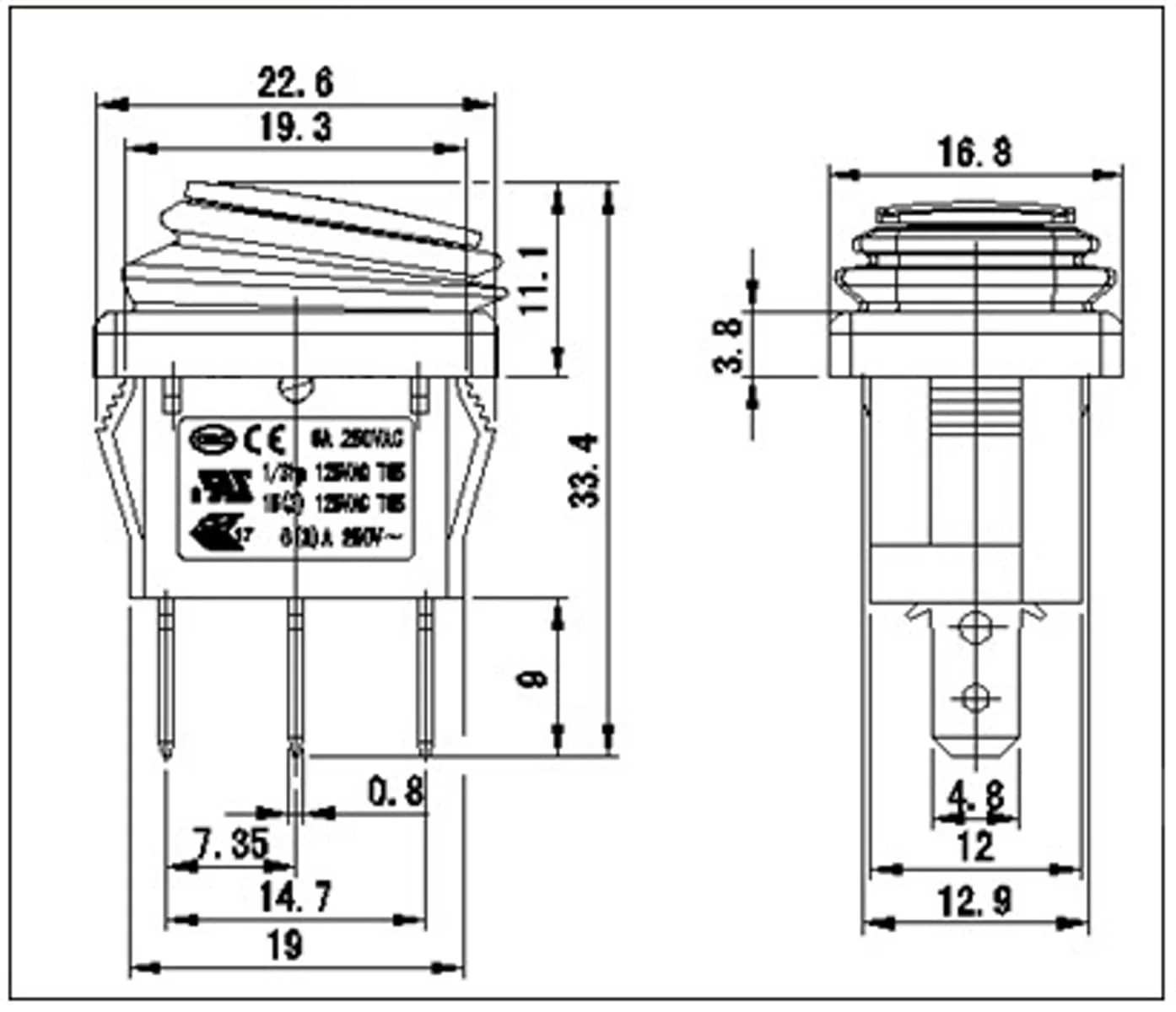

This robust waterproof IP65 toggle switch is of high quality and is ideal for the next craft project or as a replacement for old switches. Cable can be soldered or otherwise attached to the flat connector connections. The installation is done by simply pressing the switch into a cut-out (snap-in, from 12 x 18.5 mm to 13.5 x 20 mm). Technical data: 2 positions: on/off. 250V 6A 125V 10A AC/DC. Waterproof IP65. Suitable for snap-in installation. Dimensions of the mounting opening: approx. 12x19mm Frame dimensions: approx. 21 x 15 mm. Installation depth including contacts: approx. 18 mm. With flat plug connections 4.8 mm. Rocker black unlit.
Product Features
- Compact Size This waterproof rocker switch has a mounting opening of only 19 x 13 mm and is ideal for use in confined spaces.

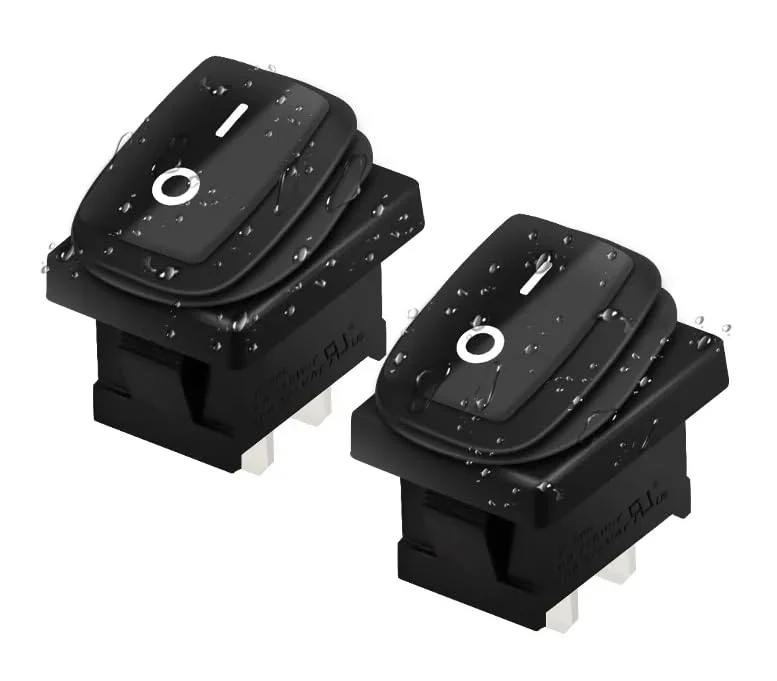

- Robust design: the switch is IP65 certified and provides protection against dust and splashes of water.
- High performance: with a rated voltage of 250V and 6A at 125V 10A AC, this switch can be used in many applications.
- Versatile options: Available in various voltages such as 6V, 9V, 12V, 24V and 125V AC/DC for different needs.
- Easy installation: the 2-pin on/off switch can be quickly and easily integrated into your devices.
- 250V 6A 125V 10A AC, KCD1 (6V 9V 12V 24V 125V AC/DC)
Original: $68.82
-65%$68.82
$24.09More Images
Waterproof IP65 Mini Toggle Switch, Device Switch 250V 6A, 125V 10A AC, KCD1 (6V 9V 12V 24V 125V AC/DC), Black Rectangular 19 x 13 mm, 2 Pole ON/OFF
Waterproof IP65 Mini Toggle Switch, Device Switch 250V 6A, 125V 10A AC, KCD1 (6V 9V 12V 24V 125V AC/DC), Black Rectangular 19 x 13 mm, 2 Pole ON/OFF
This robust waterproof IP65 toggle switch is of high quality and is ideal for the next craft project or as a replacement for old switches. Cable can be soldered or otherwise attached to the flat connector connections. The installation is done by simply pressing the switch into a cut-out (snap-in, from 12 x 18.5 mm to 13.5 x 20 mm). Technical data: 2 positions: on/off. 250V 6A 125V 10A AC/DC. Waterproof IP65. Suitable for snap-in installation. Dimensions of the mounting opening: approx. 12x19mm Frame dimensions: approx. 21 x 15 mm. Installation depth including contacts: approx. 18 mm. With flat plug connections 4.8 mm. Rocker black unlit.
Product Features
- Compact Size This waterproof rocker switch has a mounting opening of only 19 x 13 mm and is ideal for use in confined spaces.
- Robust design: the switch is IP65 certified and provides protection against dust and splashes of water.
- High performance: with a rated voltage of 250V and 6A at 125V 10A AC, this switch can be used in many applications.
- Versatile options: Available in various voltages such as 6V, 9V, 12V, 24V and 125V AC/DC for different needs.
- Easy installation: the 2-pin on/off switch can be quickly and easily integrated into your devices.
- 250V 6A 125V 10A AC, KCD1 (6V 9V 12V 24V 125V AC/DC)
