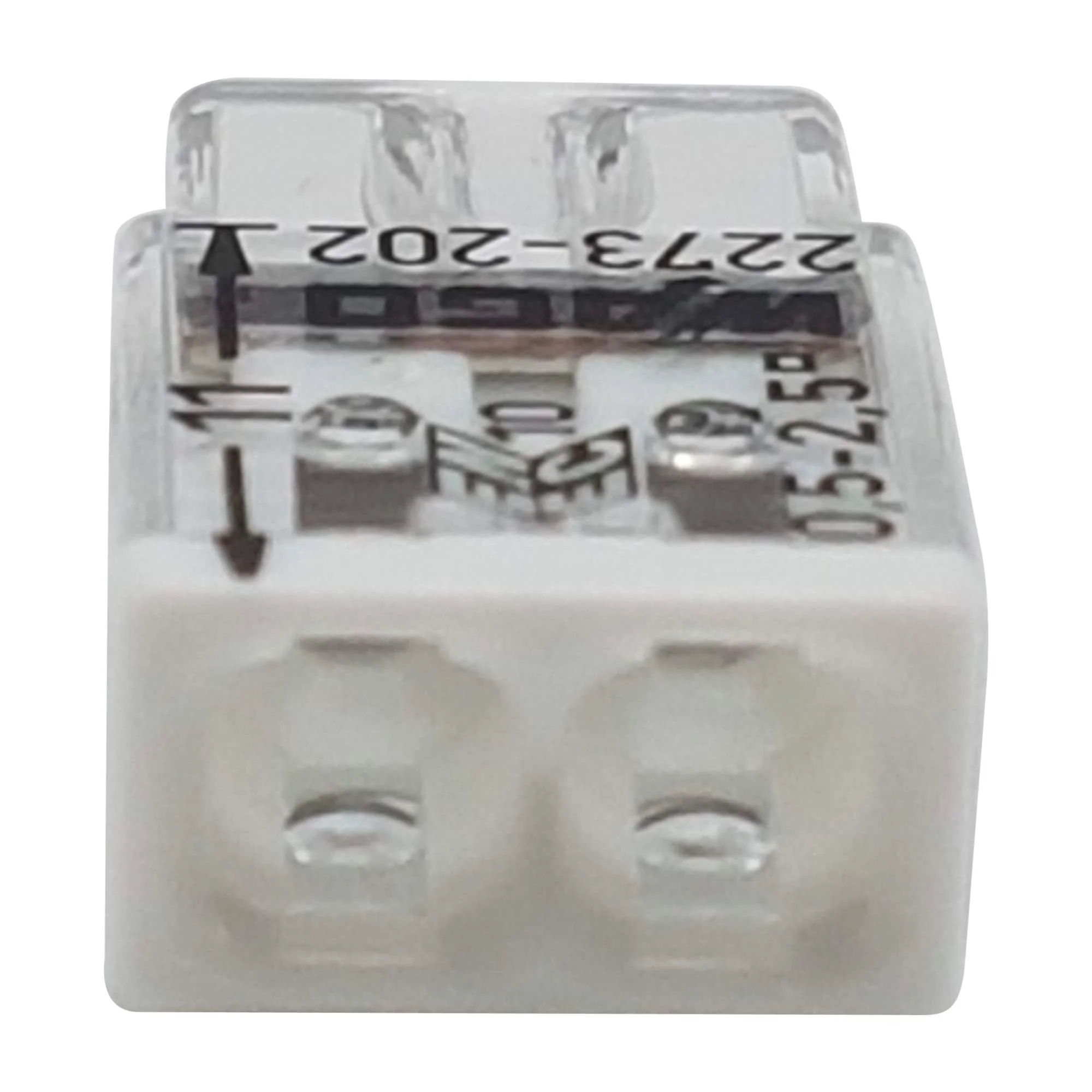

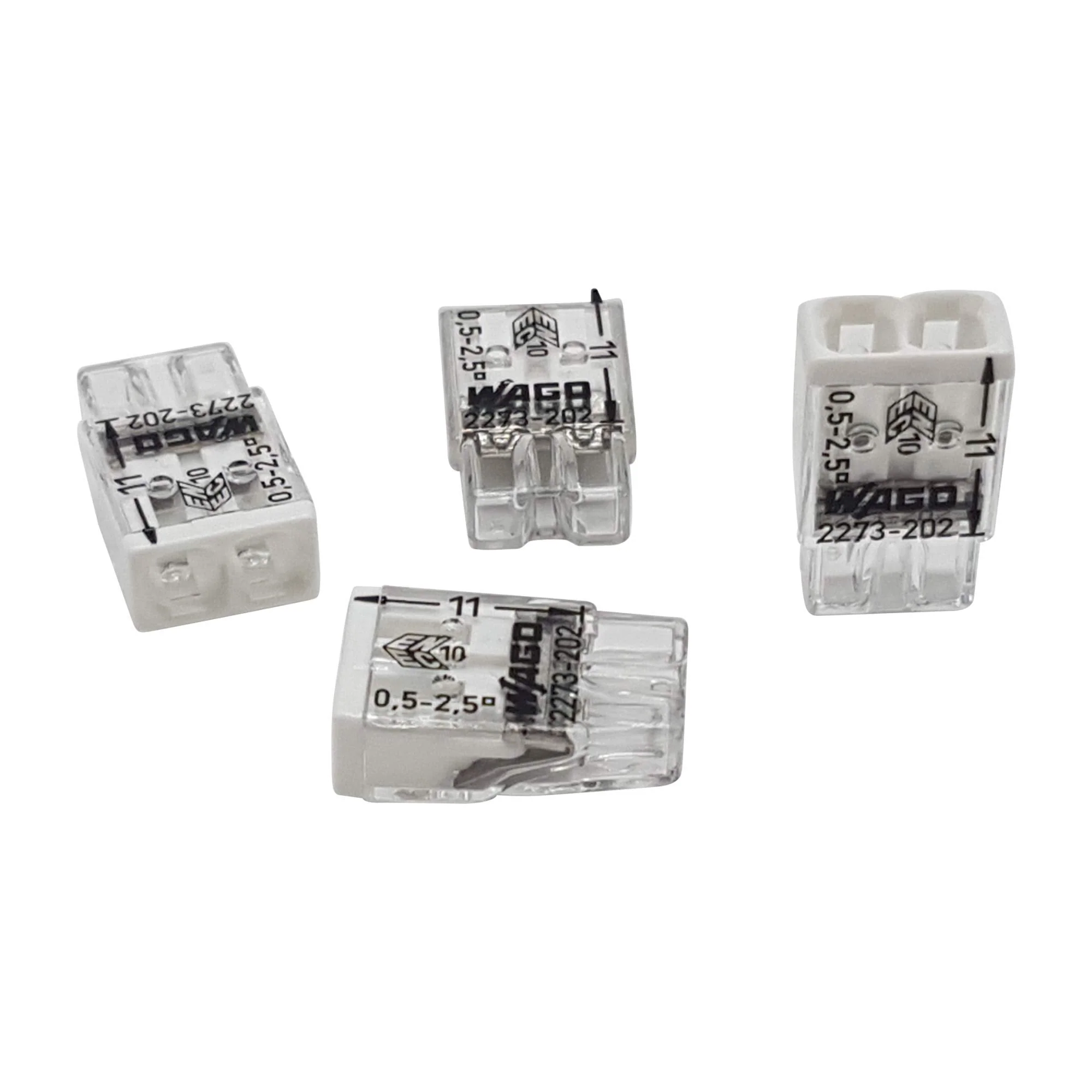

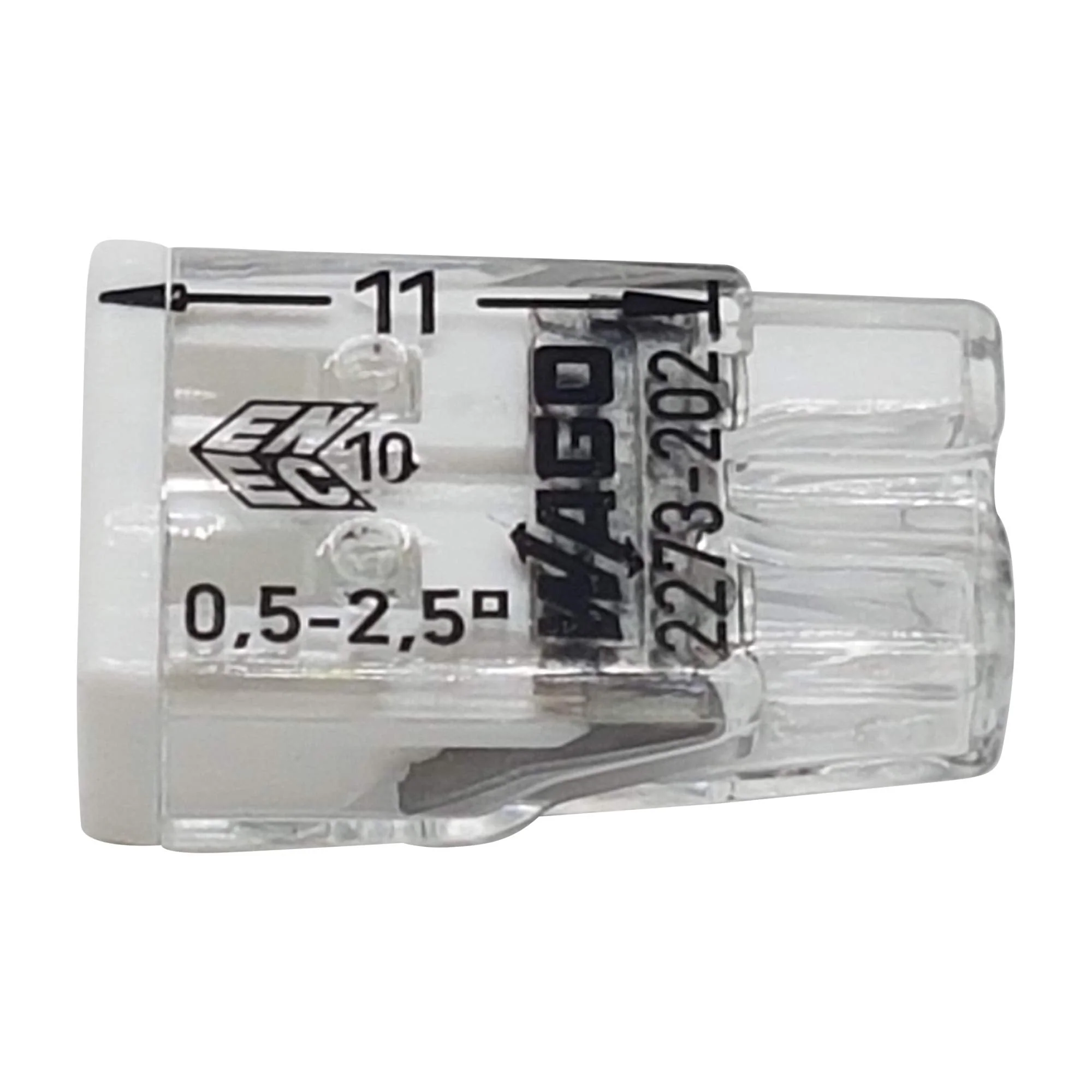

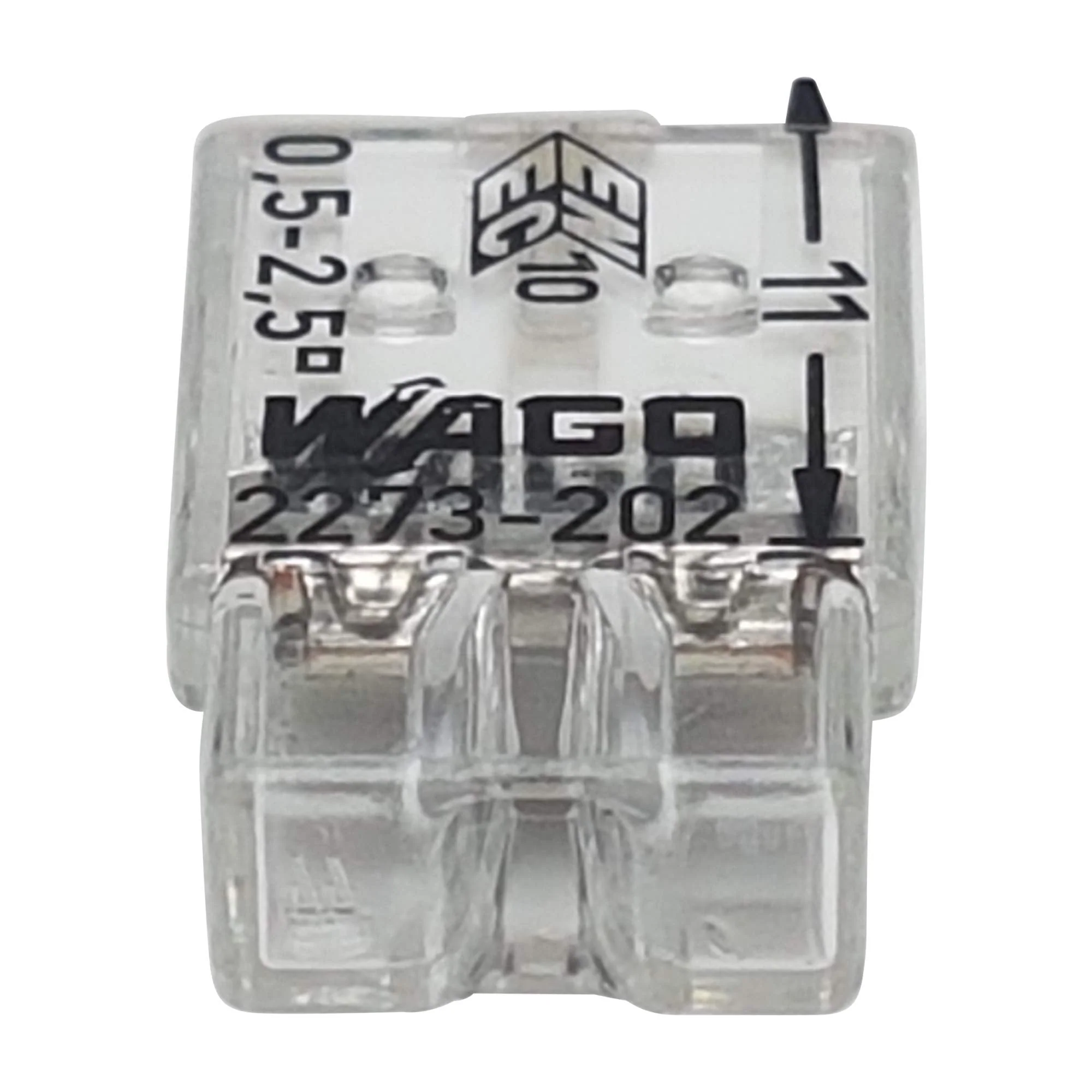

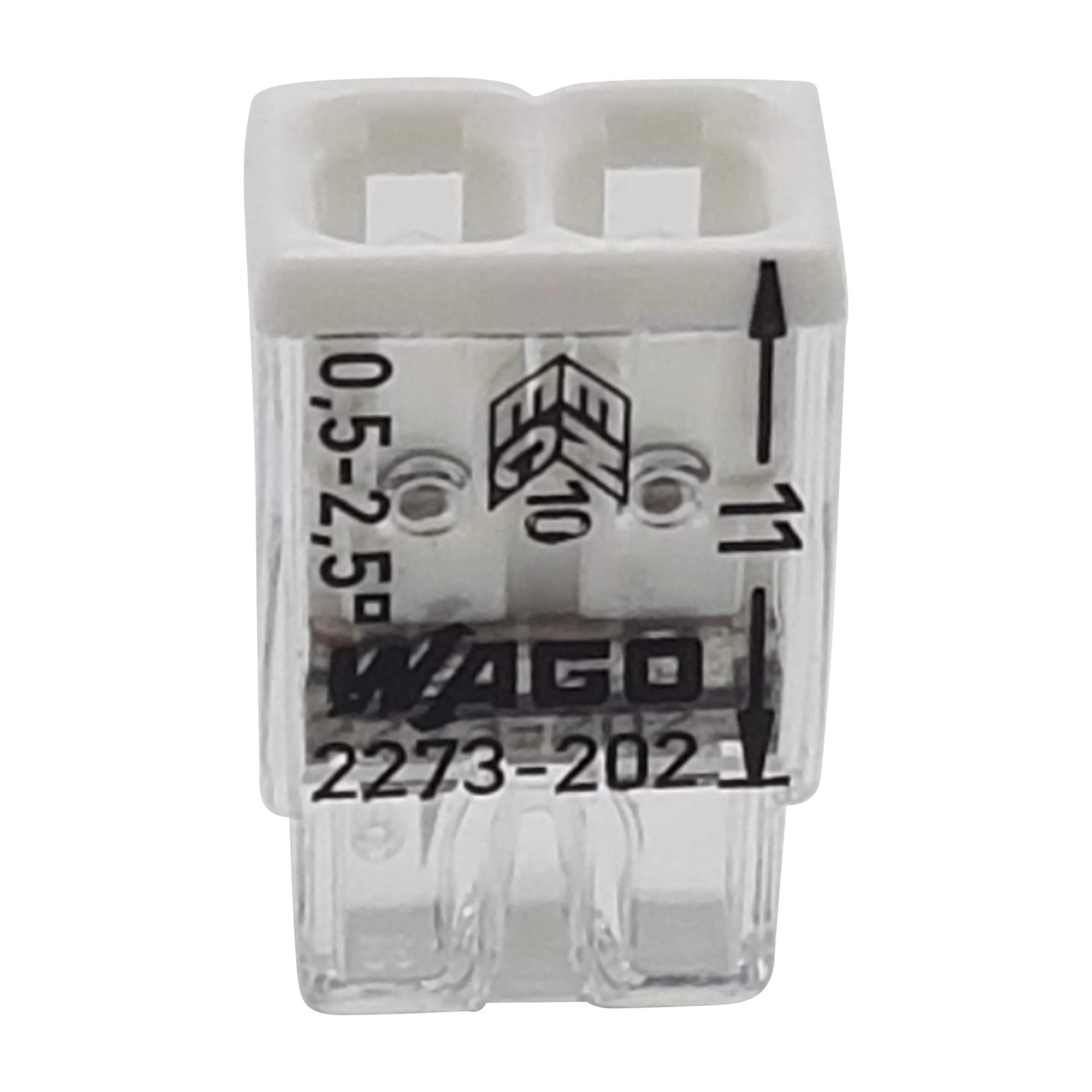

Wago 2273-202 Compact Junction Box Terminal Diameter 0.5 - 2.5 mm² 2-Pin Transparent / White Pack of 20
Wago 2273-202 Compact Junction Box Terminal Diameter 0.5 - 2.5 mm² 2-Pin Transparent / White Pack of 20
Wago 2273-202 Compact Junction Box Terminal Diameter 0.5 - 2.5 mm² 2-Pin Transparent / White Pack of 20
Electrical data: Rated data according to IEC/EN 60664-1. Rated voltage (II/2): 450 V. Rated surge voltage (II/2): 4 kV. Rated current: 24 A. Connection data: Connection technology: Push Wire. Actuation type: push-in. Connectable conductor materials: copper/aluminium. Single-stranded conductor: 0.5 - 2.5 mm²/20 - 14AWG. Stripping length: 11 mm/0.43 inch. Total number of clamping points: 2 Total number of potentials: 1 Wiring Type: Side Wiring Conductor cross-sections single-wire: 0.5 mm². Geometric data. Width: 10 mm / 0.394 inches. Height: 5.8 mm / 0.228 inches. Depth: 16.7 mm / 0.657 inches. Plug width: 10 mm/0.394 inch. Material data: Colour: transparent. Lid colour: white. Flammability class according to UL 94: V2. Fire load: 0.014 MJ. Weight: 0.713 g Environmental conditions Continuous operating temperature: 105°C. T-marking according to EN 60998: T60.
Product Features
- Number of clamping points: 2
- Nominal cross section: 0.5 - 2.5 mm2
- Rated voltage: 450 V
- Rated current: 24 A
- Only suitable for solid conductors and not for flexible conductors
More Images
Wago 2273-202 Compact Junction Box Terminal Diameter 0.5 - 2.5 mm² 2-Pin Transparent / White Pack of 20
Wago 2273-202 Compact Junction Box Terminal Diameter 0.5 - 2.5 mm² 2-Pin Transparent / White Pack of 20
Electrical data: Rated data according to IEC/EN 60664-1. Rated voltage (II/2): 450 V. Rated surge voltage (II/2): 4 kV. Rated current: 24 A. Connection data: Connection technology: Push Wire. Actuation type: push-in. Connectable conductor materials: copper/aluminium. Single-stranded conductor: 0.5 - 2.5 mm²/20 - 14AWG. Stripping length: 11 mm/0.43 inch. Total number of clamping points: 2 Total number of potentials: 1 Wiring Type: Side Wiring Conductor cross-sections single-wire: 0.5 mm². Geometric data. Width: 10 mm / 0.394 inches. Height: 5.8 mm / 0.228 inches. Depth: 16.7 mm / 0.657 inches. Plug width: 10 mm/0.394 inch. Material data: Colour: transparent. Lid colour: white. Flammability class according to UL 94: V2. Fire load: 0.014 MJ. Weight: 0.713 g Environmental conditions Continuous operating temperature: 105°C. T-marking according to EN 60998: T60.
Product Features
- Number of clamping points: 2
- Nominal cross section: 0.5 - 2.5 mm2
- Rated voltage: 450 V
- Rated current: 24 A
- Only suitable for solid conductors and not for flexible conductors
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Wago 2273-202 Compact Junction Box Terminal Diameter 0.5 - 2.5 mm² 2-Pin Transparent / White Pack of 20
Electrical data: Rated data according to IEC/EN 60664-1. Rated voltage (II/2): 450 V. Rated surge voltage (II/2): 4 kV. Rated current: 24 A. Connection data: Connection technology: Push Wire. Actuation type: push-in. Connectable conductor materials: copper/aluminium. Single-stranded conductor: 0.5 - 2.5 mm²/20 - 14AWG. Stripping length: 11 mm/0.43 inch. Total number of clamping points: 2 Total number of potentials: 1 Wiring Type: Side Wiring Conductor cross-sections single-wire: 0.5 mm². Geometric data. Width: 10 mm / 0.394 inches. Height: 5.8 mm / 0.228 inches. Depth: 16.7 mm / 0.657 inches. Plug width: 10 mm/0.394 inch. Material data: Colour: transparent. Lid colour: white. Flammability class according to UL 94: V2. Fire load: 0.014 MJ. Weight: 0.713 g Environmental conditions Continuous operating temperature: 105°C. T-marking according to EN 60998: T60.
Product Features
- Number of clamping points: 2
- Nominal cross section: 0.5 - 2.5 mm2
- Rated voltage: 450 V
- Rated current: 24 A
- Only suitable for solid conductors and not for flexible conductors
