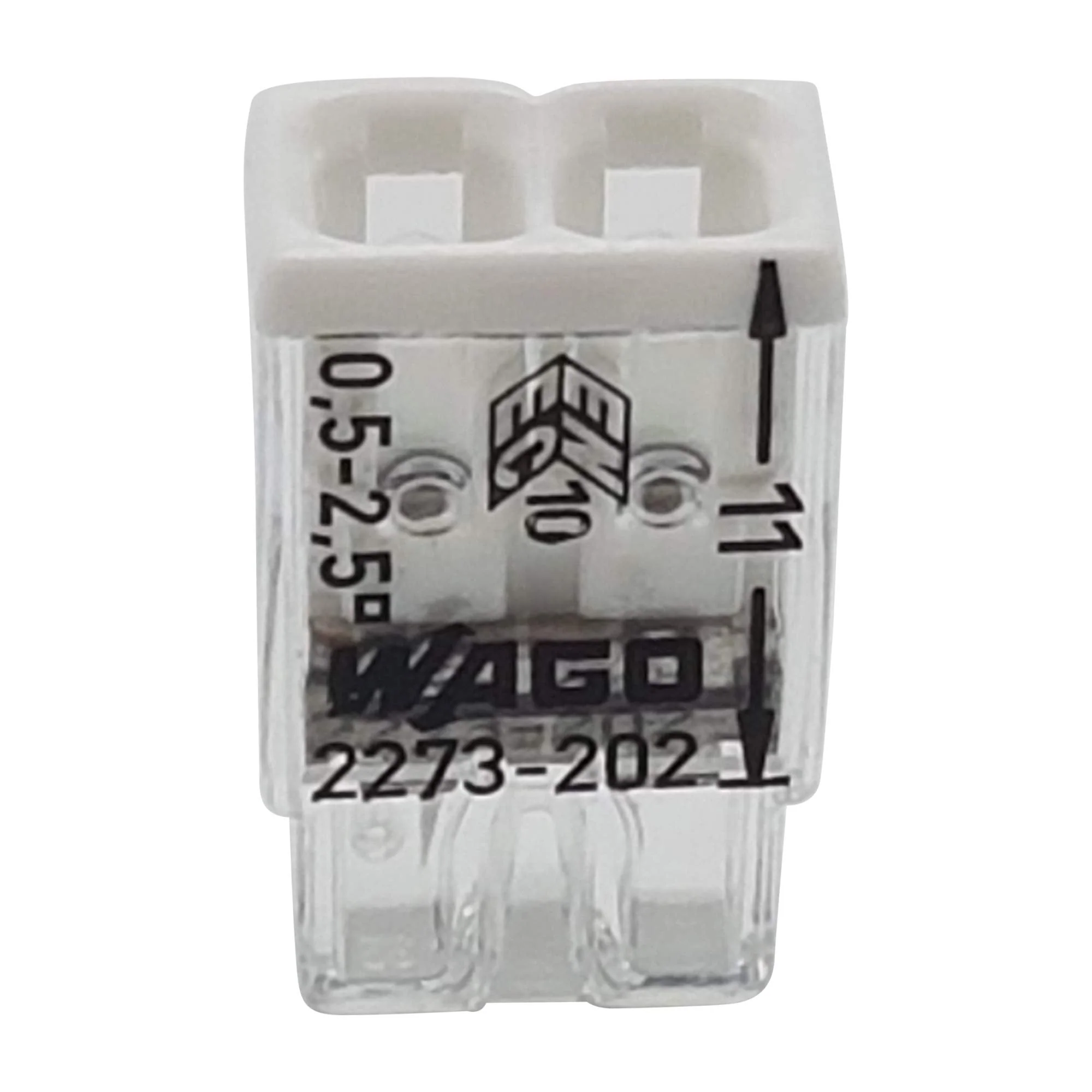

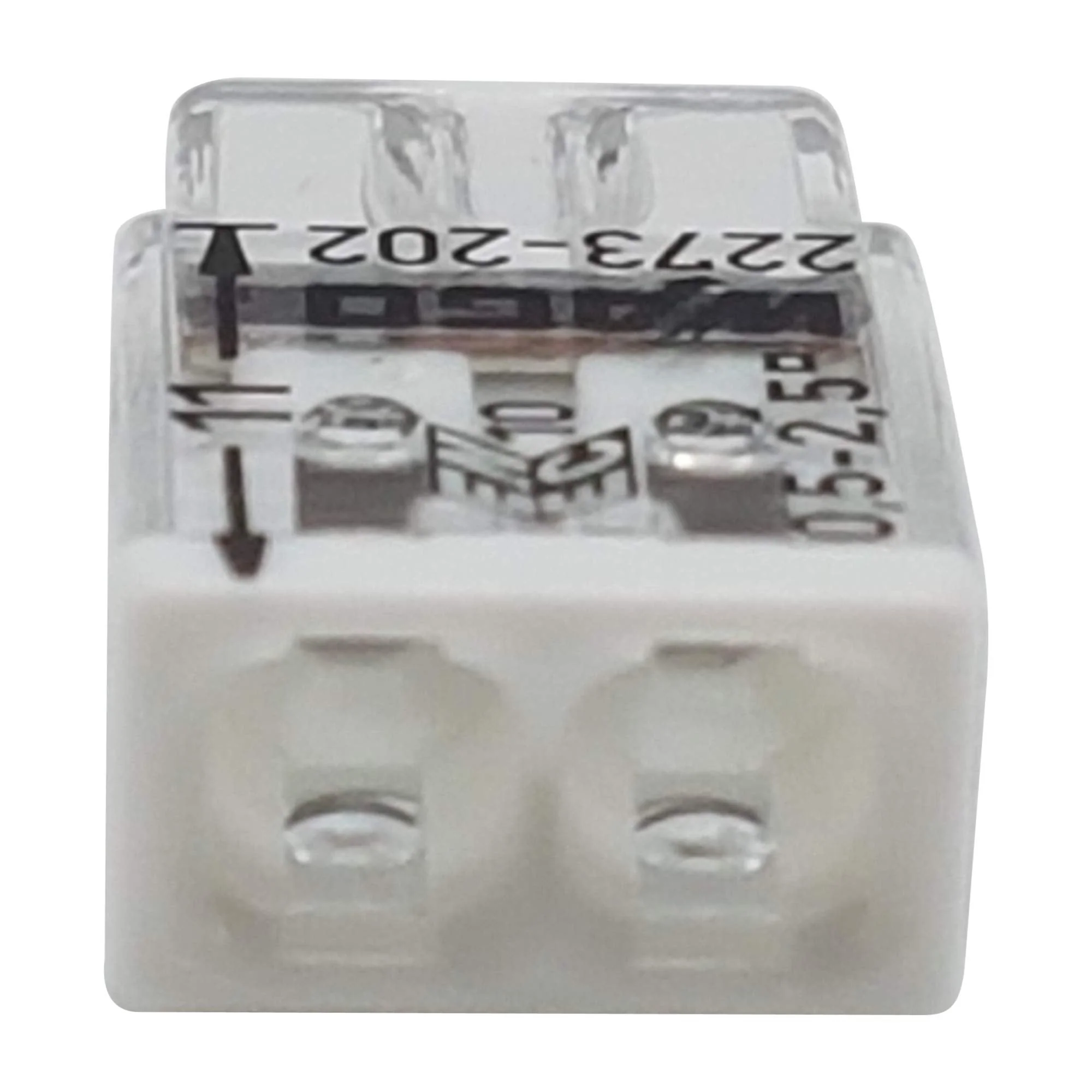

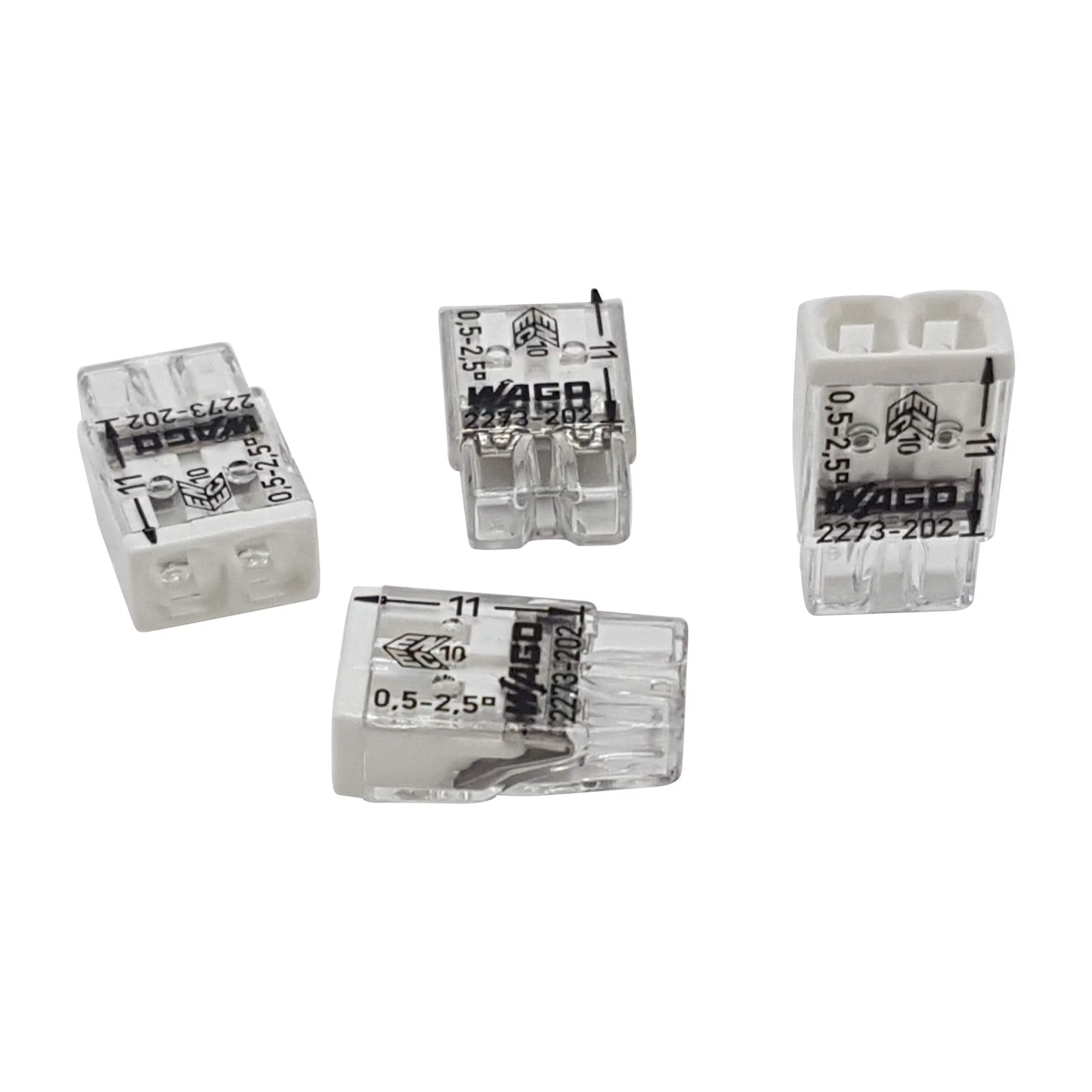

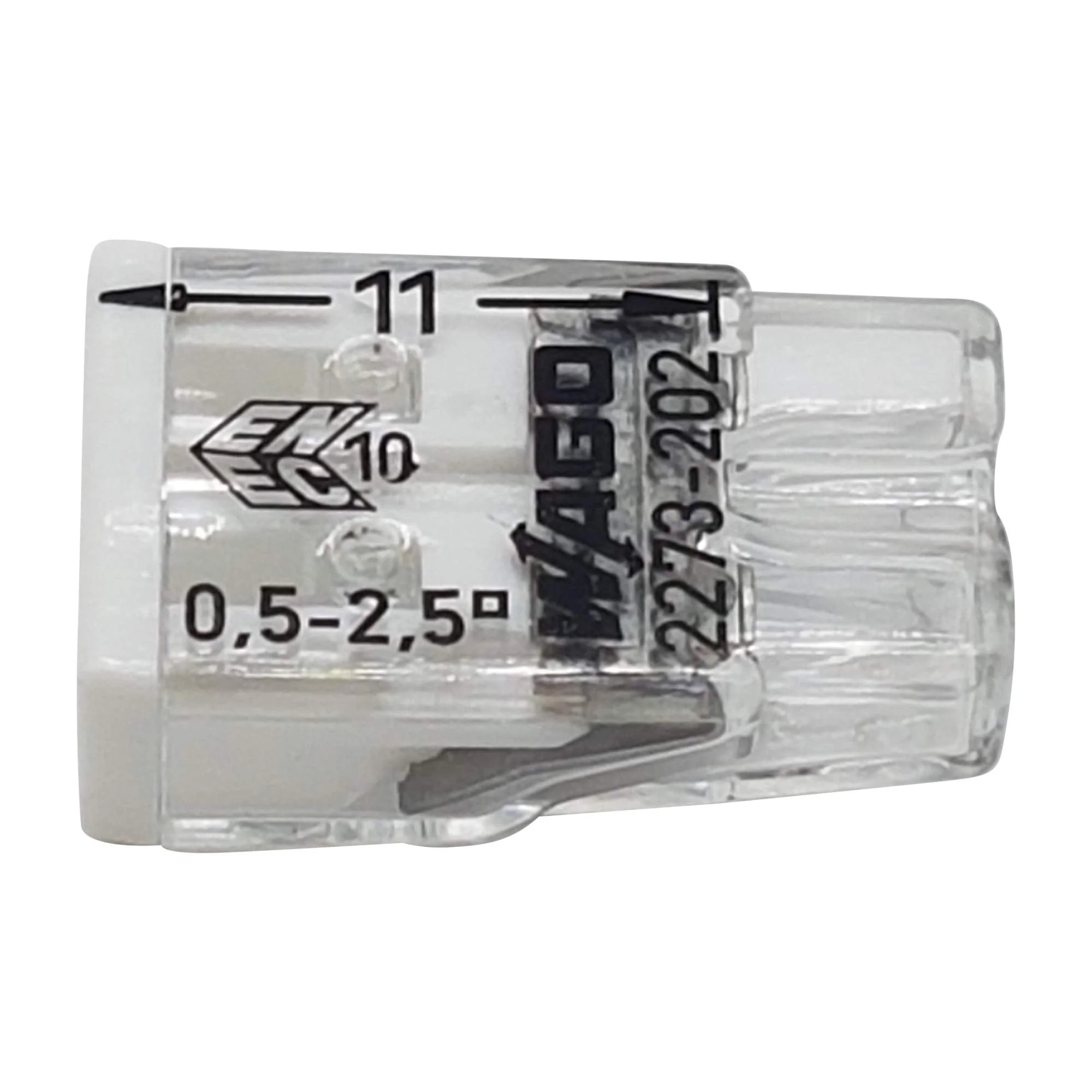

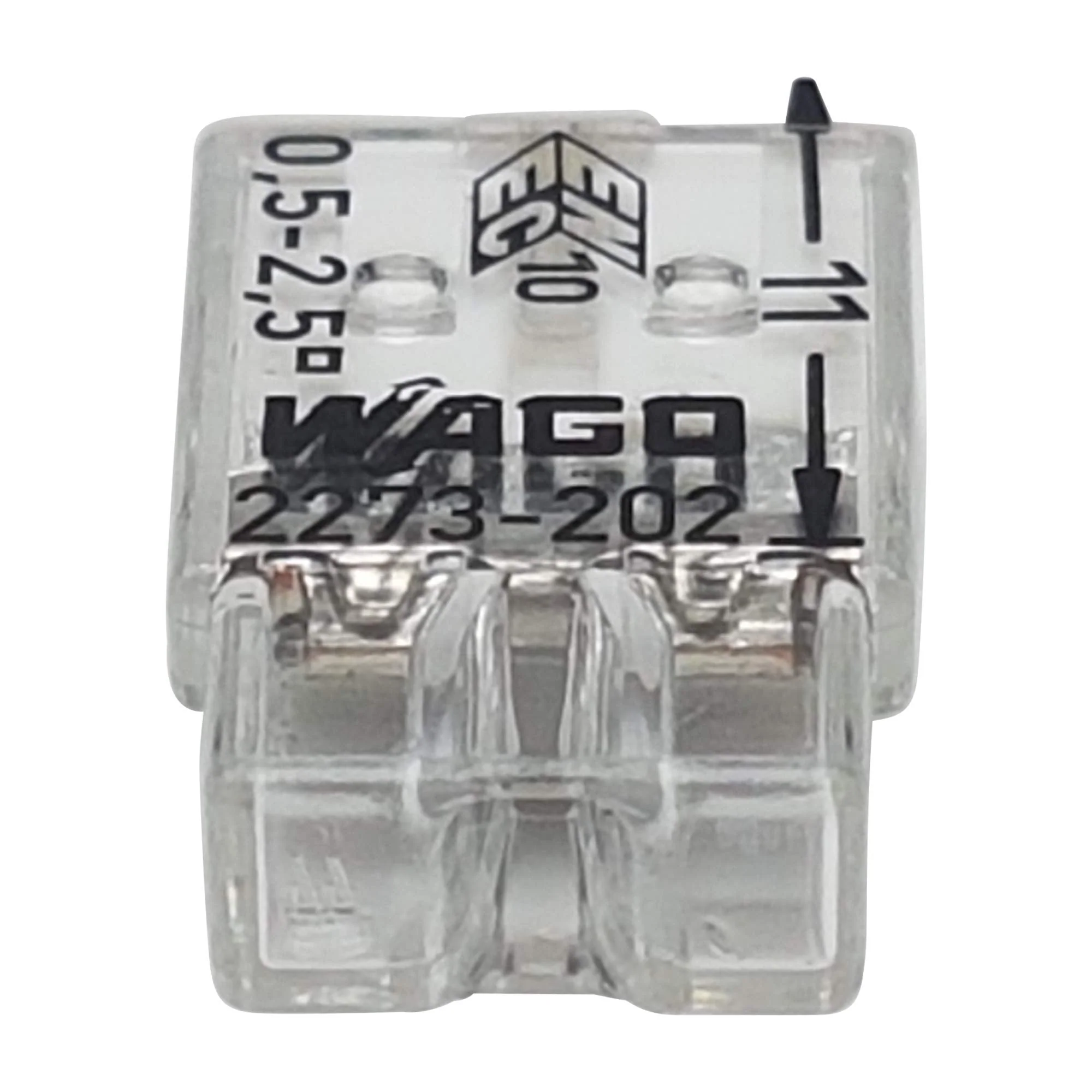

Wago 2273-202 Compact Connection Box Terminals, Diameter 0.5–2.5 mm, Pack of 30, 2-Pole, Transparent/White
Wago 2273-202 Compact Connection Box Terminals, Diameter 0.5–2.5 mm, Pack of 30, 2-Pole, Transparent/White
Wago 2273-202 Compact Connection Box Terminals, Diameter 0.5–2.5 mm, Pack of 30, 2-Pole, Transparent/White
Electrical data: Rated data according to IEC/EN 60664-1: Rated voltage (II/2): 450 V. Rated surge voltage (II/2): 4 kV. Rated current: 24 A. Connection data: Technical connection: Push Wire. Actuation: Push-in. Connectable conductor materials: Copper / aluminium. Solid conductor: 0.5–2.5 mm² / 20–14 AWG. Stripping length: 11 mm. Total number of terminal connections: 2. Total number of potentials: 1. Wiring type: Side-entry wiring. Conductor cross-sections, single-stranded: 0.5 mm². Geometric data: Width: 10 mm. Height: 5.8 mm. Depth: 16.7 mm. Plug width: 10 mm. Material data: Colour: transparent. Lid colour: white. UL 94 flammability class: V2. Fire load: 0.014 MJ. Weight: 0.713 g.Environmental conditions: Continuous operating temperature: 105°C. T-mark according to EN 60998: T60.
Product Features
- Number of clamping points: 2.
- Nominal cross-section: 0.52.5 mm2.
- Nominal voltage: 450 V.
- Nominal current: 24 A.
- Only suitable for solid conductors not for flexible conductors.
More Images
Wago 2273-202 Compact Connection Box Terminals, Diameter 0.5–2.5 mm, Pack of 30, 2-Pole, Transparent/White
Wago 2273-202 Compact Connection Box Terminals, Diameter 0.5–2.5 mm, Pack of 30, 2-Pole, Transparent/White
Electrical data: Rated data according to IEC/EN 60664-1: Rated voltage (II/2): 450 V. Rated surge voltage (II/2): 4 kV. Rated current: 24 A. Connection data: Technical connection: Push Wire. Actuation: Push-in. Connectable conductor materials: Copper / aluminium. Solid conductor: 0.5–2.5 mm² / 20–14 AWG. Stripping length: 11 mm. Total number of terminal connections: 2. Total number of potentials: 1. Wiring type: Side-entry wiring. Conductor cross-sections, single-stranded: 0.5 mm². Geometric data: Width: 10 mm. Height: 5.8 mm. Depth: 16.7 mm. Plug width: 10 mm. Material data: Colour: transparent. Lid colour: white. UL 94 flammability class: V2. Fire load: 0.014 MJ. Weight: 0.713 g.Environmental conditions: Continuous operating temperature: 105°C. T-mark according to EN 60998: T60.
Product Features
- Number of clamping points: 2.
- Nominal cross-section: 0.52.5 mm2.
- Nominal voltage: 450 V.
- Nominal current: 24 A.
- Only suitable for solid conductors not for flexible conductors.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Wago 2273-202 Compact Connection Box Terminals, Diameter 0.5–2.5 mm, Pack of 30, 2-Pole, Transparent/White
Electrical data: Rated data according to IEC/EN 60664-1: Rated voltage (II/2): 450 V. Rated surge voltage (II/2): 4 kV. Rated current: 24 A. Connection data: Technical connection: Push Wire. Actuation: Push-in. Connectable conductor materials: Copper / aluminium. Solid conductor: 0.5–2.5 mm² / 20–14 AWG. Stripping length: 11 mm. Total number of terminal connections: 2. Total number of potentials: 1. Wiring type: Side-entry wiring. Conductor cross-sections, single-stranded: 0.5 mm². Geometric data: Width: 10 mm. Height: 5.8 mm. Depth: 16.7 mm. Plug width: 10 mm. Material data: Colour: transparent. Lid colour: white. UL 94 flammability class: V2. Fire load: 0.014 MJ. Weight: 0.713 g.Environmental conditions: Continuous operating temperature: 105°C. T-mark according to EN 60998: T60.
Product Features
- Number of clamping points: 2.
- Nominal cross-section: 0.52.5 mm2.
- Nominal voltage: 450 V.
- Nominal current: 24 A.
- Only suitable for solid conductors not for flexible conductors.
