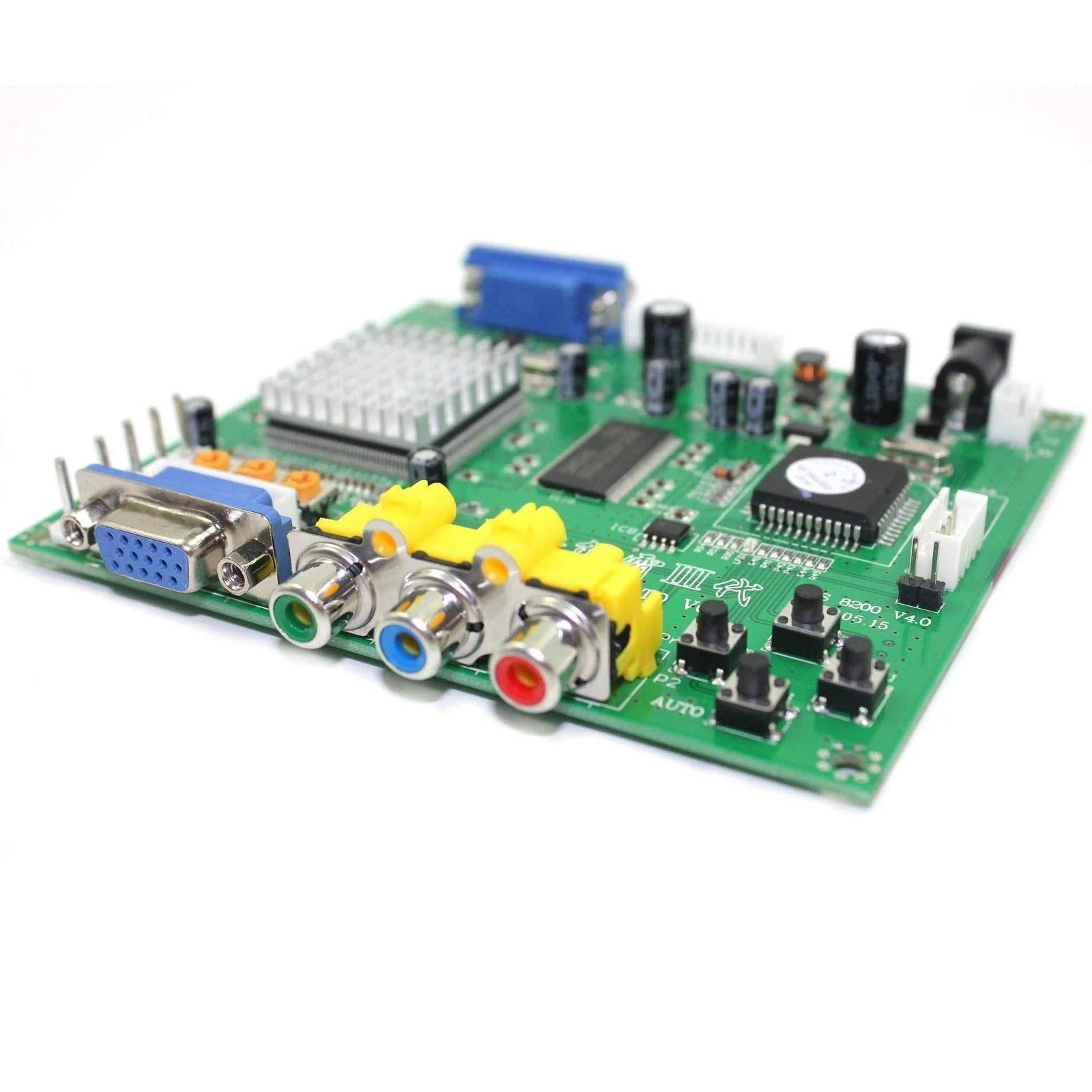

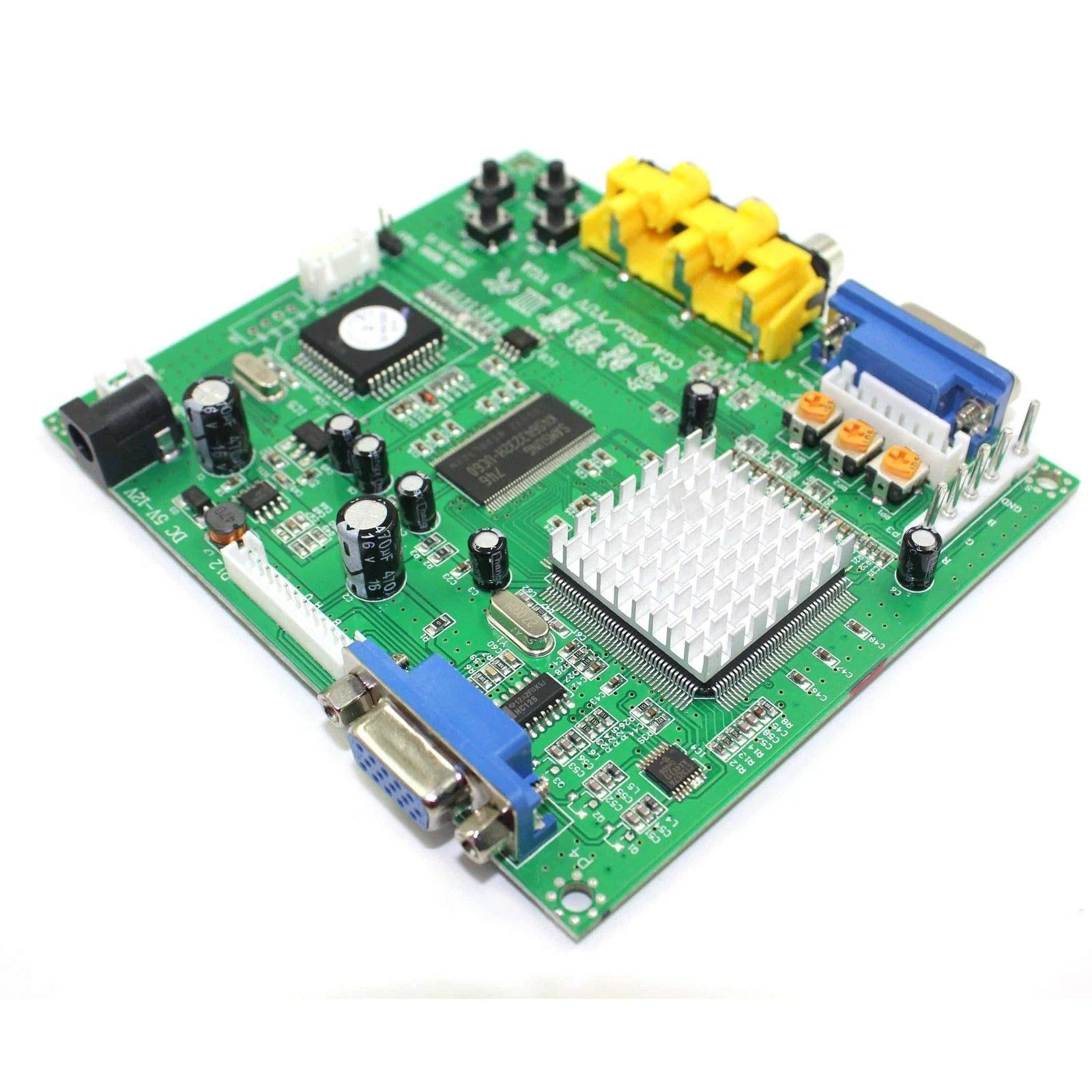

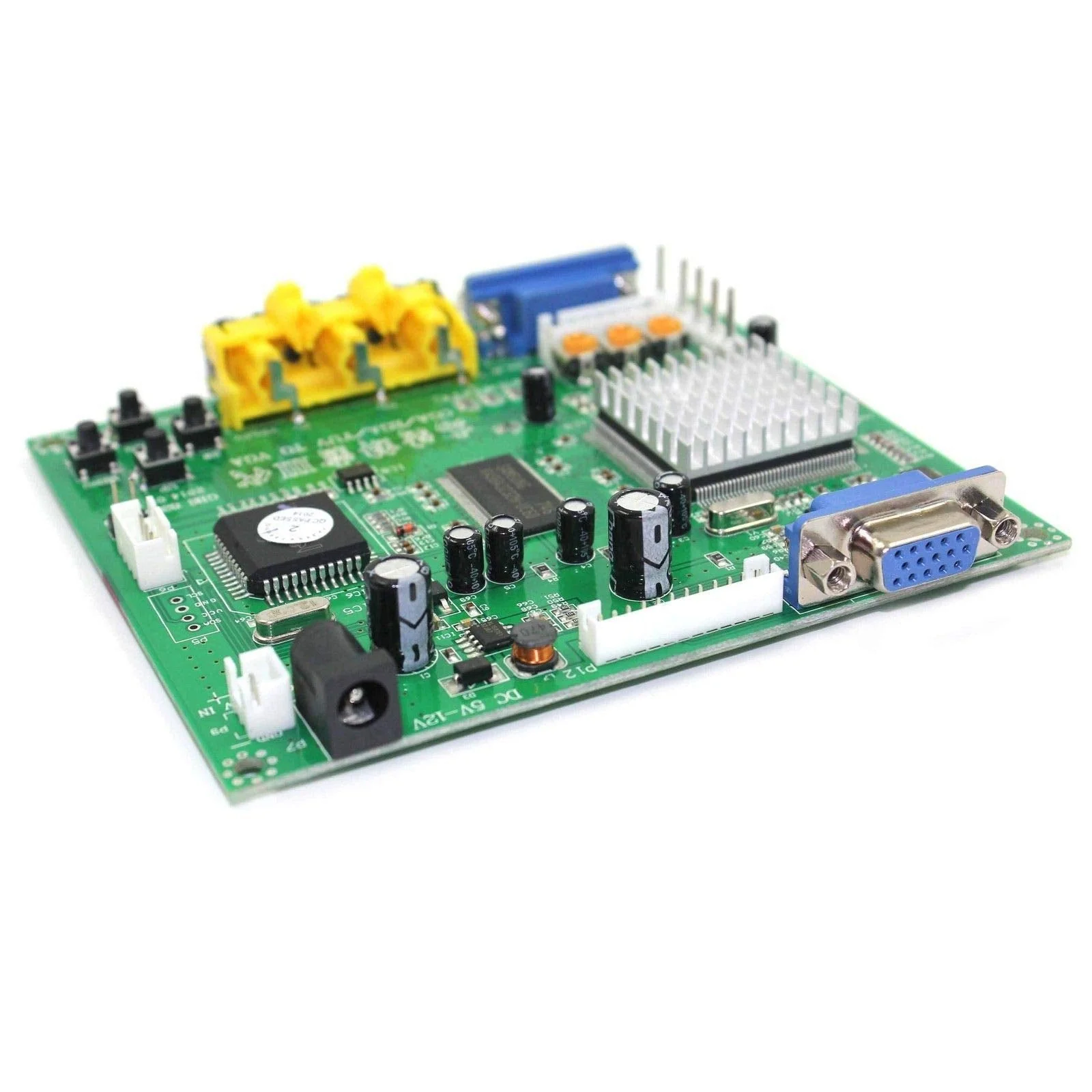

Video Converter GBS8200 1 Channel Relay Module Board CGA/EGA/YUV/RGB to VGA HD Arcade Jamma Game Video Converter Board 1 VGA Output CRT PDP LCD Monitor GBS-8200

Video Converter GBS8200 1 Channel Relay Module Board CGA/EGA/YUV/RGB to VGA HD Arcade Jamma Game Video Converter Board 1 VGA Output CRT PDP LCD Monitor GBS-8200

Features Convert CGA/EGA/VGA/YUV Component input Signal to VGA video signal CGA/EGA/VGA signal auto scan (15KHz, 24KHz, 31KHz). YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p). On Screen Display (English and Chinese). True digital 24-bit A/D converter for true 16.7-million color conversion. Specifications Input Power: DC 5V ±0.5V (2A) P7 or P9 Input signal: CGA / EGA: 14.5kHz ~ 16.5kHz / 23.5 ~ 25.5kHz / 30.5 ~ 32.5 kHz (Auto scan) P3 or P11 or P10 RGBHV: 30.5 ~ 32.5 kHz (Auto scan) P10 or P11 VGA: 30.5 ~ 32.5 kHz (Auto scan) P10 or P11 Ypbpr: 480p, 576p, 720p, 1080p (Auto scan) P2 Ycbcr: 480i, 576i, 720i, 1080i (Auto scan) P2 User controls Input Switch, Image Zoom, Input Zoom, Image Position, Output resolution, R/G/B gain adjust. MENU KEY R/G/B VR Color: Green Main item size: 11.8 10.8 1.4 cm / 4.65 4.25 0.55in Package Weight: 87g / 3.06oz Package size: 15.5 12.5 3.0cm / 6.10 4.92 1.18in Package weight: 116g / 4.09oz Menu Control “MENU” open OSD menu, and enter. “UP” up and increase. “DOWN/AUTO” down and reduce. Press this key: auto scan CGA/EGA signal Press this key over 5 second and release: reset system (this operation is invalid when you open OSD menu) “SW” switch input signal Ypbpr/RGBS/RGBHV (this operation is invalid when you open OSD menu). “Clamp sp” & “Clamp” please don’t adjust this button, except the monitor has black item or picture discoloration. For more functions control, please look at OSD to operate. Package list 1 CGA/EGA/RGB To VGA Game Video Converter Board 1 6pin signal wire 1 2pin power supply wire

Product Features

• Supports cga/ega/vga/yuv component signal input. supports vga output (640 x 480,800 x 600,1024 x 768,1360 x 768)
• Supports image position control & image zoom control.on screen display (english and chinese). the high definition gbs-8200 video converter is a professional game converter, which support all games such as, amusement, play station, for xbox, wii, etc
• It can convert cga/ega/vga/yuv component input signal to the hd monitors (crt monitor lcd monitor pdp monitor) with vga interface (vga video signal), and automatically scan cga / ega / yuv signal, vga output signals

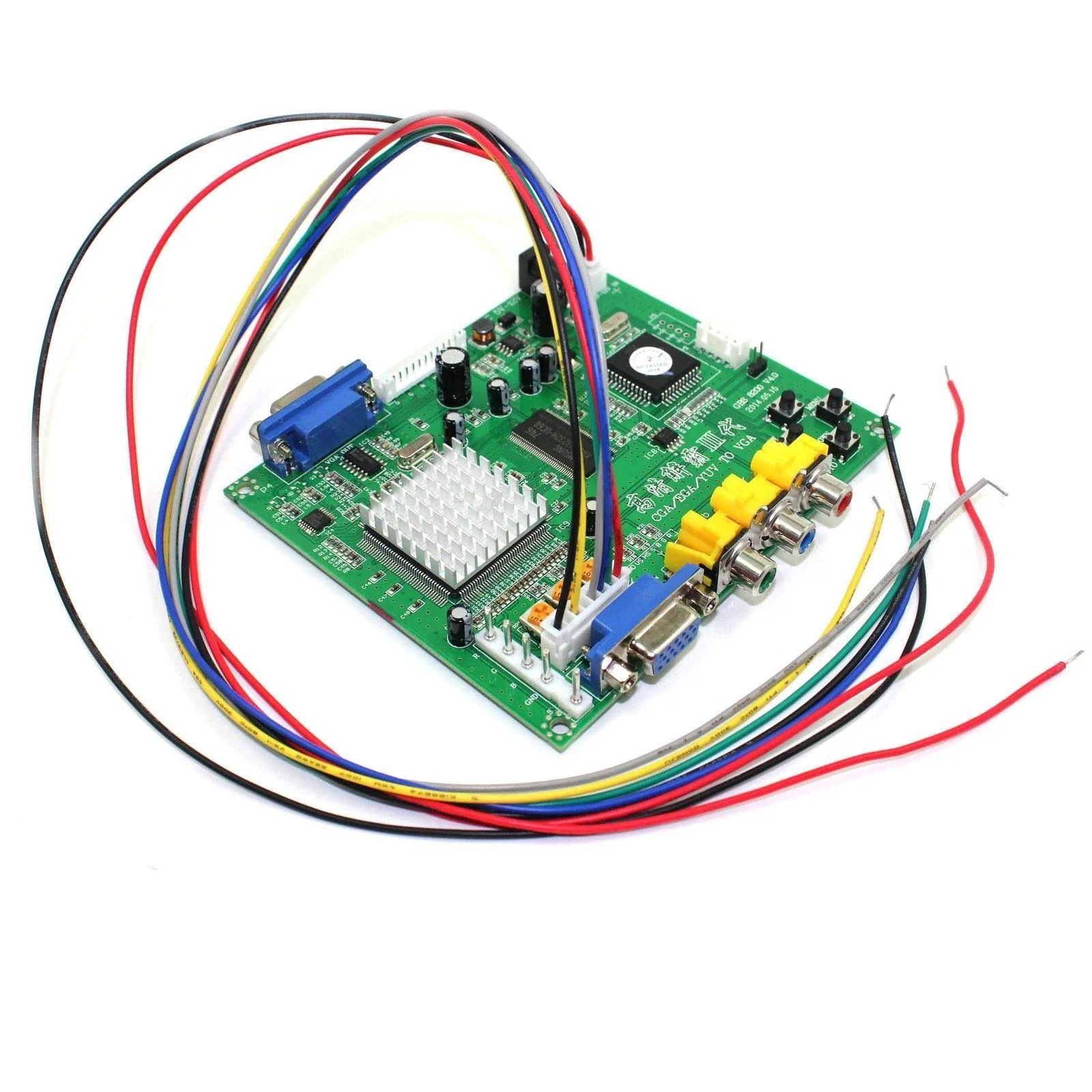

• Package list 1 * cga/ega/rgb to vga game video converter board 1 * 6pin signal wire 1 * 2pin power supply wire
