USB Sound Card with 8Ω 5W Speaker for Raspberry Pi/Jetson Nano, USB to Audio Adapter Support Recording and Playback, Stereo Codec Onboard Microphone and Speaker Header, Driver-Free, Plug and Play
USB Sound Card with 8Ω 5W Speaker for Raspberry Pi/Jetson Nano, USB to Audio Adapter Support Recording and Playback, Stereo Codec Onboard Microphone and Speaker Header, Driver-Free, Plug and Play
USB Sound Card with 8Ω 5W Speaker for Raspberry Pi/Jetson Nano, USB to Audio Adapter Support Recording and Playback, Stereo Codec Onboard Microphone and Speaker Header, Driver-Free, Plug and Play

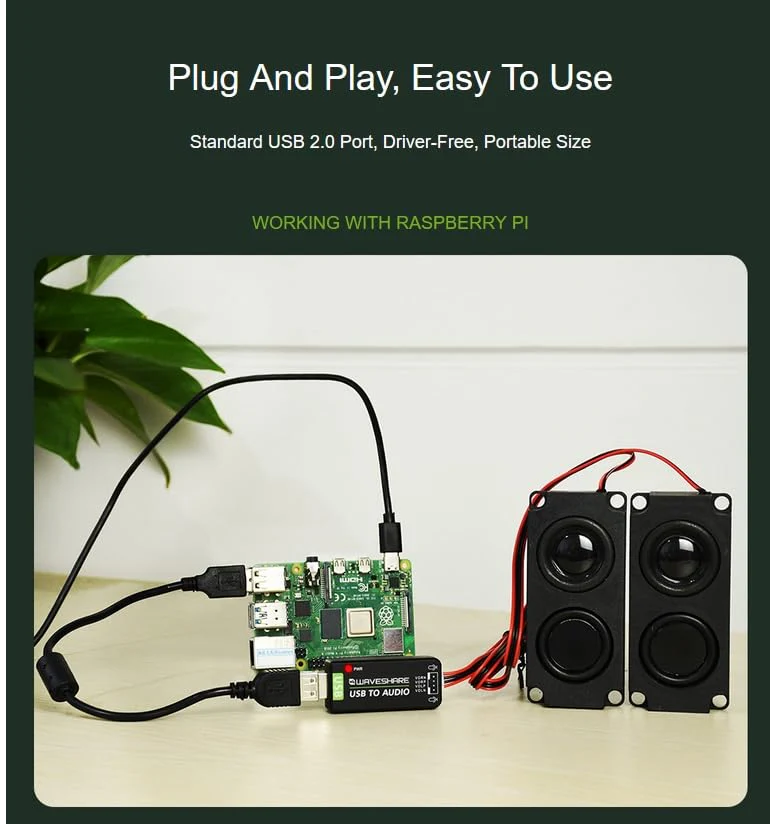

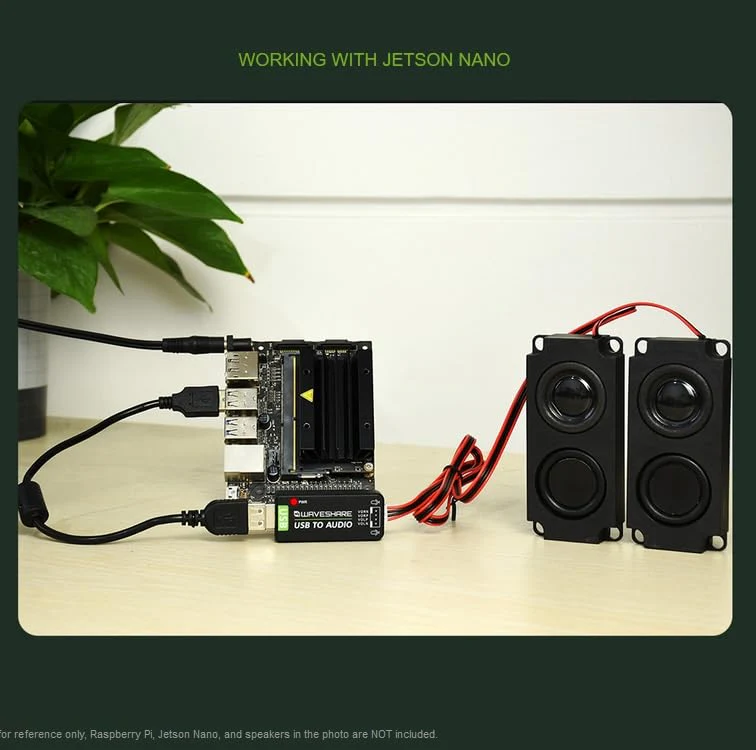

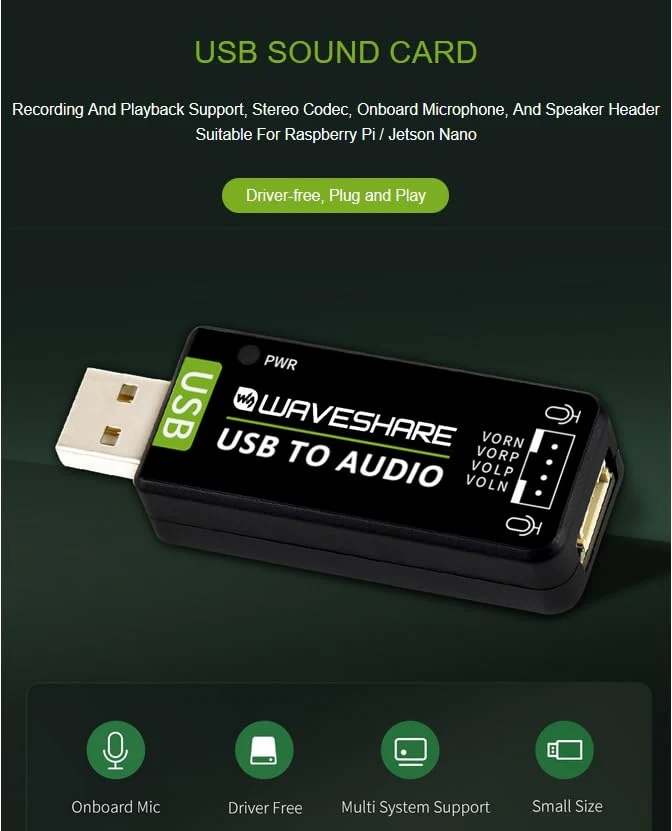

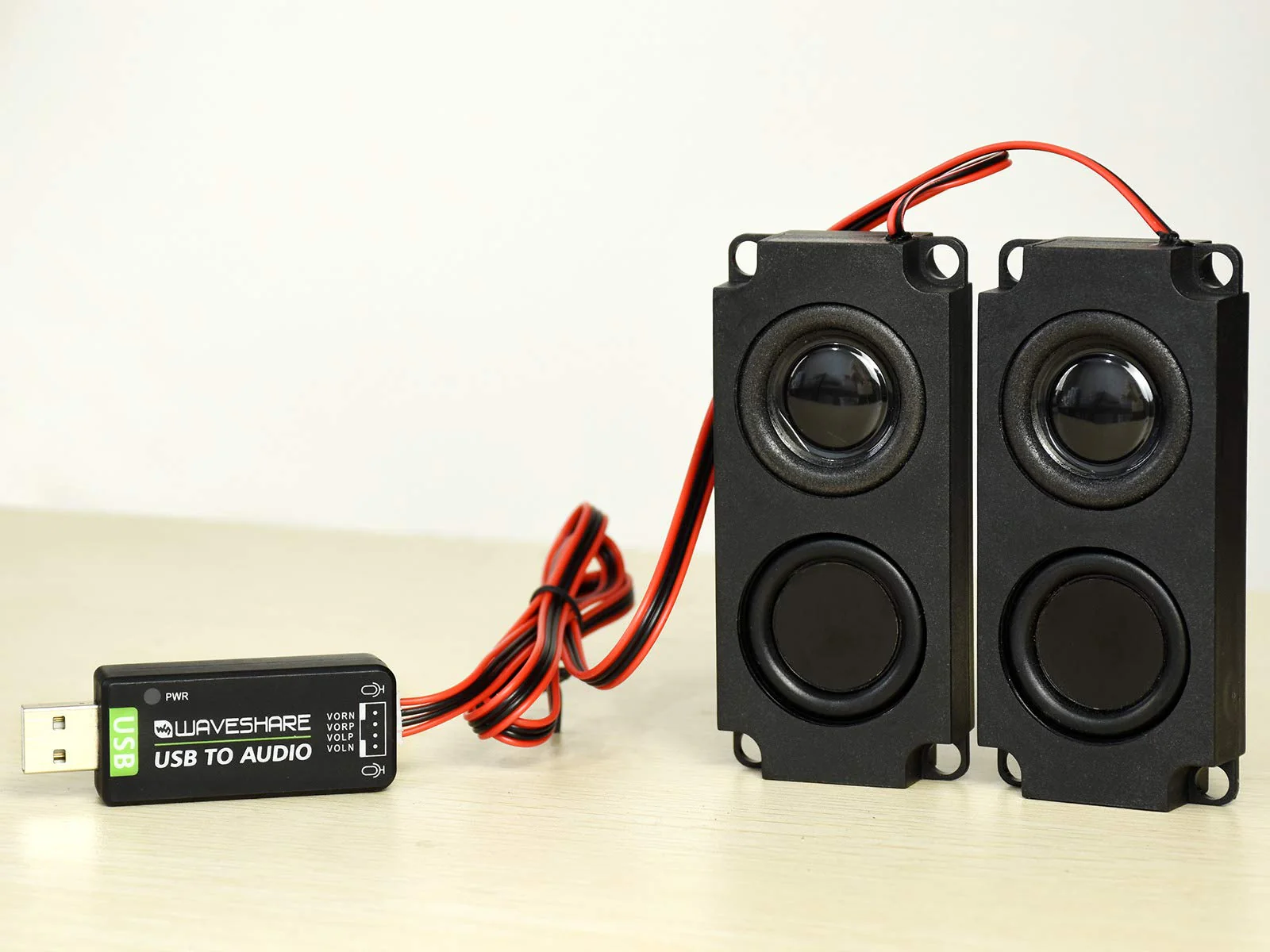

This is a Waveshare USB sound card/USB audio module with 8Ω 5W Speaker that supports recording and playback, a stereo codec, a built-in microphone, and a speaker. It is suitable for Raspberry Pi/Jetson Nano, driver-free, plug-and- play. 1. USB TO AUDIO Module Features USB sound card, USB audio module,external audio converter for Raspberry Pi and Jetson Nano Support recording and playback, stereo codec,Driver-free,Plug and Play: easy to use,using standard USB 2.0 port, portable size "listening / speaking" two-in- one: built-in microphone and speaker, easy audio input / output Support Multiple sampling rates: supported sampling rates including 8K, 11.025K, 12K, 16K, 22.05K, 24K,32K, 44.1K, and default 48K (Hz) Onboard PWR indicators for operating status Standard USB 2.0 port, portable size Support Multiple systems: Compatible with mac/Win7/8/8.1/10, Linux, Android, WinCE USB TO AUDIO Module Specifications Power supply: 5V Audo encoder/decoder: SSS1629A5 Control port: USB Audio port: PH2.0 Speaker driver: 2.6W per channel (4Ω BTL) 2. 8Ω 5W Speaker Specifications Impedance: 8Ω Power: 5W Dimension: 100mm x 45mm x 21 mm Comes with Online Tutorial/ Online Development Resource: n9.cl/slvwr Package Content USB TO AUDIO Module x1 8Ω 5W speaker x1
Product Features
- This is a Waveshare USB sound card/USB audio module with 8 5W Speaker that supports recording and playback, a stereo codec, a built-in microphone, and a speaker. It is suitable for Raspberry Pi/Jetson Nano, driver-free, plug-and-play
- "Listening / Speaking" Two-In-One-- onboard microphone, and speaker header, easy audio input / output.
- Multiple sampling rates support--supported sampling rates including 8K, 11.025K, 12K, 16K, 22.05K, 24K, 32K, 44.1K, and default 48K (Hz)
- Plug and Play, easy to use--standard USB 2.0 port, driver-free, portable size
- Support Multiple systems--Compatible with mac/Win7/8/8.1/10, Linux, Android, WinCE
More Images
USB Sound Card with 8Ω 5W Speaker for Raspberry Pi/Jetson Nano, USB to Audio Adapter Support Recording and Playback, Stereo Codec Onboard Microphone and Speaker Header, Driver-Free, Plug and Play
USB Sound Card with 8Ω 5W Speaker for Raspberry Pi/Jetson Nano, USB to Audio Adapter Support Recording and Playback, Stereo Codec Onboard Microphone and Speaker Header, Driver-Free, Plug and Play
This is a Waveshare USB sound card/USB audio module with 8Ω 5W Speaker that supports recording and playback, a stereo codec, a built-in microphone, and a speaker. It is suitable for Raspberry Pi/Jetson Nano, driver-free, plug-and- play. 1. USB TO AUDIO Module Features USB sound card, USB audio module,external audio converter for Raspberry Pi and Jetson Nano Support recording and playback, stereo codec,Driver-free,Plug and Play: easy to use,using standard USB 2.0 port, portable size "listening / speaking" two-in- one: built-in microphone and speaker, easy audio input / output Support Multiple sampling rates: supported sampling rates including 8K, 11.025K, 12K, 16K, 22.05K, 24K,32K, 44.1K, and default 48K (Hz) Onboard PWR indicators for operating status Standard USB 2.0 port, portable size Support Multiple systems: Compatible with mac/Win7/8/8.1/10, Linux, Android, WinCE USB TO AUDIO Module Specifications Power supply: 5V Audo encoder/decoder: SSS1629A5 Control port: USB Audio port: PH2.0 Speaker driver: 2.6W per channel (4Ω BTL) 2. 8Ω 5W Speaker Specifications Impedance: 8Ω Power: 5W Dimension: 100mm x 45mm x 21 mm Comes with Online Tutorial/ Online Development Resource: n9.cl/slvwr Package Content USB TO AUDIO Module x1 8Ω 5W speaker x1
Product Features
- This is a Waveshare USB sound card/USB audio module with 8 5W Speaker that supports recording and playback, a stereo codec, a built-in microphone, and a speaker. It is suitable for Raspberry Pi/Jetson Nano, driver-free, plug-and-play
- "Listening / Speaking" Two-In-One-- onboard microphone, and speaker header, easy audio input / output.
- Multiple sampling rates support--supported sampling rates including 8K, 11.025K, 12K, 16K, 22.05K, 24K, 32K, 44.1K, and default 48K (Hz)
- Plug and Play, easy to use--standard USB 2.0 port, driver-free, portable size
- Support Multiple systems--Compatible with mac/Win7/8/8.1/10, Linux, Android, WinCE
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
USB Sound Card with 8Ω 5W Speaker for Raspberry Pi/Jetson Nano, USB to Audio Adapter Support Recording and Playback, Stereo Codec Onboard Microphone and Speaker Header, Driver-Free, Plug and Play
This is a Waveshare USB sound card/USB audio module with 8Ω 5W Speaker that supports recording and playback, a stereo codec, a built-in microphone, and a speaker. It is suitable for Raspberry Pi/Jetson Nano, driver-free, plug-and- play. 1. USB TO AUDIO Module Features USB sound card, USB audio module,external audio converter for Raspberry Pi and Jetson Nano Support recording and playback, stereo codec,Driver-free,Plug and Play: easy to use,using standard USB 2.0 port, portable size "listening / speaking" two-in- one: built-in microphone and speaker, easy audio input / output Support Multiple sampling rates: supported sampling rates including 8K, 11.025K, 12K, 16K, 22.05K, 24K,32K, 44.1K, and default 48K (Hz) Onboard PWR indicators for operating status Standard USB 2.0 port, portable size Support Multiple systems: Compatible with mac/Win7/8/8.1/10, Linux, Android, WinCE USB TO AUDIO Module Specifications Power supply: 5V Audo encoder/decoder: SSS1629A5 Control port: USB Audio port: PH2.0 Speaker driver: 2.6W per channel (4Ω BTL) 2. 8Ω 5W Speaker Specifications Impedance: 8Ω Power: 5W Dimension: 100mm x 45mm x 21 mm Comes with Online Tutorial/ Online Development Resource: n9.cl/slvwr Package Content USB TO AUDIO Module x1 8Ω 5W speaker x1
Product Features
- This is a Waveshare USB sound card/USB audio module with 8 5W Speaker that supports recording and playback, a stereo codec, a built-in microphone, and a speaker. It is suitable for Raspberry Pi/Jetson Nano, driver-free, plug-and-play
- "Listening / Speaking" Two-In-One-- onboard microphone, and speaker header, easy audio input / output.
- Multiple sampling rates support--supported sampling rates including 8K, 11.025K, 12K, 16K, 22.05K, 24K, 32K, 44.1K, and default 48K (Hz)
- Plug and Play, easy to use--standard USB 2.0 port, driver-free, portable size
- Support Multiple systems--Compatible with mac/Win7/8/8.1/10, Linux, Android, WinCE
