Upgraded RF Signal Generator 35MHz - 4400MHz Signal Source Frequency Screen
Upgraded RF Signal Generator 35MHz - 4400MHz Signal Source Frequency Screen

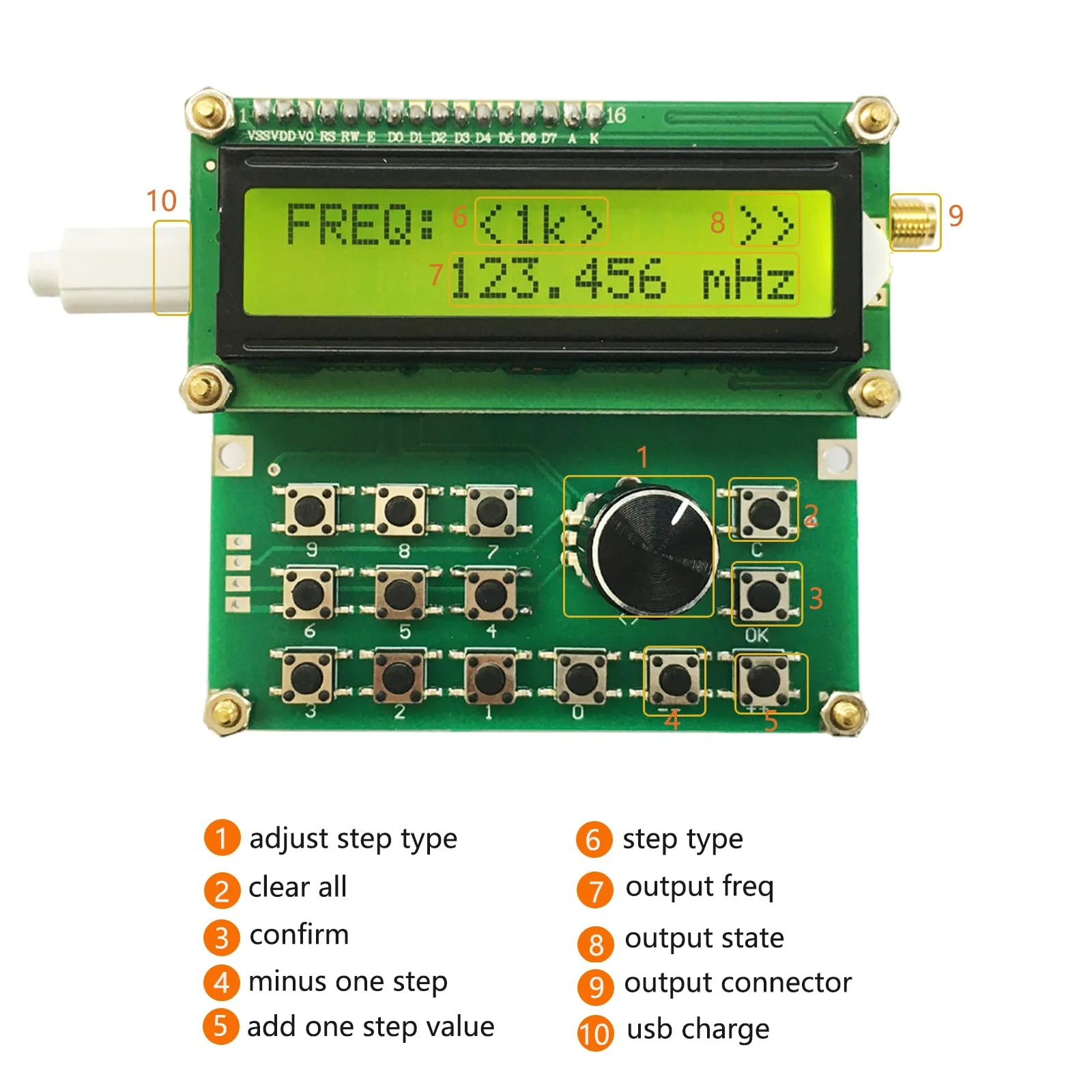

★ Supply voltage: DC 4.5V-5.5V, USB. ★ Standby current: <25 mA. ★ Emission current: <150 mA. ★ Output impedance: 50 ohms. ★ Output connector: SMA-K. ★ Output frequency range: 35 MHz-4400 MHz. ★ Output quilting: 1KHz-8KHz. ★ Output power: -1dBm (W) @ 150 MHz (test power absolute value) about 1 mW. Features: ★ This product operation keyboard has 15 ppt keys, 0~9 number keys, 10, "++" and "--" keys to adjust the frequency to use, also produces emission output behavior, short press "++" or "-- " Key stepping adds one step or minus one step to the original frequency output. The "ok" button is the output control button. Press it to launch. Press again to stop the transmission. The emission behavior caused by "++" or "--" needs to press "OK" twice to end the transmission. This product will display ">>" in the upper right corner of the display when there is output emission behavior The "C" key will end the transmission and the frequency will be zero. ★ Stepping "<>" key, cycle selection step "1K", "10K", "100K", "1M". Take 433Mhzfor example, press buttons 4 3 3 0 by order ,then ok button. That is all. It is easy to use.
Product Features
- Wide frequency range: 35Mhz-4400Mhz, making it suitable for a variety of applications.
- Dual Modes: Single Frequency and Sweep mode, provide greater flexibility.
- Wave From: Sine Wave, it is Not strictly Wave with some noise wave. Power: about 1mw.
- Power off memory: When the power is off, the parameters will be saved and will continue to work at the previous frequency after being powered on again.
- Convenient Power Supply: Powered by a mobile charger or Power bank or usb connecting to a computer.
Original: $210.07
-65%$210.07
$73.52More Images
Upgraded RF Signal Generator 35MHz - 4400MHz Signal Source Frequency Screen
Upgraded RF Signal Generator 35MHz - 4400MHz Signal Source Frequency Screen
★ Supply voltage: DC 4.5V-5.5V, USB. ★ Standby current: <25 mA. ★ Emission current: <150 mA. ★ Output impedance: 50 ohms. ★ Output connector: SMA-K. ★ Output frequency range: 35 MHz-4400 MHz. ★ Output quilting: 1KHz-8KHz. ★ Output power: -1dBm (W) @ 150 MHz (test power absolute value) about 1 mW. Features: ★ This product operation keyboard has 15 ppt keys, 0~9 number keys, 10, "++" and "--" keys to adjust the frequency to use, also produces emission output behavior, short press "++" or "-- " Key stepping adds one step or minus one step to the original frequency output. The "ok" button is the output control button. Press it to launch. Press again to stop the transmission. The emission behavior caused by "++" or "--" needs to press "OK" twice to end the transmission. This product will display ">>" in the upper right corner of the display when there is output emission behavior The "C" key will end the transmission and the frequency will be zero. ★ Stepping "<>" key, cycle selection step "1K", "10K", "100K", "1M". Take 433Mhzfor example, press buttons 4 3 3 0 by order ,then ok button. That is all. It is easy to use.
Product Features
- Wide frequency range: 35Mhz-4400Mhz, making it suitable for a variety of applications.
- Dual Modes: Single Frequency and Sweep mode, provide greater flexibility.
- Wave From: Sine Wave, it is Not strictly Wave with some noise wave. Power: about 1mw.
- Power off memory: When the power is off, the parameters will be saved and will continue to work at the previous frequency after being powered on again.
- Convenient Power Supply: Powered by a mobile charger or Power bank or usb connecting to a computer.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Upgraded RF Signal Generator 35MHz - 4400MHz Signal Source Frequency Screen
★ Supply voltage: DC 4.5V-5.5V, USB. ★ Standby current: <25 mA. ★ Emission current: <150 mA. ★ Output impedance: 50 ohms. ★ Output connector: SMA-K. ★ Output frequency range: 35 MHz-4400 MHz. ★ Output quilting: 1KHz-8KHz. ★ Output power: -1dBm (W) @ 150 MHz (test power absolute value) about 1 mW. Features: ★ This product operation keyboard has 15 ppt keys, 0~9 number keys, 10, "++" and "--" keys to adjust the frequency to use, also produces emission output behavior, short press "++" or "-- " Key stepping adds one step or minus one step to the original frequency output. The "ok" button is the output control button. Press it to launch. Press again to stop the transmission. The emission behavior caused by "++" or "--" needs to press "OK" twice to end the transmission. This product will display ">>" in the upper right corner of the display when there is output emission behavior The "C" key will end the transmission and the frequency will be zero. ★ Stepping "<>" key, cycle selection step "1K", "10K", "100K", "1M". Take 433Mhzfor example, press buttons 4 3 3 0 by order ,then ok button. That is all. It is easy to use.
Product Features
- Wide frequency range: 35Mhz-4400Mhz, making it suitable for a variety of applications.
- Dual Modes: Single Frequency and Sweep mode, provide greater flexibility.
- Wave From: Sine Wave, it is Not strictly Wave with some noise wave. Power: about 1mw.
- Power off memory: When the power is off, the parameters will be saved and will continue to work at the previous frequency after being powered on again.
- Convenient Power Supply: Powered by a mobile charger or Power bank or usb connecting to a computer.
