ubld.it™ - MIDI 2.0 Breakout Board MV (Multi Voltage) 3.5mm TRRS
ubld.it™ - MIDI 2.0 Breakout Board MV (Multi Voltage) 3.5mm TRRS

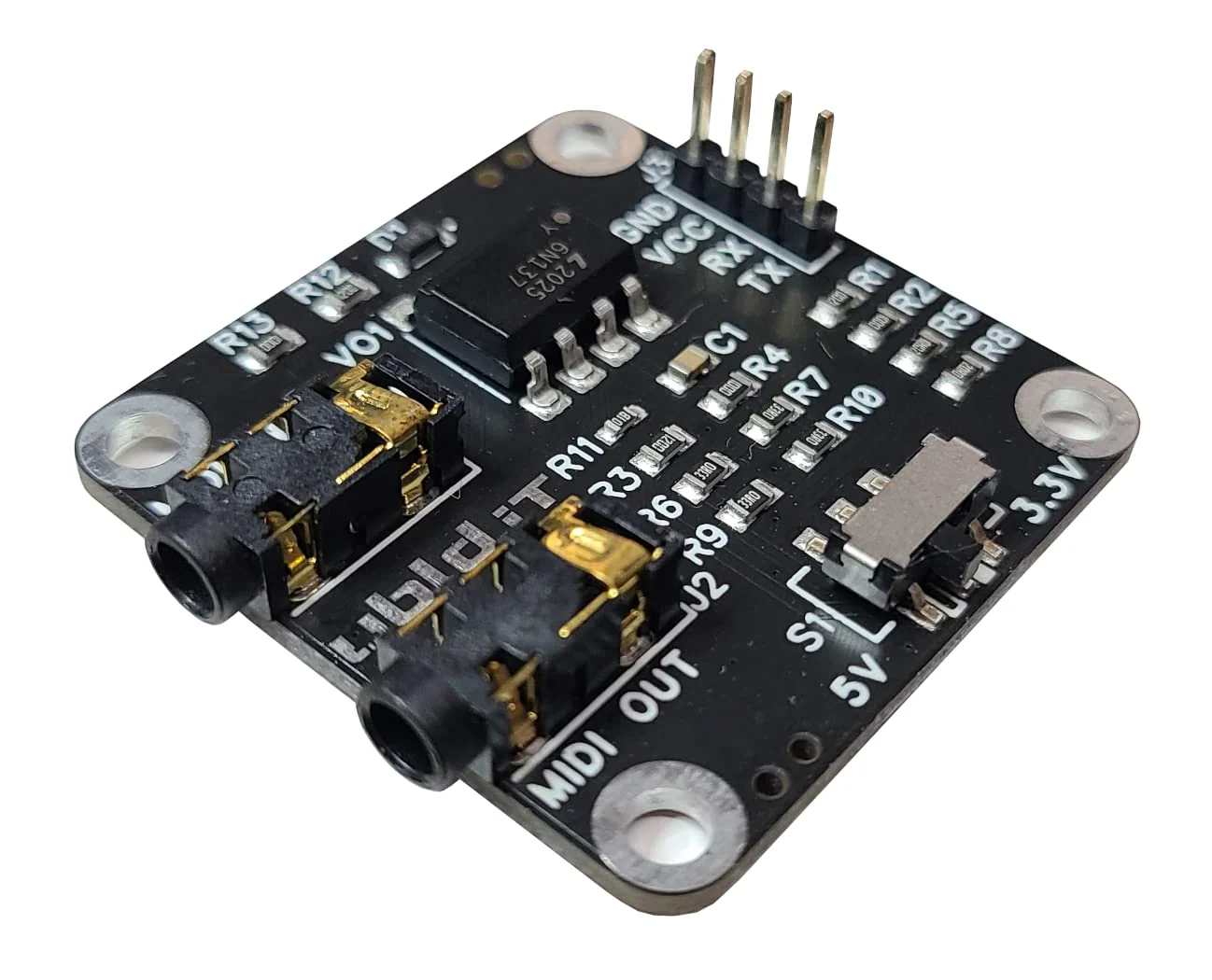

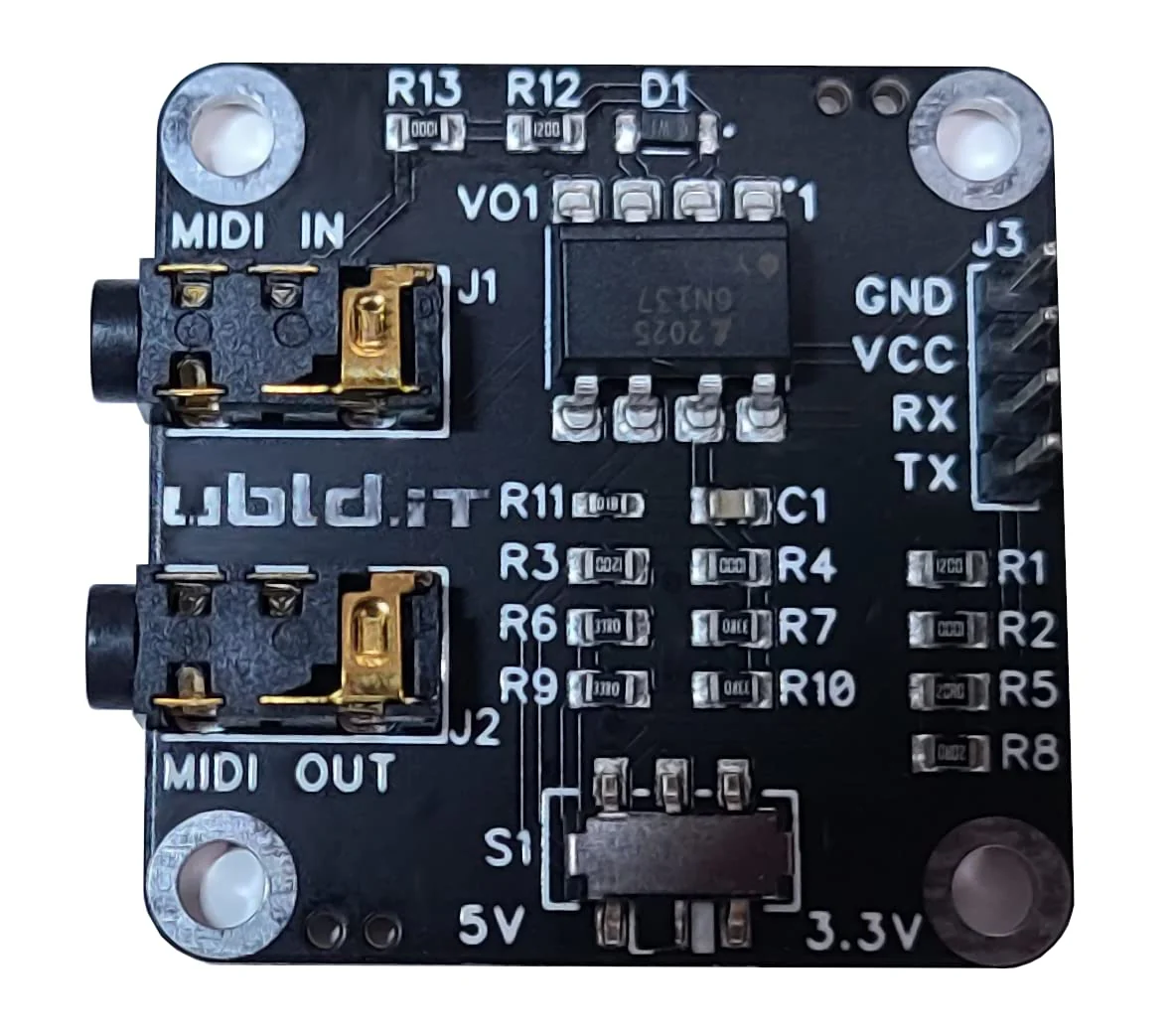

The MIDI 2.0 Breakout Board MV board is an easy way to connect a hardware MIDI device to an Arduino, microcontroller, or embedded computer such as the Beagle Bone or RaspberryPi. This version of the MIDI BoB is a fully assemble board. The PCB provides an optically isolated MIDI I/O (Input and Output) signal and power. There are mounting also holes in the PCB for a more permanent installation. An example Arduino sketch is available on the manufacturers website which will get you up and running quickly. MIDI Breakout MV is similar to the old EZ. However, the MV includes a switch allowing you to select 5V or 3.3V levels.
Product Features
- Arduino Compatible (example sketches available)
- MIDI IN and MIDI OUT (3.5mm TRS Connector)
- 5V or 3.3V operation 6n137
- Optically Isolated MIDI Input (4 Pin Header)
- This is a fully assemble PCB
Original: $89.82
-65%$89.82
$31.44More Images
