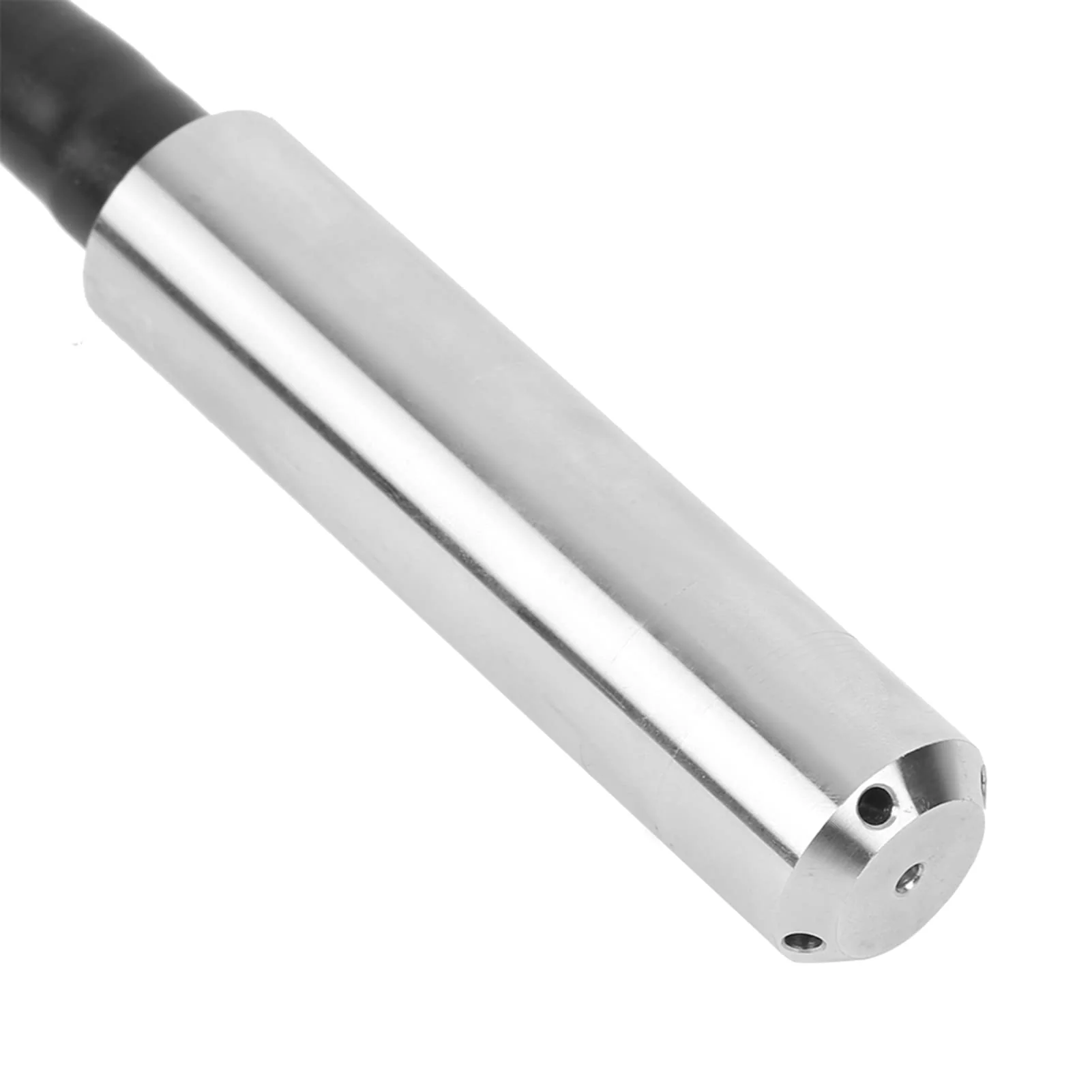

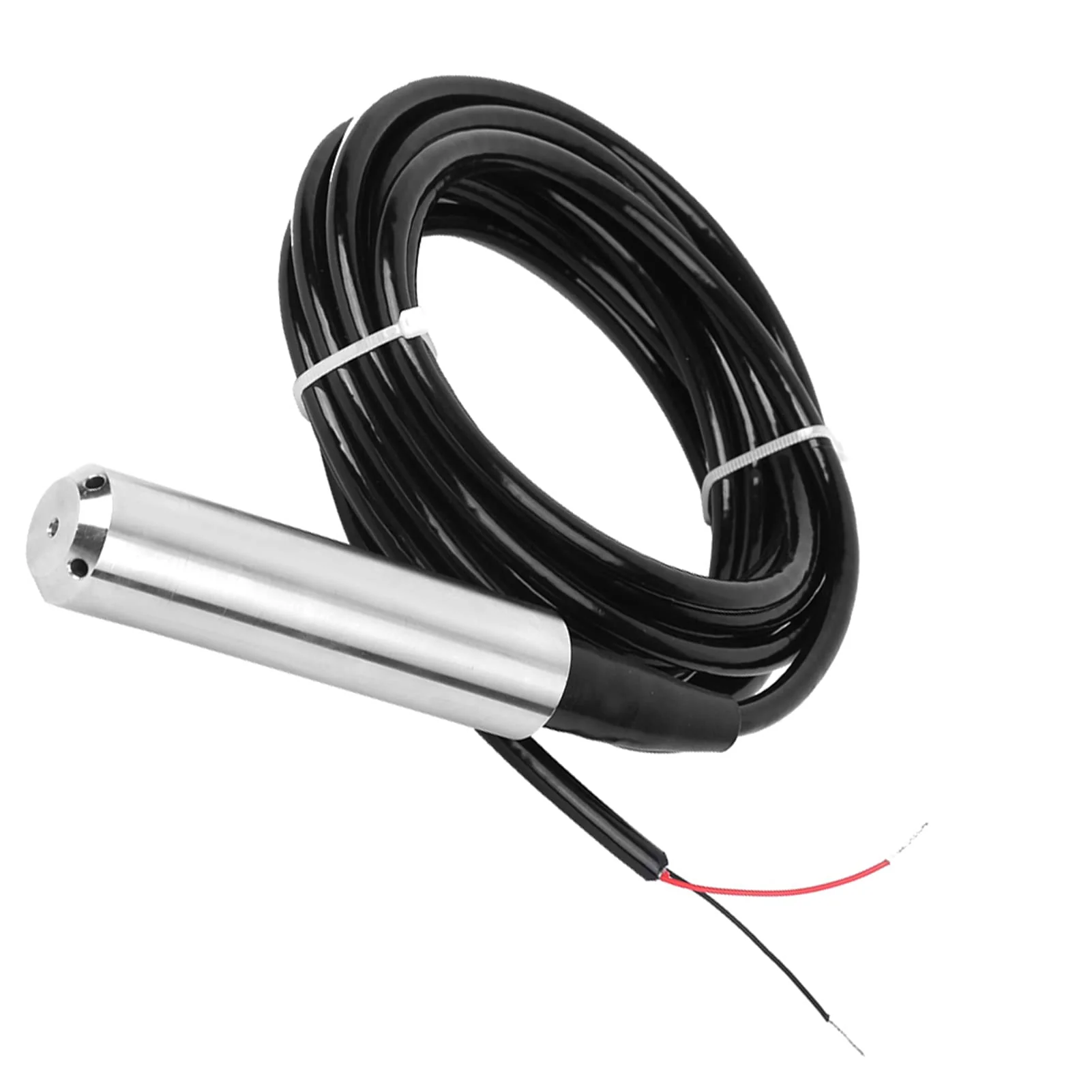

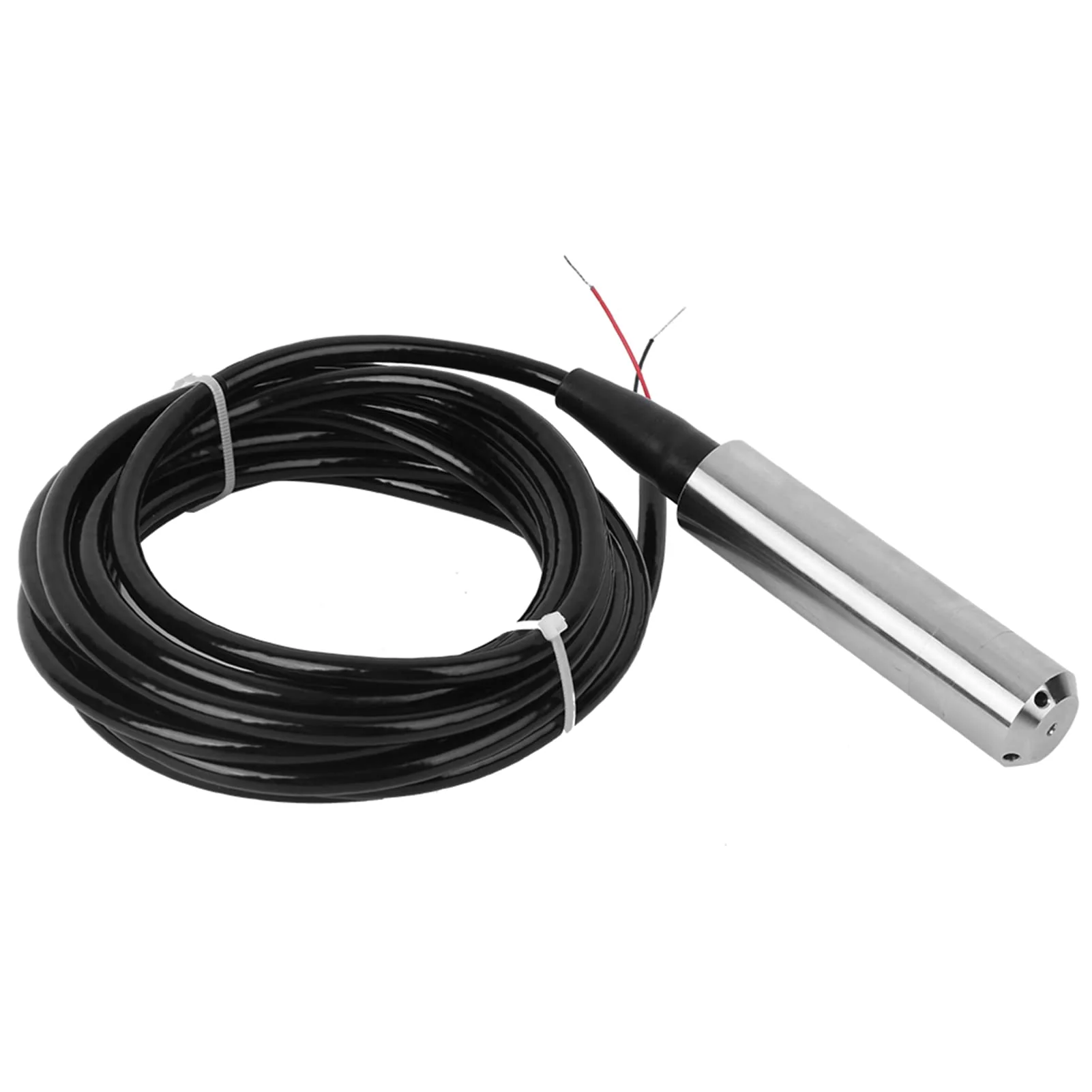

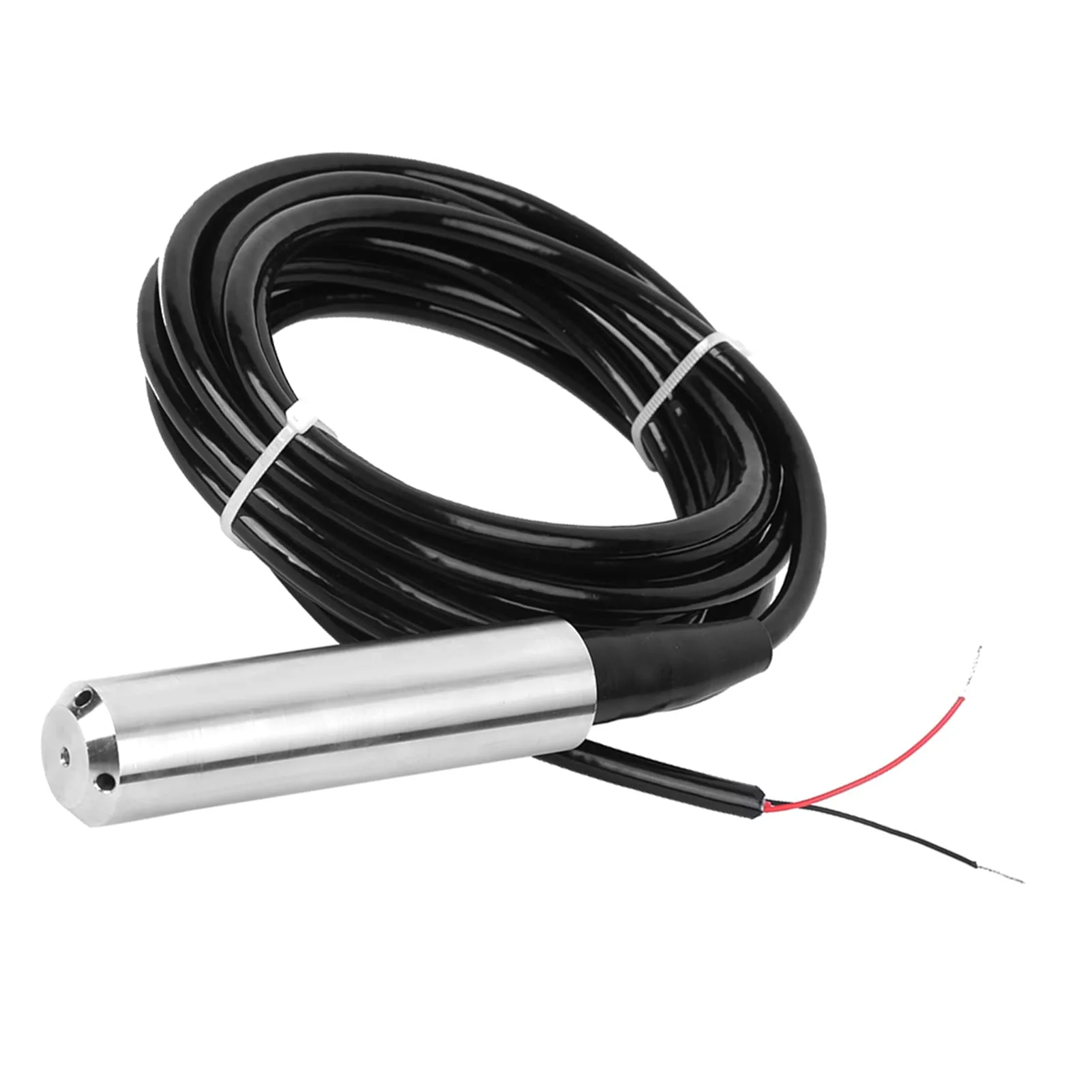

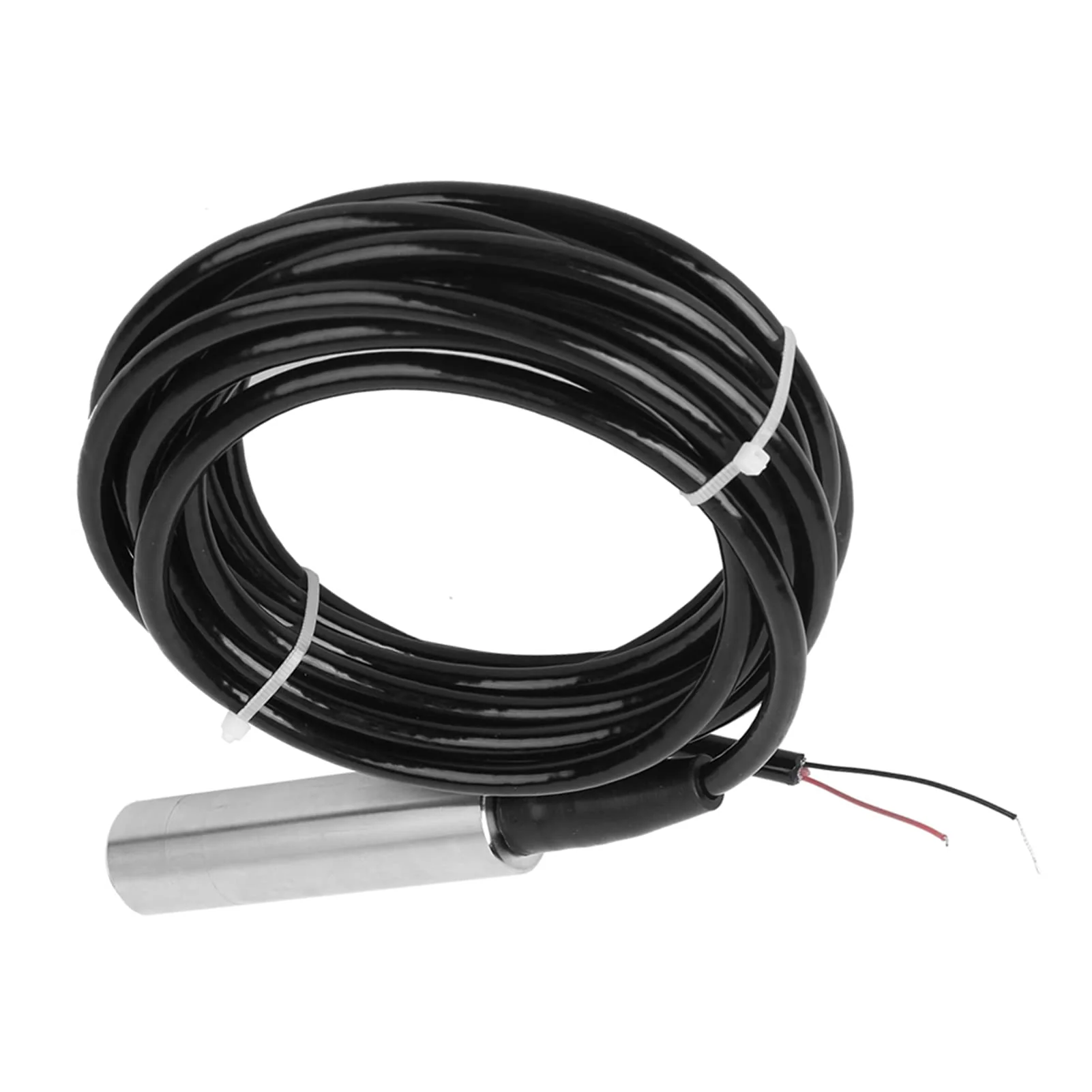

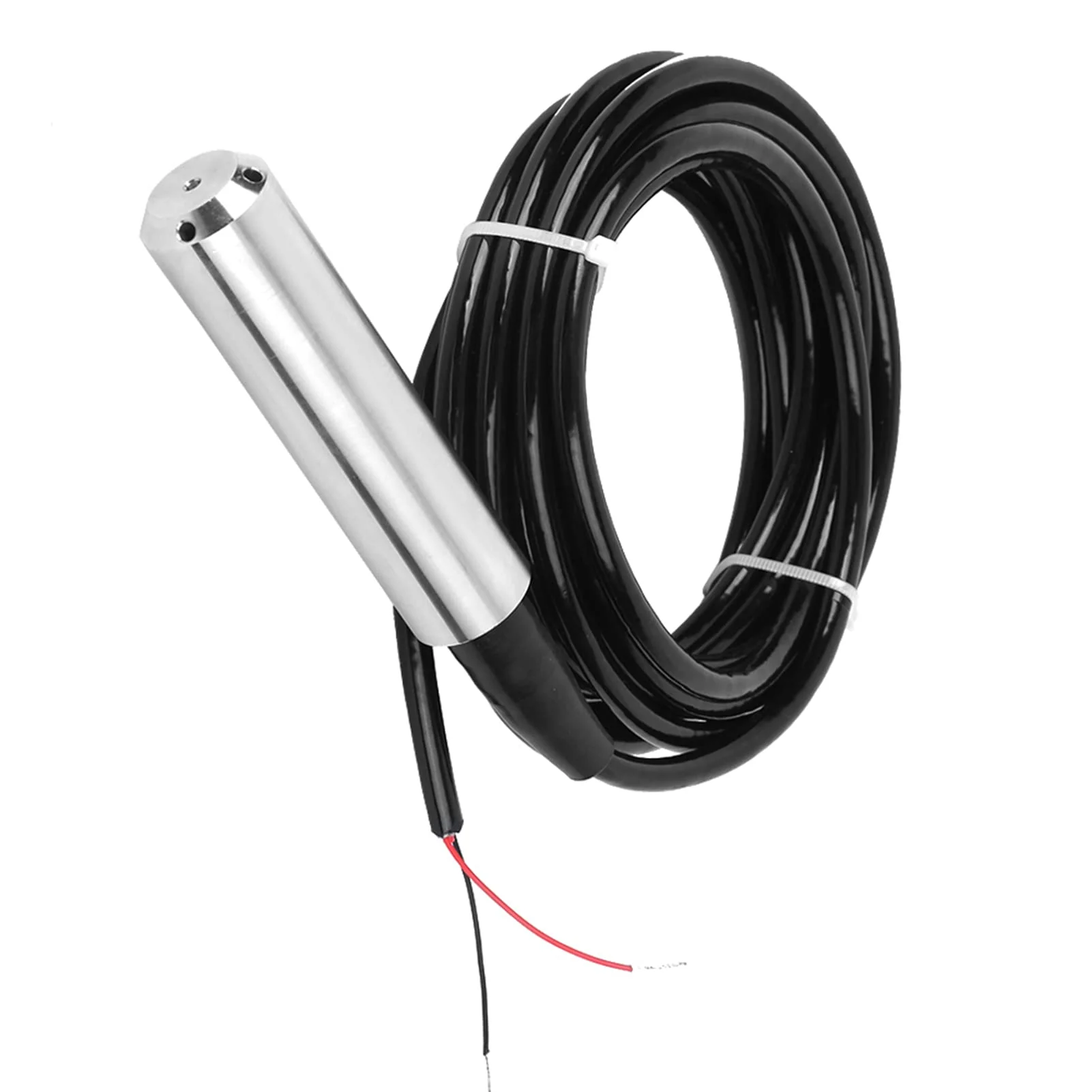

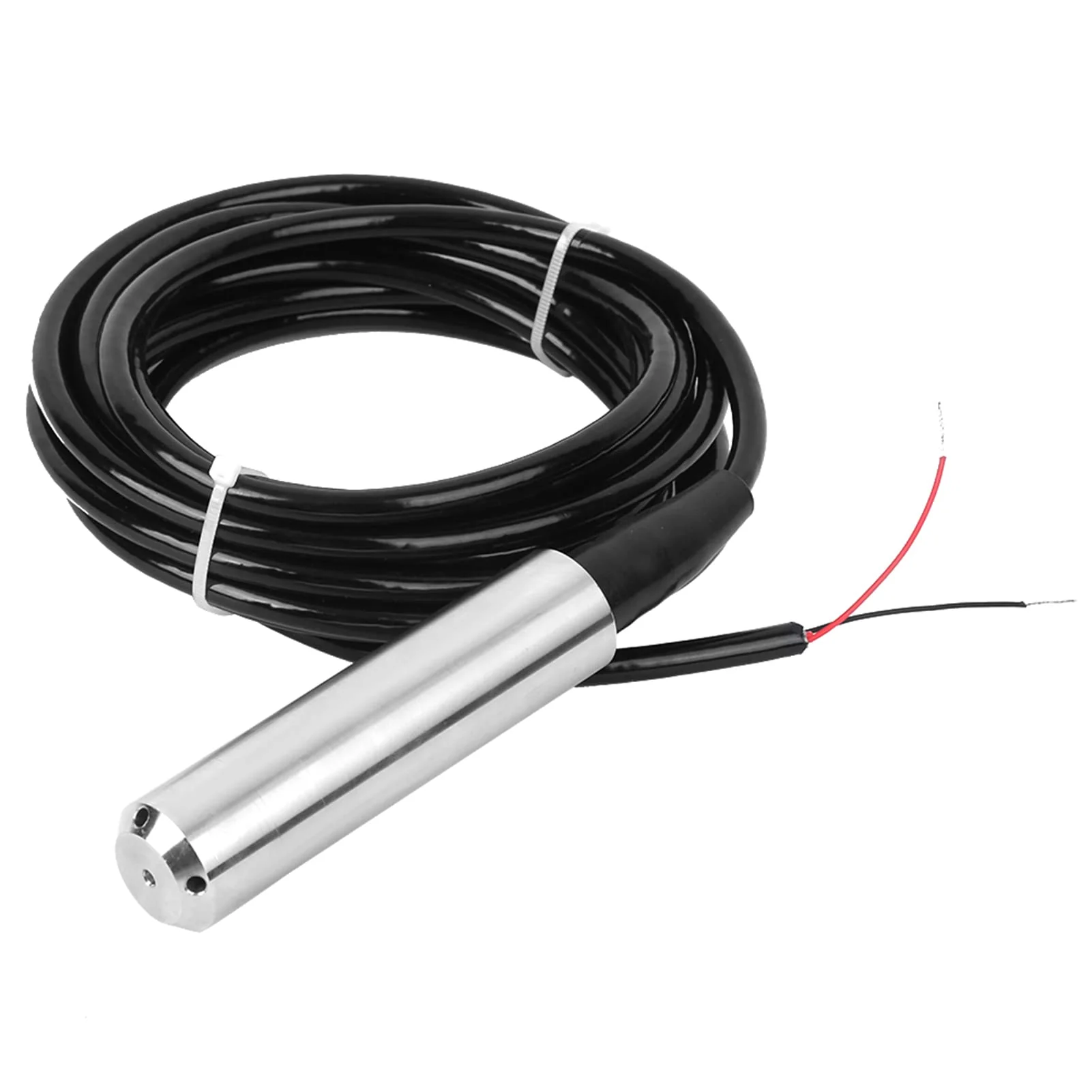

TL-136 Liquid Level Sensor, Water Level Sensor Detector 24VDC 4-20mA Signal Output, 304 Stainless Steel Liquid Level Transmitter, Default Reichweite 0-1 Meter
TL-136 Liquid Level Sensor, Water Level Sensor Detector 24VDC 4-20mA Signal Output, 304 Stainless Steel Liquid Level Transmitter, Default Reichweite 0-1 Meter
TL-136 Liquid Level Sensor, Water Level Sensor Detector 24VDC 4-20mA Signal Output, 304 Stainless Steel Liquid Level Transmitter, Default
Description: Input level transmitter, high precision diffusion of silicon, more accurate monitoring of the water level. 2. All digital conditioning circuit, 4-20 mA signal output is more stable. 3. IP68 multi-layer waterproof protection, safer to use. 4.45 degree oblique angle anti-shock, removable anti-blocking design. 5. The measured medium is water and other liquids that do not corrode stainless steel. Specification Item Type: Liquid Level Sensor Tested medium: water (liquid that does not attack stainless steel) Air conduction cable length: 5 metres. Measuring range: 0-1m / 0-2m / 0- / 0-4m / 0-1m / 0-5m (optional) Measuring accuracy: 0.2% FS-0.5% FS (conventional). Output signal: 4-20 mA. Supply voltage: 24 V DC. Medium temperature: -40 to 70 °C. Ambient temperature: -40 to 80 °C. Temperature compensation: -10-70 °C. Overload capacity: <200%. Protection class: IP68. Temperature source shift: ± 0.01% FS/℃. Long-term stability: ± 0.2% FS/year. Machine impact: 20 g (20-5000 Hz). Product material: 304 stainless steel. Package list: 1 x liquid level transmitter
Product Features
- Stable output: full digital conditioning circuit, 4-20mA signal output is more stable, you can rest assured that it is used.

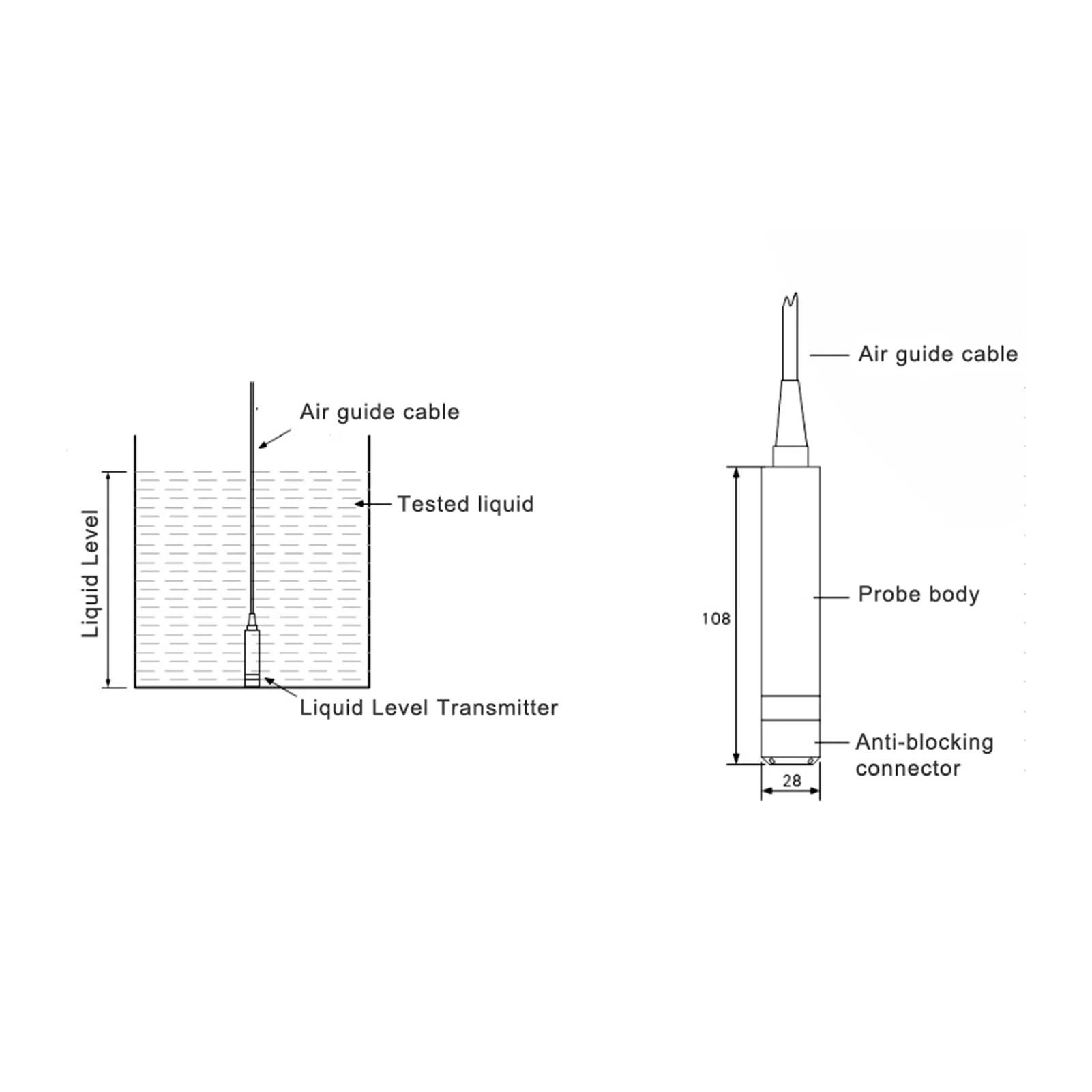

- IP68 Waterproof: IP68 multi-layer water protection, 45 bevel, shock resistance, removable, anti-lock design. The pressure input of the transmitter has a separating membrane, please do not come with foreign bodies.
- High precision diffusion: the casting liquid level transmitter uses high-precision diffusion silicone, which allows more accurate monitoring of the water level.
- High Quality Stainless Steel:Made of stainless steel, not easy to rust, strong and durable, the junction box is made of low copper aluminum alloy with excellent heat resistance, which can work for a long time.

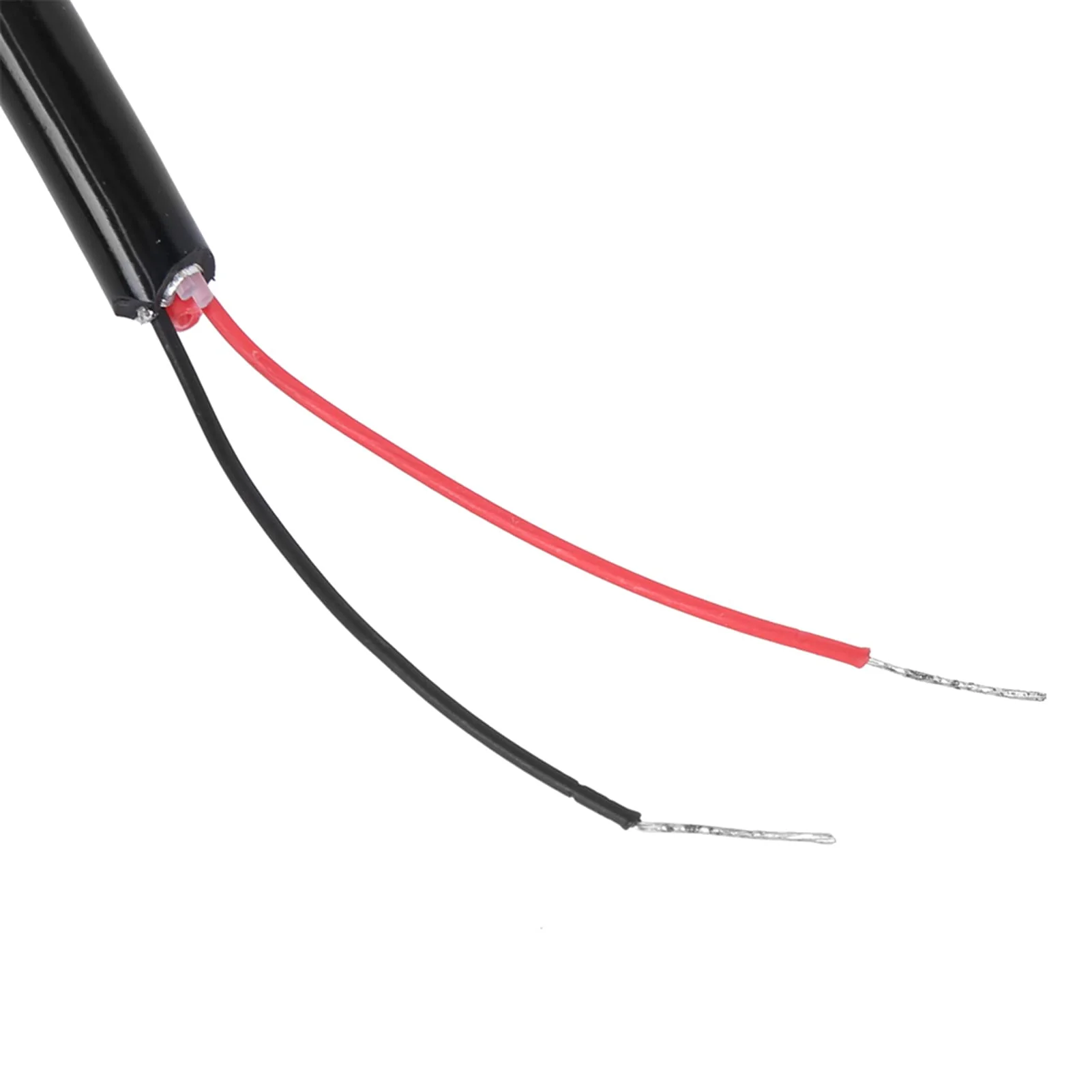

- Note: The wire is a special waterproof wire. During installation and use, it should be protected from fraying, puncturing and scratching. If the above problems are present on site, protective measures should be taken for the pipes
