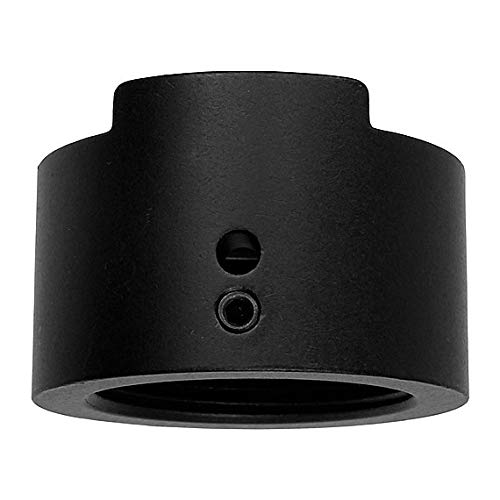

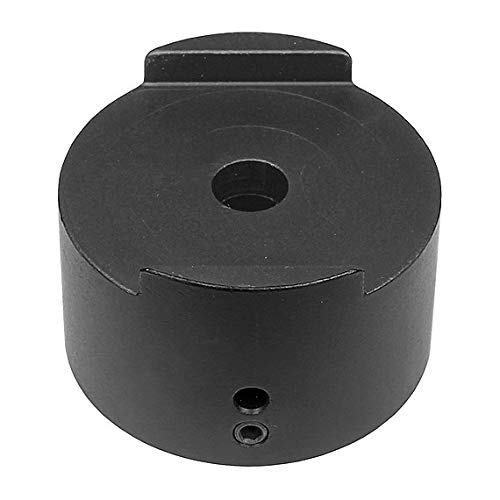

The Light Source Mega-Coupler Pipe Adapter, Black Anodized
The Light Source Mega-Coupler Pipe Adapter, Black Anodized
The Pipe to Coupler Adapter can be used to rig pipe-mounted plasma screens, projectors and speakers from overhead pipe or truss. The Pipe to Coupler Adapter attaches a standard threaded NPT 1-1/2" pipe (1.9" OD) to a Mega- Coupler. There are two interlocking tabs to keep the adapter from rotating. The Adapter is fastened to the Mega-Coupler with the 1/2"-13 tpi by 1-1/4" long bolt and Nylock nut that comes with the Mega-Coupler (not included). There is a 1/4-20 set screw to lock the pipe rotation, and an inspection hole to verify that the pipe is fully inserted. The Mega-Coupler Pipe Adapter can also be used on a Mega-Claw (sold separately). Working Load Limit 1100 Pounds Hardware 1/4" x .375 Socket Set Screw Weight 0.8 oz.
Product Features
- The Pipe to Coupler Adapter can be used to rig pipe-mounted plasma screens, projectors and speakers from overhead pipe or truss. The Pipe to Coupler Adapter attaches a standard threaded NPT 1-1/2" pipe (1.9" OD) to a Mega-Coupler. There are two interlocking tabs to keep the adapter from rotating. The Adapter is fastened to the Mega-Coupler with the 1/2"-13 tpi by 1-1/4" long bolt and Nylock nut that comes with the Mega-Coupler (not included). There is a 1/4-20 set screw to lock the pipe rotation, and an inspection hole to verify that the pipe is fully inserted.
- Working Load Limit 1100 Pounds Hardware 1/4" x .375 Socket Set Screw Weight 0.8 oz.

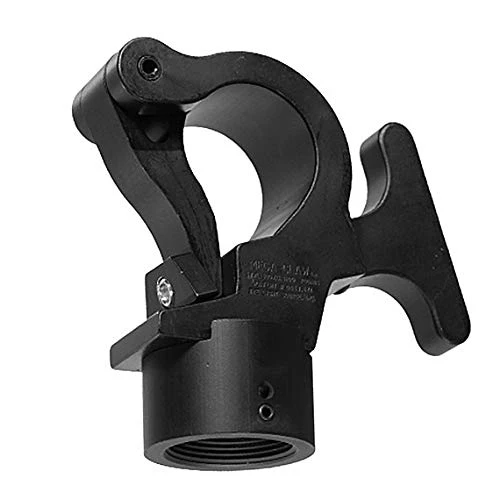

- The Mega-Coupler Pipe Adapter can also be used on a Mega-Claw (sold separately).
More Images
The Light Source Mega-Coupler Pipe Adapter, Black Anodized
The Light Source Mega-Coupler Pipe Adapter, Black Anodized
The Pipe to Coupler Adapter can be used to rig pipe-mounted plasma screens, projectors and speakers from overhead pipe or truss. The Pipe to Coupler Adapter attaches a standard threaded NPT 1-1/2" pipe (1.9" OD) to a Mega- Coupler. There are two interlocking tabs to keep the adapter from rotating. The Adapter is fastened to the Mega-Coupler with the 1/2"-13 tpi by 1-1/4" long bolt and Nylock nut that comes with the Mega-Coupler (not included). There is a 1/4-20 set screw to lock the pipe rotation, and an inspection hole to verify that the pipe is fully inserted. The Mega-Coupler Pipe Adapter can also be used on a Mega-Claw (sold separately). Working Load Limit 1100 Pounds Hardware 1/4" x .375 Socket Set Screw Weight 0.8 oz.
Product Features
- The Pipe to Coupler Adapter can be used to rig pipe-mounted plasma screens, projectors and speakers from overhead pipe or truss. The Pipe to Coupler Adapter attaches a standard threaded NPT 1-1/2" pipe (1.9" OD) to a Mega-Coupler. There are two interlocking tabs to keep the adapter from rotating. The Adapter is fastened to the Mega-Coupler with the 1/2"-13 tpi by 1-1/4" long bolt and Nylock nut that comes with the Mega-Coupler (not included). There is a 1/4-20 set screw to lock the pipe rotation, and an inspection hole to verify that the pipe is fully inserted.
- Working Load Limit 1100 Pounds Hardware 1/4" x .375 Socket Set Screw Weight 0.8 oz.
- The Mega-Coupler Pipe Adapter can also be used on a Mega-Claw (sold separately).
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Light Source Mega-Coupler Pipe Adapter, Black Anodized
The Pipe to Coupler Adapter can be used to rig pipe-mounted plasma screens, projectors and speakers from overhead pipe or truss. The Pipe to Coupler Adapter attaches a standard threaded NPT 1-1/2" pipe (1.9" OD) to a Mega- Coupler. There are two interlocking tabs to keep the adapter from rotating. The Adapter is fastened to the Mega-Coupler with the 1/2"-13 tpi by 1-1/4" long bolt and Nylock nut that comes with the Mega-Coupler (not included). There is a 1/4-20 set screw to lock the pipe rotation, and an inspection hole to verify that the pipe is fully inserted. The Mega-Coupler Pipe Adapter can also be used on a Mega-Claw (sold separately). Working Load Limit 1100 Pounds Hardware 1/4" x .375 Socket Set Screw Weight 0.8 oz.
Product Features
- The Pipe to Coupler Adapter can be used to rig pipe-mounted plasma screens, projectors and speakers from overhead pipe or truss. The Pipe to Coupler Adapter attaches a standard threaded NPT 1-1/2" pipe (1.9" OD) to a Mega-Coupler. There are two interlocking tabs to keep the adapter from rotating. The Adapter is fastened to the Mega-Coupler with the 1/2"-13 tpi by 1-1/4" long bolt and Nylock nut that comes with the Mega-Coupler (not included). There is a 1/4-20 set screw to lock the pipe rotation, and an inspection hole to verify that the pipe is fully inserted.
- Working Load Limit 1100 Pounds Hardware 1/4" x .375 Socket Set Screw Weight 0.8 oz.
- The Mega-Coupler Pipe Adapter can also be used on a Mega-Claw (sold separately).
