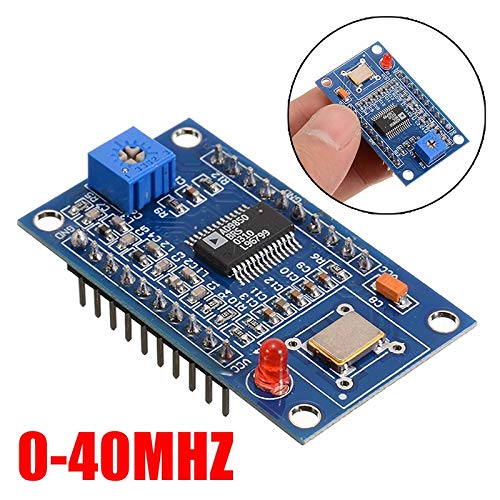

AD9850 DDS Signal Generator Module 0-40MHz 2 Sine Wave and 2 Square Low-pass Filter Crystal Oscillator Specifications: 1. AD9850: 0-40MHz 2. 2 sine wave and 2 square wave output. 3. After the 20-30MHz frequency harmonics increases, the waveform will be less and less clean. 4. Square Wave: 0-1MHz 5. Low-pass filter with 70MHz, so the waveform better than SN. 6. Parallel and serial data input can be selected via a jumper. 7. DA produced the benchmark pin (PIN12) leads for easy adjustment to do the magnitude of the output waveform Application. 8. Comparator reference input voltage generated by the variable resistor, the resistor can be adjusted duty cycle square wave of different. 9. Active AD9850 125MHz crystal oscillator modules. 10. Dimensions: 4.5 cm x 2.6 cm. Package contains: 1 x AD9850 DDS signal generator module.
Product Features
- AD9850: AD9850 DDS signal generator module 0-40 MHz, 2 sine waves and 2 rectangular low-pass filters quartz oscillator
- CompatibleAD9850: 0-40MHz.2 sine wave and 2 rectangular wave output. After the harmonics of the 20-30 MHz frequency increase, the waveform becomes less and less clean.
- Compact construction: rectangular wave: 0-1 MHz. Low-pass filter with 70 MHz, so the waveform better than SN.Active AD9850 125 MHz quartz oscillator modules.
- Easy operation: Parallel and serial data input can be selected via a jumper. DA produces the benchmark pin (PIN12) leads to easy adjustment to the size of the output waveform application.
- High performance: comparator reference input voltage generated by the variable resistance, the resistance can be adjusted to different duty cycle square waves. Dimensions: 4.5 cm x 2.6 cm
