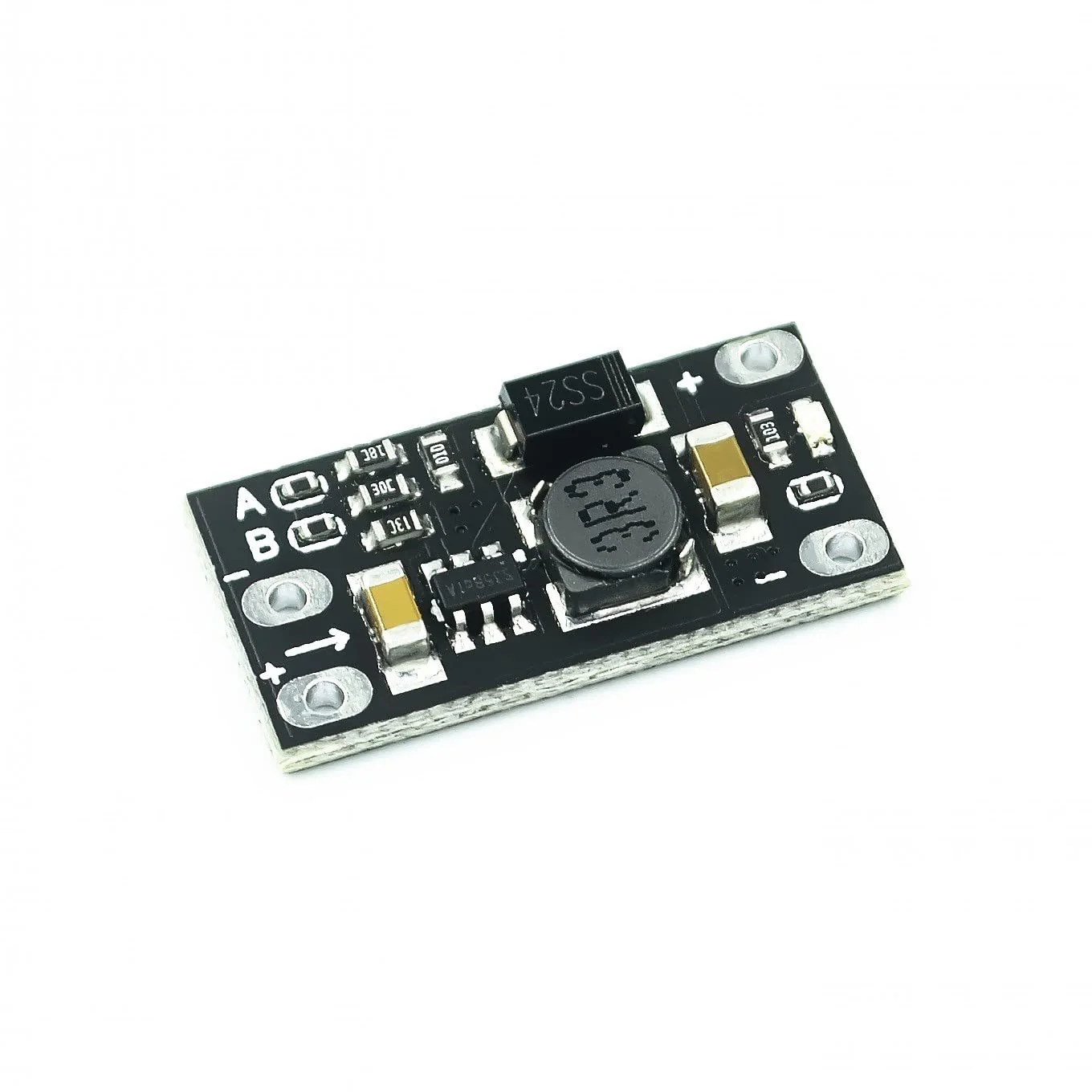

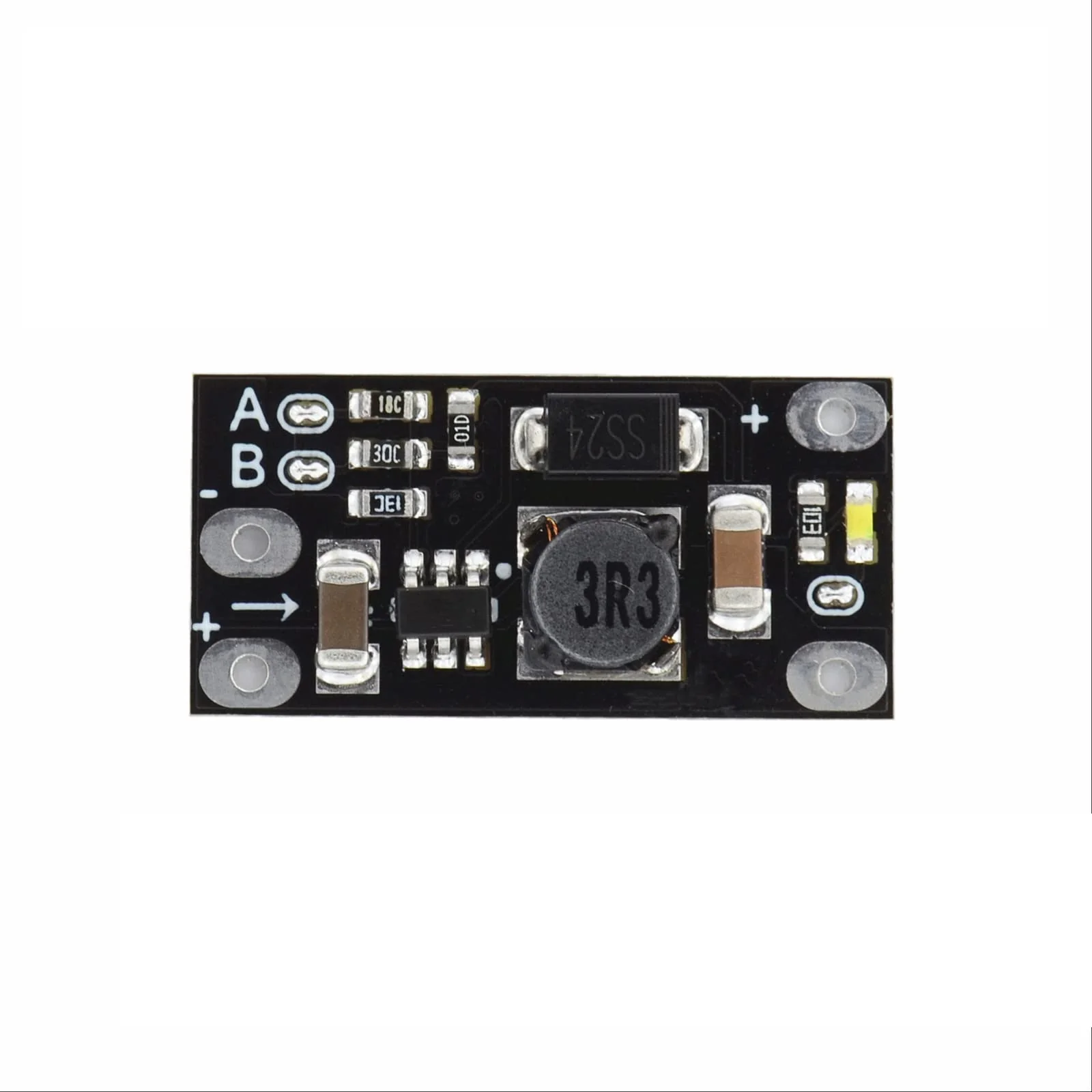

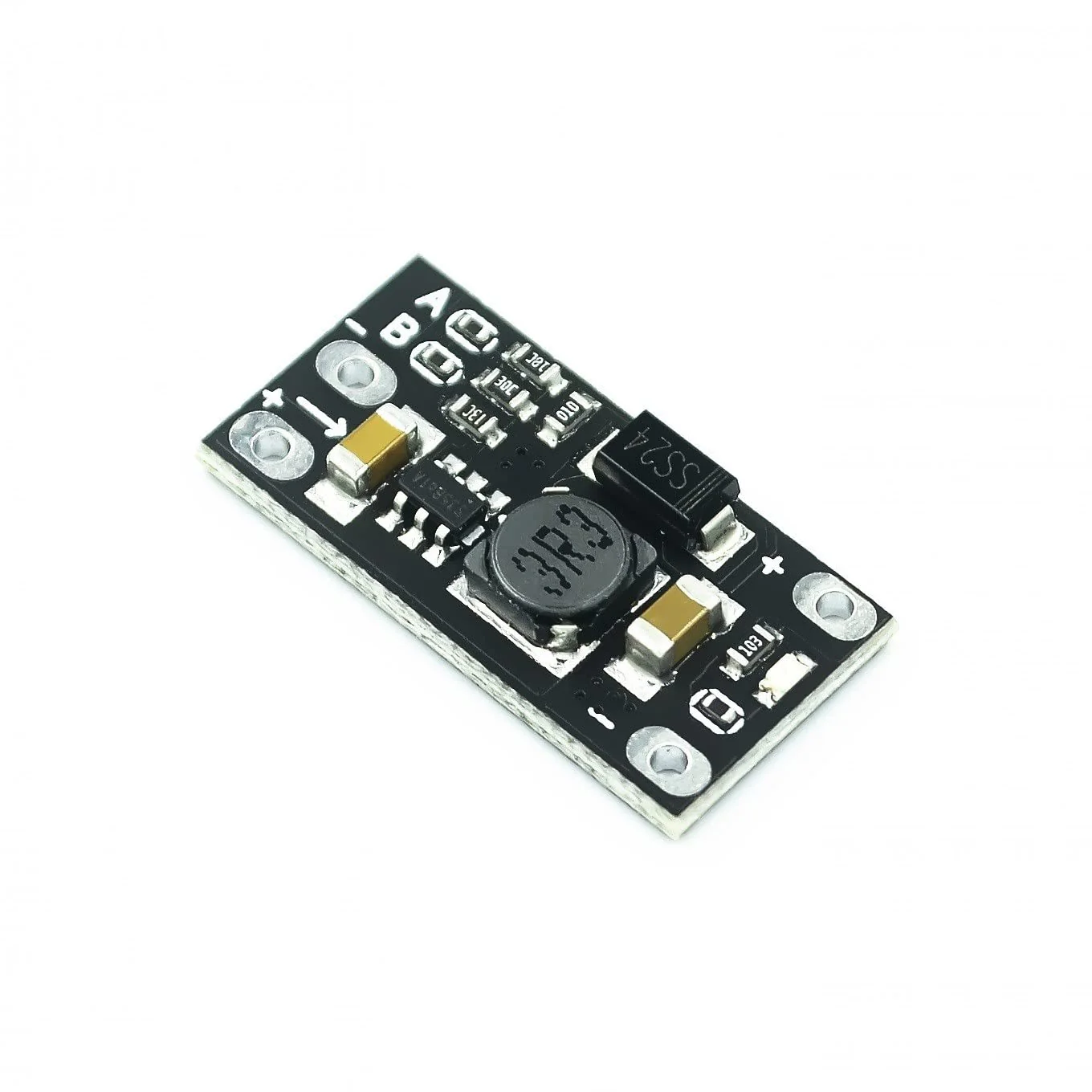

TECNOIOT 5pcs Mini DC-DC Boost Step Up Converter Board Module 3.7V to 5V 8V 9V 12V Output
TECNOIOT 5pcs Mini DC-DC Boost Step Up Converter Board Module 3.7V to 5V 8V 9V 12V Output

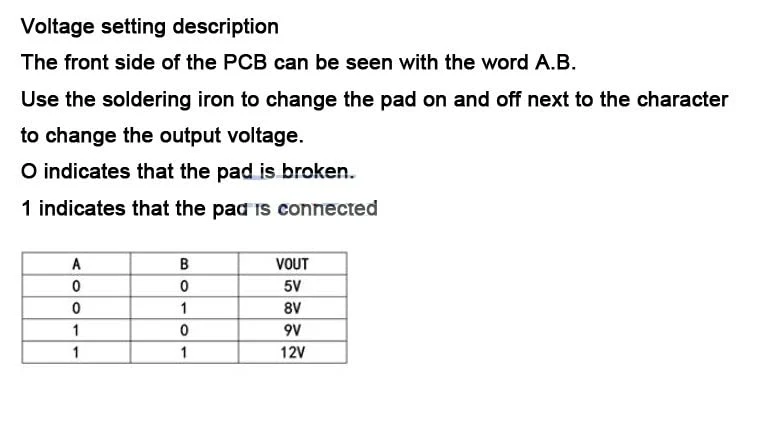

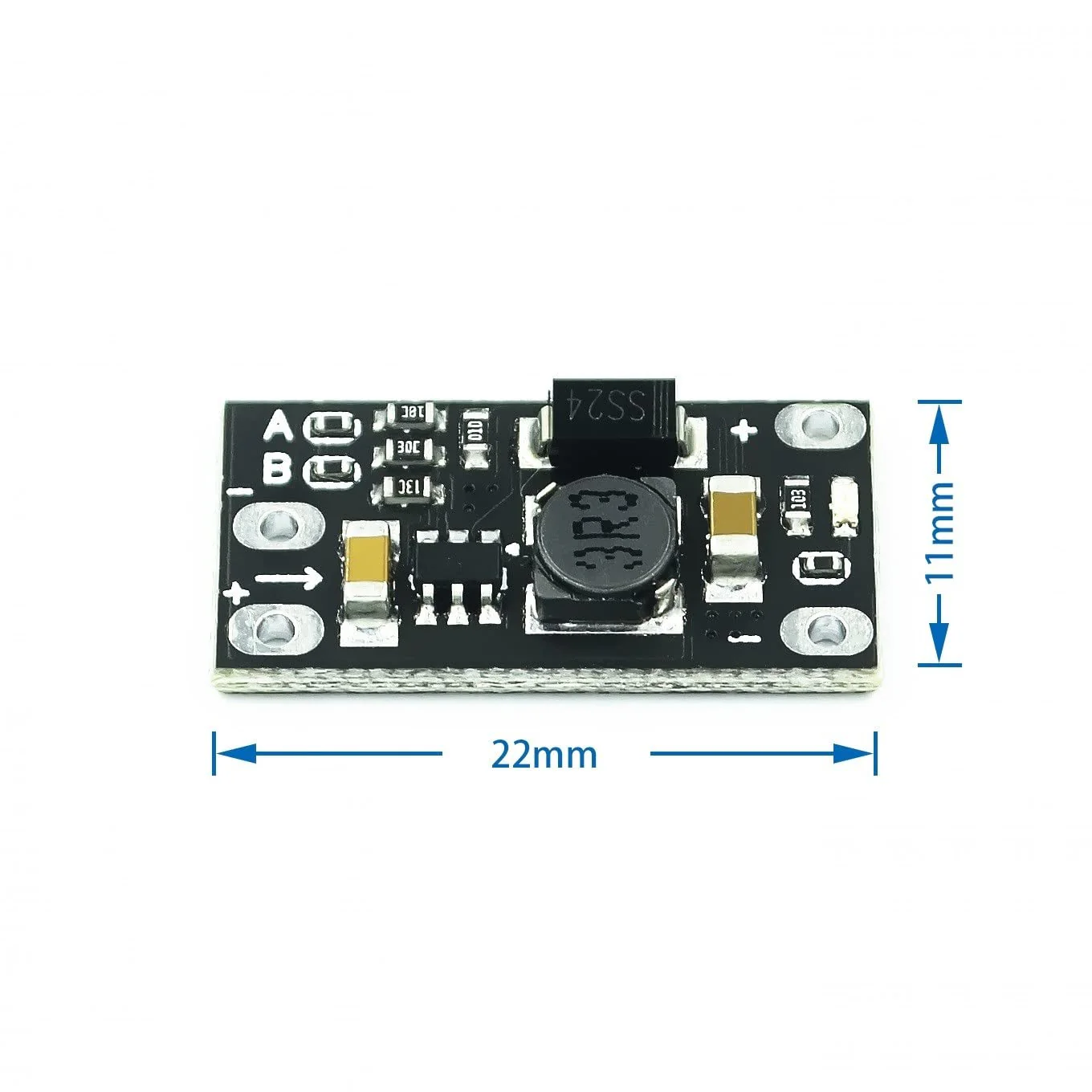

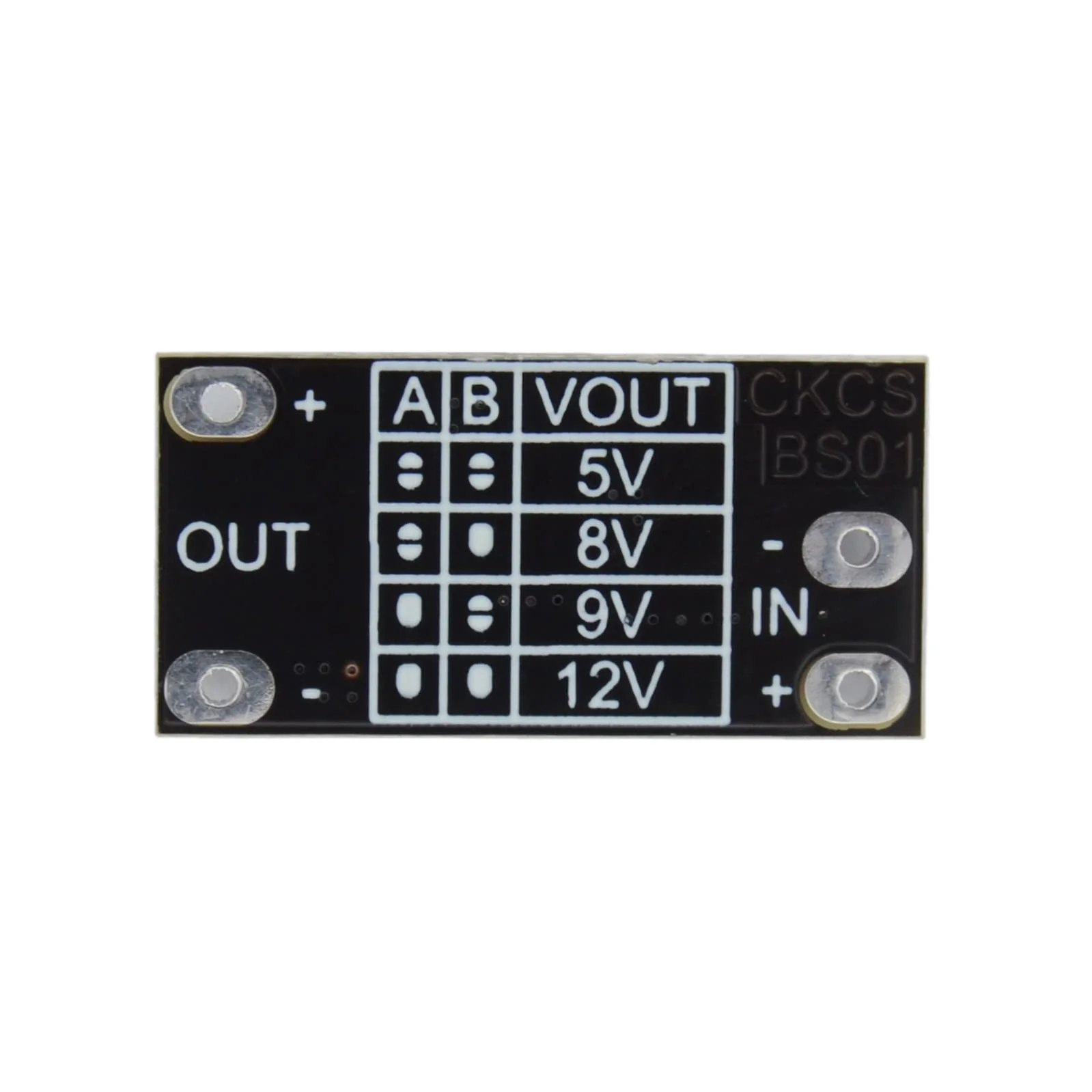

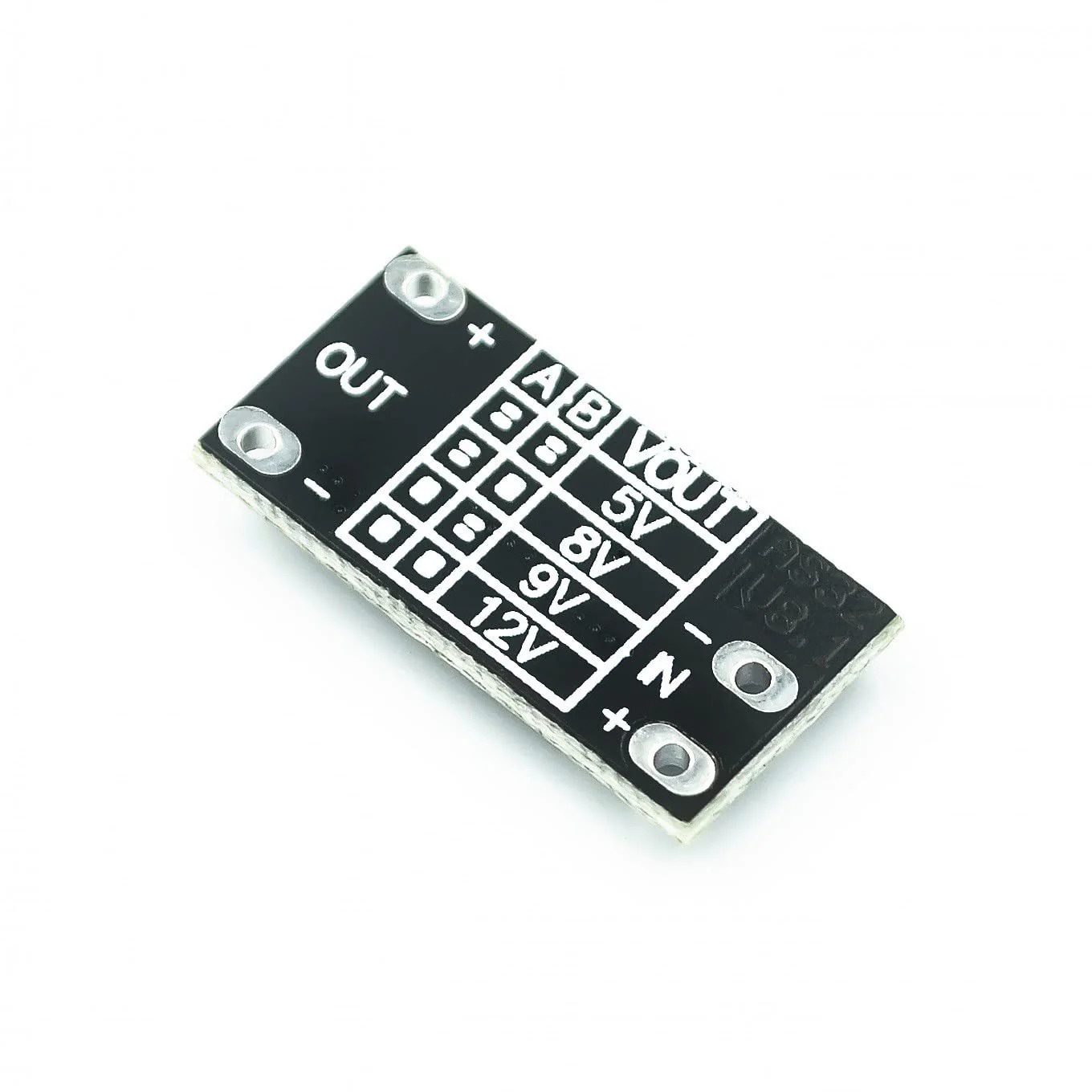

x5pcs Mini DC-DC Boost Step Up Converter Board Module 3.7V to 5V 8V 9V 12V Output Description: 1. The output voltage can be set to 5V/8V/9V/12V, the default is 12V 2. Input voltage range: 2.5V~VOUT. The input voltage must be lower than the set output voltage 3. Output capacity: when input with 3.7V lithium battery, it can output 5V1A, 8V0.5A, 9V0.45A, 12V0.3A 4. When using 5V input, it can output 8V0.7A, 9V0.7A, 12V0.5A 5. When the default output is 12V, the LED indicator consumes about 1mA. 6. If the indicator light is turned off, the input current is 1mA when no load. 7. Dimensions: 22 mm x 11 mm. Package contains: 5pcs x Mini DC-DC Boost Step Up Converter Board Module
Product Features
- Mini boot: Mini DC DC step-down board module 3.7 V to 5 V 8 V 9 V 12 V output
- Compact design: 1. The output voltage can be adjusted to 5V/8V/9V/12V, the preset is 12V 2. Input Voltage Range: 2.5V~VOUT The input voltage must be less than the set output voltage. Output capacity: when input with a 3.7V lithium battery, 5V 1A, 8V 0.5A, 9V 0.45A, 12V 0.3A can be output
- Compact design: 4. When using a 5V input, 8V 0.7A, 9V 0.7A, 12V 0.5A can be output. If the standard output is 12 V, the LED indicator consumes about 1 mA. When the indicator light is off, the input current is 1 mA without load. 7. Dimensions: 22mm x 11mm.

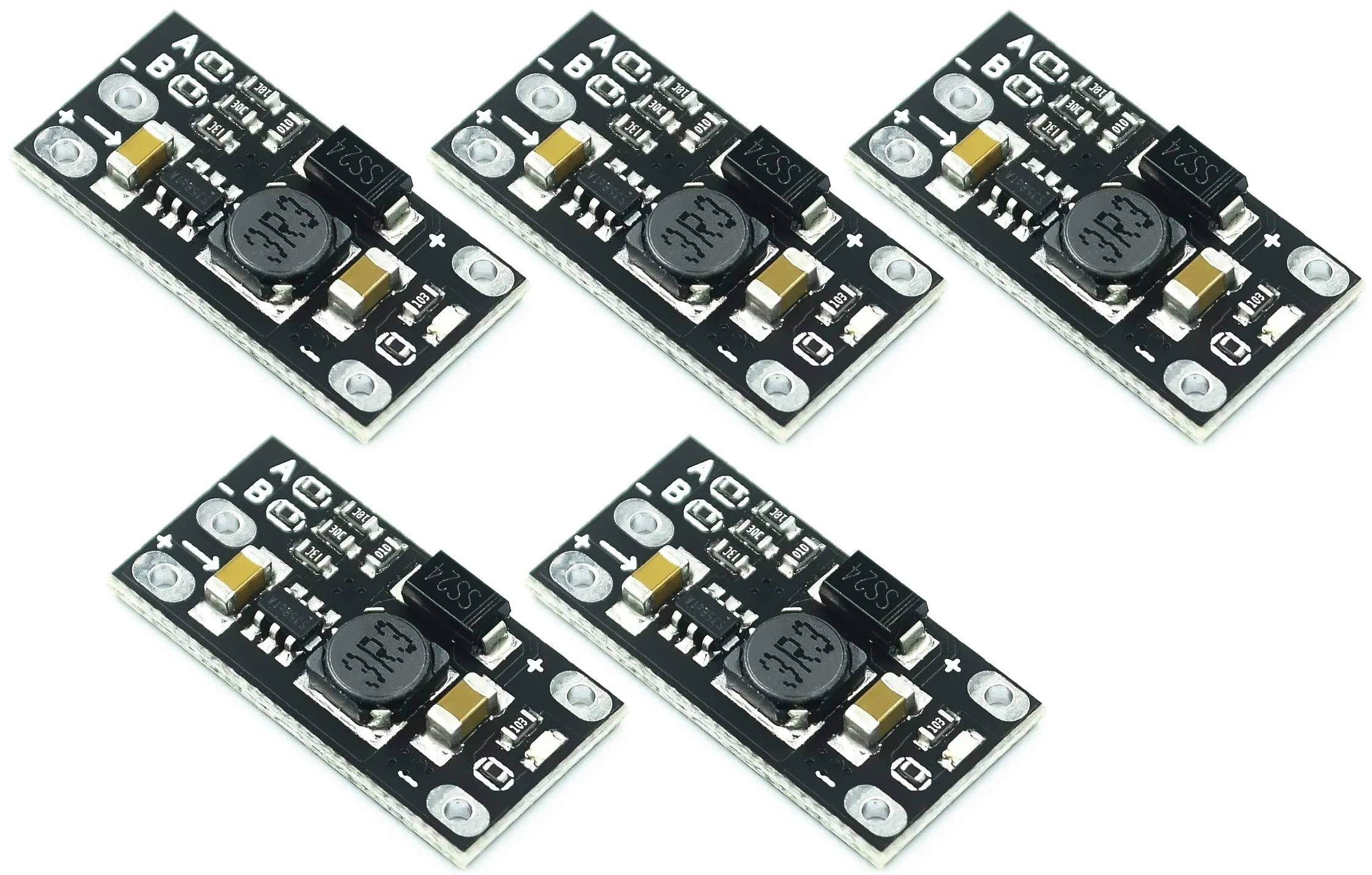

- Package includes: 5 x mini DC-DC step-up converter board module
More Images
TECNOIOT 5pcs Mini DC-DC Boost Step Up Converter Board Module 3.7V to 5V 8V 9V 12V Output
TECNOIOT 5pcs Mini DC-DC Boost Step Up Converter Board Module 3.7V to 5V 8V 9V 12V Output
x5pcs Mini DC-DC Boost Step Up Converter Board Module 3.7V to 5V 8V 9V 12V Output Description: 1. The output voltage can be set to 5V/8V/9V/12V, the default is 12V 2. Input voltage range: 2.5V~VOUT. The input voltage must be lower than the set output voltage 3. Output capacity: when input with 3.7V lithium battery, it can output 5V1A, 8V0.5A, 9V0.45A, 12V0.3A 4. When using 5V input, it can output 8V0.7A, 9V0.7A, 12V0.5A 5. When the default output is 12V, the LED indicator consumes about 1mA. 6. If the indicator light is turned off, the input current is 1mA when no load. 7. Dimensions: 22 mm x 11 mm. Package contains: 5pcs x Mini DC-DC Boost Step Up Converter Board Module
Product Features
- Mini boot: Mini DC DC step-down board module 3.7 V to 5 V 8 V 9 V 12 V output
- Compact design: 1. The output voltage can be adjusted to 5V/8V/9V/12V, the preset is 12V 2. Input Voltage Range: 2.5V~VOUT The input voltage must be less than the set output voltage. Output capacity: when input with a 3.7V lithium battery, 5V 1A, 8V 0.5A, 9V 0.45A, 12V 0.3A can be output
- Compact design: 4. When using a 5V input, 8V 0.7A, 9V 0.7A, 12V 0.5A can be output. If the standard output is 12 V, the LED indicator consumes about 1 mA. When the indicator light is off, the input current is 1 mA without load. 7. Dimensions: 22mm x 11mm.
- Package includes: 5 x mini DC-DC step-up converter board module
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
TECNOIOT 5pcs Mini DC-DC Boost Step Up Converter Board Module 3.7V to 5V 8V 9V 12V Output
x5pcs Mini DC-DC Boost Step Up Converter Board Module 3.7V to 5V 8V 9V 12V Output Description: 1. The output voltage can be set to 5V/8V/9V/12V, the default is 12V 2. Input voltage range: 2.5V~VOUT. The input voltage must be lower than the set output voltage 3. Output capacity: when input with 3.7V lithium battery, it can output 5V1A, 8V0.5A, 9V0.45A, 12V0.3A 4. When using 5V input, it can output 8V0.7A, 9V0.7A, 12V0.5A 5. When the default output is 12V, the LED indicator consumes about 1mA. 6. If the indicator light is turned off, the input current is 1mA when no load. 7. Dimensions: 22 mm x 11 mm. Package contains: 5pcs x Mini DC-DC Boost Step Up Converter Board Module
Product Features
- Mini boot: Mini DC DC step-down board module 3.7 V to 5 V 8 V 9 V 12 V output
- Compact design: 1. The output voltage can be adjusted to 5V/8V/9V/12V, the preset is 12V 2. Input Voltage Range: 2.5V~VOUT The input voltage must be less than the set output voltage. Output capacity: when input with a 3.7V lithium battery, 5V 1A, 8V 0.5A, 9V 0.45A, 12V 0.3A can be output
- Compact design: 4. When using a 5V input, 8V 0.7A, 9V 0.7A, 12V 0.5A can be output. If the standard output is 12 V, the LED indicator consumes about 1 mA. When the indicator light is off, the input current is 1 mA without load. 7. Dimensions: 22mm x 11mm.
- Package includes: 5 x mini DC-DC step-up converter board module
