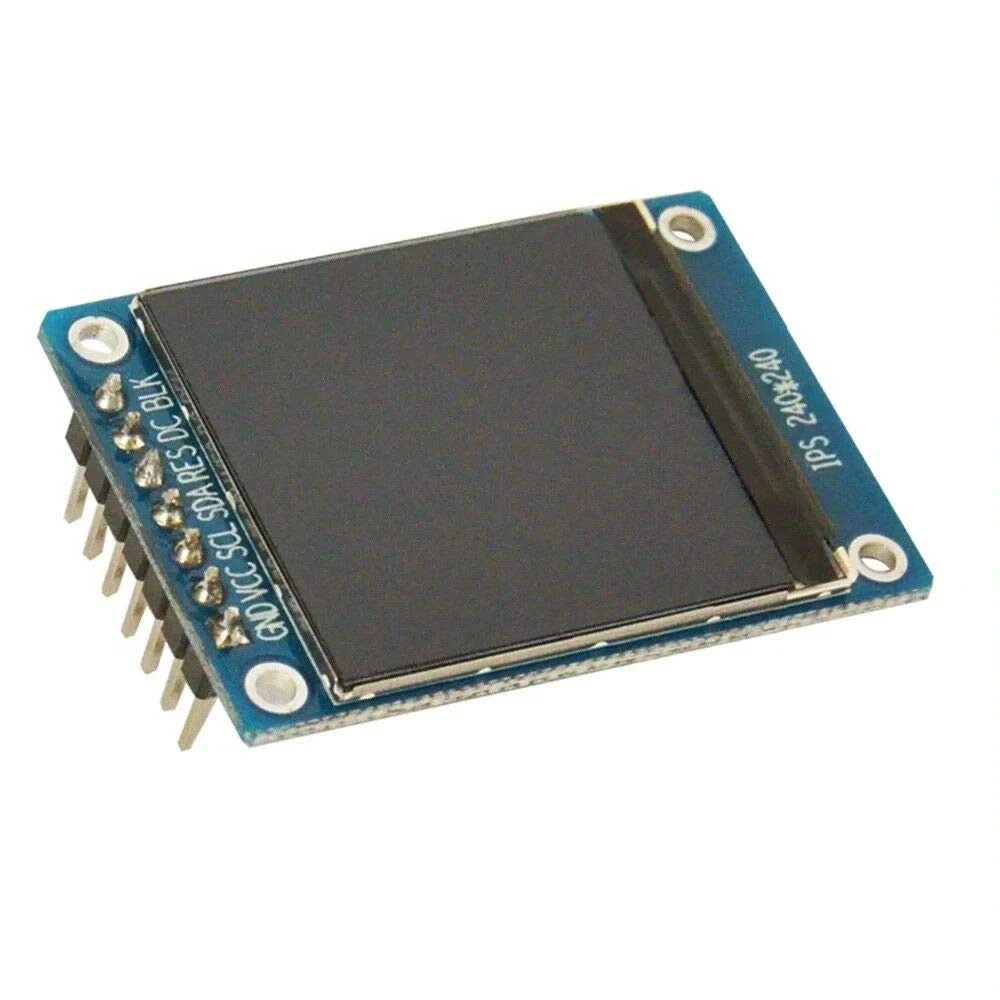

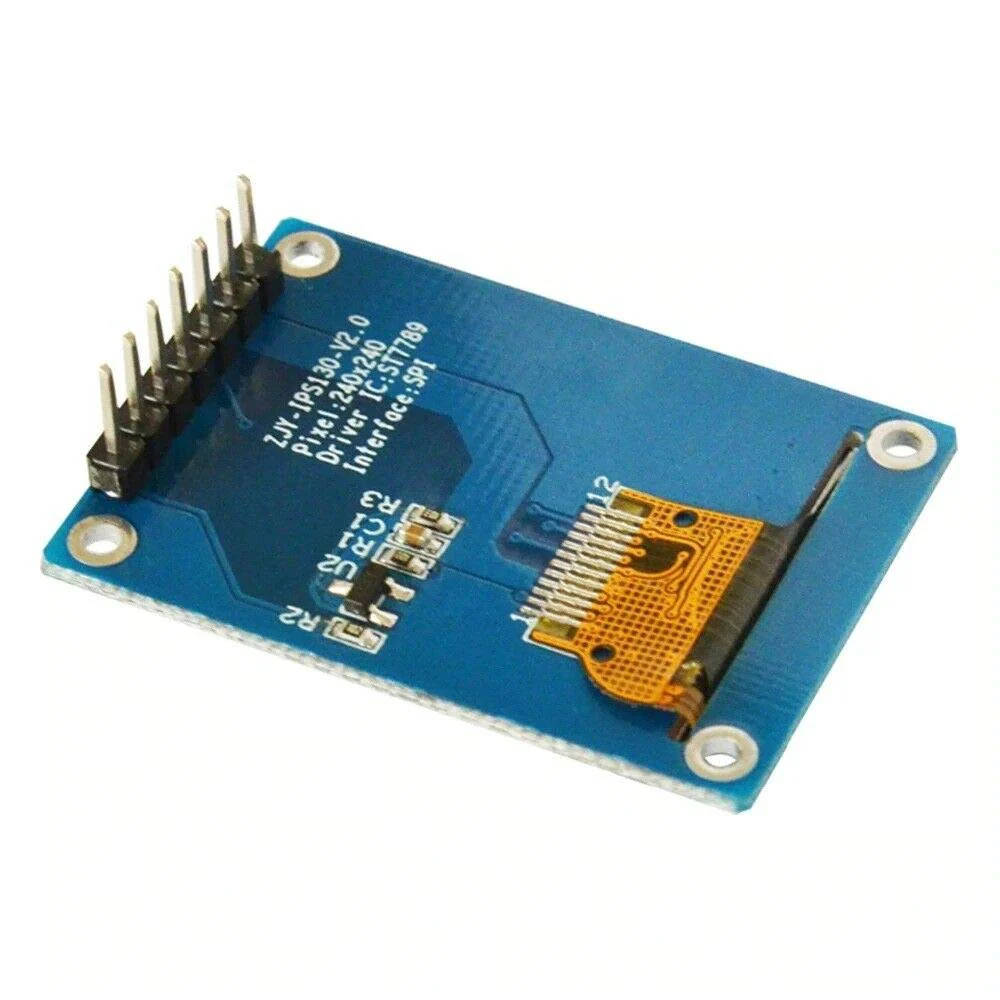

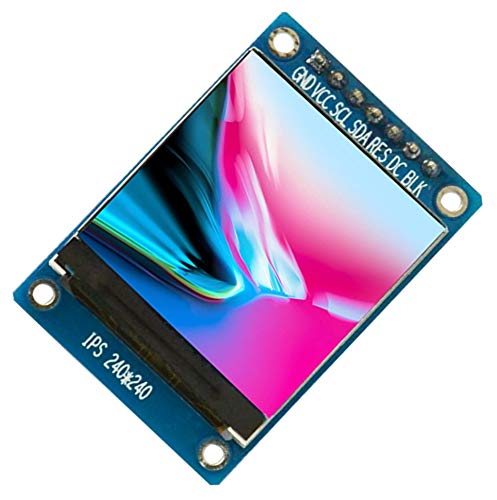

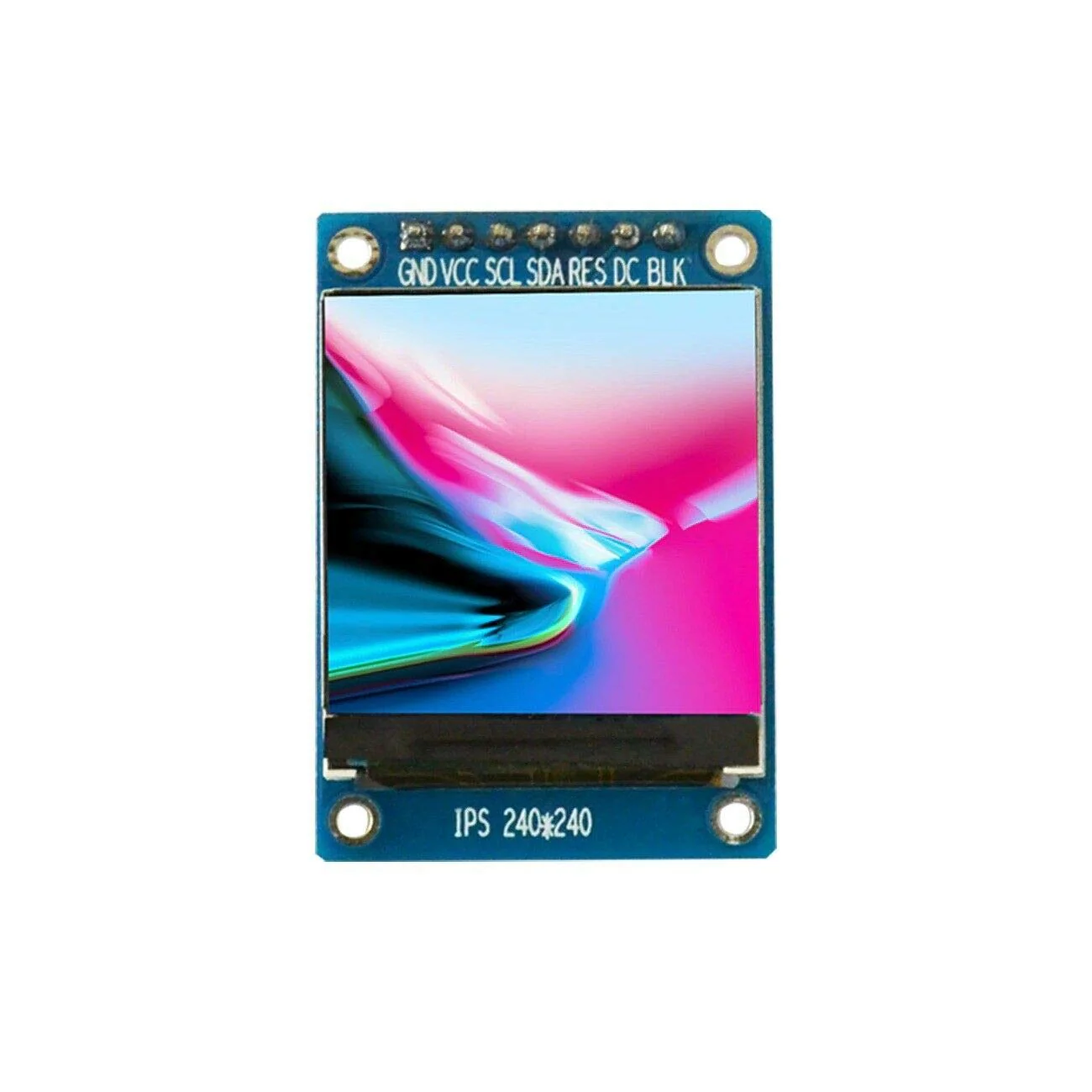

TECNOIOT 1.3 inch IPS HD TFT ST7789 Drive IC 240 x 240 Full Colour LCD Display Module | 1.3 Inch IPS HD TFT ST7789 IC 240 x 240 Full Colour LCD Display Module
TECNOIOT 1.3 inch IPS HD TFT ST7789 Drive IC 240 x 240 Full Colour LCD Display Module | 1.3 Inch IPS HD TFT ST7789 IC 240 x 240 Full Colour LCD Display Module
TECNOIOT 1.3 inch IPS HD TFT ST7789 Drive IC 240 x 240 Full Colour LCD Display Module | 1.3 Inch IPS HD TFT ST7789 IC 240 x 240 Full Colour LCD Display Module

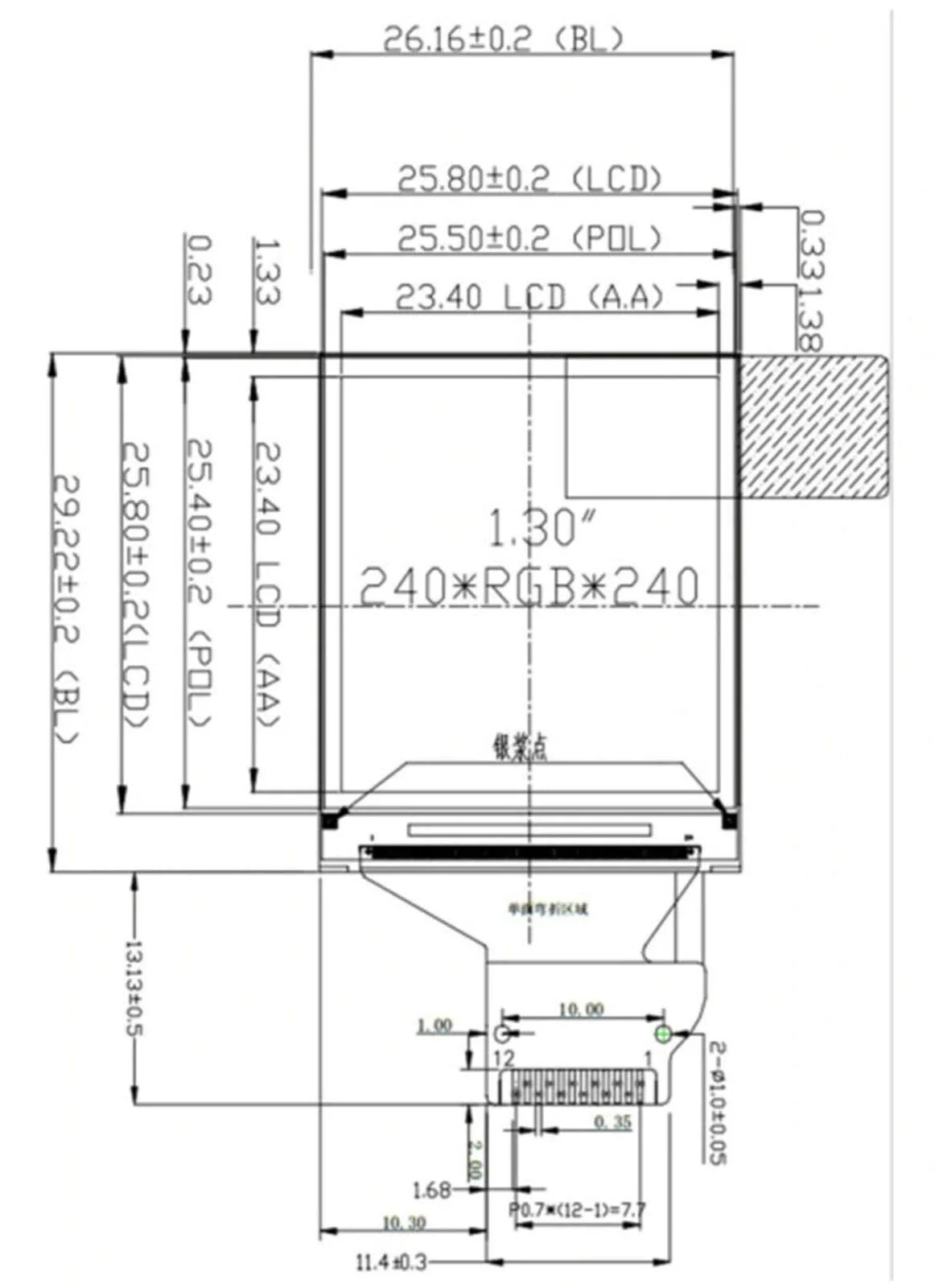

1 x 1.3 inch IPS HD TFT ST7789 drive IC 240 x 240 full colour LCD display module. Features: Size: 1.3 inches. Active area: 23.4 x 23.4 mm. Module size: 26.16 x 29.22 mm. Resolution: 240 x 240 (display direction can be adjusted, horizontal screen and vertical screen are OK). Drive IC: ST7789. Colour: full colour. Viewing Direction: Full viewing angle. Interface: 4-wire SPI interface. PIN NO. : 12 pin. Voltage: 3.3 V. Working Temp. : -20 ~ 70 degrees. Pin Descriptions: PIN No Symbol Description 1 GND Soil 2 VDC power 3.3 V. 3 SCL Series watch pin. 4 SDA Data Entry Series 5 RES LCM reset pin. This pin is resetting the signal input. When the pin is low, the initialization of the chip is Executed! Keep this plug high during normal operation. 6 DC data / control. 7 BLK control pin background Package contains: 1 x 1.3 inch IPS HD TFT ST7789 drive display module.
Product Features
- Resolution: 240 x 240 (the direction of the screen can be adjusted, the horizontal and vertical screen are fine)
- Compact DesignInterface: 4-wire SPI interface, NO. Pin: 12 pin
- High performance: display direction: full viewing angle
More Images
TECNOIOT 1.3 inch IPS HD TFT ST7789 Drive IC 240 x 240 Full Colour LCD Display Module | 1.3 Inch IPS HD TFT ST7789 IC 240 x 240 Full Colour LCD Display Module
TECNOIOT 1.3 inch IPS HD TFT ST7789 Drive IC 240 x 240 Full Colour LCD Display Module | 1.3 Inch IPS HD TFT ST7789 IC 240 x 240 Full Colour LCD Display Module
1 x 1.3 inch IPS HD TFT ST7789 drive IC 240 x 240 full colour LCD display module. Features: Size: 1.3 inches. Active area: 23.4 x 23.4 mm. Module size: 26.16 x 29.22 mm. Resolution: 240 x 240 (display direction can be adjusted, horizontal screen and vertical screen are OK). Drive IC: ST7789. Colour: full colour. Viewing Direction: Full viewing angle. Interface: 4-wire SPI interface. PIN NO. : 12 pin. Voltage: 3.3 V. Working Temp. : -20 ~ 70 degrees. Pin Descriptions: PIN No Symbol Description 1 GND Soil 2 VDC power 3.3 V. 3 SCL Series watch pin. 4 SDA Data Entry Series 5 RES LCM reset pin. This pin is resetting the signal input. When the pin is low, the initialization of the chip is Executed! Keep this plug high during normal operation. 6 DC data / control. 7 BLK control pin background Package contains: 1 x 1.3 inch IPS HD TFT ST7789 drive display module.
Product Features
- Resolution: 240 x 240 (the direction of the screen can be adjusted, the horizontal and vertical screen are fine)
- Compact DesignInterface: 4-wire SPI interface, NO. Pin: 12 pin
- High performance: display direction: full viewing angle
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
TECNOIOT 1.3 inch IPS HD TFT ST7789 Drive IC 240 x 240 Full Colour LCD Display Module | 1.3 Inch IPS HD TFT ST7789 IC 240 x 240 Full Colour LCD Display Module
1 x 1.3 inch IPS HD TFT ST7789 drive IC 240 x 240 full colour LCD display module. Features: Size: 1.3 inches. Active area: 23.4 x 23.4 mm. Module size: 26.16 x 29.22 mm. Resolution: 240 x 240 (display direction can be adjusted, horizontal screen and vertical screen are OK). Drive IC: ST7789. Colour: full colour. Viewing Direction: Full viewing angle. Interface: 4-wire SPI interface. PIN NO. : 12 pin. Voltage: 3.3 V. Working Temp. : -20 ~ 70 degrees. Pin Descriptions: PIN No Symbol Description 1 GND Soil 2 VDC power 3.3 V. 3 SCL Series watch pin. 4 SDA Data Entry Series 5 RES LCM reset pin. This pin is resetting the signal input. When the pin is low, the initialization of the chip is Executed! Keep this plug high during normal operation. 6 DC data / control. 7 BLK control pin background Package contains: 1 x 1.3 inch IPS HD TFT ST7789 drive display module.
Product Features
- Resolution: 240 x 240 (the direction of the screen can be adjusted, the horizontal and vertical screen are fine)
- Compact DesignInterface: 4-wire SPI interface, NO. Pin: 12 pin
- High performance: display direction: full viewing angle
