Switching Power Supply 156W 24V 6,5A ; MeanWell LRS-150-24 ; Transformer Driver
Switching Power Supply 156W 24V 6,5A ; MeanWell LRS-150-24 ; Transformer Driver

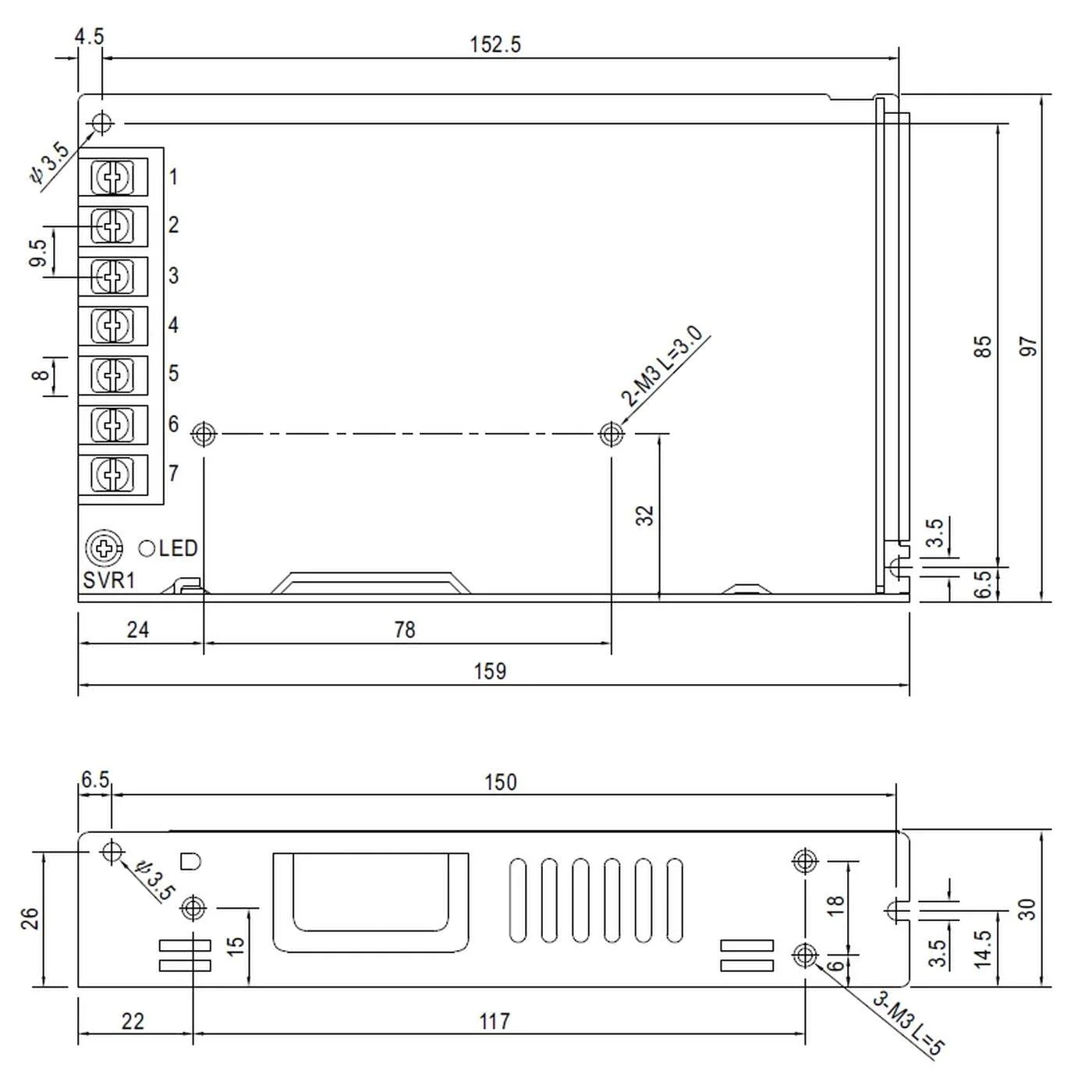

✔ Closed shape (box), screw connections. Universal input Overload protection by current limiting, automatic recovery. Short circuit protection, overload protection, surge protection. Low power consumption in operation without load. Power supply type: industrial power supply Stabilization: constant voltage. Topology: AC/DC converter. Input voltage: 115 V / 230 V (universal). Output voltage: 24 V. Output Current: 6.5A Power: 156 watts. Input voltage (min...max) 85-370VAC Output voltage (min... max) 21.6 to 28.8 VDC. Efficiency: 89%. Input Connector: Screw Terminals Output connection: screw terminals Length: 159 mm. Width: 97 mm. Height: 30 mm.
Product Features
- MeanWell LRS-150-24 Industrial Power Supply
- Power: 156 W, Output voltage: 24 V (21.6 to 28.8 V DC), Output current: 6.5 A
- Input voltage: 85 - 370 VAC, efficiency 89%
- Length: 159 mm, width: 97 mm, height: 30 mm
More Images
Switching Power Supply 156W 24V 6,5A ; MeanWell LRS-150-24 ; Transformer Driver
Switching Power Supply 156W 24V 6,5A ; MeanWell LRS-150-24 ; Transformer Driver
✔ Closed shape (box), screw connections. Universal input Overload protection by current limiting, automatic recovery. Short circuit protection, overload protection, surge protection. Low power consumption in operation without load. Power supply type: industrial power supply Stabilization: constant voltage. Topology: AC/DC converter. Input voltage: 115 V / 230 V (universal). Output voltage: 24 V. Output Current: 6.5A Power: 156 watts. Input voltage (min...max) 85-370VAC Output voltage (min... max) 21.6 to 28.8 VDC. Efficiency: 89%. Input Connector: Screw Terminals Output connection: screw terminals Length: 159 mm. Width: 97 mm. Height: 30 mm.
Product Features
- MeanWell LRS-150-24 Industrial Power Supply
- Power: 156 W, Output voltage: 24 V (21.6 to 28.8 V DC), Output current: 6.5 A
- Input voltage: 85 - 370 VAC, efficiency 89%
- Length: 159 mm, width: 97 mm, height: 30 mm
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Switching Power Supply 156W 24V 6,5A ; MeanWell LRS-150-24 ; Transformer Driver
✔ Closed shape (box), screw connections. Universal input Overload protection by current limiting, automatic recovery. Short circuit protection, overload protection, surge protection. Low power consumption in operation without load. Power supply type: industrial power supply Stabilization: constant voltage. Topology: AC/DC converter. Input voltage: 115 V / 230 V (universal). Output voltage: 24 V. Output Current: 6.5A Power: 156 watts. Input voltage (min...max) 85-370VAC Output voltage (min... max) 21.6 to 28.8 VDC. Efficiency: 89%. Input Connector: Screw Terminals Output connection: screw terminals Length: 159 mm. Width: 97 mm. Height: 30 mm.
Product Features
- MeanWell LRS-150-24 Industrial Power Supply
- Power: 156 W, Output voltage: 24 V (21.6 to 28.8 V DC), Output current: 6.5 A
- Input voltage: 85 - 370 VAC, efficiency 89%
- Length: 159 mm, width: 97 mm, height: 30 mm
