Stepper Motor Driver Controller for NEMA 17 23 Motor, Molbory Stepper Motor Control 4A Stepper Motor Driver Integrated Board Forward & Reverse Pulse Speed Angle Control Module PLC
Stepper Motor Driver Controller for NEMA 17 23 Motor, Molbory Stepper Motor Control 4A Stepper Motor Driver Integrated Board Forward & Reverse Pulse Speed Angle Control Module PLC
Stepper Motor Driver Controller for NEMA 17 23 Motor, Molbory Stepper Motor Control 4A Stepper Motor Driver Integrated Board Forward & Reverse Pulse Speed Angle Control Module PLC

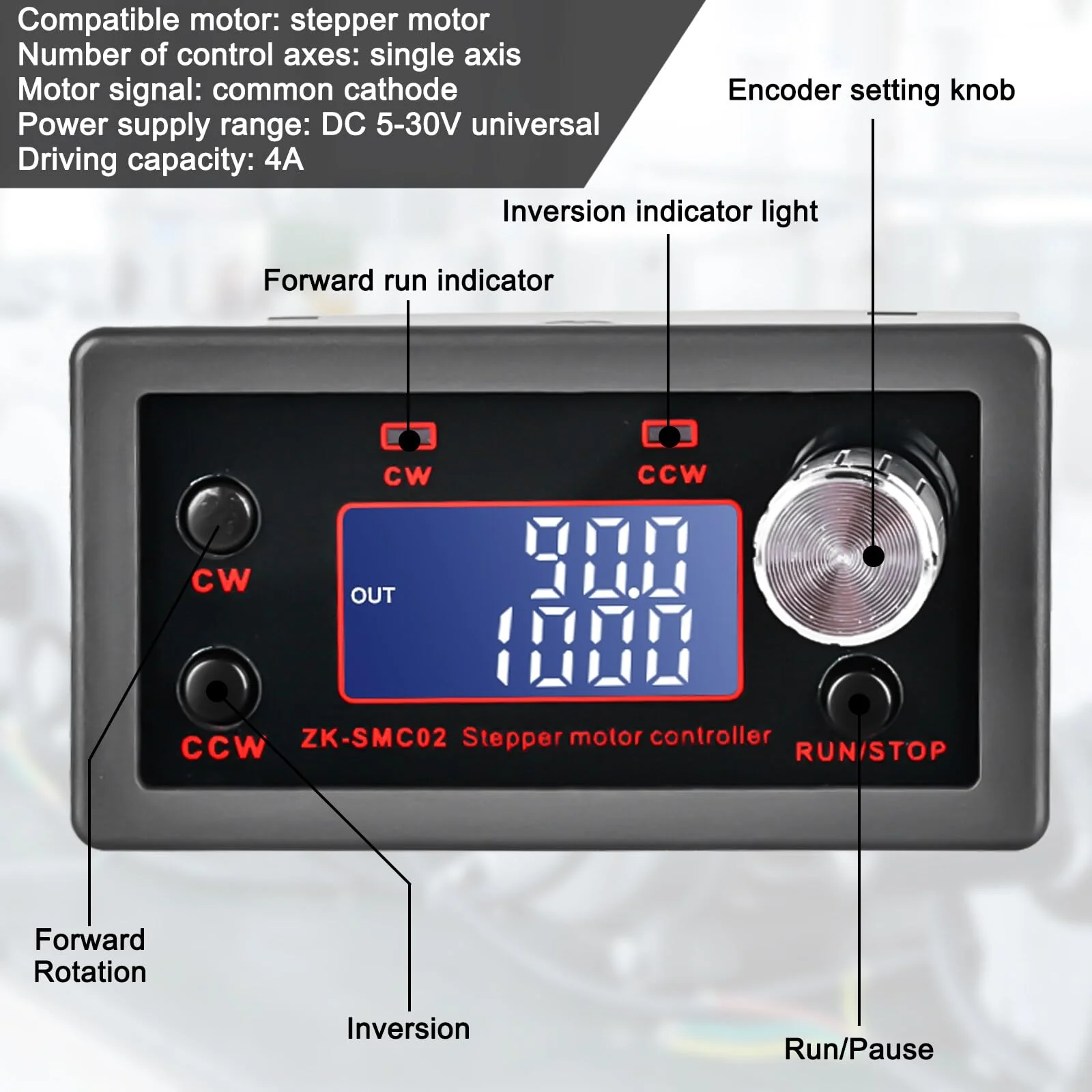

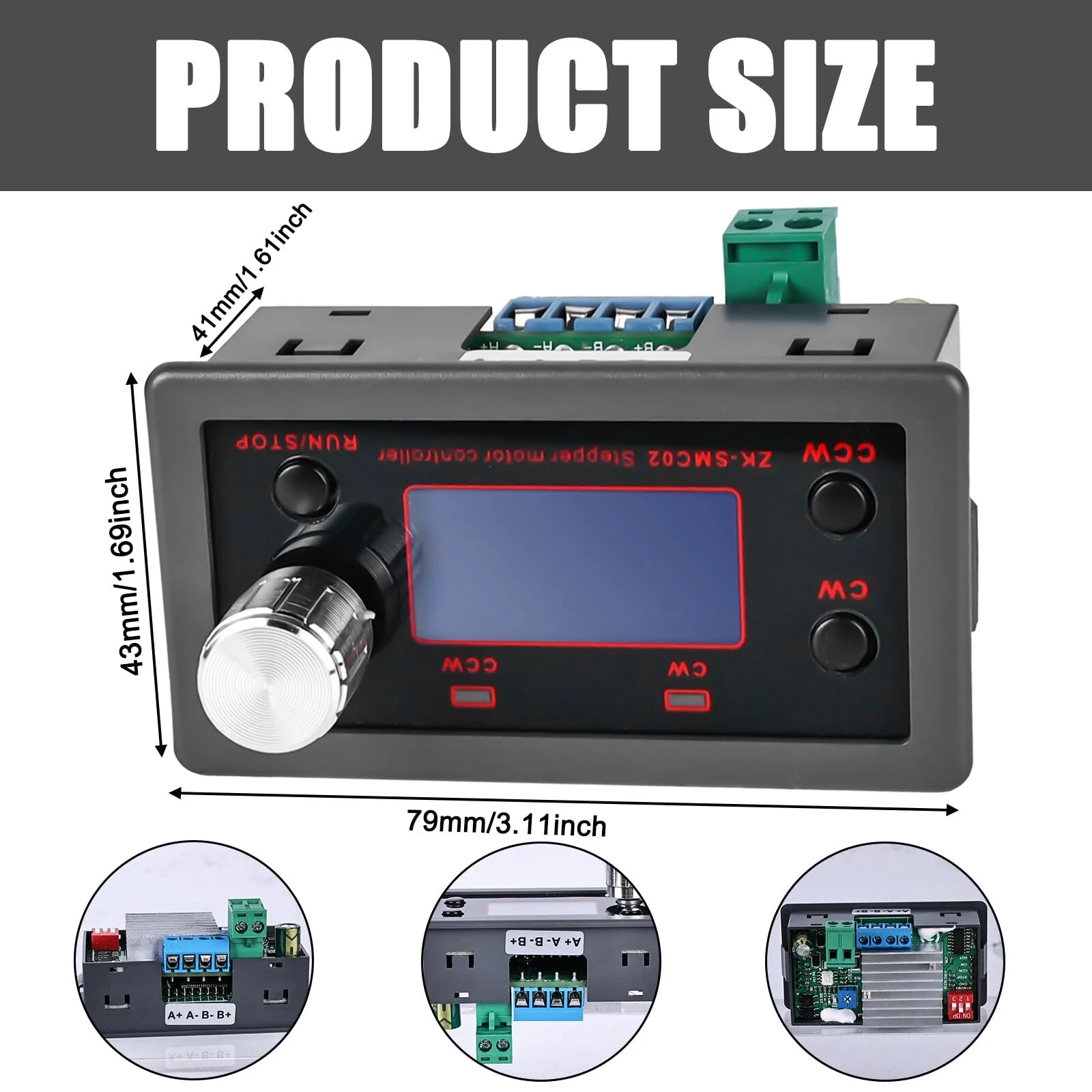

Stepper motor driver controller, can be directly connected to the stepper motor controller. The HD LCD display clearly shows the speed/delay/cycle times, making it easier to browse and set different parameters. Allows high precision control of the motor. The parameters support a memory function that cannot be lost. In the running interface, the rotary encoder is used to adjust the speed, CW key forward rotation, CCW key reverse rotation, RUN/STOP key run stop and finish. Long press the encoder to enter the menu settings. As long as it is a 2-phase, 4-wire, 5-wire, 6-wire, 8-wire stepper motor, it can be controlled. Can control drives with similar interfaces. The number of pulses for one turn should be determined according to the division of the driver and the step angle of the stepper motor Specification: Colour: black. Size: 7.9 x 4.3 x 4.1 cm. Weight: 64 g. DC 5 - 30 V universal. Packing list: 1 x stepper motor driver controller
Product Features
- HD LCD display: stepper motor driver controller for NEMA 17 23 motor, allows high-precision control of the motor. The HD LCD display clearly shows the speed/delay/cycle times, making it easier to search and adjust different parameters. The parameters support a memory function that cannot be lost.
- Stepper motor driver controller: stepper motor control and driver integrated. Built-in stepper motor control and driver functions, which can not only realize the drive motor, but also control the working state of the stepper motor in real time.
- Forward and reverse: the control panel has a forward rotation indicator light (CW) and a reverse rotation indicator light (CCW). Stepper motor driver controller can not only change the direction of rotation by pressing the button, but also by potentiometer. Stepper motor driver controller is also automatically change the direction through the selected working mode to achieve multi-scene and multi-application.
- 3 control modes: In addition to the built-in parameters working mode, it can also control commands by external buttons or other drivers. (Adjust the speed, adjust the delay, adjust the angle, adjust the distance)
- 9 working states: built-in 9 standard workflow programs, can be used for general industrial control purposes to meet the needs of different scenarios: forward/backward/delay/loop/self-lock/no-lock/rotation speed, etc.
More Images
Stepper Motor Driver Controller for NEMA 17 23 Motor, Molbory Stepper Motor Control 4A Stepper Motor Driver Integrated Board Forward & Reverse Pulse Speed Angle Control Module PLC
Stepper Motor Driver Controller for NEMA 17 23 Motor, Molbory Stepper Motor Control 4A Stepper Motor Driver Integrated Board Forward & Reverse Pulse Speed Angle Control Module PLC
Stepper motor driver controller, can be directly connected to the stepper motor controller. The HD LCD display clearly shows the speed/delay/cycle times, making it easier to browse and set different parameters. Allows high precision control of the motor. The parameters support a memory function that cannot be lost. In the running interface, the rotary encoder is used to adjust the speed, CW key forward rotation, CCW key reverse rotation, RUN/STOP key run stop and finish. Long press the encoder to enter the menu settings. As long as it is a 2-phase, 4-wire, 5-wire, 6-wire, 8-wire stepper motor, it can be controlled. Can control drives with similar interfaces. The number of pulses for one turn should be determined according to the division of the driver and the step angle of the stepper motor Specification: Colour: black. Size: 7.9 x 4.3 x 4.1 cm. Weight: 64 g. DC 5 - 30 V universal. Packing list: 1 x stepper motor driver controller
Product Features
- HD LCD display: stepper motor driver controller for NEMA 17 23 motor, allows high-precision control of the motor. The HD LCD display clearly shows the speed/delay/cycle times, making it easier to search and adjust different parameters. The parameters support a memory function that cannot be lost.
- Stepper motor driver controller: stepper motor control and driver integrated. Built-in stepper motor control and driver functions, which can not only realize the drive motor, but also control the working state of the stepper motor in real time.
- Forward and reverse: the control panel has a forward rotation indicator light (CW) and a reverse rotation indicator light (CCW). Stepper motor driver controller can not only change the direction of rotation by pressing the button, but also by potentiometer. Stepper motor driver controller is also automatically change the direction through the selected working mode to achieve multi-scene and multi-application.
- 3 control modes: In addition to the built-in parameters working mode, it can also control commands by external buttons or other drivers. (Adjust the speed, adjust the delay, adjust the angle, adjust the distance)
- 9 working states: built-in 9 standard workflow programs, can be used for general industrial control purposes to meet the needs of different scenarios: forward/backward/delay/loop/self-lock/no-lock/rotation speed, etc.
