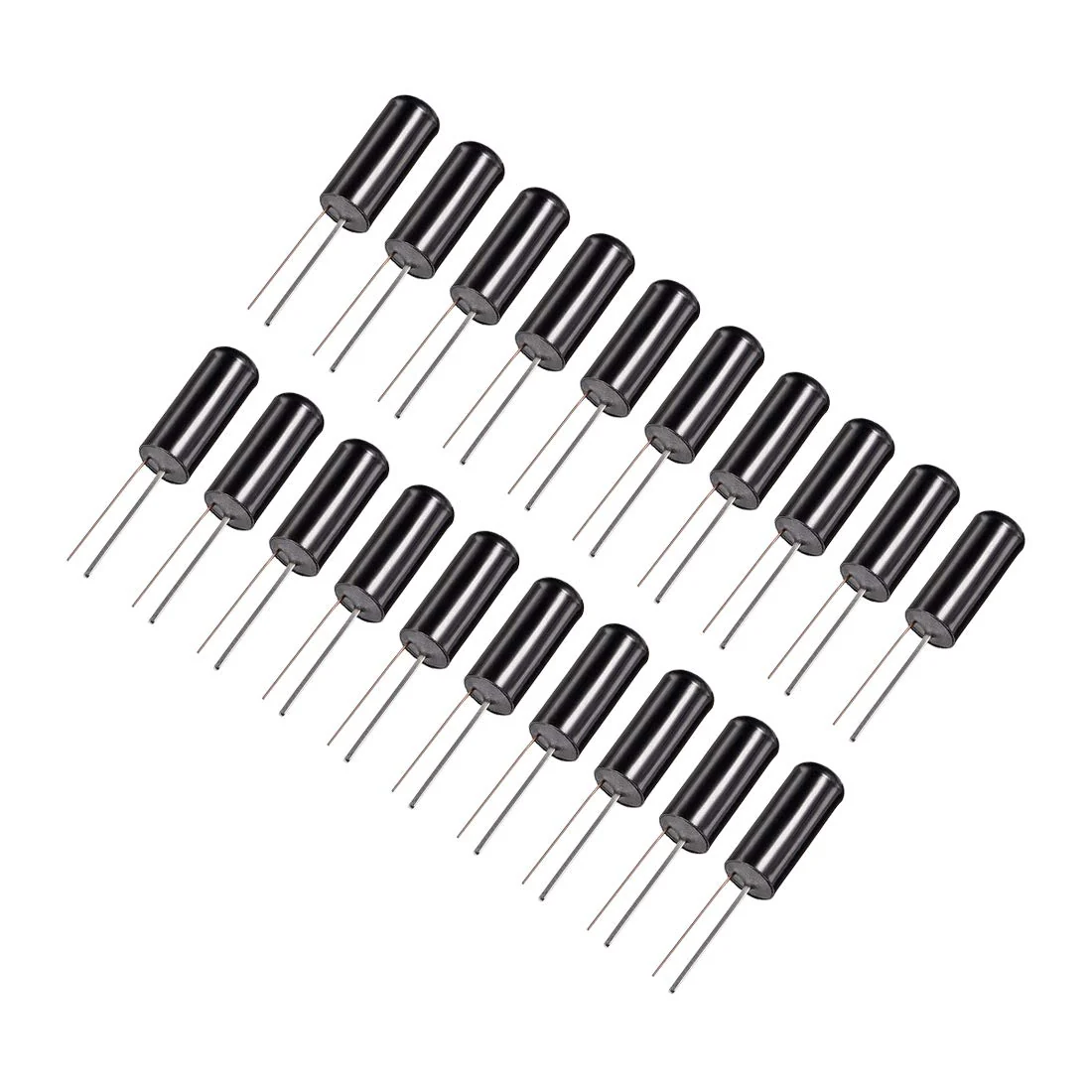

sourcing map SW-18020P Normal Sensitivity Spring Electronic Vibration Sensor Switch Pack of 20
sourcing map SW-18020P Normal Sensitivity Spring Electronic Vibration Sensor Switch Pack of 20
sourcing map SW-18020P Normal Sensitivity Spring Electronic Vibration Sensor Switch Pack of 20
Description: 1. Non-directional, can be switched on by any touch angle. 2. Used on electronic, small household appliances, sports equipment and anti- theft devices. 3. Features ordinary sensitivity, sealed package, good performance and reliable. 4. In a quiet environment, it turns off at any angle, when it is hit by force from the outside and comes into the correct shaking state or the movement speed to the right middle, then the current guide point will display the switch-on state for a short time. The electrical character is changed, when the external strength disappears, the power off state is restored. Specification: Product Name: Vibration Switch Model Number: SW-18020P Sensitivity: Normal sensitivity Max. Voltage: 12V Nominal heat current: 5 mA. Insulation resistance: 10M ohm Maximum temperature resistance: 100 ℃ Pin size: 10.5 mm x 0.6 mm (L x D) Case dimensions: 11.5 mm x 4.5 mm (L x D). Package Content: 20 x vibration switches
Product Features
- Model Number: SW-18020P; Sensitivity: Normal Sensitivity; Max.Voltage: 12V
- Rated heat current: 5 mA; insulation resistance: 10 m ohm; max. Temperature resistance: 100C
- Features: Directionless, can be switched on at any touch angle.
- Advantage: Features ordinary sensitivity, sealed packaging, good performance and reliable.
- Use: for electronic, small household appliances, sports equipment and anti-theft devices.
More Images
sourcing map SW-18020P Normal Sensitivity Spring Electronic Vibration Sensor Switch Pack of 20
sourcing map SW-18020P Normal Sensitivity Spring Electronic Vibration Sensor Switch Pack of 20
Description: 1. Non-directional, can be switched on by any touch angle. 2. Used on electronic, small household appliances, sports equipment and anti- theft devices. 3. Features ordinary sensitivity, sealed package, good performance and reliable. 4. In a quiet environment, it turns off at any angle, when it is hit by force from the outside and comes into the correct shaking state or the movement speed to the right middle, then the current guide point will display the switch-on state for a short time. The electrical character is changed, when the external strength disappears, the power off state is restored. Specification: Product Name: Vibration Switch Model Number: SW-18020P Sensitivity: Normal sensitivity Max. Voltage: 12V Nominal heat current: 5 mA. Insulation resistance: 10M ohm Maximum temperature resistance: 100 ℃ Pin size: 10.5 mm x 0.6 mm (L x D) Case dimensions: 11.5 mm x 4.5 mm (L x D). Package Content: 20 x vibration switches
Product Features
- Model Number: SW-18020P; Sensitivity: Normal Sensitivity; Max.Voltage: 12V
- Rated heat current: 5 mA; insulation resistance: 10 m ohm; max. Temperature resistance: 100C
- Features: Directionless, can be switched on at any touch angle.
- Advantage: Features ordinary sensitivity, sealed packaging, good performance and reliable.
- Use: for electronic, small household appliances, sports equipment and anti-theft devices.
