sourcing map Metal Oxide Film Resistor 5 Watt Axial Cable 20 Ohm ± 5% Tolerance Pack of 10

sourcing map Metal Oxide Film Resistor 5 Watt Axial Cable 20 Ohm ± 5% Tolerance Pack of 10

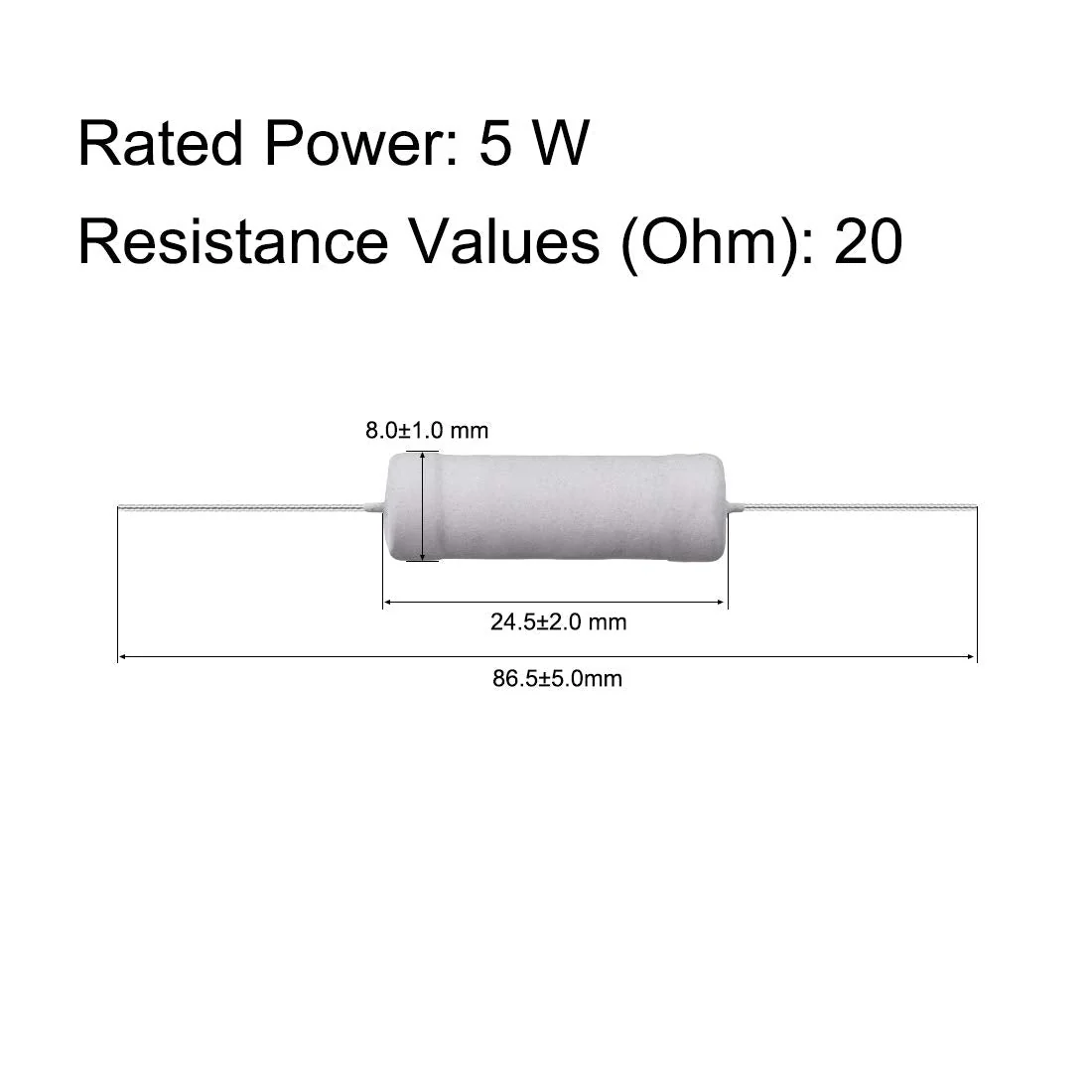

Features: The metal oxide film resistors exceed the performance of metal film and carbon film with the following features: rated power, rated voltage, overload capacity, voltage surges and high temperatures. The metal oxide layer resistors have a tolerance of 5%. The temperature coefficient is -55°C to 155°C. The resistance material of the metal oxide resistor is tin oxide contaminated with oxide to increase the specific resistance. Metal oxide resistors can withstand higher temperatures than carbon or metal film resistors. Note: the resistance of this list is different. Please check your requirements before purchasing. Specification: Rated power: 5 W. Maximum working voltage: 500 V. Maximum overload voltage: 1000 V. Maximum pulse voltage: 1500 V. Voltage strength: 700 V. Operating temperature range: -55°C ~ 155°C. Resistance values (ohm): 20; Resistance tolerance (%): 5%. Packaging: axial; Body size: 24.5 ± 2.0 mm x 8.0 ± 1.0 mm (L x D). Total length: 86.5 ± 5.0 mm. Connection wire size: 31±5 mm x 0.7 ± 0.1 mm (L x D). Package Content: Pack of 10 x metal oxide film resistance

Product Features

• The metal oxide film resistors exceed the performance of metal film and carbon film with the following characteristics: operation at higher temperatures; generating low noise; small size; high stability; high reliability.
• The metal oxide layer resistors have a tolerance of 5%. The temperature coefficient is -55C to 155C.
• The metal oxide film resistance is made by coating a ceramic core with a metal oxide. The antimony oxide is added to the tin oxide to increase its specific resistance.
• Rated power: 5 W; maximum working voltage: 500 V; maximum overload voltage: 1000 V; maximum pulse voltage: 1500 V; voltage strength: 700 V; operating temperature range: -55 C ~ 155 C; resistance values (ohm): 20; resistance tolerance (%): 5%;
