sourcing map M12 X 1.25 Metric Round Bar Machine Thread Left Hand Thread Alloy Tool Steel
sourcing map M12 X 1.25 Metric Round Bar Machine Thread Left Hand Thread Alloy Tool Steel
Specifications: Thread size: M12. Spacing: 1.25 mm. Outer diameter: 38 mm / 1.5 inches. Thickness: 10 mm / 0.4 inches. Style: Left Handed Measuring system: metric Accuracy class: 6G Material: tool steel. Features: 1. Solid round dies are suitable for universal thread cutting. 2. Round dies are perfect for re-threading existing threads into hard materials such as metal or making new threads in softer materials such as plastic. 3. Suitable for maintenance and repair work in the workshop or in the field service. The die size is etched on the surface for easy identification. Package: 1 x left round die
Product Features

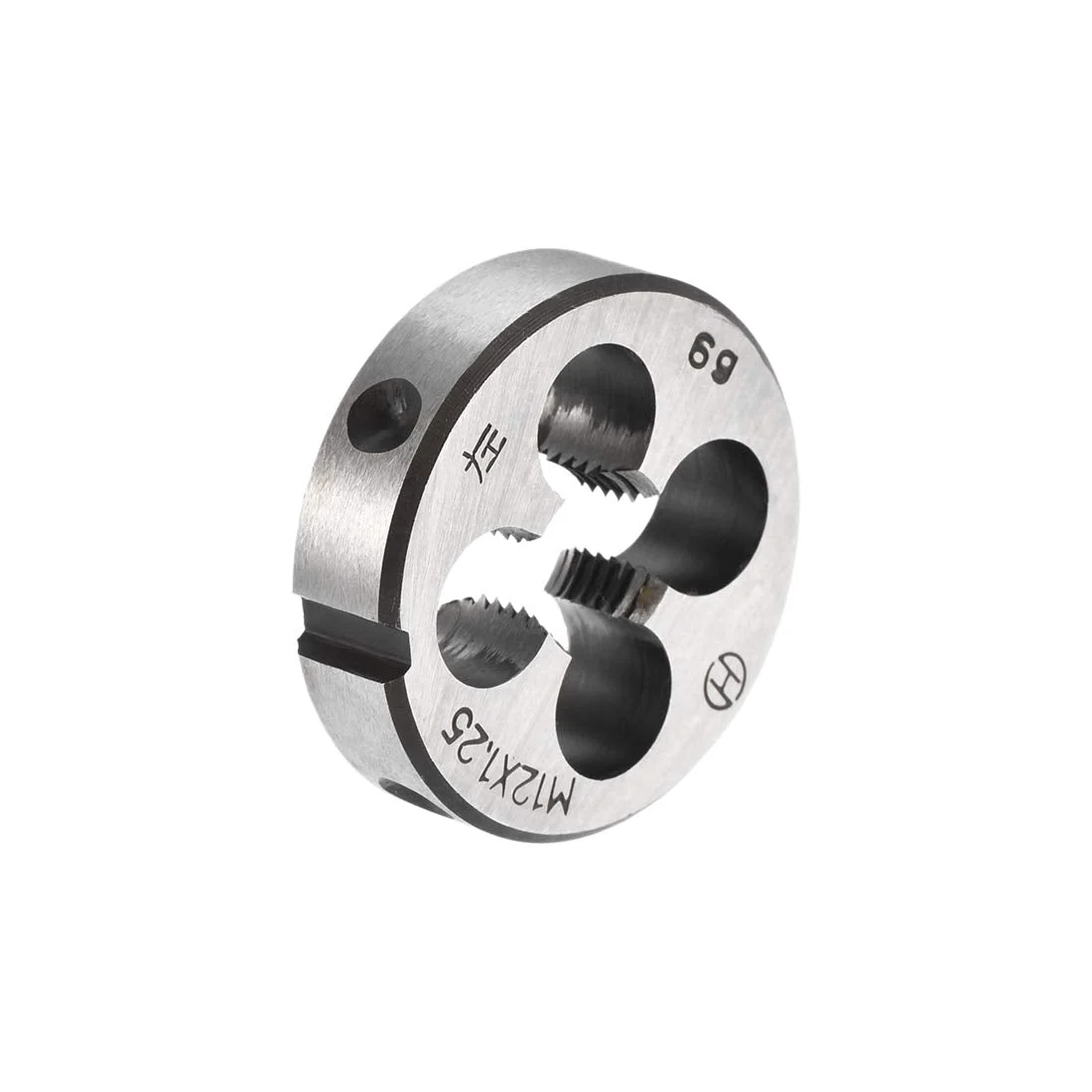

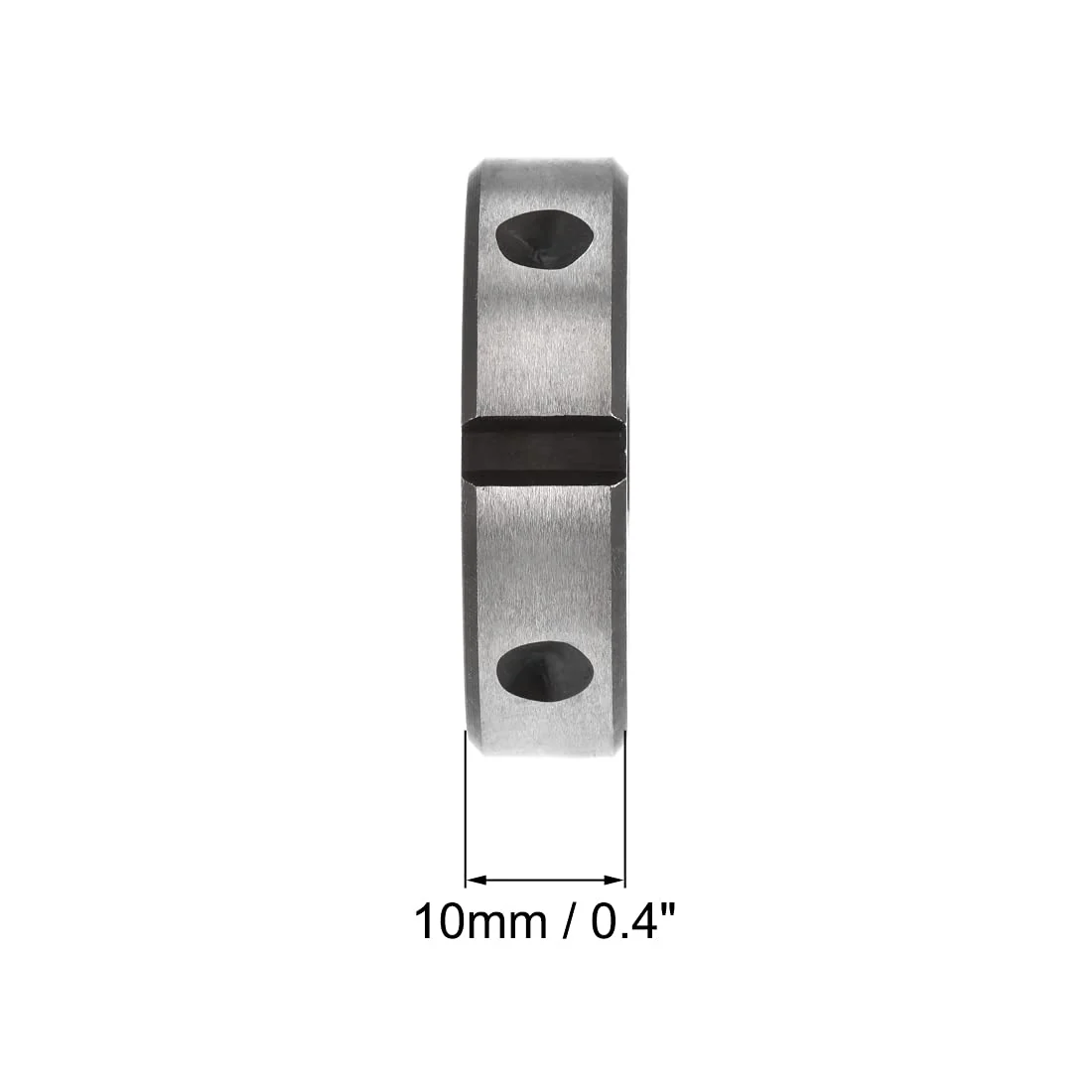

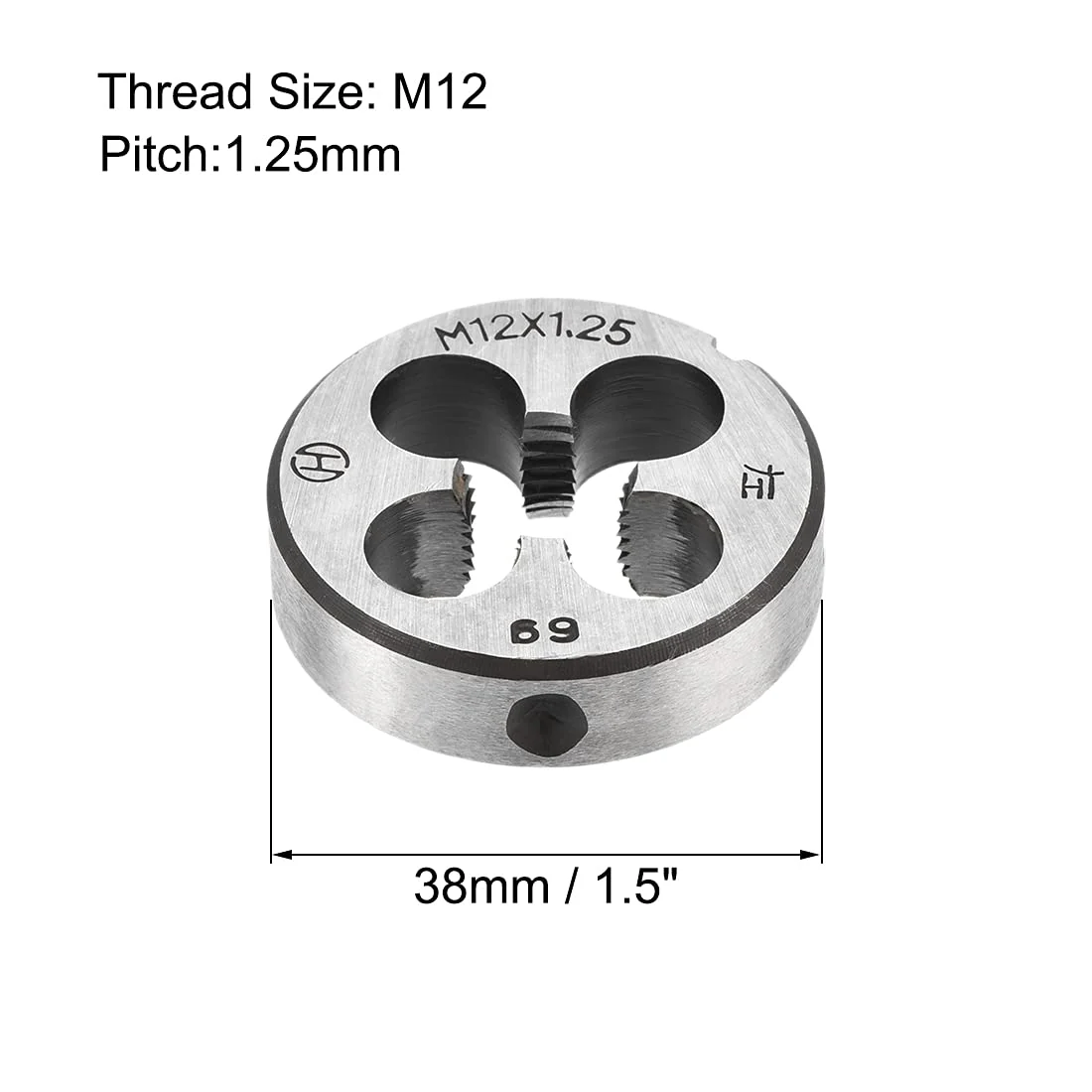

- Round die: thread size: M12 x 1.25; outer diameter (AD): 38 mm/1.5 inches; thickness: 10 mm/0.4 inches; accuracy class: 6g. Made of alloy tool steel, hardness and wear resistance.

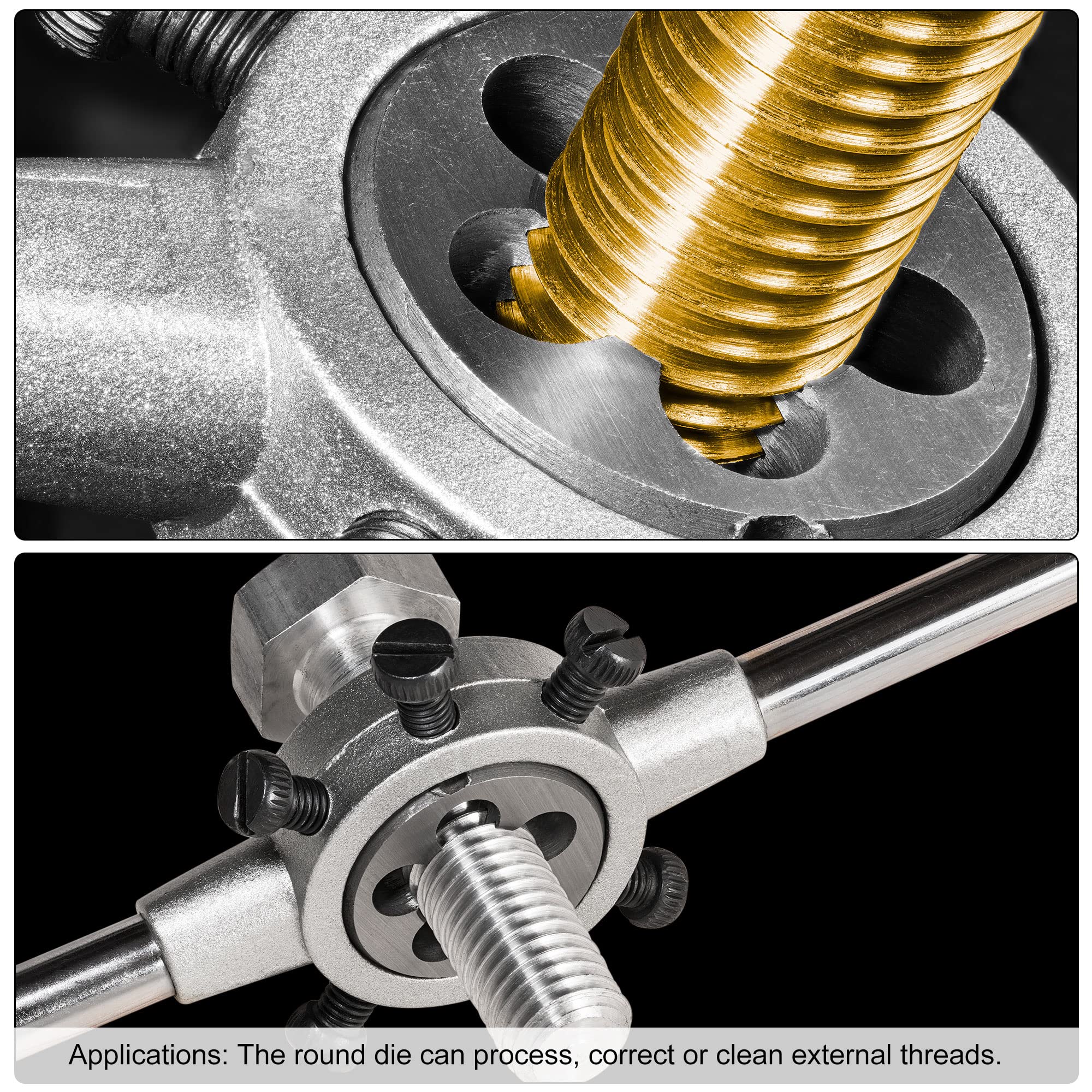

- Application: round dies are suitable for universal thread cutting. Can edit, correct or clean the external threads. Suitable for maintenance and repair work.
- Features: conical locking hole, strong locking and not loose. Perfect for re-threading existing threads into hard materials such as metal and making new threads in soft material such as plastic.
- Easy to use: the positioning groove of the die should be aligned with the fixing screw in the middle of the die key, and the screw should be inserted into the slot of the die and tightened.

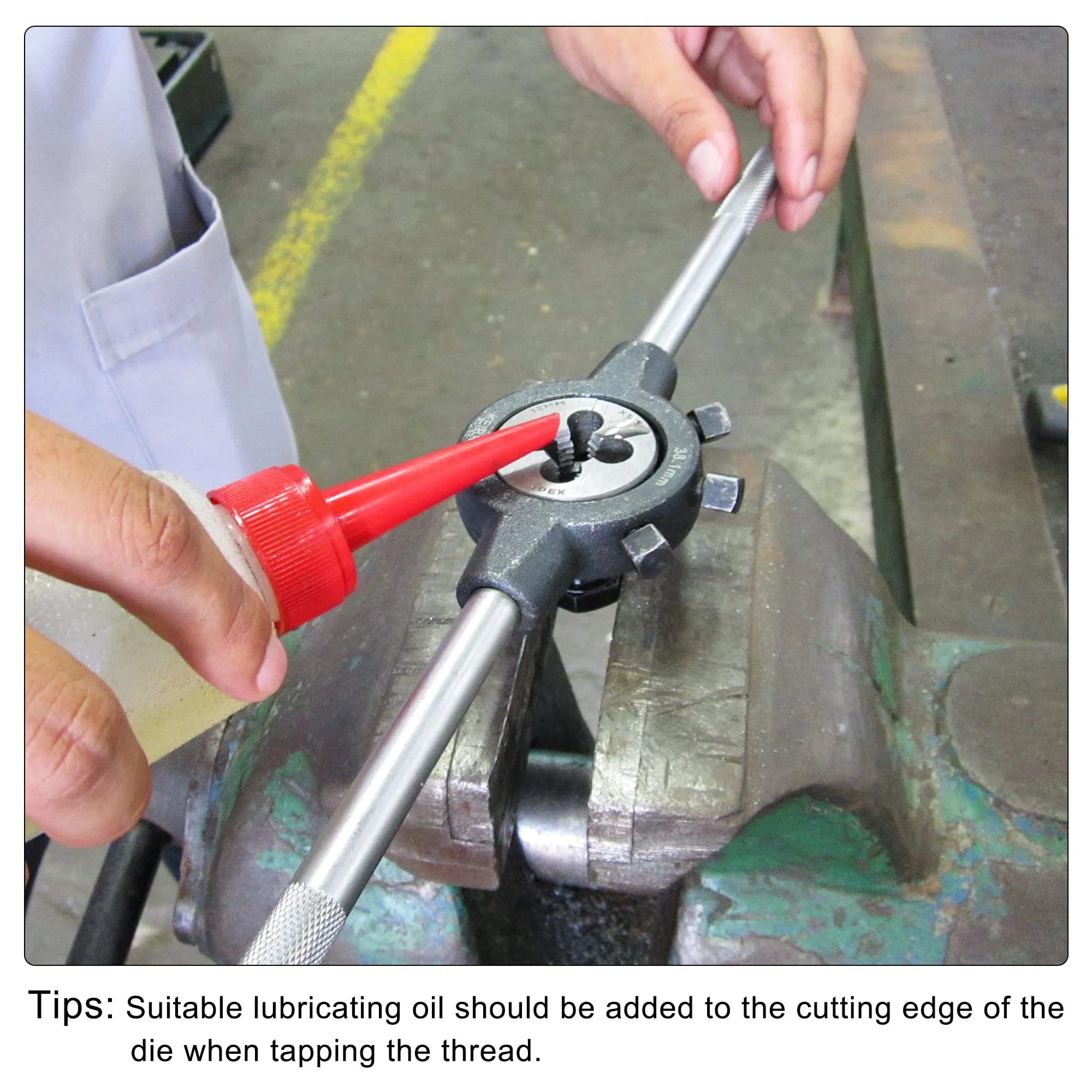

- TIPS It needs to be turned over every 1/4~1/2 turn to facilitate chip drain from the chip hole. When cutting the thread, the cutting edge of the die should be provided with suitable lubricating oil.
