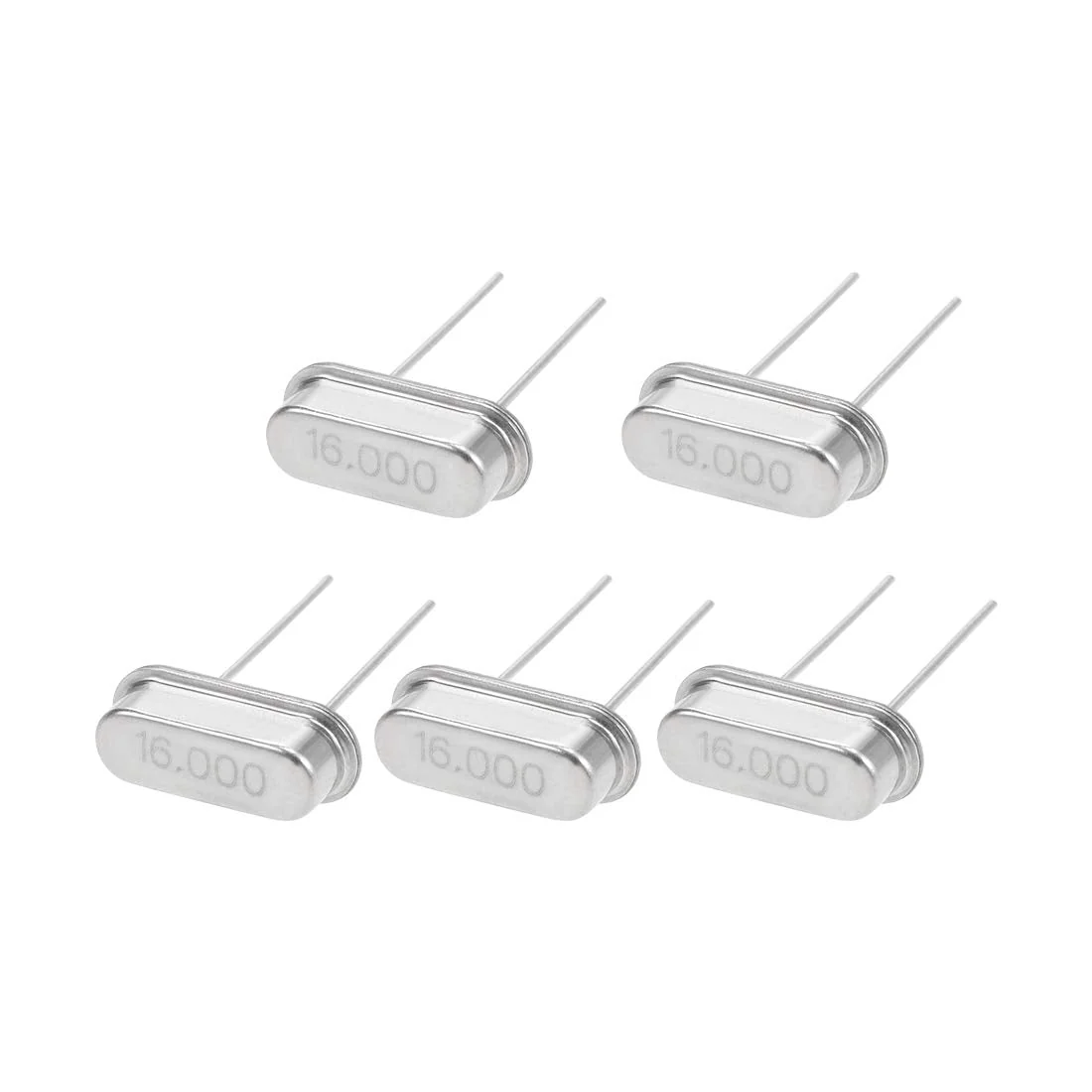

sourcing map DIP Quartz Oscillators Resonators Resonators 16 MHz
sourcing map DIP Quartz Oscillators Resonators Resonators 16 MHz
Features: Frequency tolerance: ±20ppm. Type: HC-49S. Mounting type: DIP Number of pins: 2 Load capacity: 20pF. Equivalent resistance: 30 ohm. Body size: 11 x 4.65 x 3.6 mm / 0.43 x 0.18 x 0.14 inches (L x W x H). Distance between connections: 4.88 mm / 0.19 inches. Operating temperature range: -20℃~70℃. Material: Quartz; Color: Silver Tone Application: 1. DIP crystal oscillators for RISC & CISC microcontrollers. 2. Widely used in TV, automotive electronics, PC cards, electronic meters, DVDs, MP3, MP4, etc.
Product Features
- Frequency: 16 MHz Hz; Frequency tolerance: 20ppm; Type: HC-49S
- Mounting Type: DIP; Number of Pins: 2; Load Capacity: 20pF; Equivalent Resistance: 30 Ohm

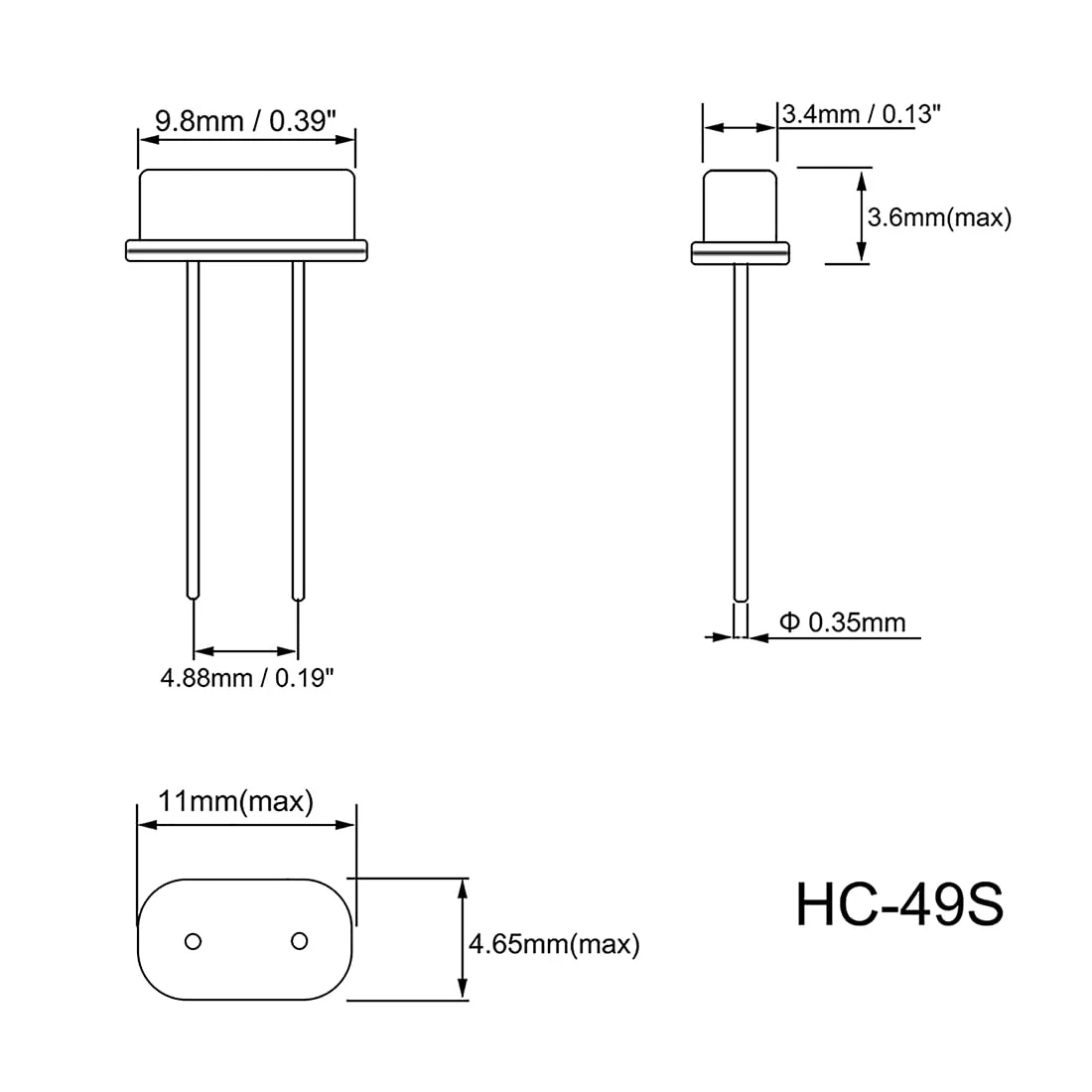

- Body size: 11 x 4.65 x 3.6 mm / 0.43 x 0.18 x 0.14 inches (L x W x H); pitch: 4.88 mm / 0.19 inches
- DIP Quartz Oscillators for RISC & CISC Microcontrollers
- Widely used in TV, automotive electronics, PC cards, electronic meter, DVD, MP3, MP4, etc.
More Images
sourcing map DIP Quartz Oscillators Resonators Resonators 16 MHz
sourcing map DIP Quartz Oscillators Resonators Resonators 16 MHz
Features: Frequency tolerance: ±20ppm. Type: HC-49S. Mounting type: DIP Number of pins: 2 Load capacity: 20pF. Equivalent resistance: 30 ohm. Body size: 11 x 4.65 x 3.6 mm / 0.43 x 0.18 x 0.14 inches (L x W x H). Distance between connections: 4.88 mm / 0.19 inches. Operating temperature range: -20℃~70℃. Material: Quartz; Color: Silver Tone Application: 1. DIP crystal oscillators for RISC & CISC microcontrollers. 2. Widely used in TV, automotive electronics, PC cards, electronic meters, DVDs, MP3, MP4, etc.
Product Features
- Frequency: 16 MHz Hz; Frequency tolerance: 20ppm; Type: HC-49S
- Mounting Type: DIP; Number of Pins: 2; Load Capacity: 20pF; Equivalent Resistance: 30 Ohm
- Body size: 11 x 4.65 x 3.6 mm / 0.43 x 0.18 x 0.14 inches (L x W x H); pitch: 4.88 mm / 0.19 inches
- DIP Quartz Oscillators for RISC & CISC Microcontrollers
- Widely used in TV, automotive electronics, PC cards, electronic meter, DVD, MP3, MP4, etc.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
sourcing map DIP Quartz Oscillators Resonators Resonators 16 MHz
Features: Frequency tolerance: ±20ppm. Type: HC-49S. Mounting type: DIP Number of pins: 2 Load capacity: 20pF. Equivalent resistance: 30 ohm. Body size: 11 x 4.65 x 3.6 mm / 0.43 x 0.18 x 0.14 inches (L x W x H). Distance between connections: 4.88 mm / 0.19 inches. Operating temperature range: -20℃~70℃. Material: Quartz; Color: Silver Tone Application: 1. DIP crystal oscillators for RISC & CISC microcontrollers. 2. Widely used in TV, automotive electronics, PC cards, electronic meters, DVDs, MP3, MP4, etc.
Product Features
- Frequency: 16 MHz Hz; Frequency tolerance: 20ppm; Type: HC-49S
- Mounting Type: DIP; Number of Pins: 2; Load Capacity: 20pF; Equivalent Resistance: 30 Ohm
- Body size: 11 x 4.65 x 3.6 mm / 0.43 x 0.18 x 0.14 inches (L x W x H); pitch: 4.88 mm / 0.19 inches
- DIP Quartz Oscillators for RISC & CISC Microcontrollers
- Widely used in TV, automotive electronics, PC cards, electronic meter, DVD, MP3, MP4, etc.
