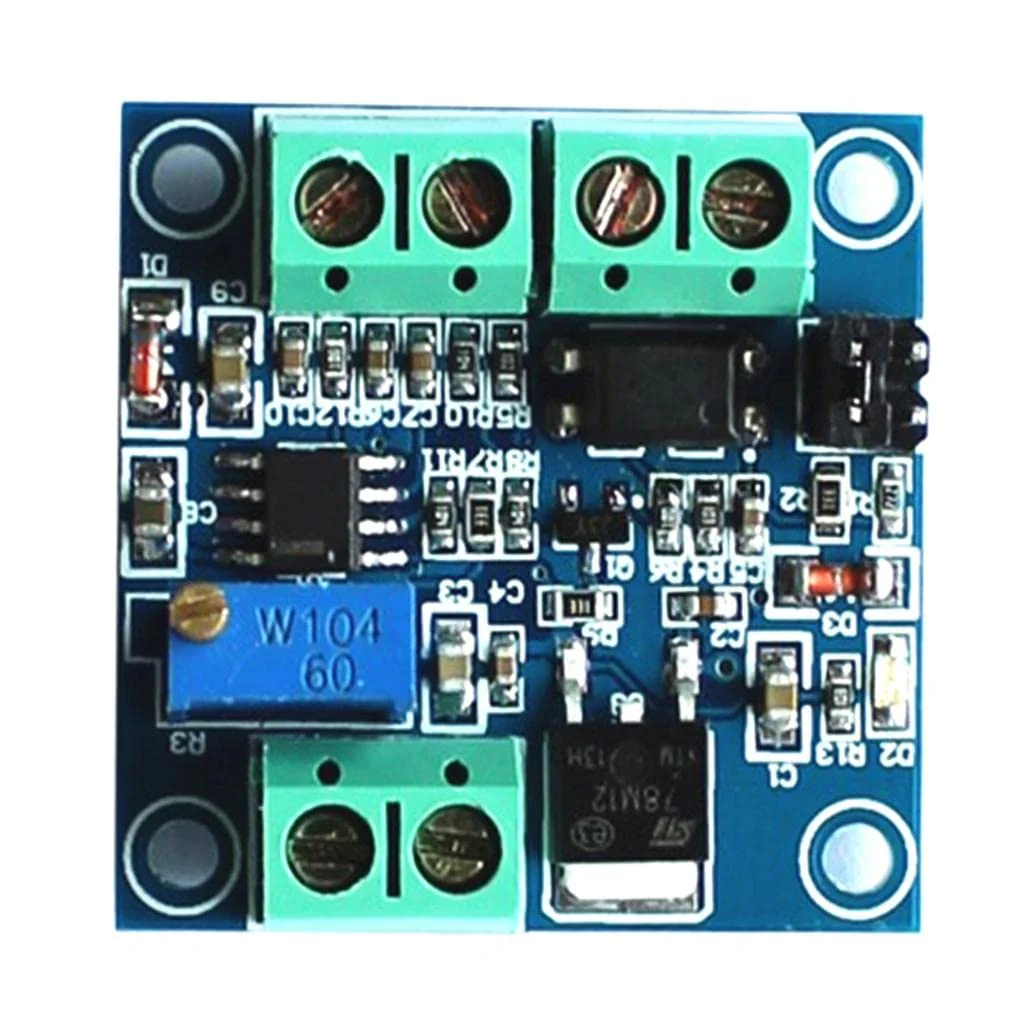

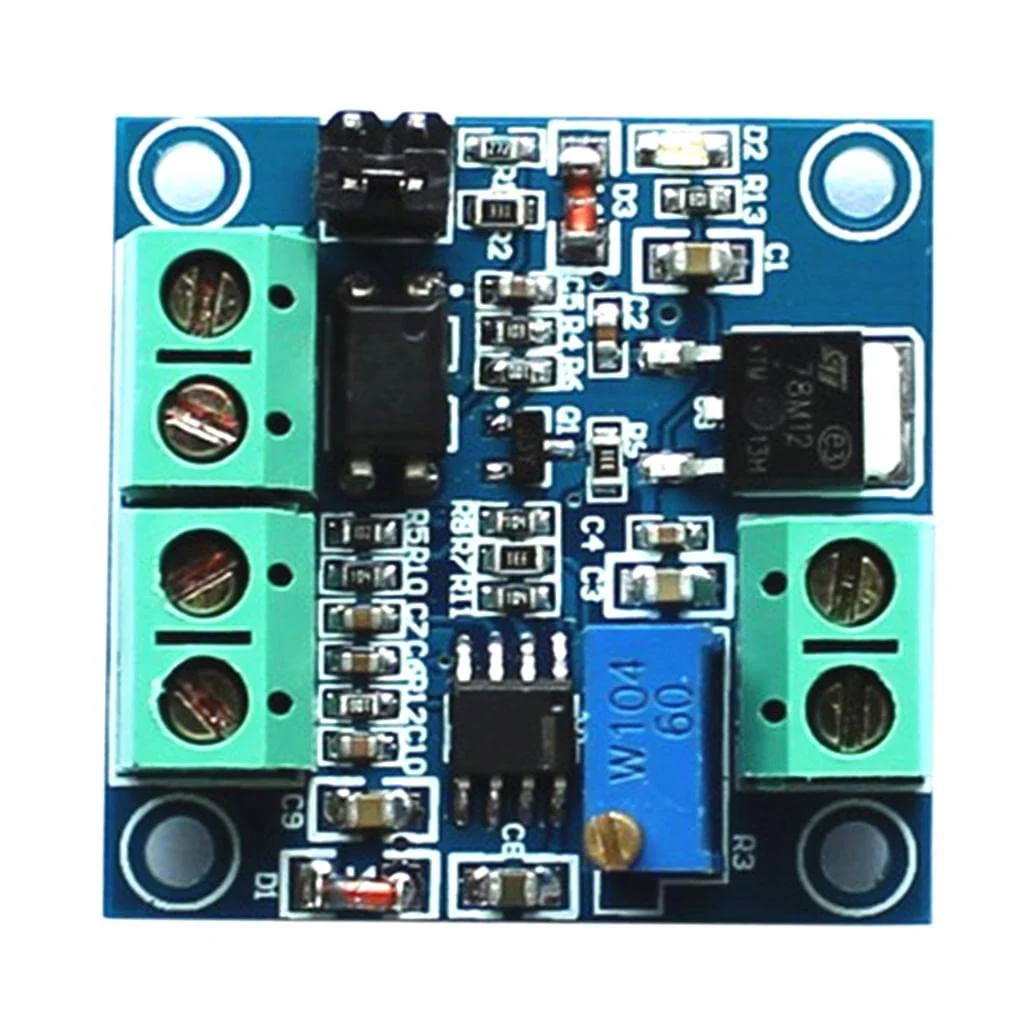

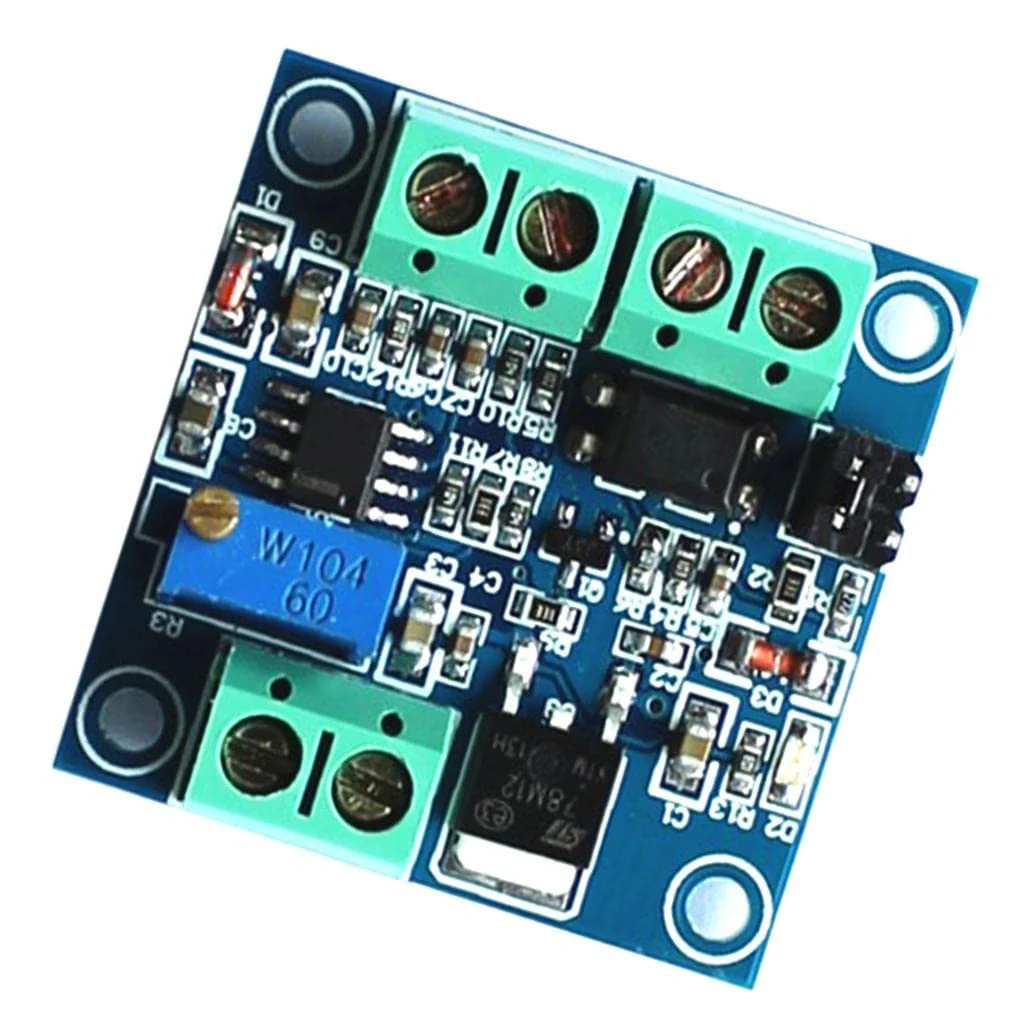

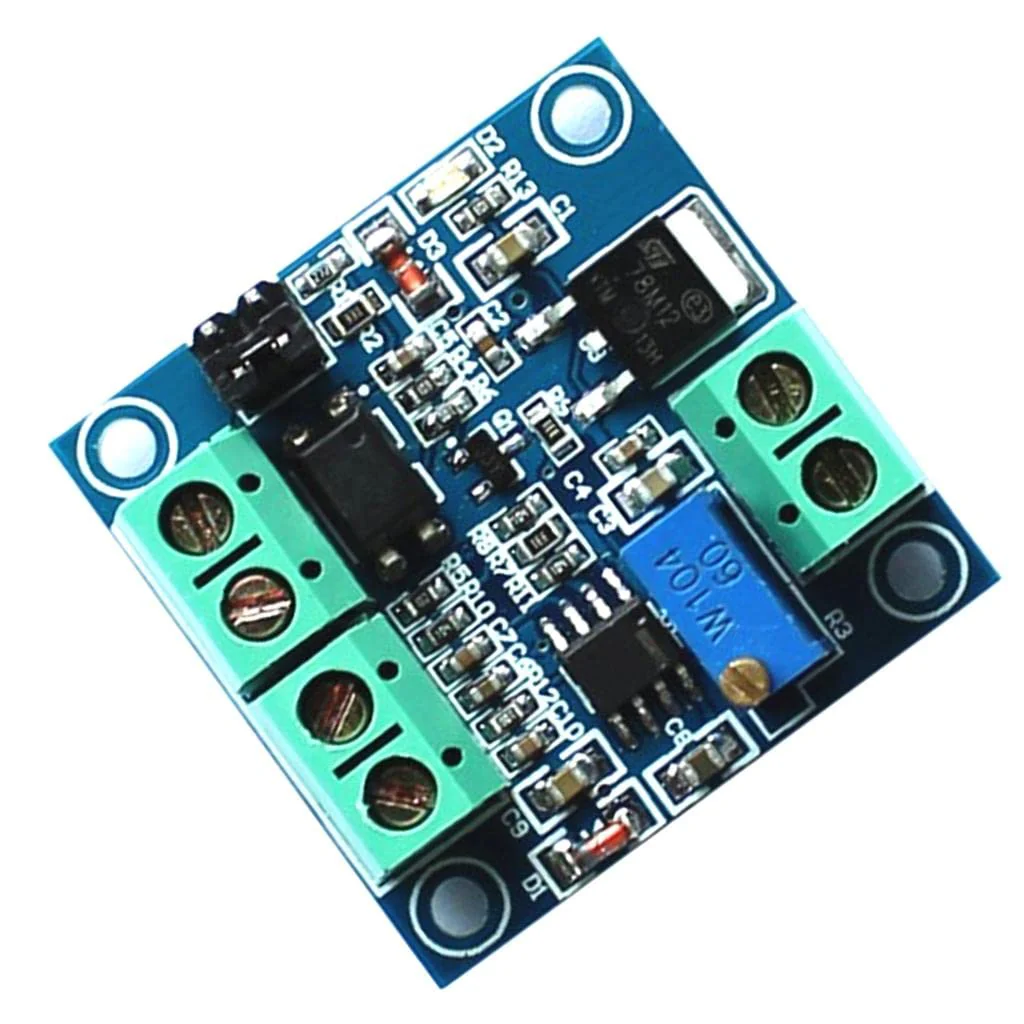

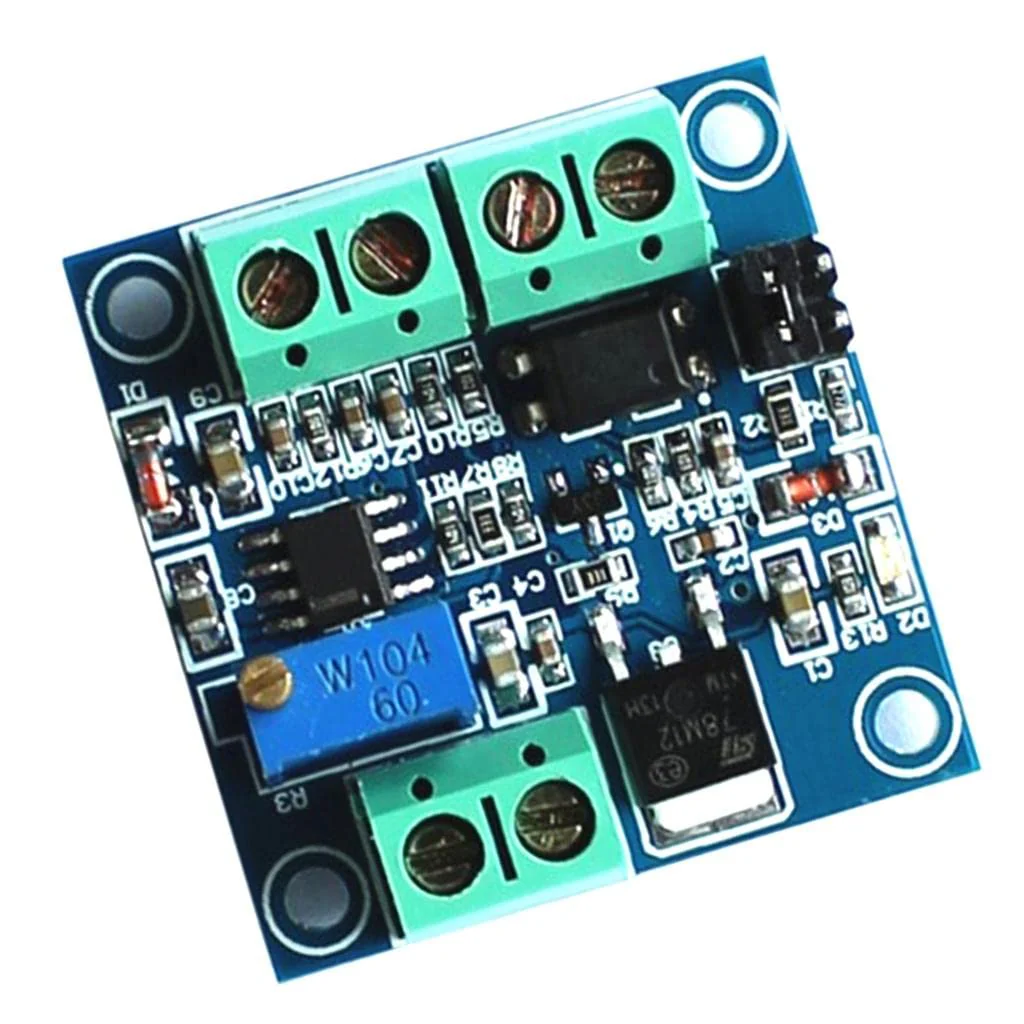

Sharplace PWM 0-10V Digital Analog Signal Transformer Module / PMW to Voltage Converter Module
Sharplace PWM 0-10V Digital Analog Signal Transformer Module / PMW to Voltage Converter Module
Sharplace PWM 0-10V Digital Analog Signal Transformer Module / PMW to Voltage Converter Module
Description: - PWM to voltage module can convert the digital PWM signal 0% -100% into an analog signal 0 ~ 10V. - Can be used for industrial panel or other signal interface circuits by adjusting the PWM duty cycle to regulate the output voltage. - Uses embedded microcontroller technology, easy to use, you can fine tune it via the potentiometer. - Increases the accuracy of the output voltage further to 1%, increases the input frequency to 3KHz, supports PWM, Specification: - Size: approx. 33.14 x 33.02 mm / 1.304 x 1.3 inches. - 5/10 short D/F open 1-1 kHz frequency up to 0-5 V (duty ratio arbitrary). - 5/10 open D/F open 1-1KHz frequency to 0-10V (duty cycle at will). - 5/10 short D/F short % duty cycle up to 0-5V (frequency range 1Hz-3KHz). - 5/10 open D/F short % duty cycle up to 0-10V (frequency range 1Hz-3KHz). - Supply voltage: 9V ~ 24V. - Signal input frequency range: 1Hz ~ 3KHz (amplitude 3.3V-5V) - Duty ratio of signal input: 0 ~ 100% (amplitude 3.3V-5V) - Output voltage: 0.00 V ~ 5.00 V / 0.00 V ~ 10.00 V - Fault tolerance: within 1%, linear conversion Wiring definition: - 12 V: Positive power connection (9 V to 24 V). - GND: Power Ground interface - PWM: signal input (1-1 kHz %) (amplitude 3.3V-5V) - GND: negative signal input signal or ground. - Out: signal output interface (0.00 V to 5.00 V / 0.00 V to 10.00 V). Package includes: 1 x PWM to voltage converter module.
Product Features
- . Can be used for industrial panel or other signal interface circuits by adjusting the PWM duty cycle to regulate the output voltage.
- . Increases the accuracy of the output voltage further to 1%, increases the input frequency to 3KHz, supports PWM, duty cycle to voltage (via short circuit resistance) and 5V/10V selection (via short circuit resistance).
- . Size: approx. 33.14 x 33.02 mm / 1.304 x 1.3 inches
- . PWM to voltage module can convert the digital PWM signal 0% -100% into an analog signal 0 ~ 10V.
- . Uses embedded microcontroller technology, easy to use, you can fine tune it via the potentiometer.
More Images
Sharplace PWM 0-10V Digital Analog Signal Transformer Module / PMW to Voltage Converter Module
Sharplace PWM 0-10V Digital Analog Signal Transformer Module / PMW to Voltage Converter Module
Description: - PWM to voltage module can convert the digital PWM signal 0% -100% into an analog signal 0 ~ 10V. - Can be used for industrial panel or other signal interface circuits by adjusting the PWM duty cycle to regulate the output voltage. - Uses embedded microcontroller technology, easy to use, you can fine tune it via the potentiometer. - Increases the accuracy of the output voltage further to 1%, increases the input frequency to 3KHz, supports PWM, Specification: - Size: approx. 33.14 x 33.02 mm / 1.304 x 1.3 inches. - 5/10 short D/F open 1-1 kHz frequency up to 0-5 V (duty ratio arbitrary). - 5/10 open D/F open 1-1KHz frequency to 0-10V (duty cycle at will). - 5/10 short D/F short % duty cycle up to 0-5V (frequency range 1Hz-3KHz). - 5/10 open D/F short % duty cycle up to 0-10V (frequency range 1Hz-3KHz). - Supply voltage: 9V ~ 24V. - Signal input frequency range: 1Hz ~ 3KHz (amplitude 3.3V-5V) - Duty ratio of signal input: 0 ~ 100% (amplitude 3.3V-5V) - Output voltage: 0.00 V ~ 5.00 V / 0.00 V ~ 10.00 V - Fault tolerance: within 1%, linear conversion Wiring definition: - 12 V: Positive power connection (9 V to 24 V). - GND: Power Ground interface - PWM: signal input (1-1 kHz %) (amplitude 3.3V-5V) - GND: negative signal input signal or ground. - Out: signal output interface (0.00 V to 5.00 V / 0.00 V to 10.00 V). Package includes: 1 x PWM to voltage converter module.
Product Features
- . Can be used for industrial panel or other signal interface circuits by adjusting the PWM duty cycle to regulate the output voltage.
- . Increases the accuracy of the output voltage further to 1%, increases the input frequency to 3KHz, supports PWM, duty cycle to voltage (via short circuit resistance) and 5V/10V selection (via short circuit resistance).
- . Size: approx. 33.14 x 33.02 mm / 1.304 x 1.3 inches
- . PWM to voltage module can convert the digital PWM signal 0% -100% into an analog signal 0 ~ 10V.
- . Uses embedded microcontroller technology, easy to use, you can fine tune it via the potentiometer.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Sharplace PWM 0-10V Digital Analog Signal Transformer Module / PMW to Voltage Converter Module
Description: - PWM to voltage module can convert the digital PWM signal 0% -100% into an analog signal 0 ~ 10V. - Can be used for industrial panel or other signal interface circuits by adjusting the PWM duty cycle to regulate the output voltage. - Uses embedded microcontroller technology, easy to use, you can fine tune it via the potentiometer. - Increases the accuracy of the output voltage further to 1%, increases the input frequency to 3KHz, supports PWM, Specification: - Size: approx. 33.14 x 33.02 mm / 1.304 x 1.3 inches. - 5/10 short D/F open 1-1 kHz frequency up to 0-5 V (duty ratio arbitrary). - 5/10 open D/F open 1-1KHz frequency to 0-10V (duty cycle at will). - 5/10 short D/F short % duty cycle up to 0-5V (frequency range 1Hz-3KHz). - 5/10 open D/F short % duty cycle up to 0-10V (frequency range 1Hz-3KHz). - Supply voltage: 9V ~ 24V. - Signal input frequency range: 1Hz ~ 3KHz (amplitude 3.3V-5V) - Duty ratio of signal input: 0 ~ 100% (amplitude 3.3V-5V) - Output voltage: 0.00 V ~ 5.00 V / 0.00 V ~ 10.00 V - Fault tolerance: within 1%, linear conversion Wiring definition: - 12 V: Positive power connection (9 V to 24 V). - GND: Power Ground interface - PWM: signal input (1-1 kHz %) (amplitude 3.3V-5V) - GND: negative signal input signal or ground. - Out: signal output interface (0.00 V to 5.00 V / 0.00 V to 10.00 V). Package includes: 1 x PWM to voltage converter module.
Product Features
- . Can be used for industrial panel or other signal interface circuits by adjusting the PWM duty cycle to regulate the output voltage.
- . Increases the accuracy of the output voltage further to 1%, increases the input frequency to 3KHz, supports PWM, duty cycle to voltage (via short circuit resistance) and 5V/10V selection (via short circuit resistance).
- . Size: approx. 33.14 x 33.02 mm / 1.304 x 1.3 inches
- . PWM to voltage module can convert the digital PWM signal 0% -100% into an analog signal 0 ~ 10V.
- . Uses embedded microcontroller technology, easy to use, you can fine tune it via the potentiometer.
