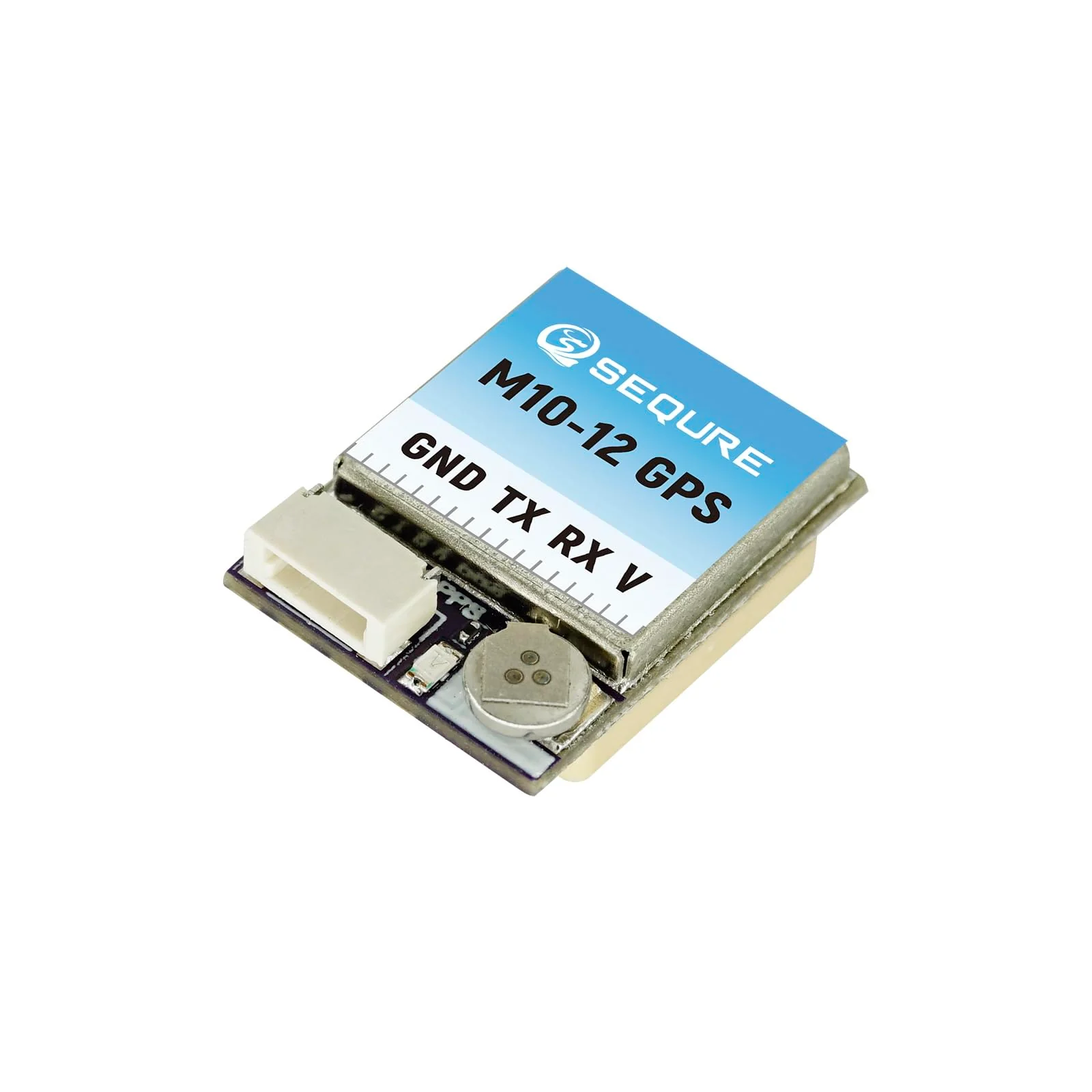

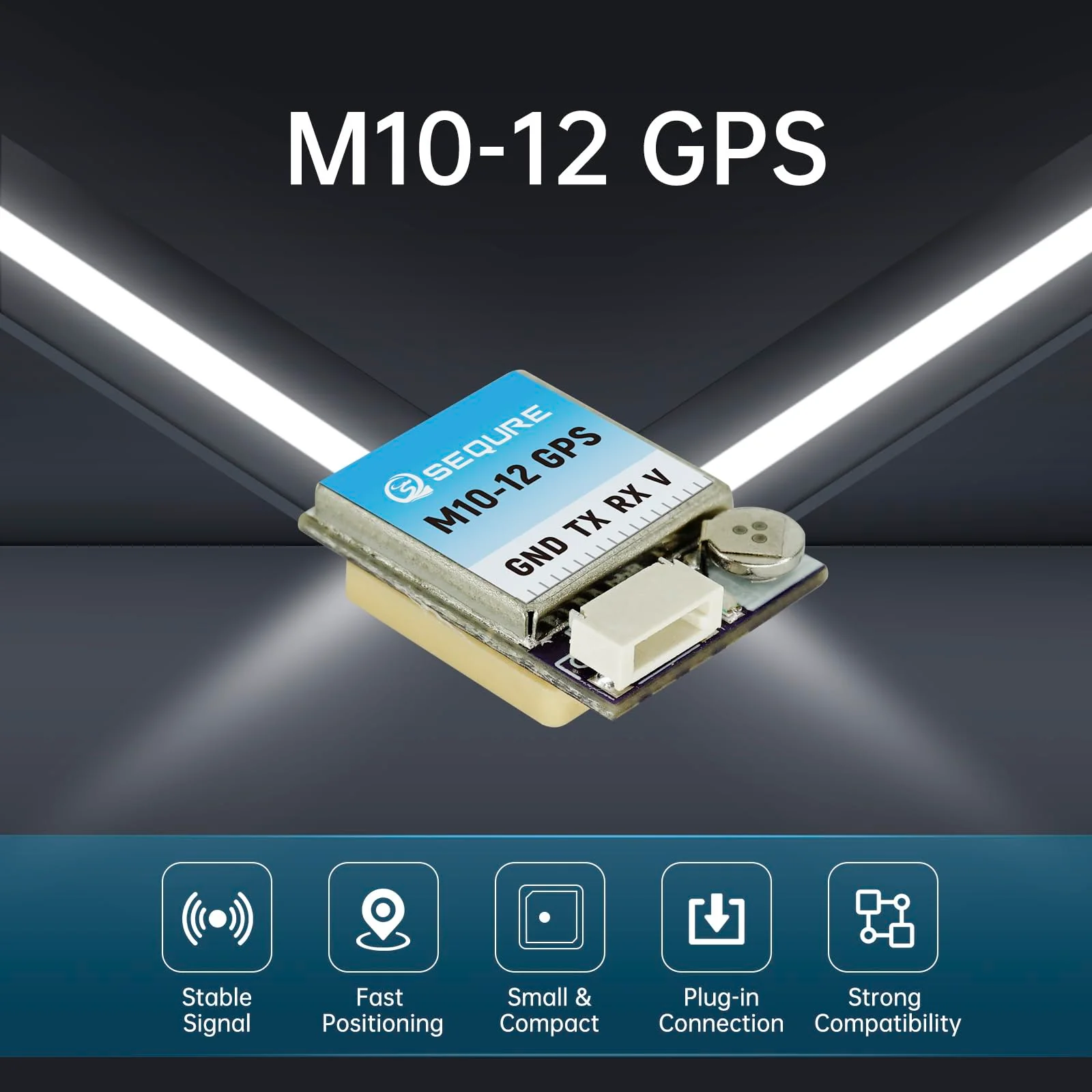

SEQURE M10-12 Mini FPV GPS Module with Upgraded 10th Generation Chip Ceramic Antenna Fast Satellite Positioning for FPV Racing Drones M1012

SEQURE M10-12 Mini FPV GPS Module with Upgraded 10th Generation Chip Ceramic Antenna Fast Satellite Positioning for FPV Racing Drones

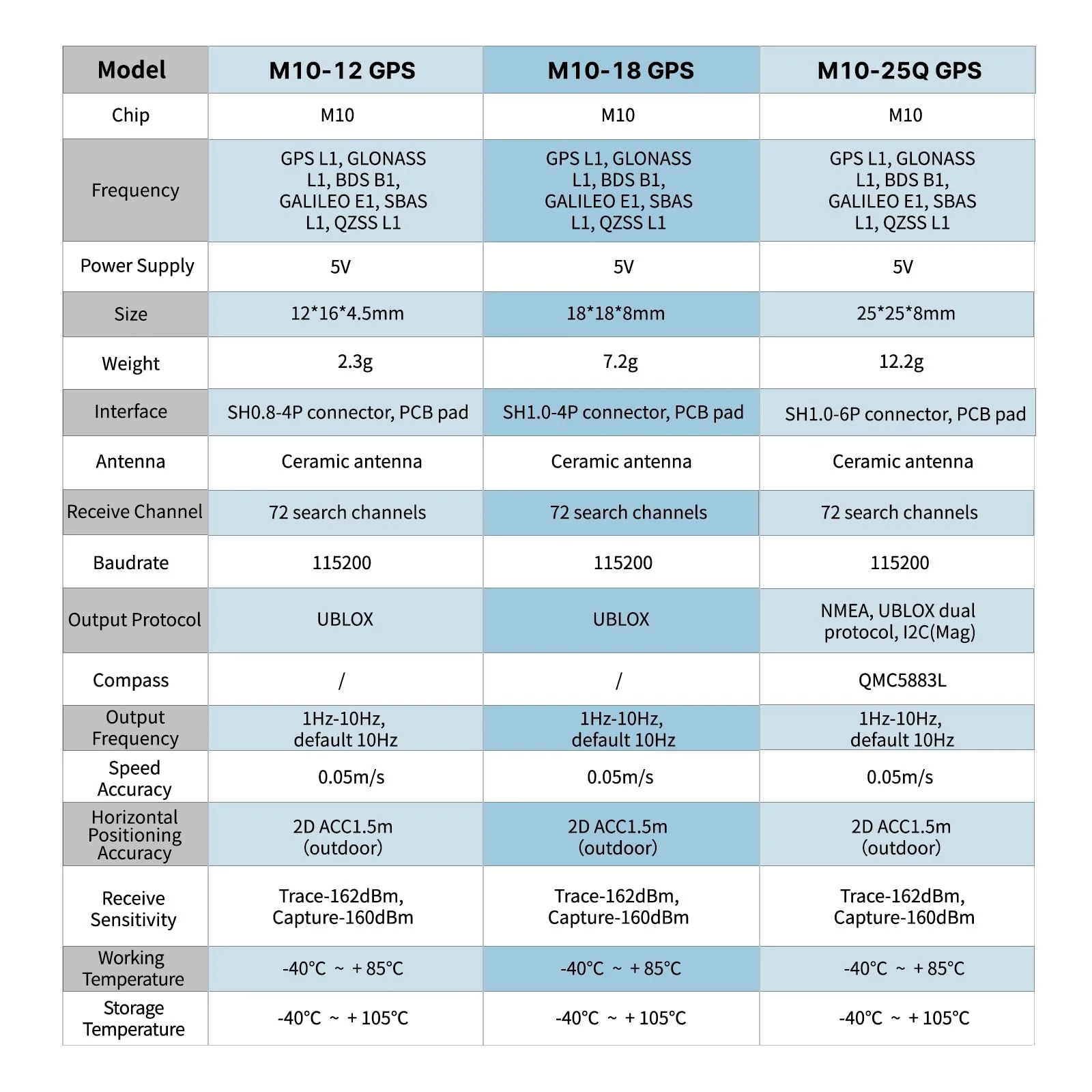

SEQURE M10-12 Mini GPS Module For FPV Racing Drones Fixed Wing UAV Specification: Model: M10-12 GPS Chip: M10 Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1 Power supply: 5V Size: 12164.5mm Weight: 2.3g Interface: SH0.8-4P connector, PCB pad Antenna: Ceramic Antenna Receiving channels: 72 search channels Baud rate: 115200 Output protocol: UBLOX Output frequency: 1Hz-10Hz, default 10Hz Speed accuracy: 0.05m/s Horizontal positioning accuracy: 2D ACC1.5m（open-air） Receive sensitivity: Trace-162dBm, capture-160dBm Working temperature: -40℃ ～ + 85℃ Storage temperature: -40℃ ～ + 105℃ Features: M10-12 GPS is recommended for BF firmware. Adopts 10th generation chip, u-blox output protocol, and 10Hz output frequency, lower power consumption, and fast positioning. High-quality ceramic antenna with strong performance and effective reception of satellite signals. Miniaturized and multi-specification design, easy to install, suitable for the installation of drones of various sizes on the market. 2 connection methods: direct plug-in and soldering pad, with strong compatibility.

Product Features

• Upgraded Using the new 10th generation UBLOX chip design, fast positioning in any place. 10Hz Output frequency, lower power consumption.

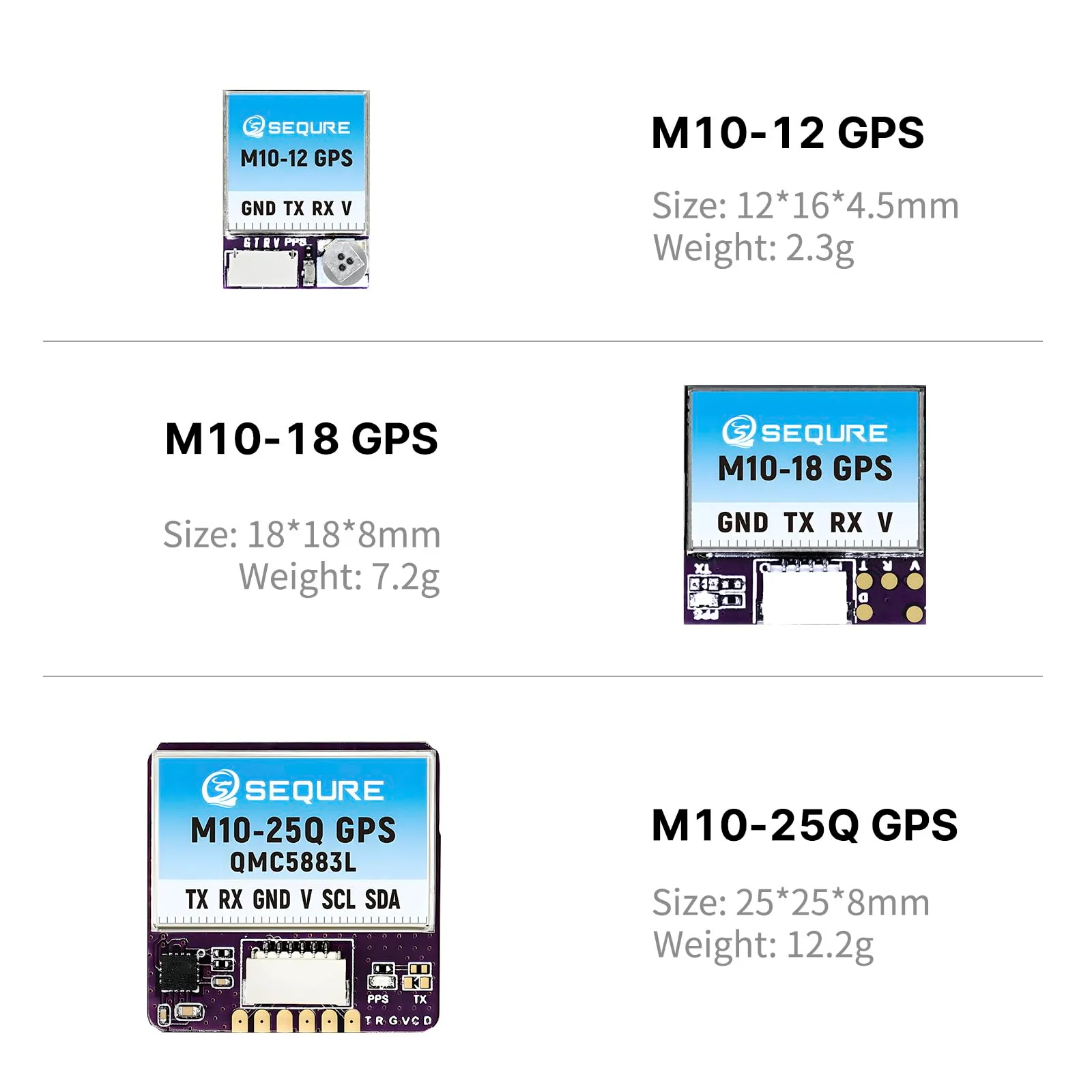

• Mini & Lightweight 12*16*4.5mm, only 2.3g. Wide application, compatible with 2-4 inch traversal Drones.

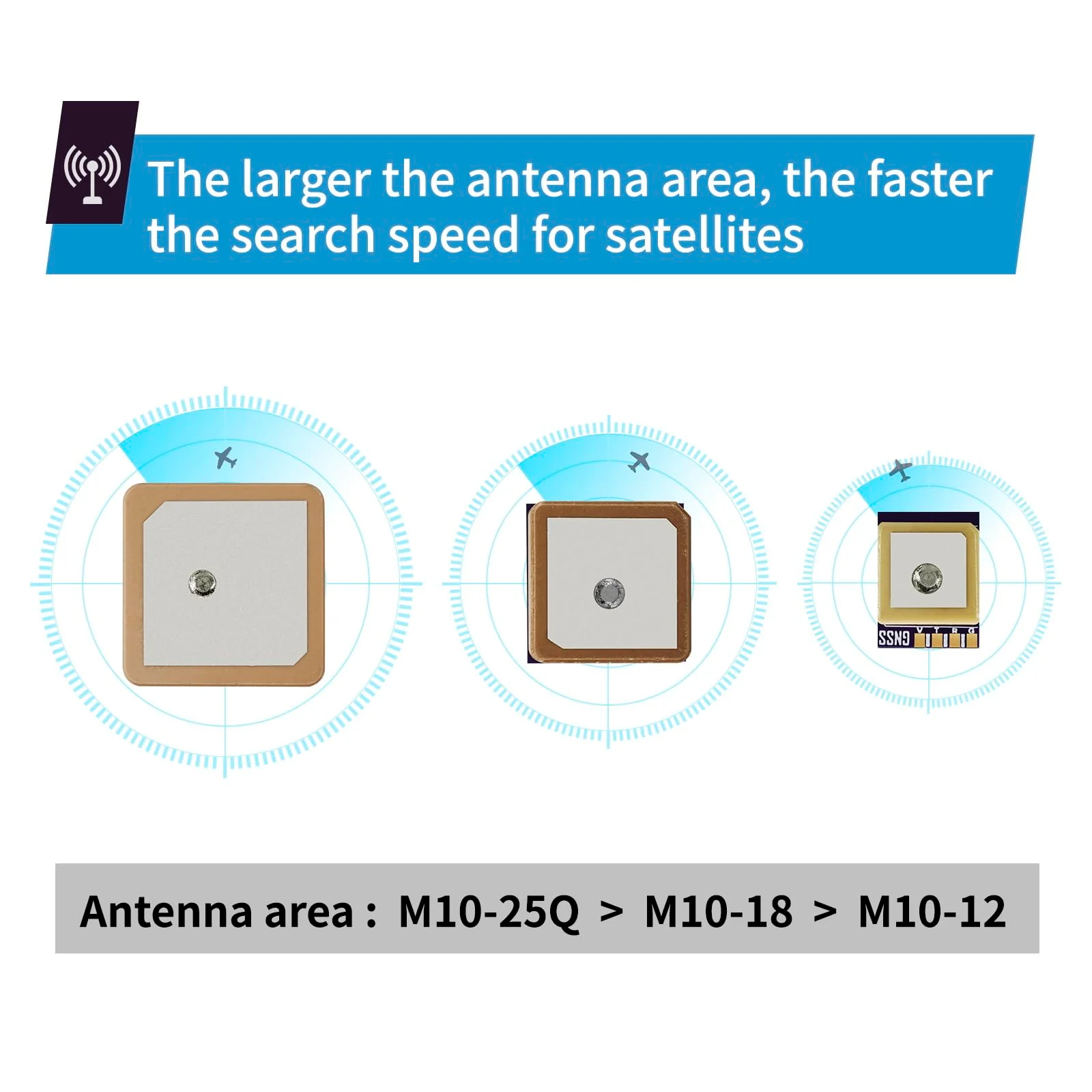

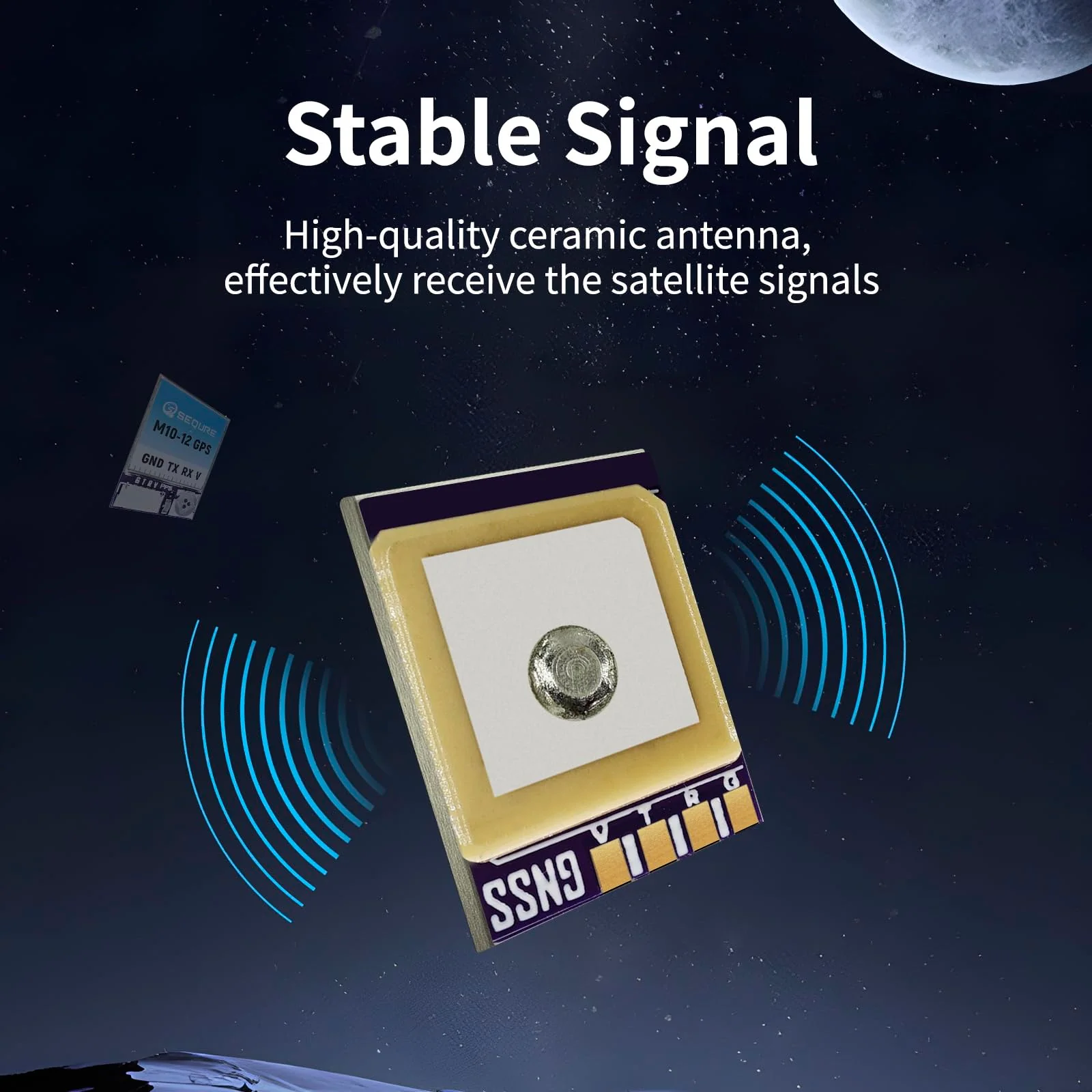

• Stable Signal Equipped with ceramic antenna and externally expanded PCB design, ensure fast and effective satellite signals.
• More Position Modes Support GPS, GLONASS, BDS, GALILEO, SBAS, and QZSS. You can choose it according to your project requirements.

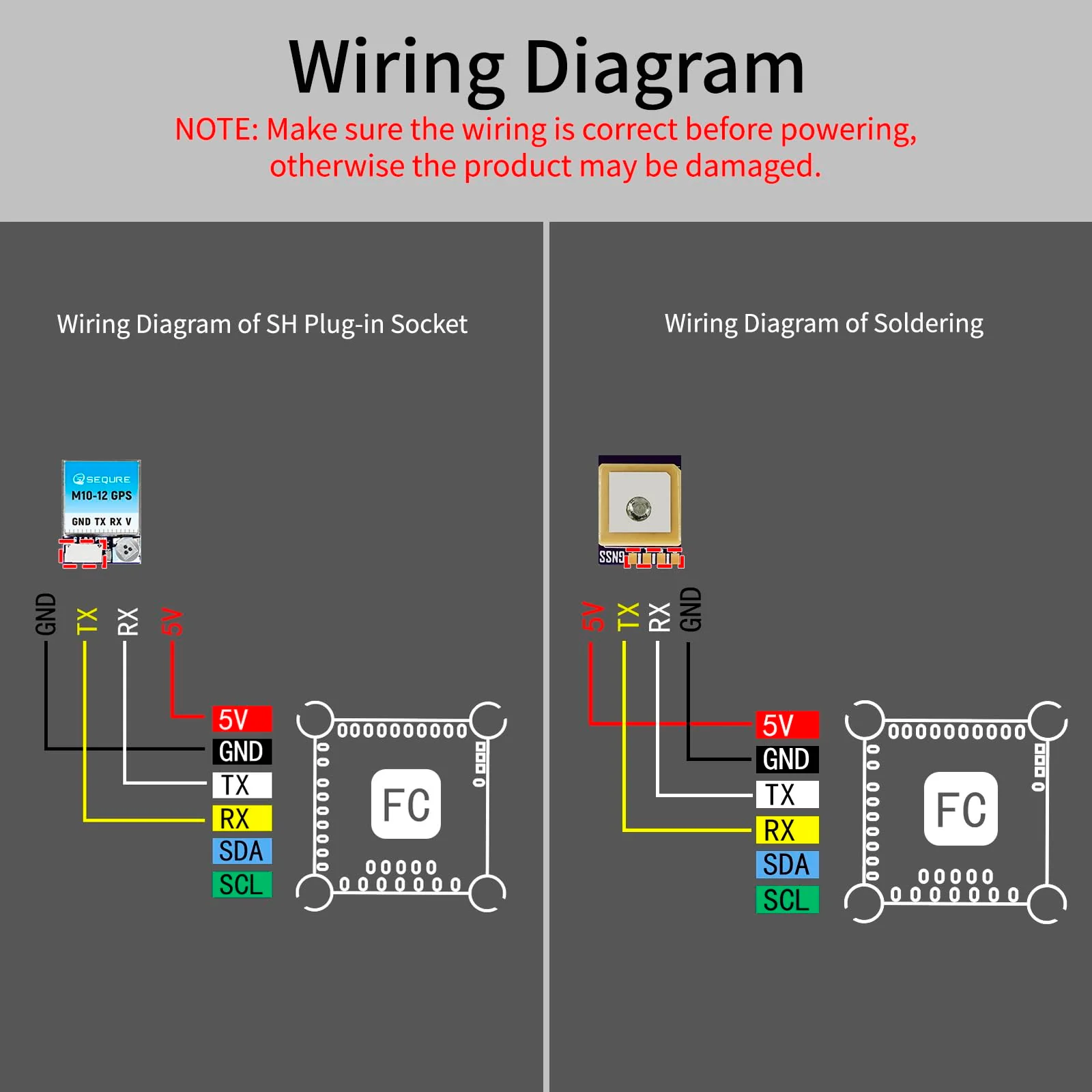

• Plug & Play 2 connection methods. Plug and play, no need to solder. The other is soldering. Convenient and easy to use.
