Seesii TinySA Spectrum Analyzer - 2.8 Inch Spectrum Analyzer 100 kHz - 960 MHz Input MF HF VHF UHF, Signal Generator Frequency Analyzer with Touchscreen with ESD Protected

Seesii TinySA Spectrum Analyzer - 2.8 Inch Spectrum Analyzer 100 kHz - 960 MHz Input MF HF VHF UHF, Signal Generator Frequency Analyzer with Touchscreen with ESD Protected

Product Features

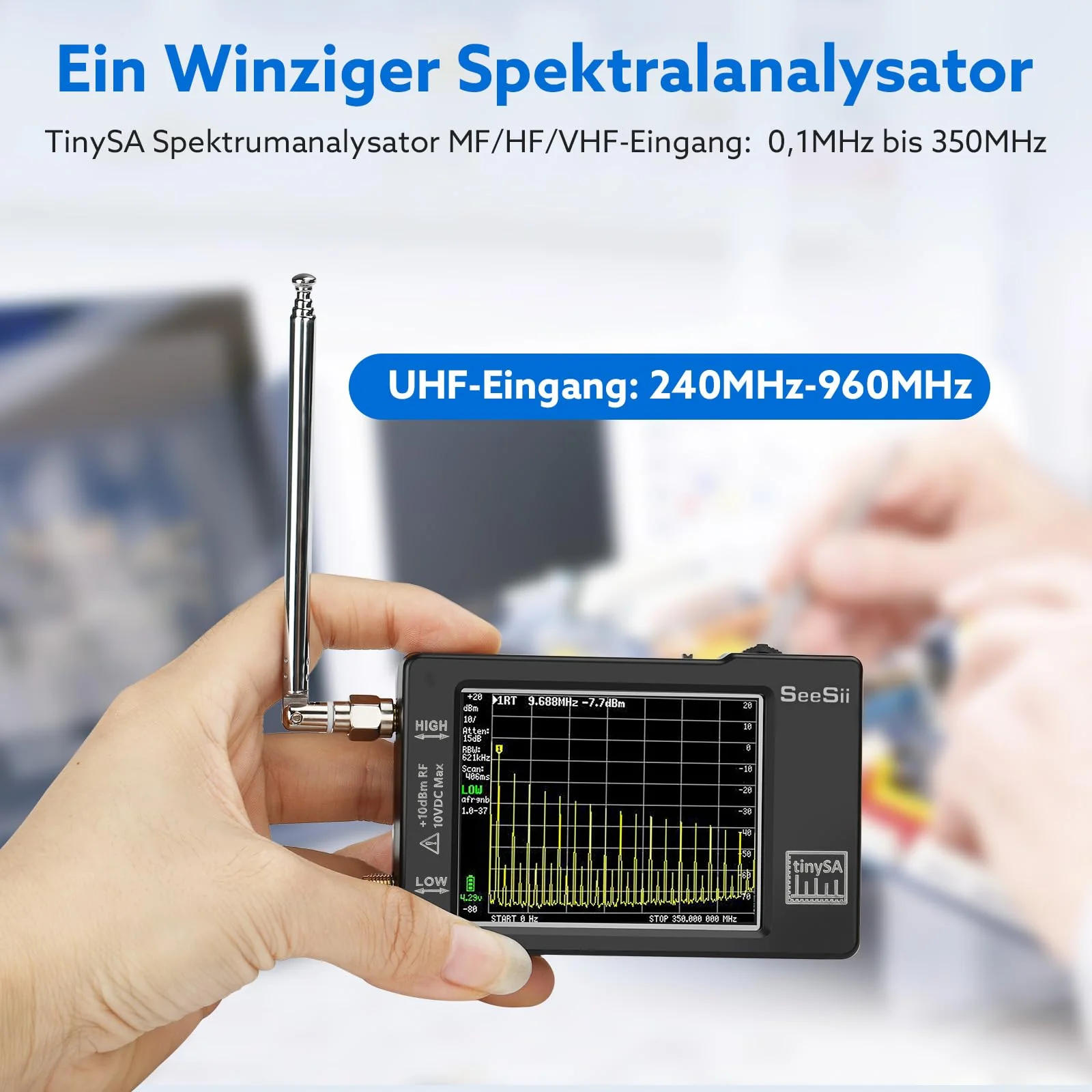

• Frequency Range: TinySA Spectrum Analyzer with dual inputs, high quality MF/HF/VHF input for 0.1MHz-350MHz, low quality UHF input for 240MHz-960MHz. Switchable resolution bandpass filter for both ranges between 2.6 kHz and 640 kHz. Colour display with 290 sampling points that cover the entire low and high frequency range. The TinySA contains all components of a conventional heterodyne swept spectrum analyzer.

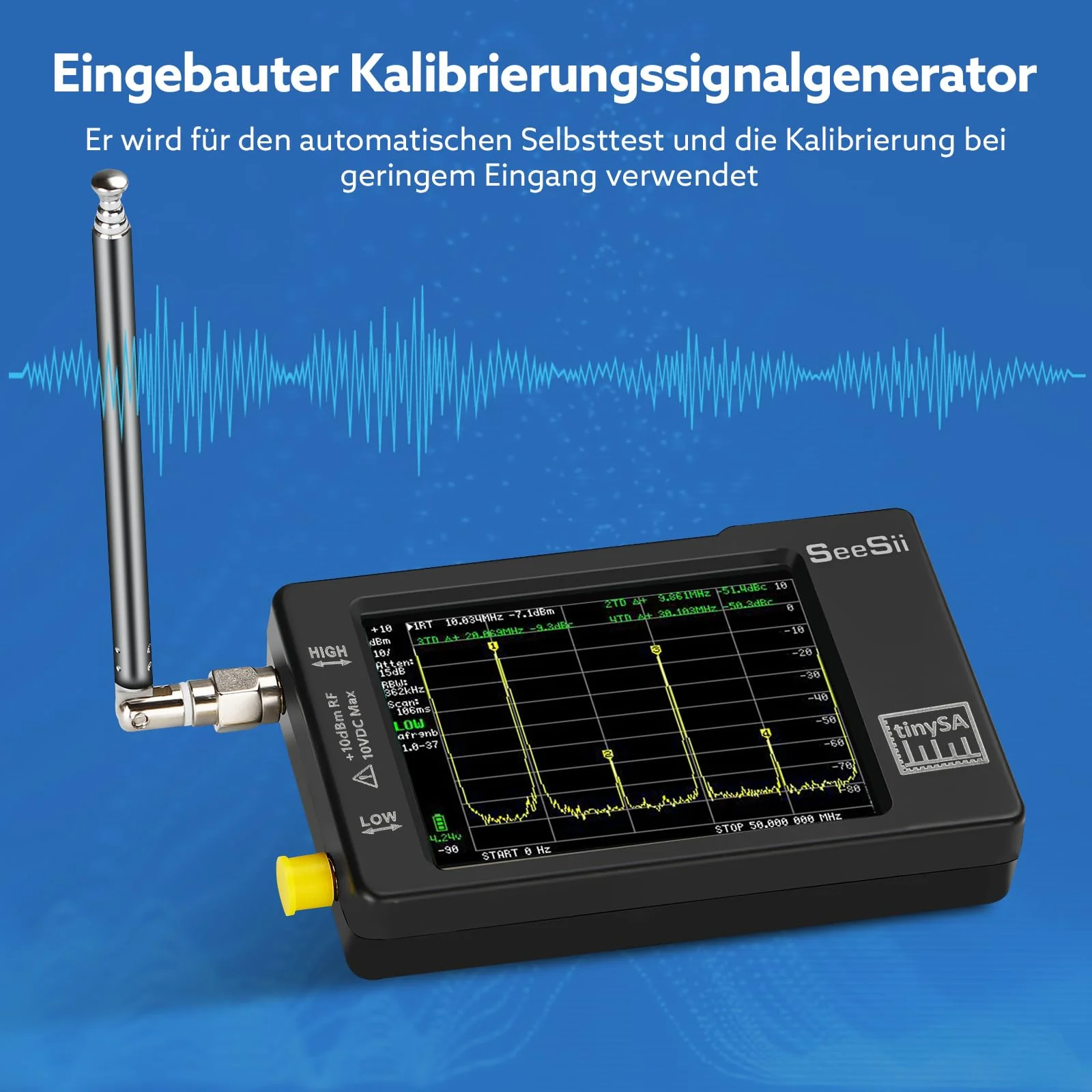

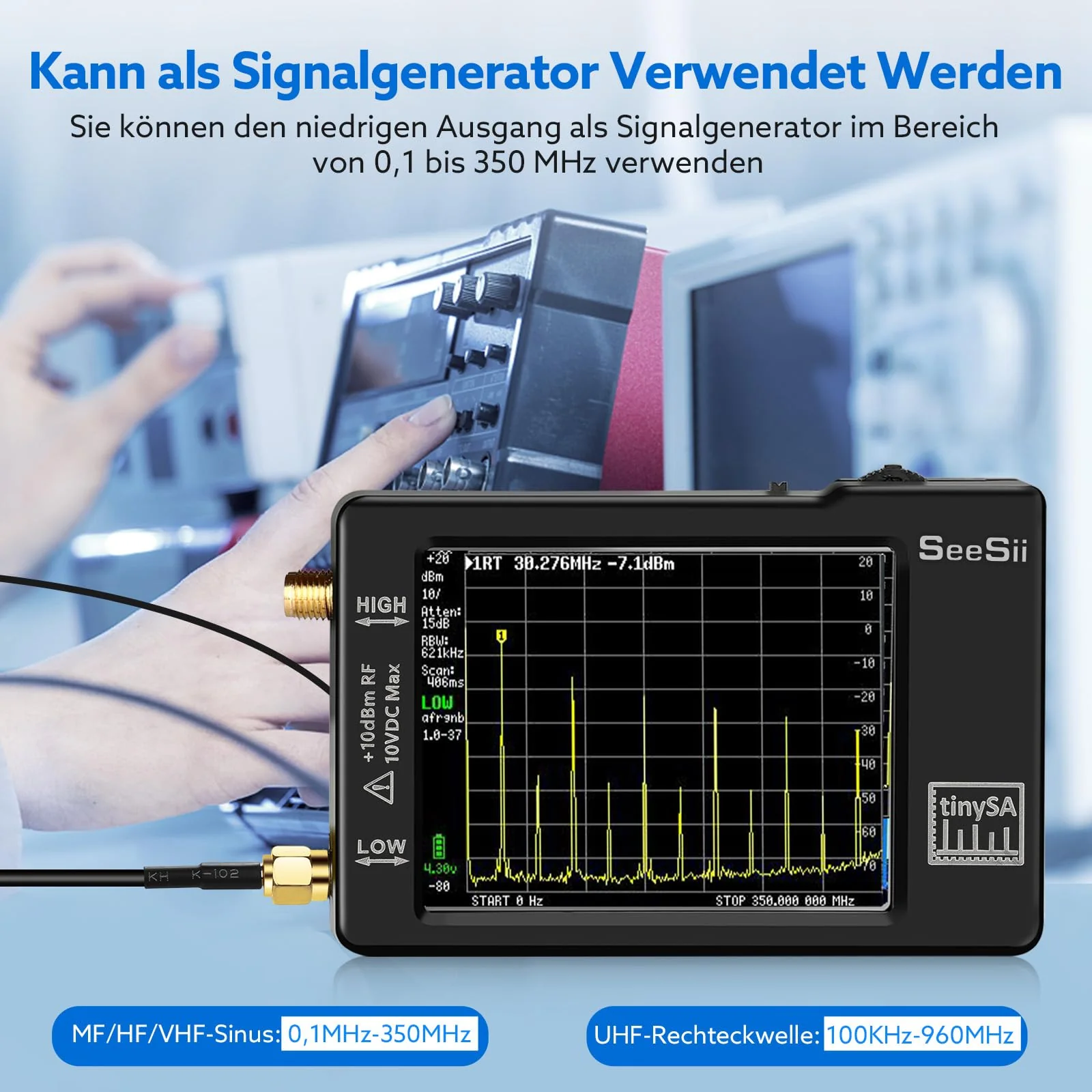

• Built-in calibration signal generator: when not used as a spectrum analyzer, it can be used as a signal generator, MF/HF/VHF sine wave output between 0.1MHz-350MHz, UHF rectangular wave output between 240MHz - 960MHz. Built-in calibration signal generator used for automatic self-test and low input calibration.

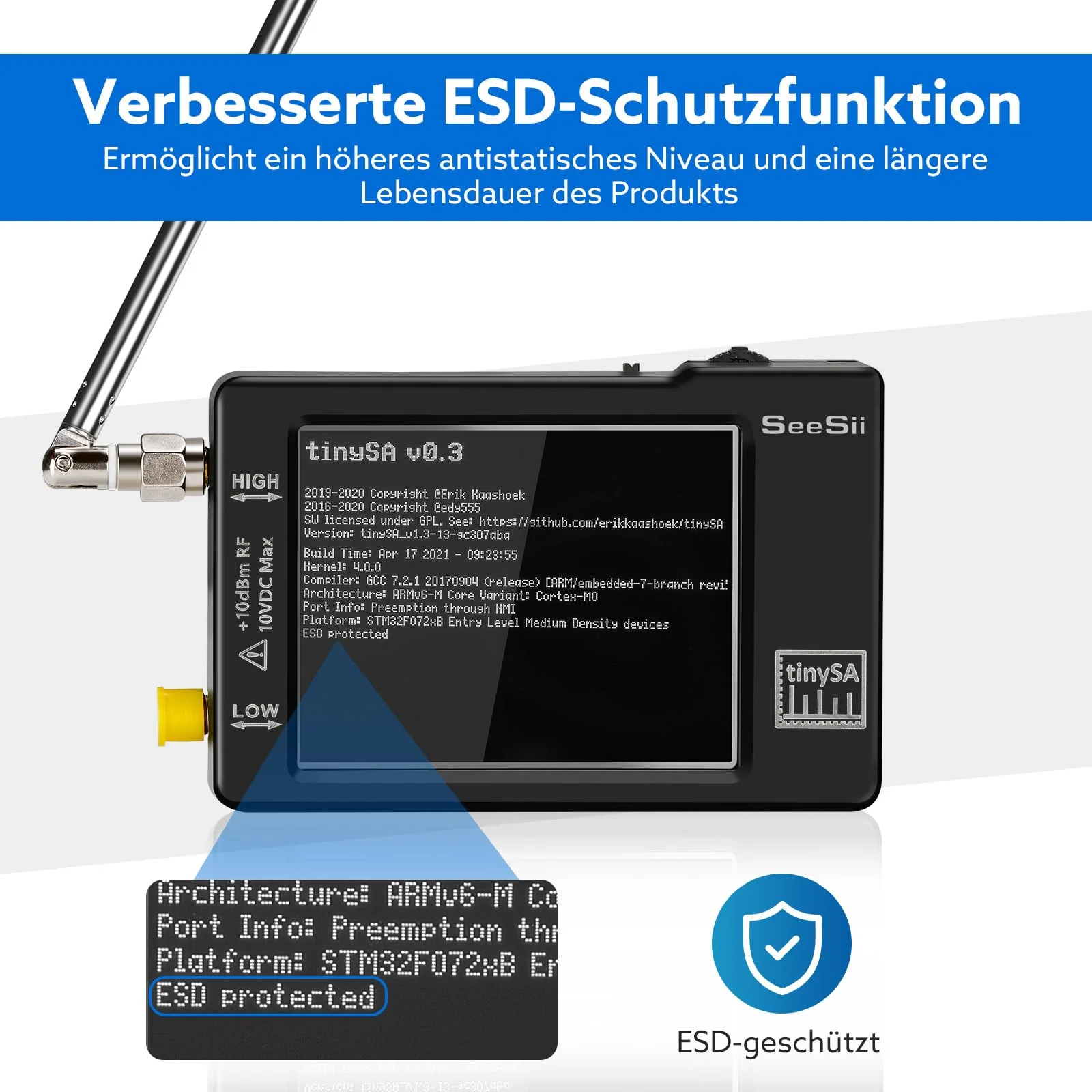

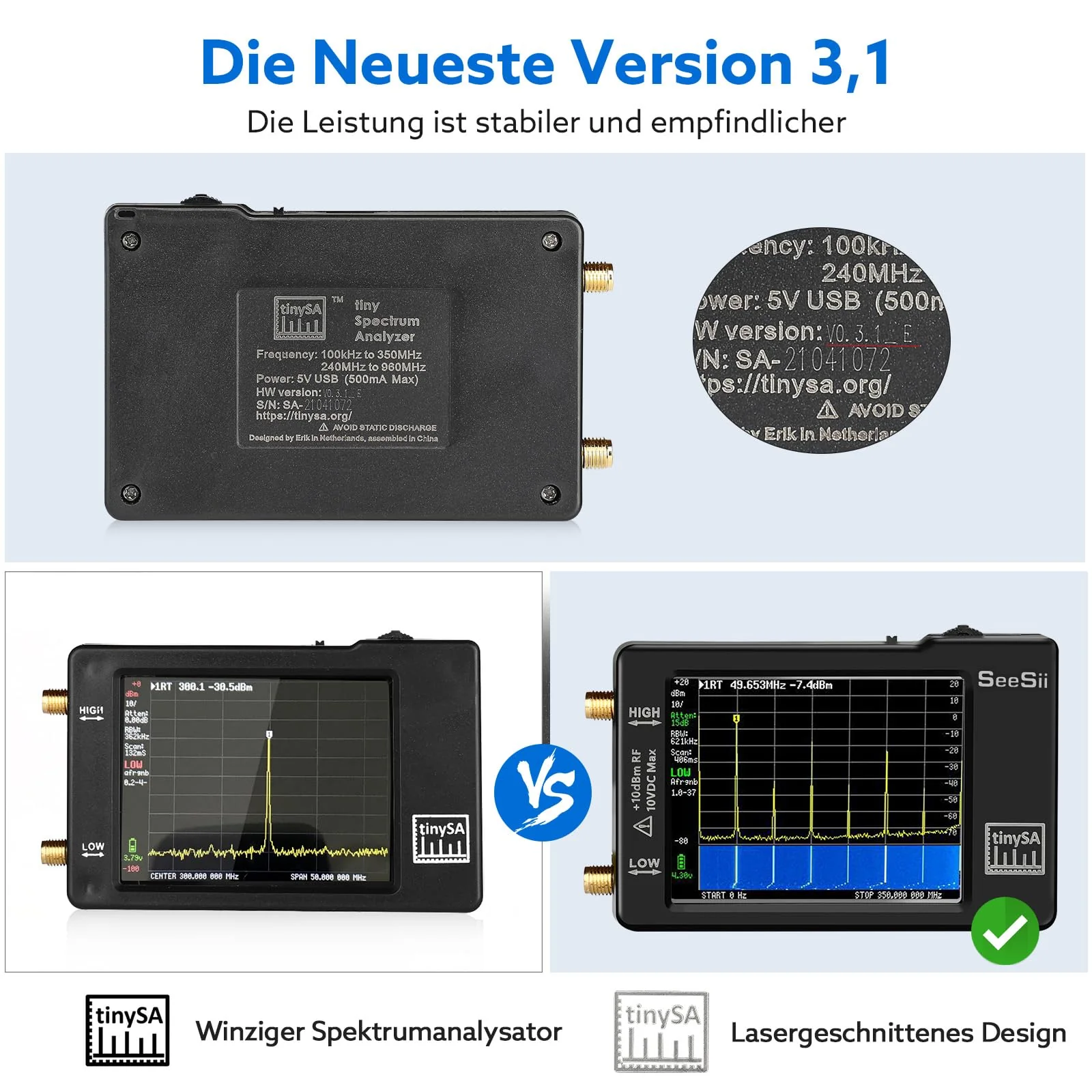

• TinySA Spectrum Analyzers & ESD Function: Switchable resolution bandpass filters for both ranges between 2.6 kHz and 640 kHz. Colour display with 290 scan points that cover the entire low and high frequency range. The performance of the latest version 3.1 will be more stable and sensitive, with a new ESD protected function, the product can have a higher anti-static level and a longer service life.

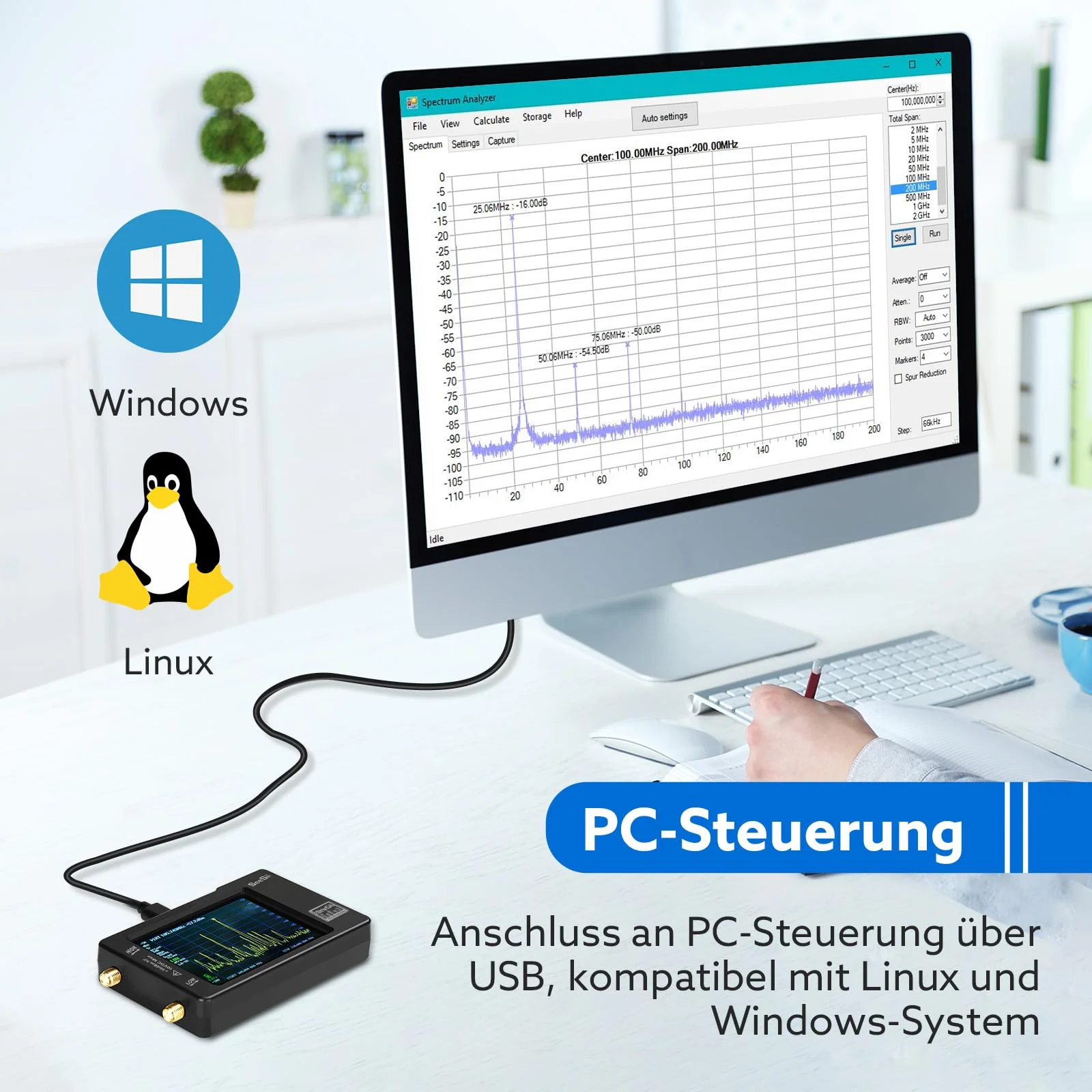

• PC control: The USB interface implements the CDC protocol (serial over USB), and there are a large number of commands that can be called via the serial port. These commands can be used to take measurements or update internal settings. The driver for Windows is automatically installed after connecting to a Windows PC. The driver for Linux is integrated into the kernel.

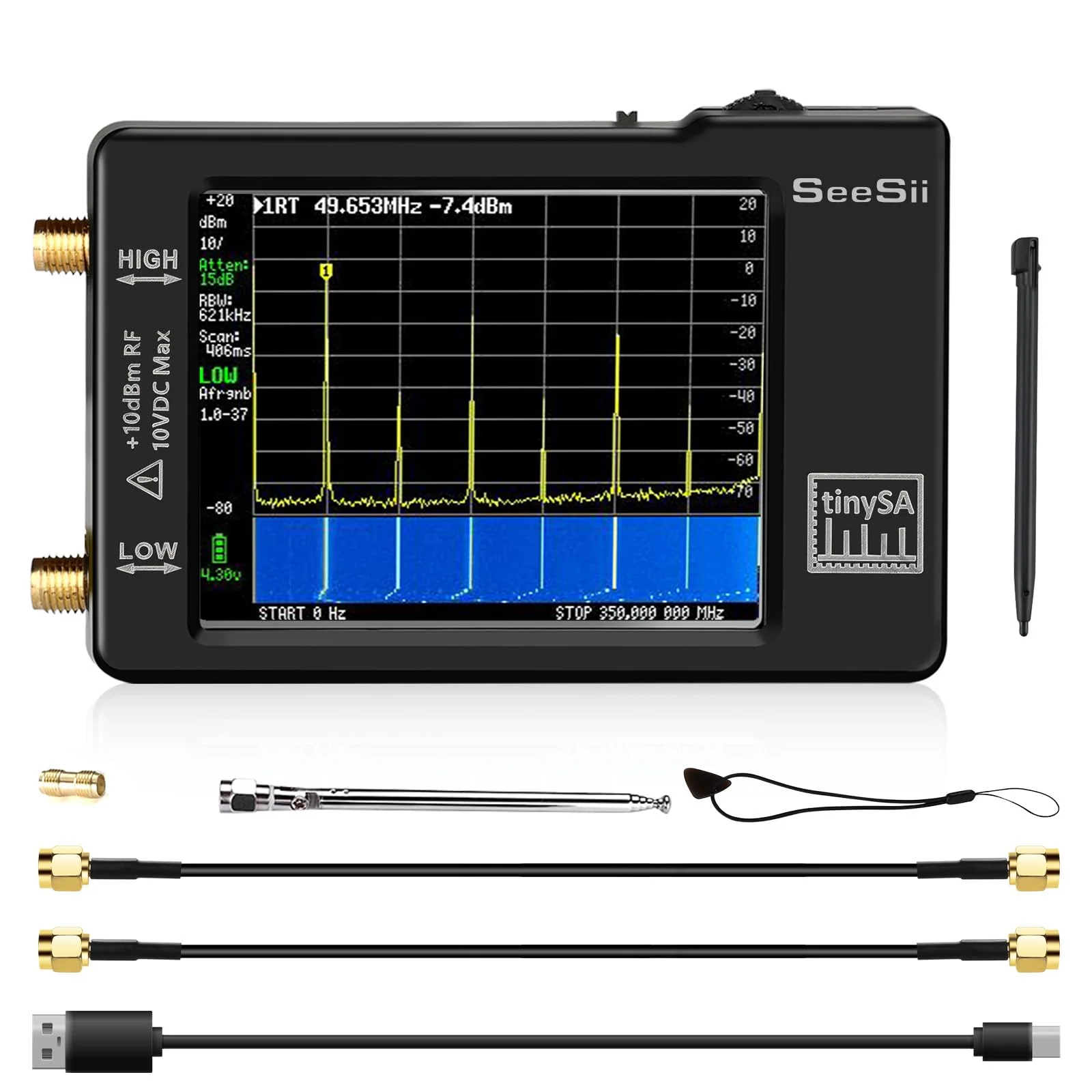

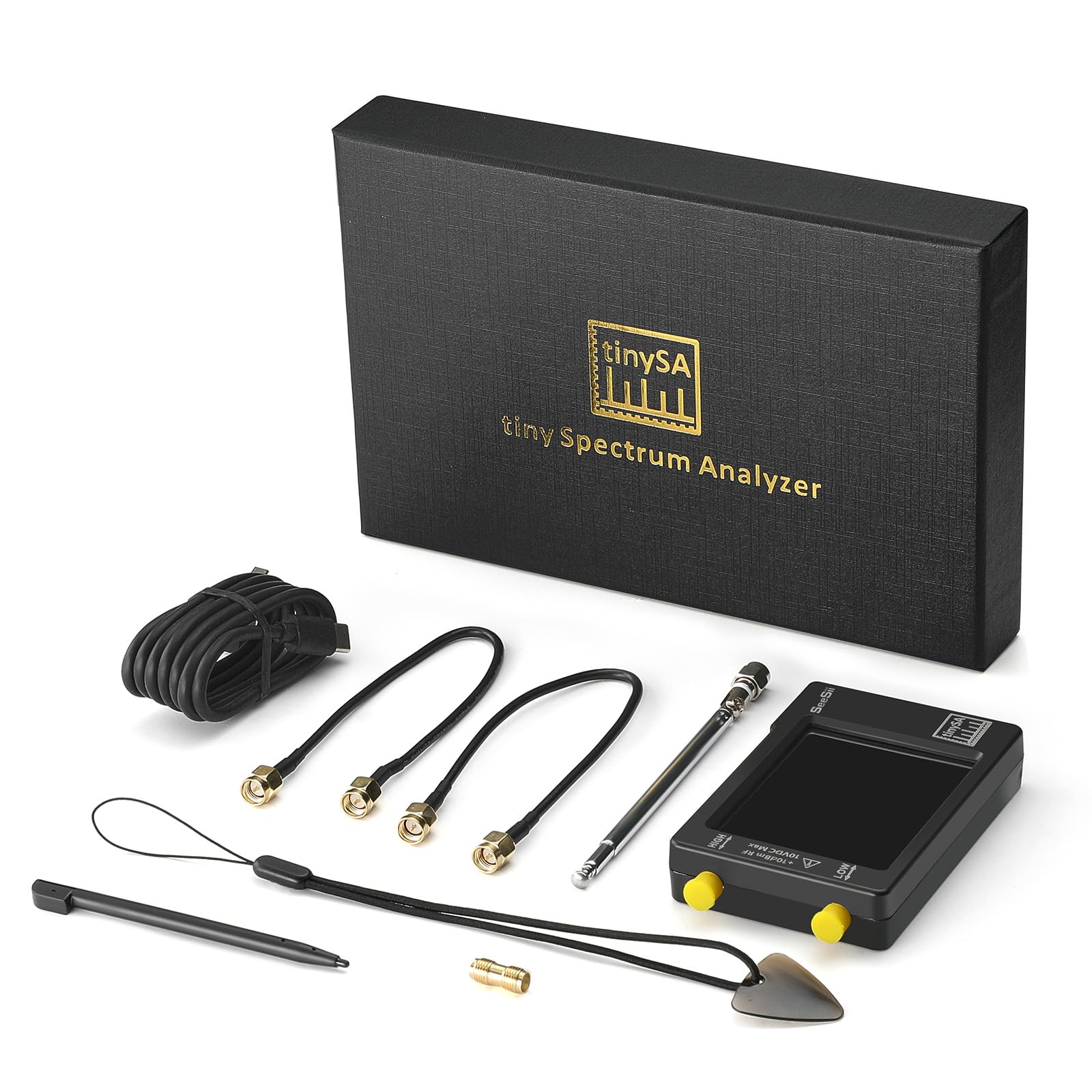

• Package list: 1 x TinySA, 2 x 20 cm RF cable, 1 x USB cable, 1 x SMA female to female, 1 x touch screen pen and 1 x SMA telescopic antenna. It is very useful as an antenna analyzer for your amateur radio station, easy to adjust without complex calibration. TinySA firmware can be updated by the user himself. If you need a new version of the firmware, please contact the seller for a download link.
