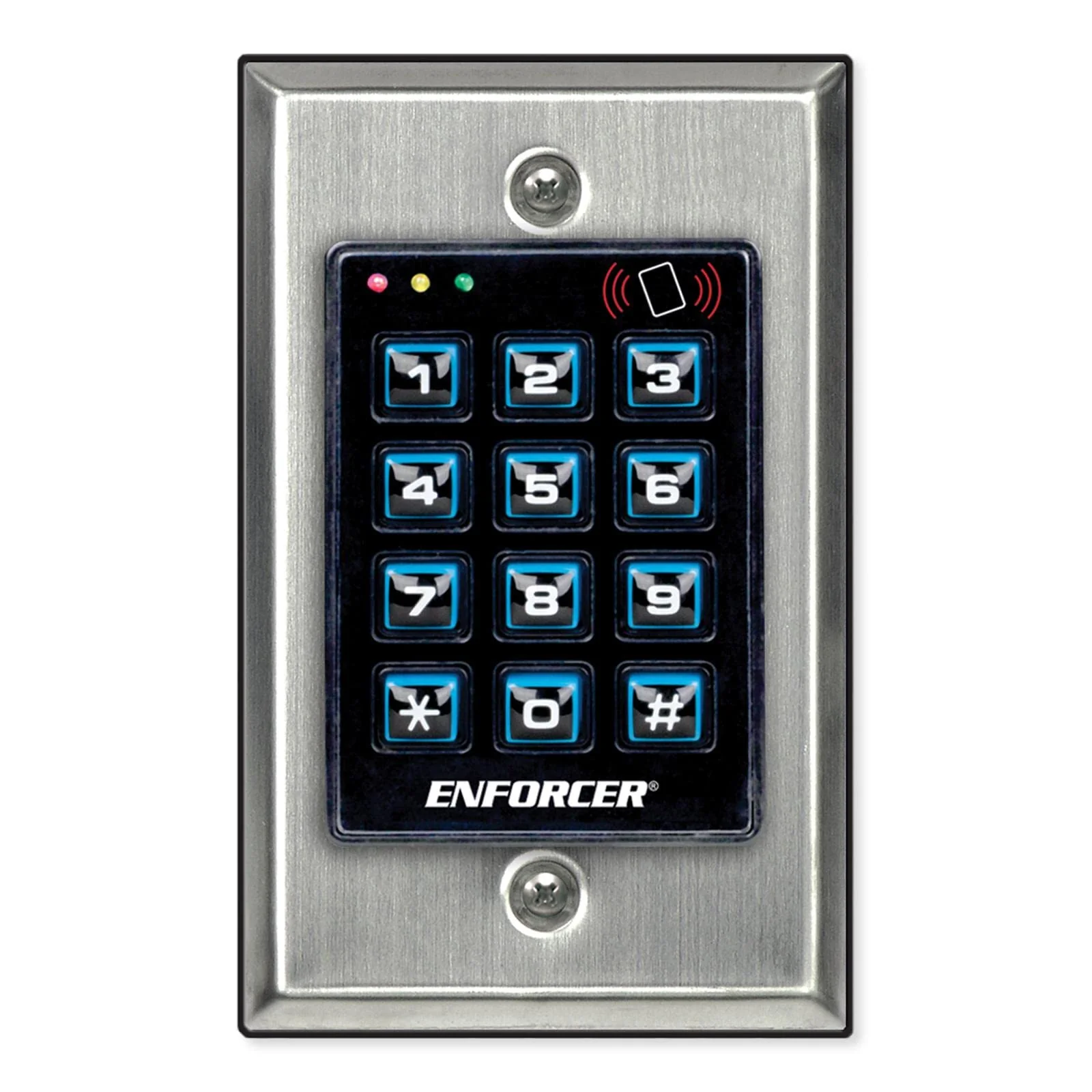

Seco-Larm Enforcer Access Control Keypad with Proximity Reader, Backlit (SK-1131-SPQ)
Seco-Larm Enforcer Access Control Keypad with Proximity Reader, Backlit (SK-1131-SPQ)
With beauty and brains, the Seco-Larm Enforcer Access Control Keypad (Indoor with Proximity Reader) is a versatile keypad and card reader that looks good and works well anywhere indoors. The backlit keypad glows soft blue and its stainless steel faceplate makes for a sleek, classy trim around the edges. The built-in proximity card reader works with any Seco-Larm 125kHz proximity cards or tags (sold separately). The keypad features two 1-Amp relay outputs, plus a transistor ground output, giving you the flexibility to wire into any nearly access control device. With three outputs, the keypad can be programmed for up to 1,200 users total -- 1,000 for the primary output, and 100 for each of the other two outputs. Authorized users can be easily added and deleted, allowing you to provide temporary access to guests. FEATURES: 4 programmable access modes for all 3 outputs: Card only, Code only, Card and common user code, Card and unique user code. Optional door open alarm. Trigger auto-lockout or duress output after 5-10 unsuccessful attempts. Duress Output: Signals a silent alarm if an authorized user is forced to open the door under duress. Alarm Output: Triggers an optional alarm control panel if door is forced open. Keypad Active Output: Activates for 10 seconds when any key on the keypad is pressed to trigger a DVR, turn on a light, etc. Egress Input: Lets users exit without using a code/card. Mantrap: For a protected area with two doors, this feature allows only one door to be open at a time. The keypad supports 12-24V AC/DC universal power, eliminating the need for special programming or jumpers. It wires into a power supply (sold separately) and mounts to the wall with the included screws and back box. In case of a power outage, all your data is stored and reliably retained in the keypad's non-volatile EEPROM memory. CONTENTS: Keypad, Back Box, (4) Screws, Diode, Manual. NOTE: Install indoors only; not for outdoor use. Proximity cards/tags are sold separately.
Product Features
- 12-button illuminated keypad with stainless-steel face
- Built-in card reader works with any 125kHz proximity cards/tags
- Three outputs: two relay, one transistor ground
- Supports 1,000 users (4-8 digit codes) for primary output
- Egress input allows exit without code/card entry
- 12-button illuminated keypad with stainless-steel face
- Built-in card reader works with any 125kHz proximity cards/tags
- Three outputs: two relay, one transistor ground
- Supports 1,000 users (4-8 digit codes) for primary output
- Egress input allows exit without code/card entry
More Images
Seco-Larm Enforcer Access Control Keypad with Proximity Reader, Backlit (SK-1131-SPQ)
Seco-Larm Enforcer Access Control Keypad with Proximity Reader, Backlit (SK-1131-SPQ)
With beauty and brains, the Seco-Larm Enforcer Access Control Keypad (Indoor with Proximity Reader) is a versatile keypad and card reader that looks good and works well anywhere indoors. The backlit keypad glows soft blue and its stainless steel faceplate makes for a sleek, classy trim around the edges. The built-in proximity card reader works with any Seco-Larm 125kHz proximity cards or tags (sold separately). The keypad features two 1-Amp relay outputs, plus a transistor ground output, giving you the flexibility to wire into any nearly access control device. With three outputs, the keypad can be programmed for up to 1,200 users total -- 1,000 for the primary output, and 100 for each of the other two outputs. Authorized users can be easily added and deleted, allowing you to provide temporary access to guests. FEATURES: 4 programmable access modes for all 3 outputs: Card only, Code only, Card and common user code, Card and unique user code. Optional door open alarm. Trigger auto-lockout or duress output after 5-10 unsuccessful attempts. Duress Output: Signals a silent alarm if an authorized user is forced to open the door under duress. Alarm Output: Triggers an optional alarm control panel if door is forced open. Keypad Active Output: Activates for 10 seconds when any key on the keypad is pressed to trigger a DVR, turn on a light, etc. Egress Input: Lets users exit without using a code/card. Mantrap: For a protected area with two doors, this feature allows only one door to be open at a time. The keypad supports 12-24V AC/DC universal power, eliminating the need for special programming or jumpers. It wires into a power supply (sold separately) and mounts to the wall with the included screws and back box. In case of a power outage, all your data is stored and reliably retained in the keypad's non-volatile EEPROM memory. CONTENTS: Keypad, Back Box, (4) Screws, Diode, Manual. NOTE: Install indoors only; not for outdoor use. Proximity cards/tags are sold separately.
Product Features
- 12-button illuminated keypad with stainless-steel face
- Built-in card reader works with any 125kHz proximity cards/tags
- Three outputs: two relay, one transistor ground
- Supports 1,000 users (4-8 digit codes) for primary output
- Egress input allows exit without code/card entry
- 12-button illuminated keypad with stainless-steel face
- Built-in card reader works with any 125kHz proximity cards/tags
- Three outputs: two relay, one transistor ground
- Supports 1,000 users (4-8 digit codes) for primary output
- Egress input allows exit without code/card entry
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Seco-Larm Enforcer Access Control Keypad with Proximity Reader, Backlit (SK-1131-SPQ)
With beauty and brains, the Seco-Larm Enforcer Access Control Keypad (Indoor with Proximity Reader) is a versatile keypad and card reader that looks good and works well anywhere indoors. The backlit keypad glows soft blue and its stainless steel faceplate makes for a sleek, classy trim around the edges. The built-in proximity card reader works with any Seco-Larm 125kHz proximity cards or tags (sold separately). The keypad features two 1-Amp relay outputs, plus a transistor ground output, giving you the flexibility to wire into any nearly access control device. With three outputs, the keypad can be programmed for up to 1,200 users total -- 1,000 for the primary output, and 100 for each of the other two outputs. Authorized users can be easily added and deleted, allowing you to provide temporary access to guests. FEATURES: 4 programmable access modes for all 3 outputs: Card only, Code only, Card and common user code, Card and unique user code. Optional door open alarm. Trigger auto-lockout or duress output after 5-10 unsuccessful attempts. Duress Output: Signals a silent alarm if an authorized user is forced to open the door under duress. Alarm Output: Triggers an optional alarm control panel if door is forced open. Keypad Active Output: Activates for 10 seconds when any key on the keypad is pressed to trigger a DVR, turn on a light, etc. Egress Input: Lets users exit without using a code/card. Mantrap: For a protected area with two doors, this feature allows only one door to be open at a time. The keypad supports 12-24V AC/DC universal power, eliminating the need for special programming or jumpers. It wires into a power supply (sold separately) and mounts to the wall with the included screws and back box. In case of a power outage, all your data is stored and reliably retained in the keypad's non-volatile EEPROM memory. CONTENTS: Keypad, Back Box, (4) Screws, Diode, Manual. NOTE: Install indoors only; not for outdoor use. Proximity cards/tags are sold separately.
Product Features
- 12-button illuminated keypad with stainless-steel face
- Built-in card reader works with any 125kHz proximity cards/tags
- Three outputs: two relay, one transistor ground
- Supports 1,000 users (4-8 digit codes) for primary output
- Egress input allows exit without code/card entry
- 12-button illuminated keypad with stainless-steel face
- Built-in card reader works with any 125kHz proximity cards/tags
- Three outputs: two relay, one transistor ground
- Supports 1,000 users (4-8 digit codes) for primary output
- Egress input allows exit without code/card entry
