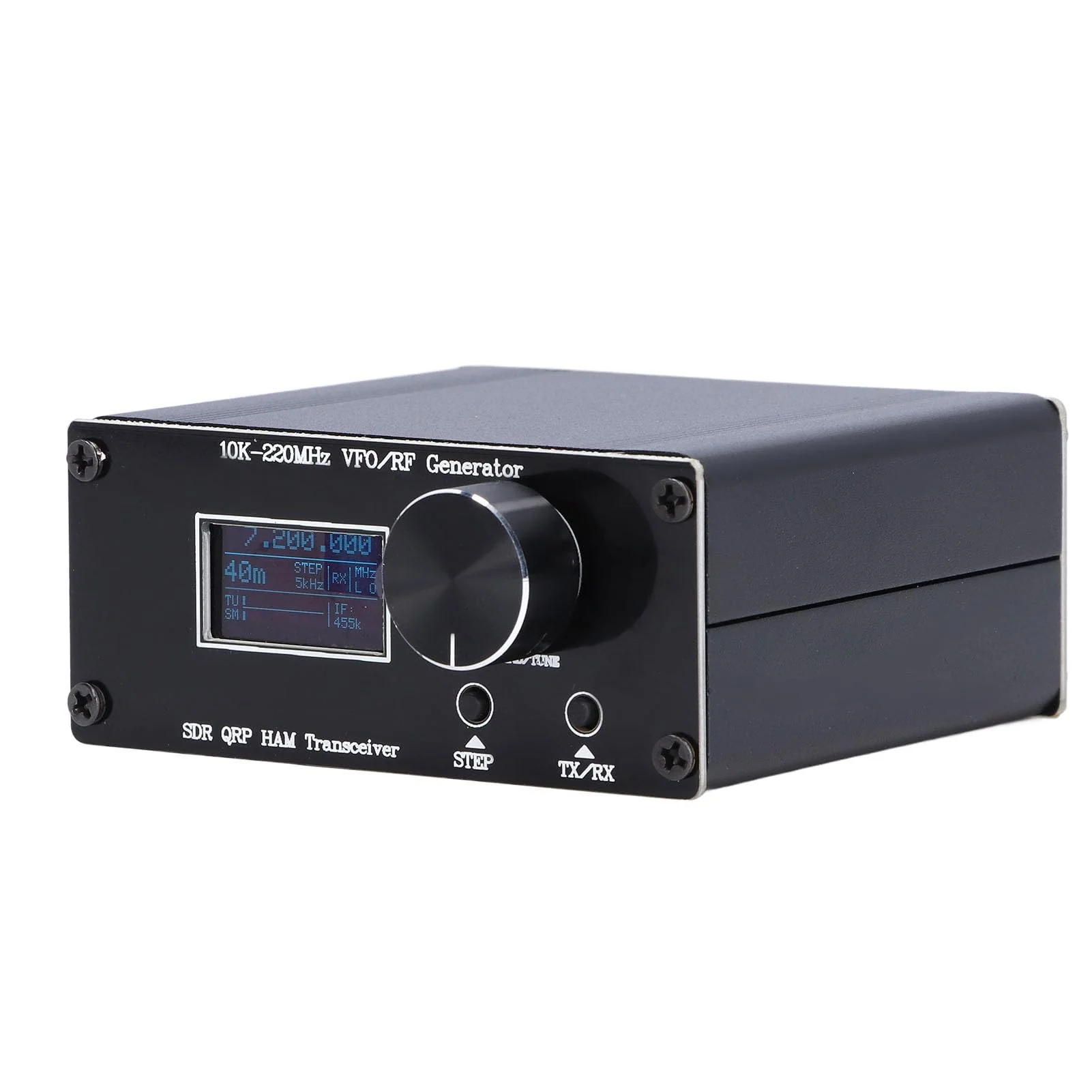

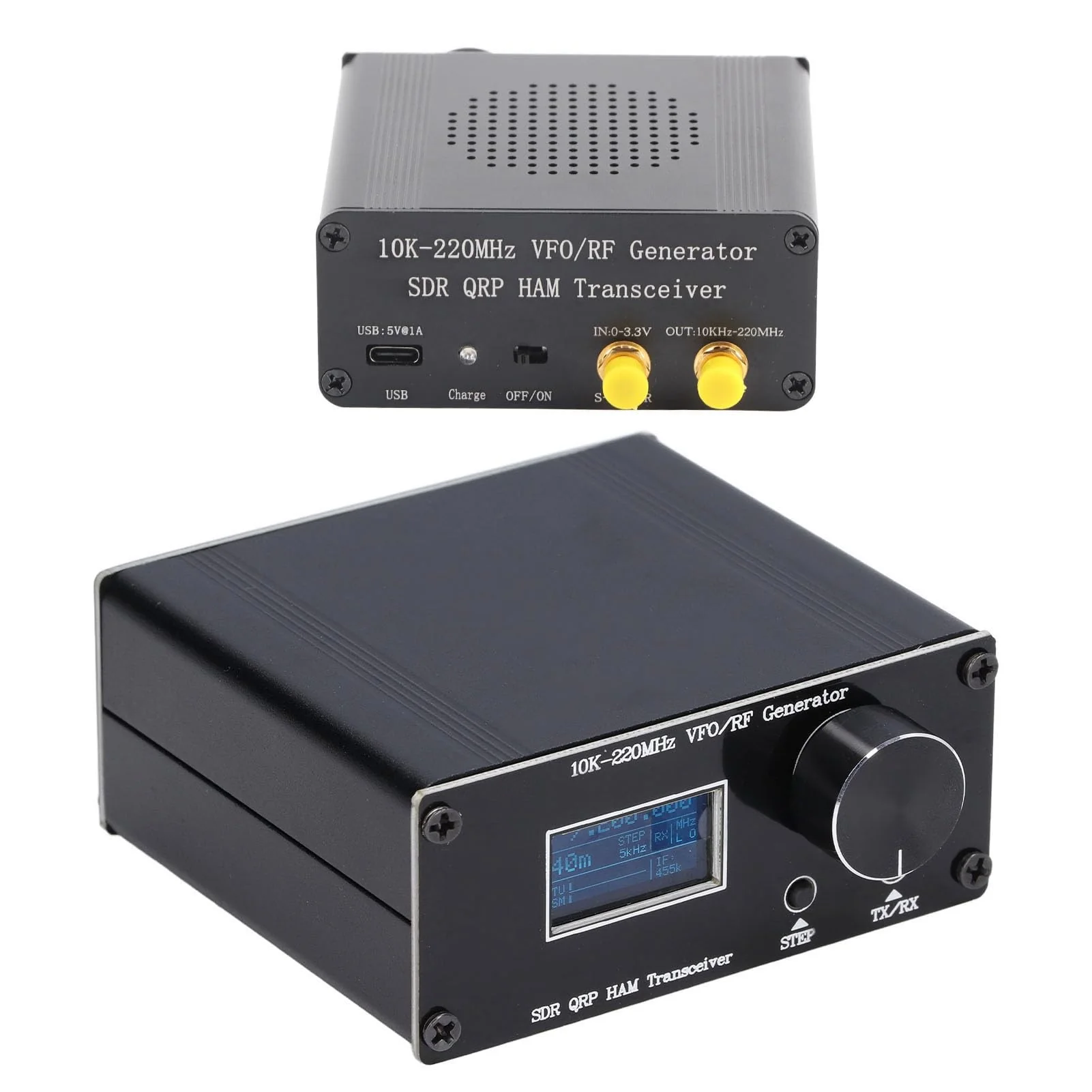

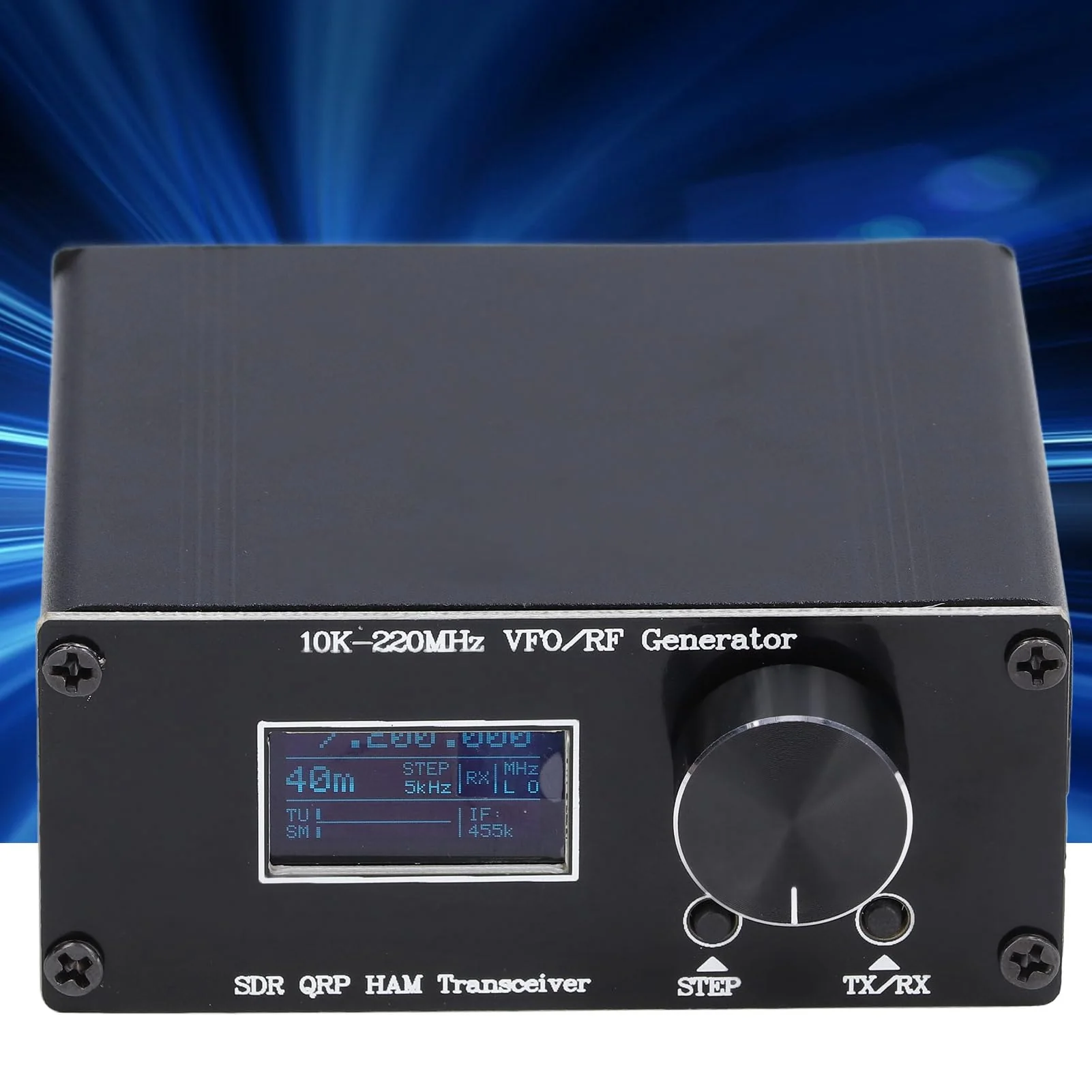

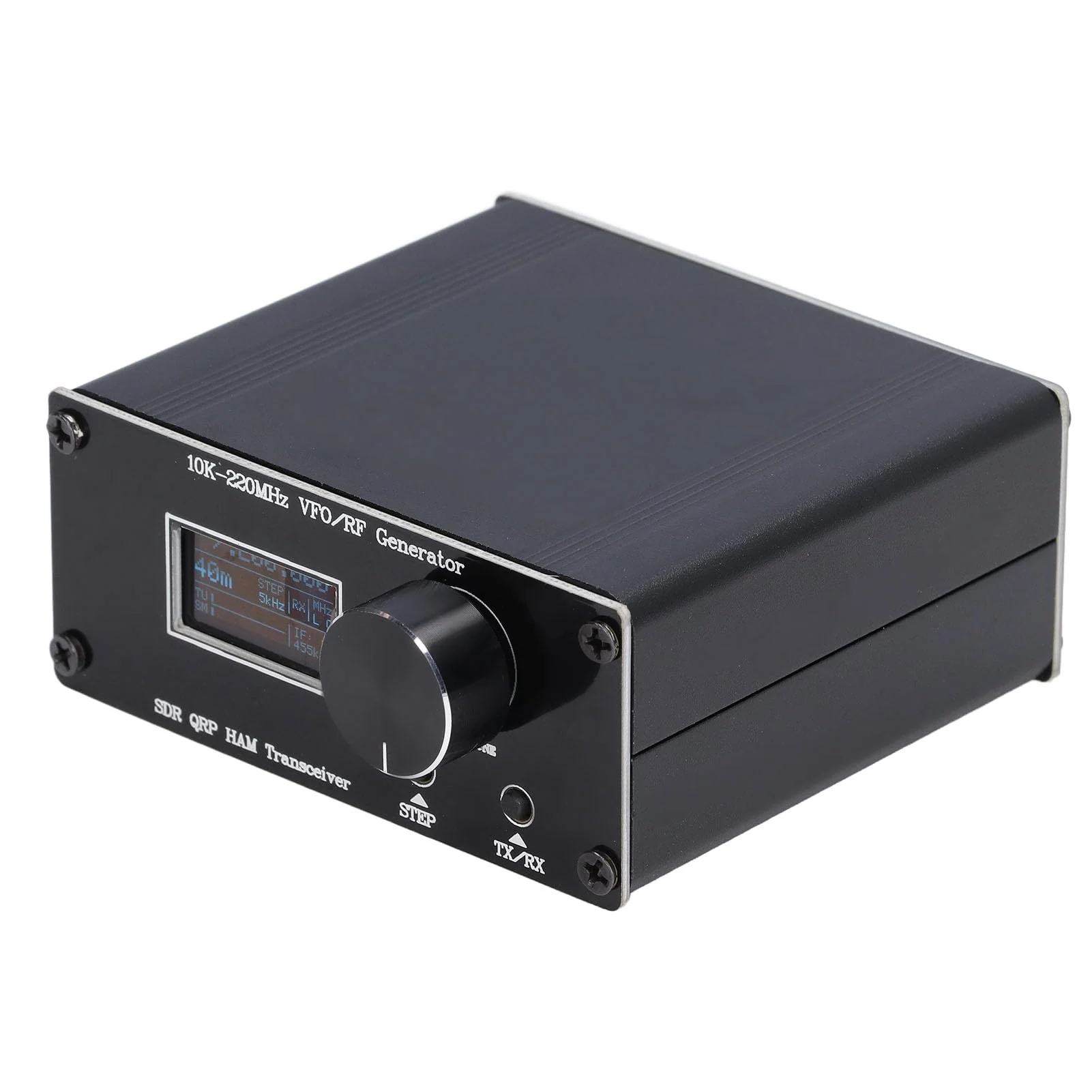

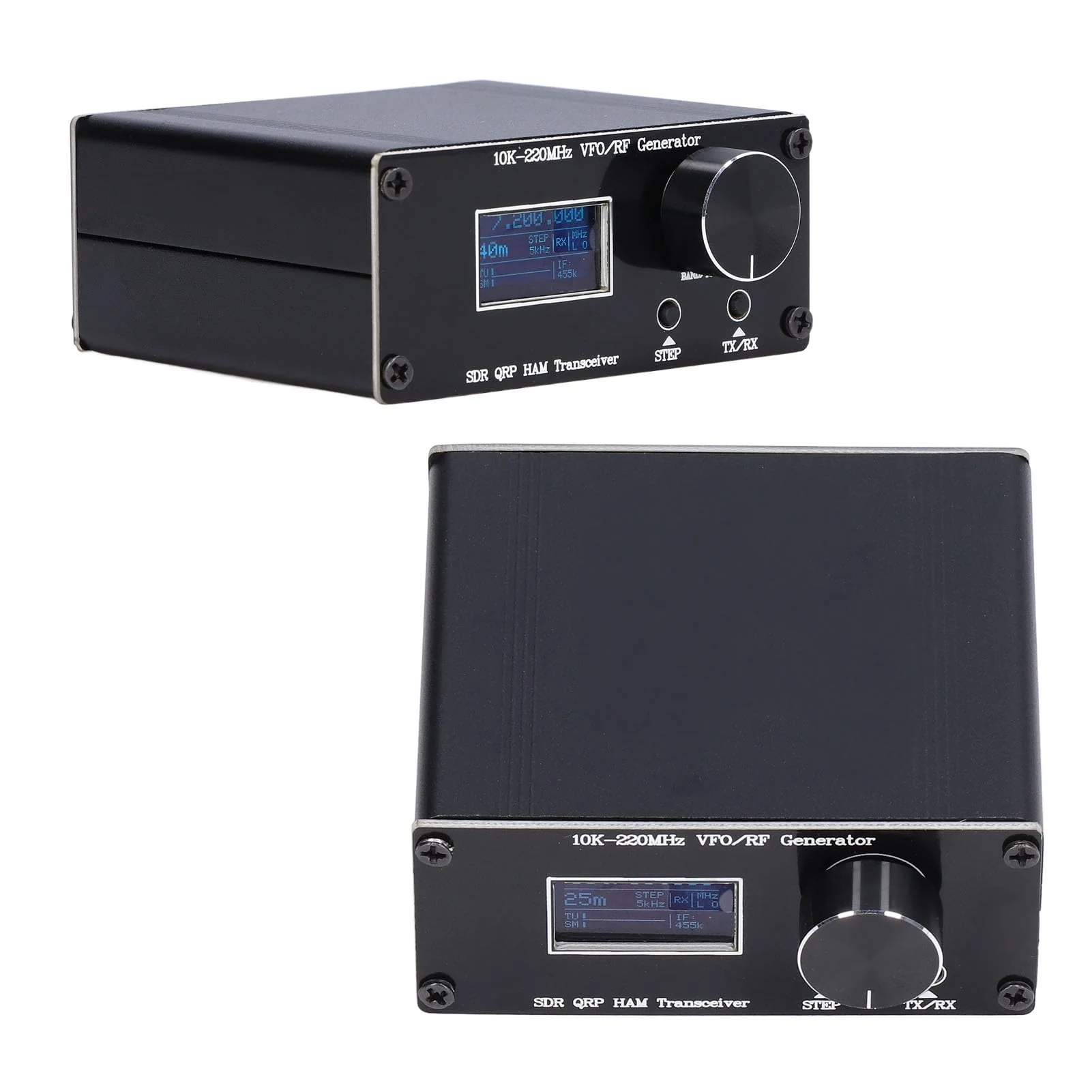

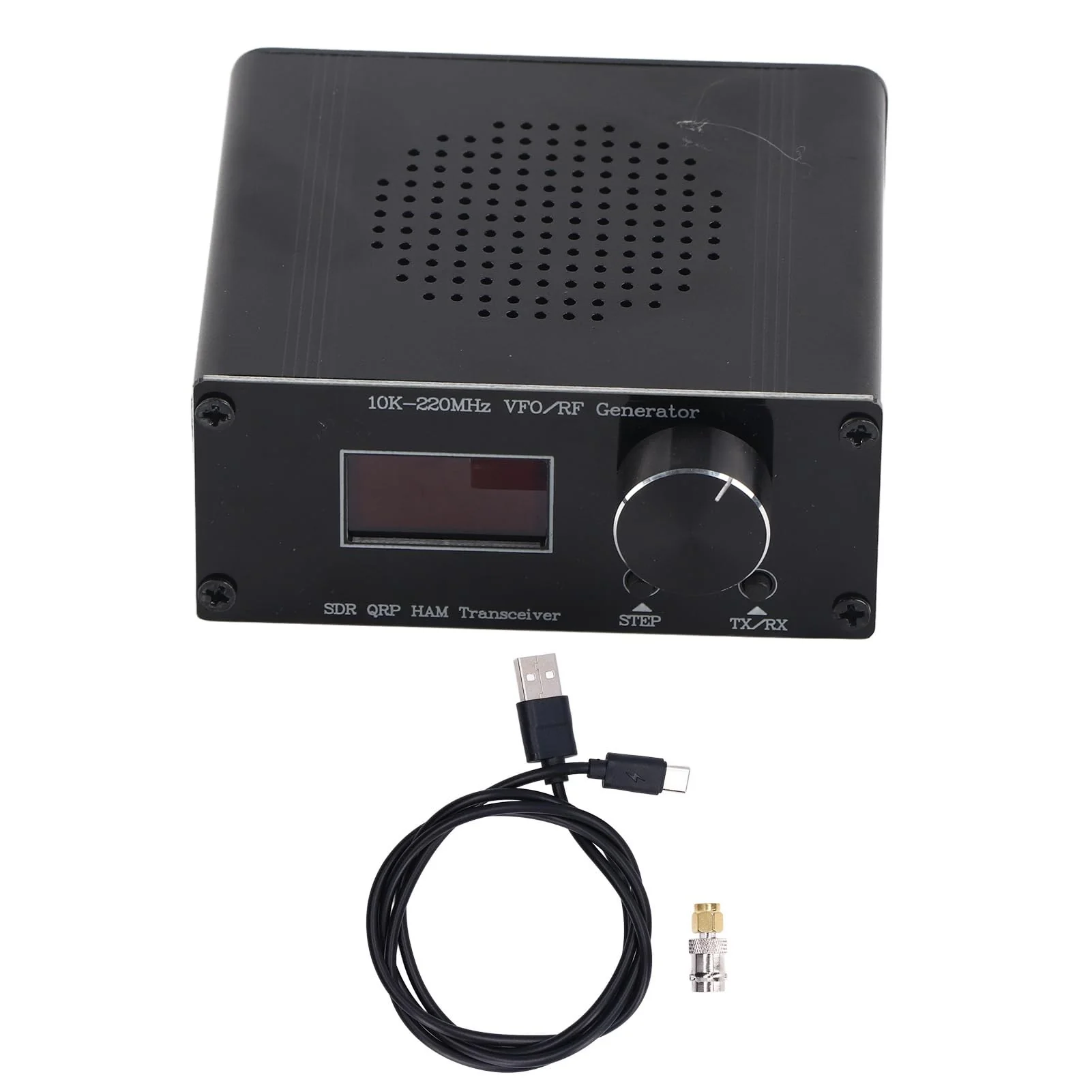

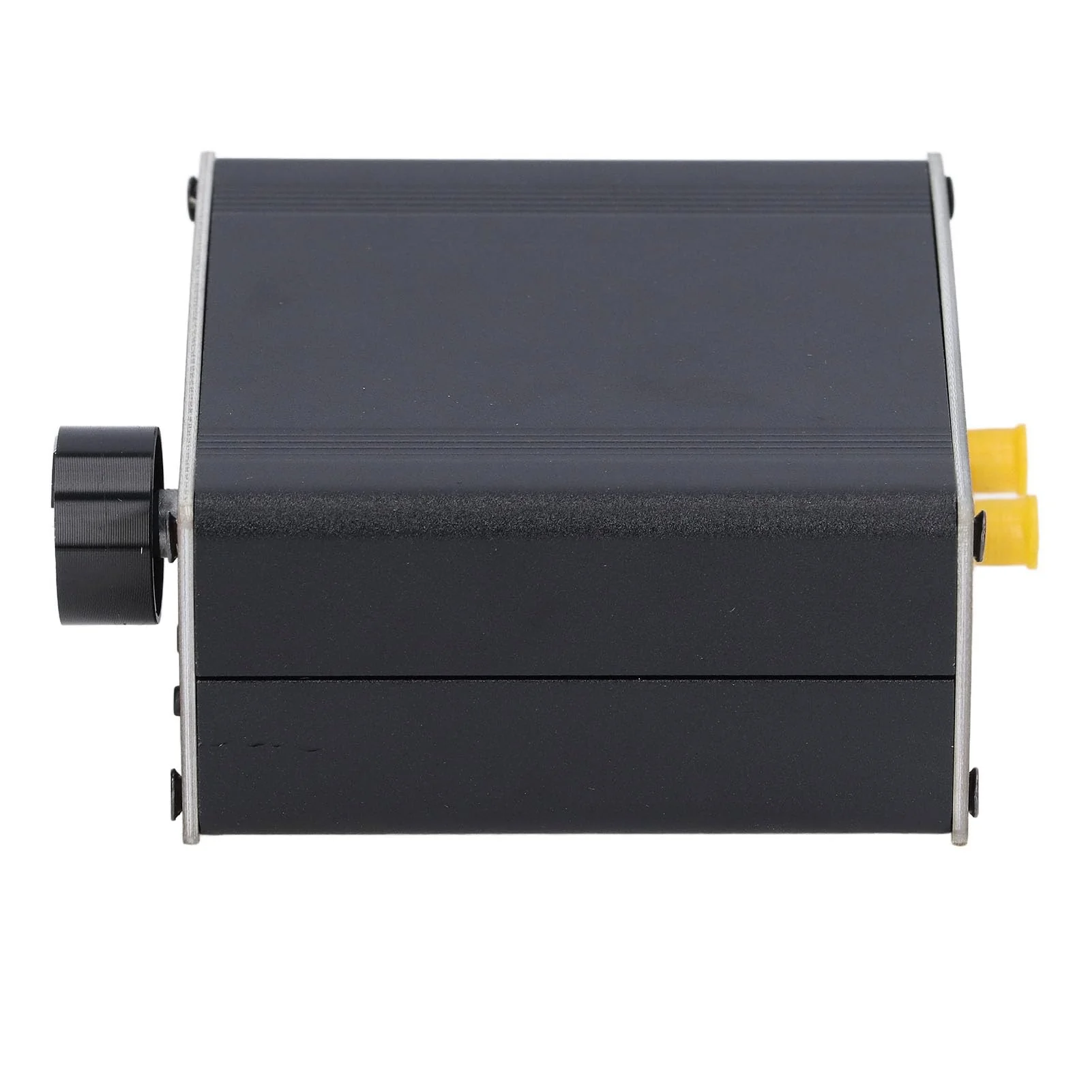

Technical data: Item Type:SDR QRP RF Transceiver Working range: 10 kHz to 220 MHz Tuning step size: 1 Hz, 10 Hz, 1 kHz, 5 kHz, 10 kHz and 1 MHz Intermediate frequency (IF): 455 kHz. 20 band presets: BCB and HAM frequencies (shortcuts) Mode: Generator function mode RX OR TX mode selection: For Homebrew QRP transceivers Bar chart of the signal meter via analogue input (ADC). Uses: 1. Used as a local oscillator for homebrew radio receivers (such as superheterodyn, SDR, direct conversion and for Homebrew QRP transceiver). 2. Used as a simple RF/clock generator for calibration reference or clock generation 3. Can be used with Pro Mini Universal 128 x 64 I2C for OLED display and Si5351 module. Transmission: I2C data transfer, only 2 wires are required to connect the display or Si5351 Battery information: 3.7V lithium battery, 600mAh How to use: List of packages 1 x SDR QRP RF transceiver. 1 x USB data cable. 1 x plug. Note: You need to read the parameters carefully before making a purchase.
Product Features
- Bar Chart Equipped with a bar graph (S-meter) of strength and 20 preset bands, it can also be used as an RF or clock generator.
- 10 kHz to 220 MHz Operating Range: The operating range is 10 kHz to 220 MHz and is available for Pro Mini. Power indicator and Si5351 module with 128 x 64 I2C for general purpose

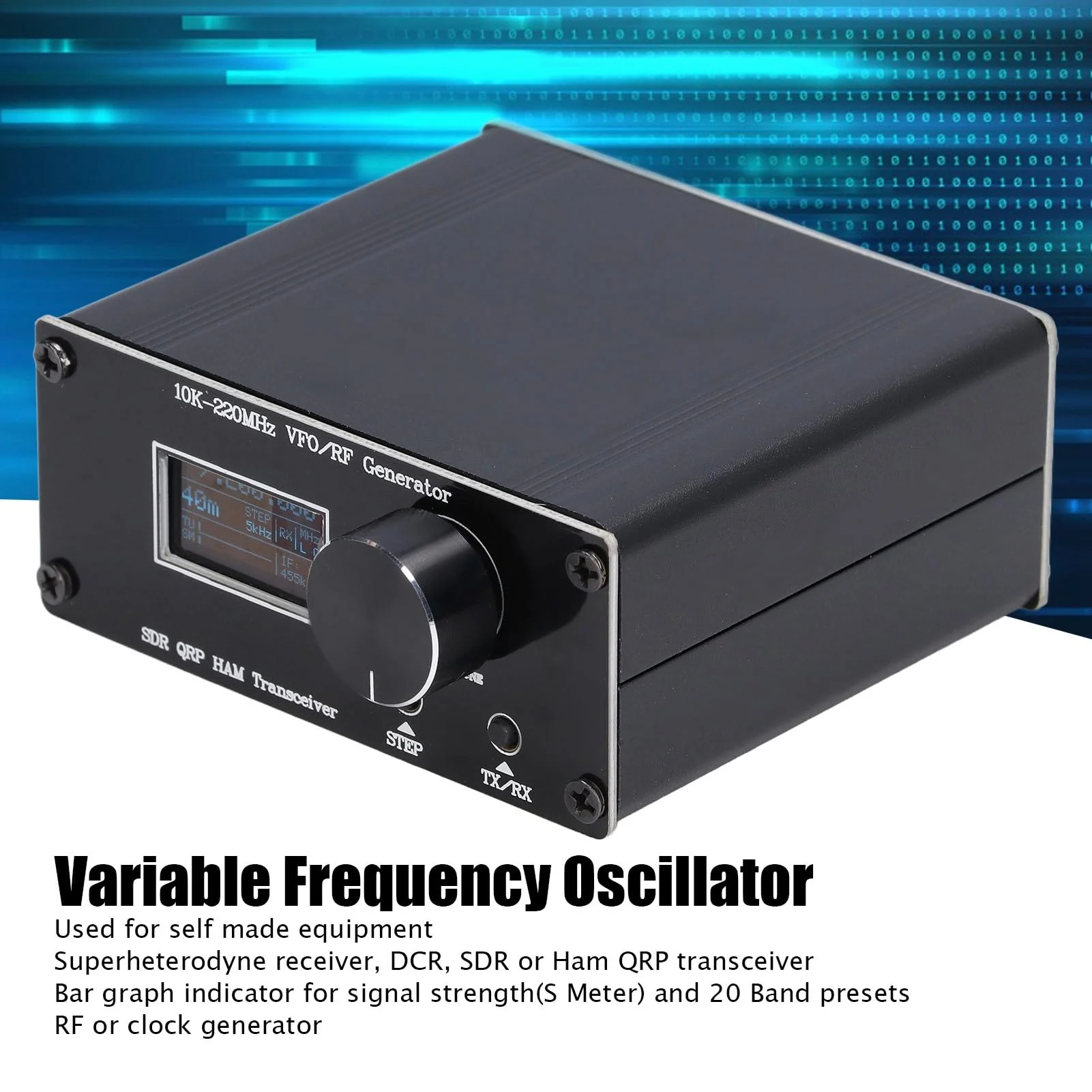

- DIY Devices: This is a VFO design (variable frequency oscillator), which can be used for DIY equipment such as super heterodyne receiver, DCR, SDR and Ham QRP transceiver.
- High stability and accuracy: frequency generation with high stability and accuracy, simple but very efficient and .
- Easy cable connection: supports I2C data transmission. Only 2 cables are needed to connect the display or Si5351, which is very convenient.
Original: $196.31
-65%$196.31
$68.71More Images
