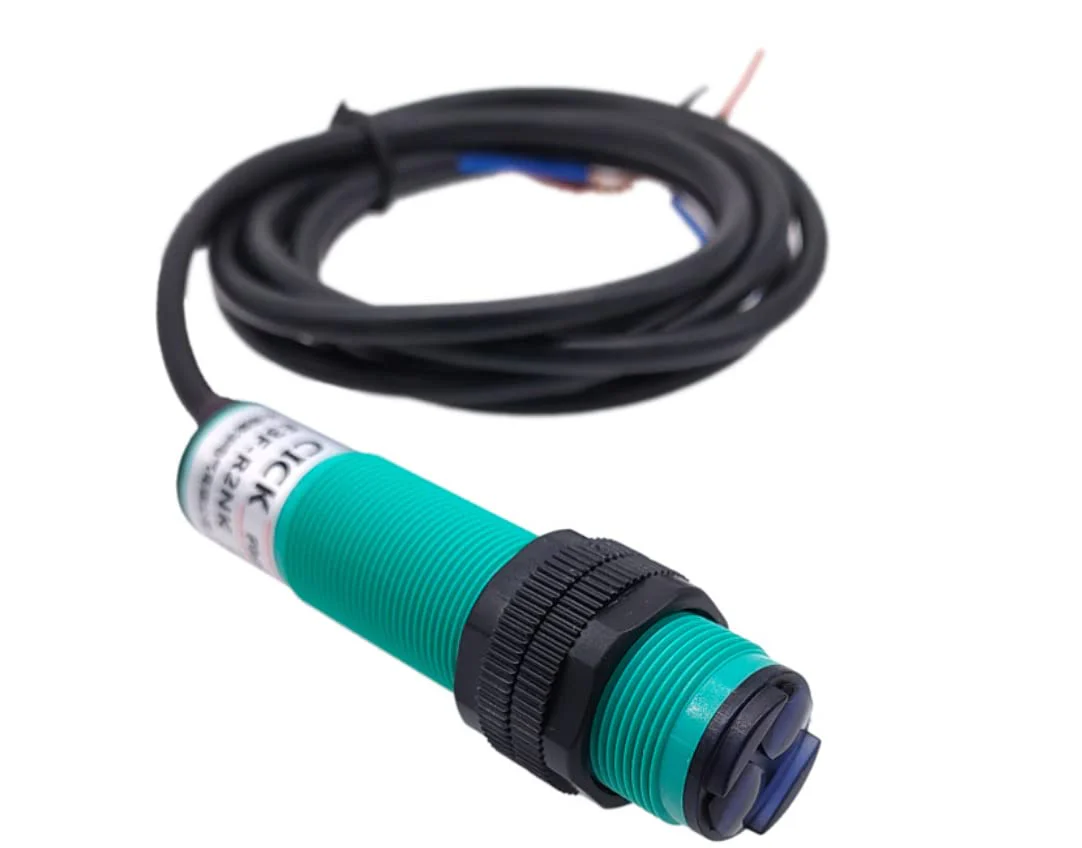

Reflector Photoelectric Sensor 6-36 Volt DC NPN NC, Diameter 18 mm Light Barrier with Mirror IR Photoelectric Sensor up to 2 Metres (Reflection Light Barrier, 2 Metres, Diameter 18 mm, NPN NC)
Reflector Photoelectric Sensor 6-36 Volt DC NPN NC, Diameter 18 mm Light Barrier with Mirror IR Photoelectric Sensor up to 2 Metres (Reflection Light Barrier, 2 Metres, Diameter 18 mm, NPN NC)
Reflector Photoelectric Sensor 6-36 Volt DC NPN NC, Diameter 18 mm Light Barrier with Mirror IR Photoelectric Sensor up to 2 Metres (Reflection Light Barrier, 2 Metres, Diameter 18 mm, NPN NC)

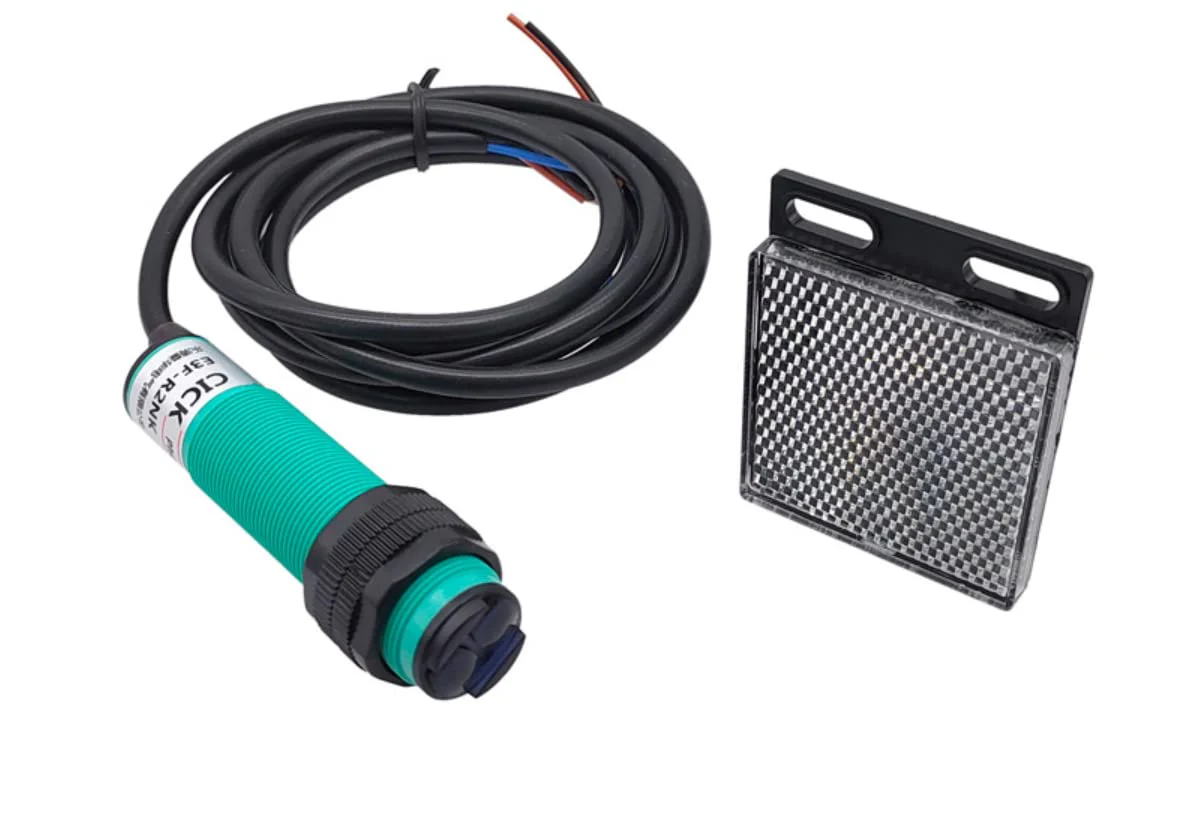

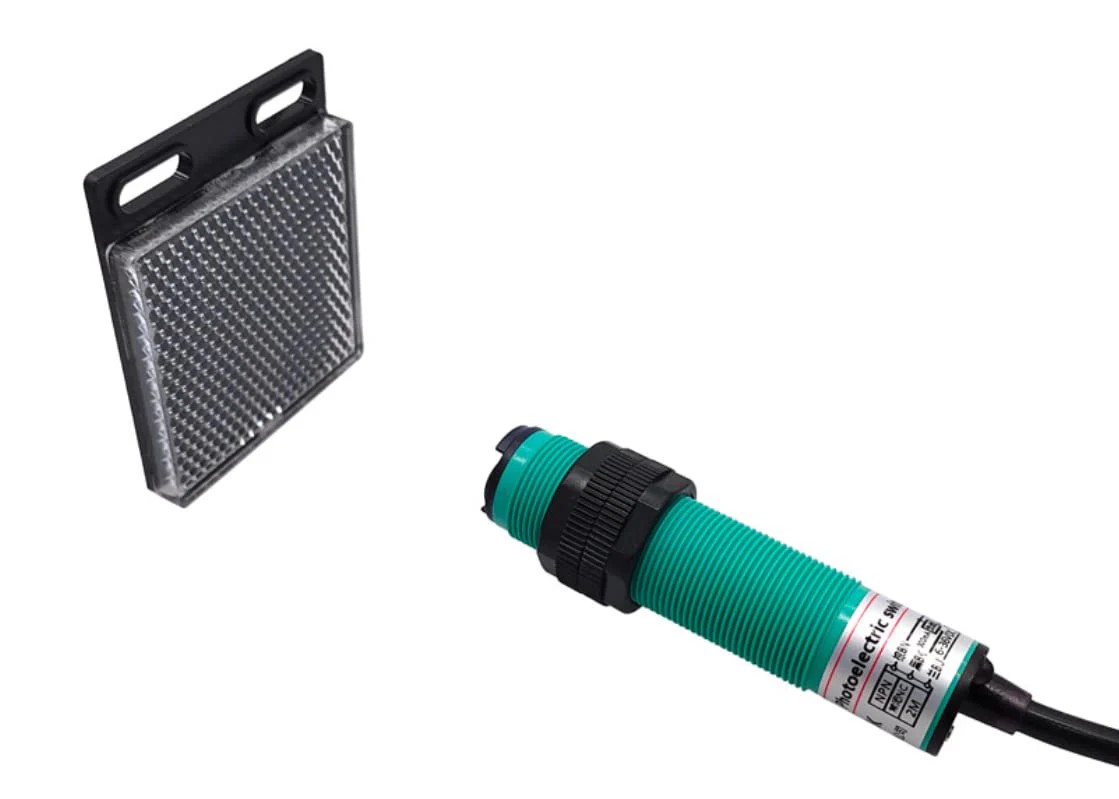

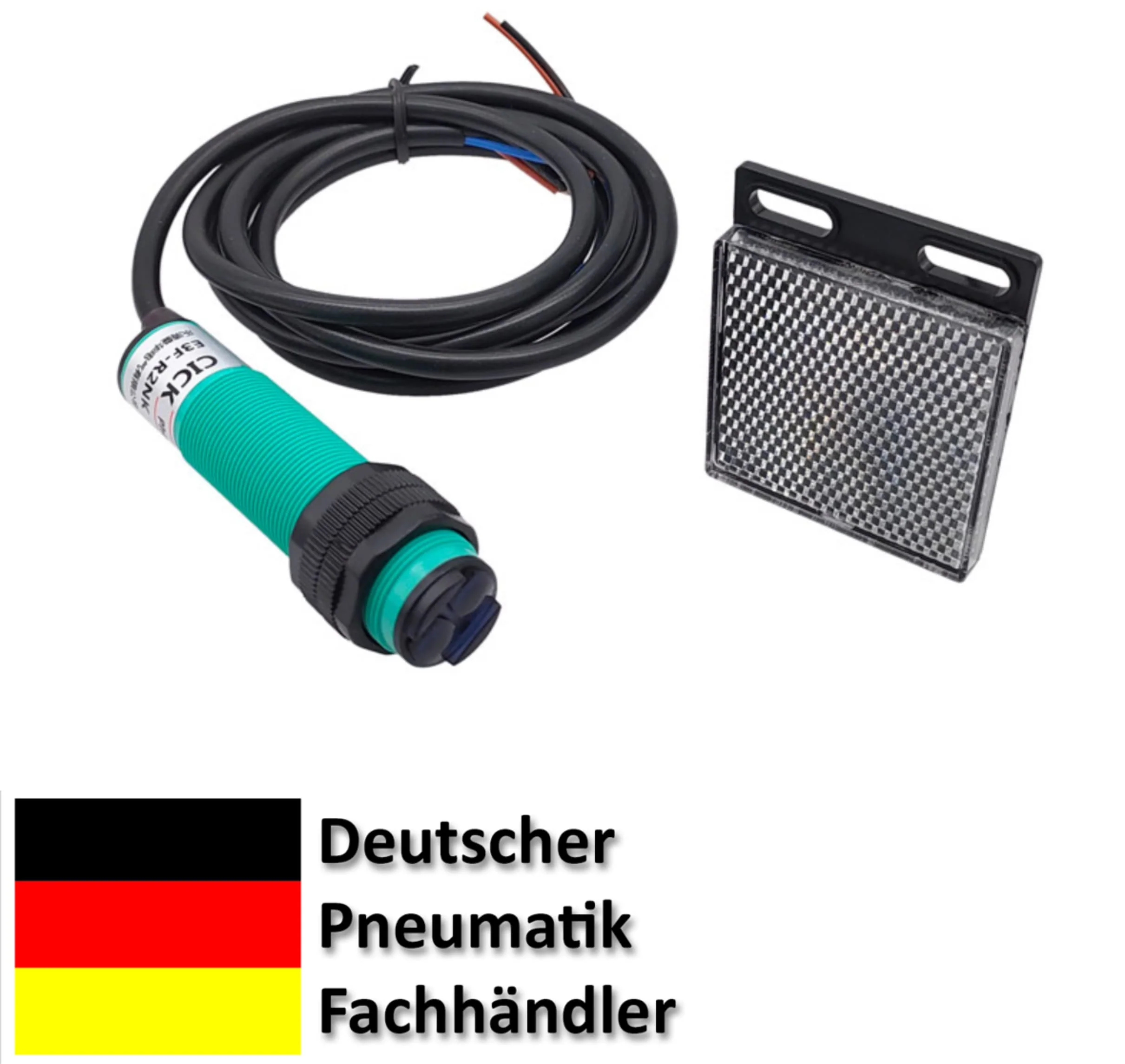

This light barrier emits an infrared beam that is thrown back by the included reflector and detected by the light barrier. If the beam is interrupted, the light barrier switches the signal. The maximum distance to the reflector may be 2 metres. The use of high-quality IR diodes ensures safe operation. Even in the dark or sunlight, the infrared light barrier is ideal for your application. Compact, impact-resistant ABS housing with a length of 76 mm and a diameter of 18 mm. This means that the light barrier can also be placed in fence posts or small niches. Whether home, garden or industry, our light barrier covers a huge range of applications. It can be used as a signal transmitter for garage doors, passages or even in home and industrial automation. Technical data: range max. 2 metres, operating voltage 6 to 36 V, response time 30 ms, operating temperature -20 °C to 65 °C, 3-core connection cable 140 cm. Switching status indicator via LED. German dealer, you will receive an invoice with VAT.
Product Features
- Magnetic light switch with this photoelectric sensor, the transmitter and receiver are in the same housing. The light emitted by the emitter falls on the reflector and is reflected, the receiver captures the reflected light and emits a signal. The light barrier has a range of maximum 200 cm.
- Reliable and safe the reflector light barrier has a response time of only 2 ms. It is also resistant to light radiation. The signal is output as NPN-NO signal (Closer). The sensitivity can be precisely adjusted by means of potentiometer for the respective application. The operating voltage is 6 to 36 V DC, operating temperature -20 C to 65 C. Max. Output power: 100 mA, protection class IP66.

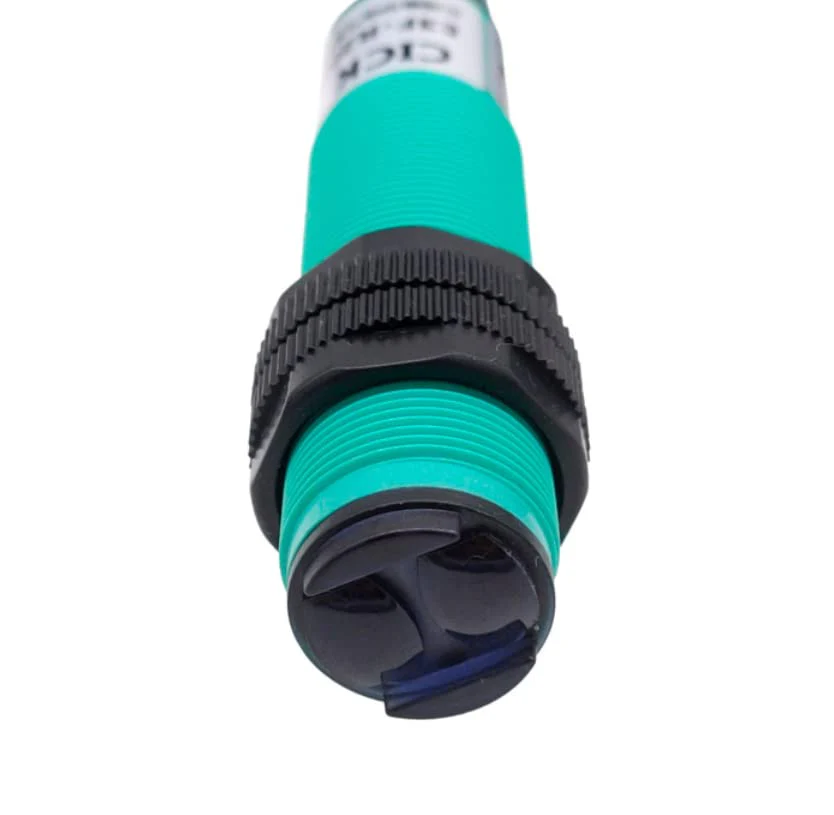

- Robust The housing of the infrared sensor is made of impact-resistant plastic and equipped with an M18 x 1 thread. The connection is made via a 140 cm long, 3-core connection cable. Two M18 plastic nuts are included for attachment.
- Reliable use: operating voltage 6 to 36 V DC, NC (opener), output NPN, operating temperature -20 C to 65 C, max. Switching load 100 mA, detection range 2 m, diameter 18 mm x 76 mm, 3-core connection cable 140 cm.
- 30-DAY RETURNS Are you not 100% satisfied with our sensor? Then send the inductive proximity switch back free of charge and you will receive your money back without ifs and buts. No risk! Headquartered in Germany.
More Images
Reflector Photoelectric Sensor 6-36 Volt DC NPN NC, Diameter 18 mm Light Barrier with Mirror IR Photoelectric Sensor up to 2 Metres (Reflection Light Barrier, 2 Metres, Diameter 18 mm, NPN NC)
Reflector Photoelectric Sensor 6-36 Volt DC NPN NC, Diameter 18 mm Light Barrier with Mirror IR Photoelectric Sensor up to 2 Metres (Reflection Light Barrier, 2 Metres, Diameter 18 mm, NPN NC)
This light barrier emits an infrared beam that is thrown back by the included reflector and detected by the light barrier. If the beam is interrupted, the light barrier switches the signal. The maximum distance to the reflector may be 2 metres. The use of high-quality IR diodes ensures safe operation. Even in the dark or sunlight, the infrared light barrier is ideal for your application. Compact, impact-resistant ABS housing with a length of 76 mm and a diameter of 18 mm. This means that the light barrier can also be placed in fence posts or small niches. Whether home, garden or industry, our light barrier covers a huge range of applications. It can be used as a signal transmitter for garage doors, passages or even in home and industrial automation. Technical data: range max. 2 metres, operating voltage 6 to 36 V, response time 30 ms, operating temperature -20 °C to 65 °C, 3-core connection cable 140 cm. Switching status indicator via LED. German dealer, you will receive an invoice with VAT.
Product Features
- Magnetic light switch with this photoelectric sensor, the transmitter and receiver are in the same housing. The light emitted by the emitter falls on the reflector and is reflected, the receiver captures the reflected light and emits a signal. The light barrier has a range of maximum 200 cm.
- Reliable and safe the reflector light barrier has a response time of only 2 ms. It is also resistant to light radiation. The signal is output as NPN-NO signal (Closer). The sensitivity can be precisely adjusted by means of potentiometer for the respective application. The operating voltage is 6 to 36 V DC, operating temperature -20 C to 65 C. Max. Output power: 100 mA, protection class IP66.
- Robust The housing of the infrared sensor is made of impact-resistant plastic and equipped with an M18 x 1 thread. The connection is made via a 140 cm long, 3-core connection cable. Two M18 plastic nuts are included for attachment.
- Reliable use: operating voltage 6 to 36 V DC, NC (opener), output NPN, operating temperature -20 C to 65 C, max. Switching load 100 mA, detection range 2 m, diameter 18 mm x 76 mm, 3-core connection cable 140 cm.
- 30-DAY RETURNS Are you not 100% satisfied with our sensor? Then send the inductive proximity switch back free of charge and you will receive your money back without ifs and buts. No risk! Headquartered in Germany.
