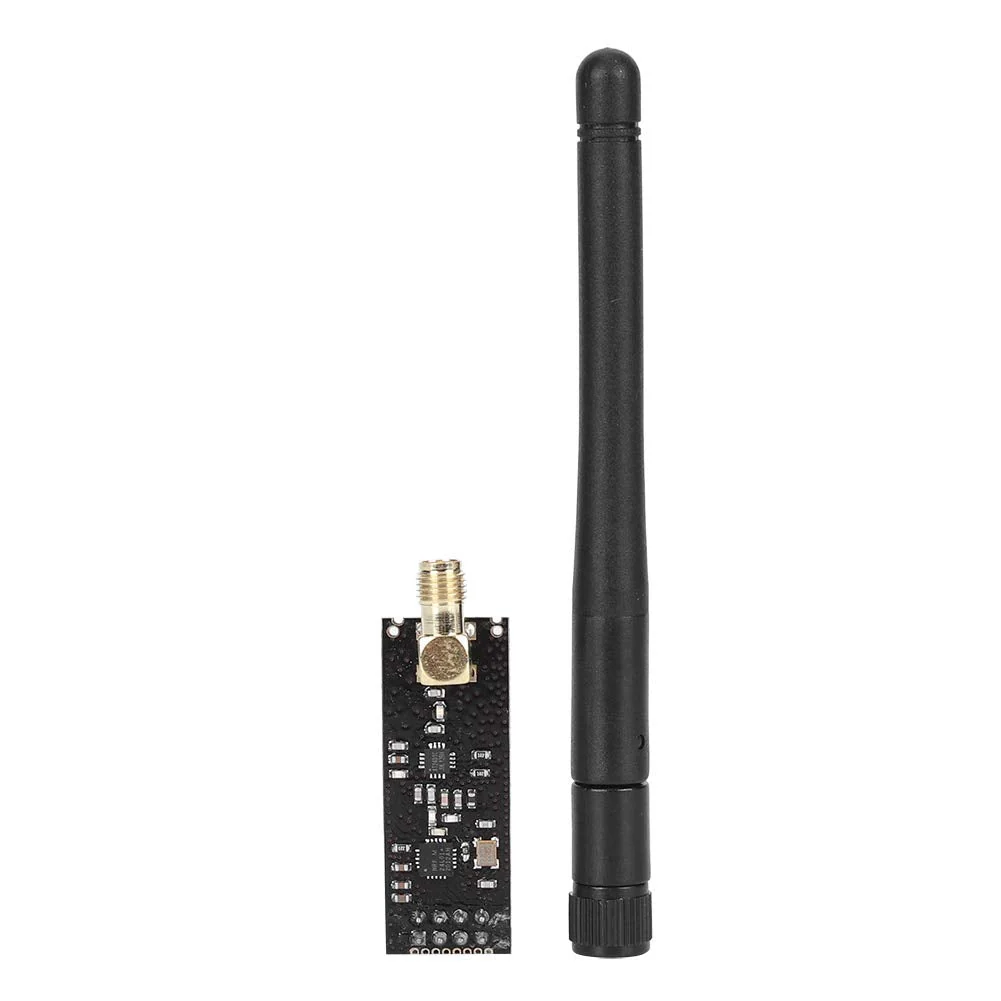

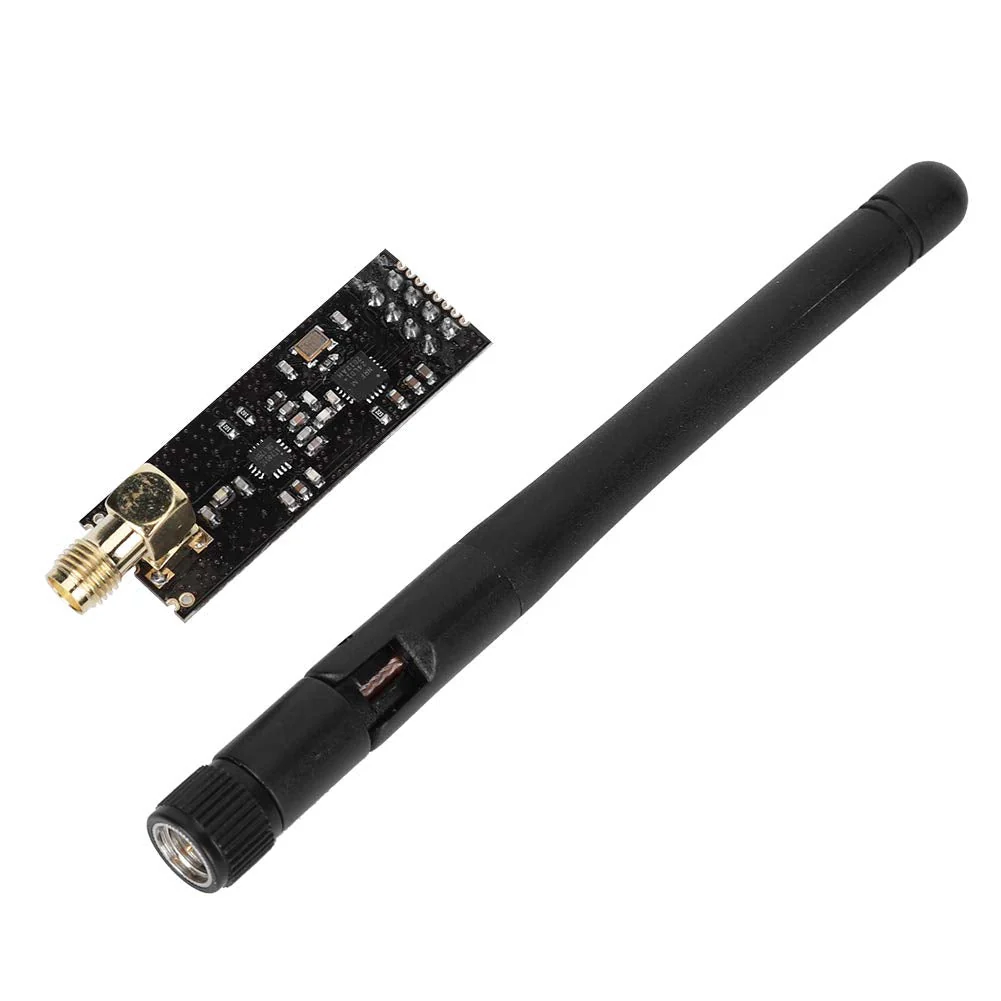

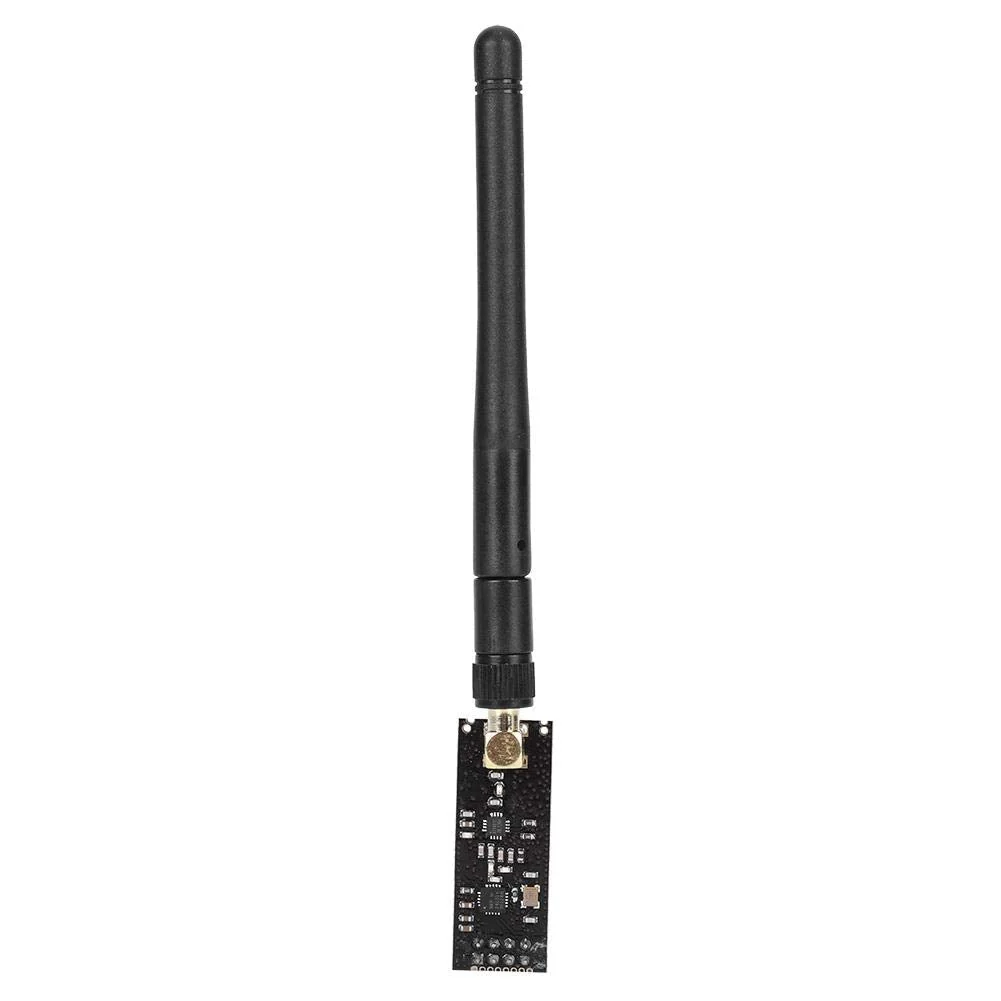

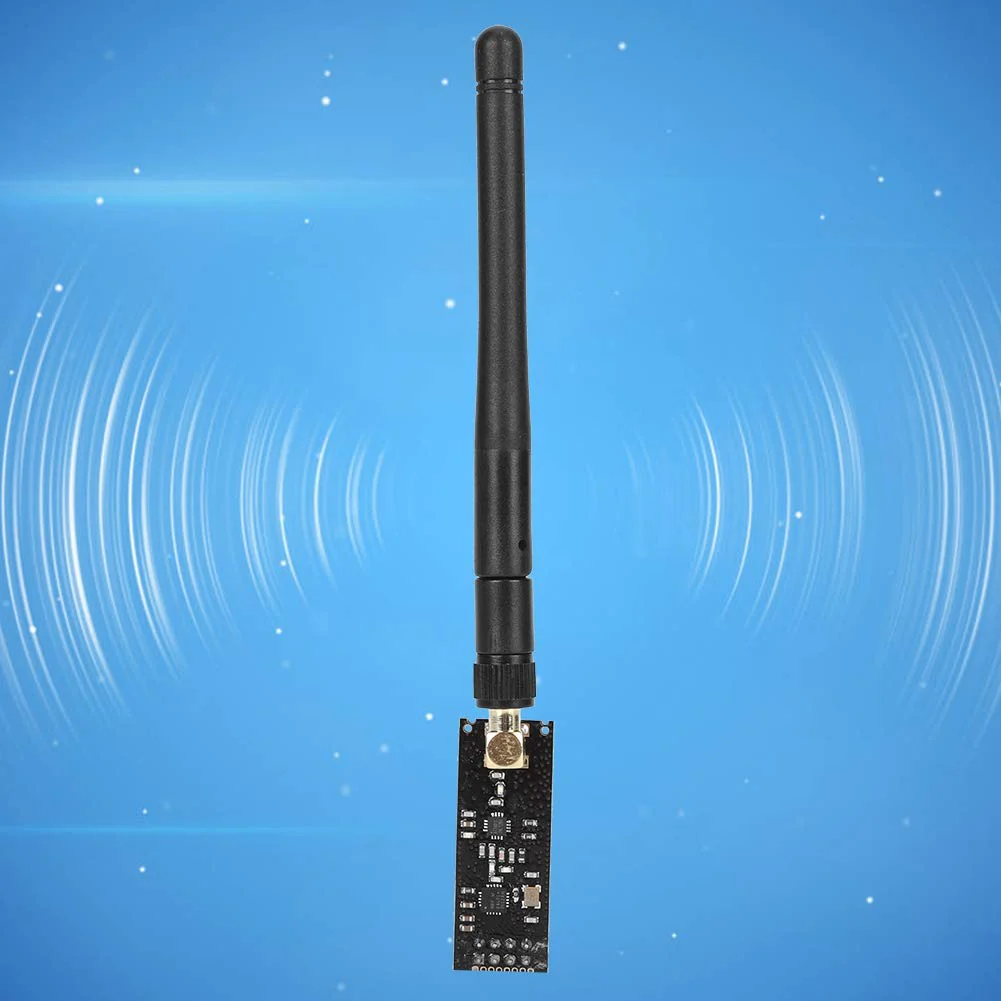

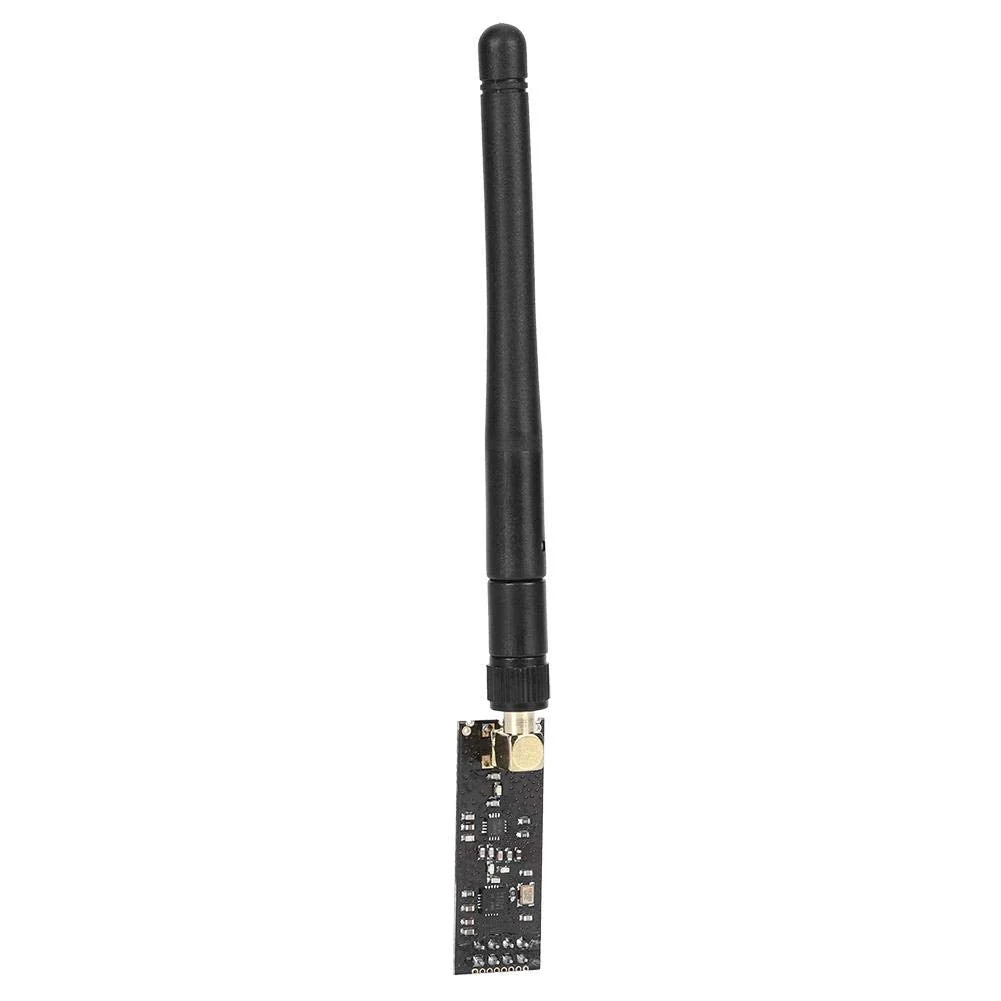

Radio Transceiver Module, Electrical Accessory for Radio Modules NRF24L01 + Power Amplifier + LNA for 1100 Metres, Radio Module NRF24L01 + PA + LNA
Radio Transceiver Module, Electrical Accessory for Radio Modules NRF24L01 + Power Amplifier + LNA for 1100 Metres, Radio Module NRF24L01 + PA + LNA
Radio Transceiver Module, Electrical Accessory for Radio Modules NRF24L01 + Power Amplifier + LNA for 1100 Metres, Radio Module NRF24L01 + PA + LNA

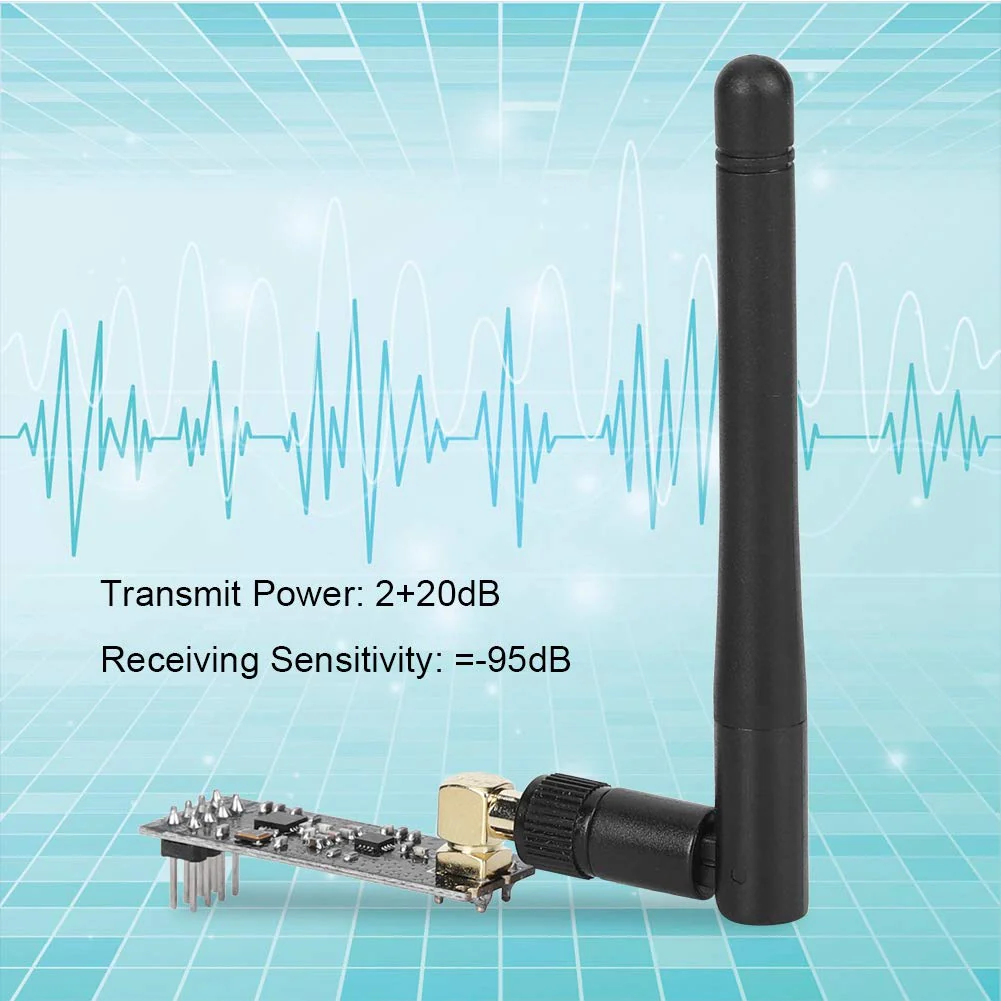

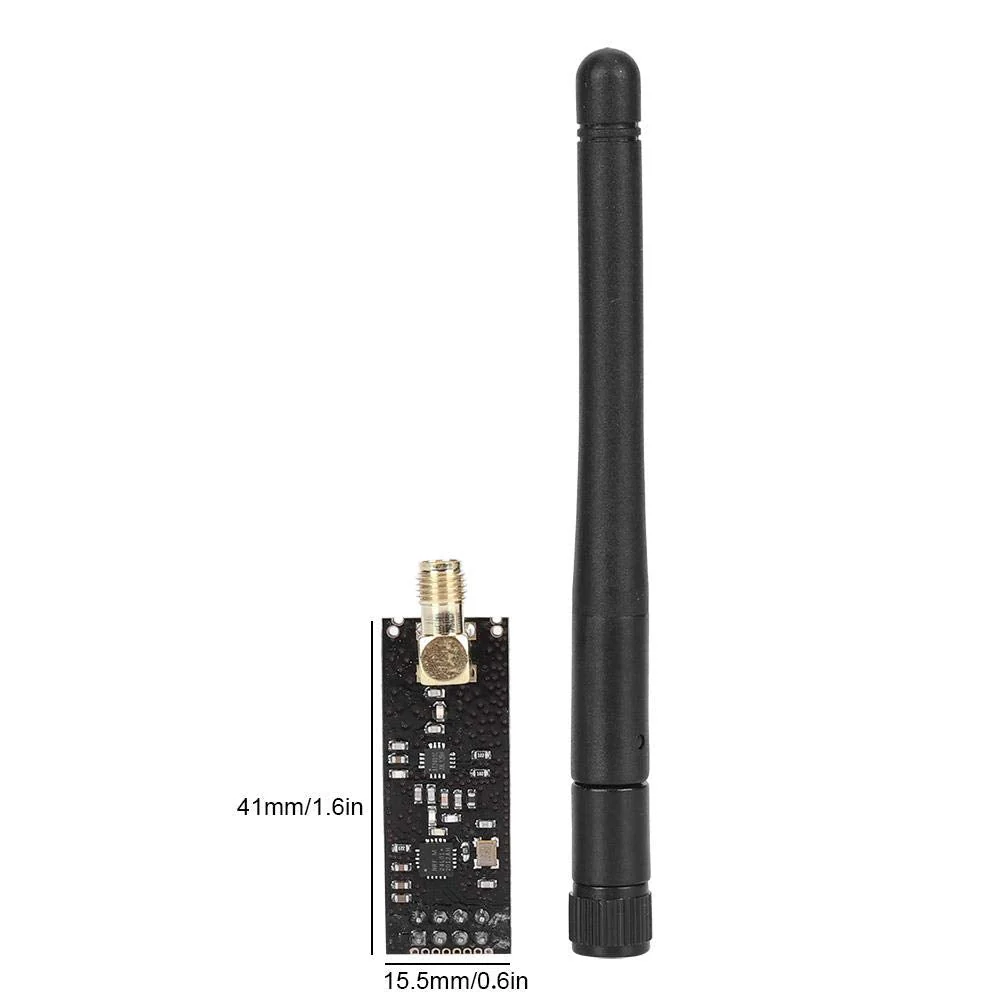

Specification: Item Type: Wireless Module Size: approx. 41 x 15.5 mm / 1.6 x 0.6 inches. Maximum output power: +20 dBm. Working current (peak) in start mode: 115mA Working current in reception mode (peak value): 45 mA. Power off mode: 4.2uA Working Temperature: -20-70℃ Reception sensitivity in 2 Mbps mode: -92 dBm Reception sensitivity in 1 Mbps mode: -95 dBm Reception sensitivity mode for 250 kbit/s: -104 dBm Power amplifier gain: 20 dB. LNA Gain: 10dB LNA noise figure: 2.6 dB. Antenna gain (peak value): 2 dBI At 2 MB rate (open space): 520 metres. Error: approx. ± 0.5 mm / 0.02 inches. Detail Size: Approx. 5 mm / 0.2 inches. Approx. 3.6 mm / 0.14 inches. Approx. 2.54 mm / 0.1 inch spacing. Approx. 1.27 mm / 0.05 inch spacing. Approx. 40.8 mm / 1.6 inches. Approx. 15.3 mm / 0.6 inches. Approx. 3.5 mm / 0.1 inches. Package includes: 1 x radio module. 1 x antenna.
Product Features
- Wireless transceiver module, the wireless module NRF24L01 + power amplifier + LNA is a powerful and highly sensitive wireless data transfer module specially designed for data transmission over ultra-long distances of 1100 metres.
- Wireless transceiver module, the wireless module NRF24L01P + power amplifier + LNA works in the 2.4G frequency band without license and can support point-to-point applications and also form a star network.
- Wireless transceiver, digital transmission chip NRF24L01+, which adds a high-performance amplifier and an LNA chip, a high frequency switch, a bandpass filter, etc. And they form a professional, fully bi-directional RF power amplifier, which greatly extends the effective communication distance.
- Wireless transceiver module, in the high frequency range, many optimisations and adjustments are made to maximise transmission efficiency and keep the harmonics as low as possible. As a result, the NRF24L01P wireless module + power amplifier + LNA has the least radio frequency interference to external devices and is not susceptible to interference from other devices, which greatly improves working stability.

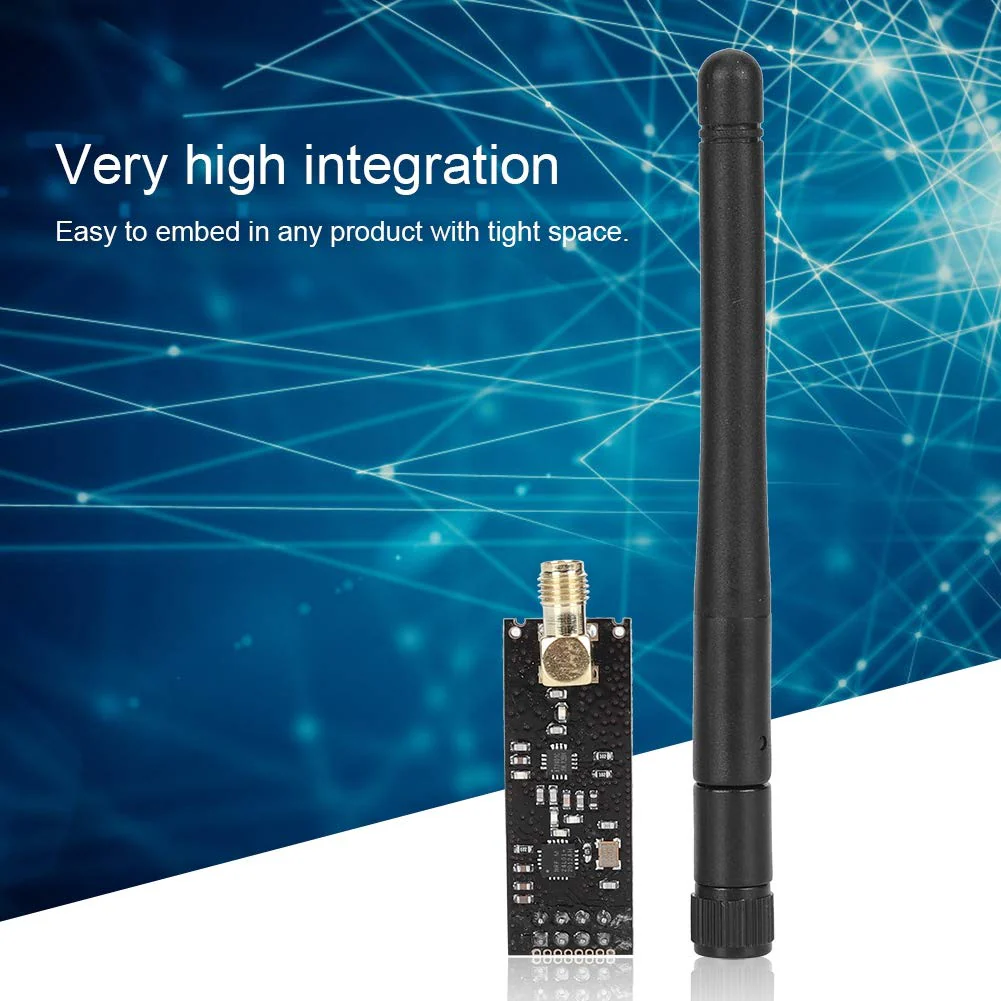

- Wireless transceiver receiver, and the wireless module NRF24L01P + power amplifier + LNA is highly integrated and can be easily embedded in any product with space restrictions. Customers must add a microcontroller unit to control NRF24L01P + power amplifier + LNA via the serial peripheral interface port.
