QUARKZMAN Set of 4 Digital Load Cell Weight Sensor 10 kg + HX711 Module Weighing Sensor 24 Bit Precision A/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit
QUARKZMAN Set of 4 Digital Load Cell Weight Sensor 10 kg + HX711 Module Weighing Sensor 24 Bit Precision A/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit
QUARKZMAN Set of 4 Digital Load Cell Weight Sensor 10 kg + HX711 Module Weighing Sensor 24 Bit Precision A/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit

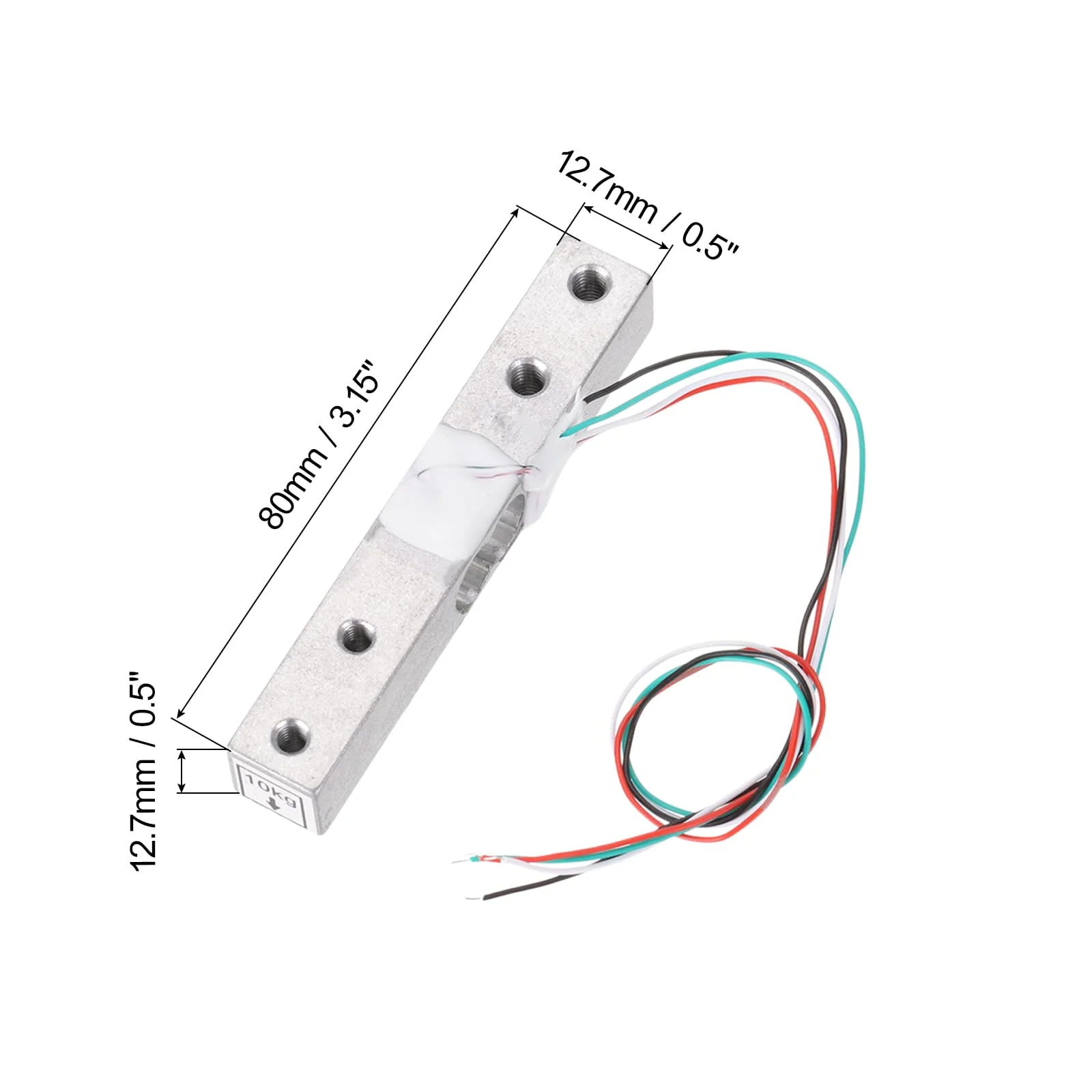

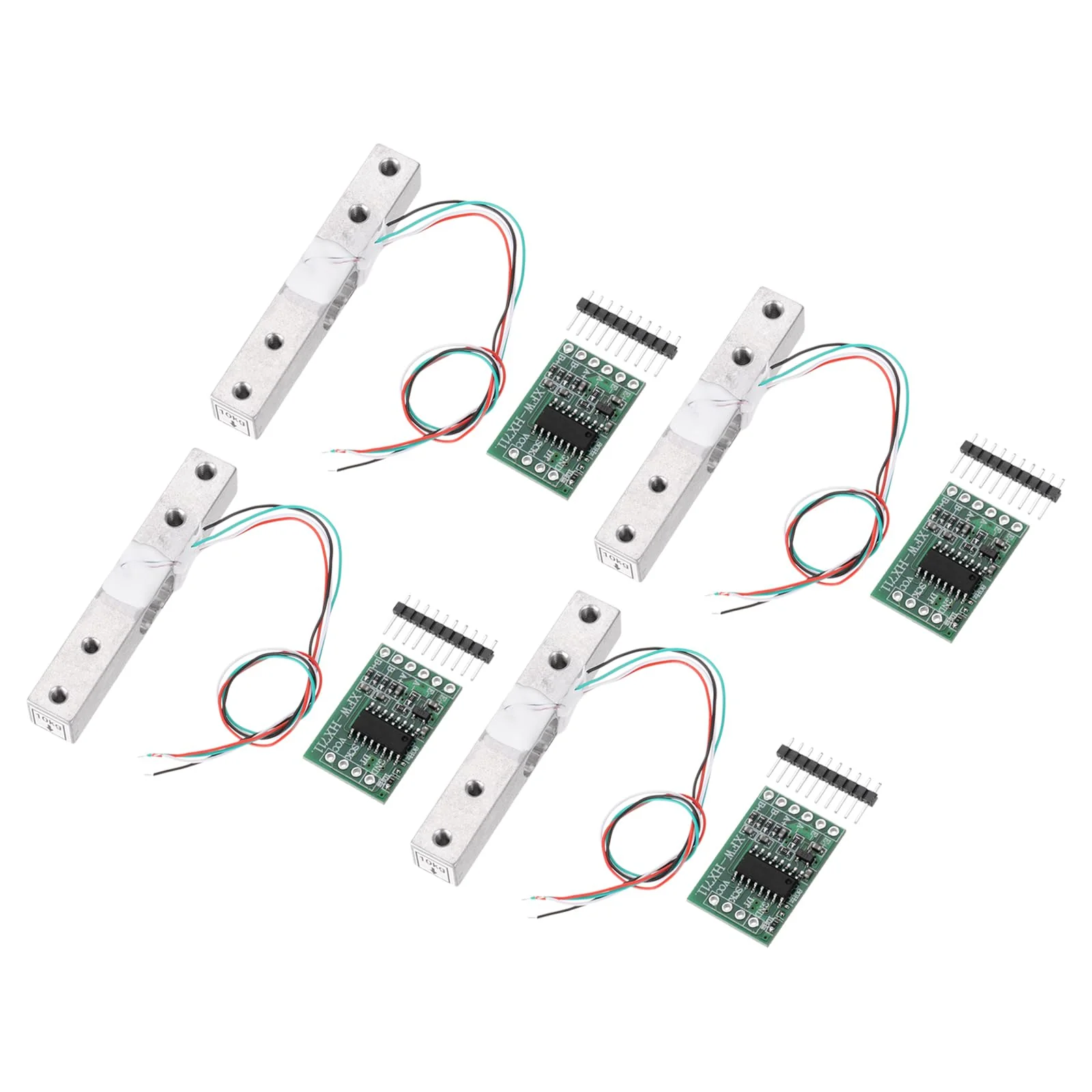

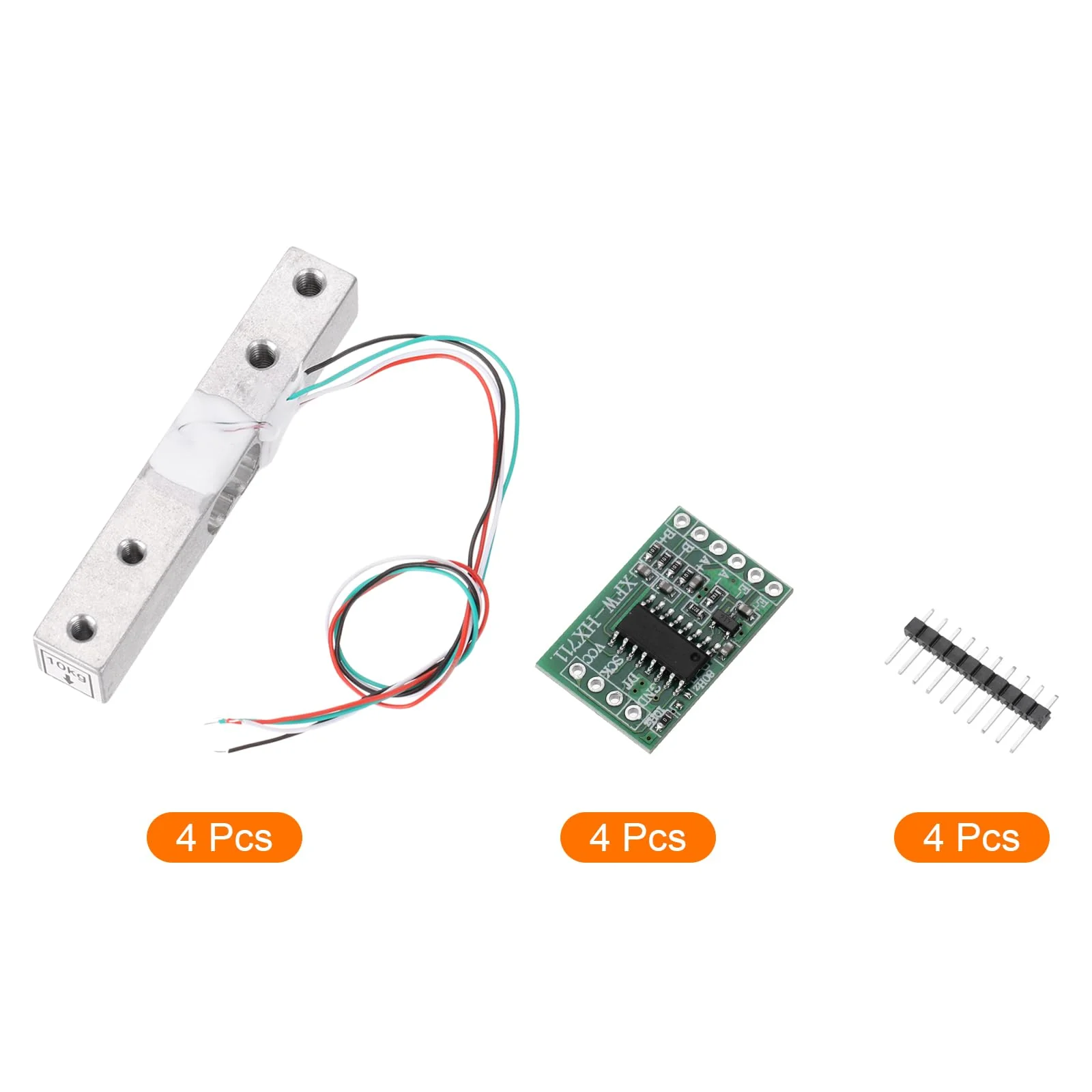

What is it? The weighing sensor uses the HX711 24-bit high-precision A/D conversion chip, which is specially designed for high-precision electronic scales and has two analogue input channels. The digital load cell weighing sensor is made of aluminium alloy with parallel bar structure. Suitable for electronic kitchen scales, force measurement of small devices and intelligent electronic weighing equipment. What will I get? HX711 weighing sensor operating voltage: 2.6-5.5V. HX711 weighing sensor size: 16 x 24 mm. Load cell maximum measuring force: 10 kg. Rated output sensitivity: 1.0+/-0.1mV/V Zero output: ±0.1mV/V. Non-linearity: 0.05%F.S Delay: 0.05%F.S Repeatability: 0.05% F.S. Creep (5min): 0.05%F.S/3min. Output impedance: 1000±50 ohms. Temperature impact on sensitivity: 0.05% F.S/°C. Temperature impact to zero: 0.05% F.S/°C. Accuracy: 0.1 g. Size: 80 x 12.7 x 12.7 mm. Connection: Red to E+ / Black to E / Green to A+ / White to A Package Includes:4pcs x HX711 Weighing Sensor + 4pcs x Load Cell Weighing Sensor Are there any advantages of the product? The 24-bit A/D converter is used to provide accurate weight measurement results. The load cell converts the applied force into an electrical signal, when using a 5-10V drive voltage, the force is output directly as a voltage change signal. How to use it? The electronic sensor contains 4 ports for easy use. The weighing sensor must be connected to the HX711 module, Red to E+, Black to E, Green to A+ and White to A What should I pay attention to? One end of the sensor is fixed by the screw hole, the other end remains free to hang. Apply gravity in the direction indicated by the label.
Product Features
- The weighing sensor uses the HX711 24-bit high-precision A/D conversion chip, which is specially designed for high-precision electronic scales and has two analogue input channels. The digital load cell weighing sensor is made of aluminium alloy with parallel bar structure. Suitable for electronic kitchen scales, force measurement of small devices and intelligent electronic weighing equipment.

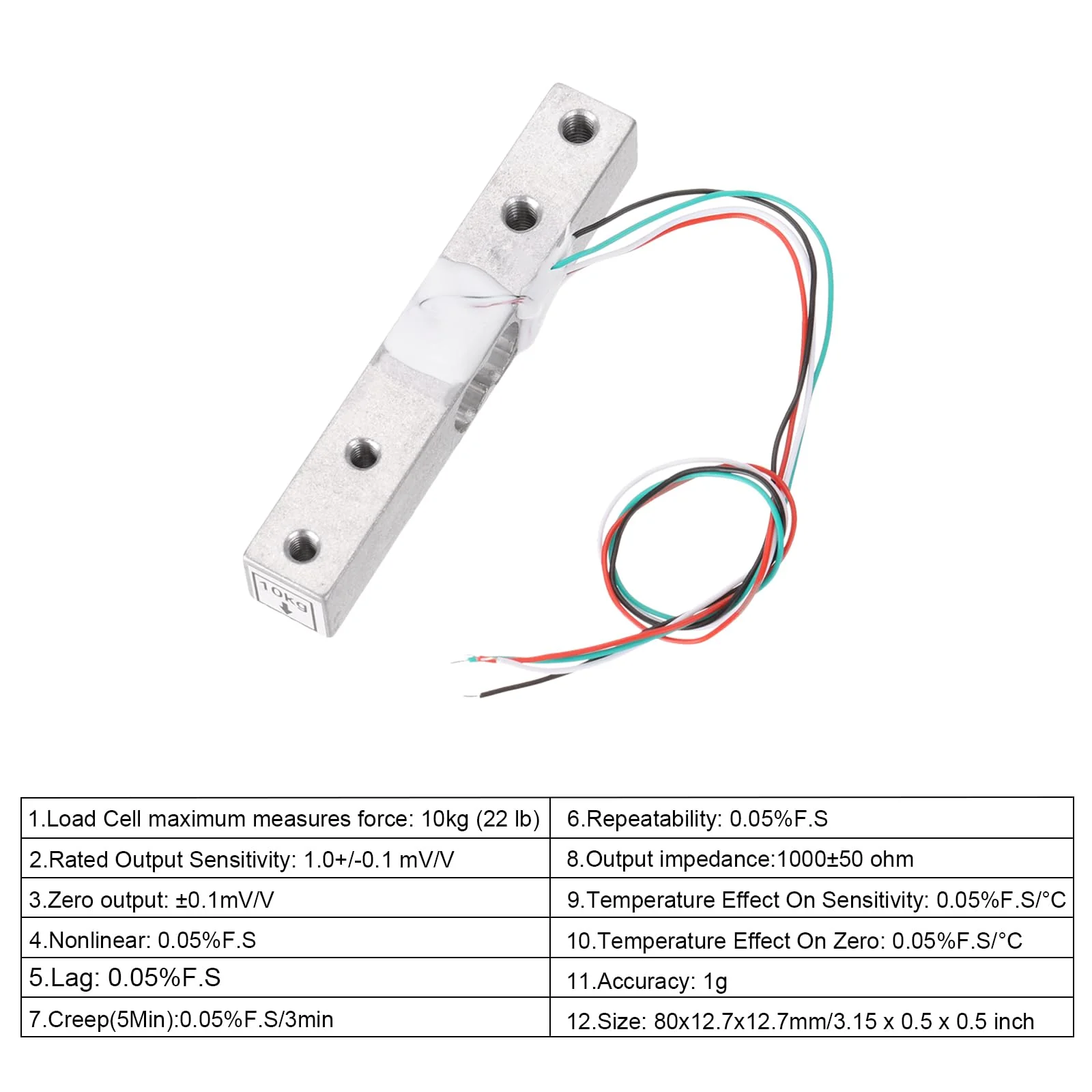

- HX711 weighing sensor operating voltage: 2.6-5.5 V; load cell maximum measuring force: 10 kg; rated output sensitivity: 1.0+/-0.1 mV/V; accuracy: 0.1g; output impedance: 100050 ohms.

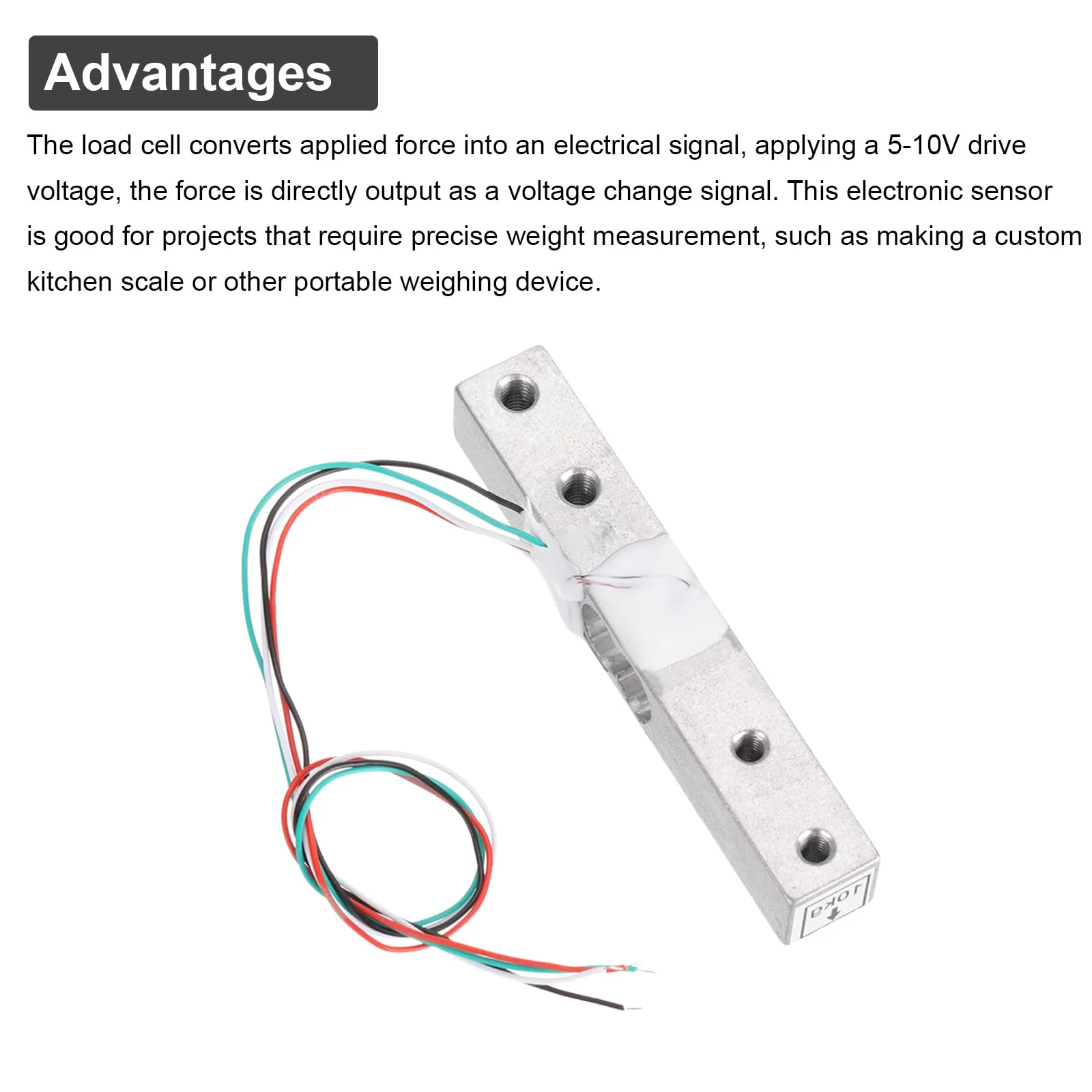

- The 24-bit A/D converter is used to provide accurate weight measurement results. The load cell converts the applied force into an electrical signal, when using a 5-10V drive voltage, the force is output directly as a voltage change signal.
- The electronic sensor contains 4 ports for easy use. The weighing sensor must be connected to the HX711 module, Red to E+, Black to E, Green to A+ and White to A
- One end of the sensor is fixed by the screw hole, the other end remains free to hang. Apply gravity in the direction indicated by the label. Be especially careful not to press the white rubber part directly so as not to damage the sensor.
More Images
QUARKZMAN Set of 4 Digital Load Cell Weight Sensor 10 kg + HX711 Module Weighing Sensor 24 Bit Precision A/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit
QUARKZMAN Set of 4 Digital Load Cell Weight Sensor 10 kg + HX711 Module Weighing Sensor 24 Bit Precision A/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit
What is it? The weighing sensor uses the HX711 24-bit high-precision A/D conversion chip, which is specially designed for high-precision electronic scales and has two analogue input channels. The digital load cell weighing sensor is made of aluminium alloy with parallel bar structure. Suitable for electronic kitchen scales, force measurement of small devices and intelligent electronic weighing equipment. What will I get? HX711 weighing sensor operating voltage: 2.6-5.5V. HX711 weighing sensor size: 16 x 24 mm. Load cell maximum measuring force: 10 kg. Rated output sensitivity: 1.0+/-0.1mV/V Zero output: ±0.1mV/V. Non-linearity: 0.05%F.S Delay: 0.05%F.S Repeatability: 0.05% F.S. Creep (5min): 0.05%F.S/3min. Output impedance: 1000±50 ohms. Temperature impact on sensitivity: 0.05% F.S/°C. Temperature impact to zero: 0.05% F.S/°C. Accuracy: 0.1 g. Size: 80 x 12.7 x 12.7 mm. Connection: Red to E+ / Black to E / Green to A+ / White to A Package Includes:4pcs x HX711 Weighing Sensor + 4pcs x Load Cell Weighing Sensor Are there any advantages of the product? The 24-bit A/D converter is used to provide accurate weight measurement results. The load cell converts the applied force into an electrical signal, when using a 5-10V drive voltage, the force is output directly as a voltage change signal. How to use it? The electronic sensor contains 4 ports for easy use. The weighing sensor must be connected to the HX711 module, Red to E+, Black to E, Green to A+ and White to A What should I pay attention to? One end of the sensor is fixed by the screw hole, the other end remains free to hang. Apply gravity in the direction indicated by the label.
Product Features
- The weighing sensor uses the HX711 24-bit high-precision A/D conversion chip, which is specially designed for high-precision electronic scales and has two analogue input channels. The digital load cell weighing sensor is made of aluminium alloy with parallel bar structure. Suitable for electronic kitchen scales, force measurement of small devices and intelligent electronic weighing equipment.
- HX711 weighing sensor operating voltage: 2.6-5.5 V; load cell maximum measuring force: 10 kg; rated output sensitivity: 1.0+/-0.1 mV/V; accuracy: 0.1g; output impedance: 100050 ohms.
- The 24-bit A/D converter is used to provide accurate weight measurement results. The load cell converts the applied force into an electrical signal, when using a 5-10V drive voltage, the force is output directly as a voltage change signal.
- The electronic sensor contains 4 ports for easy use. The weighing sensor must be connected to the HX711 module, Red to E+, Black to E, Green to A+ and White to A
- One end of the sensor is fixed by the screw hole, the other end remains free to hang. Apply gravity in the direction indicated by the label. Be especially careful not to press the white rubber part directly so as not to damage the sensor.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
QUARKZMAN Set of 4 Digital Load Cell Weight Sensor 10 kg + HX711 Module Weighing Sensor 24 Bit Precision A/D Dual Channel for DIY Portable Electronic Kitchen Scale Kit
What is it? The weighing sensor uses the HX711 24-bit high-precision A/D conversion chip, which is specially designed for high-precision electronic scales and has two analogue input channels. The digital load cell weighing sensor is made of aluminium alloy with parallel bar structure. Suitable for electronic kitchen scales, force measurement of small devices and intelligent electronic weighing equipment. What will I get? HX711 weighing sensor operating voltage: 2.6-5.5V. HX711 weighing sensor size: 16 x 24 mm. Load cell maximum measuring force: 10 kg. Rated output sensitivity: 1.0+/-0.1mV/V Zero output: ±0.1mV/V. Non-linearity: 0.05%F.S Delay: 0.05%F.S Repeatability: 0.05% F.S. Creep (5min): 0.05%F.S/3min. Output impedance: 1000±50 ohms. Temperature impact on sensitivity: 0.05% F.S/°C. Temperature impact to zero: 0.05% F.S/°C. Accuracy: 0.1 g. Size: 80 x 12.7 x 12.7 mm. Connection: Red to E+ / Black to E / Green to A+ / White to A Package Includes:4pcs x HX711 Weighing Sensor + 4pcs x Load Cell Weighing Sensor Are there any advantages of the product? The 24-bit A/D converter is used to provide accurate weight measurement results. The load cell converts the applied force into an electrical signal, when using a 5-10V drive voltage, the force is output directly as a voltage change signal. How to use it? The electronic sensor contains 4 ports for easy use. The weighing sensor must be connected to the HX711 module, Red to E+, Black to E, Green to A+ and White to A What should I pay attention to? One end of the sensor is fixed by the screw hole, the other end remains free to hang. Apply gravity in the direction indicated by the label.
Product Features
- The weighing sensor uses the HX711 24-bit high-precision A/D conversion chip, which is specially designed for high-precision electronic scales and has two analogue input channels. The digital load cell weighing sensor is made of aluminium alloy with parallel bar structure. Suitable for electronic kitchen scales, force measurement of small devices and intelligent electronic weighing equipment.
- HX711 weighing sensor operating voltage: 2.6-5.5 V; load cell maximum measuring force: 10 kg; rated output sensitivity: 1.0+/-0.1 mV/V; accuracy: 0.1g; output impedance: 100050 ohms.
- The 24-bit A/D converter is used to provide accurate weight measurement results. The load cell converts the applied force into an electrical signal, when using a 5-10V drive voltage, the force is output directly as a voltage change signal.
- The electronic sensor contains 4 ports for easy use. The weighing sensor must be connected to the HX711 module, Red to E+, Black to E, Green to A+ and White to A
- One end of the sensor is fixed by the screw hole, the other end remains free to hang. Apply gravity in the direction indicated by the label. Be especially careful not to press the white rubber part directly so as not to damage the sensor.
