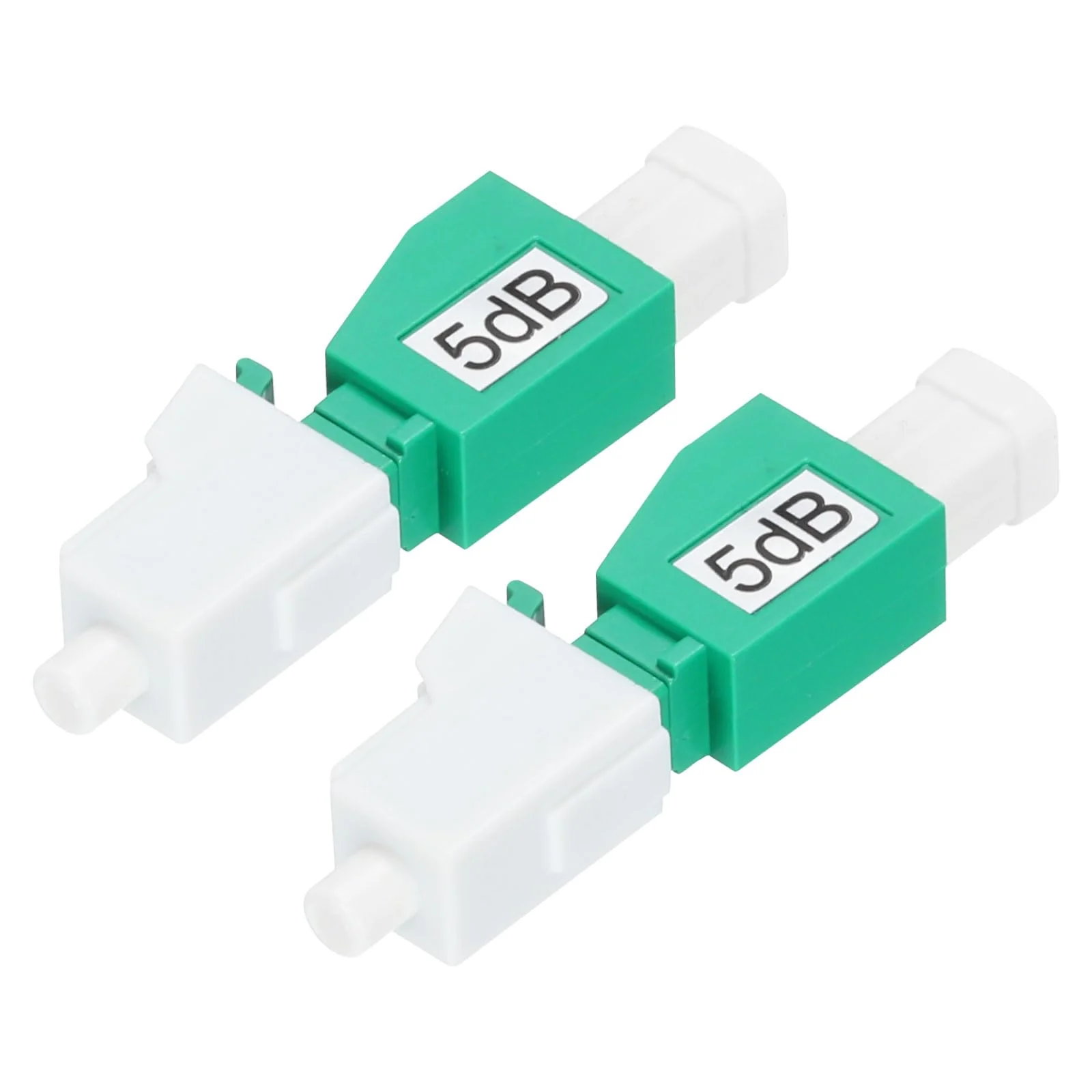

QUARKZMAN 5dB LC Fiber Attenuator LC/APC SM Single Mode Fixed Fiber Optic Attenuator Male to Female for Fiber Optic Transmission Pack of 2 5 dB

QUARKZMAN 5dB LC Fiber Attenuator LC/APC SM Single Mode Fixed Fiber Optic Attenuator Male to Female for Fiber Optic Transmission Pack of 2

What is it? A fiber optic attenuator is an optical device that can reduce the energy of light signals and is used in fiber optic communication, fiber optic testing equipment, fiber broadband networks, fiber optic CATV, EDFA, etc. It is mainly used for troubleshooting optical performance, troubleshooting, calibration and correction of fiber optics, attenuation of fiber signals, etc. What do I get? The LC fibre attenuator has the size: 36x9.5mm/1.42x0.37"; attenuation values: 5dB; attenuation accuracy: ±10%dB; return loss: >50dB; connector polishing: LC/APC male to LC/APC female, fibre type: single mode; in package: 2 pack fibre optic attenuator. Are there any advantages of the product? The optical attenuator is widely used in fiber optic communication and has the following features: light weight, small size, high precision, flame retardance, heat resistance, strong shock resistance, stable and reliable performance. It not only effectively dampens loop noise, but can also isolate electrical interference and other interference signals. How to use it? The fiber optic attenuator adapter can be easily installed, and the components are simple and compact in design, which facilitates assembly and safe storage and allows easy plugging and switching on. What should I pay attention to? This is a LC/APC attenuator that goes from male to female connector. The environment must be clean and dry, and the shock absorber should match the adapter and plug used.

Product Features

• A fiber optic attenuator is an optical device that can reduce the energy of light signals and is used in fiber optic communication, fiber optic testing equipment, fiber broadband networks, fiber optic CATV, EDFA, etc. It is mainly used for troubleshooting optical performance, troubleshooting, calibration and correction of fiber optics, attenuation of fiber signals, etc.

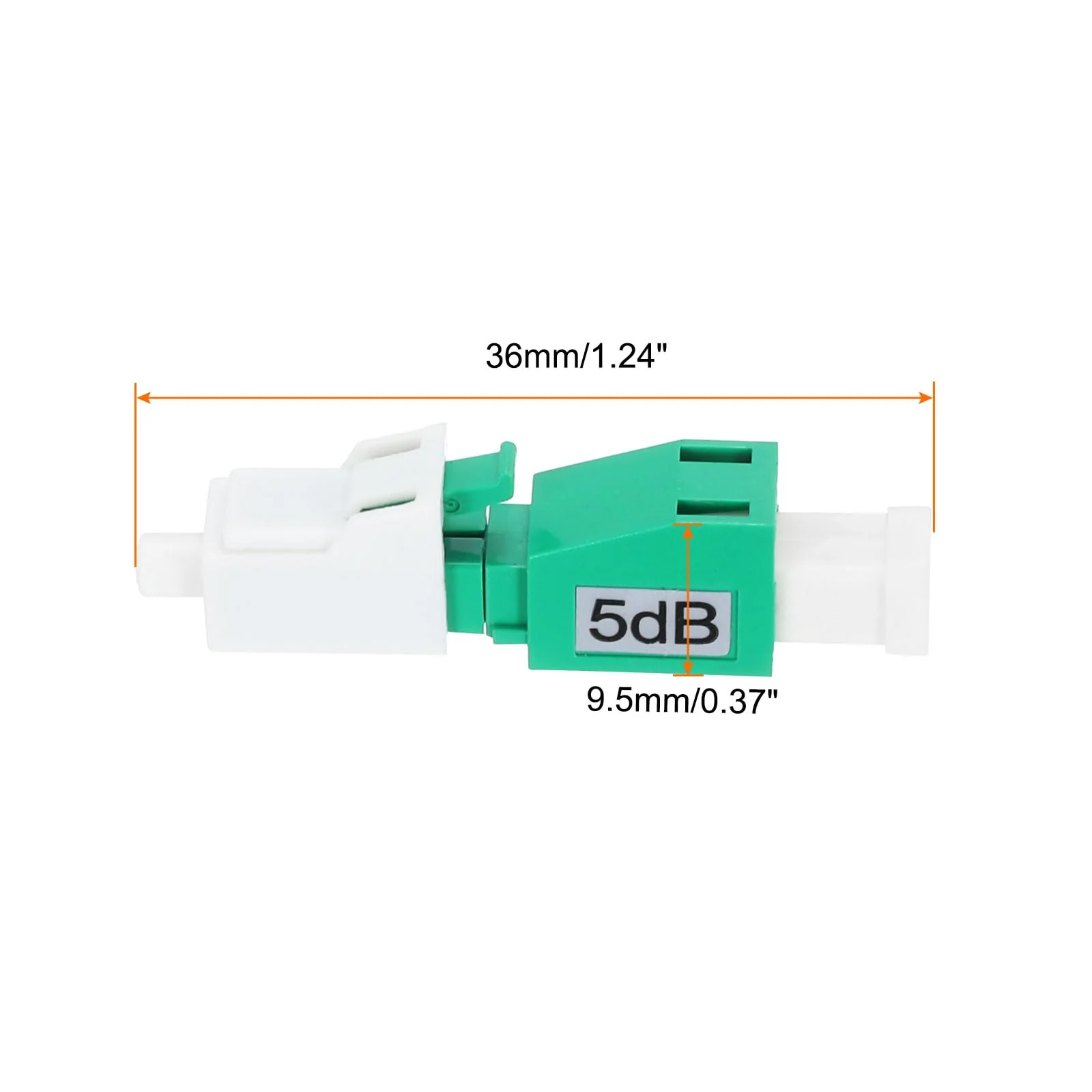

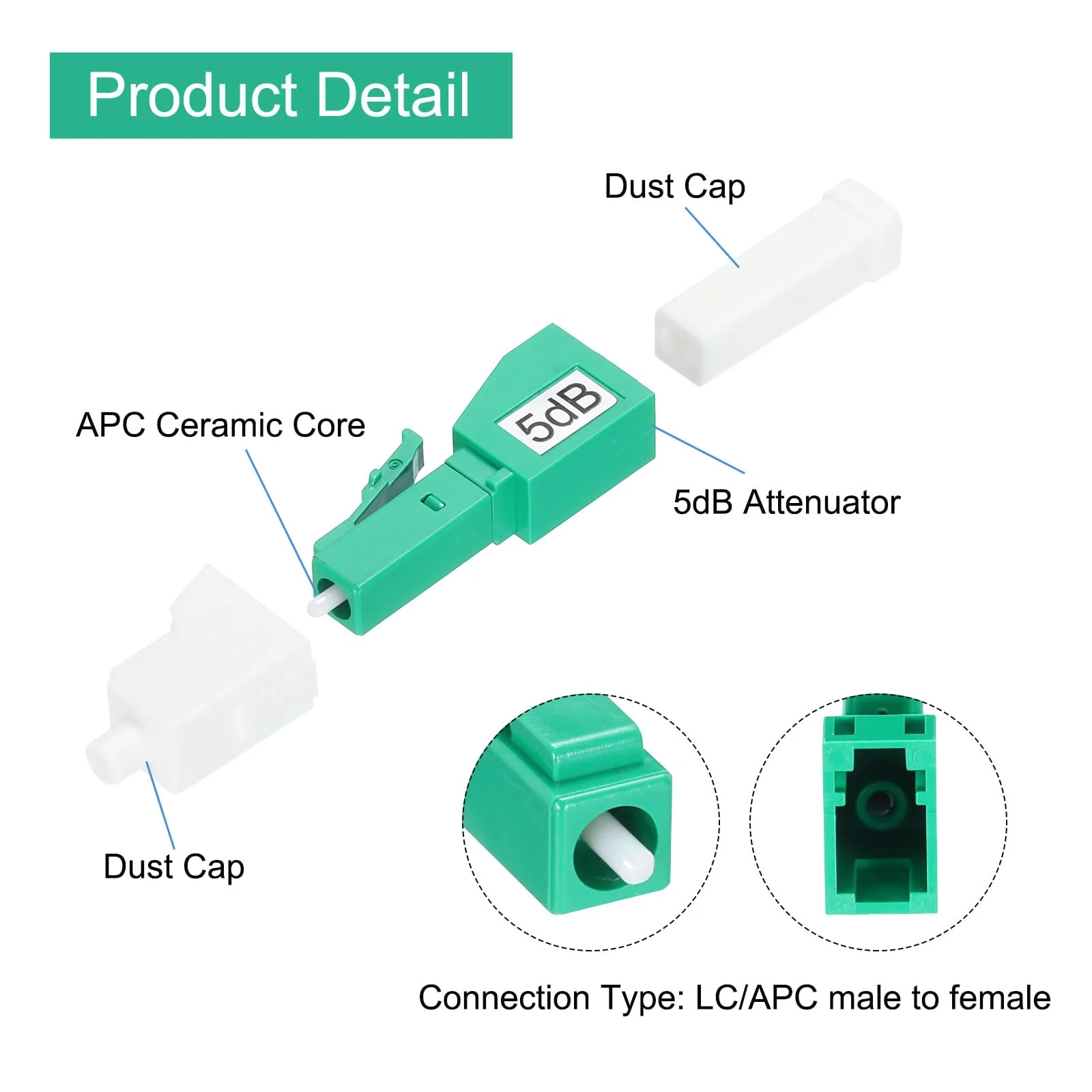

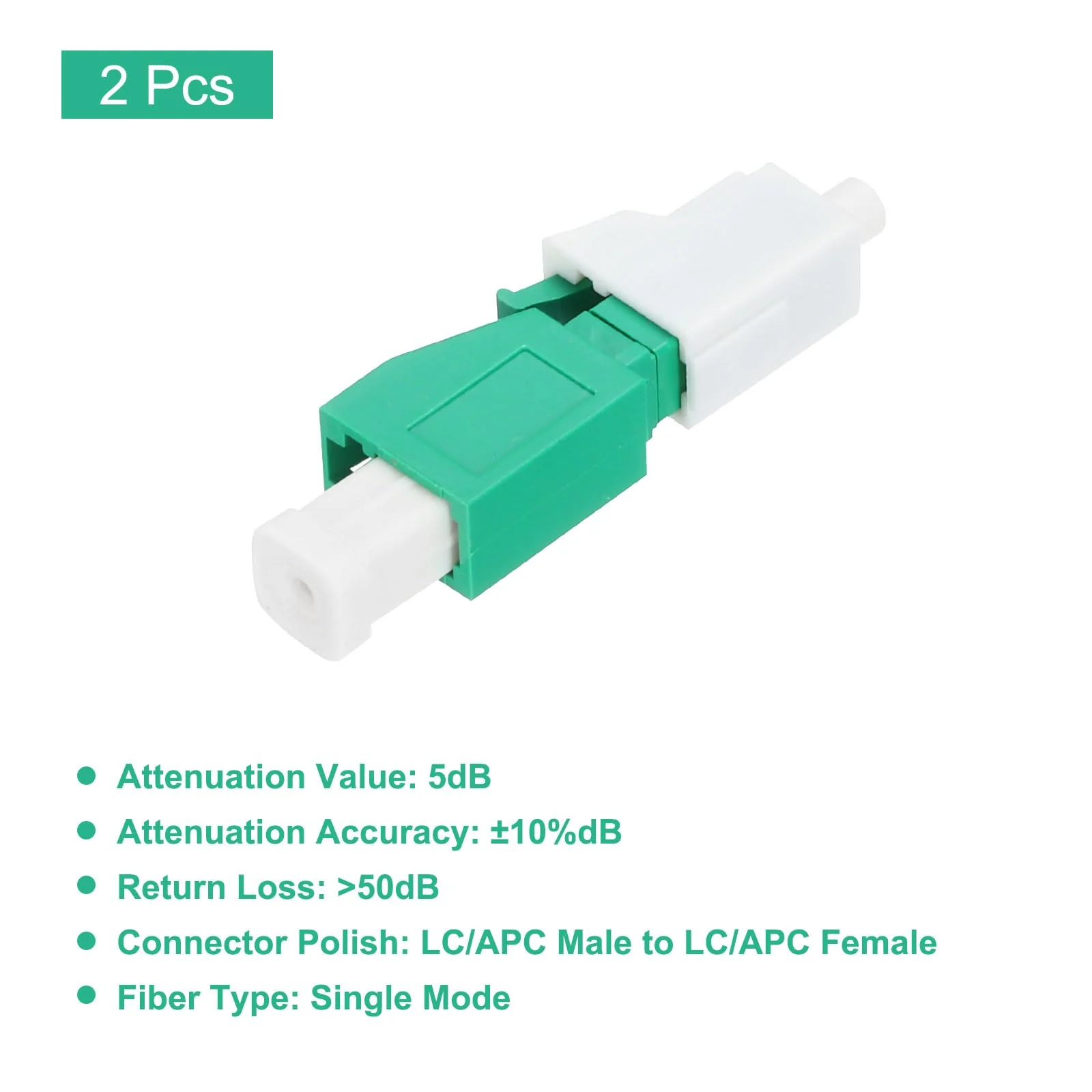

• The LC fibre attenuator has the size: 36x9.5mm/1.42x0.37"; attenuation values: 5dB; attenuation accuracy: 10%dB; return loss: >50dB; connector polishing: LC/APC male to LC/APC female, fibre type: single mode; in package: 2 pack fibre optic attenuator.
• The optical attenuator is widely used in fiber optic communication and has the following features: light weight, small size, high precision, flame retardance, heat resistance, strong shock resistance, stable and reliable performance. It not only effectively dampens loop noise, but can also isolate electrical interference and other interference signals.
• The fiber optic attenuator adapter can be easily installed, and the components are simple and compact in design, which facilitates assembly and safe storage and allows easy plugging and switching on.
• This is a LC/APC attenuator that goes from male to female connector. The environment must be clean and dry, and the shock absorber should match the adapter and plug used.
