QIANRENON DC 5.5mm x 2.5mm Panel Mount, 2 Pole High Current Solder Wire, 5.5x2.5mm DC Socket, 50V 3A, XLR/D Panel Mount
QIANRENON DC 5.5mm x 2.5mm Panel Mount, 2 Pole High Current Solder Wire, 5.5x2.5mm DC Socket, 50V 3A, XLR/D Panel Mount
QIANRENON DC 5.5mm x 2.5mm Panel Mount, 2 Pole High Current Solder Wire, 5.5x2.5mm DC Socket, 50V 3A, XLR/D Panel Mount

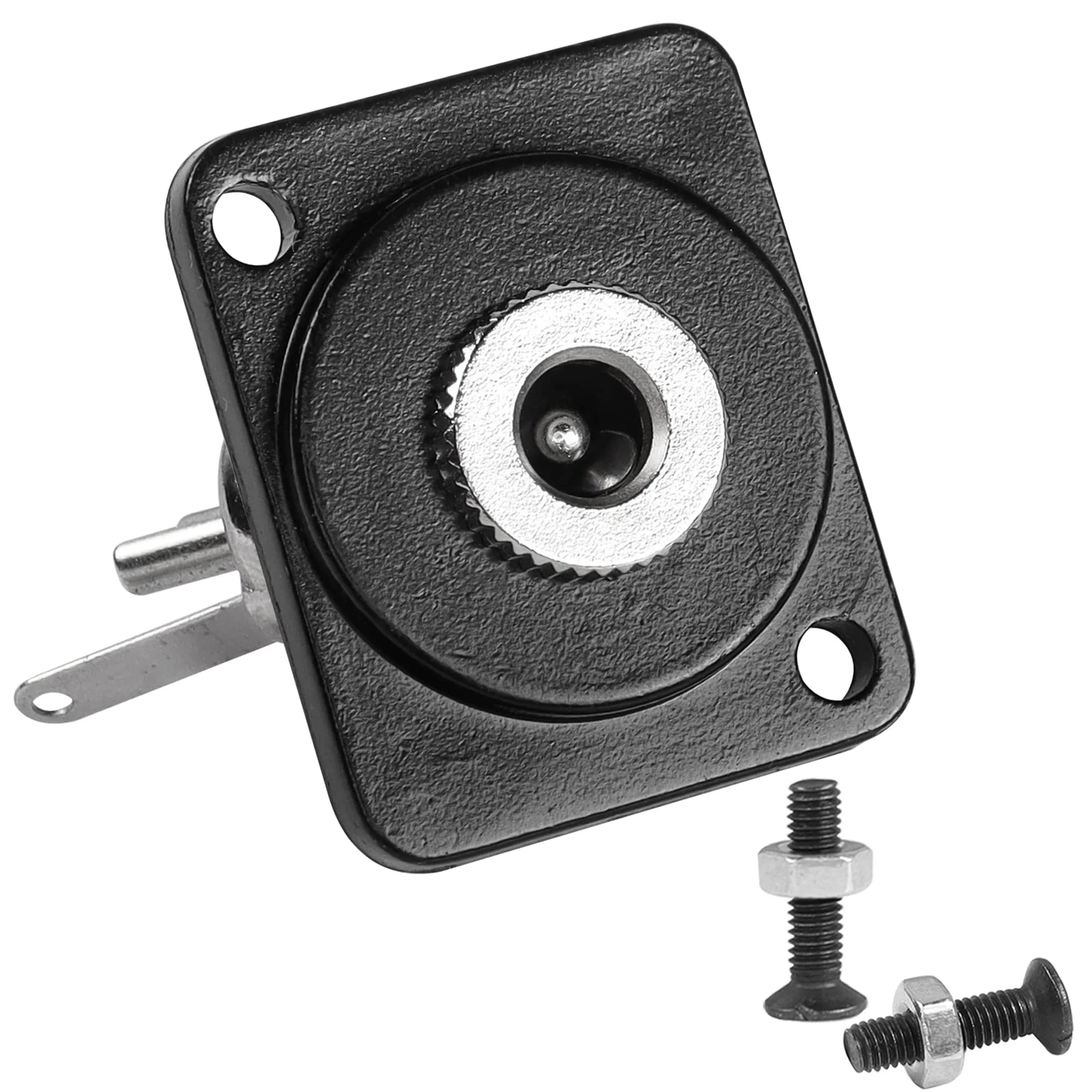

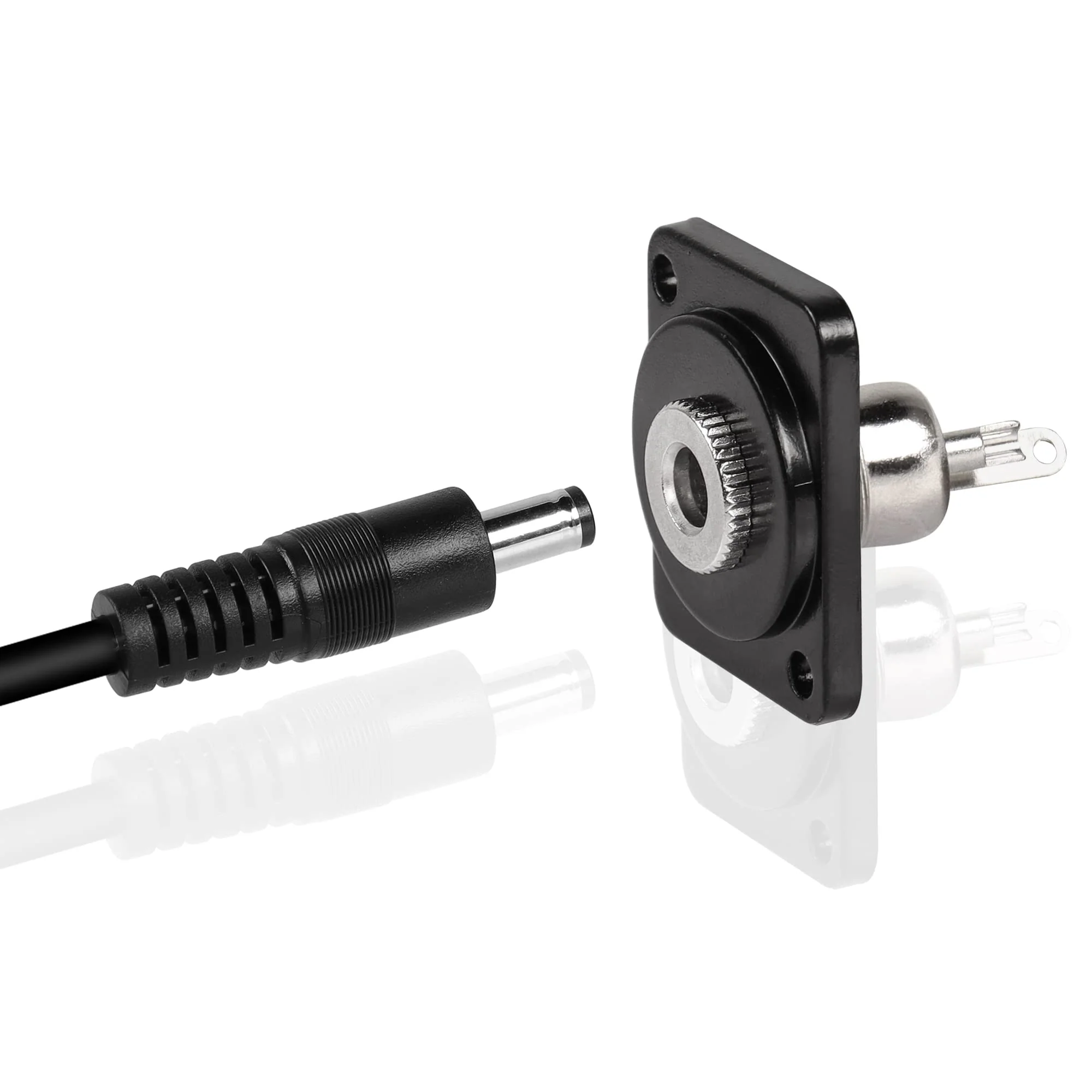

DC 5.5mm x 2.5mm panel mount power connector, built on the industrial standard XLR panel/D panel bezel, is a reinforced and easy to install DC power connection system. Widely used as a charging port for DC electronic devices. Ideal for repairs or DIY DC 5.5mm x 2.5mm female power connector. Can be mounted exposed or concealed on XLR panel with φ24mm cutout, D type panel or appliance housing plate. Interface Type: DC 5.5mm x 2.5mm Female 2 Pin Solder Pin Rated Current: 5A Rated Voltage: 50V Contact coating: tin plated. Contact: Copper Insulator: PBT 15% GR. Case: zinc alloy. Size: 31mm x 26mm x 25.4mm Package Content 1 x DC 5.5x2.5mm Panel Mount Socket 2 x M3 Screws
Product Features
- Panel Mounting:DC 5.5mm*2.5mm panel power connector, based on the industrial standard XLR panel/D type panel bezel, is a reinforced and easy to install DC connection system.
- Widely used: DC 5.5mm x 2.5mm power connector, widely used for charging port of DC electronic devices. Perfect for repair or DIY DC 5.5mm x 2.5mm power connector.
- Practical Solder Cable: DC5525 solderable panel socket, not to be a professional. Simply insert the cable into the hole, twist and lock it and solder.

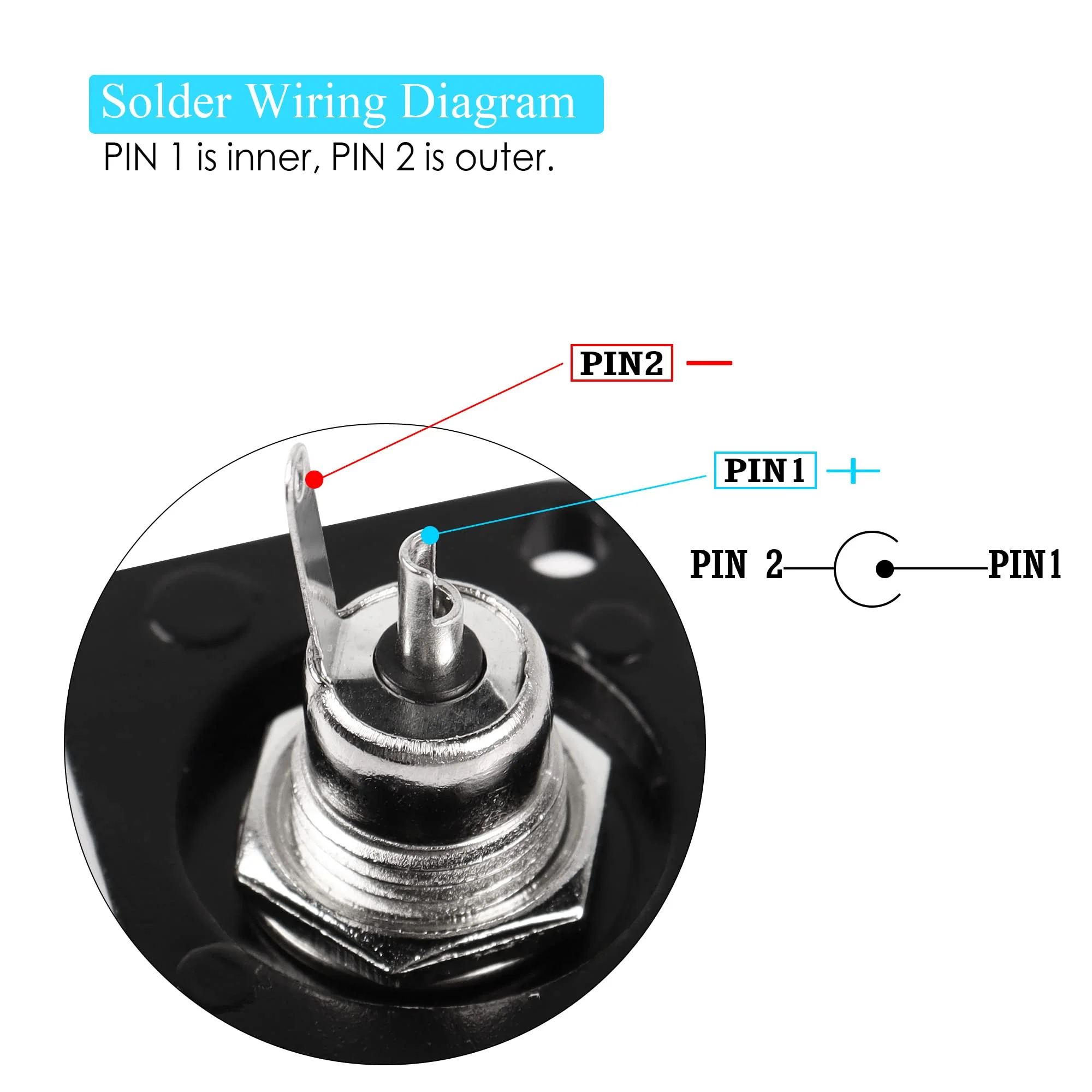

- WiringDC 5.52.5mm 2 Pin Solder Wire Connector, Pin 1 - Internal Shorter Pin Soldered to "+" Pole, Pin 2 - External Longer Pin to "-" Pole

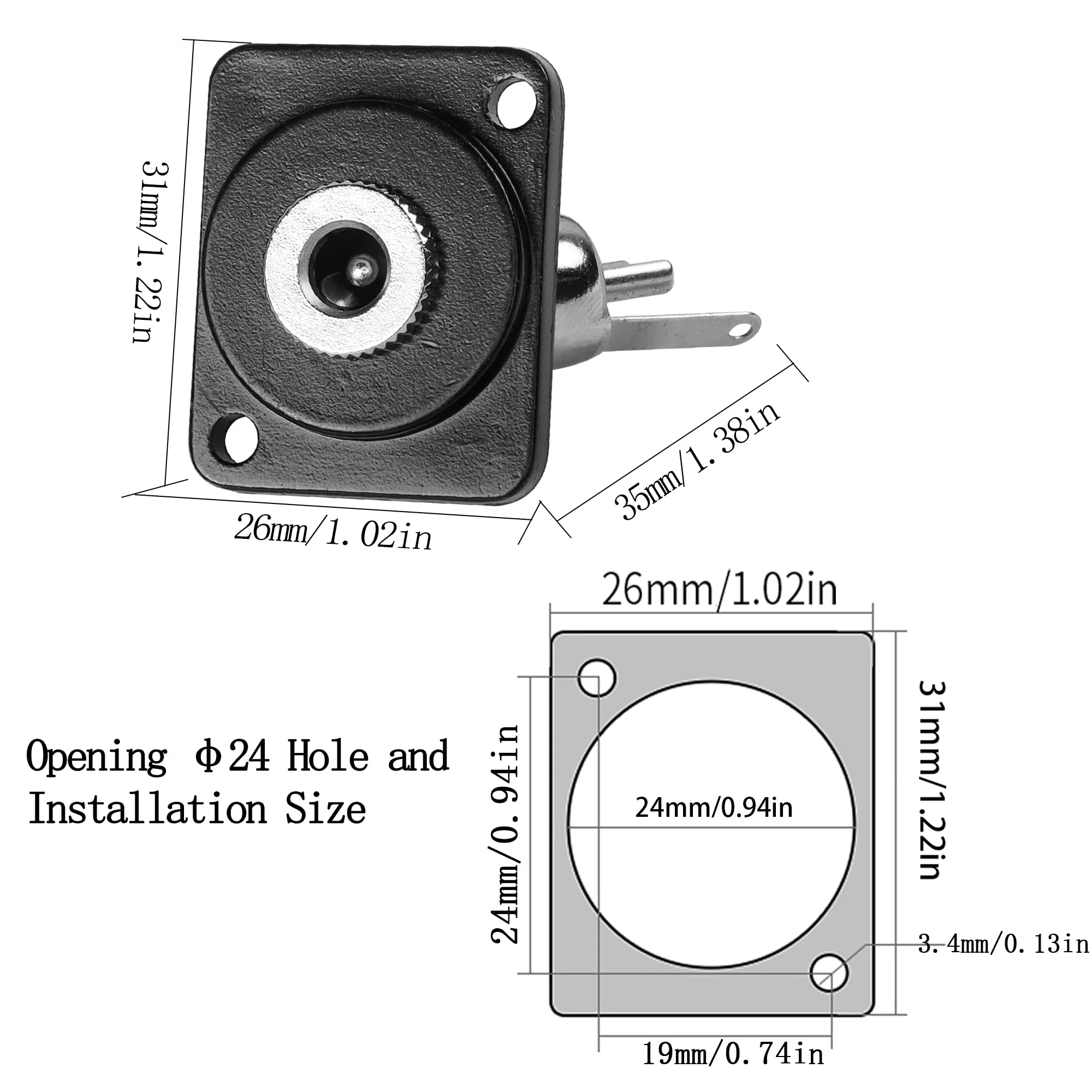

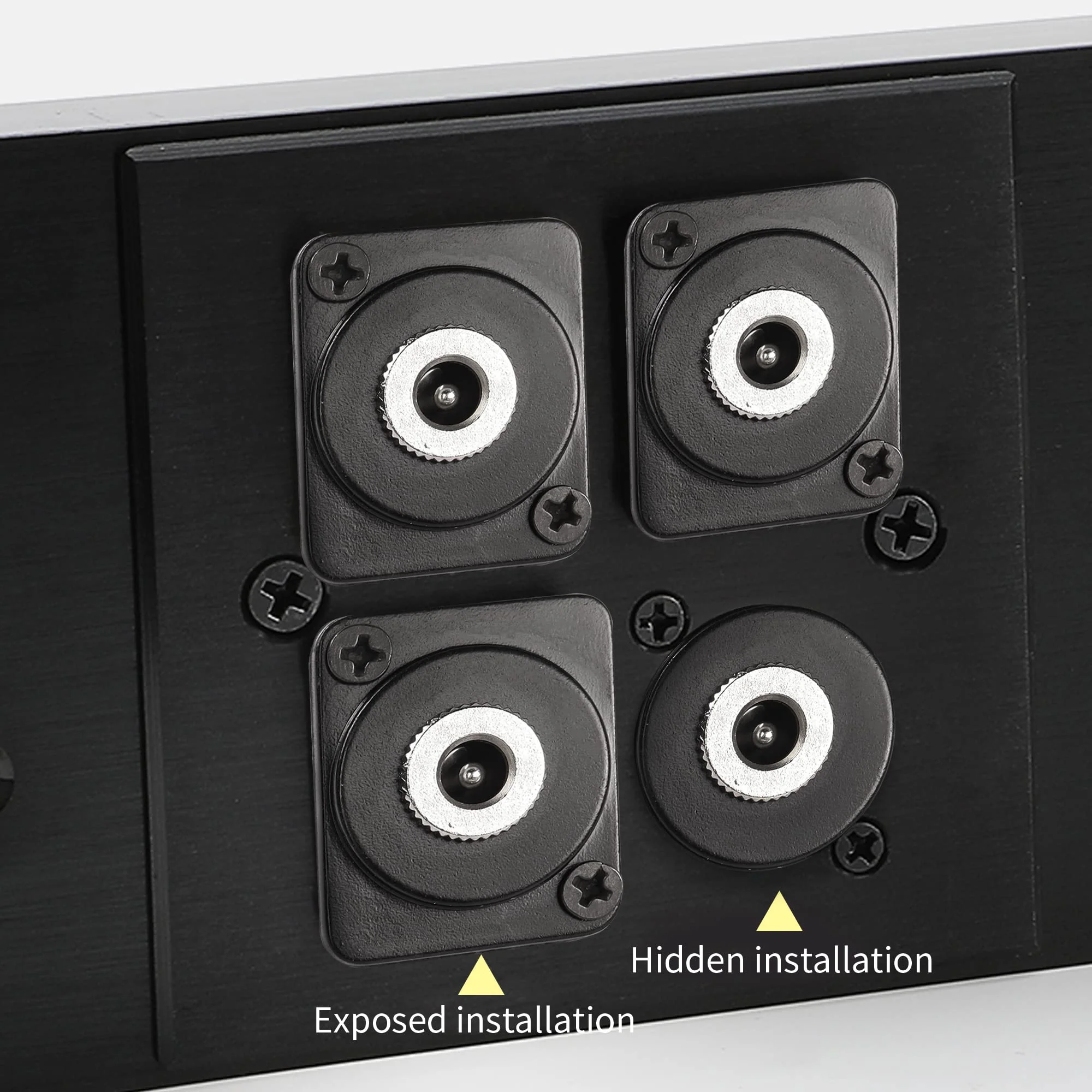

- Exposed/Concealed: DC5525 panel panel mount socket can be mounted exposed or concealed on XLR panel with 24mm aperture, D-type panel or device housing surface.
Original: $103.59
-65%$103.59
$36.26More Images
QIANRENON DC 5.5mm x 2.5mm Panel Mount, 2 Pole High Current Solder Wire, 5.5x2.5mm DC Socket, 50V 3A, XLR/D Panel Mount
QIANRENON DC 5.5mm x 2.5mm Panel Mount, 2 Pole High Current Solder Wire, 5.5x2.5mm DC Socket, 50V 3A, XLR/D Panel Mount
DC 5.5mm x 2.5mm panel mount power connector, built on the industrial standard XLR panel/D panel bezel, is a reinforced and easy to install DC power connection system. Widely used as a charging port for DC electronic devices. Ideal for repairs or DIY DC 5.5mm x 2.5mm female power connector. Can be mounted exposed or concealed on XLR panel with φ24mm cutout, D type panel or appliance housing plate. Interface Type: DC 5.5mm x 2.5mm Female 2 Pin Solder Pin Rated Current: 5A Rated Voltage: 50V Contact coating: tin plated. Contact: Copper Insulator: PBT 15% GR. Case: zinc alloy. Size: 31mm x 26mm x 25.4mm Package Content 1 x DC 5.5x2.5mm Panel Mount Socket 2 x M3 Screws
Product Features
- Panel Mounting:DC 5.5mm*2.5mm panel power connector, based on the industrial standard XLR panel/D type panel bezel, is a reinforced and easy to install DC connection system.
- Widely used: DC 5.5mm x 2.5mm power connector, widely used for charging port of DC electronic devices. Perfect for repair or DIY DC 5.5mm x 2.5mm power connector.
- Practical Solder Cable: DC5525 solderable panel socket, not to be a professional. Simply insert the cable into the hole, twist and lock it and solder.
- WiringDC 5.52.5mm 2 Pin Solder Wire Connector, Pin 1 - Internal Shorter Pin Soldered to "+" Pole, Pin 2 - External Longer Pin to "-" Pole
- Exposed/Concealed: DC5525 panel panel mount socket can be mounted exposed or concealed on XLR panel with 24mm aperture, D-type panel or device housing surface.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
QIANRENON DC 5.5mm x 2.5mm Panel Mount, 2 Pole High Current Solder Wire, 5.5x2.5mm DC Socket, 50V 3A, XLR/D Panel Mount
DC 5.5mm x 2.5mm panel mount power connector, built on the industrial standard XLR panel/D panel bezel, is a reinforced and easy to install DC power connection system. Widely used as a charging port for DC electronic devices. Ideal for repairs or DIY DC 5.5mm x 2.5mm female power connector. Can be mounted exposed or concealed on XLR panel with φ24mm cutout, D type panel or appliance housing plate. Interface Type: DC 5.5mm x 2.5mm Female 2 Pin Solder Pin Rated Current: 5A Rated Voltage: 50V Contact coating: tin plated. Contact: Copper Insulator: PBT 15% GR. Case: zinc alloy. Size: 31mm x 26mm x 25.4mm Package Content 1 x DC 5.5x2.5mm Panel Mount Socket 2 x M3 Screws
Product Features
- Panel Mounting:DC 5.5mm*2.5mm panel power connector, based on the industrial standard XLR panel/D type panel bezel, is a reinforced and easy to install DC connection system.
- Widely used: DC 5.5mm x 2.5mm power connector, widely used for charging port of DC electronic devices. Perfect for repair or DIY DC 5.5mm x 2.5mm power connector.
- Practical Solder Cable: DC5525 solderable panel socket, not to be a professional. Simply insert the cable into the hole, twist and lock it and solder.
- WiringDC 5.52.5mm 2 Pin Solder Wire Connector, Pin 1 - Internal Shorter Pin Soldered to "+" Pole, Pin 2 - External Longer Pin to "-" Pole
- Exposed/Concealed: DC5525 panel panel mount socket can be mounted exposed or concealed on XLR panel with 24mm aperture, D-type panel or device housing surface.
