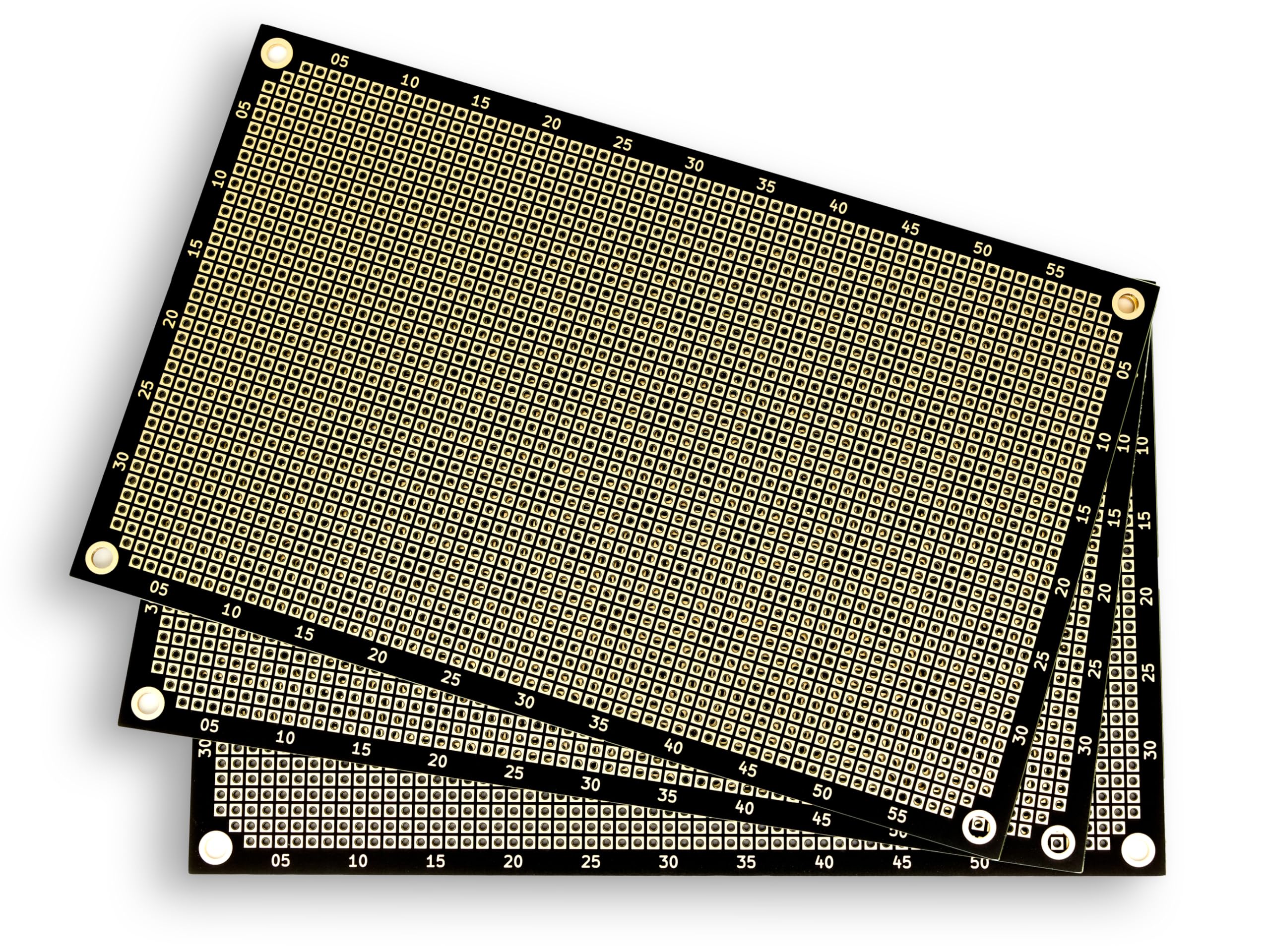

PROTOPATCH® Premium Perforated Grid Board (Pack of 3) | 160 x 100 mm | Double Sided | Square Pads | Black | NPTH | 2.54 mm Pitch
HomeStore

PROTOPATCH® Premium Perforated Grid Board (Pack of 3) | 160 x 100 mm | Double Sided | Square Pads | Black | NPTH | 2.54 mm Pitch

PROTOPATCH® Premium Perforated Grid Board (Pack of 3) | 160 x 100 mm | Double Sided | Square Pads | Black | NPTH | 2.54 mm Pitch

PROTOPATCH® Premium Perforated Grid Board (Pack of 3) | 160 x 100 mm | Double Sided | Square Pads | Black | NPTH | 2.54 mm Pitch

This precisely machined premium perforated grid board with a pitch of 2.54 mm has been specially developed for visually and qualitatively demanding application scenarios. The hole grid plate is therefore ideal for prototype presentations, graduation work and Raspberry Pi / Arduino projects. The 1.6mm thick PCB is made from FR4 flame retardant epoxy fiberglass composite and has four M3 mounting holes for mechanically stable fixing. The external dimensions are standardised according to DIN 41494 and IEC 60297. DATA SHEET Length: 160 mm. Width: 100 mm. Height: 1.60 mm. Weight: 47g Colour: matte black. Pitch: 2.54 mm. Pad sides: double sided Pad Shape: Square Pad Diameter: 2.20mm Pad Hole Diameter:1.00mm Pad via: No (NPTH) Copper thickness: 35 µm (1 oz / ft²). Material: FR4 standard Tg 130-140°C. Surface: ENIG-RoHS. Mounting holes: 4 x M3 (3.50 mm). RoHS Compliant: Yes Tested quality. The quality of our products is particularly important to us. Each board is subjected to visual inspection and packed airtight together with a silicate bag against moisture.

Product Features

  • This precisely machined premium perforated grid board with a pitch of 2.54 mm has been specially developed for visually and qualitatively demanding application scenarios. The board is available in various colours and designs.
  • Due to its elegant appearance, this board is ideal for prototype presentations, graduation work and Raspberry Pi / Arduino projects. Use this board to emphasise the high quality of your project.
  • The RoHS compliant 1.6mm PCB is made from FR4 flame retardant epoxy fiberglass composite and has four M3 mounting holes. The external dimensions of the Euro board are standardised according to DIN 41494 and IEC 60297.
  • The labels are etched from the copper layer and therefore abrasion resistant. Product number and manufacturer identification are only on the back. The solder pads are numbered on the front and back in increments of 5.
  • Length: 160 mm; Width: 100 mm; Colour: Matte Black; Grid: 2.54 mm; Pad Sides: Double-Sided; Pad Shape: Square; Pad Through Plate: No (NPTH); Surface: ENIG-RoHS; ... See Product Description
$147.77
PROTOPATCH® Premium Perforated Grid Board (Pack of 3) | 160 x 100 mm | Double Sided | Square Pads | Black | NPTH | 2.54 mm Pitch—
$147.77

More Images

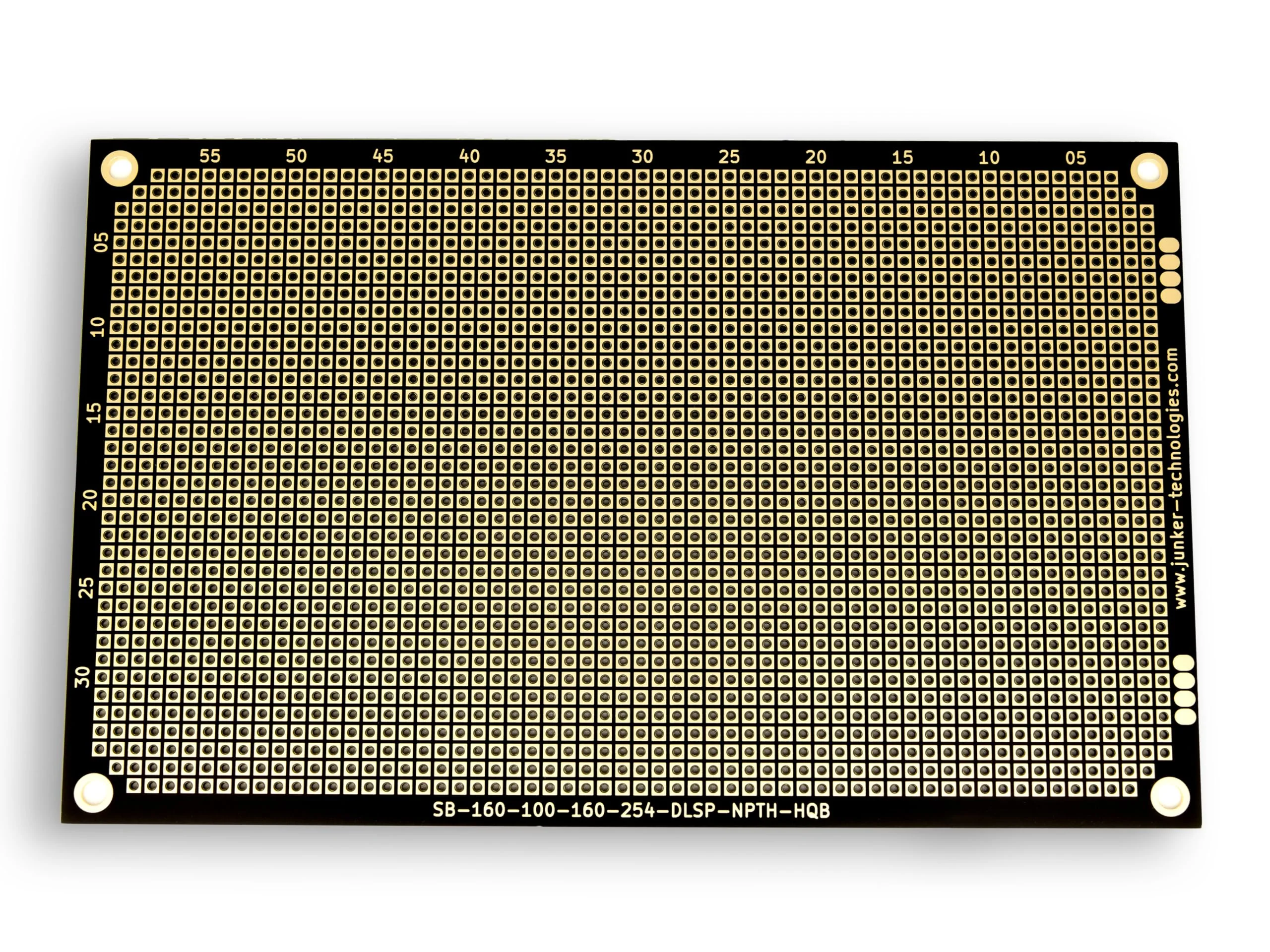

PROTOPATCH® Premium Perforated Grid Board (Pack of 3) | 160 x 100 mm | Double Sided | Square Pads | Black | NPTH | 2.54 mm Pitch - Image 2

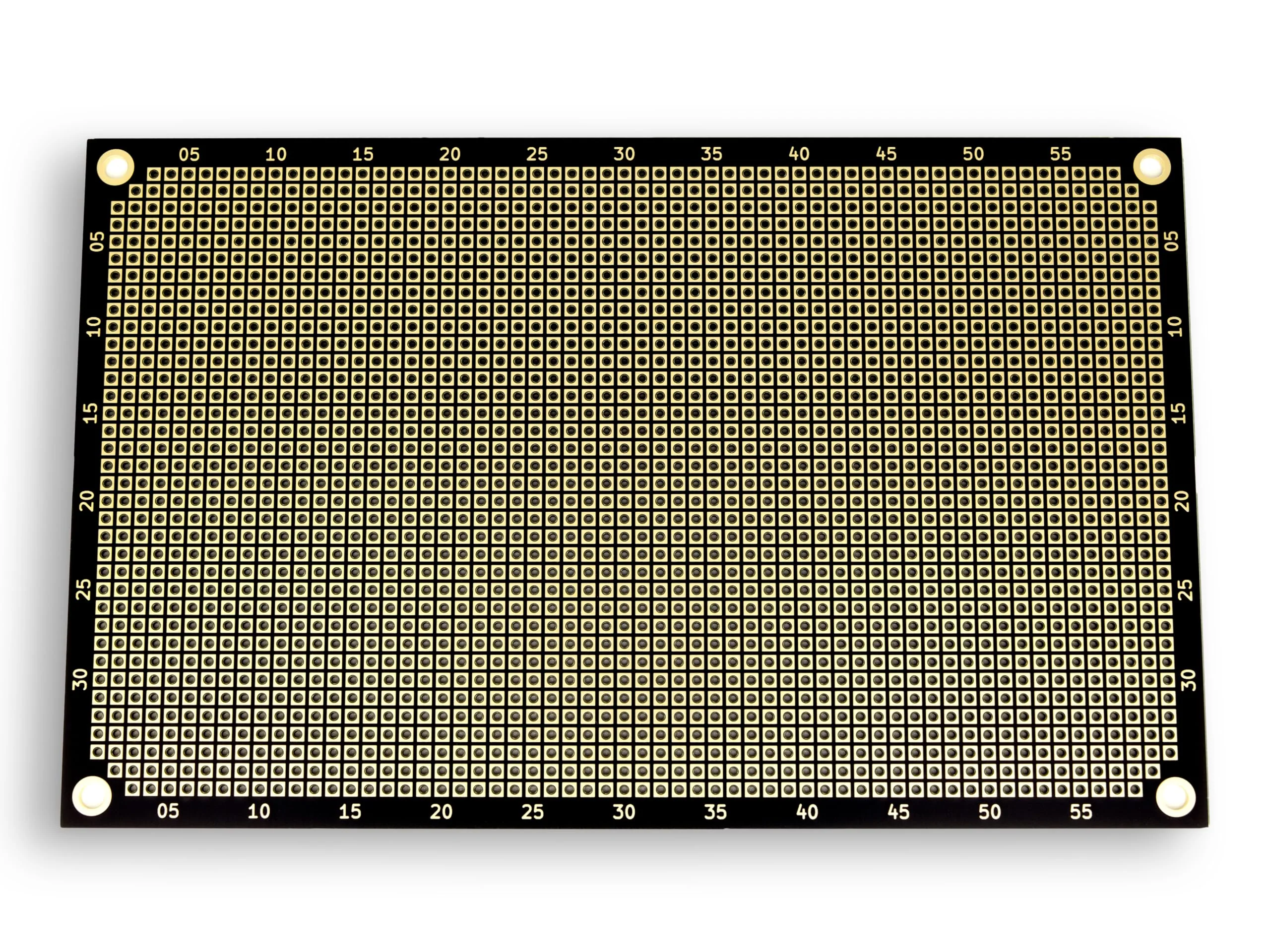

PROTOPATCH® Premium Perforated Grid Board (Pack of 3) | 160 x 100 mm | Double Sided | Square Pads | Black | NPTH | 2.54 mm Pitch - Image 3

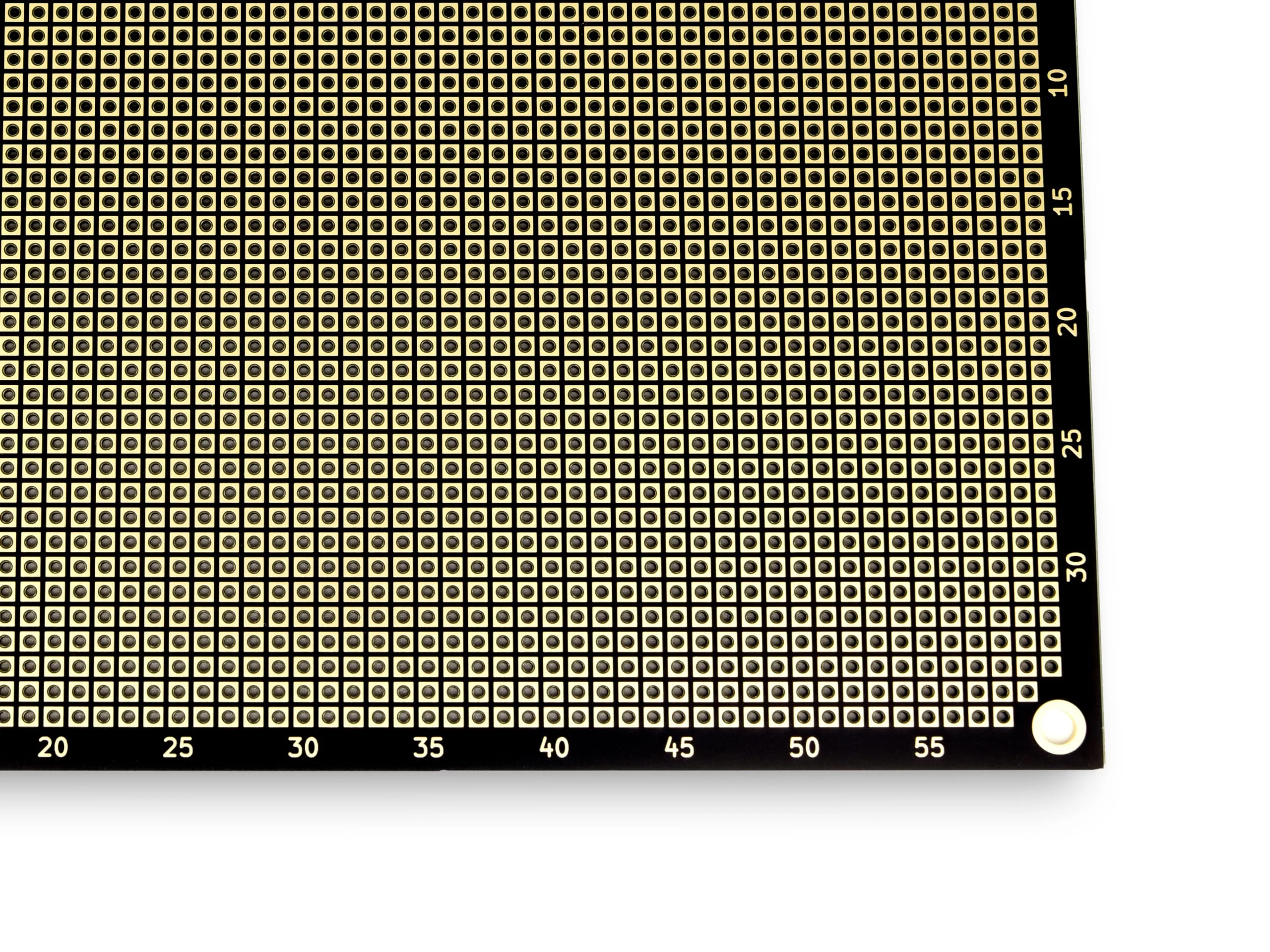

PROTOPATCH® Premium Perforated Grid Board (Pack of 3) | 160 x 100 mm | Double Sided | Square Pads | Black | NPTH | 2.54 mm Pitch - Image 4
