Photoelectric Sensor Switch E3JK-DS30M1 DC12-24V Diffuse Type Detection Distance 30cm
Photoelectric Sensor Switch E3JK-DS30M1 DC12-24V Diffuse Type Detection Distance 30cm
Characteristic parameters: Respnose time: 30msConnectin delay:1.5msSupply voltage:DC type: DC12-24V(6-36V) Impulse(p-p) 10% belowLight source: Infrared light 660nmPower current: 3V belowControl output: 2A below(contact service life: 0.1 million times)Impulsion and vibration are allowed: B<30g,T<11ms, f<55Hz, a<1mmInsulation impedance: 50Mohm above between charging part and housingWithstand voltage: AC1000V 50/60Hz 1min between charging part and housingTemperature Influence : Temperature range-30～＋65℃,at + 23℃,± 15% detection distance; Temperature range-25～＋60℃, at +23℃, ±10% detection distanceVoltage influence: Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance.Protection structure: IP65(IEC specification)Material: Housing: Nickel plated brass(ABS) Detection surface(lens): PMMA
Product Features

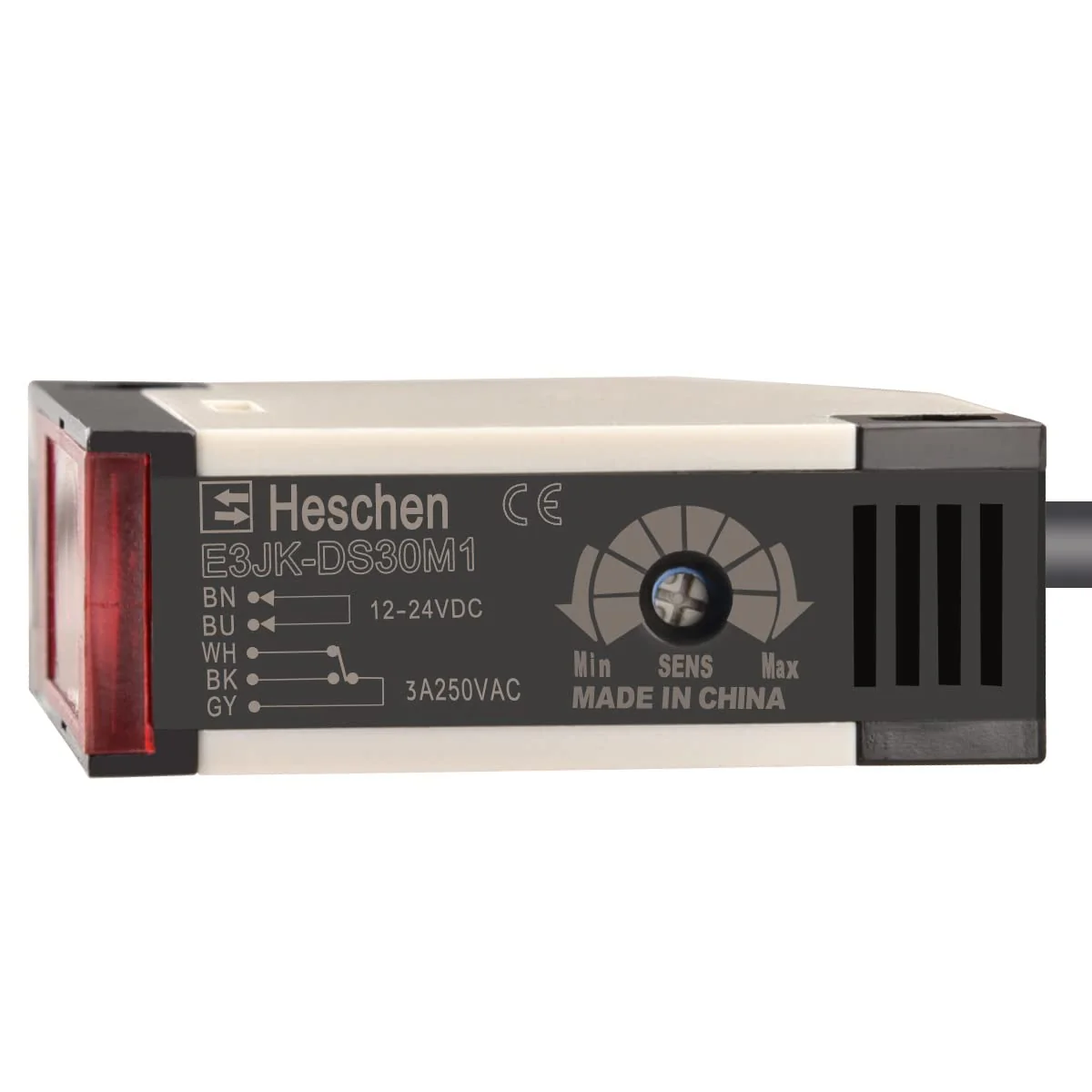

- Supply Voltage: 12-24VDC; Load Rating: 3A 250VAC
- Detection Range: 30cm 10%; Detection Range Regulation: Sensitivity Adjuster
- Relay output: DC illuminate
- Detection Target: Transparent/Opaque Object

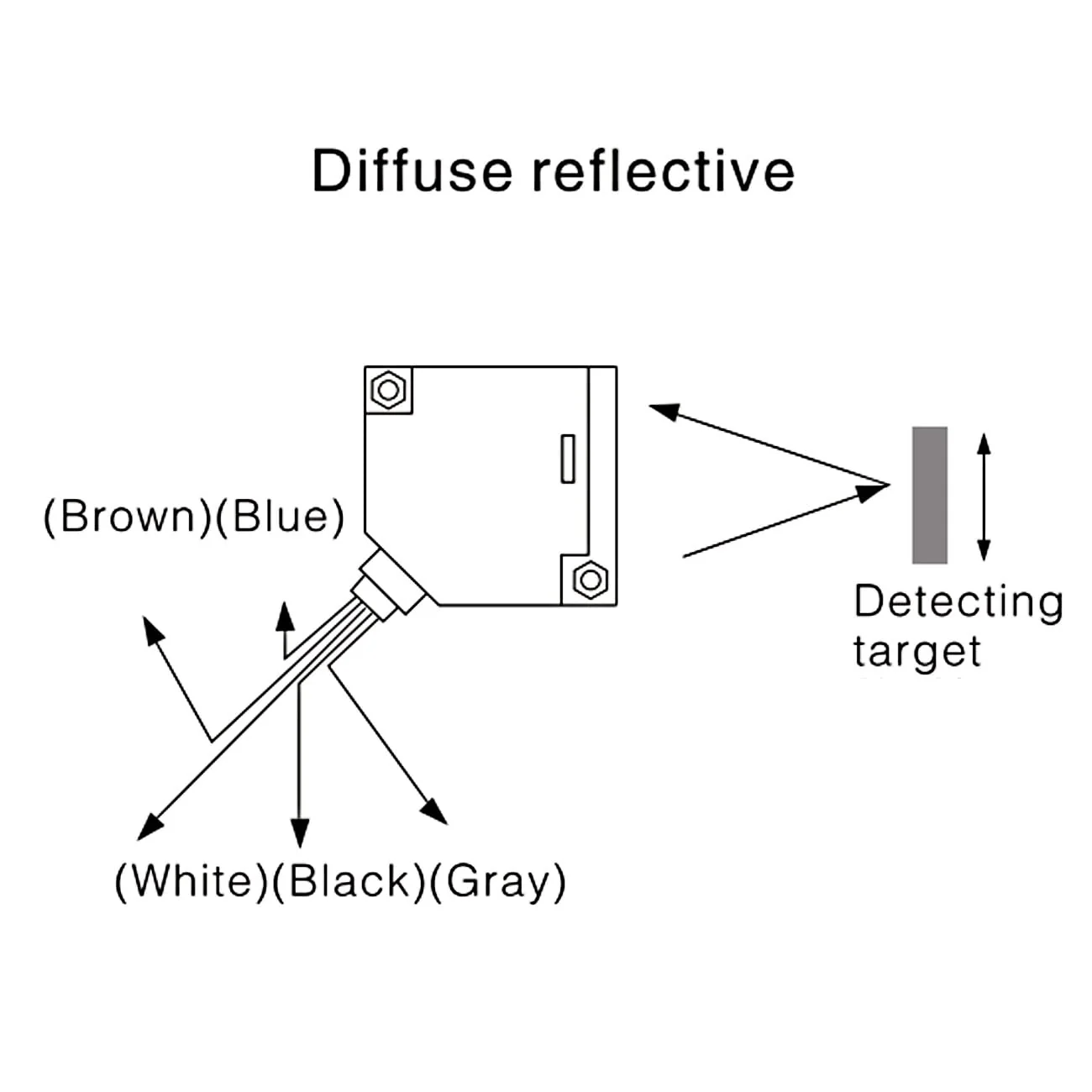

- Detection Method: Diffuse Type
More Images
Photoelectric Sensor Switch E3JK-DS30M1 DC12-24V Diffuse Type Detection Distance 30cm
Photoelectric Sensor Switch E3JK-DS30M1 DC12-24V Diffuse Type Detection Distance 30cm
Characteristic parameters: Respnose time: 30msConnectin delay:1.5msSupply voltage:DC type: DC12-24V(6-36V) Impulse(p-p) 10% belowLight source: Infrared light 660nmPower current: 3V belowControl output: 2A below(contact service life: 0.1 million times)Impulsion and vibration are allowed: B<30g,T<11ms, f<55Hz, a<1mmInsulation impedance: 50Mohm above between charging part and housingWithstand voltage: AC1000V 50/60Hz 1min between charging part and housingTemperature Influence : Temperature range-30～＋65℃,at + 23℃,± 15% detection distance; Temperature range-25～＋60℃, at +23℃, ±10% detection distanceVoltage influence: Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance.Protection structure: IP65(IEC specification)Material: Housing: Nickel plated brass(ABS) Detection surface(lens): PMMA
Product Features
- Supply Voltage: 12-24VDC; Load Rating: 3A 250VAC
- Detection Range: 30cm 10%; Detection Range Regulation: Sensitivity Adjuster
- Relay output: DC illuminate
- Detection Target: Transparent/Opaque Object
- Detection Method: Diffuse Type
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Photoelectric Sensor Switch E3JK-DS30M1 DC12-24V Diffuse Type Detection Distance 30cm
Characteristic parameters: Respnose time: 30msConnectin delay:1.5msSupply voltage:DC type: DC12-24V(6-36V) Impulse(p-p) 10% belowLight source: Infrared light 660nmPower current: 3V belowControl output: 2A below(contact service life: 0.1 million times)Impulsion and vibration are allowed: B<30g,T<11ms, f<55Hz, a<1mmInsulation impedance: 50Mohm above between charging part and housingWithstand voltage: AC1000V 50/60Hz 1min between charging part and housingTemperature Influence : Temperature range-30～＋65℃,at + 23℃,± 15% detection distance; Temperature range-25～＋60℃, at +23℃, ±10% detection distanceVoltage influence: Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance.Protection structure: IP65(IEC specification)Material: Housing: Nickel plated brass(ABS) Detection surface(lens): PMMA
Product Features
- Supply Voltage: 12-24VDC; Load Rating: 3A 250VAC
- Detection Range: 30cm 10%; Detection Range Regulation: Sensitivity Adjuster
- Relay output: DC illuminate
- Detection Target: Transparent/Opaque Object
- Detection Method: Diffuse Type
