PEREL - 2120025M print transformer, 2.5VA, 2 x 12V, 2 x 0.104 Amp 139099

PEREL - 2120025M print transformer, 2.5VA, 2 x 12V, 2 x 0.104 Amp 139099

PEREL - 2120025M print transformer, 2.5VA, 2 x 12V, 2 x 0.104 Amp 139099

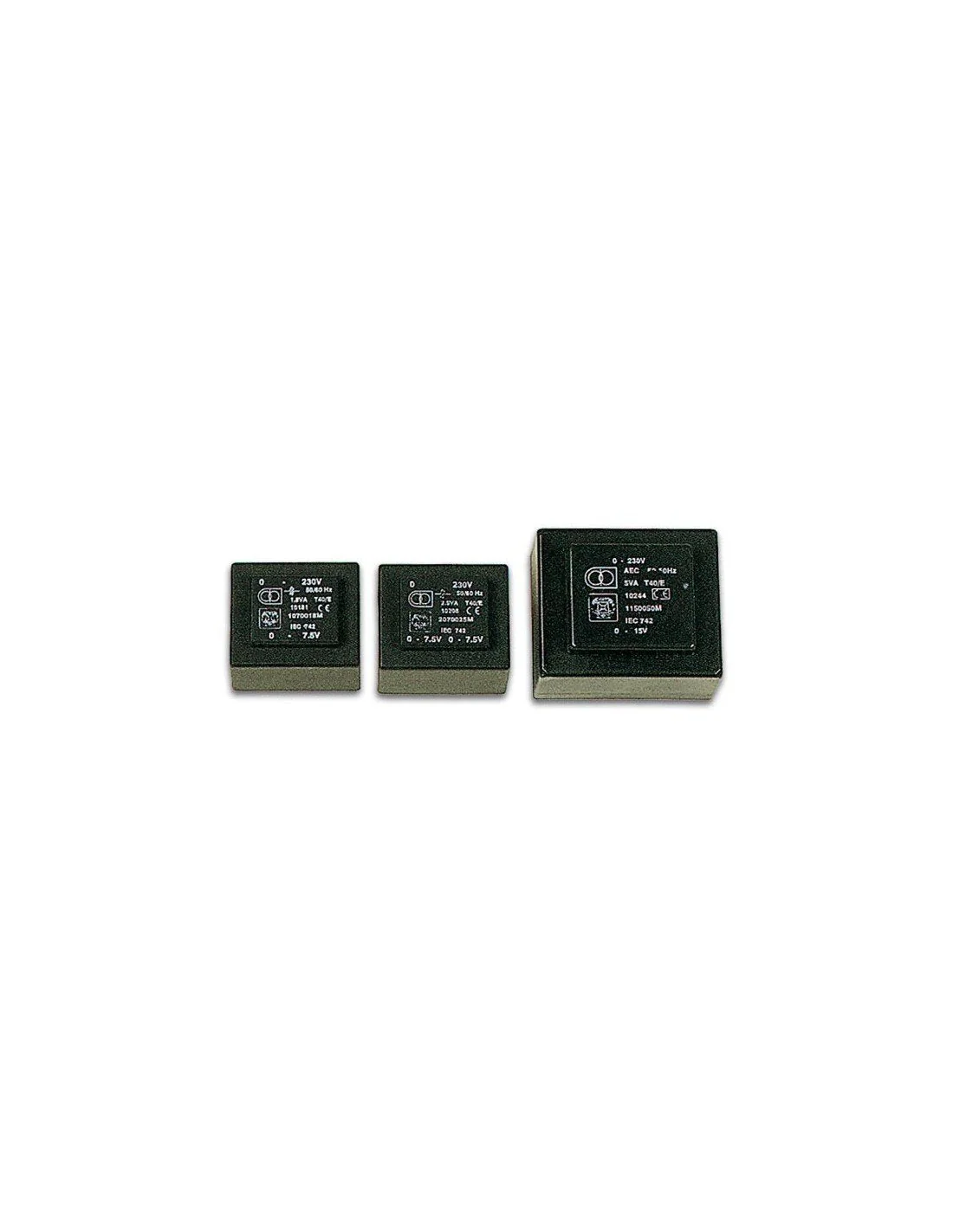

Voltage: 2 x 12V. Current: 2 x 0.104A Insulation resistance: >.5Mohm/500Vdc. Dielectric strength: >.5 kV min. Designed for an ambient temperature of Max. 40°C. Material of insulation class E 120°. Short-circuit resistant up to 3VA. Protection possible by thermal fuse. Max. Temperature for insulation class E: 95°C. Primary voltage: 230V ± 10%. 50/60Hz Secondary voltage tolerance: +7% -3% at 230V and max. Load Perfect solderability for a wave bath. CE Approved. Creepage distance and spaces according to IEC742. Picture: 1: Spool of 2. Chambers. 2:Primary winding. 3: encapsulation in epoxy resin. 4: Secondary winding. 5: Terminal Pins 6: Polyamide Case 7: magnetic core 8: safety transformer. 9: Short Circuit Protection 10:Primary Voltage 11: rated power/rated temperature. 12: Manufacturer's reference.

Product Features

  • Nom. Secondary voltages
  • Approvals
  • Order ID
$27.64

Original: $78.96

-65%
PEREL - 2120025M print transformer, 2.5VA, 2 x 12V, 2 x 0.104 Amp 139099—

$78.96

$27.64

PEREL - 2120025M print transformer, 2.5VA, 2 x 12V, 2 x 0.104 Amp 139099

PEREL - 2120025M print transformer, 2.5VA, 2 x 12V, 2 x 0.104 Amp 139099

Voltage: 2 x 12V. Current: 2 x 0.104A Insulation resistance: >.5Mohm/500Vdc. Dielectric strength: >.5 kV min. Designed for an ambient temperature of Max. 40°C. Material of insulation class E 120°. Short-circuit resistant up to 3VA. Protection possible by thermal fuse. Max. Temperature for insulation class E: 95°C. Primary voltage: 230V ± 10%. 50/60Hz Secondary voltage tolerance: +7% -3% at 230V and max. Load Perfect solderability for a wave bath. CE Approved. Creepage distance and spaces according to IEC742. Picture: 1: Spool of 2. Chambers. 2:Primary winding. 3: encapsulation in epoxy resin. 4: Secondary winding. 5: Terminal Pins 6: Polyamide Case 7: magnetic core 8: safety transformer. 9: Short Circuit Protection 10:Primary Voltage 11: rated power/rated temperature. 12: Manufacturer's reference.

Product Features

  • Nom. Secondary voltages
  • Approvals
  • Order ID

Product Information

Shipping & Returns

Description

PEREL - 2120025M print transformer, 2.5VA, 2 x 12V, 2 x 0.104 Amp 139099

Voltage: 2 x 12V. Current: 2 x 0.104A Insulation resistance: >.5Mohm/500Vdc. Dielectric strength: >.5 kV min. Designed for an ambient temperature of Max. 40°C. Material of insulation class E 120°. Short-circuit resistant up to 3VA. Protection possible by thermal fuse. Max. Temperature for insulation class E: 95°C. Primary voltage: 230V ± 10%. 50/60Hz Secondary voltage tolerance: +7% -3% at 230V and max. Load Perfect solderability for a wave bath. CE Approved. Creepage distance and spaces according to IEC742. Picture: 1: Spool of 2. Chambers. 2:Primary winding. 3: encapsulation in epoxy resin. 4: Secondary winding. 5: Terminal Pins 6: Polyamide Case 7: magnetic core 8: safety transformer. 9: Short Circuit Protection 10:Primary Voltage 11: rated power/rated temperature. 12: Manufacturer's reference.

Product Features

  • Nom. Secondary voltages
  • Approvals
  • Order ID
