PENGLIN 2 x 2 Channel 5 V Relay Module with Optocoupler High or Low Level Trigger Extension Board for Raspberry Pi Arduino
PENGLIN 2 x 2 Channel 5 V Relay Module with Optocoupler High or Low Level Trigger Extension Board for Raspberry Pi Arduino
PENGLIN 2 x 2 Channel 5 V Relay Module with Optocoupler High or Low Level Trigger Extension Board for Raspberry Pi Arduino

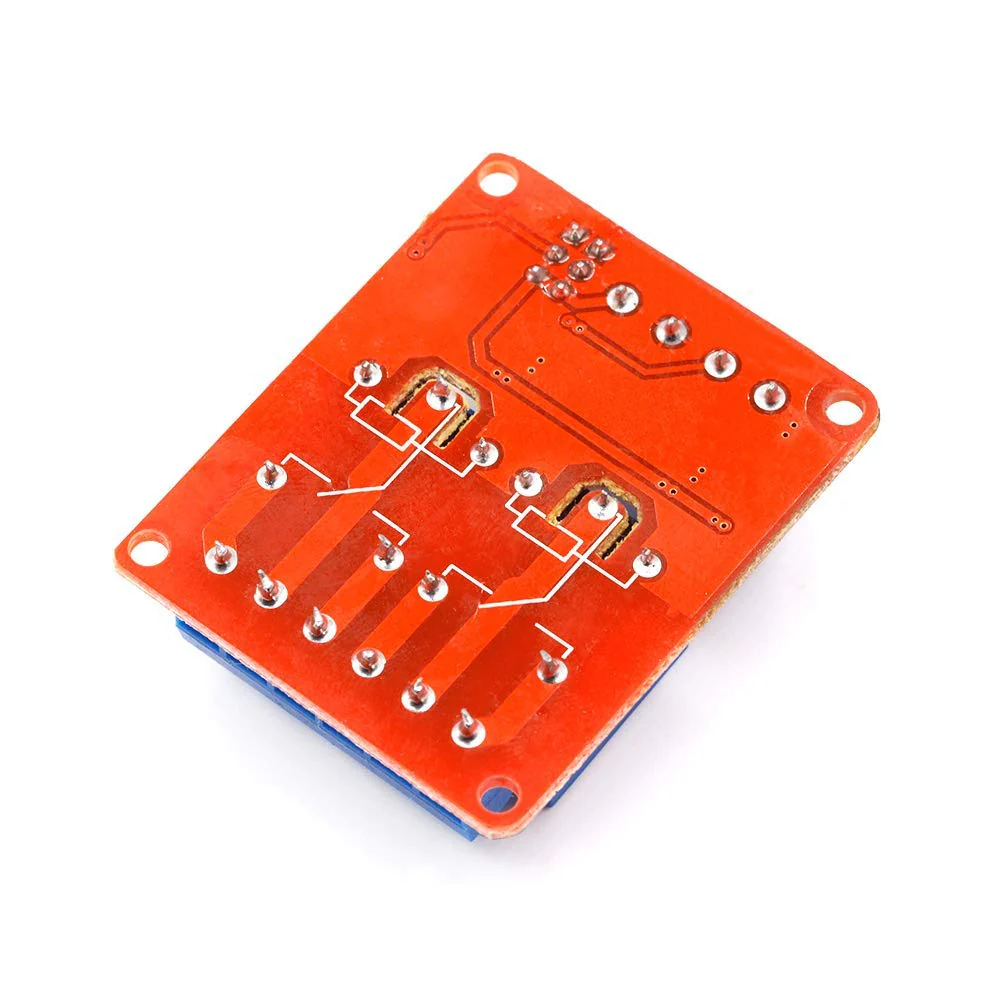

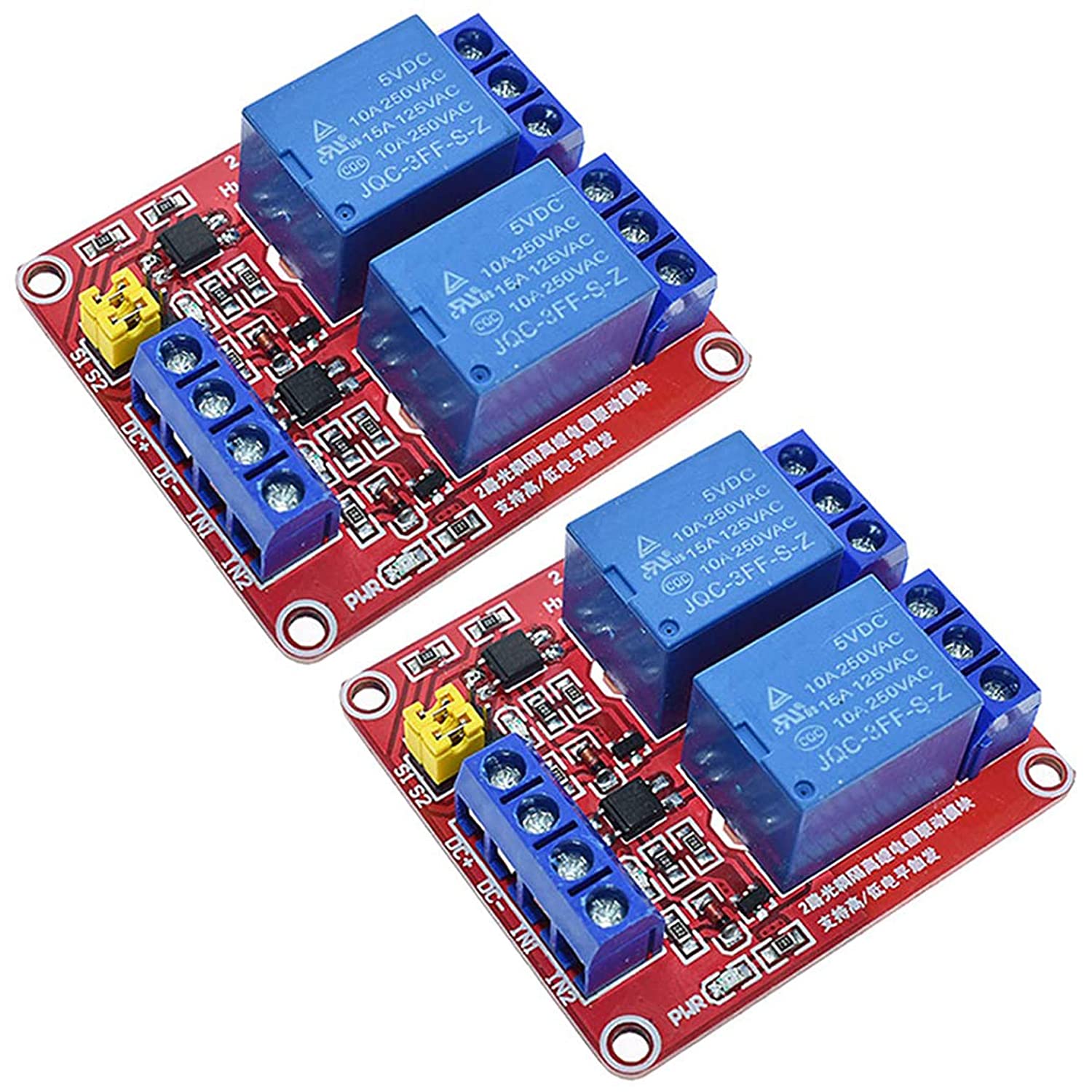

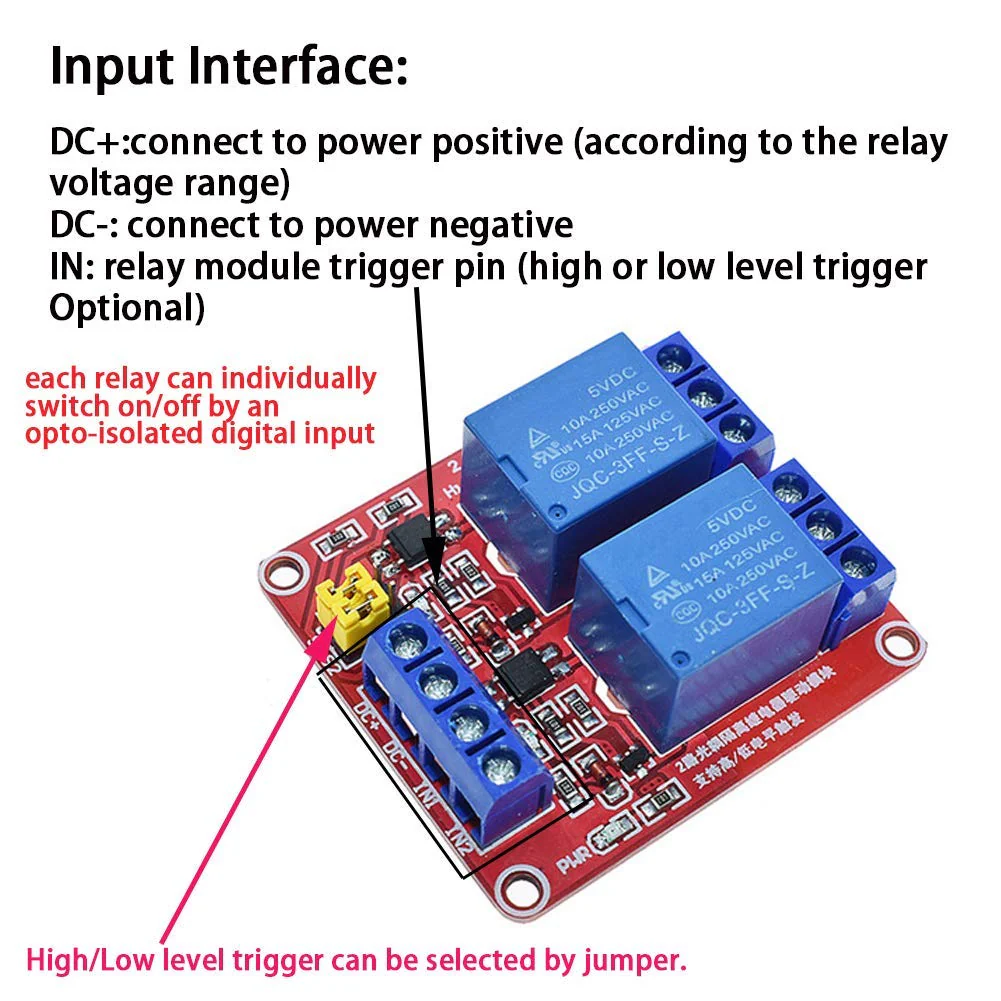

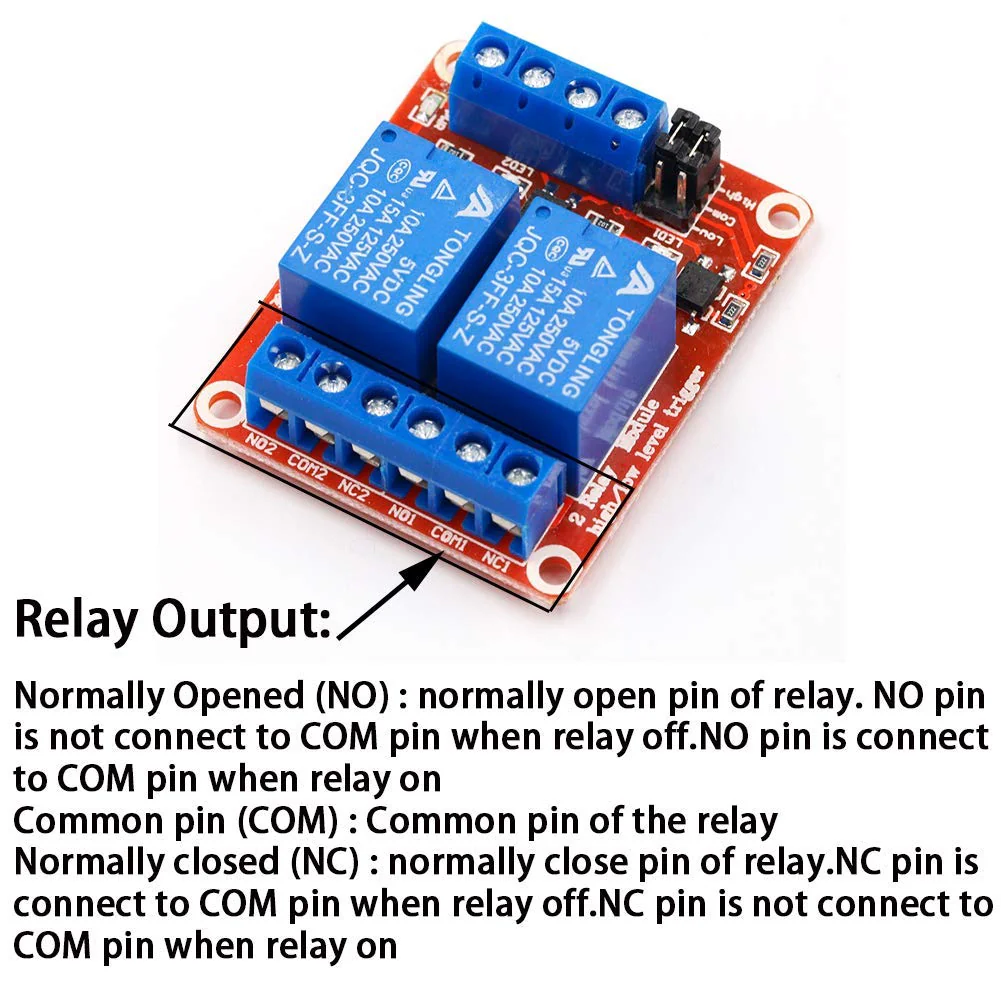

The relay comes with a 2-channel 5V activation relay ready to control 250VAC at 10A. Additional insulation with optocoupler at the front end of the controller and the activation logic for relays can be configured via a mini jumper. Technical specifications: Channel: 2 channels. Operating voltage: DC 5 V. Normally open compatible load: 10A 250VAC / 15A 125VAC / 10A 30VDC. Standby current: 5 mA. Maximum current: 190 mA. Trigger current: 2-5 mA. Trigger voltage (LOW): 0-1.5V Trigger voltage (HIGH): 2.5-5V. Insulation resistance: 100 MΩ (500 VDC). Action time (under rated voltage): less than 10 ms. Release time (under rated voltage): less than 5ms Power indicator (green), relay status indicator (red). User-friendly interface design. All interfaces can be connected directly via terminal wiring lines. Module size: 50 mm x 41 mm x 18.5 mm / 1.97 x 1.61 x 0.73 inches (L x W x H). Input interface: DC+: connect to current plus (according to the relay voltage range). DC-: connect to power negatively. IN: relay module trigger pin (high or low level trigger optional) Relay output: Normally open (NO): normally open relay pin. The NO pin is not connected to the COM pin when the relay is off. The NO pin is connected to the COM pin when the relay is turned on; Common Pin (COM): Common Pin of Relay; Normally closed (NC): normally closed pin of the relay.NC pin is connected to COM pin when relay is off.NC pin is not connected to COM pin when relay is turned on; High/Low Level Trigger: 1. Low-level trigger for short circuit of jumper and L; 2. High level trigger on jumper and H short circuit. Package includes: 2 x two-channel 5V relay module with optocoupler module.
Product Features

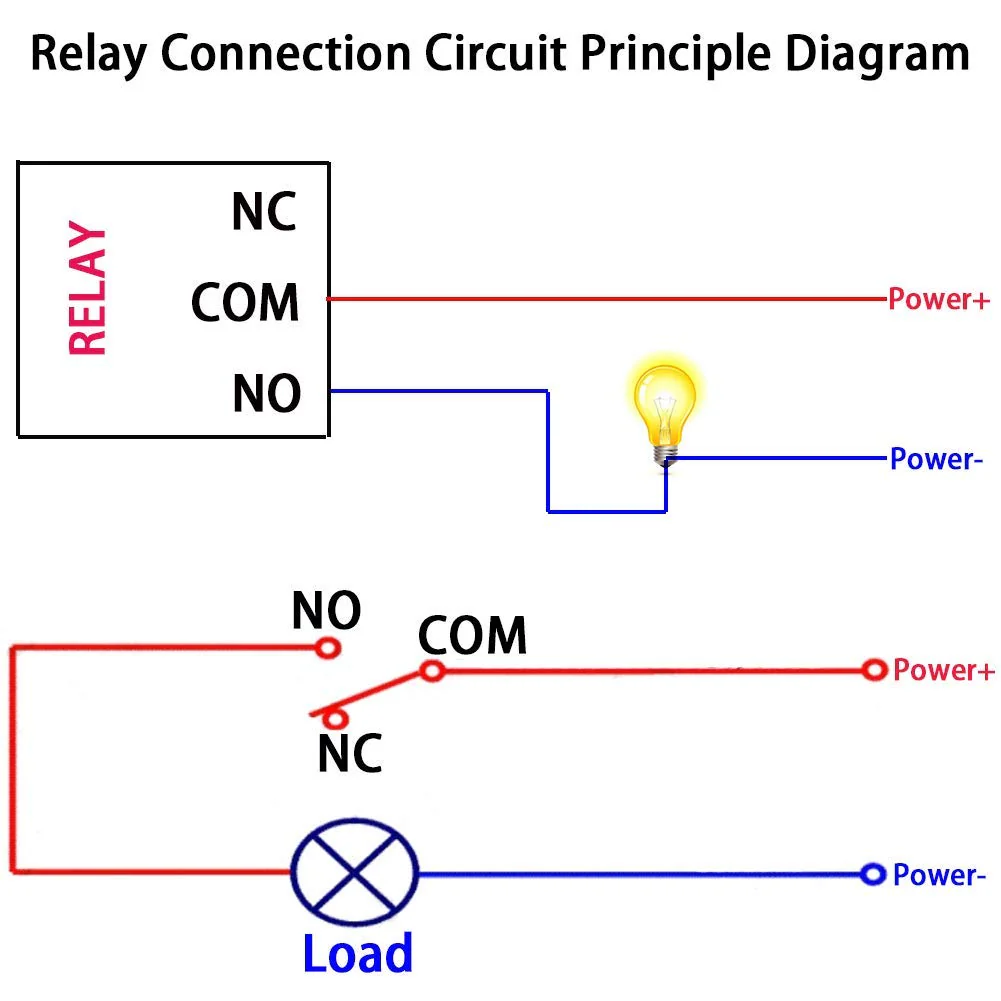

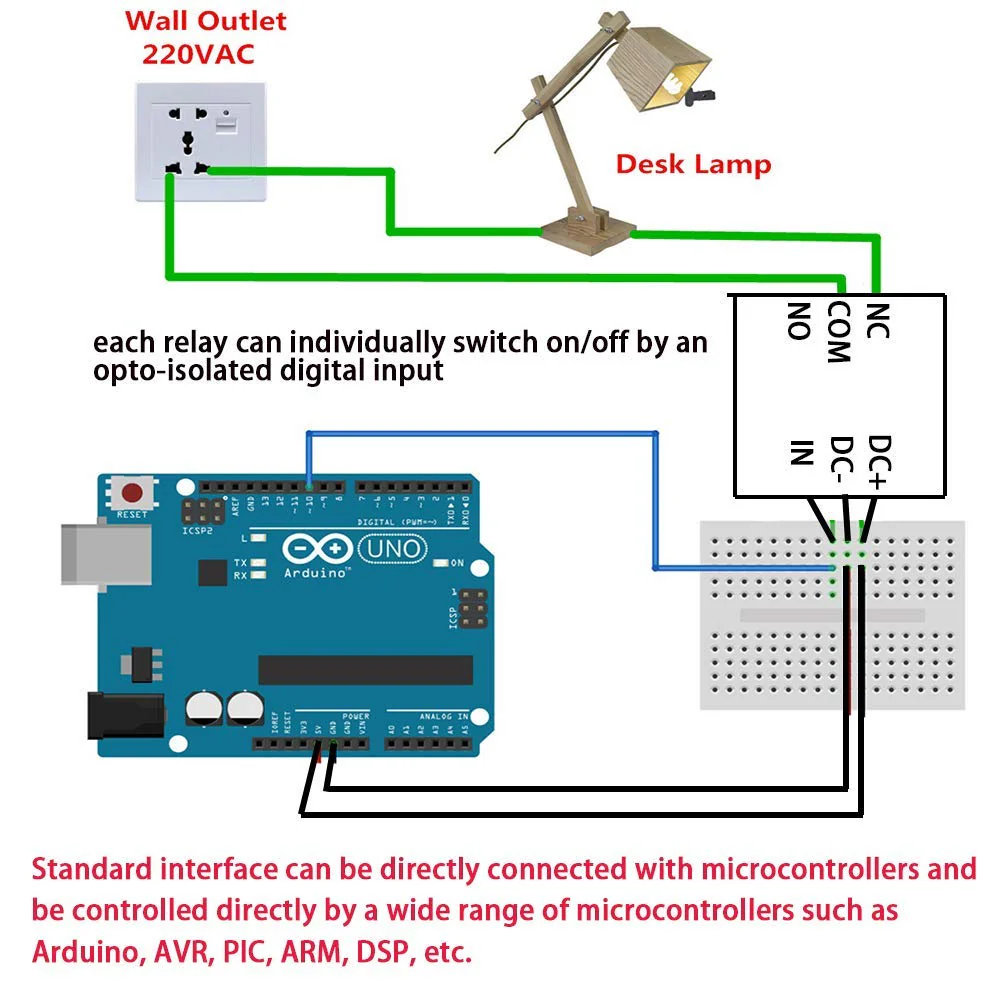

- It is a 2-channel insulated 5V 10A relay module, each relay can be switched on and off individually via an opto-isolated digital input. The standard interface can be directly connected to microcontrollers and directly from a variety of microcontrollers such as Arduino, AVR, PIC, ARM, DSP, etc., very convenient.
- Equipped with high current relay, maximum load: AC250V 10A, 15A 125VAC, DC30V 10A; Opto isolator tripping current: 5mA.
- Reliable: fault-tolerant design, even when the control line is interrupted, the relay does not move; with optical coupling insulation, more reliable, stable triggering.
- EASY TO INSTALL Equipped with screwed connection plate and fixed bolt holes (diameter:3.1mm) on both sides for easy installation.
- High/low level trigger can be selected by jumper. Very versatile, you can reverse the input logic with the jumper.
Original: $87.65
-65%$87.65
$30.68More Images
PENGLIN 2 x 2 Channel 5 V Relay Module with Optocoupler High or Low Level Trigger Extension Board for Raspberry Pi Arduino
PENGLIN 2 x 2 Channel 5 V Relay Module with Optocoupler High or Low Level Trigger Extension Board for Raspberry Pi Arduino
The relay comes with a 2-channel 5V activation relay ready to control 250VAC at 10A. Additional insulation with optocoupler at the front end of the controller and the activation logic for relays can be configured via a mini jumper. Technical specifications: Channel: 2 channels. Operating voltage: DC 5 V. Normally open compatible load: 10A 250VAC / 15A 125VAC / 10A 30VDC. Standby current: 5 mA. Maximum current: 190 mA. Trigger current: 2-5 mA. Trigger voltage (LOW): 0-1.5V Trigger voltage (HIGH): 2.5-5V. Insulation resistance: 100 MΩ (500 VDC). Action time (under rated voltage): less than 10 ms. Release time (under rated voltage): less than 5ms Power indicator (green), relay status indicator (red). User-friendly interface design. All interfaces can be connected directly via terminal wiring lines. Module size: 50 mm x 41 mm x 18.5 mm / 1.97 x 1.61 x 0.73 inches (L x W x H). Input interface: DC+: connect to current plus (according to the relay voltage range). DC-: connect to power negatively. IN: relay module trigger pin (high or low level trigger optional) Relay output: Normally open (NO): normally open relay pin. The NO pin is not connected to the COM pin when the relay is off. The NO pin is connected to the COM pin when the relay is turned on; Common Pin (COM): Common Pin of Relay; Normally closed (NC): normally closed pin of the relay.NC pin is connected to COM pin when relay is off.NC pin is not connected to COM pin when relay is turned on; High/Low Level Trigger: 1. Low-level trigger for short circuit of jumper and L; 2. High level trigger on jumper and H short circuit. Package includes: 2 x two-channel 5V relay module with optocoupler module.
Product Features
- It is a 2-channel insulated 5V 10A relay module, each relay can be switched on and off individually via an opto-isolated digital input. The standard interface can be directly connected to microcontrollers and directly from a variety of microcontrollers such as Arduino, AVR, PIC, ARM, DSP, etc., very convenient.
- Equipped with high current relay, maximum load: AC250V 10A, 15A 125VAC, DC30V 10A; Opto isolator tripping current: 5mA.
- Reliable: fault-tolerant design, even when the control line is interrupted, the relay does not move; with optical coupling insulation, more reliable, stable triggering.
- EASY TO INSTALL Equipped with screwed connection plate and fixed bolt holes (diameter:3.1mm) on both sides for easy installation.
- High/low level trigger can be selected by jumper. Very versatile, you can reverse the input logic with the jumper.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
PENGLIN 2 x 2 Channel 5 V Relay Module with Optocoupler High or Low Level Trigger Extension Board for Raspberry Pi Arduino
The relay comes with a 2-channel 5V activation relay ready to control 250VAC at 10A. Additional insulation with optocoupler at the front end of the controller and the activation logic for relays can be configured via a mini jumper. Technical specifications: Channel: 2 channels. Operating voltage: DC 5 V. Normally open compatible load: 10A 250VAC / 15A 125VAC / 10A 30VDC. Standby current: 5 mA. Maximum current: 190 mA. Trigger current: 2-5 mA. Trigger voltage (LOW): 0-1.5V Trigger voltage (HIGH): 2.5-5V. Insulation resistance: 100 MΩ (500 VDC). Action time (under rated voltage): less than 10 ms. Release time (under rated voltage): less than 5ms Power indicator (green), relay status indicator (red). User-friendly interface design. All interfaces can be connected directly via terminal wiring lines. Module size: 50 mm x 41 mm x 18.5 mm / 1.97 x 1.61 x 0.73 inches (L x W x H). Input interface: DC+: connect to current plus (according to the relay voltage range). DC-: connect to power negatively. IN: relay module trigger pin (high or low level trigger optional) Relay output: Normally open (NO): normally open relay pin. The NO pin is not connected to the COM pin when the relay is off. The NO pin is connected to the COM pin when the relay is turned on; Common Pin (COM): Common Pin of Relay; Normally closed (NC): normally closed pin of the relay.NC pin is connected to COM pin when relay is off.NC pin is not connected to COM pin when relay is turned on; High/Low Level Trigger: 1. Low-level trigger for short circuit of jumper and L; 2. High level trigger on jumper and H short circuit. Package includes: 2 x two-channel 5V relay module with optocoupler module.
Product Features
- It is a 2-channel insulated 5V 10A relay module, each relay can be switched on and off individually via an opto-isolated digital input. The standard interface can be directly connected to microcontrollers and directly from a variety of microcontrollers such as Arduino, AVR, PIC, ARM, DSP, etc., very convenient.
- Equipped with high current relay, maximum load: AC250V 10A, 15A 125VAC, DC30V 10A; Opto isolator tripping current: 5mA.
- Reliable: fault-tolerant design, even when the control line is interrupted, the relay does not move; with optical coupling insulation, more reliable, stable triggering.
- EASY TO INSTALL Equipped with screwed connection plate and fixed bolt holes (diameter:3.1mm) on both sides for easy installation.
- High/low level trigger can be selected by jumper. Very versatile, you can reverse the input logic with the jumper.
