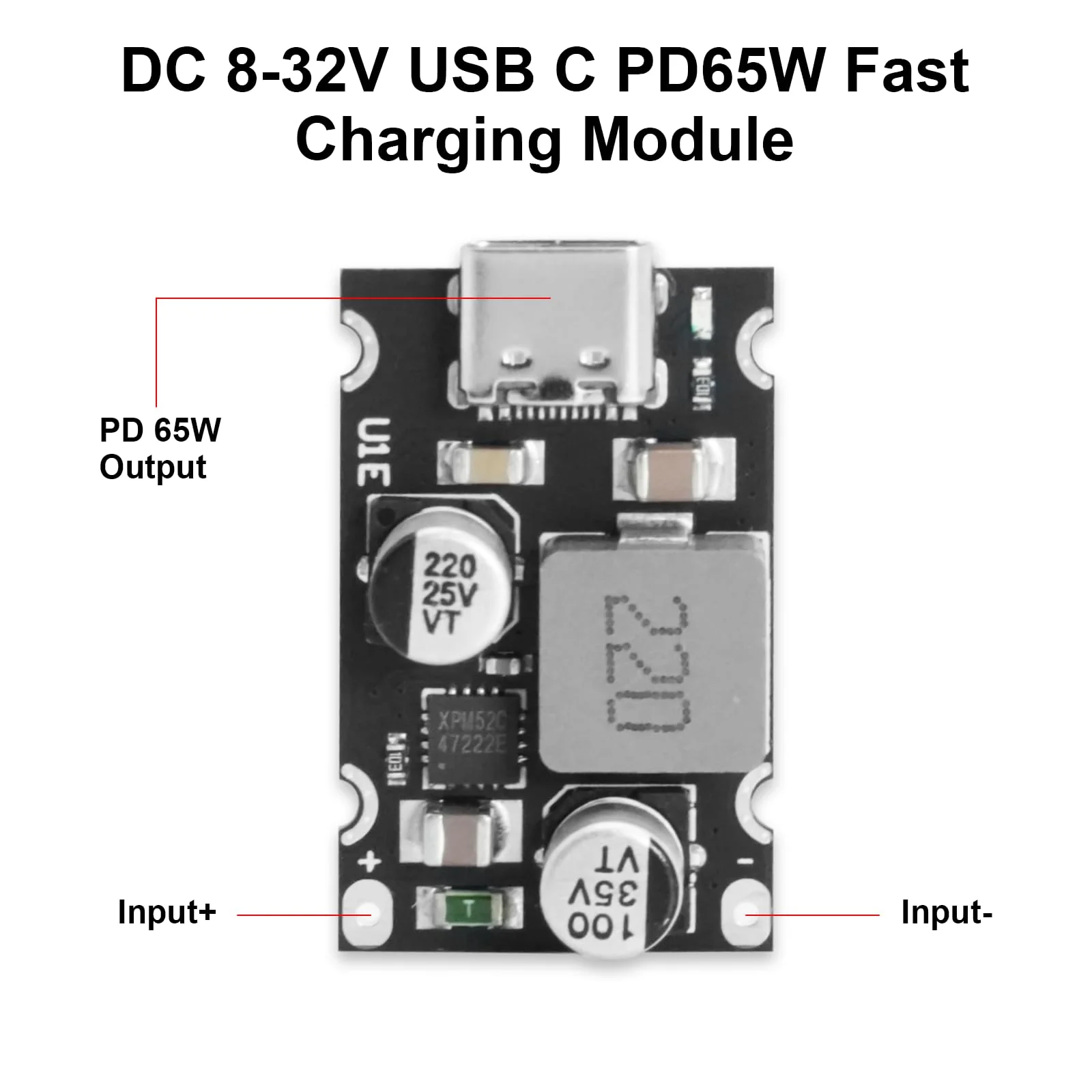

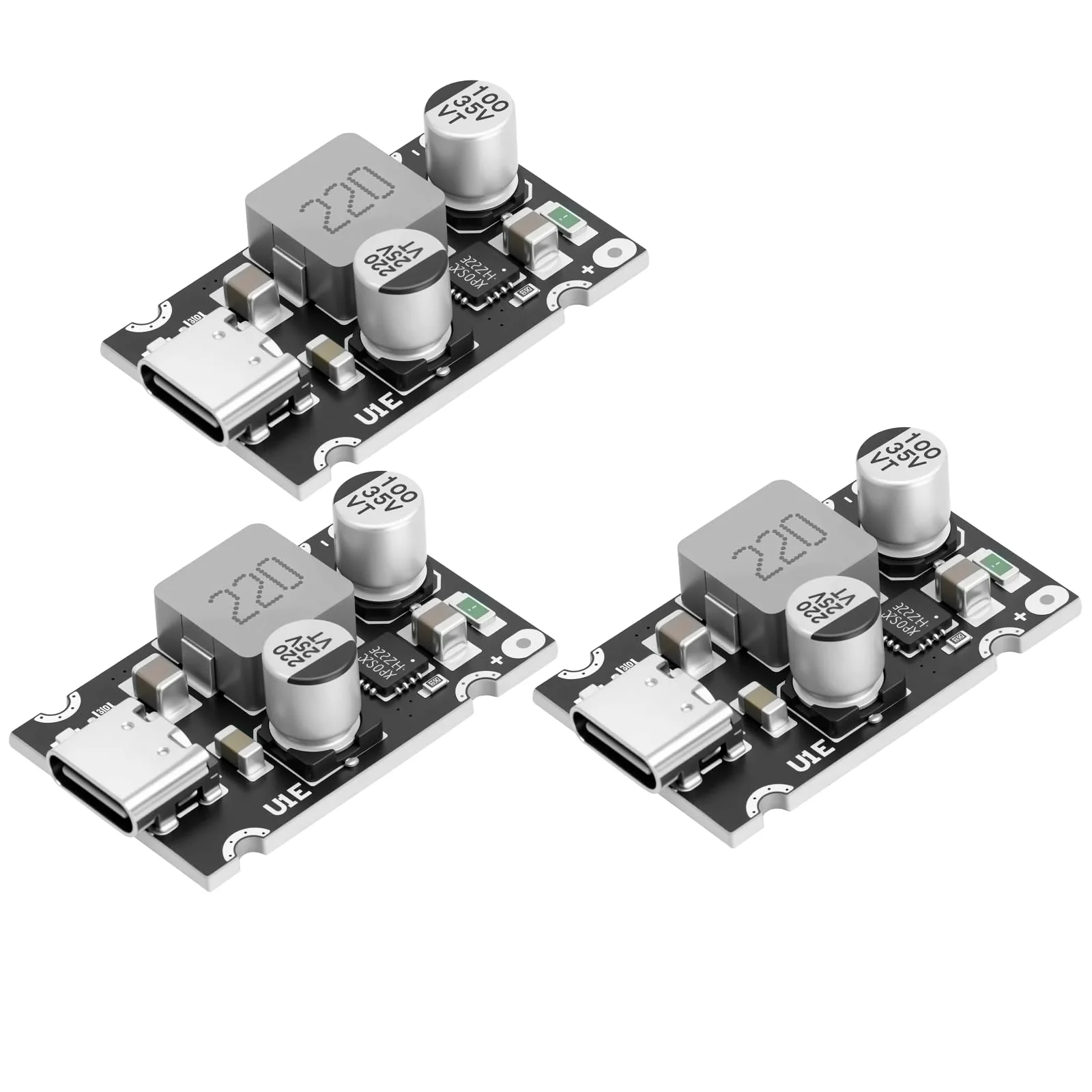

PD65W Fast Charging Module, QIQIAZI Fast Charging Module 12V-30V to USB-C PD3.1 QC3.0 with Type-C Port, USB Buck Converter DC-DC Step Down Module for Phone Fast Charging (Pack of 3)
PD65W Fast Charging Module, QIQIAZI Fast Charging Module 12V-30V to USB-C PD3.1 QC3.0 with Type-C Port, USB Buck Converter DC-DC Step Down Module for Phone Fast Charging (Pack of 3)
PD65W Fast Charging Module, QIQIAZI Fast Charging Module 12V-30V to USB-C PD3.1 QC3.0 with Type-C Port, USB Buck Converter DC-DC Step Down Module for Phone Fast Charging (Pack of 3)

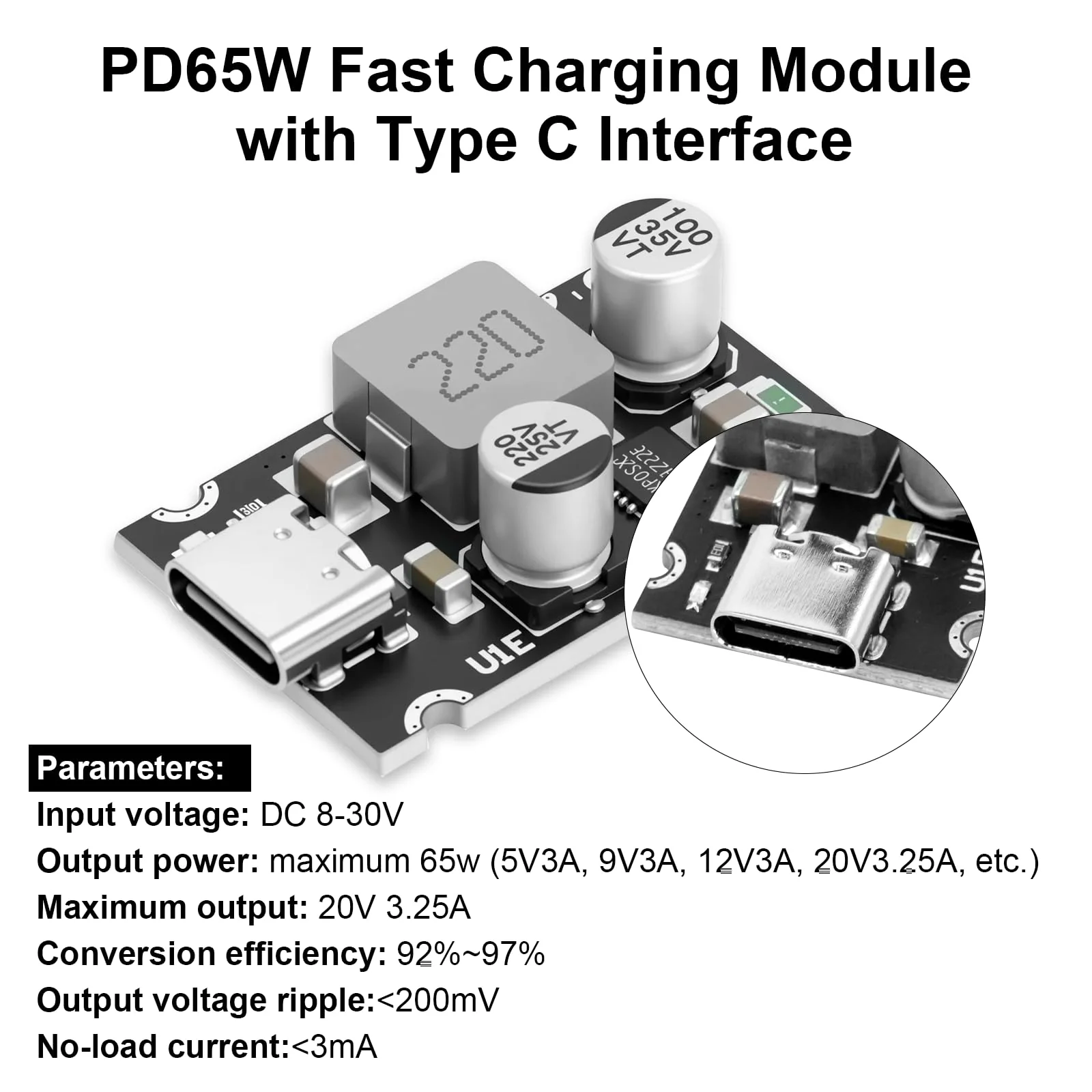

Functions: Supports PD3.1 (PPS), QC3.0 and SCP With protection features: input over-voltage and undervoltage protection, input over-current protection, output over-current and short circuit protection, and over-temperature protection for the entire device. Maximum output power: 20V 3.25A Input power: 8-30V (down-transformable only) Specifications: Input voltage: DC 8-30V Output Voltage: Automatically adjusts between 3.3V and 21V when connected to a TYPE-C compatible device (the input voltage must be higher than the output voltage. For 20V fast charging, the input voltage must be above 20V). Output power: maximum 65W (5V 3A, 9V 3A, 12V 3A, 20V 3.25A, etc.) Maximum output power: 20V 3.25A Conversion Efficiency: 92-97% Output voltage ripple: <200 mV. No-load current: <3 mA. Support charging protocol: PD3.1 (PPS), QC3.0, SCP Supported charging protocols: BC1.2. QC2.0 and QC3.0 Fast charging protocol FCP and SCP Fast charging protocol AFC MTK PE+1.1 and MTK PE+2.0 PD2.0/PD3.1 (PPS) output protocol.
Product Features
- Powerful PD65W Fast Charging Module: This PD65W fast charging module supports a wide range of charging protocols, for PD3.1 (PPS), PD2.0, QC2.0, QC3.0, FCP, SCP, AFC, BC1.2, protocol as well as MTK PE+ 1.1/2.0 - ideal for almost any fast charger on the MarkMark
- Multiple Protection for Safe Charging: The PD65W fast charging module with input overvoltage and undervoltage, over-current protection for both input and output, short circuit protection and machine overheating protection ensure safe and stable fast charging - even with intensive use.
- Versatile Voltage Output: The PD65W fast charging module supports fixed output voltages of 5V, 9V, 12V, 15V and 20V (no step regulator). Works efficiently with input voltages of 12-30V - compatible with a wide range of power sources such as power supplies or power banks.
- High efficiency: This PD65W fast charging module with an impressive conversion efficiency of 92-97% and a low no-load current of <3 mA ensures maximum energy saving. For optimal performance, the input voltage must be above the desired output voltage (e.g. B. for 20V output >20V input required).
- Ideal for PD laptops and mobile devices: thanks to the DC output, the module is perfect for charging mobile PD laptops or smartphones. It reliably protects your batteries from overcharging and heat build-up and thus effectively extends the life of your devices.
More Images
PD65W Fast Charging Module, QIQIAZI Fast Charging Module 12V-30V to USB-C PD3.1 QC3.0 with Type-C Port, USB Buck Converter DC-DC Step Down Module for Phone Fast Charging (Pack of 3)
PD65W Fast Charging Module, QIQIAZI Fast Charging Module 12V-30V to USB-C PD3.1 QC3.0 with Type-C Port, USB Buck Converter DC-DC Step Down Module for Phone Fast Charging (Pack of 3)
Functions: Supports PD3.1 (PPS), QC3.0 and SCP With protection features: input over-voltage and undervoltage protection, input over-current protection, output over-current and short circuit protection, and over-temperature protection for the entire device. Maximum output power: 20V 3.25A Input power: 8-30V (down-transformable only) Specifications: Input voltage: DC 8-30V Output Voltage: Automatically adjusts between 3.3V and 21V when connected to a TYPE-C compatible device (the input voltage must be higher than the output voltage. For 20V fast charging, the input voltage must be above 20V). Output power: maximum 65W (5V 3A, 9V 3A, 12V 3A, 20V 3.25A, etc.) Maximum output power: 20V 3.25A Conversion Efficiency: 92-97% Output voltage ripple: <200 mV. No-load current: <3 mA. Support charging protocol: PD3.1 (PPS), QC3.0, SCP Supported charging protocols: BC1.2. QC2.0 and QC3.0 Fast charging protocol FCP and SCP Fast charging protocol AFC MTK PE+1.1 and MTK PE+2.0 PD2.0/PD3.1 (PPS) output protocol.
Product Features
- Powerful PD65W Fast Charging Module: This PD65W fast charging module supports a wide range of charging protocols, for PD3.1 (PPS), PD2.0, QC2.0, QC3.0, FCP, SCP, AFC, BC1.2, protocol as well as MTK PE+ 1.1/2.0 - ideal for almost any fast charger on the MarkMark
- Multiple Protection for Safe Charging: The PD65W fast charging module with input overvoltage and undervoltage, over-current protection for both input and output, short circuit protection and machine overheating protection ensure safe and stable fast charging - even with intensive use.
- Versatile Voltage Output: The PD65W fast charging module supports fixed output voltages of 5V, 9V, 12V, 15V and 20V (no step regulator). Works efficiently with input voltages of 12-30V - compatible with a wide range of power sources such as power supplies or power banks.
- High efficiency: This PD65W fast charging module with an impressive conversion efficiency of 92-97% and a low no-load current of <3 mA ensures maximum energy saving. For optimal performance, the input voltage must be above the desired output voltage (e.g. B. for 20V output >20V input required).
- Ideal for PD laptops and mobile devices: thanks to the DC output, the module is perfect for charging mobile PD laptops or smartphones. It reliably protects your batteries from overcharging and heat build-up and thus effectively extends the life of your devices.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
PD65W Fast Charging Module, QIQIAZI Fast Charging Module 12V-30V to USB-C PD3.1 QC3.0 with Type-C Port, USB Buck Converter DC-DC Step Down Module for Phone Fast Charging (Pack of 3)
Functions: Supports PD3.1 (PPS), QC3.0 and SCP With protection features: input over-voltage and undervoltage protection, input over-current protection, output over-current and short circuit protection, and over-temperature protection for the entire device. Maximum output power: 20V 3.25A Input power: 8-30V (down-transformable only) Specifications: Input voltage: DC 8-30V Output Voltage: Automatically adjusts between 3.3V and 21V when connected to a TYPE-C compatible device (the input voltage must be higher than the output voltage. For 20V fast charging, the input voltage must be above 20V). Output power: maximum 65W (5V 3A, 9V 3A, 12V 3A, 20V 3.25A, etc.) Maximum output power: 20V 3.25A Conversion Efficiency: 92-97% Output voltage ripple: <200 mV. No-load current: <3 mA. Support charging protocol: PD3.1 (PPS), QC3.0, SCP Supported charging protocols: BC1.2. QC2.0 and QC3.0 Fast charging protocol FCP and SCP Fast charging protocol AFC MTK PE+1.1 and MTK PE+2.0 PD2.0/PD3.1 (PPS) output protocol.
Product Features
- Powerful PD65W Fast Charging Module: This PD65W fast charging module supports a wide range of charging protocols, for PD3.1 (PPS), PD2.0, QC2.0, QC3.0, FCP, SCP, AFC, BC1.2, protocol as well as MTK PE+ 1.1/2.0 - ideal for almost any fast charger on the MarkMark
- Multiple Protection for Safe Charging: The PD65W fast charging module with input overvoltage and undervoltage, over-current protection for both input and output, short circuit protection and machine overheating protection ensure safe and stable fast charging - even with intensive use.
- Versatile Voltage Output: The PD65W fast charging module supports fixed output voltages of 5V, 9V, 12V, 15V and 20V (no step regulator). Works efficiently with input voltages of 12-30V - compatible with a wide range of power sources such as power supplies or power banks.
- High efficiency: This PD65W fast charging module with an impressive conversion efficiency of 92-97% and a low no-load current of <3 mA ensures maximum energy saving. For optimal performance, the input voltage must be above the desired output voltage (e.g. B. for 20V output >20V input required).
- Ideal for PD laptops and mobile devices: thanks to the DC output, the module is perfect for charging mobile PD laptops or smartphones. It reliably protects your batteries from overcharging and heat build-up and thus effectively extends the life of your devices.
