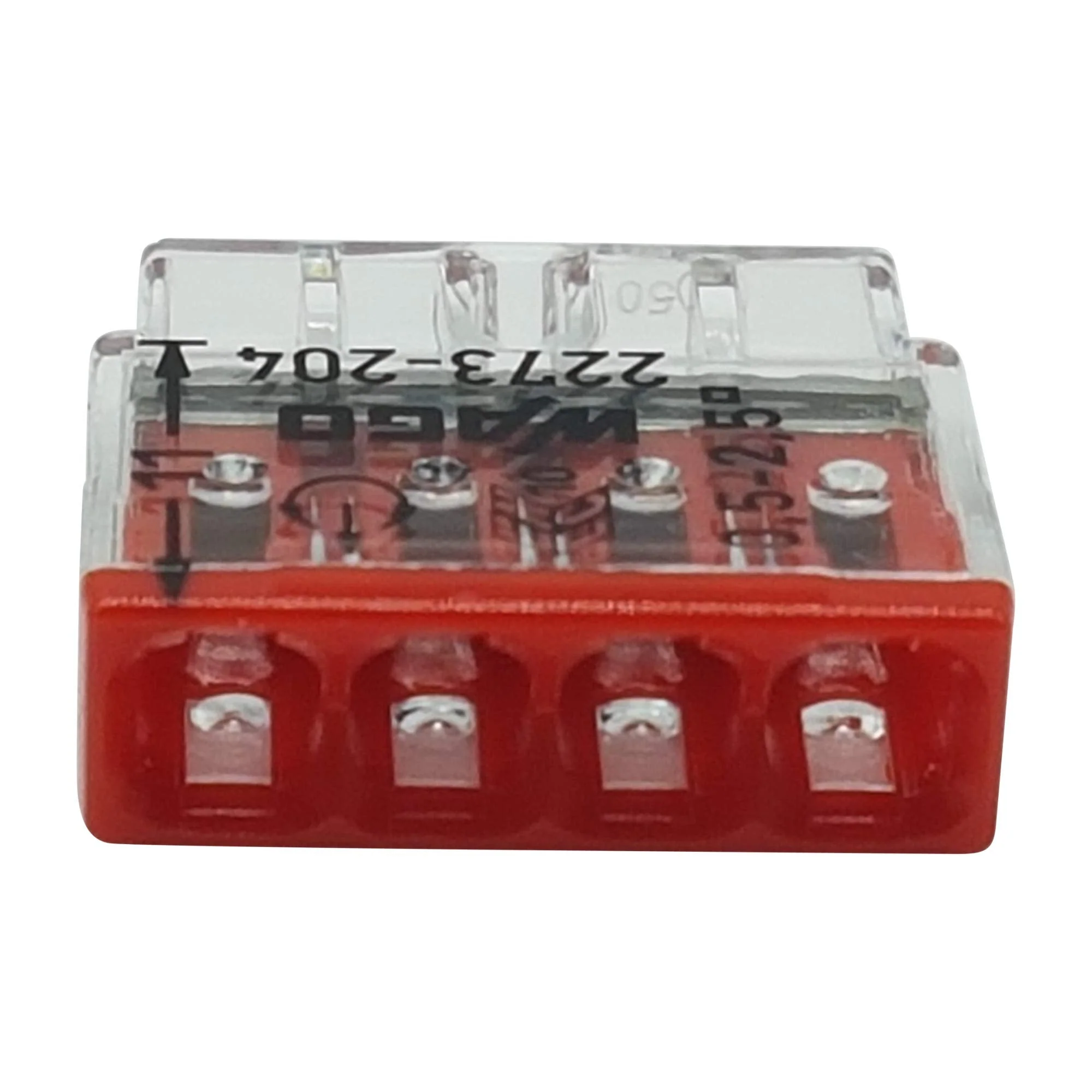

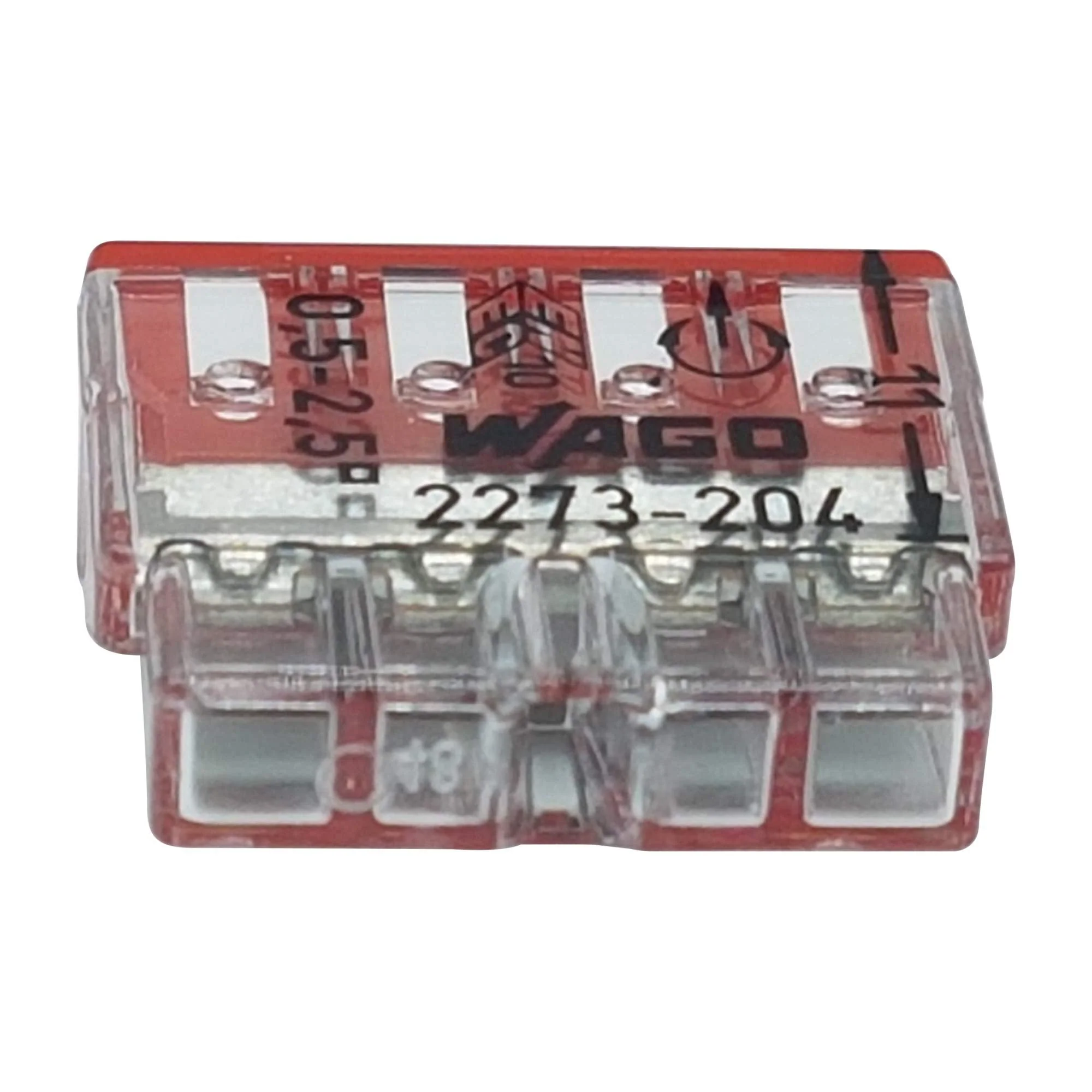

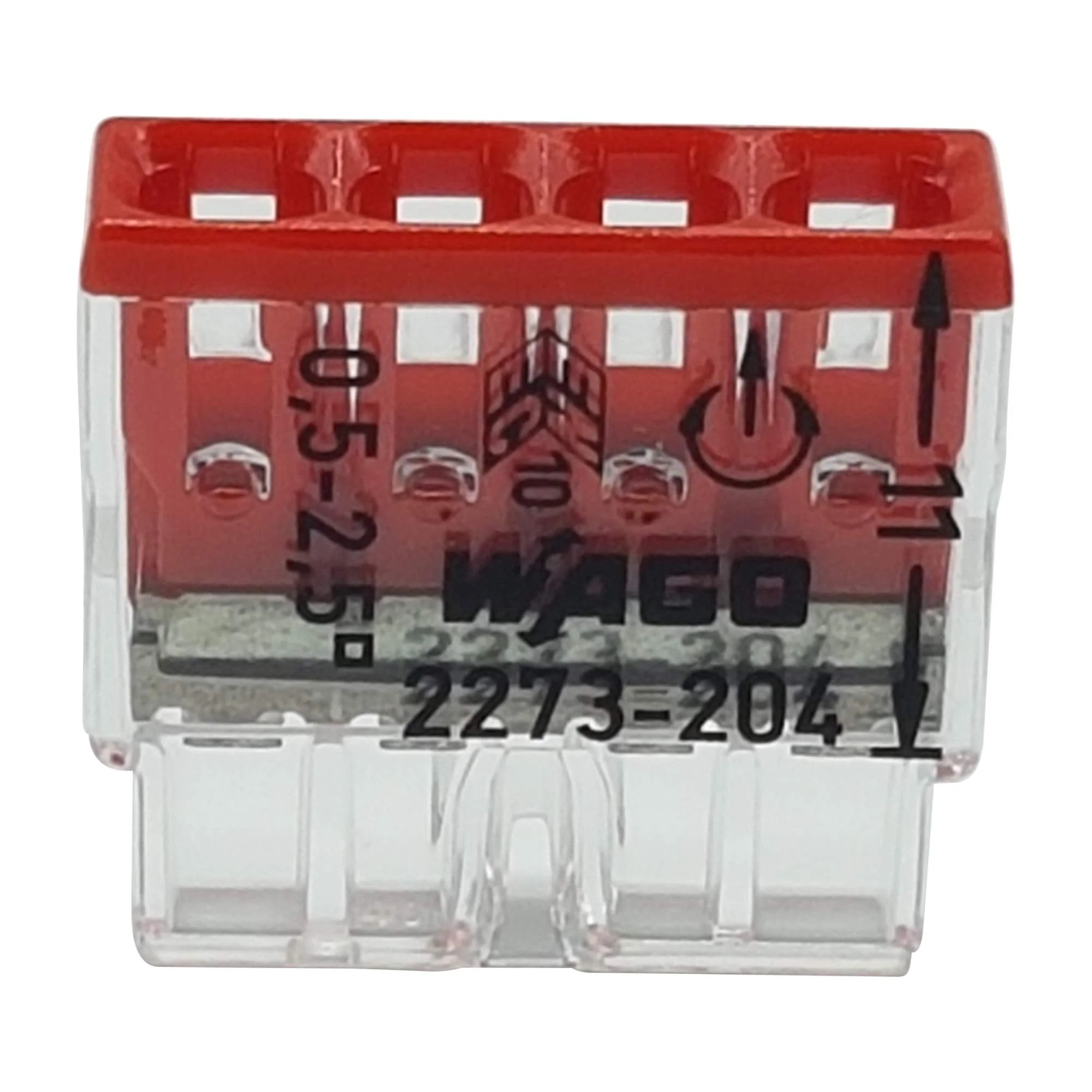

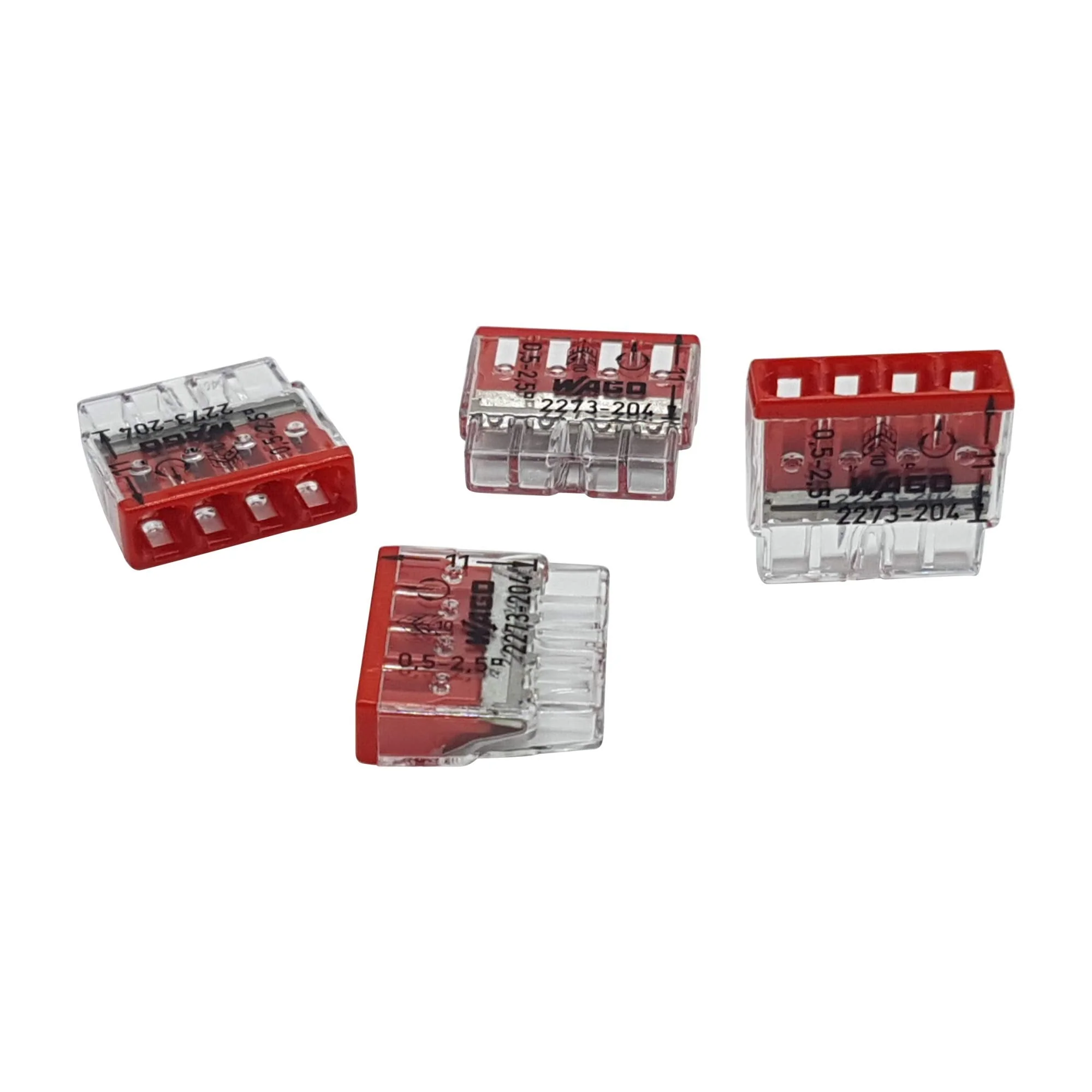

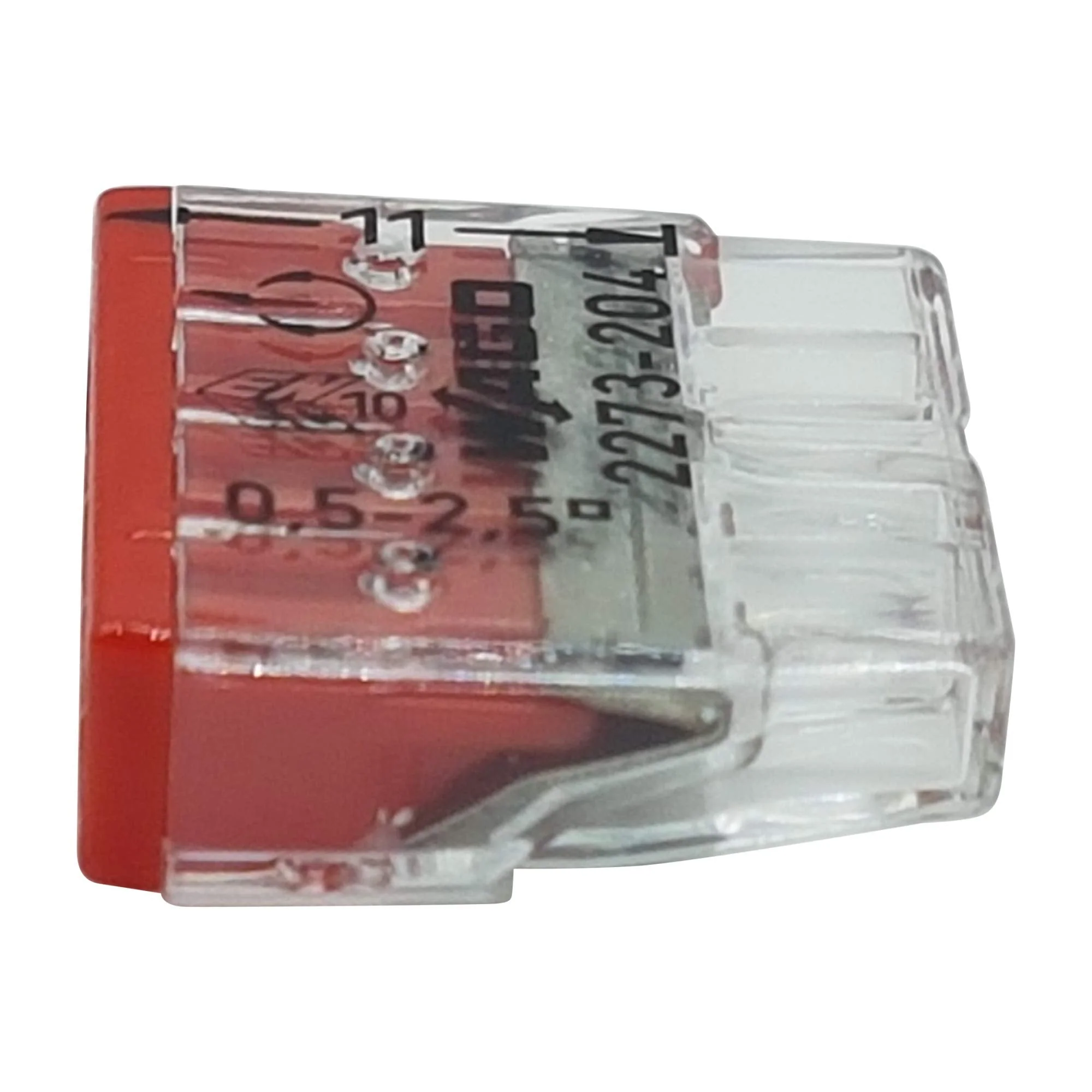

Pack of 30 Wago 2273-204 Compact Connectors for Junction Boxes, Diameter 0.5 - 2.5 mm², 4-Pin, Transparent/Red
Pack of 30 Wago 2273-204 Compact Connectors for Junction Boxes, Diameter 0.5 - 2.5 mm², 4-Pin, Transparent/Red
Pack of 30 Wago 2273-204 Compact Connectors for Junction Boxes, Diameter 0.5 - 2.5 mm², 4-Pin, Transparent/Red
Electrical data:- Rated data according to IEC/EN 60664-1. Rated voltage (II/2): 450 V. Rated surge voltage (II/2): 4 kV. Rated current: 24 A.- Connection data:- Connection technology: Push Wire. Actuation: Push-in. Connectable conductor materials: Copper / aluminium. Solid conductor: 0.5 - 2.5 mm² / 20 - 14 AWG. Stripping length: 11 mm / 0.43 inches. Total number of clamping points: 4. Total number of potentials: 1. Wiring type: Side wiring. Single-wire conductor cross-sections: 0.5 mm². Geometric data:- Width: 18 mm / 0.709 inches. Height: 5.8 mm / 0.228 inches. Depth: 16.7 mm / 0.657 inches. Connector width:18 mm / 0.709 inches.- Material data:- Colour: Transparent. Lid colour: red. Flammability class according to UL 94: V2. Fire load: 0.014 MJ. Weight: 0.713 g.-Environmental conditions:- Continuous operating temperature: 105°C. T-mark according to EN 60998: T60.
Product Features
- Number of clamping points: 4.
- Nominal voltage: 450 V.
- Nominal cross section: 0.5 - 2.5 mm2.
- Only suitable for solid conductors, not for flexible conductors.
- Nominal current: 24 A.
Original: $82.58
-65%$82.58
$28.90More Images
Pack of 30 Wago 2273-204 Compact Connectors for Junction Boxes, Diameter 0.5 - 2.5 mm², 4-Pin, Transparent/Red
Pack of 30 Wago 2273-204 Compact Connectors for Junction Boxes, Diameter 0.5 - 2.5 mm², 4-Pin, Transparent/Red
Electrical data:- Rated data according to IEC/EN 60664-1. Rated voltage (II/2): 450 V. Rated surge voltage (II/2): 4 kV. Rated current: 24 A.- Connection data:- Connection technology: Push Wire. Actuation: Push-in. Connectable conductor materials: Copper / aluminium. Solid conductor: 0.5 - 2.5 mm² / 20 - 14 AWG. Stripping length: 11 mm / 0.43 inches. Total number of clamping points: 4. Total number of potentials: 1. Wiring type: Side wiring. Single-wire conductor cross-sections: 0.5 mm². Geometric data:- Width: 18 mm / 0.709 inches. Height: 5.8 mm / 0.228 inches. Depth: 16.7 mm / 0.657 inches. Connector width:18 mm / 0.709 inches.- Material data:- Colour: Transparent. Lid colour: red. Flammability class according to UL 94: V2. Fire load: 0.014 MJ. Weight: 0.713 g.-Environmental conditions:- Continuous operating temperature: 105°C. T-mark according to EN 60998: T60.
Product Features
- Number of clamping points: 4.
- Nominal voltage: 450 V.
- Nominal cross section: 0.5 - 2.5 mm2.
- Only suitable for solid conductors, not for flexible conductors.
- Nominal current: 24 A.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Pack of 30 Wago 2273-204 Compact Connectors for Junction Boxes, Diameter 0.5 - 2.5 mm², 4-Pin, Transparent/Red
Electrical data:- Rated data according to IEC/EN 60664-1. Rated voltage (II/2): 450 V. Rated surge voltage (II/2): 4 kV. Rated current: 24 A.- Connection data:- Connection technology: Push Wire. Actuation: Push-in. Connectable conductor materials: Copper / aluminium. Solid conductor: 0.5 - 2.5 mm² / 20 - 14 AWG. Stripping length: 11 mm / 0.43 inches. Total number of clamping points: 4. Total number of potentials: 1. Wiring type: Side wiring. Single-wire conductor cross-sections: 0.5 mm². Geometric data:- Width: 18 mm / 0.709 inches. Height: 5.8 mm / 0.228 inches. Depth: 16.7 mm / 0.657 inches. Connector width:18 mm / 0.709 inches.- Material data:- Colour: Transparent. Lid colour: red. Flammability class according to UL 94: V2. Fire load: 0.014 MJ. Weight: 0.713 g.-Environmental conditions:- Continuous operating temperature: 105°C. T-mark according to EN 60998: T60.
Product Features
- Number of clamping points: 4.
- Nominal voltage: 450 V.
- Nominal cross section: 0.5 - 2.5 mm2.
- Only suitable for solid conductors, not for flexible conductors.
- Nominal current: 24 A.
