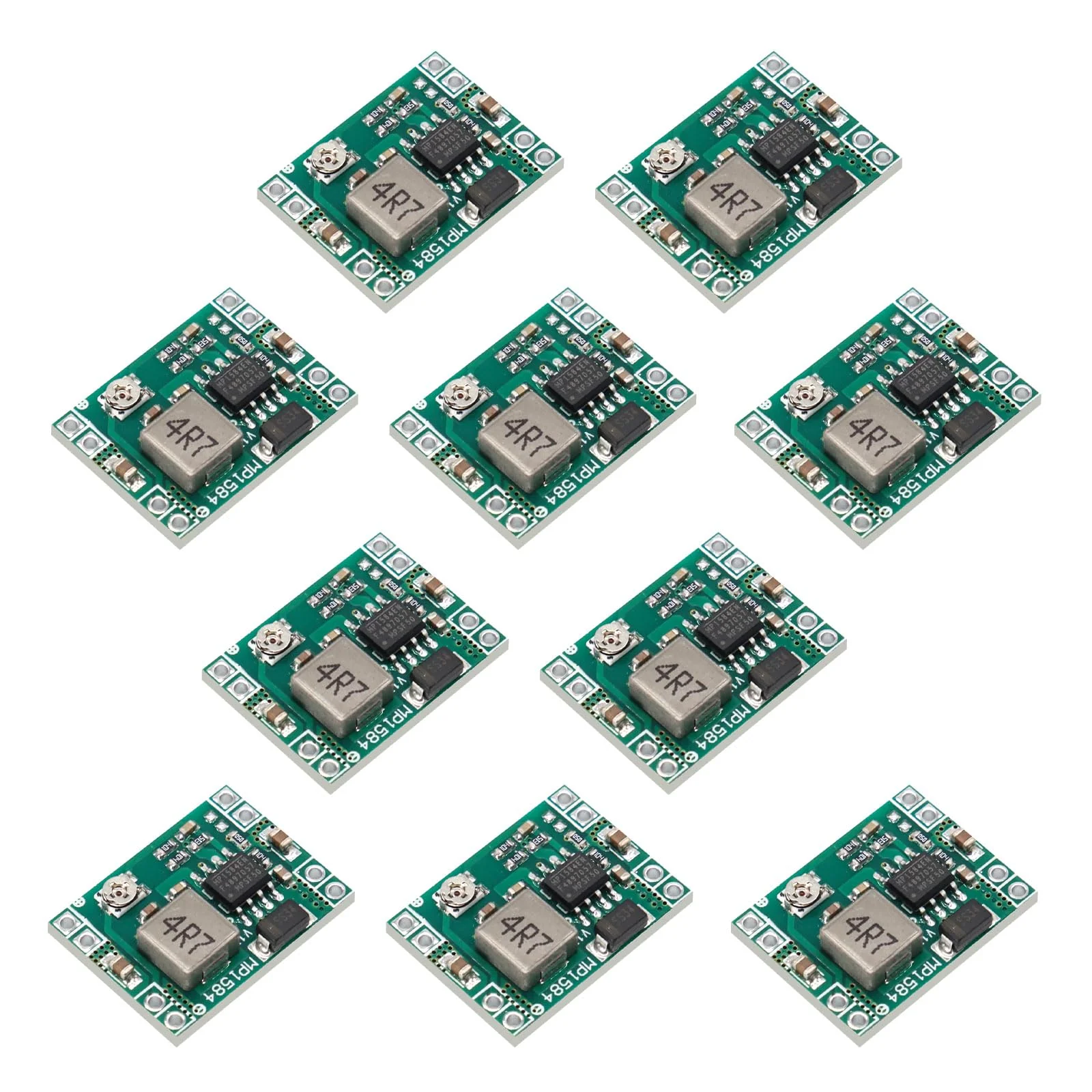

Pack of 10 Mini Step Down Converter Module, QIQIAZI DC-DC Buck Converter MP1584EN 4.5-28V to 0.8-20V DC-DC Converter Module, 24V to 12V 9V 5V 3V Step Down Adjustable Converter
Pack of 10 Mini Step Down Converter Module, QIQIAZI DC-DC Buck Converter MP1584EN 4.5-28V to 0.8-20V DC-DC Converter Module, 24V to 12V 9V 5V 3V Step Down Adjustable Converter
Pack of 10 Mini Step Down Converter Module, QIQIAZI DC-DC Buck Converter MP1584EN 4.5-28V to 0.8-20V DC-DC Converter Module, 24V to 12V 9V 5V 3V Step Down Adjustable Converter

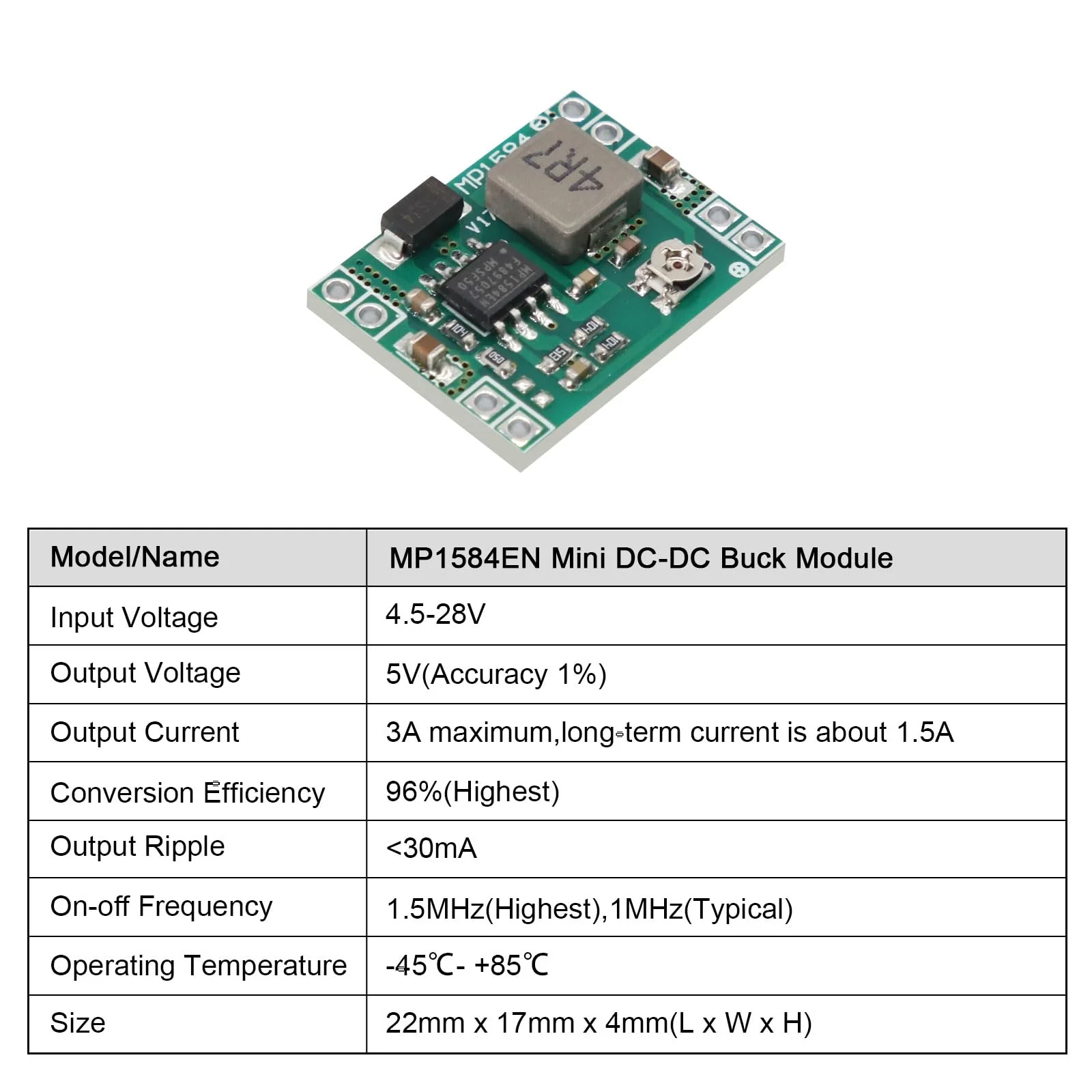

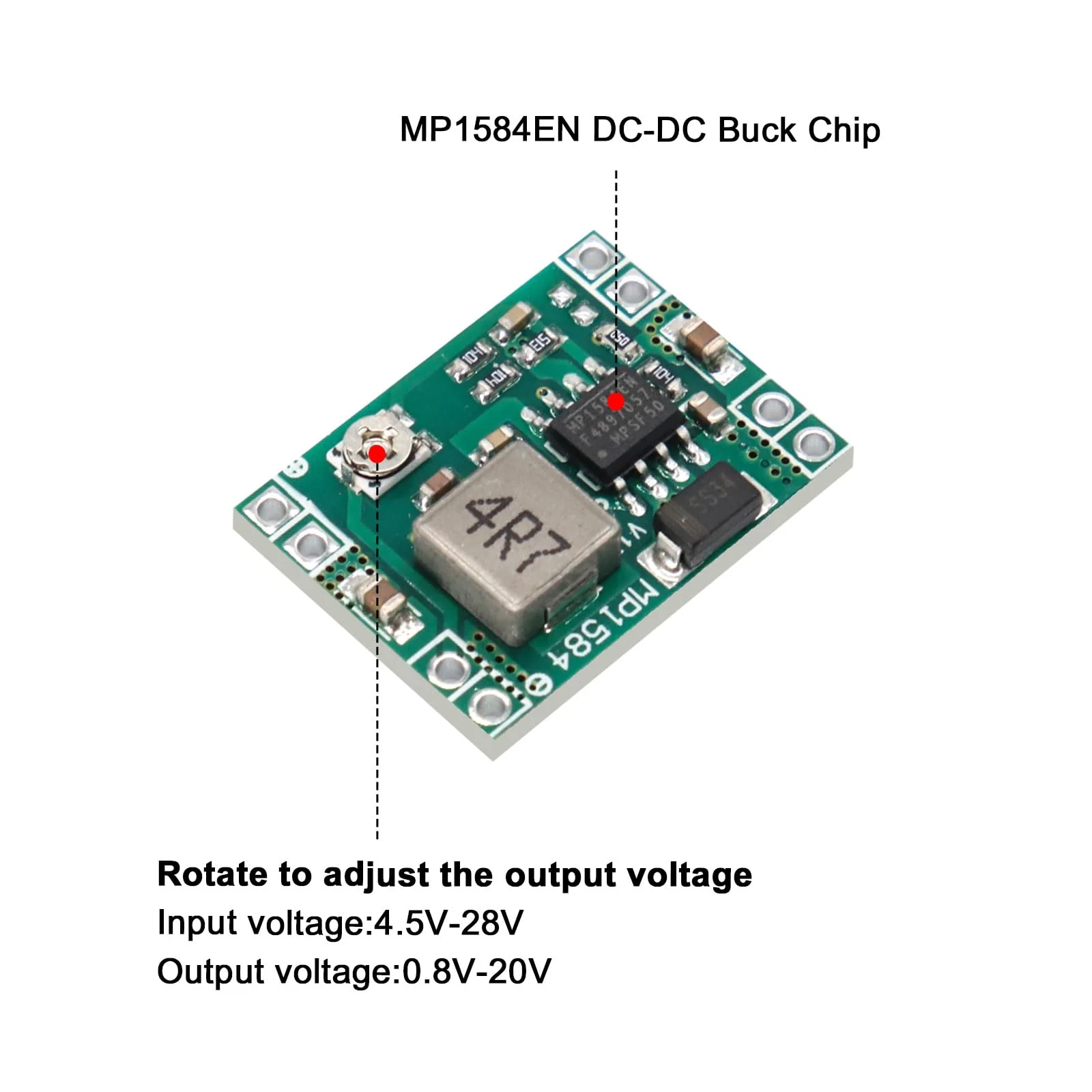

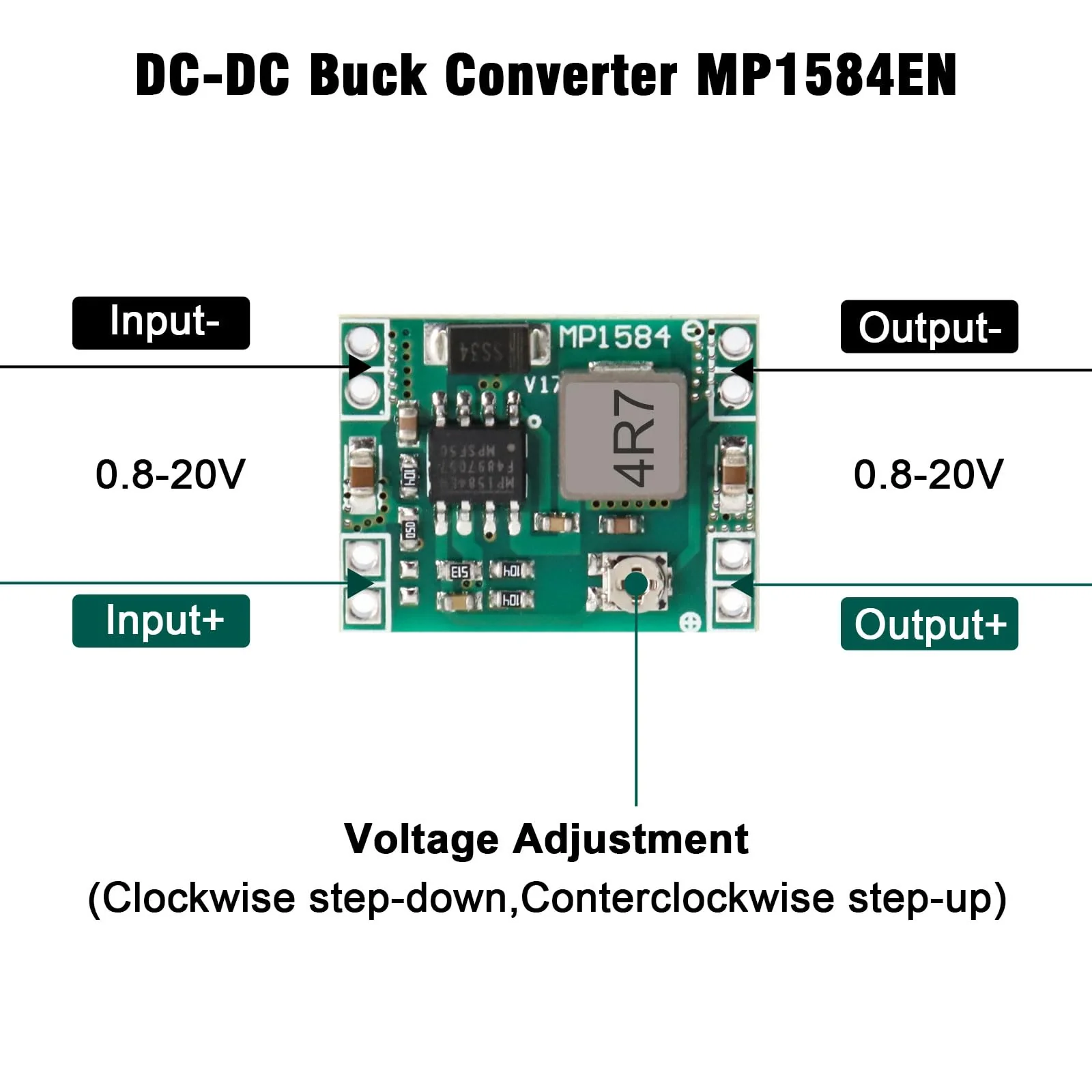

Note: - Pay attention to the correct polarity of the connectors (positive/negative). - Additional cooling is recommended for long-term operation at high current. - Avoid operation with light load (less than 10% of output power) or without load. - If the output voltage remains the same as the input voltage, turn the potentiometer clockwise more than 10 turns. - This module is a step-down converter: it is used exclusively for voltage reduction. The output voltage must always be lower than the input voltage. --- Specifications: 1. IC chip: MP-1584EN 2. Input voltage: 4.5V to 28V 3. Output voltage: 0.8V to 20V (adjustable) 4. Maximum output current: 3A 5. Output ripple: less than 30mV 6. Conversion efficiency: up to 92% 7. Switching frequency: maximum 1.5 MHz, typical 1 MHz 8. Dimensions: 22 mm x 17 mm x 4 mm. 9. Operating temperature: -45°C to +85°C. Voltage adjustment: - Use a multimeter to measure the output voltage simultaneously while adjusting the potentiometer with a screwdriver. - Fine adjustments allow precise output voltages. IMPORTANT: - Avoid short circuits at the output. - Make sure the output voltage is stable before using the module. Areas of use: Ideal for applications that require compact and lightweight solutions: - DIY power banks. - Monitoring power supply. - Power supply for children's vehicles. - Camera and vehicle power supply. - Communication devices - Model aircraft and other scenarios with strict requirements for volume and weight. Package includes: - 6 x Mini MP-1584EN DC-DC Step-Down Converter Module
Product Features

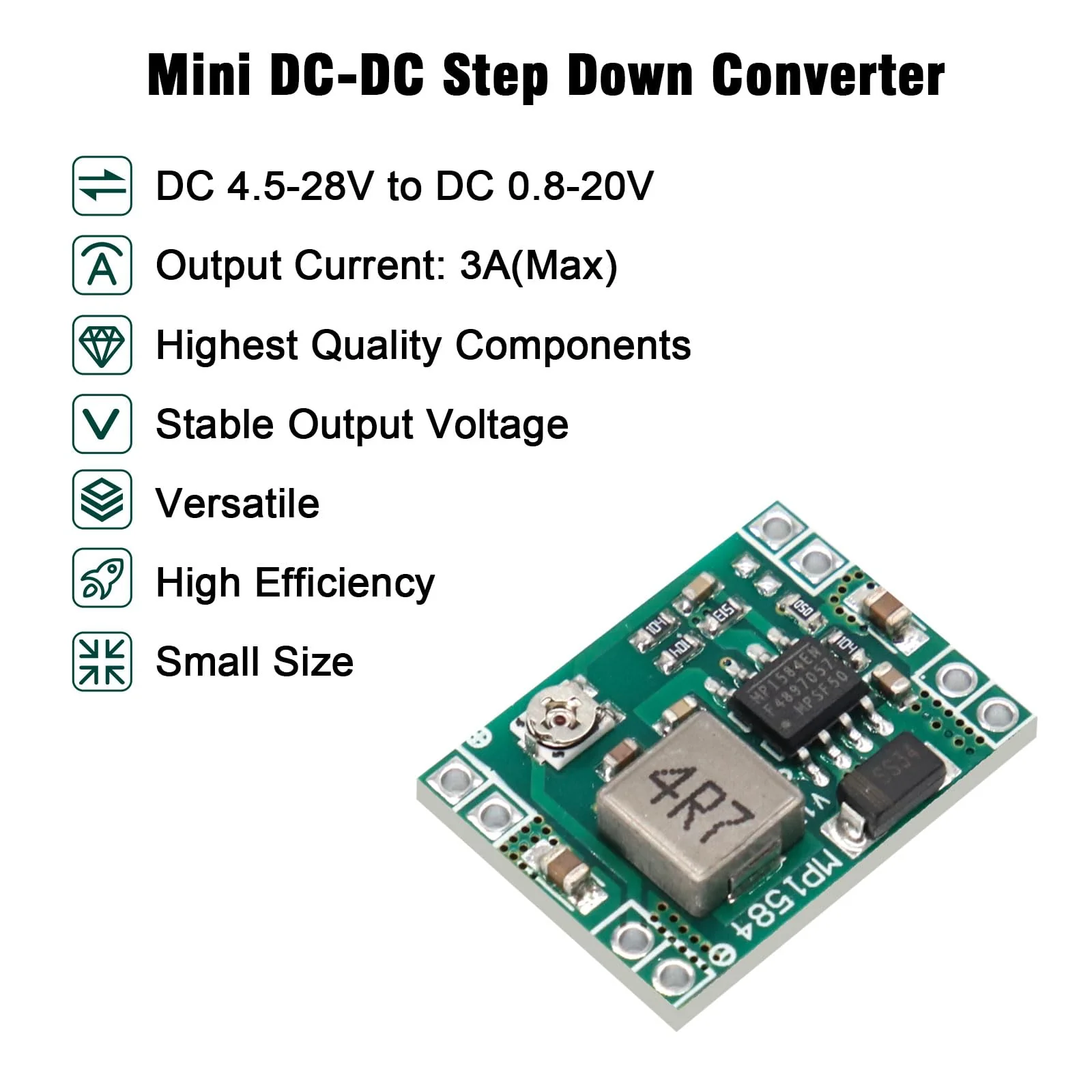

- Adjustable Output VoltageInput voltage: 4.5V to 28V; Output voltage: 0.8V to 20V (adjustable); Output current: maximum 3A, recommended below 2.5A; Conversion efficiency: up to 92%; Output ripple: less than 30mV; Switching frequency: maximum 1.5MHz, typical 1 MHz.

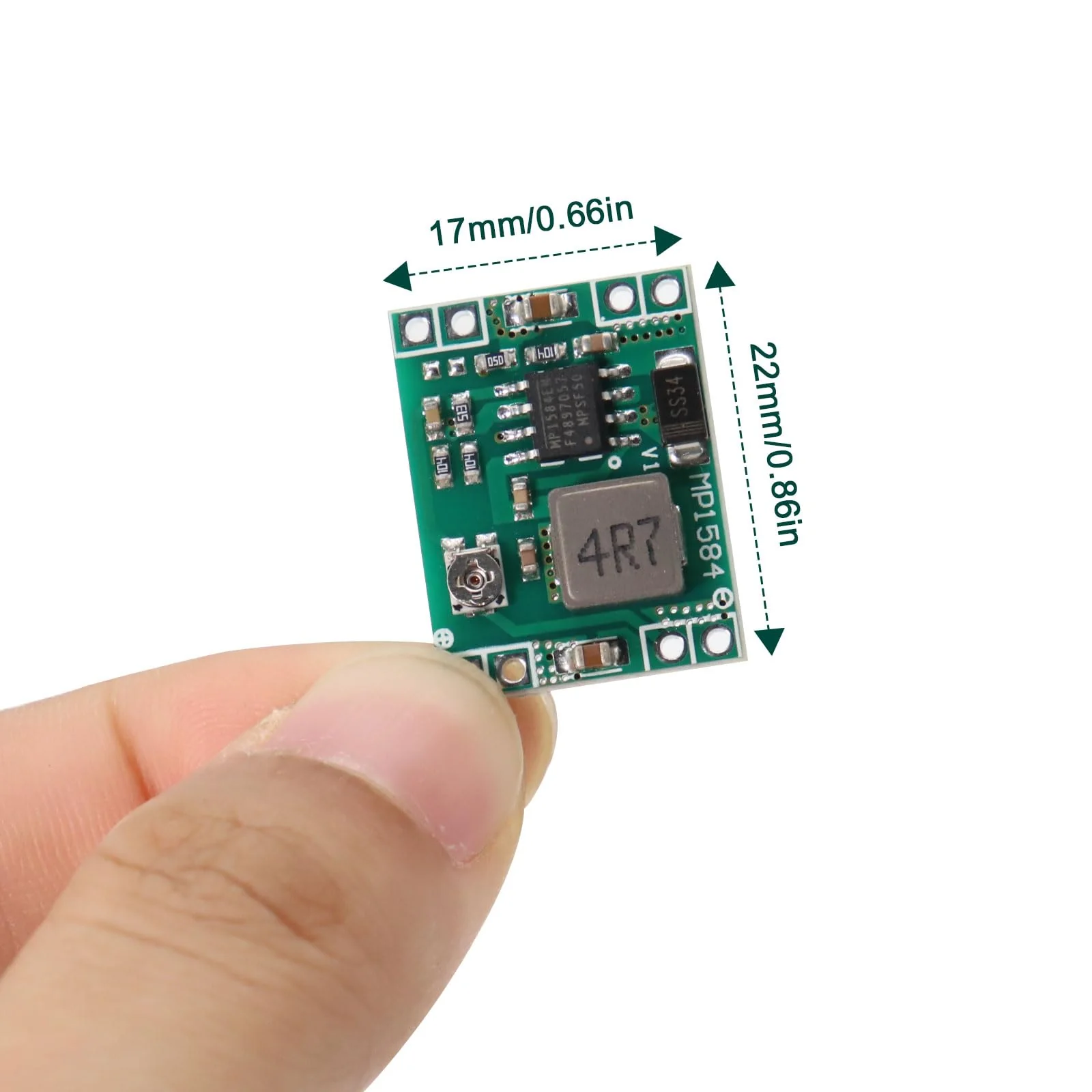

- Miniature design: Mini DC-DC down module with a size of only 22 mm x 17 mm x 4 mm. Perfect for applications with limited space, such as Aviation models, DIY power banks, surveillance systems, communication devices and much more.
- High performance: the step-down converter module works with high efficiency and minimal ripple, provides excellent voltage control during load changes and supports loads up to 3A.
- Wide range of applications: the buck converter module with an input voltage range of 4.5 V to 28 V, the module is suitable for numerous applications, including those with high input voltages, such as in automotive technology.

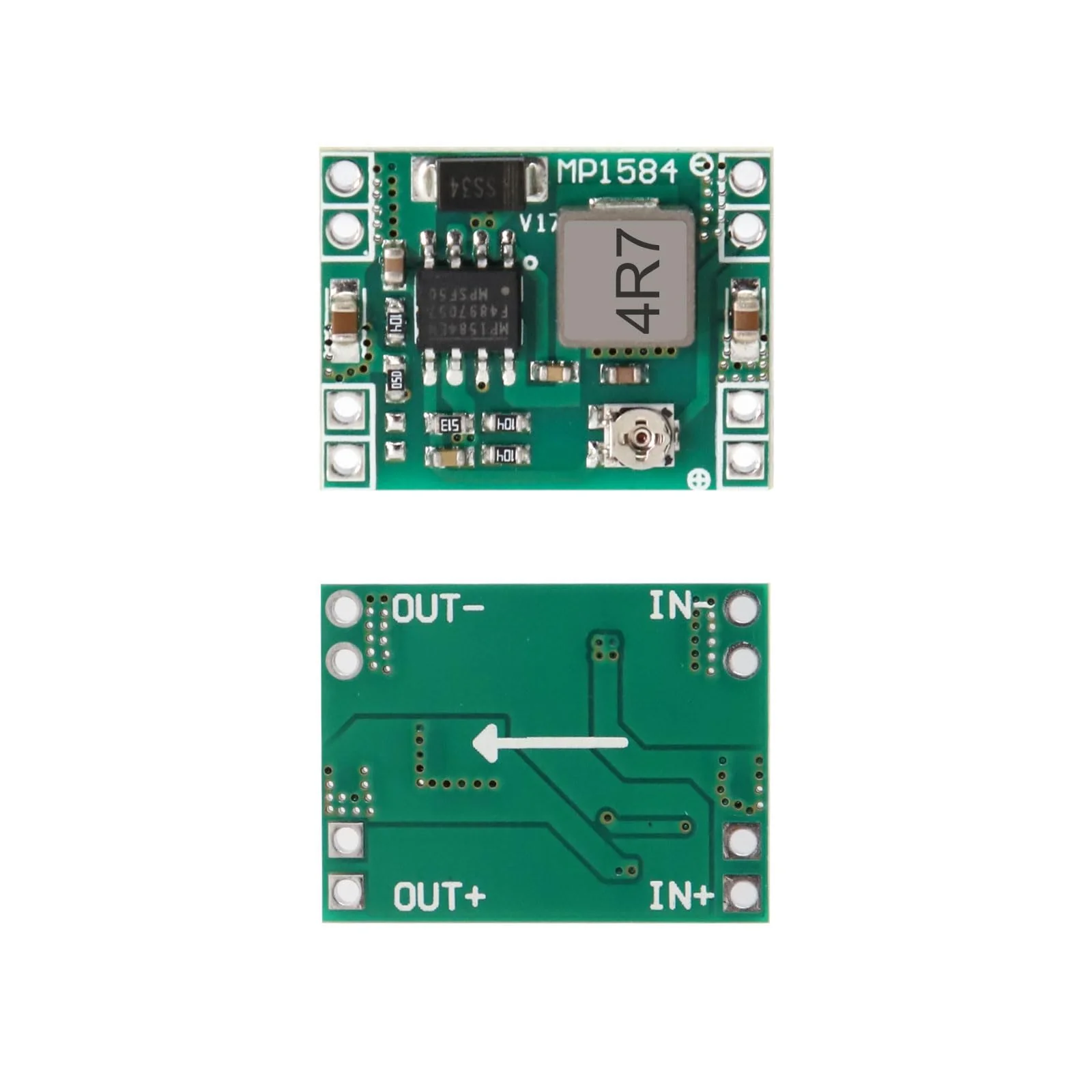

- Safety and usage instructionsOperating temperature: -45C to 85C. Please note that the input and output ports must not be swapped to avoid damage. Avoid operation with light or without load (below 10% of output).
Original: $89.10
-65%$89.10
$31.18More Images
Pack of 10 Mini Step Down Converter Module, QIQIAZI DC-DC Buck Converter MP1584EN 4.5-28V to 0.8-20V DC-DC Converter Module, 24V to 12V 9V 5V 3V Step Down Adjustable Converter
Pack of 10 Mini Step Down Converter Module, QIQIAZI DC-DC Buck Converter MP1584EN 4.5-28V to 0.8-20V DC-DC Converter Module, 24V to 12V 9V 5V 3V Step Down Adjustable Converter
Note: - Pay attention to the correct polarity of the connectors (positive/negative). - Additional cooling is recommended for long-term operation at high current. - Avoid operation with light load (less than 10% of output power) or without load. - If the output voltage remains the same as the input voltage, turn the potentiometer clockwise more than 10 turns. - This module is a step-down converter: it is used exclusively for voltage reduction. The output voltage must always be lower than the input voltage. --- Specifications: 1. IC chip: MP-1584EN 2. Input voltage: 4.5V to 28V 3. Output voltage: 0.8V to 20V (adjustable) 4. Maximum output current: 3A 5. Output ripple: less than 30mV 6. Conversion efficiency: up to 92% 7. Switching frequency: maximum 1.5 MHz, typical 1 MHz 8. Dimensions: 22 mm x 17 mm x 4 mm. 9. Operating temperature: -45°C to +85°C. Voltage adjustment: - Use a multimeter to measure the output voltage simultaneously while adjusting the potentiometer with a screwdriver. - Fine adjustments allow precise output voltages. IMPORTANT: - Avoid short circuits at the output. - Make sure the output voltage is stable before using the module. Areas of use: Ideal for applications that require compact and lightweight solutions: - DIY power banks. - Monitoring power supply. - Power supply for children's vehicles. - Camera and vehicle power supply. - Communication devices - Model aircraft and other scenarios with strict requirements for volume and weight. Package includes: - 6 x Mini MP-1584EN DC-DC Step-Down Converter Module
Product Features
- Adjustable Output VoltageInput voltage: 4.5V to 28V; Output voltage: 0.8V to 20V (adjustable); Output current: maximum 3A, recommended below 2.5A; Conversion efficiency: up to 92%; Output ripple: less than 30mV; Switching frequency: maximum 1.5MHz, typical 1 MHz.
- Miniature design: Mini DC-DC down module with a size of only 22 mm x 17 mm x 4 mm. Perfect for applications with limited space, such as Aviation models, DIY power banks, surveillance systems, communication devices and much more.
- High performance: the step-down converter module works with high efficiency and minimal ripple, provides excellent voltage control during load changes and supports loads up to 3A.
- Wide range of applications: the buck converter module with an input voltage range of 4.5 V to 28 V, the module is suitable for numerous applications, including those with high input voltages, such as in automotive technology.
- Safety and usage instructionsOperating temperature: -45C to 85C. Please note that the input and output ports must not be swapped to avoid damage. Avoid operation with light or without load (below 10% of output).
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Pack of 10 Mini Step Down Converter Module, QIQIAZI DC-DC Buck Converter MP1584EN 4.5-28V to 0.8-20V DC-DC Converter Module, 24V to 12V 9V 5V 3V Step Down Adjustable Converter
Note: - Pay attention to the correct polarity of the connectors (positive/negative). - Additional cooling is recommended for long-term operation at high current. - Avoid operation with light load (less than 10% of output power) or without load. - If the output voltage remains the same as the input voltage, turn the potentiometer clockwise more than 10 turns. - This module is a step-down converter: it is used exclusively for voltage reduction. The output voltage must always be lower than the input voltage. --- Specifications: 1. IC chip: MP-1584EN 2. Input voltage: 4.5V to 28V 3. Output voltage: 0.8V to 20V (adjustable) 4. Maximum output current: 3A 5. Output ripple: less than 30mV 6. Conversion efficiency: up to 92% 7. Switching frequency: maximum 1.5 MHz, typical 1 MHz 8. Dimensions: 22 mm x 17 mm x 4 mm. 9. Operating temperature: -45°C to +85°C. Voltage adjustment: - Use a multimeter to measure the output voltage simultaneously while adjusting the potentiometer with a screwdriver. - Fine adjustments allow precise output voltages. IMPORTANT: - Avoid short circuits at the output. - Make sure the output voltage is stable before using the module. Areas of use: Ideal for applications that require compact and lightweight solutions: - DIY power banks. - Monitoring power supply. - Power supply for children's vehicles. - Camera and vehicle power supply. - Communication devices - Model aircraft and other scenarios with strict requirements for volume and weight. Package includes: - 6 x Mini MP-1584EN DC-DC Step-Down Converter Module
Product Features
- Adjustable Output VoltageInput voltage: 4.5V to 28V; Output voltage: 0.8V to 20V (adjustable); Output current: maximum 3A, recommended below 2.5A; Conversion efficiency: up to 92%; Output ripple: less than 30mV; Switching frequency: maximum 1.5MHz, typical 1 MHz.
- Miniature design: Mini DC-DC down module with a size of only 22 mm x 17 mm x 4 mm. Perfect for applications with limited space, such as Aviation models, DIY power banks, surveillance systems, communication devices and much more.
- High performance: the step-down converter module works with high efficiency and minimal ripple, provides excellent voltage control during load changes and supports loads up to 3A.
- Wide range of applications: the buck converter module with an input voltage range of 4.5 V to 28 V, the module is suitable for numerous applications, including those with high input voltages, such as in automotive technology.
- Safety and usage instructionsOperating temperature: -45C to 85C. Please note that the input and output ports must not be swapped to avoid damage. Avoid operation with light or without load (below 10% of output).
