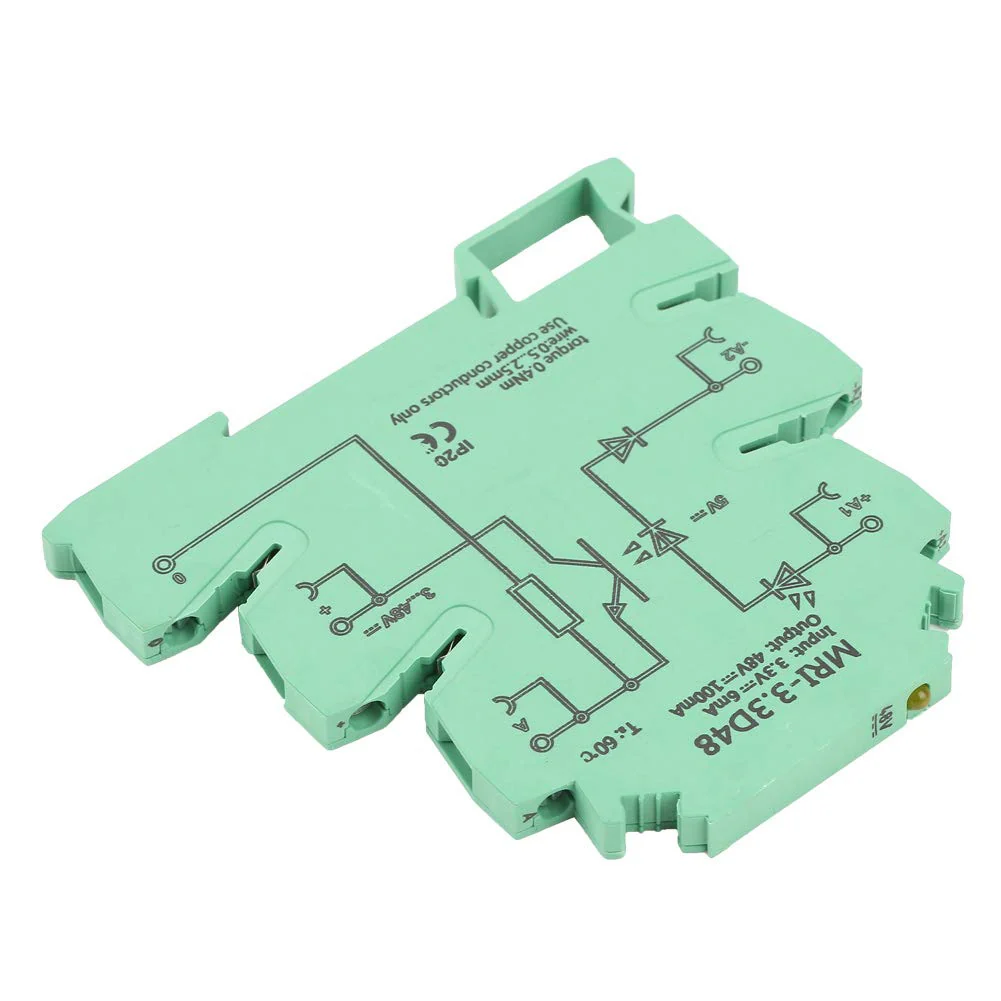

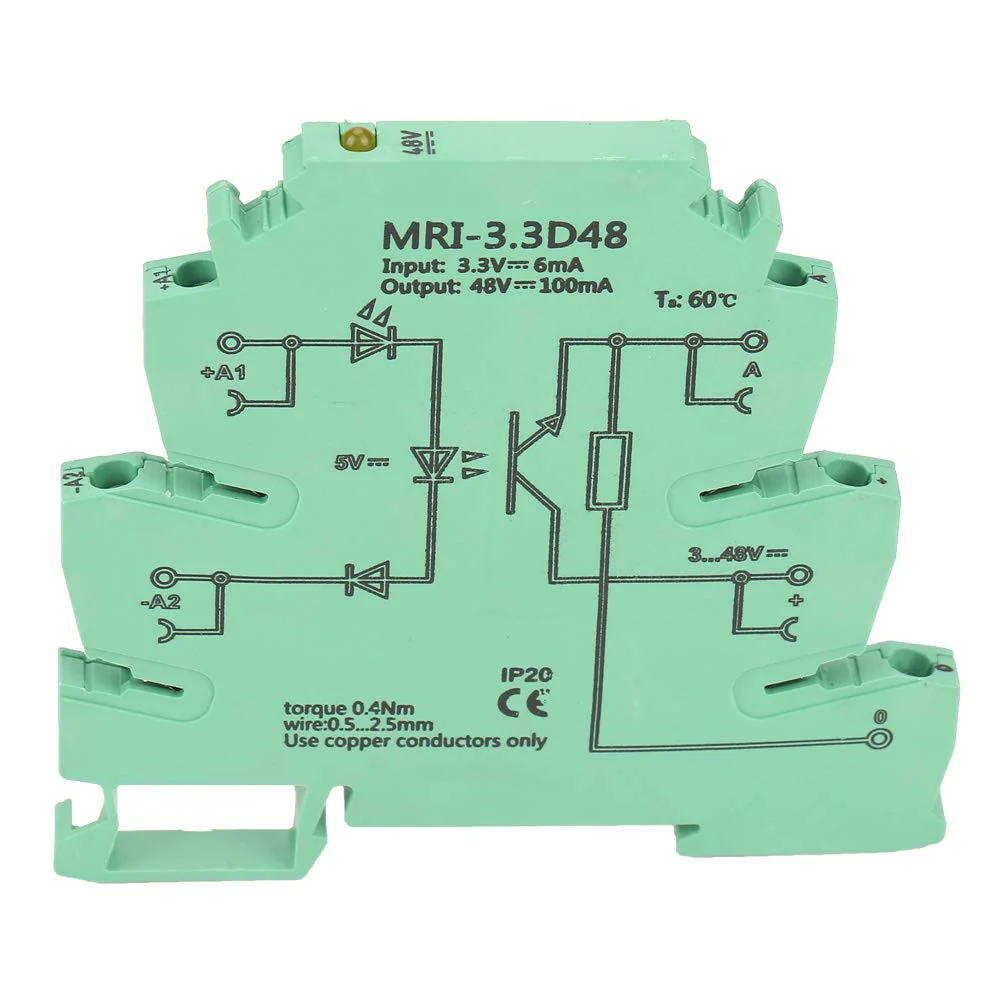

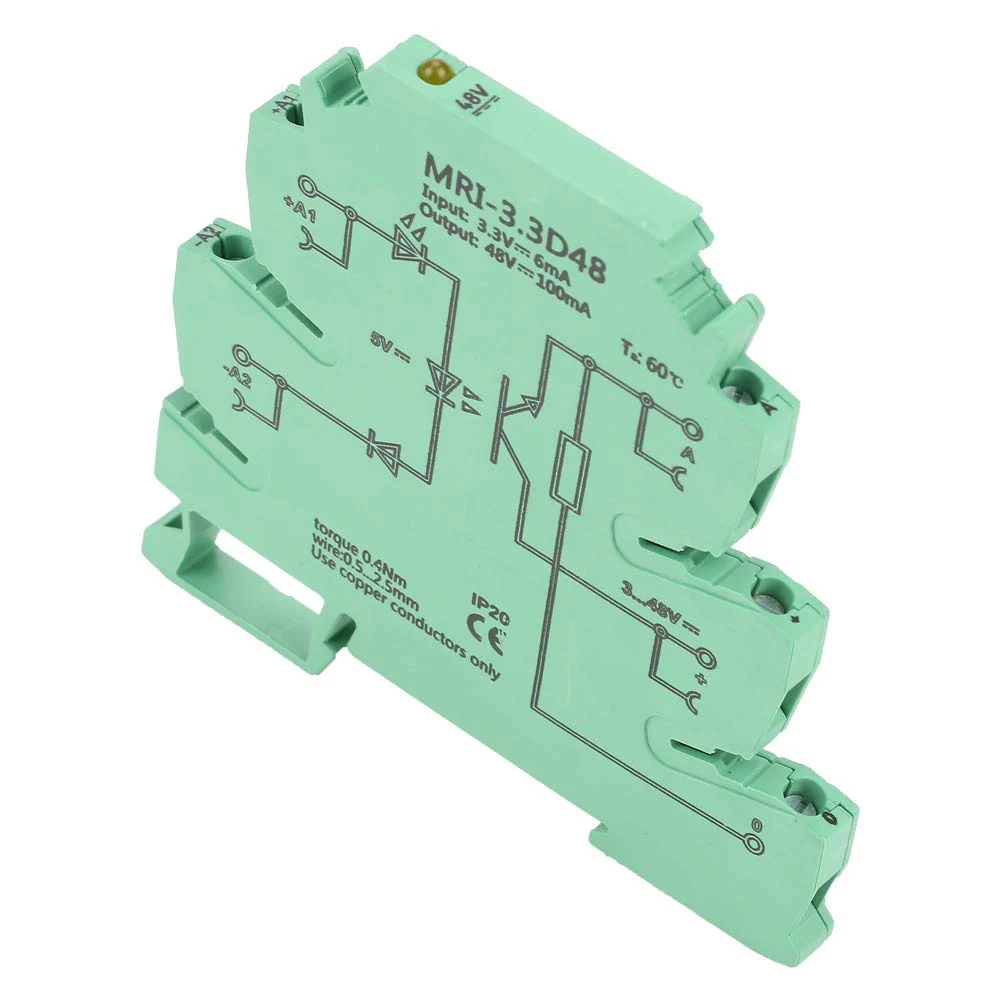

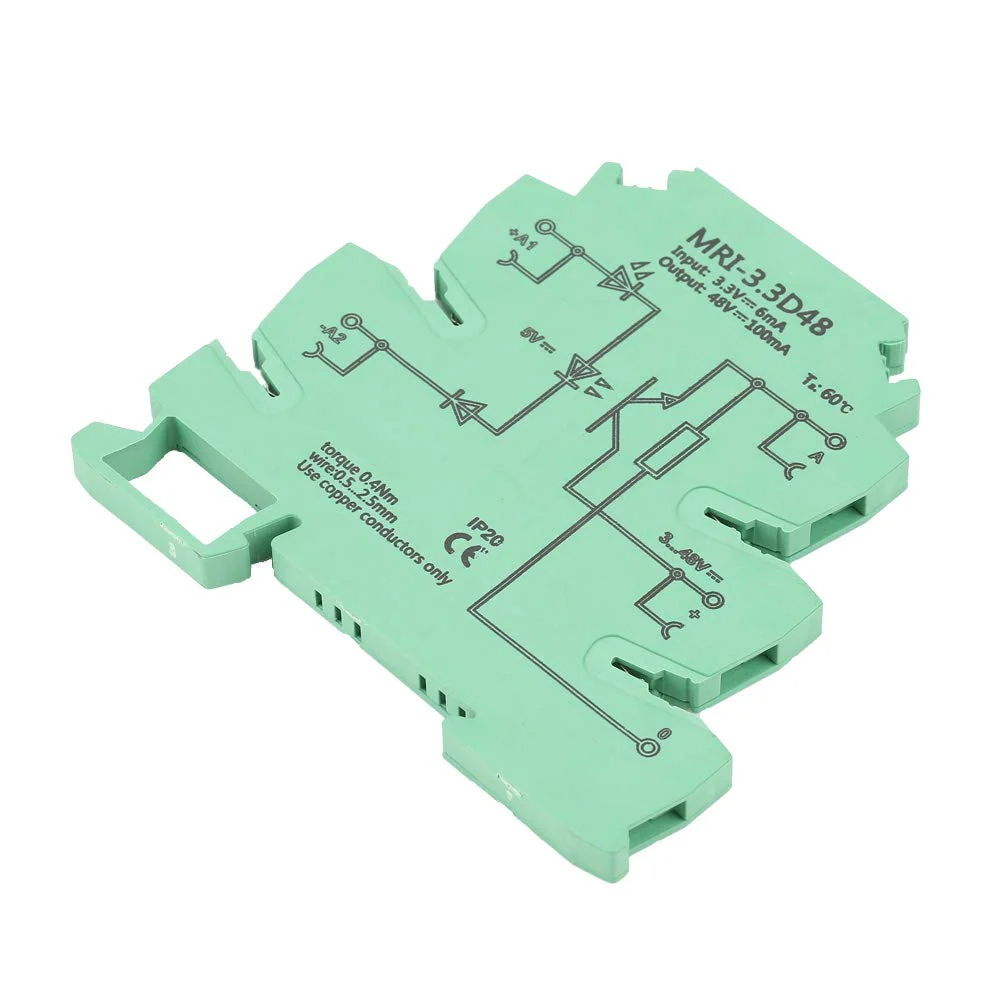

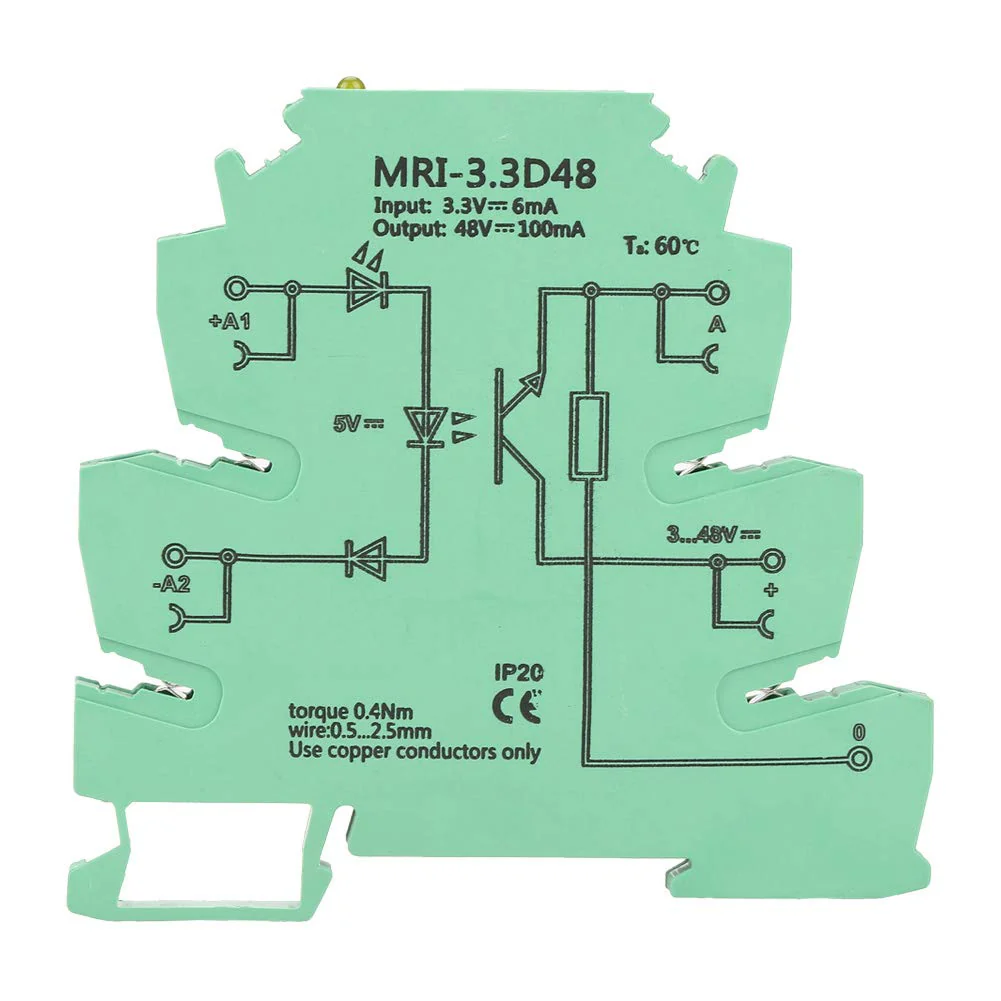

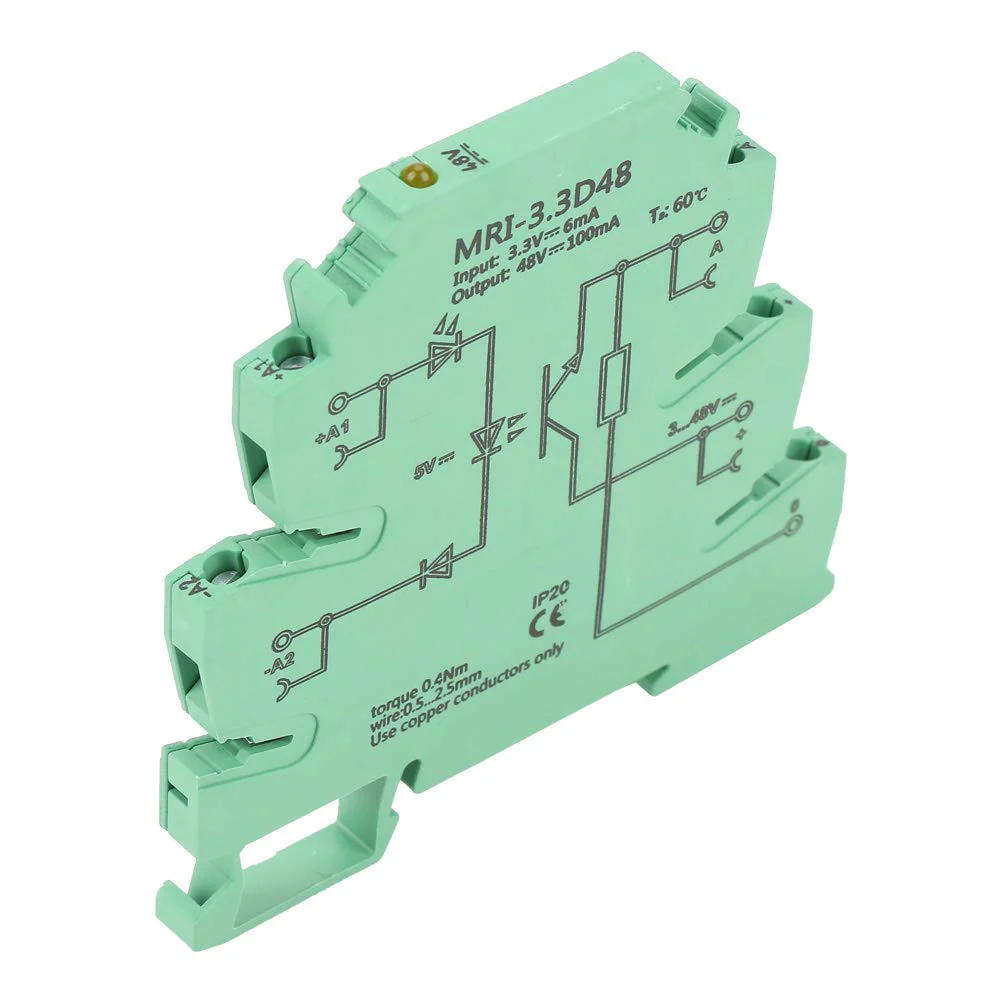

Optocoupler, PLC Relay, MRI-3.3D48 DC Separates Photoelectric Coupler Separating PLC Relay Module Input 3.3VDC Output 3-48VDC

Optocoupler, PLC Relay, MRI-3.3D48 DC Separates Photoelectric Coupler Separating PLC Relay Module Input 3.3VDC Output 3-48VDC

Functions: Yellow LED indicator, clear connection markingThe width is only 6.2 mm, saving 60% of installation spacePlug-in bridging type. Convenient DIN rail installationThe operating frequency can reach up to 300Hz. No abrasion switching output: 3-48V DC / 100mAInternal input/output reverse polarity protection circuit. The maximum galvanic separation is 2.5 kVrms Specification: Model: MRI-230A48. Input voltage range: 3.3 VDC ± 10%. Input current: 6 mA. Output voltage range: 3-48VDC. Transmission frequency: 300Hz. Switch electrical level: "1" signal (H) 80, "0" signal (L) 40%. Max. Continuous current: 100 mA. Max. voltage drop: 0.9 V. Input / output isolation voltage: 2.5 kV (50 Hz, 1 min) Ambient temperature: -20 ~ 60 °C. Operating standard: IEC60664, EN50178, IEC62103. Applicable wire: (stiffness) 0.2-2.5 mm2, (flexibility) 0.2-2.5 mm2, (AWG) 24-14 Weight: approx. 31 g. Package list: 1 x optocoupler that separates PLC relay.

Product Features

• Yellow LED indicator, clear connection marking

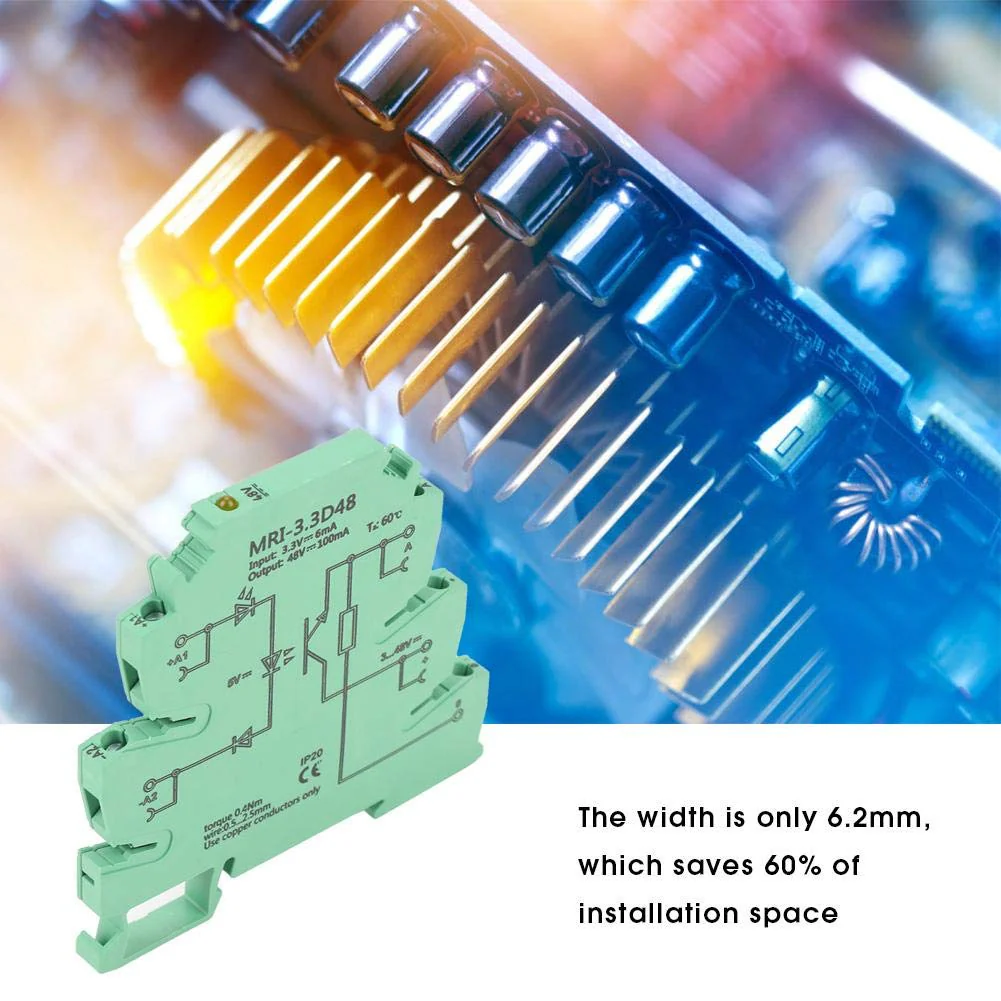

• The width is only 6.2 mm, which saves 60% of the installation space
• Plug-in Bypass Type Convenient DIN rail installation
• Internal input/output reverse polarity protection circuit. The maximum galvanic separation is 2.5 kVrms
• The operating frequency can reach up to 300 Hz. No abrasion switching output: 3-48V DC / 100mA
