NooElec RF EMI Shield & Board-Level Kit for HackRF One
NooElec RF EMI Shield & Board-Level Kit for HackRF One

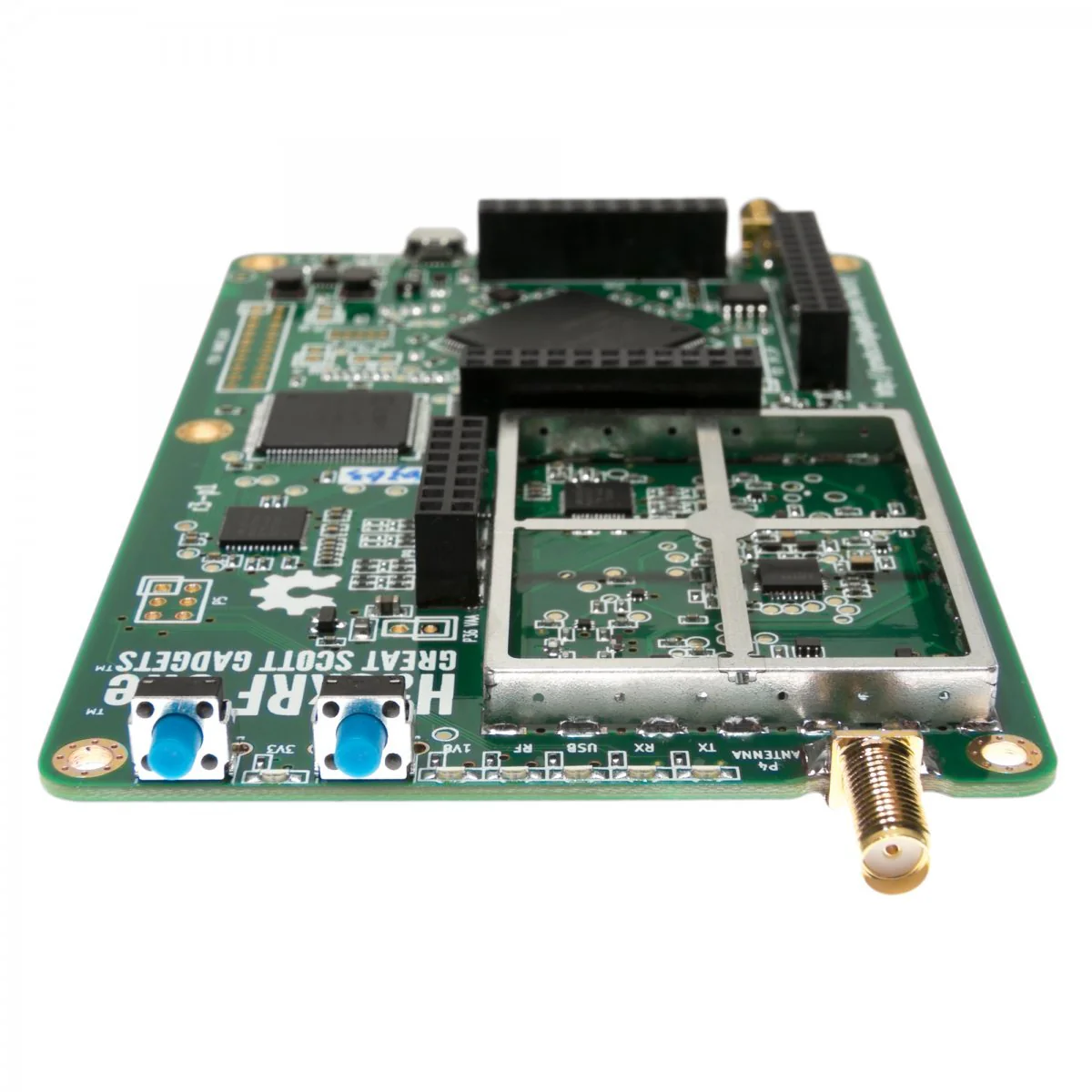

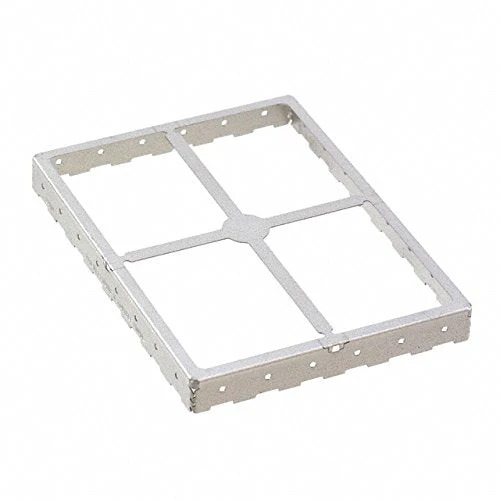

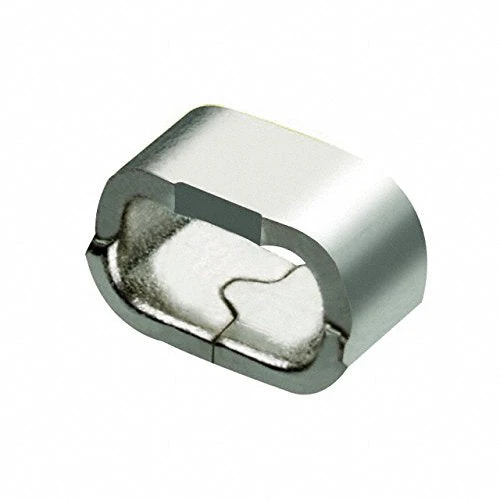

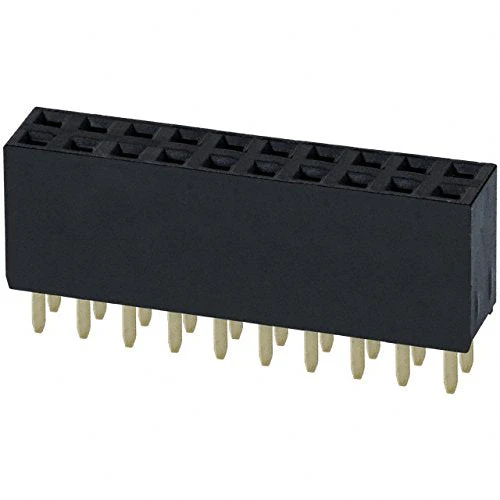

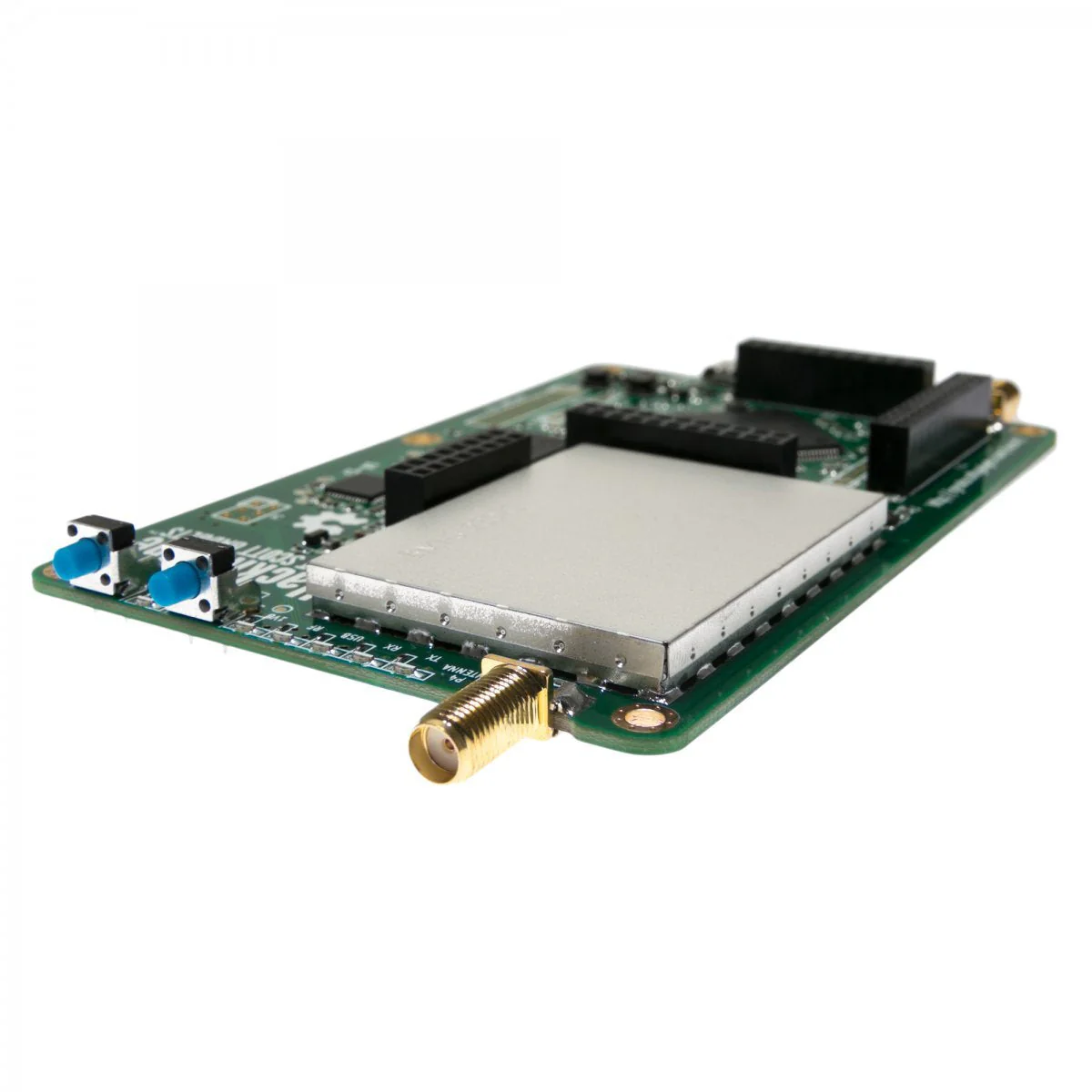

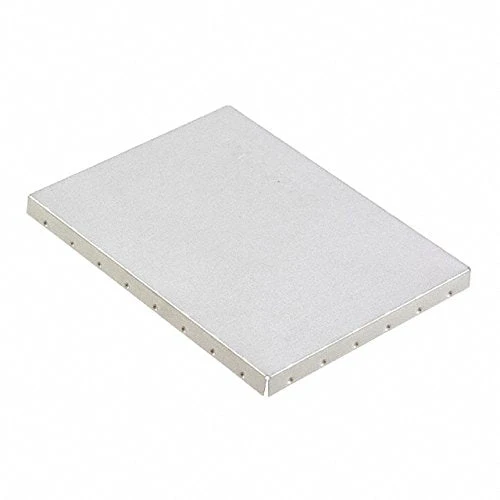

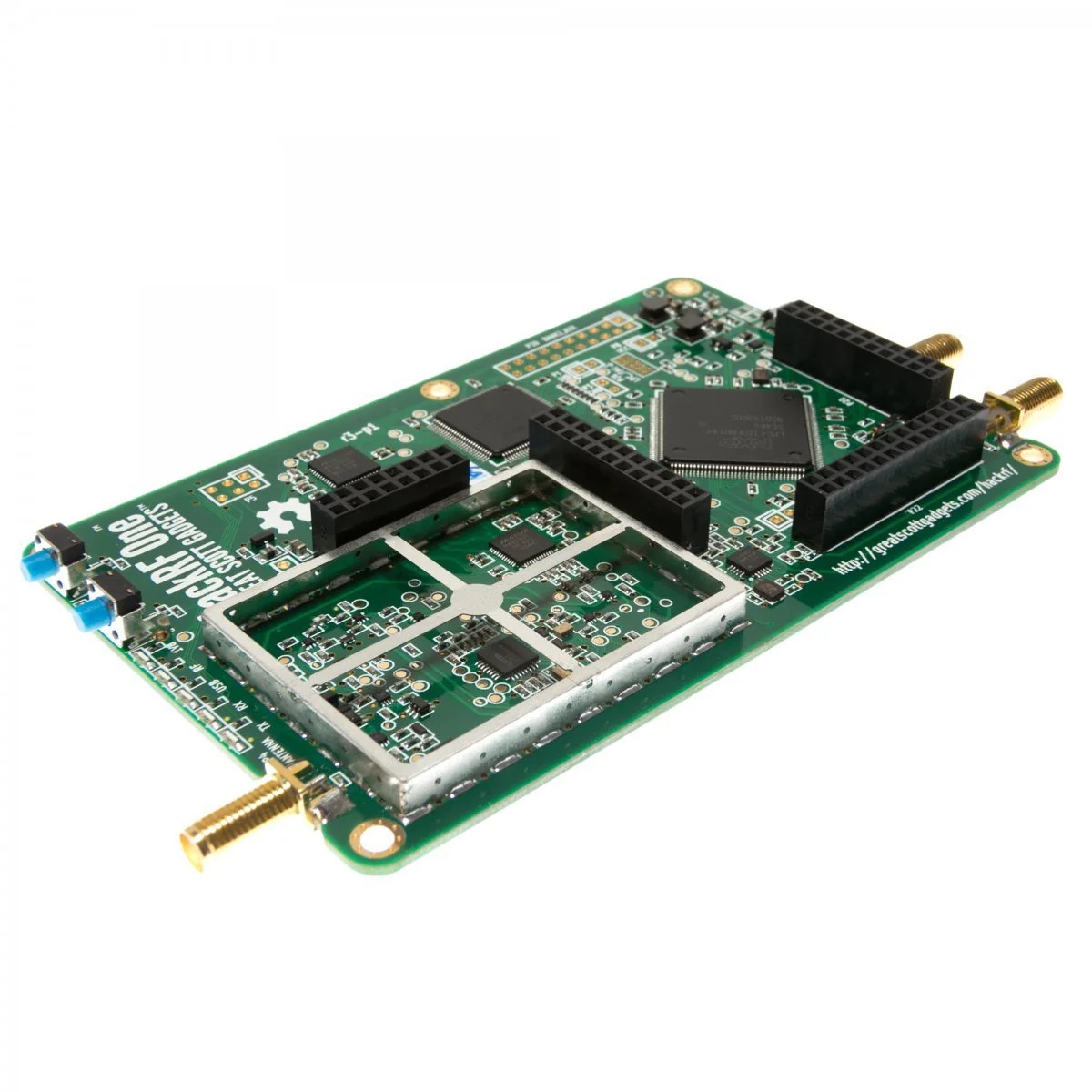

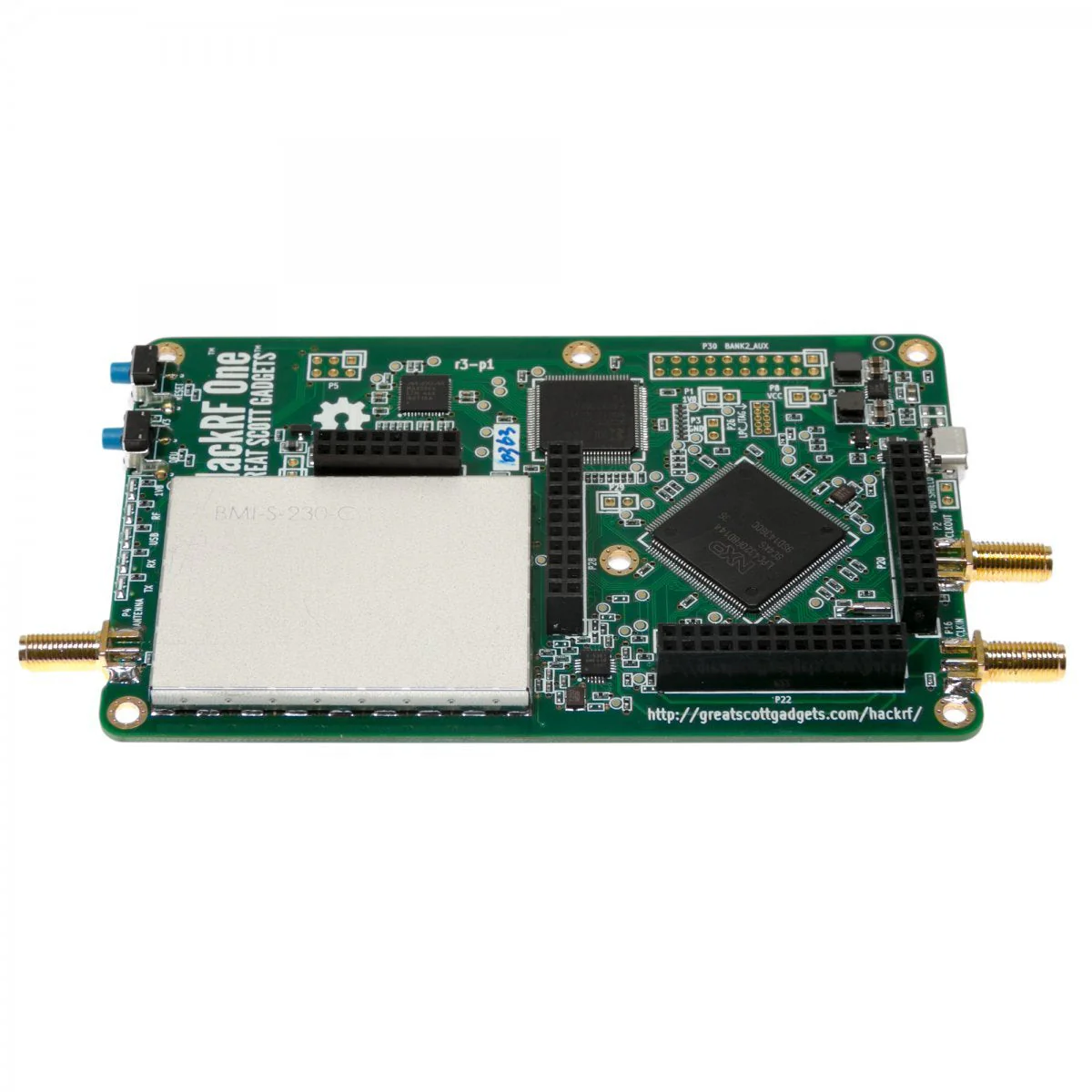

HackRF shown for installation demonstrational purposes only. HackRF is sold separately. This kit requires basic soldering skills. Though these components are 'easy' to solder we don't recommend learning on your brand new HackRF! The plastic enclosure included with HackRF slightly impedes the RF shield footprint area. This can be rectified either by purchasing our custom HackRF aluminum enclosure, or through minor modification of the plastic case, which can be done with a sharp hobby knife and a few minutes of time. This kit contains the unpopulated RF shield for HackRF to help reduce stray EMI. The shield frame needs to be soldered to the board, and the shield cover mounts atop the frame. Also included is the GND clip testpoint, J10, and a 20 position female header for P30 (BANK2_AUX).
Product Features
- Includes RF EMI shield and frame, PCB testpoint for J10 and a 20 position header for P30
- Kit will improve the sensitivity of your HackRF by shielding sensitive circuitry
- Kit will make it easier to extend your HackRF's capabilities and make it easier to do board-level work
- Surface mount soldering skills and equipment are required for installation
- HackRF shown for installation demonstrational purposes only. HackRF is sold separately
Original: $75.34
-65%$75.34
$26.37More Images
NooElec RF EMI Shield & Board-Level Kit for HackRF One
NooElec RF EMI Shield & Board-Level Kit for HackRF One
HackRF shown for installation demonstrational purposes only. HackRF is sold separately. This kit requires basic soldering skills. Though these components are 'easy' to solder we don't recommend learning on your brand new HackRF! The plastic enclosure included with HackRF slightly impedes the RF shield footprint area. This can be rectified either by purchasing our custom HackRF aluminum enclosure, or through minor modification of the plastic case, which can be done with a sharp hobby knife and a few minutes of time. This kit contains the unpopulated RF shield for HackRF to help reduce stray EMI. The shield frame needs to be soldered to the board, and the shield cover mounts atop the frame. Also included is the GND clip testpoint, J10, and a 20 position female header for P30 (BANK2_AUX).
Product Features
- Includes RF EMI shield and frame, PCB testpoint for J10 and a 20 position header for P30
- Kit will improve the sensitivity of your HackRF by shielding sensitive circuitry
- Kit will make it easier to extend your HackRF's capabilities and make it easier to do board-level work
- Surface mount soldering skills and equipment are required for installation
- HackRF shown for installation demonstrational purposes only. HackRF is sold separately
