Nikou Water Flow Monitor Sensor G1/2 Hall Sensor, 1 Piece G1/2 Inch Liquid Flow Meter with Copper Effect 1-30 L/min Flow Meter
Nikou Water Flow Monitor Sensor G1/2 Hall Sensor, 1 Piece G1/2 Inch Liquid Flow Meter with Copper Effect 1-30 L/min Flow Meter
Nikou Water Flow Monitor Sensor G1/2 Hall Sensor, 1 Piece G1/2 Inch Liquid Flow Meter with Copper Effect 1-30 L/min Flow Meter

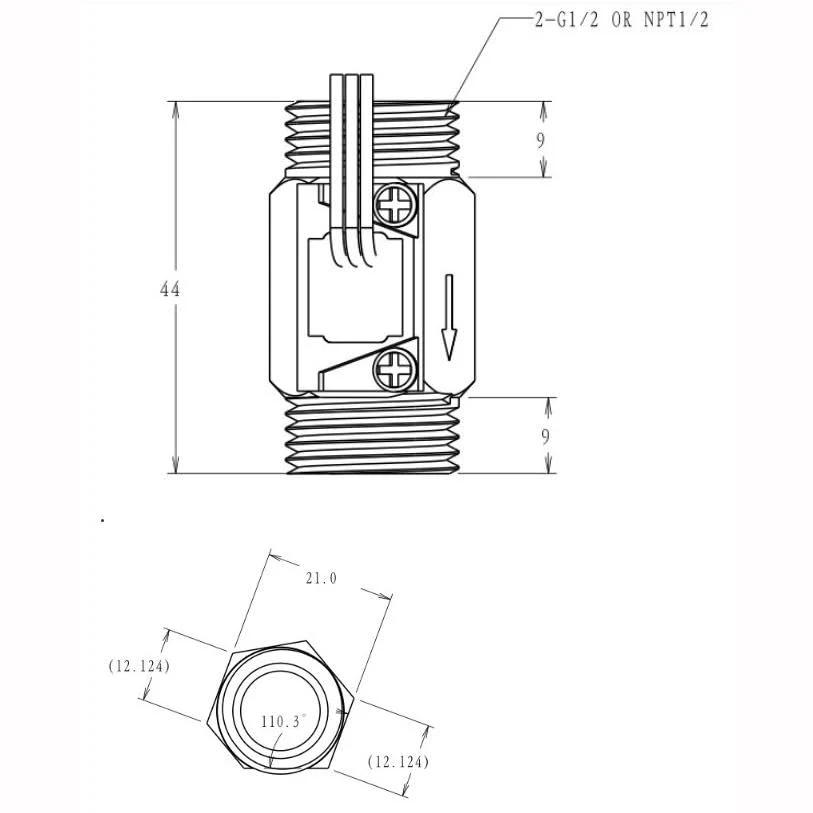

Specifications: Material: copper. Colour: as shown in the picture. Type: G1/2 inch (external thread diameter), DN20 mm. Water quality requirements: ≤60°C. Start flow range: 1.5 l/min. Flow Range:1-30L/min Maximum water pressure: 1.75 MPa. Working Voltage Range: DC4.5-18V Maximum current: 10mA Insulation resistance: >100 MΩ. Electrical strength: AC500V, 50Hz. Length of copper switch: approx. 60 mm / 2.4 inches. Wire length: approx. 35 cm / 13.8 inches. Approximate weight 95g Package includes: 1 x water flow switch.
Product Features
- High Quality Copper: Water flow Hall sensor made of high quality copper material, environmentally friendly, very sturdy and durable. Waterproof design to prevent water from entering.

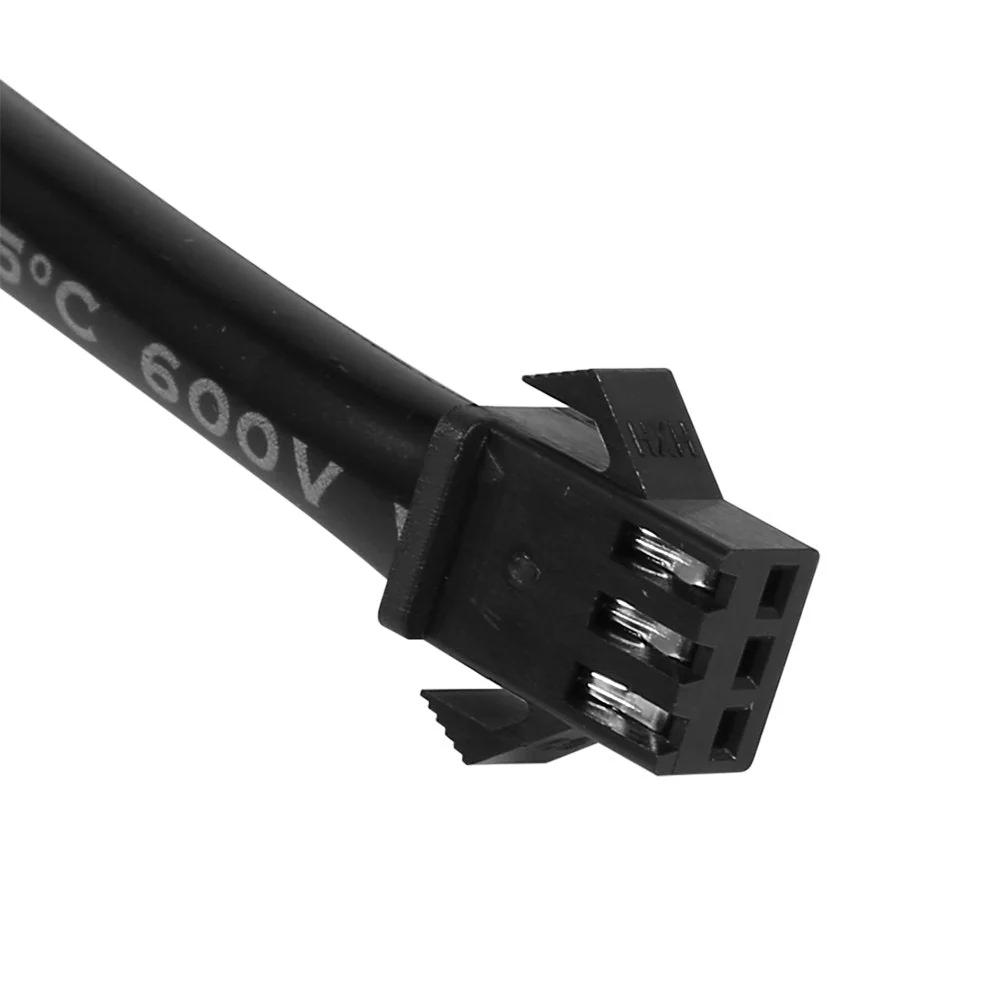

- Three-wire connection: water flow sensor type G1/2 inch, its maximum water pressure is 1.75 MPa, the flow range ranges from 1 l/min to 30 l/min. Three core connectors: red for positive pole, black for negative pole, yellow for pulse signal.
- With Hall Effect Sensor: There is a built-in Hall sensor that emits an electrical pulse at every turn. The Hall effect sensor is sealed from the water pipe and ensures that the sensor stays safe and dry.
- G1/2 water flow sensor: lightweight, reasonable size, stable performance, low water pressure start, easy to install, safe to use.
- Widely used: water flow switch can be perfectly used for water heaters, water dispensers, water purifiers, water machines, coffee machines, flow meters, water control devices, etc.
Original: $85.48
-65%$85.48
$29.92More Images
Nikou Water Flow Monitor Sensor G1/2 Hall Sensor, 1 Piece G1/2 Inch Liquid Flow Meter with Copper Effect 1-30 L/min Flow Meter
Nikou Water Flow Monitor Sensor G1/2 Hall Sensor, 1 Piece G1/2 Inch Liquid Flow Meter with Copper Effect 1-30 L/min Flow Meter
Specifications: Material: copper. Colour: as shown in the picture. Type: G1/2 inch (external thread diameter), DN20 mm. Water quality requirements: ≤60°C. Start flow range: 1.5 l/min. Flow Range:1-30L/min Maximum water pressure: 1.75 MPa. Working Voltage Range: DC4.5-18V Maximum current: 10mA Insulation resistance: >100 MΩ. Electrical strength: AC500V, 50Hz. Length of copper switch: approx. 60 mm / 2.4 inches. Wire length: approx. 35 cm / 13.8 inches. Approximate weight 95g Package includes: 1 x water flow switch.
Product Features
- High Quality Copper: Water flow Hall sensor made of high quality copper material, environmentally friendly, very sturdy and durable. Waterproof design to prevent water from entering.
- Three-wire connection: water flow sensor type G1/2 inch, its maximum water pressure is 1.75 MPa, the flow range ranges from 1 l/min to 30 l/min. Three core connectors: red for positive pole, black for negative pole, yellow for pulse signal.
- With Hall Effect Sensor: There is a built-in Hall sensor that emits an electrical pulse at every turn. The Hall effect sensor is sealed from the water pipe and ensures that the sensor stays safe and dry.
- G1/2 water flow sensor: lightweight, reasonable size, stable performance, low water pressure start, easy to install, safe to use.
- Widely used: water flow switch can be perfectly used for water heaters, water dispensers, water purifiers, water machines, coffee machines, flow meters, water control devices, etc.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Nikou Water Flow Monitor Sensor G1/2 Hall Sensor, 1 Piece G1/2 Inch Liquid Flow Meter with Copper Effect 1-30 L/min Flow Meter
Specifications: Material: copper. Colour: as shown in the picture. Type: G1/2 inch (external thread diameter), DN20 mm. Water quality requirements: ≤60°C. Start flow range: 1.5 l/min. Flow Range:1-30L/min Maximum water pressure: 1.75 MPa. Working Voltage Range: DC4.5-18V Maximum current: 10mA Insulation resistance: >100 MΩ. Electrical strength: AC500V, 50Hz. Length of copper switch: approx. 60 mm / 2.4 inches. Wire length: approx. 35 cm / 13.8 inches. Approximate weight 95g Package includes: 1 x water flow switch.
Product Features
- High Quality Copper: Water flow Hall sensor made of high quality copper material, environmentally friendly, very sturdy and durable. Waterproof design to prevent water from entering.
- Three-wire connection: water flow sensor type G1/2 inch, its maximum water pressure is 1.75 MPa, the flow range ranges from 1 l/min to 30 l/min. Three core connectors: red for positive pole, black for negative pole, yellow for pulse signal.
- With Hall Effect Sensor: There is a built-in Hall sensor that emits an electrical pulse at every turn. The Hall effect sensor is sealed from the water pipe and ensures that the sensor stays safe and dry.
- G1/2 water flow sensor: lightweight, reasonable size, stable performance, low water pressure start, easy to install, safe to use.
- Widely used: water flow switch can be perfectly used for water heaters, water dispensers, water purifiers, water machines, coffee machines, flow meters, water control devices, etc.
